TYAN Transport GX18 Quick start guide

Transport GX18/Trophy NR18
Service Engineer’s Manual
B5365N18P3
B5365GR18S2

PREFACE
Copyright
This publication, including all photographs, illustrations, and soft-
ware, is protected under international copyright laws, with all rights
reserved. Neither this manual, nor any material contained herein,
may be reproduced without written consent of the manufacturer-.
Copyright 2006
Version 1.0
Disclaimer
Information contained in this document is furnished by TYAN Com-
puter Corporation and has been reviewed for accuracy and reliability
prior to printing. TYAN assumes no liability whatsoever, and dis-
claims any express or implied warranty, relating to sale and/or use of
TYAN products including liability or warranties relating to fitness for
a particular purpose or merchantability. TYAN retains the right to
make changes to product descriptions and/or specifications at any
time, without notice. In no event will TYAN be held liable for any
direct or indirect, incidental or consequential damage, loss of use,
loss of data or other malady resulting from errors or inaccuracies of
information contained in this document.
Trademark Recognition
All registered and unregistered trademarks and company names
contained in this manual are property of their respective owners
including, but not limited to the following.
TYAN and Transport GX18/Trophy NR18 are trademarks of TYAN
Computer Corporation.
Intel, Sossaman, and combinations thereof are trademarks of Intel
Corporation.
Microsoft Windows is a trademark of Microsoft Corporation.

ii
Federal Communications Commission (FCC)
Notice for the USA Compliance Information State-
ment (Declaration of Conformity Procedure) DoC FCC
Part 15: This device complies with part 15 of the FCC
Rules
Operation is subject to the following conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received including inter-
ference that may cause undesired operation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and the
receiver.
– Plug the equipment into an outlet on a circuit different from
that of the receiver.
Consult the dealer on an experienced radio/television technician for
help.
Notice for Canada
This apparatus complies with the Class B limits for radio interference
as specified in the Canadian Department of Communications Radio
Interference Regulations. (Cet appareil est conforme aux norms de
Classe B d’interference radio tel que specifie par le Ministere Cana-
dien des Communications dans les reglements d’ineteference
radio.)
Notice for Europe (CE Mark) This product is in conformity
with the Council Directive 89/336/EEC, 92/31/EEC
(EMC).
CAUTION: Lithium battery included with this board. Do not puncture,
mutilate, or dispose of battery in fire. Danger of explosion if battery
is incorrectly replaced. Replace only with the same or equivalent
type recommended by manufacturer. Dispose of used battery
according to manufacturer instructions and in accordance with your
local regulations.

iii
About this Manual
This manual provides you with instructions on installing your
Transport GX18/Trophy NR18. This manual is intended for experi-
enced users and integrators with hardware knowledge of personal
computers.
This manual consists of the following parts
Chapter 1: Provides an Introduction to the
Transport GX18/Trophy NR18 B5365 barebone,
packing list, describes the external components,
gives a table of key components, and provides
block diagrams of the system.
Chapter 2: Covers procedures on installing the CPU, mem-
ory module, PCI-E card, slim CD-ROM and hard
drive.
Chapter 3: Covers removal and replacement procedures for
pre-installed components
For information on the mainboard, please refer to the attached main-
board user’s manual. You can find the detailed description about
jumper and BIOS settings from the motherboard manual.

iv
SAFETY INFORMATION
Before installing and using the Transport GX18/Trophy NR18, take
note of the following precautions:
–Read all instructions carefully.
–Do not place the unit on an unstable surface, cart, or stand.
–Do not block the slots and opening on the unit, which are pro-
vided for ventilation.
–Only use the power source indicated on the marking label. If
you are not sure, contact the Power Company.
–The unit uses a three-wire ground cable, which is equipped
with a third pin to ground the unit and prevent electric shock.
Do not defeat the purpose of this pin. If your outlet does not
support this kind of plug, contact your electrician to replace
your obsolete outlet.
–Do not place anything on the power cord. Place the power
cord where it will not be in the way of foot traffic.
–Follow all warnings and cautions in this manual and on the
unit case.
–Do not push objects in the ventilation slots as they may touch
high voltage components and result in shock and damage to
the components.
–When replacing parts, ensure that you use parts specified by
the manufacturer.
–When service or repairs have been done, perform routine
safety checks to verify that the system is operating correctly.
–Avoid using the system near water, in direct sunlight, or near
a heating device.
–Cover the unit when not in use.

v
Table of Contents
Chapter 1:Overview
1.1 About the Transport GX18/Trophy NR18 B5365 . . . . . . . . . . . . .1
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

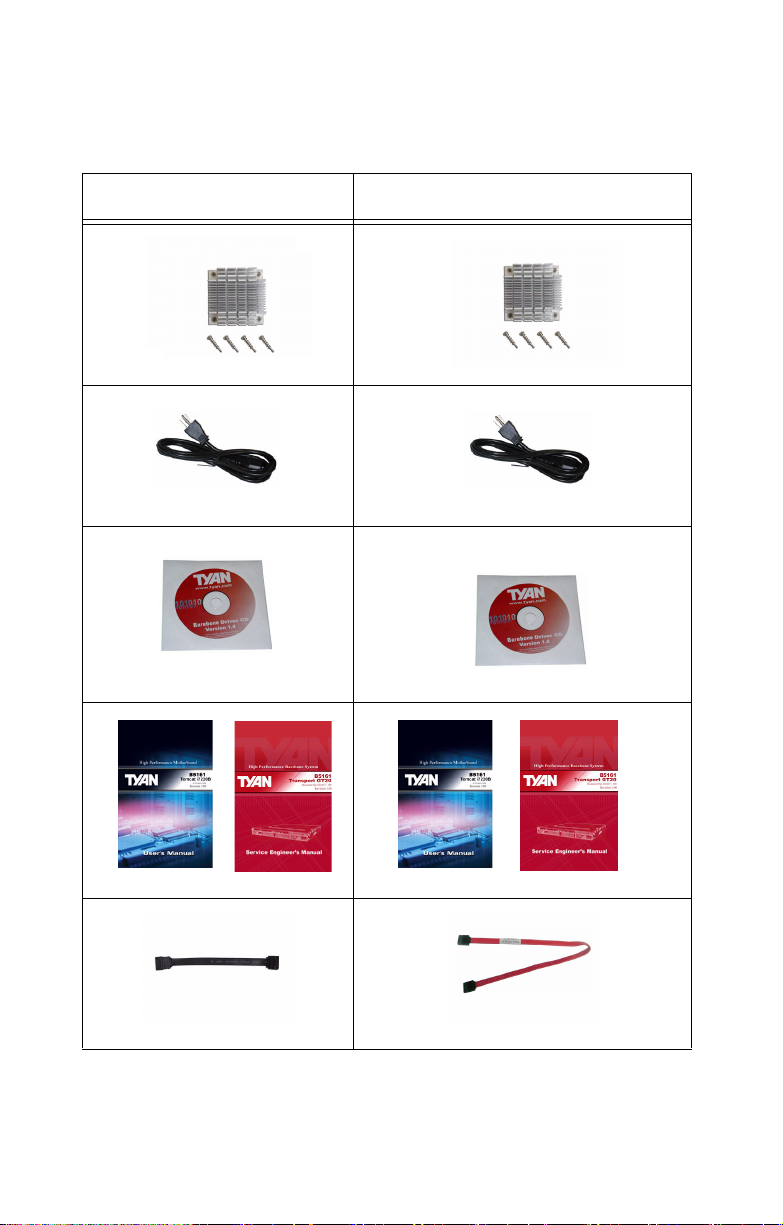

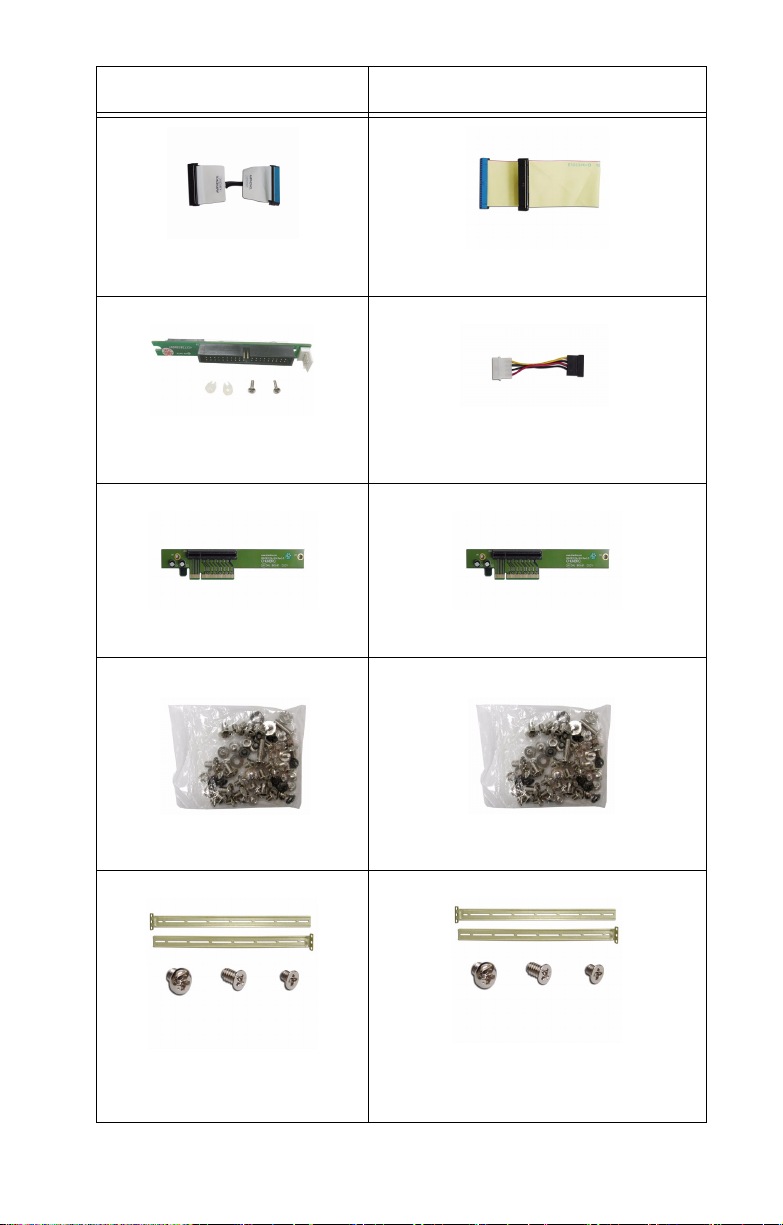

1.2.1 Box Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 About the Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.3.1 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

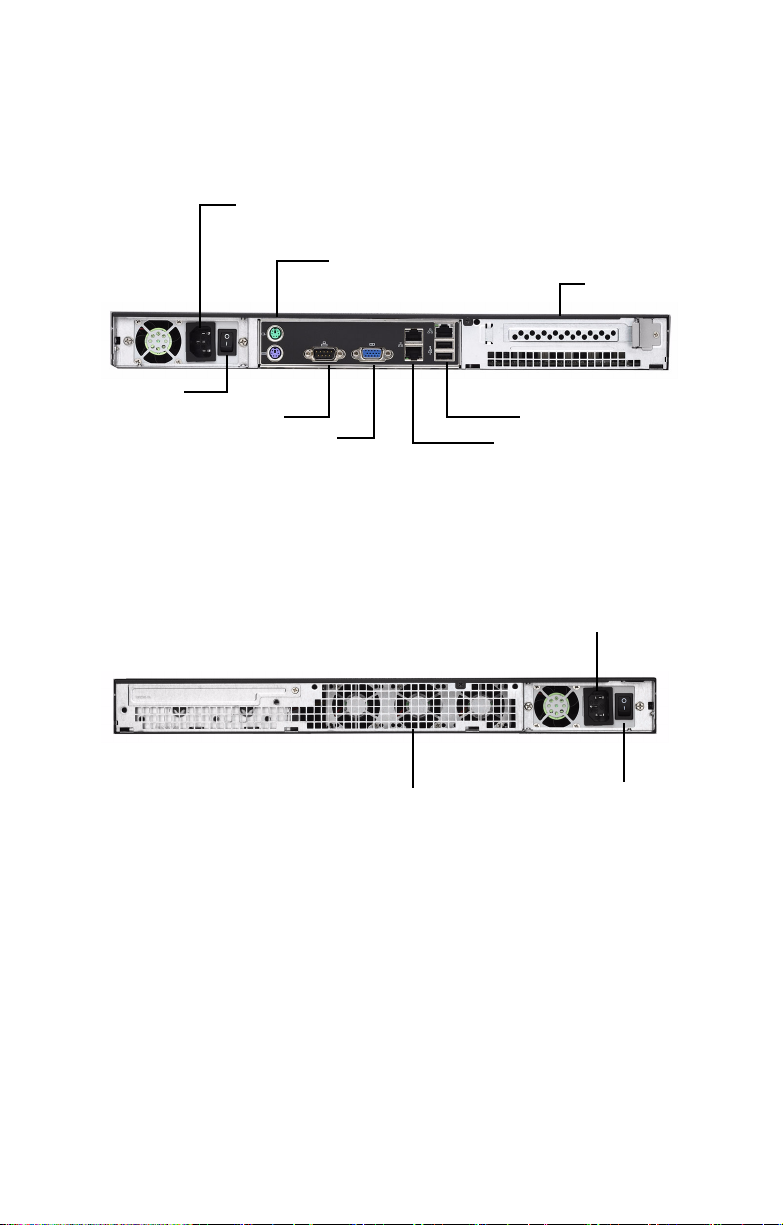

1.3.2 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

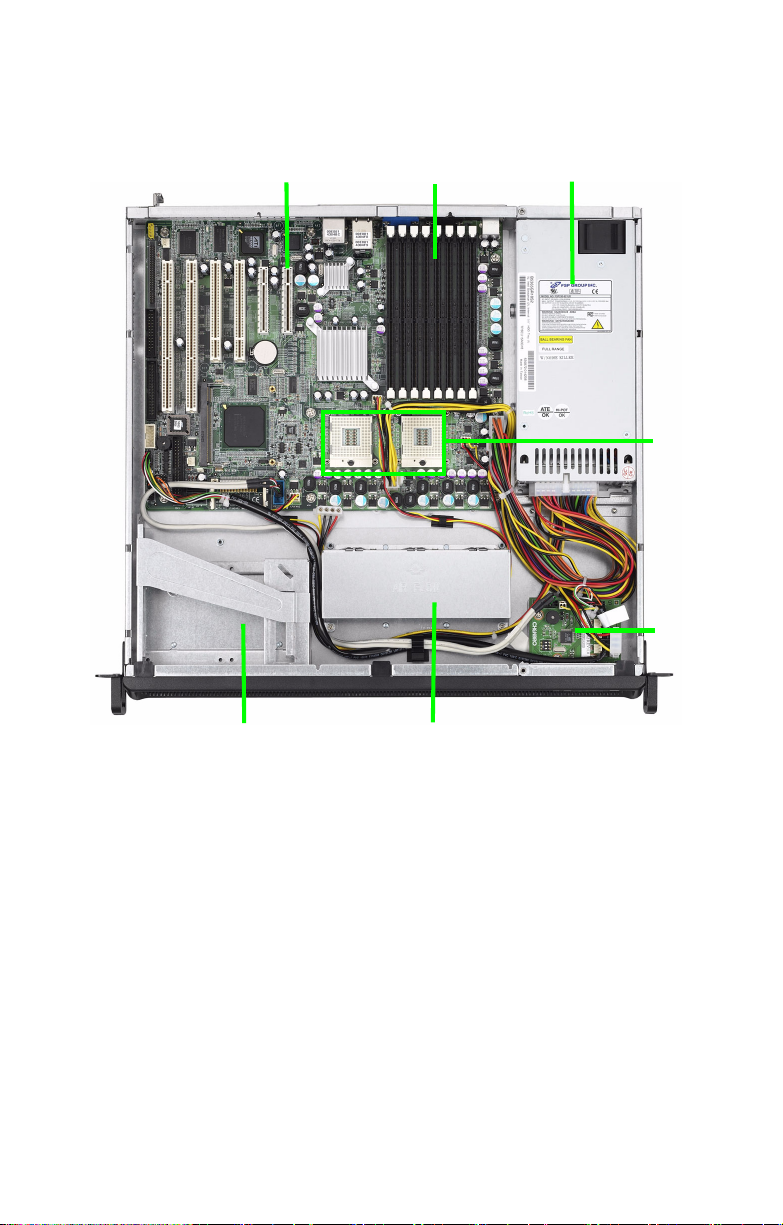

1.3.3 Internal View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.3.4 Mainboard Block Diagram . . . . . . . . . . . . . . . . . . . . . . . .10

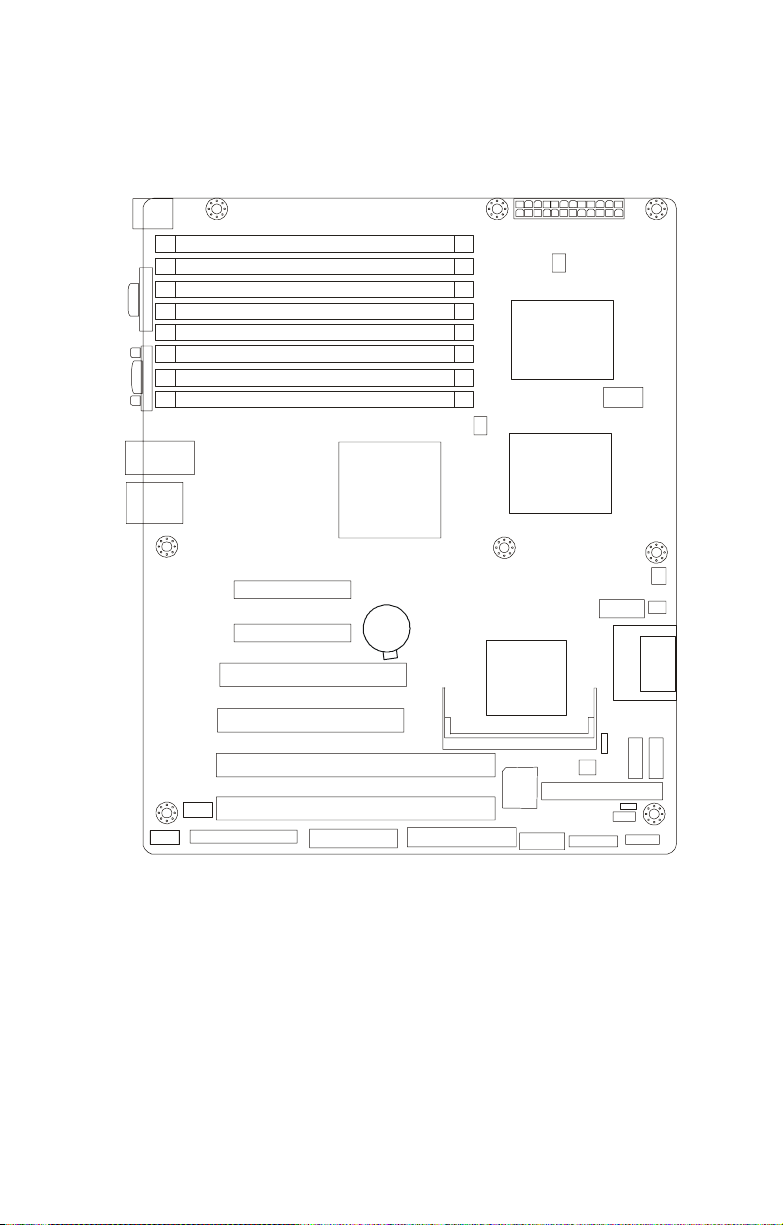

1.3.5 Mainboard Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Chapter 2:Setting Up
2.0.1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.0.2 Work Area. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.0.3 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.0.4 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
2.1 Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.1.1 Installing the Server in a Rack. . . . . . . . . . . . . . . . . . . . . . 15
2.2 Installing Motherboard Components. . . . . . . . . . . . . . . . . . . . . . . 17
2.2.1 Removing the Chassis Cover. . . . . . . . . . . . . . . . . . . . . . . 17
2.2.2 Installing the CPU, Heatsink and Air Duct . . . . . . . . . . . .18
2.2.3 Installing the Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
2.2.4 Installing a PCI-E Card . . . . . . . . . . . . . . . . . . . . . . . . . . .22
2.3 Installing the 2.5” Hard Drive & Slim CD-ROM . . . . . . . . . . . . .23
2.4 Installing the 3.5” HDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Chapter 3:Replacing Pre-Installed Components
3.1 Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.1.1 Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.1.2 Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3.1.3 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
3.2 Removing the Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
3.3 Replacing Mainboard Components. . . . . . . . . . . . . . . . . . . . . . . .32
3.3.1 Replacing the Motherboard . . . . . . . . . . . . . . . . . . . . . . . . . 32
3.3.2 Replacing the LED Control Board. . . . . . . . . . . . . . . . . . . . 33
3.3.3 Replacing the Cooling Fan. . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.3.4 Replacing the Power Supply . . . . . . . . . . . . . . . . . . . . . . . .35
Technical Support

vi

Chapter 1: Overview 1
Chapter 1: Overview
1.1 About the Transport GX18/Trophy NR18 B5365
Congratulations on your purchase of the TYAN TransportTM
GX18/TrophyTM NR18 (B5365), a highly-optimized rack-
mountable barebone system. The TransportTM GX18/Tro-
phyTM NR18 (B5365) offers the latest processor server sys-
tem, providing a rich feature set and incredible performance.
Leveraging advanced technology from Intel®, the Trans-
portTM GX18/TrophyTM NR18 (B5365) server system is
capable of offering scalable 32-bit computing, high-bandwidth
memory design, and a lightning-fast PCI-Express bus imple-
mentation. The TransportTM GX18/TrophyTM NR18 (B5365)
not only empowers your company in today’s demanding IT
environment but also offers a smooth path for future applica-
tion usage.
TYAN is also proud to deliver the TransportTM GX18/Tro-
phyTM NR18 (B5365)in SATAflavor while supporting two (2)
2.5” hard drives plus a (1) slim CD-ROM or one (1) 3.5” hard
drive. The TransportTM GX18/TrophyTM NR18 (B5365) uses
the latest tooling-made chassis featuring a robust structure,
tool-less and modularized design, and a solid mechanical
enclosure. All of this provides the TransportTM GX18/Tro-
phyTM NR18 (B5365) the power and flexibility to meet the
needs of nearly any server application.

2 Chapter 1: Overview
1.2 Features
Enclosure
• Industry 1U rack-mount chassis
• Dimension: W 17.13” x D 15.47” x H
1.73” (W 435mm x D393mm x H
43.5mm)
• HDD Tray
Processors
• Intel 479-pin socket x 2, support
Dual Intel Sossaman (dual core)
2.0GHz CPU or higher
• Supports FSB 667MHz
Chipset
• Intel 7520 Memory Controller Hub
• Intel 6300ESB Controller Hub
• Intel 82551QM FE LAN Controller
• Intel 82571EB Gigabit LAN Control-
lers
Memory
• Eight 240-pin DDR2 sockets
• Supports 256MB~2GB DIMM up to
16GB memory capacity
• Dual channel memory bus (must be
populated in pairs)
• Supports ECC Registered DDR2
400 memory
Graphics
• ATI ES-1000 graphics controller
with up to 16MB memory capacity
Expansion Slot
• PCI-E 8X Slot x1, supports external
output PCI-E card with 1-to-1 riser
card
Storage
• Supports 50-pin Compact Flash
Type II x 1
• 40-pin IDE connector x1 supports
3.5” IDE HDD
• SATA1 connector x 2
Front/Rear I/O Ports
• Serial port with D-Sub 9-pin connec-
tor x 1
• D-Sub 15-pin VGA port x1
• Two USB 2.0 ports with a dual-
stacked USB connector + RJ-45 x1
• RJ-45 LAN connector includes
Transformer & LED x2 (Dual
Stacked)
• Dual PS2 ports for keyboard &
mouse
• Slim type CD-ROM x1 (OPTION:
GX18 only)
LED Daughter Board Definitions
System Management
• System fan speed control and
tachometer monitoring
• Monitoring voltages for CPU, mem-
ory & power supply
• Monitoring temperature for CPU &
environment
Function Remark
Trophy NR18
(B5365N18P3)
3.5”
HDD x1
SATA or
IDE
Transport GX18
(B5365GR18S2)
2.5”
HDD x2
CD-
ROM x1
SATA
only
Slim
Type
Function Remark
LED Power on x1 Blue
HDD activity x1 Yellow
Alarm x1 Red
LAN activity x2 Green
Button Power on x1
Reset x1
Alarm Reset x1
IO USB 2.0 x2 Dual Stack

Chapter 1: Overview 3
BIOS
• Phoenix BIOS with 8Mbit Flash
ROM
• Support ACPI 2.0
• Power-on mode control for AC
power loss recovery
• WOL and PXE supported (by Intel
82551QM only)
EMC & Safety
• FCC, CE Class B
•EMC
Accessories
• 1-to-1 PCI-E 8X Riser Card x1
• A1 CPU Heatsink x2
•PowerCordx1
• Extending Mounting Plate
• Cable kit:
System Cooling
• Passive AI CPU heatsink x2
• 4028 (9,200rpm) system fan x3 +
CPU fan duct x1
Power Supply
• 250W single power supply with PFC
• 90V~264V AC input
Environment Temperature
• Operating temperature 5oC~35oC
• Non-operating temperature -40oC ~
70oC
Acoustic
• Full-loading: under 45dB (measure
point: 100cm away from IO)
Trophy NR18 Transport GX18
40-pin IDE cable x1
(for IDE HDD)
SATA cable x1
40-pin IDE cable x1
(for CD-ROM)
SATA cable x2
B4P to SATA PWR
adapter cable
B4P to SATA PWR
x2 + S4P x1
adapter cable

4 Chapter 1: Overview
Power Cord (US type)
1.2.1 Box Contents
The box includes the following main units.
Transport GX18 Trophy NR18
Heatsink x2 Heatsink x2
Power Cord (US type)
1 x Driver CD 1 x Driver CD
S5365/B5365 User’s Manual S5365/B5365 User’s Manual
SATA Data Cable SATA Data Cable

Chapter 1: Overview 5
Slim-type CD-ROM Cable IDE Cable for 3.5” HDD
Slim CD-ROM IDE Board
& Screws
SATA Power Cable
PCI-E 8X Riser Card PCI-E 8X Riser Card
Screw Kit for 2.5” HDD Screw Kit for 3.5” HDD
Extending Mounting Plate &
Screw Kit
Extending Mounting Plate &
Screw Kit
Transport GX18 Trophy NR18

6 Chapter 1: Overview
1.3 About the Product
1.3.1 Front View
B5365GR18S2 (Transport GX18)
B5365N18P3 (Trophy NR18)
CD-ROM Drive
Reset Button
USB x 2
Alarm Mute Button
HDD Activity LED
LAN1 LED
LAN2 LED
Power on Swtich
Fan Failure LED
Power LED
PS/2 MS & KB
Serial Port
VGA Port
LAN Port x2
LAN Port + USB x 2
PCI-E Slot
Reset Button
USB x 2
Alarm Mute Button
HDD Activity LED
LAN1 LED
LAN2 LED
Power on Swtich
Fan Failure LED
Power LED

Chapter 1: Overview 7
1.3.2 Rear View
B5365GR18S2 (Transport GX18)
B5365N18P3 (Trophy NR18)
Power Supply Socket
PS/2 MS/KB
Serial Port
VGA Port
PCI-E Slot
LAN Port + USB x 2
LAN Port x 2
Power
Switch
FAN x 3
Power Supply Socket
Power Switch

8 Chapter 1: Overview
1.3.3 Internal View
6
1
Trophy NR18
8
1. EPS 12V Power Supply
2. System Fans
3. 3.5” HDD Bay
4. CPU Sockets
5. PCI-E 8X Slot
6. PCI-E 8X Card Holder
7. Memory Slots
8. Front Panel LED Board
23
5
4
7

Chapter 1: Overview 9
Transport GX18
6
7
8
1. PCI-E 8X Slot
2. Memory Slots
3. EPS 12V Power Supply
4. CPU Socket
5. Front Panel LED Board
6. System Fans
7. 2.5” HDD + Slim CD-ROM
bay
8. PCI-E 8X Card Holder
123
4
5

10 Chapter 1: Overview

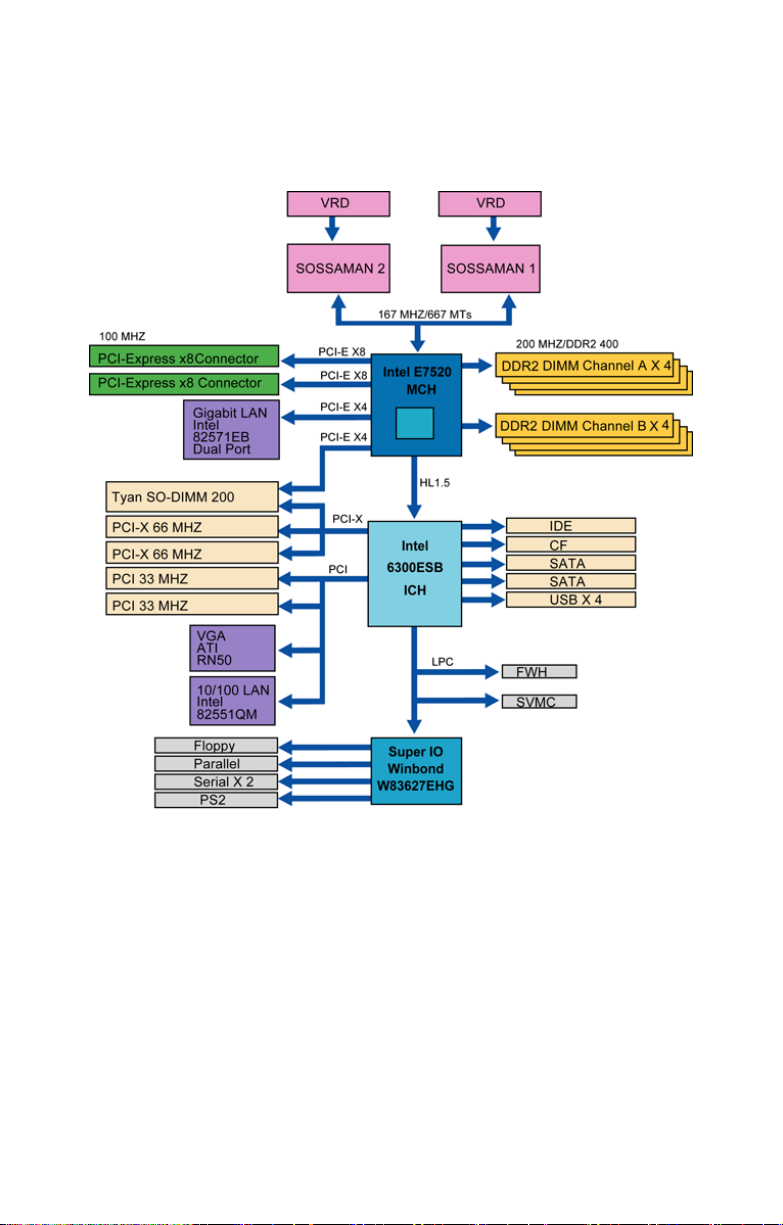

1.3.4 Mainboard Block Diagram

Chapter 1: Overview 11
1.3.5 Motherboard Layout
DDRII A1
DDRII B1
DDRII B2
DDRII A3
DDRII B3
DDRII A4
DDRII B4
CPU1
CPU2
MCH
E7520
CPU2
ICH
6300ESB
J2
J1
J4
PW1
PW2
PCIE
PCIE
PCI 33
PCI 33
PCI X
PCI X
J19
LPC1
J15
FDD1J3
J23
J21
J18
IDE1
BIOS
J13
CF1
J20
J22
J16
J14
J6
LAN1
J5
LPT1
J17
CCMOS1
V
GA1
DDRII A2
J24
J25

12 Chapter 1: Overview
Jumpers & Connectors
Jumper
/Connector Function
J1 Serial Port
J2 Keyboard & Mouse Connectors
J3 IPMB Connector
J4 LAN Connectors
J5/J14/J18 Chassis Fan Connectors
J6 SMDC Connector
J13 Tyan TARO Connector
J15 COM2 Connector
J16/J22 CPU Fan Connector
J17 Front Panel 1 Connector
(refer to S5365 user’s manual)
J19 Front Panel 2 Connector
(refer to S5365 user’s manual)
J20 USB 2.0 Connector
(refer to S5365 user’s manual)
J21/J23 SATA1/SATA 2 Connector
J24 LCM Pin Header
J25 IDE1 20th Pin 5V Enable/Disable Jumper (for DOM)
CCMOS1 Clear CMOS Jumper
CF1 CF Card Connector
