TYAN S7045 User manual

S7045
Version 1.0
Copyright
Copyright © MiTAC Computer Corporation, 2012. All rights reserved. No part of
this manual may be reproduced or translated without prior written consent from
MiTAC Computer Corp.
Trademark
All registered and unregistered trademarks and company names contained in
this manual are property of their respective owners including, but not limited to
the following.
TYAN®is a trademark of MiTAC Computer Corporation
Intel®is a trademark of Intel®Corporation.
AMI®, AMIBIOS® and combinations thereof are trademarks of AMI Technologies.
Microsoft®, Windows®are trademarks of Microsoft Corporation.
Aspeed®is a trademark of Aspeed Technology Inc.
Notice
Information contained in this document is furnished by MiTAC Computer
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN®products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications
at any time, without notice. In no event will MiTAC be held liable for any direct
or indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

http://www.TYAN.com
2
About this guide
This user guide contains the information you need when installing and configuring
the motherboard.
How this guide is organized
This guide contains the following parts:
Chapter1: Instruction
This chapter describes the features of the motherboard and the new technology it
supports.
Chapter2: Board Installation
This chapter lists the hardware setup procedures that you need to abide by when
installing system components. It includes description of the jumpers and connectors
on the motherboard.
Chapter3: BIOS Setup
This chapter tells how to change system settings through the BIOS setup menu.
Detailed descriptions of the BIOS parameters are also provided.
Chapter4: Diagnostics
This chapter introduces some BIOS codes and technical terms to provide better
service for the customers.
Appendix: Fan and Temp Sensors
This section aims to help readers identify the locations of some specific Fan and
Temp Sensors on the motherboard. A table of BIOS Temp sensor name
explanation is also included for readers’ reference.

http://www.TYAN.com
3
Contents
Before you begin…................................................................................................ 4
Chapter 1: Instruction .......................................................................... 5
1.1 - Congratulations ............................................................................................. 5
1.2 - Hardware Specifications................................................................................ 5
1.3 - Software Specifications ............................................................................... 16
1.4 - AST1300/2300 User Guide ......................................................................... 16
Chapter 2: Board Installation ............................................................17

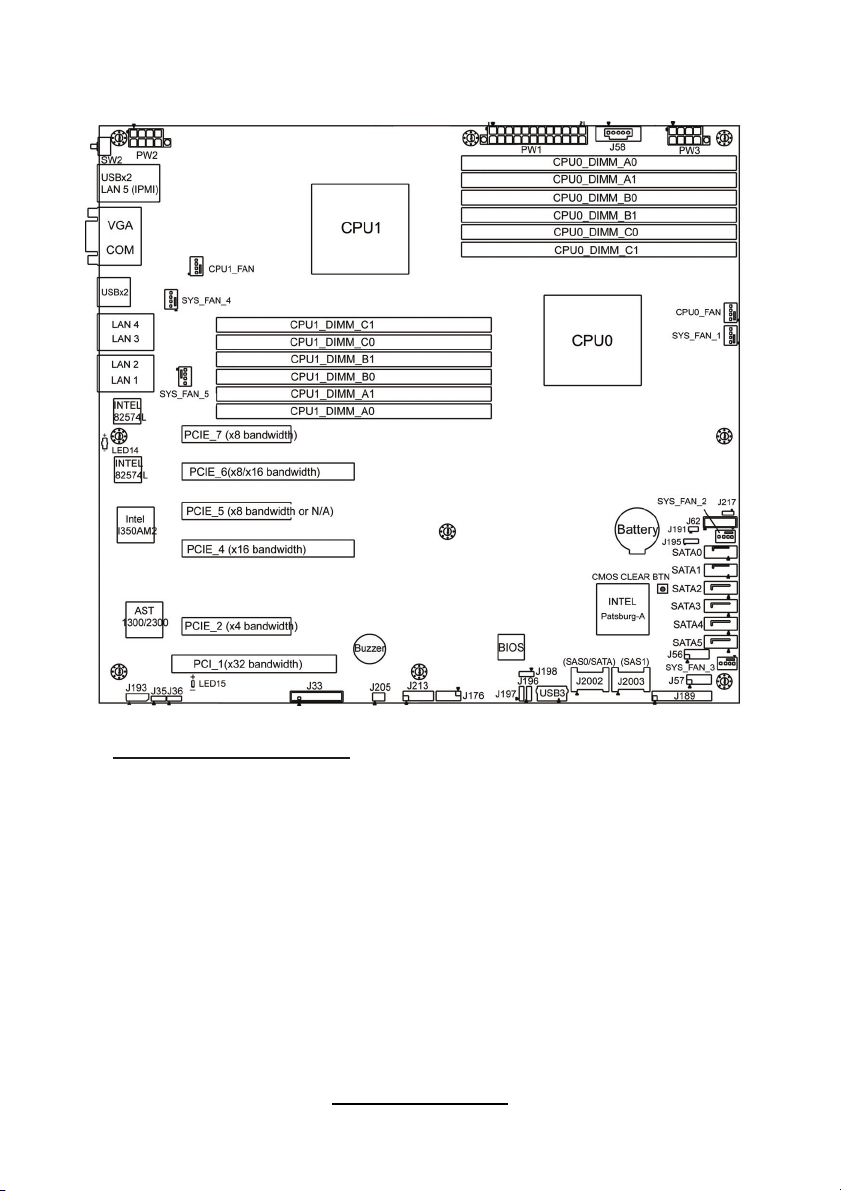

2.1 - Board Image................................................................................................ 18
2.2 - Block Diagram ............................................................................................. 19
2.3 - Board Parts, Jumpers and Connectors........................................................ 20
2.4 - Installing the Processor ............................................................................... 34
2.5 - Installing the Heatsink ................................................................................. 38
2.6 - Thermal Interface Material........................................................................... 39
2.7 - Tips on Installing Motherboard in Chassis................................................... 40
2.8 - Installing the Memory .................................................................................. 42
2.9 - Attaching Drive Cables ................................................................................ 46
2.10 - Installing Add-In Cards .............................................................................. 47
2.11 - Connecting External Devices .................................................................... 48
2.12 - Installing the Power Supply ....................................................................... 49
2.13 - Finishing Up .............................................................................................. 50
Chapter 3: BIOS Setup.......................................................................51
3.1 - About the BIOS............................................................................................ 51
3.2 - Setup Basics ............................................................................................... 51
3.3 - Getting Help ................................................................................................ 52
3.4 - In Case of Problems .................................................................................... 52
3.5 - BIOS Main Menu ......................................................................................... 53
3.6 - BIOS Advanced Menu ................................................................................. 55
3.7 - Chipset Menu .............................................................................................. 79
3.8 - Server Management .................................................................................... 96
3.9 - Boot Configuration..................................................................................... 100
3.10 - Security Menu.......................................................................................... 101
3.11 - Save & Exit Menu .................................................................................... 102
Chapter 4: Diagnostics ....................................................................105
4.1 - Flash Utility................................................................................................ 105
4.2 - AMIBIOS Post Code (Aptio) ...................................................................... 106
Appendix: Fan and Temp Sensors .................................................113
Glossary............................................................................................ 117
Technical Support............................................................................ 123

http://www.TYAN.com
4
Before you begin…
Check the box contents!
The retail motherboard package should contain the following:
Item Name P/N Number Description
S7045AG2NR:
5411T4440008
S7045WGM4NR:
5411T4440009
S7045WGM2NR:
5411T4440007
1 x S7045
Motherboard
S7045GM4NR:
5411T4440006
N/A
6 x SATA Signal
Cable 422736300010 TF-CABLE ASSY; SBU, SATA- 500MM, S2865
1 x Rear Audio
Bracket Cable 422774700001
TF-CABLE ASSY;SBU,REAR
AUDIO X 3 TO IDC SOCKET,
12POS,L=240MM,S5376
(For S7045AG2NR only)
1 x I/O shield 341T44000001 TF-I/O SHIELDING; SBU, SUS,
50012-6AP, S7045
1 x S7045 Users
manual 5615T4440001 TF-MANUAL; SBU, V1.0,
USER'S MANUAL, S7045
1 x S7045 Quick
Reference
Guide
5618T4440001 TF-SINGLE PAGE; SBU, V1.0,
QUICK REFERENCE, S7045
1x TYAN®Driver
CD 5651T4390001
TF-SOFTWARE; SBU, TYAN
Driver CD for Intel C600 series
Platform V1.1, S7056
IMPORTANT NOTE:
Sales samples may not come with any of the accessories listed above.
If you have ordered a sales sample and you are missing any of the above items,
please contact your sales representative to help order accessories.

http://www.TYAN.com
5
Chapter 1: Instruction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. Based on the Intel®
Patsburgh-A (PCH), ASPEED AST1300/2300 chipset, The TYAN®S7045 series
motherboard is designed to support dual Intel®Xeon E5-2400 series, socket B2
SKT1356 processor.
The S7045 has (6+6) 240-pin DIMM slots that can support up to 384GB
RDIMM/384GB LRDIMM/96GB UDIMM DDR3 memory. The memory interface
supports speed up to 800/1066/1333/1600 MHz. The TYAN®S7045 not only
empowers you in today’s demanding IT environment but also offers a scalable 32
and 64-bit computing environment of a smooth path for future application
upgradeability. All of these rich feature sets provide the S7045 with the power and
flexibility to meet demanding requirements for today’s IT environments.
Remember to visit the TYAN® website at http://www.tyan.com. There you can
find all the information on all TYAN®products as well as all the supporting
documentation, FAQs, Drivers and BIOS upgrades.
1.2 - Hardware Specifications
TYAN S7045 (S7045GM4NR)
Supported CPU
Series Intel Xeon Processor E5-2400 Series
Socket Type / Q'ty LGA1356 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602
Supported DIMM
Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR3/DDR3L 800/1066/1333/1600 RDIMM
1066/1333 UDIMM/UDIMML/LRDIMM
Capacity 384GB RDIMM / 384GB LRDIMM/ 96GB UDIMM
Memory channel 3 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V

http://www.TYAN.com
6
PCI-E
(1) PCI-E x8 slot (x4 link, slot #2) / (1) PCI-E x16
slot (x16 link, slot #4) / (1) PCI-E x8 slot (x8 link,
slot #5) / (1) PCI-E x16 slot (x8 link, slot #6) / (1)
PCI-E x8 slot (x8 link, slot #7)
Expansion Slots
PCI (1) PCI 32-bit slot
Recommended
Barebone /
Chassis
Mechanical
Compliant KFT48
Port Q'ty (4) GbE + (1) Dedicated for IPMI
Controller Intel 82574L / Intel I350AM2
LAN
PHY RTL8201EL
Connector (10) SATA
Controller Intel C602
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
+ (4) 3.0 Gb/s (mini-SAS connector)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
Chipset Winbond WPCT200 (Optional)
TPM Version TPM v1.2
USB (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A
onboard)
COM (1) DB-9 COM Connector
VGA (1) D-Sub 15-pin VGA port
RJ-45 (4) GbE + (1) Dedicated for IPMI
Power SSI 24-pin + 8-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (4) SATA-II , (2) SATA-III connectors, and (1) Mini-
SAS (4-in-1) connector
Voltage
Monitors voltage for CPU, memory, chipset &
power supply
Fan Total (7) 4-pin headers
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface

http://www.TYAN.com
7
Brand / ROM size AMI / 8MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types
Form Factor SSI EEB
Physical
Dimension Board Dimension 12"x13" (304.8*330.2mm)
Operating
System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class B
Regulation
CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6
Compliant Yes
Motherboard (1) S7045 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
TYAN S7045 (S7045WGM2NR)
Supported CPU
Series Intel Xeon Processor E5-2400 Series
Socket Type / Q'ty LGA1356 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602 with upgrade ROM module

http://www.TYAN.com
8
Supported DIMM
Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR3/DDR3L 800/1066/1333/1600 RDIMM
1066/1333 UDIMM/UDIMML/LRDIMM
Capacity 384GB RDIMM / 384GB LRDIMM/ 96GB UDIMM
Memory channel 3 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(1) PCI-E x8 slot (x4 link, slot #2) / (1) PCI-E x16
slot (x16 link, slot #4) / (1) PCI-E x8 slot (x8 link,
slot #5) / (1) PCI-E x16 slot (x8 link, slot #6) / (1)
PCI-E x8 slot (x8 link, slot #7)
Expansion Slots
PCI (1) PCI 32-bit slot (slot #1)
Recommended
Barebone /
Chassis
Mechanical
Compliant KFT48
Port Q'ty (2) GbE + (1) Dedicated for IPMI
Controller Intel 82574L
LAN
PHY RTL8201EL.
Connector (2) Mini-SAS connectors (totally support 8 ports)
Controller Intel C602 with TRK-5 upgrade ROM module
Speed 3.0 Gb/s (mini-SAS connector)
SAS
RAID RAID 0/1/10 (Intel Integrated RAID upgrade ROM
5)
Connector (6) SATA
Controller Intel C602
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
Chipset Winbond WPCT200 (Optional)
TPM Version TPM v1.2
USB (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A
onboard)
COM (1) DB-9 COM Connector
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (2) GbE + (1) Dedicated for IPMI
Power SSI 24-pin + 8-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (4) SATA-II and (2) SATA-III connectors

http://www.TYAN.com
9
Voltage Monitors voltage for CPU, memory, chipset &
power supply
Fan Total (7) 4-pin headers
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types
Form Factor SSI EEB
Physical
Dimension Board Dimension 12"x13" (304.8*330.2mm)
Operating
System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6
Compliant Yes

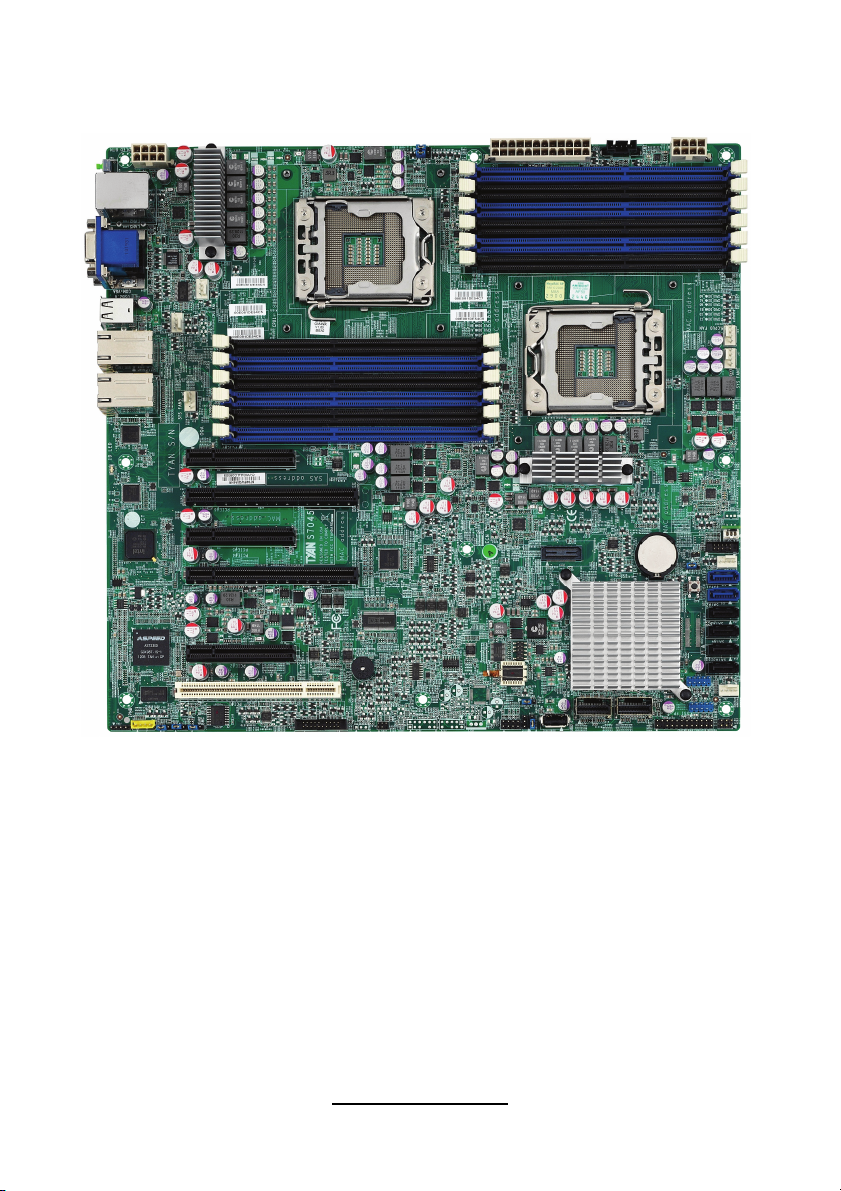

Motherboard (1) S7045 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
TYAN S7045 (S7045AG2NR)
Supported CPU
Series Intel Xeon Processor E5-2400 Series
Socket Type / Q'ty LGA1356 / (2)
Thermal Design
Power (TDP) wattage Max up to 95W
Processor
System Bus Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support

http://www.TYAN.com
10
Chipset PCH Intel C602
Supported DIMM Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR3/DDR3L 800/1066/1333/1600 RDIMM
1066/1333 UDIMM/UDIMML/LRDIMM
Capacity 384GB RDIMM / 384GB LRDIMM/ 96GB UDIMM
Memory channel 3 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(1) PCI-E x8 slot (x4 link, slot #2) / (1) PCI-E x16
slot (x16 link, slot #4) / (1) PCI-E x16 slot (x16 link,
slot #6) / (1) PCI-E x8 slot (x8 link, slot #7)
Expansion
Slots
PCI (1) PCI 32-bit slot (slot #1)
Port Q'ty (2) GbE ports
LAN Controller Intel 82574L
Connector (10) SATA
Controller Intel C602
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color) +
(4) 3.0 Gb/s (mini-SAS connector)
Storage SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST1300
Chipset Realtek ALC262
Feature AC97
Audio
Notice: 3-port audio bracket cable is optional
Chipset Winbond WPCT200 (Optional)
TPM Version TPM v1.2
USB (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A
onboard)
COM (1) DB-9 COM Connector
VGA (1) D-Sub 15-pin VGA port
Audio (1) 2x5-pin front panel audio header / (1) 2x6-pin
rear audio jack header
RJ-45 (2) GbE ports
Power SSI 24-pin + 8-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (4) SATA-II , (2) SATA-III connectors, and (1) Mini-
SAS (4-in-1) connector
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (7) 4-pin headers
System
Monitoring
Others Watchdog timer support

http://www.TYAN.com
11
Brand / ROM size AMI / 8MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types
Form Factor SSI EEB
Physical
Dimension Board Dimension 12"x13" (304.8*330.2mm)
Operating
System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S7045 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
SATA (6) SATA signal cables
Package
Contains
Cable AUDIO (1) CCBL-0613, 3-POS audio bracket cable
TYAN S7045 (S7045WGM4NR)
Supported CPU
Series Intel Xeon Processor E5-2400 Series
Socket Type / Q'ty LGA1356 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602 with upgrade ROM module
Supported DIMM
Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR3/DDR3L 800/1066/1333/1600 RDIMM,
1066/1333 UDIMM/UDIMML/LRDIMM
Capacity 384GB RDIMM / 384GB LRDIMM/ 96GB UDIMM
Memory channel 3 Channels per CPU / Support 2 R/LR-DIMMs or 2
UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V

http://www.TYAN.com
12
PCI-E
(1) PCI-E x8 slot (x4 link, slot #2) / (1) PCI-E x16
slot (x16 link, slot #4) / (1) PCI-E x8 slot (x8 link,
slot #5) / (1) PCI-E x16 slot (x8 link, slot #6) / (1)
PCI-E x8 slot (x8 link, slot #7)
Expansion Slots
PCI (1) PCI 32-bit slot
Recommended
Barebone /
Chassis
Mechanical
Compliant KFT48
Port Q'ty (4) GbE + (1) Dedicated for IPMI
Controller Intel 82574L / Intel I350AM2
LAN
PHY RTL8201EL.
Connector (2) Mini-SAS connectors (totally support 8 ports)
Controller Intel C602 with TRK-5 upgrade ROM module
Speed 3.0 Gb/s (mini-SAS connector)
SAS
RAID RAID 0/1/10 (Intel Integrated RAID upgrade ROM
5)
Connector (6) SATA
Controller Intel C602
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
Chipset Winbond WPCT200 (Optional)
TPM
Version TPM v1.2
USB (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A
onboard)
COM (1) DB-9 COM Connector
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (4) GbE + (1) Dedicated for IPMI
Power SSI 24-pin + 8-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (4) SATA-II and (2) SATA-III connectors
Voltage Monitors voltage for CPU, memory, chipset &
power supply
Fan Total (7) 4-pin headers
System
Monitoring
Others Watchdog timer support

http://www.TYAN.com
13
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100 Mb/s
MAC interface
Brand / ROM size AMI / 8MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types
Form Factor SSI EEB
Physical
Dimension Board Dimension 12"x13" (304.8*330.2mm)
Operating
System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6
Compliant Yes
Motherboard (1) S7045 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package
Contains
Cable SATA (6) SATA signal cables
TYAN S7045 (S7045WGM2NR5 [BTO])
Supported CPU
Series Intel Xeon Processor E5-2400 Series
Socket Type / Q'ty LGA1356 / (2)
Thermal Design
Power (TDP)
wattage
Max up to 95W
Processor
System Bus Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Chipset PCH Intel C602 with upgrade ROM module

http://www.TYAN.com
14
Supported DIMM
Qty (6)+(6) DIMM slots
DIMM Type / Speed DDR3/DDR3L 800 / 1066 / 1333 / 1600 RDIMM,
1066 / 1333 UDIMM / LRDIMM
Capacity 384GB RDIMM / 384GB LRDIMM/ 96GB UDIMM
Memory channel 3 Channels per CPU / Support 2 R/LR-DIMMs or
2 UDIMMs per channel
Memory
Memory voltage 1.5V or 1.35V
PCI-E
(1) PCI-E x8 slot (x4 link, slot #2) / (1) PCI-E x16
slot (x16 link, slot #4) / (1) PCI-E x8 slot (x8 link,
slot #5) / (1) PCI-E x16 slot (x8 link, slot #6) / (1)
PCI-E x8 slot (x8 link, slot #7)
Expansion Slots
PCI (1) PCI 32-bit slot
Recommended
Barebone /
Chassis
Mechanical
Compliant KFT48
Port Q'ty (3) GbE ports
Controller Intel 82574L
LAN
PHY Realtek RTL 8201EL
Connector (2) Mini-SAS connectors (totally support 8 ports)
Controller Intel C602 with TRK-6 upgrade ROM module
Speed 3.0 Gb/s (mini-SAS connector)
SAS
RAID RAID 0/1/10/5 (Intel Integrated RAID upgrade
ROM 6)
Connector (6) SATA
Controller Intel C602
Speed (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
Storage
SATA
RAID RAID 0/1/10/5 (Intel RST)
Connector type D-Sub 15-pin
Resolution Up to 1920x1200
Graphic
Chipset Aspeed AST2300
Chipset Winbond WPCT200 (Optional)
TPM Version TPM v1.2
USB (9) USB2.0 ports (4 at rear, 4 via cable, 1 type A
onboard)
COM (1) DB-9 COM Connector
SAS (2) Mini-SAS (4-in-1) connectors
VGA (1) D-Sub 15-pin VGA port
RJ-45 (2) GbE + (1) Dedicated for IPMI
Power SSI 24-pin + 8-pin + 8-pin power connectors
Front Panel (1) 2x12-pin SSI front panel header
Input /Output
SATA (4) SATA-II and (2) SATA-III connectors

http://www.TYAN.com
15
Voltage Monitors voltage for CPU, memory, chipset &
power supply
Fan Total (7) 4-pin headers
System
Monitoring
Others Watchdog timer support
Onboard Chipset Onboard Aspeed AST2300
AST2300 IPMI
Feature
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage over IP and
remote platform-flash / USB 2.0 virtual hub
Server
Management
AST2300 iKVM
Feature
24-bit high quality video compression / 10/100
Mb/s MAC interface
Brand / ROM size AMI / 8MB
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0
/SMBIOS2.3 /PXE boot / ACPI 2.0 power
management /Power on mode after power
recovery / User-configurable H/W monitoring /
Auto-configurable of hard disk types
Form Factor SSI EEB
Physical
Dimension Board Dimension 12"x13" (304.8*330.2mm)
Operating System OS supported list Please visit our Web site for the latest update.
FCC (DoC) Class B
Regulation CE (DoC) Yes
Operating Temp. 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp. - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Compliant Yes
Motherboard (1) S7045 Motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
I/O Shield (1) I/O Shield
Package Contains
Cable SATA (6) SATA signal cables

http://www.TYAN.com
16
S7045 SKU Comparison Table
PCI-e slot
Model Chip LAN IPMI
Front
USB
HEADER
USB
Type
A
1x4fan
connector
ID
switch
X16 X8PCI
S7045AG2NR Patsburg-A 2 No 2 1 7 1 2/2/1
S7045WGM2NR Patsburg-A+ROM5 2 Yes 2 1 7 1 2/3/1
S7045WGM4NR Patsburg-A+ROM5 4 Yes 2 1 7 1 2/3/1
S7045GM4NR Patsburg-A 4 Yes 2 1 7 1 2/3/1
S7045WGM2NR5 (BTO) Patsburg-A+ROM6 2 Yes 2 1 7 1 2/3/1
1.3 - Software Specifications
For OS (operation system) support, please check the TYAN®website for the latest
information.
1.4 - AST1300/2300 User Guide
Remember to visit TYAN®’s Website at http://www.tyan.com for AST2300 user
guide.

http://www.TYAN.com
17
Chapter 2: Board Installation
You are now ready to install your motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN®recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
Caution!
1. To avoid damaging the motherboard and associated
components, do not use torque force greater than
7kgf/cm (6.09 lb/in) on each mounting screw for
motherboard installation.
2. Do not apply power to the board if it has been
damaged.

http://www.TYAN.com
18
2.1 - Board Image
S7045
This diagram is representative of the latest motherboard revision available at the
time of publishing. The board you receive may not look exactly like the above
diagram.

http://www.TYAN.com
19
2.2 - Block Diagram
S7045

http://www.TYAN.com
20
2.3 - Board Parts, Jumpers and Connectors
Important Notes to the User
• “▲” indicates the location of “Pin 1”.
• Jumpers not indicated are for testing only.
• The diagram is representative of the latest board revision available at the time of
publishing. The board you received may not look exactly like this diagram.
NOTE:
1. With the Intel Upgrade ROM Kit: J2002 and J2003 can support up to 8
SAS/SATA Ports.
2. Without the Intel Upgrade ROM Kit: J2002 can support 4 SATA Ports while
J2003 is SAS/SATA disabled.
