TYAN S7012 User manual

1
http://www.tyan.com
S7012
Version 1.0
Copyright
Copyright © 2009 MiTAC International Corporation. All rights reserved. TYAN®is a
registered trademark of MiTAC International Corporation.
Trademark
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the
following.
TYAN®is a trademark of MiTAC International Corporation.
Intel®Nehalem-EP Series and combinations thereof are trademarks of Intel
Corporation.
AMI, AMI BIOS are trademarks of AMI Technologies.
Microsoft, Windows are trademarks of Microsoft Corporation.
SuSE is a trademark of Novell.
IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.
Notice
Information contained in this document is furnished by MiTAC International
Corporation and has been reviewed for accuracy and reliability prior to printing.
MiTAC assumes no liability whatsoever, and disclaims any express or implied
warranty, relating to sale and/or use of TYAN products including liability or
warranties relating to fitness for a particular purpose or merchantability. MiTAC
retains the right to make changes to product descriptions and/or specifications at
any time, without notice. In no event will MiTAC be held liable for any direct or
indirect, incidental or consequential damage, loss of use, loss of data or other
malady resulting from errors or inaccuracies of information contained in this
document.

2
http://www.tyan.com
Table of Contents
Check the box contents! 3
Chapter 1: Introduction
1.1 Congratulations 5
1.2 Hardware Specifications 5
1.3 AST2050 Application 8
Chapter 2: Board Installation
2.1 Board Image 10
2.2 Block Diagram 11
2.3 Board Parts, Jumpers and Connectors 12
2.4 Installing the Processor and Heatsink 22
2.5 Thermal Interface Material 24
2.6 Finishing Installing the Heatsink 25
2.7 Tips on Installing Motherboard in Chassis 26
2.8 Installing the Memory 27
2.9 Attaching Drive Cables 29
2.10 Installing Add-in Cards 30
2.11 Installing I/O Shield 31
2.12 Connecting External Devices 32
2.13 Installing the Power Supply 33
2.14 Finishing up 33
Chapter 3: BIOS Setup
3.1 BIOS Main Menu 37
3.2 Advanced Menu 38
3.3 PCI PnP Menu 65
3.4 Boot Menu 67
3.5 Security Menu 71
3.6 Chipset Menu 72
3.7 Exit Menu 77
Chapter 4: Diagnostics
4.1 Beep Codes 79
4.2 Flash Utility 79
4.3 AMI BIOS Post Code 80
Glossary 83
Technical Support 89

3
http://www.tyan.com

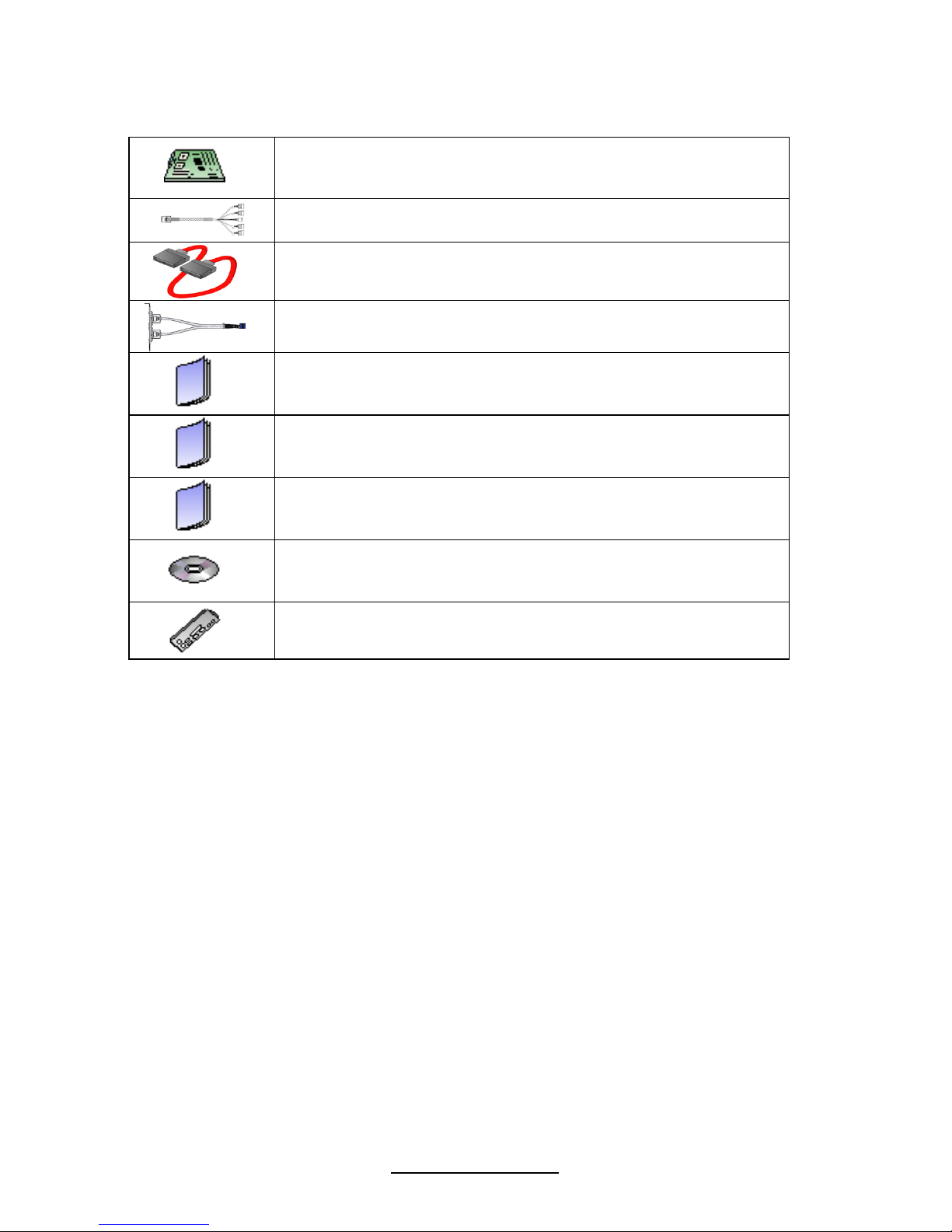

Check the box contents!
1x S7012 motherboard
2 x mini SAS Cable (optional)
6 x Serial ATA Cable
1 x USB2.0 cable
1 x S7012 User’s Manual
1 x S7012 Quick Reference Guide
1 x I/O Shield Installation Guide
1 x TYAN Installation CD
1 x I/O shield
If any of these items are missing, please contact your vendor/dealer for
replacement before continuing with the installation process.

4
http://www.tyan.com
NOTE

5
http://www.tyan.com
Chapter 1: Introduction
1.1 - Congratulations
You have purchased one of the most powerful server solutions. Based on Intel®
5520 and ICH10R chipsets, the S7012 is designed to support up to two Nehalem-
EP Series processors and up to 144GB DDR3-800/1033/1066/1333 memory,
providing a rich feature set and incredible performance. Leveraging advanced
technology from Intel, the S7012 is capable of offering scalable 32 and 64-bit
computing, high-bandwidth memory design, and lightning-fast PCI-E bus
implementation.
The S7012 not only empowers your company in today’s demanding IT environment
but also offers a smooth path for future application usage. All of this provides the
S7012 the power and flexibility to meet the needs of nearly any server application.
Remember to visit TYAN’s Website at http://www.tyan.com. There you can find
information on all of TYAN’s products with FAQs, online manuals and BIOS
upgrades.
1.2 - Hardware Specifications
Supported CPU
Series Intel Xeon 5500 series QC/DC processors
Socket Type / Q'ty LGA1366 / (2)
Max CPU wattage 130W
Processor
System Bus (MHz) Intel QuickPath Interconnect (QPI)
IOH / ICH Intel 5520 / ICH10R
Chipset
Super I/O Winbond W83627
Supported DIMM
Qty (18) DIMM sockets
DIMM Type / Speed Registered un-buffered DDR3 / 1333/1066/800
Capacity Up to 144GB at launch w/ dual rank RDIMMs
Memory
Memory channel 3-Channel
PCI-E (1) PCI-E x8 slot (w/ x4 link) / (4) PCI-E x8 slots (Gen 2)
Expansion
Slots Recommended
Tyan Riser Card M2088, PCI-E x8 1U riser card (left)

6
http://www.tyan.com
Port Q'ty (4)
LAN
Controller Intel 82574 / Intel 82576
Connector (2) Mini SAS connectors (support 8 ports)
Controller LSI SAS1068E
Speed 3.0 Gb/s
SAS
(optional)
RAID S/W RAID 0/1/1E
Connector (6)
Controller ICH10R
Speed 3.0 Gb/s
Storage
SATA
RAID S/W RAID 0/1/10/5 (Intel Matrix RAID)
Connector type D-Sub 15pin
Resolution 1600x1200
Graphic
Chipset Aspeed AST2050
USB (7) USB2.0 ports (4 at rear, 2 via cable, 1 type A
onboard)
COM (1) port (rear)
SAS (2) Mini SAS (4 in 1) connectors (optional)
VGA (1) D-Sub 15pin VGA port
RJ-45 (4) GbE ports
Power SSI 24-pin + 8-pin + 8-pin power connectors / EPS 12V
Front Panel (1) 2x12 pin SSI Front Panel header
Input
/Output
SATA (6) SATAII connectors
Chipset Winbond W83793G
Voltage Monitors voltage for CPU, memory, chipset & power
supply
Fan Total (5) 4-pin headers
System
Monitoring
Temperature Monitors temperature for CPU & system environment

7
http://www.tyan.com
LED Fan fail LED indicator / Over temperature warning
indicator
Others Chassis intrusion detection / Watch Dog timer support
Onboard Chipset Onboard Aspeed AST2050
AST2050 IPMI
Feature
IPMI 2.0 compliant baseboard management controller
(BMC) / Supports storage over IP and remote platform-
flash/ BIOS update / USB 2.0 virtual Hub
Server
Management
AST2050 iKVM
Feature
24bit High quality video compression / Dual 10/100 Mb/s
MAC interfaces
Brand / ROM size 4MB / AMI / SPI Flash ROM
BIOS
Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE
Boot / ACPI 2.0 power management /Power on mode
after power recovery / User-configurable H/W monitoring
/ Auto-configurable of hard disk types / Multiple boot
options
Form Factor SSI EEB
Form Factor
Board Dimension 12"x13" (305x330mm)
Operation
System OS supported list Please refer to the OS supported list at
http://www.tyan.com/tech/os_support1.aspx
FCC (Doc) Class B
CE (Doc) Yes
C-Tick Yes
Regulation
VCCI Yes
Operating Temp 10° C ~ 35° C (50° F~ 95° F)
Non-operating
Temp - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) TYAN motherboard
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN Installation CD
I/O Shield (1) I/O Shield
SATA (6) SATA signal cables
Accessory
list
Cable
SAS (2) Mini-SAS 1-to-4 cables (optional)

8
http://www.tyan.com
USB (1) USB bracket cable
Optional
accessories
for future
upgrade
Riser Card
M2088, PCI-Ex8 1U riser card (right)
For more information on M2088, refer to
http://www.tyan.com/product_accessories_list.aspx?rid=3
1.3 - AST2050 Application
Please visit the TYAN Web Site at http://www.tyan.com to download the latest
AST2050 User’s Guide.

9
http://www.tyan.com
Chapter 2: Board Installation
You are now ready to install your motherboard. The mounting hole pattern of the
S7012 matches the SSI EEB specification. Before continuing with installation,
confirm that your chassis supports an SSI EEB motherboard.
How to install our products right… the first time
The first thing you should do is reading this user’s manual. It contains important
information that will make configuration and setup much easier. Here are some
precautions you should take when installing your motherboard:
(1) Ground yourself properly before removing your motherboard from the
antistatic bag. Unplug the power from your computer power supply and
then touch a safely grounded object to release static charge (i.e. power
supply case). For the safest conditions, TYAN recommends wearing a
static safety wrist strap.
(2) Hold the motherboard by its edges and do not touch the bottom of the
board, or flex the board in any way.
(3) Avoid touching the motherboard components, IC chips, connectors,
memory modules, and leads.
(4) Place the motherboard on a grounded antistatic surface or on the antistatic
bag that the board was shipped in.
(5) Inspect the board for damage.
The following pages include details on how to install your motherboard into your
chassis, as well as installing the processor, memory, disk drives and cables.
NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN
DAMAGED.

10
http://www.tyan.com
2.1- Board Image
S7012
This picture is representative of the latest board revision available at the time of
publishing. The board you receive may or may not look exactly like the above
picture.

11
http://www.tyan.com

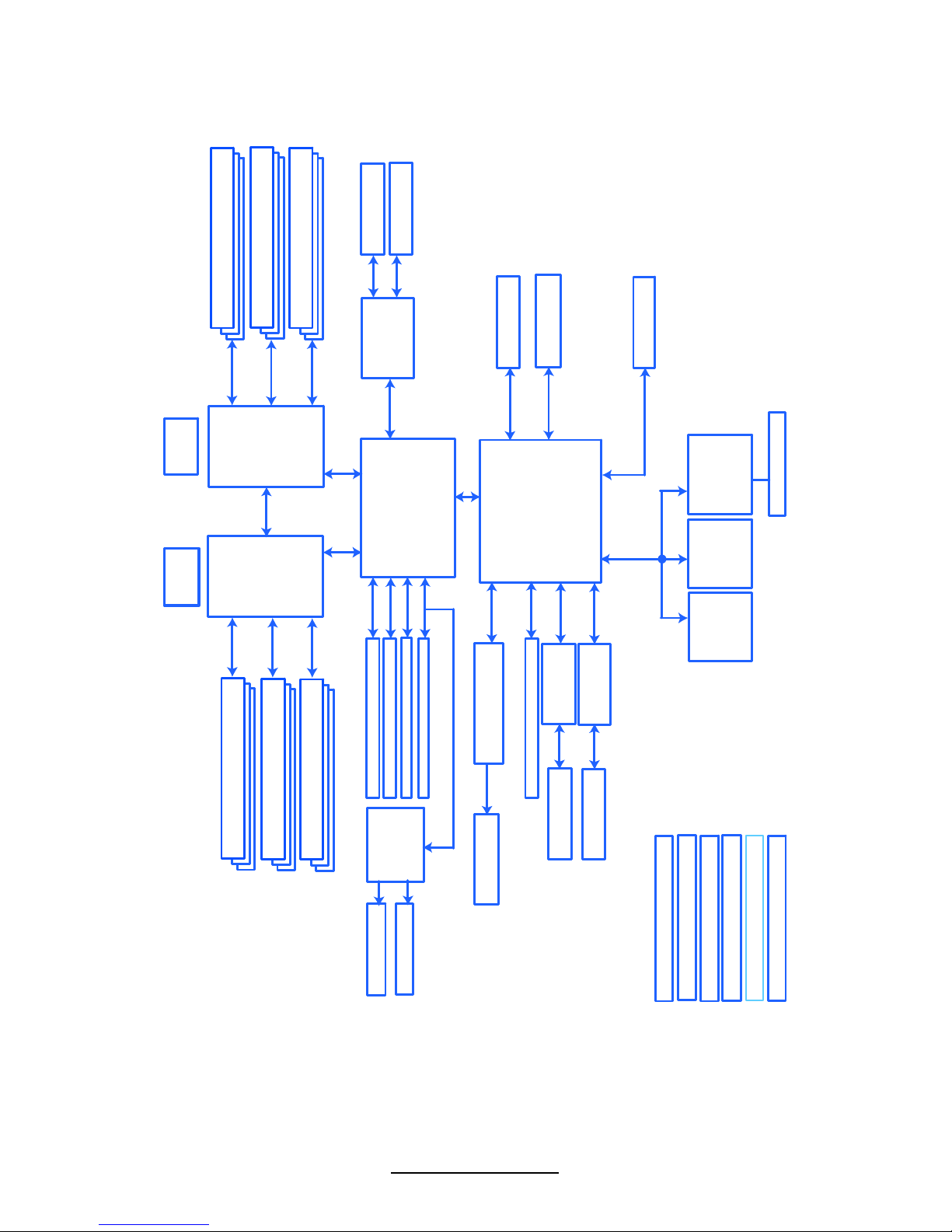

2.2 - Block Diagram
DDRIII Memory x3
DDRIII Memory x3
DDRIII Memory x3 DDRIII Memory x3
DDRIII Memory x3
DDRIII Memory x3
VRD11.1
for CPU0
QPI
6.4GT/s
CPU0
Nehalem
CHA
CHF
CHE
VRD11.1
for CPU1
CHD
CHC
CHB
QPI
6.4GT/s
PCI-E x8
LSI
1068E SAS
(optional)
Mini SAS Conn
Mini SAS Conn
RJ45 Gb LAN
AST2050
PCI-E x8
D-SUB 15
ESI
5520 (Tylersburg-36D)
(PE1-2)x4 Intel
82576EB
PCIE_SLOT Placement
Intel
82574
Intel
82574
RJ45 Gb LAN
PCIE_ICH_Slot1
PCIE_IOH_Slot3
PCIE_IOH_Slot2
PCIE_IOH_Slot4
SIO
W83627DHG
AST2050
BMC FWH
PCIE_IOH_Slot1 / LSI1068E
SATA
ICH10-R
I2C
Serial Port x2
PCIE x1
DMI
USB2.0
LPC
HM (W83793G)
SATA x6
RJ45 Gb LAN
USB x8
RJ45 Gb LAN
CPU1
Nehalem
QPI
6.4GT/s
x8 (PE5-6)
x8 (PE3-4)
x8 (PE7-8)
x8 (PE9-10)
PCI-E x8
PCI-E x8
PCI-E x8
PCIE-E1
PCIE-E2
PCIE-E4 PCIE-E3
PCIE x1 PCIE x4
PCI 32
S7012

12
http://www.tyan.com

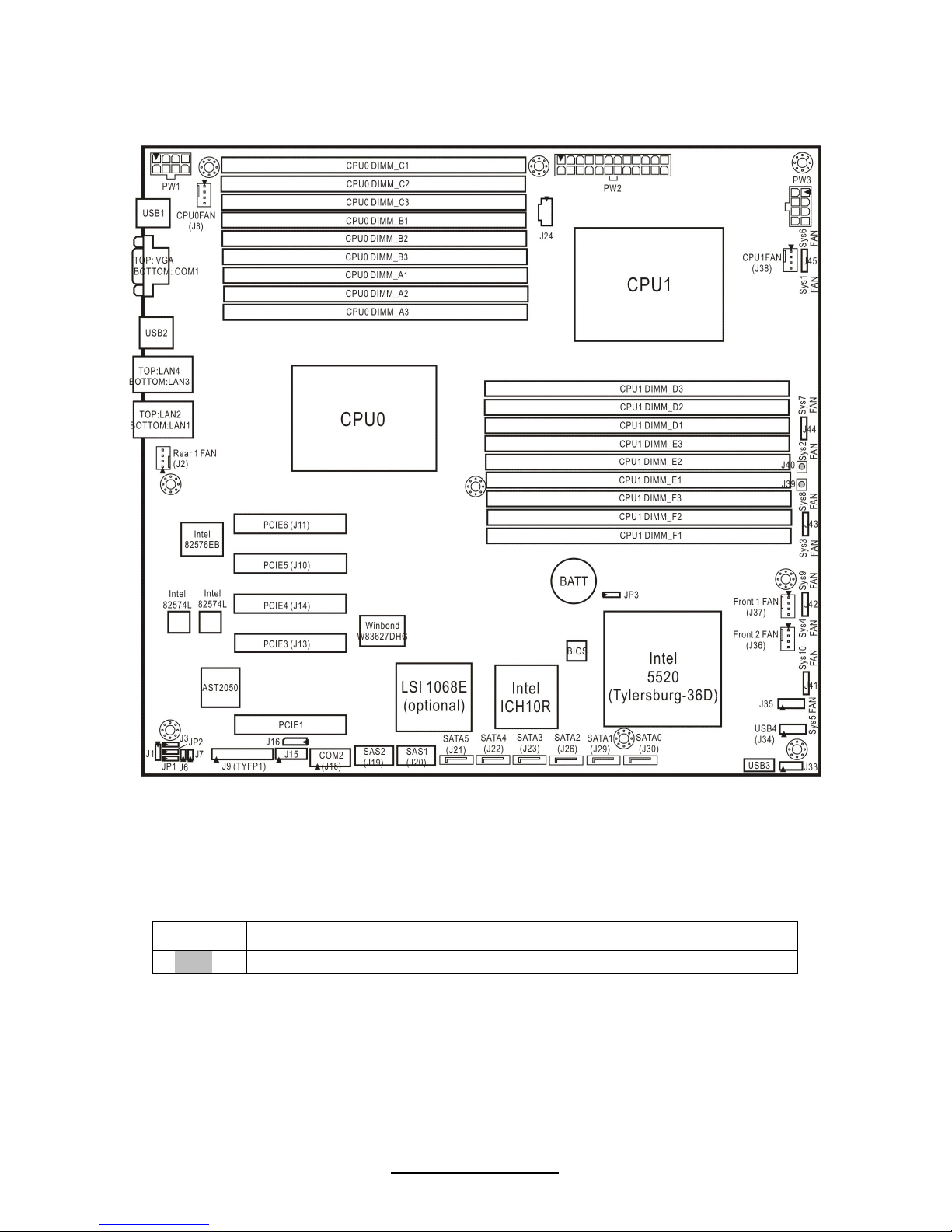

2.3 - Board Parts, Jumpers and Connectors
This diagram is representative of the latest board revision available at the time of
publishing. The board you receive may not look exactly like the above diagram.
Jumper Legend
 OPEN - Jumper OFF, without jumper cover
 CLOSED – Jumper ON, with jumper cover

13
http://www.tyan.com
Jumper/Connector Function
J9 (TYFP1) Standard Front Panel Connector
J16 BMC I2C Bus Header
J34 USB Front Panel Header (blue)
J18 COM2 Connector
J24 PSMI Connector
J6 Chassis Intrusion Header
J35 CPLD JTAG Header

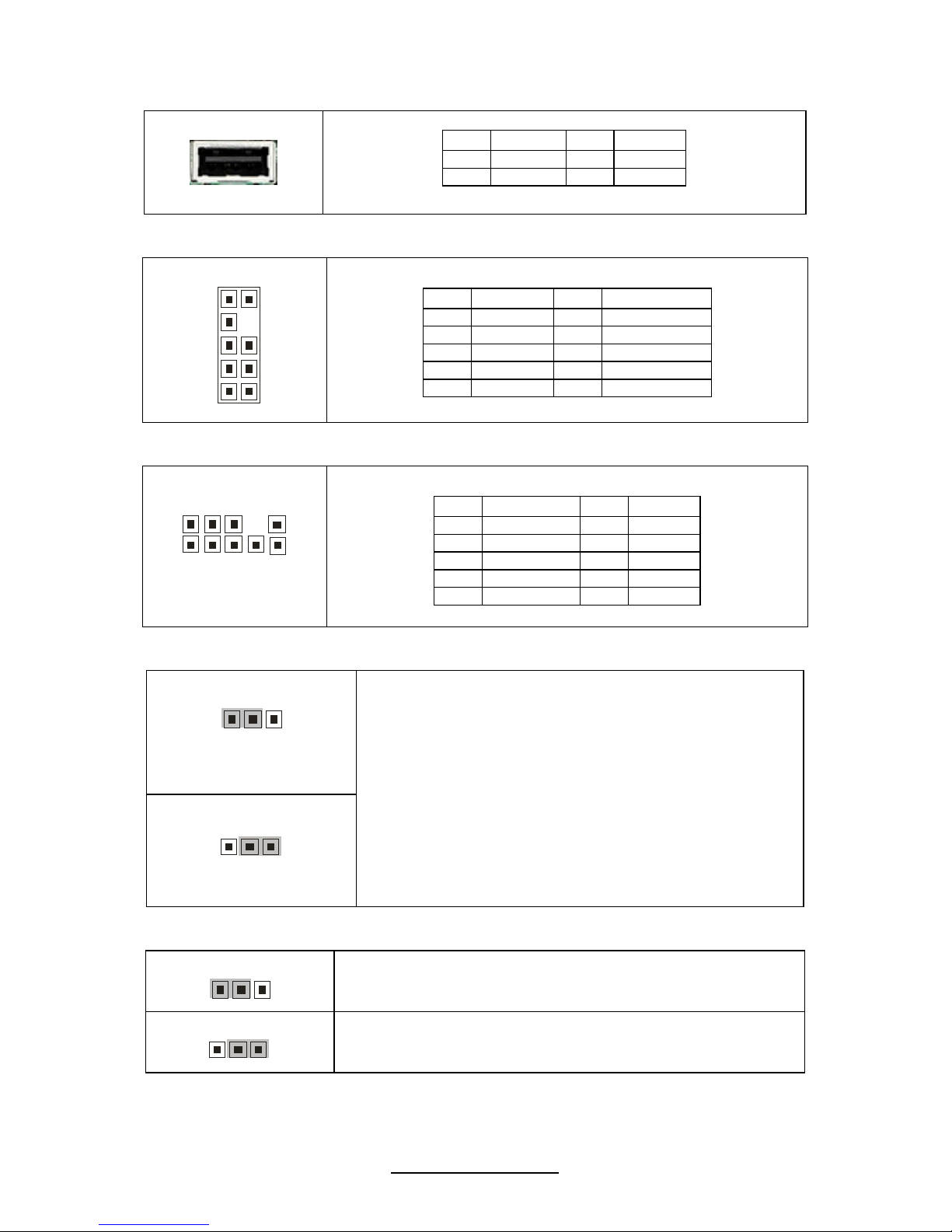

USB3 Type-A USB Connector
J33 ICH SGPIO Header
J15 Port 80 Header

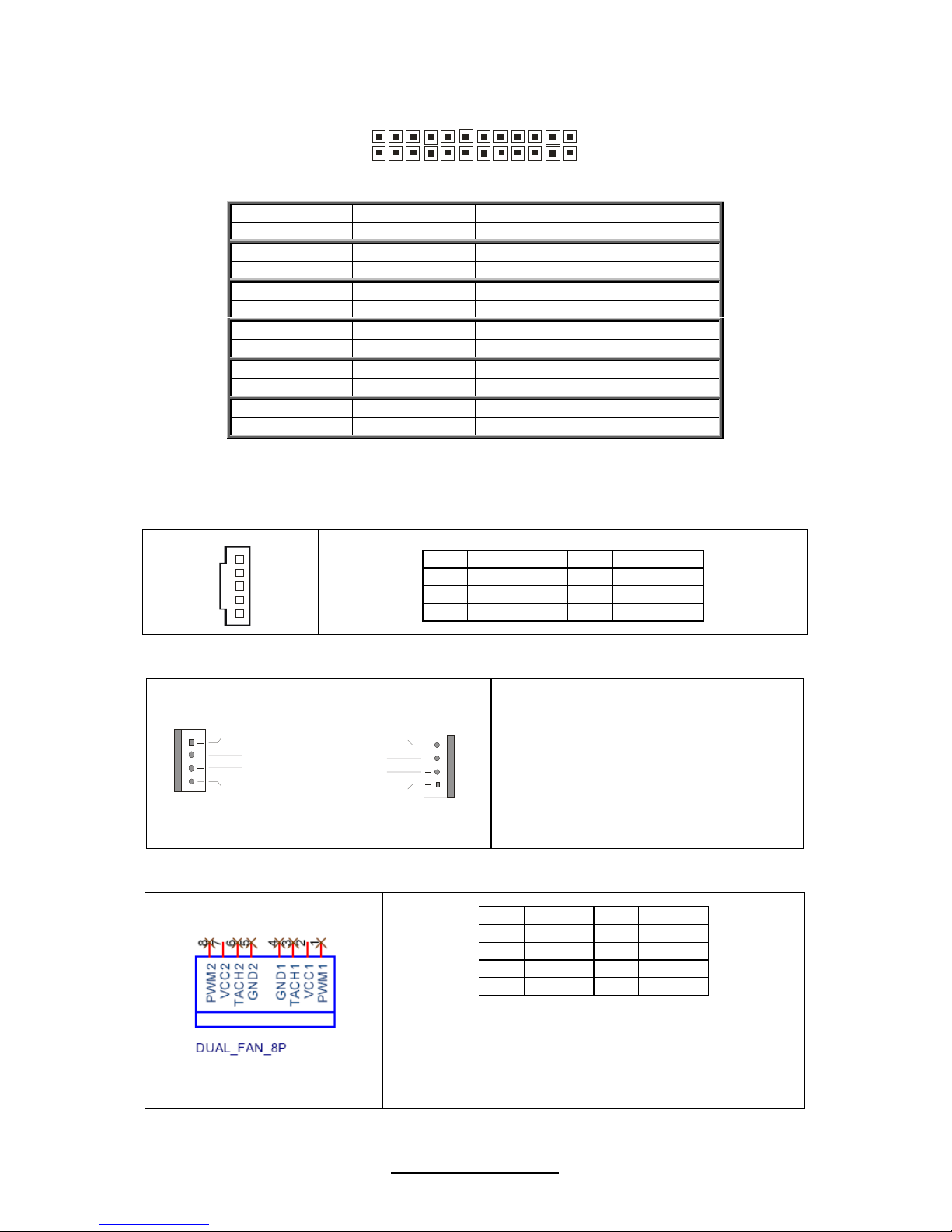

J41/J42/J43/J44/J45 8-pin 4096 Fan Connector
J2/J8/J36/J37/J38 4-pin Fan Connector
J39/J40 Reset Switch/Power Switch
J3
LSI 1068E Enable/Disable Jumper
Pin 1-2 closed: Enable (Default)
Pin 2-3 closed: Disable
J7
BMC Reset Jumper
NC: Default
Pin 1-2 closed: Disable BMC
JP3
Clear CMOS Jumper
Pin 1-2 closed: Normal (Default)
Pin 2-3 closed: Clear
JP1/JP2
COM2 Switch Jumper
Pin 1-2 closed: SIO to COM2 (Default)
Pin 2-3 closed: BMC UART2 to COM2
JP4
LSI 1068E Device ID Select Jumper
Pin 1-2 closed: (Default)
Pin 2-3 closed: Device ID bit [0]=0b1

14
http://www.tyan.com

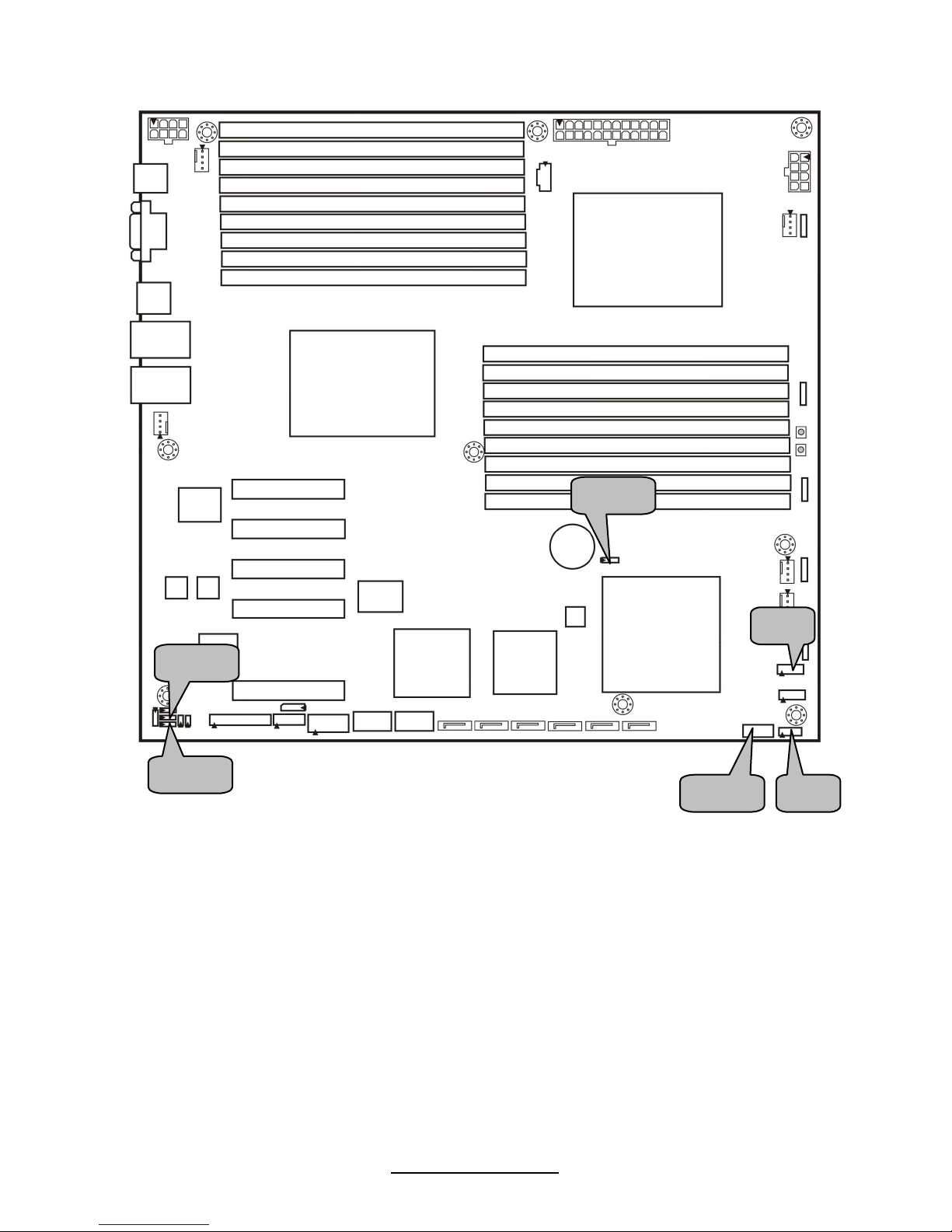

J18
(From left to right)
SATA5/SATA4/SATA3/SATA2/SATA1/SATA0
J34
J16
J15

15
http://www.tyan.com
J18: COM2 Connector
1
2
1
0
9
Pin Signal Pin Signal
1 DCD 2 DSR
3 RXD 4 RTS
5 TXD 6 CTS
7 DTR 8 RI
9 GND 10 KEY
J15: PORT 80 Header
1
2
1
3
1
4
Pin Signal Pin Signal
1 NC 2 V3P3
3 NC 4 FRAME
5 CLK_33M 6 GND
7 GND 8 LAD3
9 PLTRST 10 LAD2
11 NC 12 LAD1
13 NC 14 LAD0
J16: BMC I2C Header
1
Pin Signal Pin Signal
1 IPMB_DAT 2 GND
3 IPMB_CLK 4 NC
J34: USB Front Panel Header (Blue)
10
9
2
1
Pin Signal Pin Signal
1 +5V 2 +5V
3 USB D- 4 USB D-
5 USB D+ 6 USB D+
7 GND 8 GND
9 KEY 10 GND
SATA0/1/2/3/4/5: Serial ATA Connector
7 GND
6 RXP
5 RXN
4 GND
3 TXN
2 TXP
7
1
1 GND
Connects to the Serial ATA ready drives via the
Serial ATA cable.
SATA0: J30 SATA1: J29
SATA2: J26 SATA3: J23
SATA4: J22 SATA5: J21

16
http://www.tyan.com
J6: Chassis Intrusion Header
1
Pin Signal Pin Signal
1 INTRUDER# 2 GND
J24
J38
J36
J9
J37
J8
J2
J6
J41
J42
J43
J44
J45

17
http://www.tyan.com
J9 (TYFP1): Standard Front Panel Connector
24
23
2
1
NOTE1: +3.3V power rail is IDLED, WLED (Warning LED), LANLED
NOTE2: +5V power rail is PWRLED, HDLED
J24: PSMI Connector
1
Pin Signal Pin Signal
1 SMB_CLK 2 SMB_DAT
3 SMBALERT 4 GND
5 V3P3
J2/J8/J36/J37/J38: 4-pin Fan Header
+12V
PWM Control
GND
Tachometer
1
+12V
PWM Control
GND
Tachometer
1
Use this header to connect the cooling
fan to your motherboard to keep the
system at optimum performance levels.
J2: Rear 1 FAN
J8: CPU0FAN
J36: Front 2 FAN
J37: Front 1 FAN
J38: CPU1FAN
J41/J42/J43/J44/J45: 8-pin 4096 Fan Header (reserved for barebone)
J41: Sys5 FAN & Sys10 FAN
J42: Sys4 FAN & Sys9 FAN
J43: Sys3 FAN & Sys8 FAN
J44: Sys2 FAN & Sys7 FAN
J45: Sys1 FAN & Sys6 FAN
Pin Signal Pin Signal
1 PWM1 2 +12V
3 TACH1 4 GND
5 GND 6 TACH2
7 +12V 8 PWM2
PIN1 PIN3 PIN5 PIN7
PWRLED+ KEY PWRLED- HDLED+
PIN2 PIN4 PIN6 PIN8
+5VSB IDLED+ IDLED- WLED-
PIN9 PIN11 PIN13 PIN15
HDLED-/LAN3- PWRSW+ GND RSTSW
PIN10 PIN12 PIN14 PIN16
PSI_BMC_R- LAN1LED+ LAN1LED- SMBDAT
PIN17 PIN19 PIN21 PIN23
GND IDLED_SW TEMP-SENSOR NMI_SW-
PIN18 PIN20 PIN22 PIN24
SMBCLK INTRD# LAN2LED+ LAN2LED-

18
http://www.tyan.com
J35
USB3 J33
JP3
JP2
JP1

19
http://www.tyan.com
USB3: Type-A USB Connector
Pin Signal Pin Signal
1 +5V 2 USB D-
3 USB D+ 4 GND
J33: ICH SGPIO Header
1
0
2
9
1
Pin Signal Pin Signal
1 SMBCLK 2 SDATAOUT0
3 SMBDAT 4 SDATAOUT1
5 GND 6 SLOAD
7 KEY 8 SCLOCK
9 NC 10 NC
J35: CPLD JTAG Header
1
0
9
2
1
Pin Signal Pin Signal
1 JTAG_TCK 2 GND
3 JTAG_TDO 4 +3.3V
5 JTAG_TMS 6 NC
7 NC 8 KEY
9 JTAG_TDI 10 GND
JP3: Clear CMOS Jumper
3
1
Normal
(Default)
1
3
Clear
Use this jumper when you forgot your system/setup
password or need to clear system BIOS setting.
How to clear the CMOS data
-Power off system and disconnect power
supply from AC source
-Use jumper cap to close Pin_2 and 3 for
several seconds to Clear CMOS
-Replace jumper cap to close Pin_1 and 2
Reconnect power supply to AC source
Power on system
JP1/JP2: COM2 Switch Jumper
3
1
Pin 1-2 Closed: SIO to COM2 (Default)
1
3
Pin 2-3 Closed: BMC UART2 to COM2`

20
http://www.tyan.com

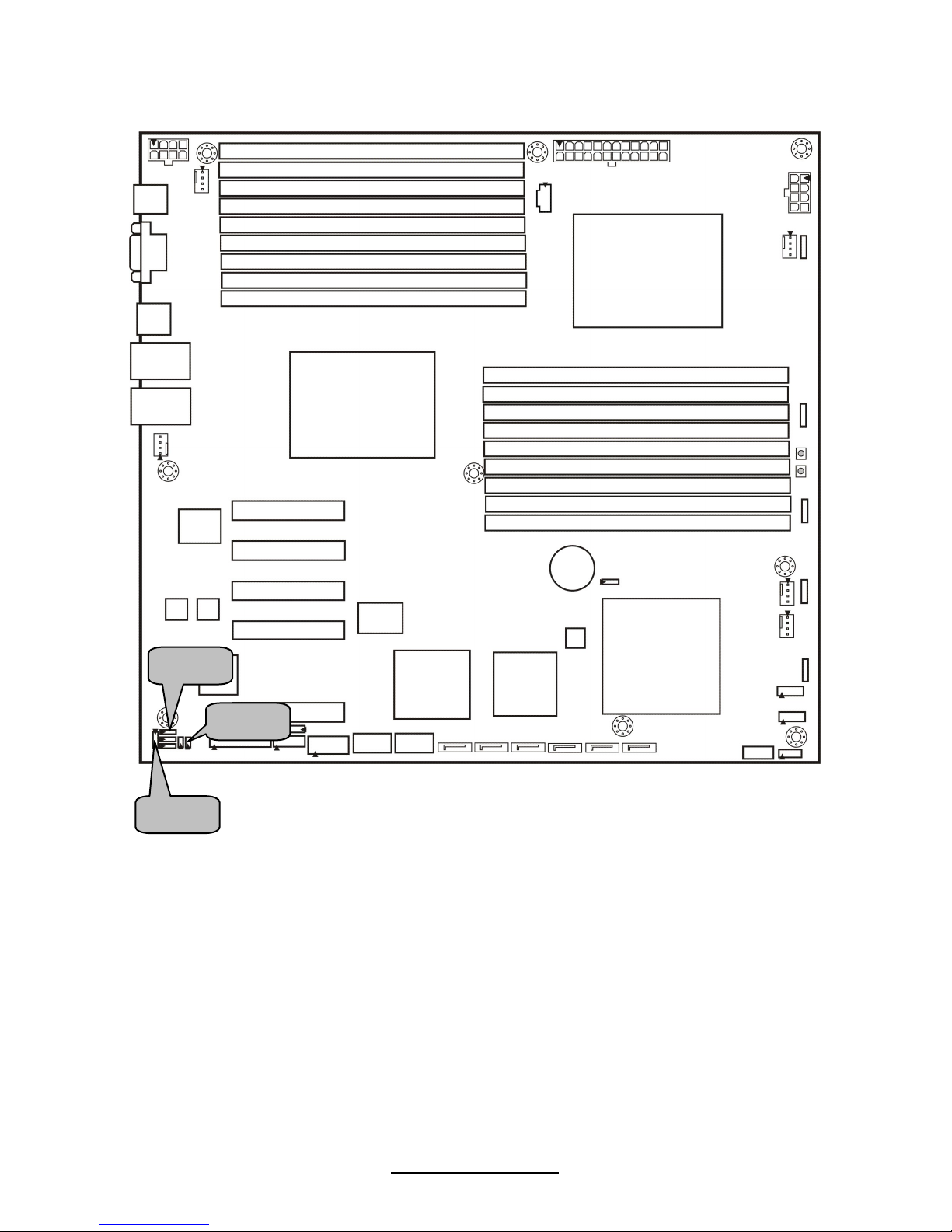

J1
J7
J3
