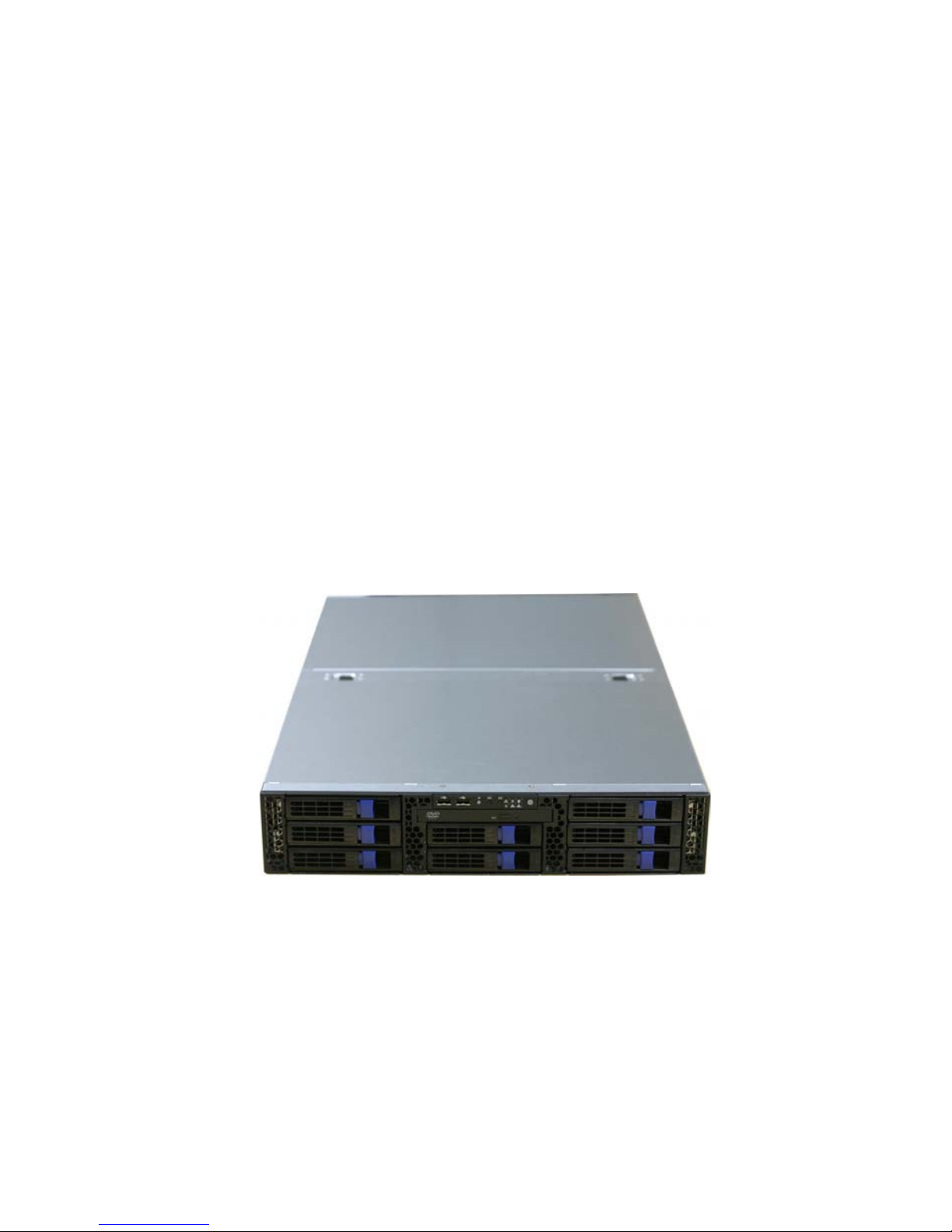

TYAN Transport TN68 (B4989) Service User manual

Transport TN68
B4989
Service Engineer’s Manual

PREFACE
Copyright
This publication, including all photographs, illustrations, and software, is
protected under international copyright laws, with all rights reserved.
Neither this manual, nor any material contained herein, may be reproduced
without written consent of manufacturer.
Copyright 2009 MiTAC International Corporation. All rights reserved.
TYAN®is a registered trademark of MiTAC International Corporation.
Version 2.00
Disclaimer
Information contained in this document is furnished by MiTAC Computer
Corporation and has been reviewed for accuracy and reliability prior to
printing. TYAN®assumes no liability whatsoever, and disclaims any
express or implied warranty, relating to sale and/or use of TYAN®products
including liability or warranties relating to fitness for a particular purpose or
merchantability. TYAN®retains the right to make changes to produce
descriptions and/or specifications at any time, without notice. In no event
will TYAN®be held liable for any direct or indirect, incidental or
consequential damage, loss of use, loss of data or other malady resulting
from errors or inaccuracies of information contained in this document.
Trademark Recognition
All registered and unregistered trademarks and company names contain-
-ed in this manual are property of their respective owners including, but not
limited to the following.
TYAN®is a trademark of MiTAC Computer Corporation.
AMD, Opteron, Athlon, and combinations thereof are trademarks of AMD
Corporation.
Phoenix, Phoenix BIOS, and combinations thereof are trademarks of
Phoenix Technologies.
Microsoft Windows is a trademark of Microsoft Corporation.
IBM, PC, AT and PS/2 are trademarks of IBM Corporation.
InfiniBand is a trademark of Mellanox Technologies.
Winbond is a trademark of Winbond Electronics Corporation.
Portable Document Format (PDF) is a trademark of Adobe Corporation.
i

Federal Communication Commission (FCC)
Notice for the USA
Compliance Information Statement (Declaration of
Conformity Procedure) DoC FCC Part 15: This
device complies with part 15 of the FCC Rules
Operation is subject to the following conditions:
1) This device may not cause harmful interference;
2) This device must accept any interference received including
interference that may cause undesired operation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and the receiver.
– Plug the equipment into an outlet on a circuit different from that of
the receiver.
Consult the dealer on an experienced radio/television technician for
help.
Notice for Canada
This apparatus complies with the Class B limits for radio interference as
specified in the Canadian Department of Communications Radio
Interference Regulations. (Cet appareil est conforme aux norms de
Classe B d’interference radio tel que specifie par le Ministere Canadien
des Communications dans les reglements d’ineteference radio.)
Notice for Europe (CE Mark)
This product is in conformity with the Council
Directive 89/336/EEC, 92/31/EEC (EMC).
CAUTION: Lithium battery included with this board. Do not puncture,
mutilate, or dispose of battery in fire. There will be danger of explosion if
battery is incorrectly replaced. Replace only with the same or equivalent
type recommended by manufacturer. Dispose of used battery according
to manufacturer instructions and in accordance with your local regulatio-
-ns.
ii

About this Manual
This manual provides you with instructions on installing your Trans-
-port TN68-B4989. This Manual is intended for experienced users
and integrators with hardware knowledge of personal computers.
This manual consists of the following parts:
Chapter1: Provides an introduction to the TN68-B4989 bare-
-bones, standard parts list, describes the external
components, gives a table of key components,
and provides block diagrams of the system.
Chapter2: Covers procedures on installing the CPU,memory
modules, add on card and hard drives.
Chapter3:
Covers removal and replacement procedures for
pre-installed components.
Appendix :
Describes the differences between motherboard
BIOS and system BIOS; introduces how to install
the internal HDD, list the cable connection and
FRU part tables for reference of system setup;
and technical support in case a problem arises
with your system.
For information on the mainboard, please refer to the attached
mainboard user’s manual. You can find the detailed description
about jumper and BIOS settings from the mainboard manual.
iii

SAFETY INFORMATION
Before installing and using the Transport TN68-B4989, take note of the
following precautions:
·Read all instructions carefully.
·Do not place the unit on an unstable surface, cart, or stand.
·Do not block the slots and opening on the unit, which are provided for
ventilation.
·Only use the power source indicated on the marking label. If you are not
sure, contact the power company.
·The unit uses a three-wire ground cable, which is equipped with a third
pin to ground the unit and prevent electric shock. Do not defeat the pur-
-pose of this pin. If you outlet does not support this kind of plug, contact
your electrician to replace your obsolete outlet.
·Do not place anything on the power cord. Place the power cord where it
will not be in the way of foot traffic.
·Follow all warnings and cautions in this manual and on the unit case.
·Do not push objects in the ventilation slots as they may touch high volta-
-ge components and result in shock and damage to the components.
·When replacing parts, ensure that you use parts specified by the manuf-
-acturer.
·When service or repairs have been done, perform routine safety checks
to verify that the system is operating correctly.
·Avoid using the system near water, in direct sunlight, or near a heating
device.
·Cover the unit when not in use.
iv

Table of Contents
Chapter 1: Overview
1.1 About the TYAN Transport TN68-B4989.................................... 1
1.2 Product Models........................................................................... 2
1.3 Features ..................................................................................... 3

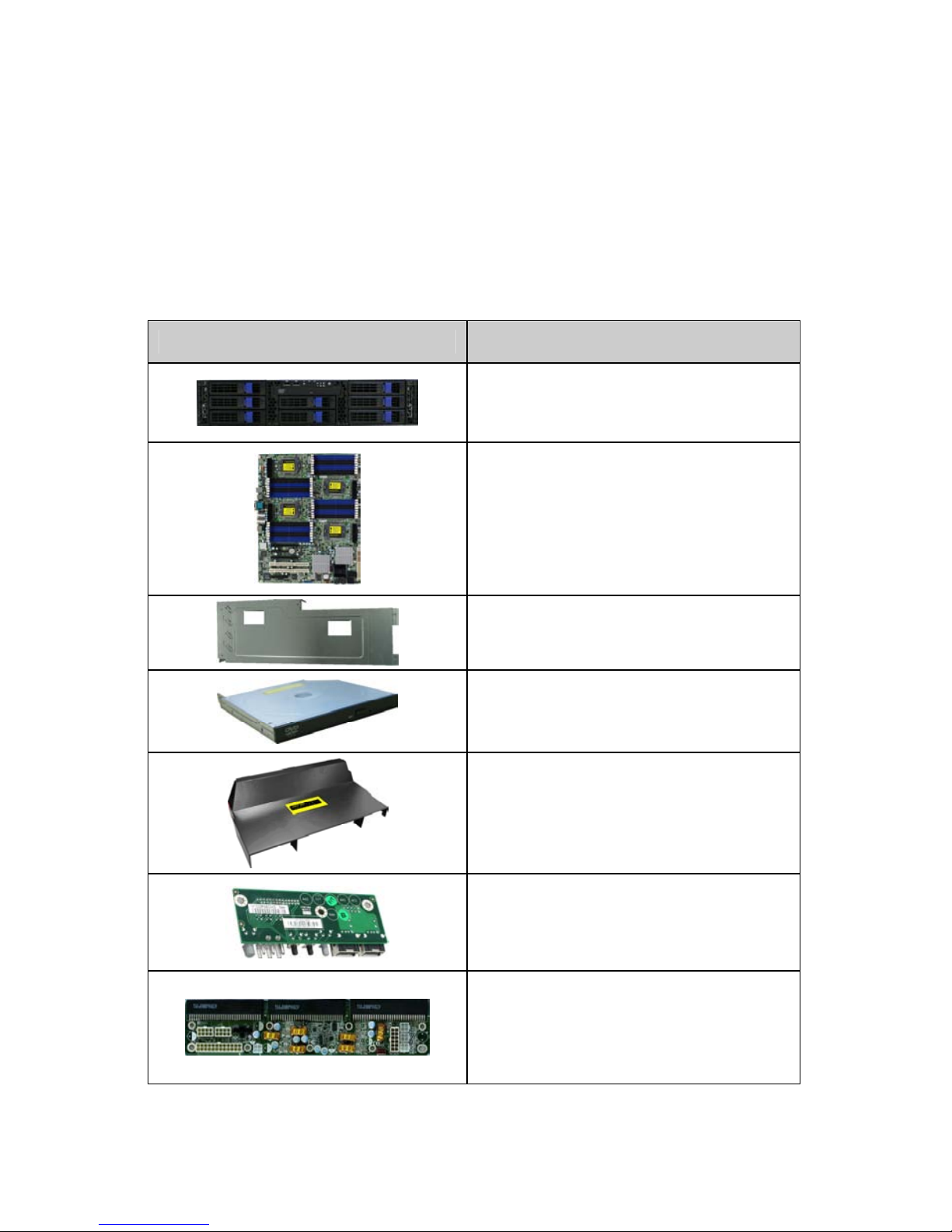

1.4 Standard Parts List ....................................................................10
1.4.1 Box Contents ......................................................................10
1.4.2 Accessories ........................................................................12
1.5 Optional Parts............................................................................13
1.6 About the Product......................................................................14
1.6.1 System Front View .............................................................14
1.6.2 System Rear View ..............................................................14
1.6.3 LED Definitions.................................................................. 16
1.6.4 Motherboard (S4989) Layout ............................................ 17
1.6.5 Jumpers & Connectors...................................................... 18
1.6.6 System Block Diagram ...................................................... 19
1.6.7 Internal View.......................................................................20
Chapter 2: Setting Up
2.0.1 Before you Begin ................................................................23
2.0.2 Work Area...........................................................................23
2.0.3 Tools...................................................................................23
2.0.4 Precautions.........................................................................24
2.1 Installing Motherboard Components .........................................25
2.1.1 Removing the Chassis Cover.............................................25
2.1.2 Installing the CPU and Heatsink.........................................26
2.1.3 Installing the Memory .........................................................30
2.1.4 Installing Expansion Cards.................................................32
2.1.5 Installing Hard Drives .........................................................36
2.2 Rack Mounting...........................................................................38
2.2.1 Installing the Server in a Rack............................................38
2.2.2 Installing the inner Rails to the Chassis .............................39
v

2.2.3 Installing the Outer Rails to the Rack .................................40
2.2.4 Rack mounting the Server..................................................40
Chapter 3: Replacing Pre-Installed Components
3.1 Introduction................................................................................43
3.2 Disassembly Flowchart..............................................................43
3.3 Removing the Cover..................................................................45
3.4 Replacing Motherboard Components........................................45
3.4.1 Disconnecting All Motherboard Cables ..............................45
3.4.2 Removing the Motherboard................................................47
3.5 Replacing the Slim DVD-ROM ..................................................49
3.6 Replacing the LED Control Board .............................................51
3.6.1 M1003 LED Control Board Features ..................................53
3.6.2 M1003 LED Control Board Connector Pin Definition .........53
3.7 Replacing the System Fan ........................................................55
3.8 Replacing the M1022 Fan Board...............................................57
3.8.1 M1022 Fan Board Features ...............................................59
3.8.2 M1022 Fan Board Connector Pin Definition.......................60
3.9 Replacing the M1229-PT HDD Backplane ................................61
3.9.1 M1229-PT HDD Backplane Features.................................63
3.9.2 M1229-PT HDD Backplane Connector Pin Definitions ......65
3.10 Replacing the Power Supply......................................................67
3.10.1 Replace the power supply ................................................67
3.10.2 Replace the power board M1029 .....................................67
3.10.3 M1029 power board Features ..........................................69
Appendix I: BIOS Differences
Appendix II: Installing the Internal 2.5”HDD
Appendix III: Cable Connection Tables
Appendix IV: FRU Parts Table
Appendix V: Technical Support
vi

Chapter1:Overview
1.1 About the TYAN Transport TN68-B4989
Congratulations on your purchase of the TYAN®Transport TN68-B4989,
a highly-optimized rack-mountable barebone system. The Transport TN
68-B4989 is designed to support four AMD® Opteron™ 8000 series Dual-
-core and Quad-core 1207-pin processors and up to 32DIMMs, providing
a rich feature set and incredible performance. Leveraging advanced tech-
-nology from AMD, the Transport TN68-B4989 server system is capable
of offering scalable 32 and 64-bit computing, high-bandwidth memory
design, and lightning-fast PCI-E bus implementation. The Transport TN68
-B4989 not only empowers your company in today’s demanding IT envir-
-onment but also offers a smooth path for future application usage.
TYAN®is also proud to deliver the Transport TN68-B4989 in flavor while
supporting up to eight hot-swap hard drives and one slim ODD. The
Transport TN68-B4989 uses TYAN®’s latest chassis featuring a robust
structure and a solid mechanical enclosure. All of this provides the
Transport TN68-B4989 the power and flexibility to meet the needs of
nearly any server application.
Chapter 1: Overview
1

1.2 Product Models
Model HDD Bays Power supply
B4989T68W8HR-SI Removable, 8 HDDs 1400W (2+1)
Redundant PSU
B4989T68W8HR-LE Removable, 8 HDDs 1400W (2+1)
Redundant PSU
2
Chapter 1: Overview

1.3 Features
Transport TN68 B4989 (B4989T68W8HR-SI)
Form Factor 2U Rackmount
Chassis Name TN68
Dimension (D x W x H) 26.8" x 16.9" x 3.4" (680 x 430 x 87mm)
Motherboard S4989WG2NR-SI
Board Dimension MEB, 13"x16.2" (330x411mm)
System
Gross Weight 32 kg
Buttons (1) PWR / (1) RST / (1) NMI / (1) ID
LEDs (1) PWR / (1) HDD / (2) LAN / (1) ID / (1) Warning
Front Panel
I/O Ports (2) USB
Type / QTY 3.5" Hot-Swap / (8)
External Drive
Bay Supported HDD
Interface 1st priority: SAS / 2st priority: SATA II
FAN (8) hot-swappable 6cm fans + (1) 6cm system fanSystem
Cooling
Configuration Air Duct (1) Air duct
Type of ODD / QTY Slim-type DVD-ROM / (1)
Peripherals Note: (1) internal 2.5" HDD tray if w/o DVD-ROM
(optional)
Type EPS12V
Input Range Full-range AC(100-240V)
Frequency 60 Hertz
Output Watts 1400 Watts
Efficiency 80-plus
Power Supply
Redundancy 2+1
Supported CPU Series
AMD 8000 series Dual-Core/ Quad-core
processors
/ Support AMD Dual Dynamic Power
Management (DDPM) feature / Support AMD
HyperTransport (HT1 and HT3) Technology
Socket Type / QTY LGA 1207-pin / (4)
Thermal Design Power
(TDP) wattage Quad core up to 115W, dual core up to 95W
Processor
System Bus (MHz) 4.4GT/s HyperTransport inter-processor link
Chipset NVIDIA NFP3600 / NFP3050
Super I/O Winbond W83627HG-AW
PCI-E bridge Pericom PI7C9X130
Chipset
HW monitor (1)W83793G +(2) ADT7476
Memory Supported DIMM QTY (32) DIMM sockets
Chapter 1: Overview
3

DIMM Type / Speed
Registered ECC DDR2 800/667/533/400
(800MHz DDR2 speed support available
only at 4xDIMMs per CPU or less)
((8) Dual Rank memory per CPU will have a
maximum memory speed of 533MHz)
Capacity Up to 256GB
Memory channel 2 Channels
Memory
Memory voltage 1.8V
PCI-E (2) PCI-E x8 slots / (2) PCI-E x16 slots
PCI-X (2) PCI-X 133/100MHz slots
Expansion
Slots
Note: Total (6) expansion slots support low profile cards
Port QTY (3)
Controller Intel 82571EB dual-port GbE LAN controller
LAN
PHY Davicom DM9161 10/100 PHY (dedicated for
IPMI connection)
Connector (2) Mini-SAS connectors (support 8 ports)
Controller LSI SAS1068E
Speed 3.0 Gb/s
SAS
RAID RAID 0/1/1E (LSI Integrated RAID)
Connector (6) SATAII
Controller MCP55
Speed 3.0 Gb/s
Storage
SATA
RAID RAID 0/1/0+1/5
Connector type D-Sub 15-pin
Resolution 1600x1200@60Hz
Chipset XGI Z9s
Graphic
Video RAM 32MB
USB 4 ports ( 2 at front, 2 at rear)
COM 1 port
PS/2 1 stacked connector
VGA 1 port
I/O Ports
RJ-45 3 ports (1 port for OPMA)
Chipset (1)W83793G +(2) ADT7476/ W83627HG-AW
Voltage Monitors voltage for CPU, memory, chipset &
power supply
Fan (8) 4-pin headers on Fan board / (1) 4-pin header
on MB
Temperature Monitors temperature for CPU & system
environment
LED Over temperature warning indicator / Fan & PSU
fail LED indicator
System
Monitoring
Others Chassis intrusion detection / Watch Dog timer
support
4
Chapter 1: Overview

Onboard Chipset Onboard Kira 100
Server
Management Kira 100 Feature
KIRA 100 (Single Chip KVM/IP+IPMI processor) /
KVM over IP / Video output over LAN
(1280x1024) / USB2 high speed interface /
Remote CDROM (media) redirect / Remote power
on/off, reset and soft off
Brand / ROM size AMI / 8Mbit
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0
/SMBIOS2.3 /PXE Boot / ACPI 2.0 power
management /Power on mode after power
recovery / User-configurable H/W monitoring /
Auto-configurable of hard disk types / Multiple
boot options
Operation
System OS supported list Please refer to our OS supported list.
FCC (Doc) Class B
Regulation CE (Doc) Yes
Operating Temp 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Motherboard (1) S4989WG2NR-SI
Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
CPU CEK (4) CPU backplates
Chassis Unit (1) CCHA-0300, TN68 2U chassis
Peripheral (1) CDVD-0060, slim type DVD-ROM
Cover
(1) CCCV-0160, Front Top cover for TN68 chassis
/ (1) CCCV-0161, Rear Top cover for TN68
chassis
HDD Tray (8) CHDT-0130, Removable 3.5" HDD Tray
Heatsink / Cooler
(1) CFAN-0094, 6 cm fan / (4) CHSK-0310, LGA
1207 pin CPU heatsink / (8) CFAN-0330, 6 cm
fans / (1) CADT-0270, air duct
Rail kit (1) CRAL-0120, sliding rail kit for TN68
Mounting Ear (1) CEAR-0130, mounting ear kit
Front Panel board (1) M1003-ID-RS, front panel board
Backplane
(1) M1022, Fan adapter board / (1) M1229-PT,
SAS/SATA 8 port HDD backplane / (1) M1029,
3-port power backplane
Package
Contains
Power Supply (3) CPSU-0350, 700W PSU module for 2+1 Red.
power solution
Chapter 1: Overview
5

SATA (2) CCBL-0326, SATA signal cables
SAS (2) CCBL-067H, Mini-SAS cables
DVD-ROM (1) CCBL-0422, SATA DVD-ROM power cable /
(1) CCBL-067K, DVD-ROM SAS cable
USB (1) CCBL-0357, USB cable / (1) CCBL-035G, FP
USB cable
FAN
(1) CCBL-146F, Fan BP 2x2P power cable,
300mm / (1) CCBL-146G, Fan BP small 4P power
cable / (1) CCBL-039H, fan control cable
Front Panel
(1) CCBL-072I, FP2 cable / (1) CCBL-072J, FP
cable (for M1229 R03) / (1) CCBL-072K, FP cable
(for M1229 R04) / (1) CCBL-072H, FP1 cable
Power Cord (3) CCBL-0310, US type power cords / (3)
CCBL-0300, EU type power cords
Package
Contains Cable
Others
(1) CCBL-146A, MB 2x12P power cable / (1)
CCBL-146B, MB 2x4P power cable / (1)
CCBL-146C, MB 2x2P power cable / (1)
CCBL-146D, HDD BP 2x6P power cable / (1)
CCBL-146E, HDD BP 2x2P power cable, 350mm
/ (1) CCBL-0612, SMbus cable
Drive Tray (1) CHDT-0111, Internal 2.5" HDD tray
Peripheral (1) CMPT-0170, TN68 DVD dummy cover
Optional
accessories
for future
upgrade Cable (1) CCBL-1070, internal 2.5" HDD power cable
Transport TN68 B4989 (B4989T68W8HR-LE)
Form Factor 2U Rackmount
Chassis Name TN68
Dimension (D x W x H) 26.8" x 16.9" x 3.4" (680 x 430 x 87mm)
Motherboard S4989WG2NR-LE
Board Dimension MEB, 13"x16.2" (330x411mm)
System
Gross Weight 32 kg
Buttons (1) PWR / (1) RST / (1) NMI / (1) ID
LEDs (1) PWR / (1) HDD / (2) LAN / (1) ID / (1) Warning
Front Panel
I/O Ports (2) USB
Type / QTY 3.5" Hot-Swap / (8)
External
Drive Bay Supported HDD
Interface 1st priority: SAS / 2st priority: SATA II
FAN (8) hot-swappable 6cm fans + (1) 6cm system fanSystem
Cooling
Configuration Air Duct (1) Air duct
Type of ODD / QTY Slim-type DVD-ROM / (1)
Peripherals Note: (1) internal 2.5" HDD tray if w/o DVD-ROM
(optional)
6
Chapter 1: Overview

Type EPS12V
Input Range Full-range AC(100-240V)
Frequency 60 Hertz
Output Watts 1400 Watts
Efficiency 80-plus
Power Supply
Redundancy 2+1
Supported CPU
Series
AMD 8000 series Dual-Core/ Quad-core
processors
/ Support AMD Dual Dynamic Power
Management (DDPM) feature / Support AMD
HyperTransport (HT1 and HT3) Technology
Socket Type / QTY LGA 1207-pin / (4)
Thermal Design
Power (TDP) wattage Quad core up to 115W, dual core up to 95W
Processor
System Bus (MHz) 4.4GT/s HyperTransport inter-processor link
Chipset NVIDIA NFP3600 / NFP3050
Super I/O Winbond W83627HG-AW
PCI-E bridge Pericom PI7C9X130
Chipset
HW monitor (1)W83793G +(2) ADT7476
Supported DIMM QTY (32) DIMM sockets
DIMM Type / Speed
Registered ECC DDR2 800/667/533/400
(800MHz DDR2 speed support available
only at 4xDIMMs per CPU or less)
((8) Dual Rank memory per CPU will have a
maximum memory speed of 533MHz)
Capacity Up to 256GB
Memory channel 2 Channels
Memory
Memory voltage 1.8V
PCI-E (2) PCI-E x8 slots or (1) PCI-E x16 slots
Pre-install TYAN Riser
Card
Install M2089, (2) PCI-E x16 slots w/ x8 signal, 2U
riser card (left), support full profile add on cards
Expansion
Slots
Note: M2090 optional, (1) PCI-E x16 slots, 2U riser card
(left), support full profile add on card
Port QTY (3)
Controller Intel 82571EB dual-port GbE LAN controller
LAN
PHY Davicom DM9161 10/100 PHY (dedicated for IPMI
connection)
Connector (2) Mini-SAS connectors (support 8 ports)
Controller LSI SAS1068E
Speed 3.0 Gb/s
SAS
RAID RAID 0/1/1E (LSI Integrated RAID)
Connector (6) SATAII
Storage
SATA Controller MCP55
Chapter 1: Overview
7

Speed 3.0 Gb/s
SATA RAID RAID 0/1/0+1/5
D-Sub 15-pin
1600x1200@60Hz
Chipset XGI Z9s
Graphic
Video RAM 32MB
USB 4 ports ( 2 at front, 2 at rear)
COM 1 port
PS/2 1 stacked connector
VGA 1 port
I/O Ports
RJ-45 3 ports (1 port for OPMA)
Chipset (1)W83793G +(2) ADT7476/ W83627HG-AW
Voltage Monitors voltage for CPU, memory, chipset &
power supply
Fan (8) 4-pin headers on Fan board / (1) 4-pin header
on MB
Temperature Monitors temperature for CPU & system
environment
LED Over temperature warning indicator / Fan & PSU
fail LED indicator
System
Monitoring
Others Chassis intrusion detection / Watch Dog timer
support
Onboard Chipset Onboard Kira 100
Server
Management
Kira 100 Feature
KIRA 100 (Single Chip KVM/IP+IPMI processor) /
KVM over IP / Video output over LAN (1280x1024)
/ USB2 high speed interface / Remote CDROM
(media) redirect / Remote power on/off, reset and
soft off
Brand / ROM size AMI / 8Mbit
BIOS Feature
Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3
/PXE Boot / ACPI 2.0 power management /Power
on mode after power recovery / User-configurable
H/W monitoring / Auto-configurable of hard disk
types / Multiple boot options
Operation
System OS supported list Please refer to our OS supported list.
FCC (Doc) Class B
Regulation CE (Doc) Yes
Operating Temp 10° C ~ 35° C (50° F~ 95° F)
Non-operating Temp - 40° C ~ 70° C (-40° F ~ 158° F)
Operating
Environment
In/Non-operating
Humidity 90%, non-condensing at 35° C
RoHS RoHS 6/6 Complaint Yes
Package Motherboard (1) S4989WG2NR-LE
8
Chapter 1: Overview

Manual (1) User's manual / (1) Quick Ref. Guide
Installation CD (1) TYAN installation CD
CPU CEK (4) CPU backplates
Chassis Unit (1) CCHA-0360, TN68-LE 2U chassis
Peripheral (1) CDVD-0060, slim type DVD-ROM
Cover
(1) CCCV-0160, Front Top cover for TN68 chassis
/ (1) CCCV-0161, Rear Top cover for TN68
chassis
HDD Tray (8) CHDT-0130, Removable 3.5" HDD Tray
Heatsink / Cooler
(1) CFAN-0094, 6 cm fan / (4) CHSK-0310, LGA
1207 pin CPU heatsink / (8) CFAN-0330, 6 cm
fans / (1) CADT-0270, air duct
Rail kit (1) CRAL-0120, sliding rail kit for TN68
Mounting Ear (1) CEAR-0130, mounting ear kit
Front Panel board (1) M1003-ID-RS, front panel board
Backplane
(1) M1022, Fan adapter board / (1) M1229-PT,
SAS/SATA 8 port HDD backplane / (1) M1029,
3-port power backplane
Power Supply (3) CPSU-0350, 700W PSU module for 2+1 Red.
power solution
SATA (2) CCBL-0326, SATA signal cables
SAS (2) CCBL-067H, Mini-SAS cables
DVD-ROM (1) CCBL-0422, SATA DVD-ROM power cable /
(1) CCBL-067K, DVD-ROM SAS cable
USB (1) CCBL-0357, USB cable / (1) CCBL-035G, FP
USB cable
FAN
(1) CCBL-146F, Fan BP 2x2P power cable,
300mm / (1) CCBL-146G, Fan BP small 4P power
cable / (1) CCBL-039H, fan control cable
Front Panel
(1) CCBL-072I, FP2 cable / (1) CCBL-072J, FP
cable (for M1229 R03) / (1) CCBL-072K, FP cable
(for M1229 R04) / (1) CCBL-072H, FP1 cable
Power Cord (3) CCBL-0310, US type power cords / (3)
CCBL-0300, EU type power cords
Contains
Cable
Others
(1) CCBL-146A, MB 2x12P power cable / (1)
CCBL-146B, MB 2x4P power cable / (1)
CCBL-146C, MB 2x2P power cable / (1)
CCBL-146D, HDD BP 2x6P power cable / (1)
CCBL-146E, HDD BP 2x2P power cable, 350mm /
(1) CCBL-0612, SMbus cable
Drive Tray (1) CHDT-0111, Internal 2.5" HDD tray
Peripheral (1) CMPT-0170, TN68 DVD dummy cover
Optional
accessories
for future
upgrade Cable (1) CCBL-1070, internal 2.5" HDD power cable
Chapter 1: Overview
9

1.4 Standard Parts List
This section describes the Transport TN68-B4989 package contents
and accessories. Open the box carefully and ensure that all
components are present and undamaged. The product should arrive
packaged as illustrated below.
1.4.1 Box Contents
Component Description
2U chassis,(8) hot swap HDDbays
TYAN®Thunder S4989 system board
PCI holder
(B4989T68W8HR-LE SKU)
1 x slim ODD drive (pre-installed)
Air Duct
M1003：
LED control board
M1029 power board
10
Chapter 1: Overview

Component Description
M1229-PT HDD Backplane
M1022 Fan BD
(8) System fans
(60mm x 60mm x 38mm)
(1) PCI-E fan
(60mm x 60mm x 38mm)
(3) 700W power supply modules
(1)PCI-Ex16 to (2)PCI-Ex8 2U Riser
Card (B4989T68W8HR-LE SKU)
PCI-Ex16 to PCI-Ex16 1U Riser Card
(B4989T68W8HR-LE SKU)
Chapter 1: Overview
11

1.4.2 Accessories
If any items are missing or appear damaged, contract your retailer
or browse to TYAN®’s website for service: http://www.tyan.com.
The Web site also provides information on other TYAN®products,
plus FAQs, compatibility lists, BIOS settings, and more.
1 x TYAN®Motherboard
Drive CD 4 x Heatsink
HDD Screws Power Cables
Left to right: Europe, US
Mounting Ears & Screws Barebone Manual &
Mainboard Manual
12
Chapter 1: Overview
