Tyba TY-B-PDC User manual

1
User Guide
Bus Connector DC Power
TY-B-PDC
January 2021
Version 1.0

2
DISCLAIMER
Tyba Home Limited makes no representations or warranties with respect to this manual and,
to the maximum extent permitted by law, expressly limits its liability for breach of any
warranty that may be implied to the replacement of this manual with another. Furthermore,
Tyba Home Limited reserves the right to revise this publication at any time without incurring
an obligation to notify any person of the revision.
The information provided in this documentation contains general descriptions and/or
technical characteristics of the performance of the products contained herein. This
documentation is not intended as a substitute for and is not to be used for determining
suitability or reliability of these products for specific user applications. It is the duty of any
such user or integrator to perform the appropriate and complete risk analysis, evaluation and
testing of the products with respect to the relevant specific application or use thereof. Neither
Tyba Home Limited nor any of its affiliates or subsidiaries shall be responsible or liable for
misuse of the information that is contained herein. If you have any suggestions for
improvements or amendments or have found errors in this publication, please notify us.
All pertinent state, regional, and local safety regulations must be observed when installing
and using this product. For reasons of safety and to help ensure compliance with
documented system data, only the manufacturer shall perform repairs to components.
Failure to observe this information can result in injury or equipment damage.
Copyright © 2021 by Tyba Home Limited
All rights reserved. No part of this publication may be reproduced, distributed, or transmitted
in any form or by any means, including photocopying, recording, or other electronic or
mechanical methods, without the prior written permission of the publisher. For permission
requests, write to the publisher, addressed “Attention: Permissions Coordinator,” at the
address below.
Tyba Home Limited, Unit 3, Jubilee Way, Faversham, Kent, ME13 8GD, UK
[phone] www.tybahome.com
TRADEMARKS
Tyba Home Limited has made every effort to supply trademark information about company
names, products and services mentioned in this manual. Trademarks shown below were
derived from various sources. All trademarks are the property of their respective owners.
General Notice: Some product names used in this manual are used for identification purposes
only and may be trademarks of their respective companies.

3
Product Modifications
Document Revisions
Year
Version
Modifications
01/01/2021
1.0
Initial release
Date
Version
Document Changes
01/01/2021
1.0
Initial draft

4
Table of Contents
1 Preface.................................................................................................................................................................................................................................5
1.1 .........Description of the User ......................................................................................................................................................................................5
1.2........Explanation of Safety Warnings.............................................................................................................................................................. 5
1.3........Retaining Instructions......................................................................................................................................................................................... 5
2 Product Description.............................................................................................................................................................................................6
2.1........Intended Use and Reasonably Foreseeable Misuse.......................................................................................................6
2.2......System Overview......................................................................................................................................................................................................6
2.3......Technical Data.............................................................................................................................................................................................................7
2.4......Product Compliance.............................................................................................................................................................................................7
3 Safety Instructions................................................................................................................................................................................................8
3.1........How to Use Safely.....................................................................................................................................................................................................8
3.2......Graphical Symbols.................................................................................................................................................................................................8
4 Installation ......................................................................................................................................................................................................................9
4.1........Connections and Physcical Details Front....................................................................................................................................9
4.2......Connections and Physcical Details Rear ....................................................................................................................................10
4.3......Bus Connector Wiring ......................................................................................................................................................................................... 11
4.4......Back Box Options ...................................................................................................................................................................................................... 11
4.5......Mounting a Bus Connector using a Euro back box .........................................................................................................12
4.6......Mounting a Bus Connector using a UK back box...............................................................................................................13
5 Setup.....................................................................................................................................................................................................................................14
5.1........Powering On................................................................................................................................................................................................................. 14
7 Maintenance ..............................................................................................................................................................................................................15

5
1 Preface
1.1 Description of the User
This User Guide is intended for professional installers such as electricians or system
integrators.
1.2 Explanation of Safety Warnings
Danger indicates a hazard with a high level of risk which, if not avoided, will result in
death or serious injury
Warning indicates a hazard with a medium level of risk which, if not avoided, could
result in death or serious injury.
Caution indicates a hazard with a low level of risk which, if not avoided, could result in
minor or moderate injury.
Indicates information considered important, but not hazard-related.
1.3 Retaining Instructions
Read and understand this manual and its safety instructions before using this product.
Failure to do so can result in serious injury or death.
Ensure that each person who uses the product has read these warnings and
instructions and follows them.
Tyba Home Limited is not liable for cases of material damage or personal injury
caused by incorrect handling or non-compliance with the safety instructions. In such
cases, the warranty will be voided.

6
2 Product Description
2.1 Intended Use and Reasonably Foreseeable Misuse
The DC Power Bus Connector is intended to operate as a power supply for Tyba
products. The Bus Connector also provides a mounting interface to Tyba products. The
DC Power Bus Connector is not intended to be used for any function outside those
described.
The DC Power Bus Connector should be used with the following software, original
accessories and components only:
• Tyba genuine products
2.2 System Overview
The DC Power Bus Connector is a product for powering Tyba products. It is also
designed to provide a mounting interface for Tyba products.
2.3 Technical Data
2.4 Product Compliance
This product complies to all relevant Directives associated with CE, UKCA, IC & FCC. The
Declaration of Conformity and further certification documentation can be found at
www.tybahome.com/downloads.
Parameter
Unit
Product Name
Bus Connector DC Power
Product Code
TY-B-PDC
Power
5-36VDC | 5W
Dimensions
W 73.6mm | H 73.6mm | D 26.7mm
Weight
50g

7
3 Safety Instructions
Read and understand this manual and its safety instructions before using this product.
Failure to do so can result in minor or moderate injury.
3.1 How to Use the Product Safely
When using this product, ensure all guidance is followed regarding technical
specification, installation, setup and operation. Never use this product with anything
other than Tyba genuine accessories.
3.2 Graphical Symbols
Symbol
Meaning
The CE Marking on the product is the manufacturer's
declaration that the product complies.
The UKCA Marking on the product is the manufacturer's
declaration that the product complies.
The FCC Marking on the product is the manufacturer's
declaration that the product complies.
The WEEE Marking on the product is the manufacturer's
confirmation that the product is not recyclable.

8
4 Installation
The product should only be installed by a qualified and trained person.

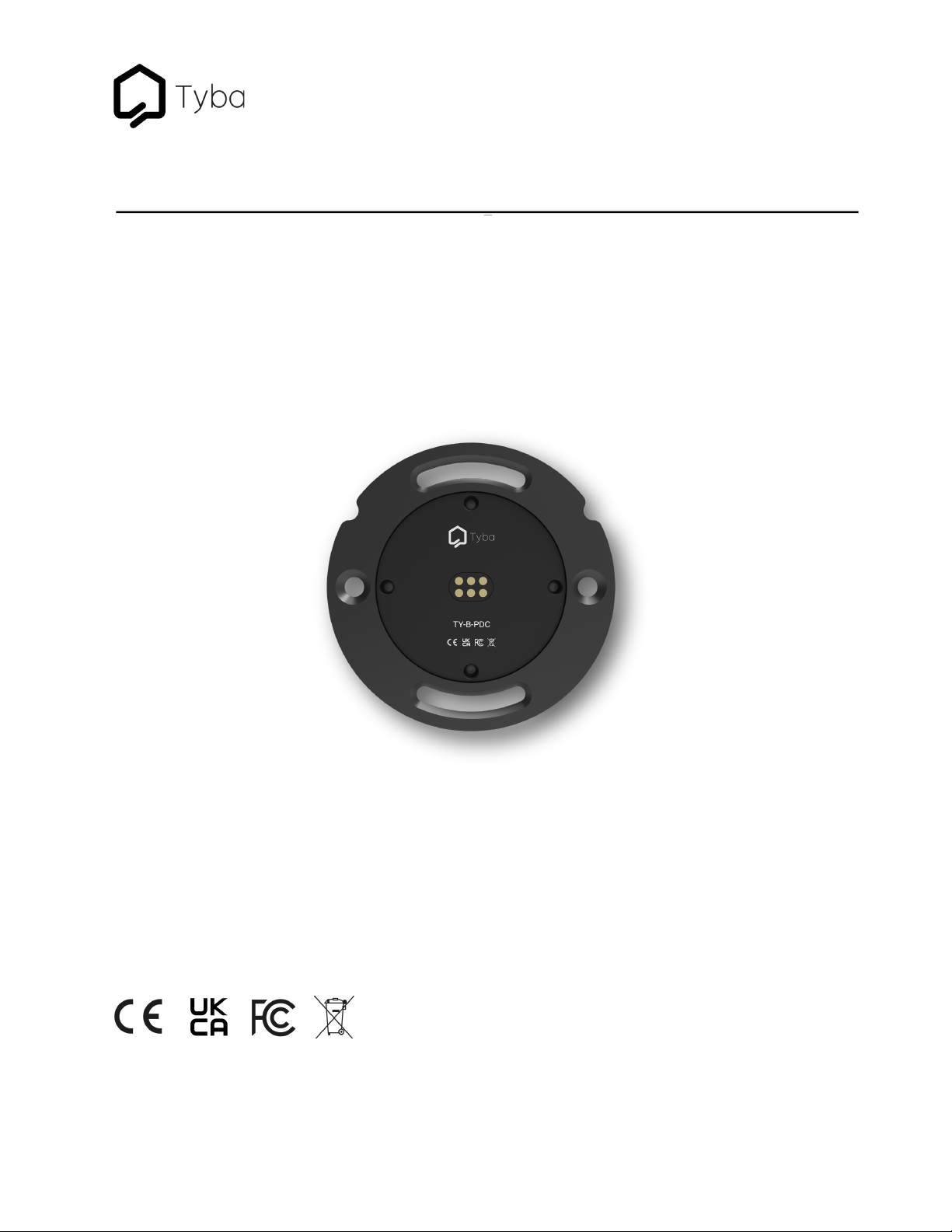

4.1 Connections and Physical Details Front
Key
Description
1
Bus Connector proprietary connector

9
4.2 Connections and Physical Details Rear
Key
Description
1
Power | 5-36VDC | 5W

10
4.3 Bus Connector Wiring
The Bus Connector DC Power can be wired as a single device or in a loop with other
devices. The maximum number of devices should be calculated according to the
power supply and device consumption.
Ensure the connections are correct before providing power. Always test the cable
polarity.
4.4 Back Box Options
Bus Connectors can be used with a range of back boxes depending on your
requirements. Bus Connectors provide screw slots top and bottom, as well as counter
sunk screw holes left and right, all spaced with 60mm hole centers.
Option
Description
1
Euro style round back box 68mm diameter. Kaiser Elektro
O-range 9061-00, 9063-02, 9064-02.
2
UK style square back box with adjustable lug. Requires
Wall Plate (TY-B-PLT)

11
4.5 Mounting a Bus Connector using a Euro back box
Once the back box is installed, align the Bus Connector with the front of the back box
and insert it so that the Bus Connector sits flat and square on the wall.
Use the screw slots top and bottom to fix the Bus Connector to the back box. You can
rotate the Bus Connector within the bounds of the screw slots to ensure it is level.
Ensure the Euro back box is installed with the mounting holes top and bottom so that
the Bus Connector screw holes align. Do not over tighten the fixing screws.

12
4.6 Mounting a Bus Connector using a UK back box
Once the back box is installed, insert the Bus Connector in to the Wall Plate. Align the
Bus Connector and Wall Plate with the front of the back box and insert it so that the Bus
Connector and Wall Plate sits flat and square on the wall.
Use the screw slots left and right to fix the Bus Connector and Wall Plate to the back
box.
Ensure the UK box is installed with the mounting lug on either the left or right to provide
fine level adjustment. Do not over tighten the fixing screws.

13
5 Setup
It is recommend that setup is carried out by a qualified and trained person.
5.1 Powering On
Once Bus Connector DC Power is powered it will be ready to provide power to a Tyba
keypad.

14
6 Maintenance
The product is maintenance free. Repair should only be carried out by a qualified and
trained person.
