USER GUIDE & SERVICE MANUAL
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Modular 3000 Series •3018R •18" Solid Door Refrigerator
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Contents
Intro
Safety
Safety and Warning
RIGHT PRODUCT. RIGHT PLACE. RIGHT TEMPERATURE. SINCE 1962.

Disposal and Recycling
Installation
Environmental Requirements
Electrical
Cutout Dimensions
Product Dimensions
Side by Side Installation
Anti-Tip Bracket General
Installation

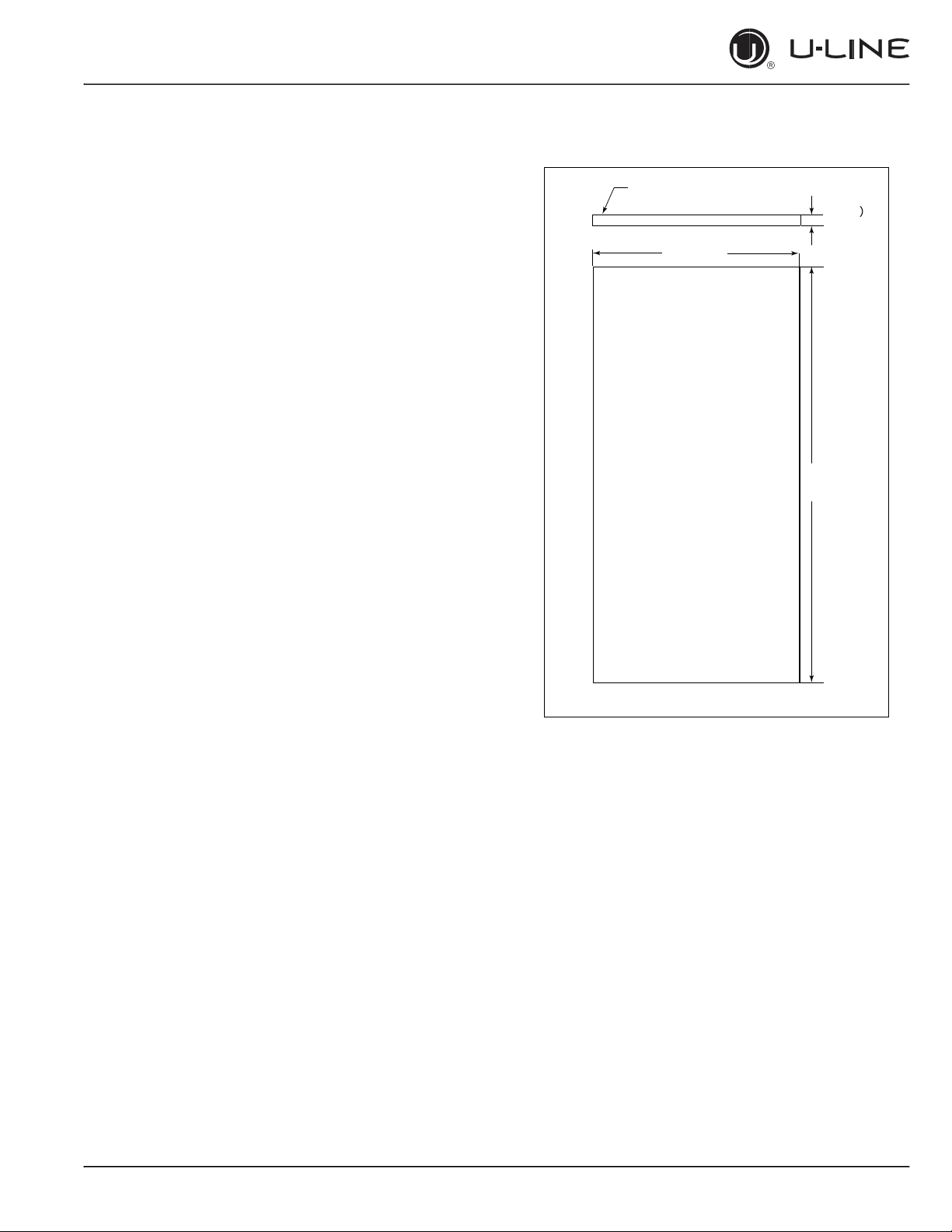

Integrated Panel Dimensions
Integrated Grille / Plinth
Dimensions
Integrated Panel Installation
Grille / Plinth Installation
Door Swing
Door Stop
Cleaning Condenser
Extended Non-Use
Service
Troubleshooting
Warranty
Service Extended
Wire Diagram
Product Liability
Warranty Claims
Parts
Ordering Replacement
Parts
System Diagnosis Guide
Compressor Specifications
Troubleshooting Extended
Control Quick Guide
Thermistor
Defrost
Remove Fan and Cover
Door Adjust
Operating Instructions
First Use
Control Operation
Sabbath Mode
Airflow and Product Loading
Refrigerator Bins / Crisper
Maintenance
Cleaning
WELCOME TO U-LINE
Congratulations on your U-Line purchase. Your product comes from a company with over five decades of premium
modular ice making, refrigeration, and wine preservation experience. U-Line continues to be the American leader,
delivering versatility and flexibility for multiple applications including residential, light commercial, outdoor and marine
USER
GUIDE
u-line.com

USER GUIDE
u-line.com
use. U-Line’s complete product collection includes Wine Captain®Models, Beverage Centers, Clear Ice Machines,
Crescent Ice Makers, Glass & Solid Door Refrigerators, Drawer Models, Freezers, Combo®Models, and more.
U-Line has captivated those with an appreciation for the finer things with exceptional functionality, style, inspired
innovations and attention to even the smallest details. We are known and respected for our unwavering dedication
to product design, quality and selection. U-Line is headquartered in Milwaukee, Wisconsin and has shipped product
to five continents for over two decades and is proud to have the opportunity to ship to you.
PRODUCT INFORMATION
Looking for additional information on your product? User Guides, Spec Sheets, CAD Drawings, Compliance
Documentation, and Product Warranty information are all available for reference and download at u-line.com.
PROPERTY DAMAGE / INJURY CONCERNS
In the unlikely event property damage or personal injury is suspected related to a U-Line product, please take the
following steps:
1. U-Line Customer Care must be contacted immediately at +1.800.779.2547.
2. Service or repairs performed on the unit without prior written approval from U-Line is not permitted. If the unit
has been altered or repaired in the field without prior written approval from U-Line, claims will not be eligible.
GENERAL INQUIRIES
U-Line Corporation
8900 N. 55th Street
Milwaukee, Wisconsin 53223 USA
Monday - Friday 8:00 am to 4:30 pm
CST
T: +1.414.354.0300
F: +1.414.354.7905
Email: [email protected]
u-line.com
CONNECT WITH US
SERVICE & PARTS ASSISTANCE
Monday - Friday 8:00 am to 4:30 pm
CST
T: +1.800.779.2547
F: +1.414.354.5696
Service Email: onlineservice@u-
line.com
Parts Email: [email protected]
Designed, engineered and assembled in WI, USA
Introduction 1

u-line.com
USER GUIDE
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Safety and Warning
NOTICE
Please read all instructions before installing,
operating, or servicing the appliance.
Use this appliance for its intended purpose only and
follow these general precautions with those listed
throughout this guide:
SAFETY ALERT DEFINITIONS
Throughout this guide are safety items labeled with a
Danger, Warning or Caution based on the risk type:
DANGER
Danger means that failure to follow this safety
statement will result in severe personal injury or
death.
WARNING
Warning means that failure to follow this safety
statement could result in serious personal injury
or death.
CAUTION
Caution means that failure to follow this safety
statement may result in minor or moderate
personal injury, property or equipment damage.
DANGER
This unit contains R600a (Isobutane) which is a
flammable hydrocarbon. It is safe for regular
use. Do not use sharp objects to expedite
defrosting. Do not service without consulting the
“R600a specifications” section included in the
User Guide. Do not damage the refrigerant
circuit.
WARNING
Service must be done by factory authorized
service personnel. Any parts shall be replaced
with like components. Failure to comply could
increase the risk of possible ignition due to
incorrect parts or improper service.
Safety and Warning 1
SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE

USER GUIDE
u-line.com
Disposal and Recycling
DANGER
RISK OF CHILD ENTRAPMENT. Before you throw
away your old refrigerator or freezer, take off
the doors and leave shelves in place so children
may not easily climb inside.
If the unit is being removed from service for disposal,
check and obey all federal, state and local regulations
regarding the disposal and recycling of refrigeration
appliances, and follow these steps completely:
1. Remove all consumable contents from the unit.
2. Unplug the electrical cord from its socket.
3. Remove the door(s)/drawer(s).
Disposal and Recycling 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Environmental Requirements
This model is intended for indoor/interior applications
only and is not to be used in installations that are
open/ exposed to natural elements.
This unit is designed to operate between 50°F (10°C)
and 100°F (38°C). Higher ambient temperatures may
reduce the unit’s ability to reach low temperatures
and/or reduce ice production on applicable models.
For best performance, keep the unit out of direct
sunlight and away from heat generating equipment.
In climates where high humidity and dew points are
present, condensation may appear on outside
surfaces. This is considered normal. The condensation
will evaporate when the humidity drops.
CAUTION
Damages caused by ambient temperatures of
40°F (4°C) or below are not covered by the
warranty.
Environmental Requirements 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Electrical
WARNING
SHOCK HAZARD —Electrical Grounding
Required. Never attempt to repair or perform
maintenance on the unit until the electricity has
been disconnected.
Never remove the round grounding prong from
the plug and never use a two-prong grounding
adapter.
Altering, cutting or removing power cord,
removing power plug, or direct wiring can cause
serious injury, fire, loss of property and/or life,
and will void the warranty.
Never use an extension cord to connect power to
the unit.
Always keep your working area dry.
NOTICE
Electrical installation must observe all state and
local codes. This unit requires connection to a
grounded (three-prong), polarized receptacle
that has been placed by a qualified electrician.
The unit requires a grounded and polarized 115 VAC,
60 Hz, 15A power supply (normal household current).
An individual, properly grounded branch circuit or
circuit breaker is recommended. A GFCI (ground fault
circuit interrupter) is usually not required for fixed
location appliances and is not recommended for your
unit because it could be prone to nuisance tripping.
However, be sure to consult your local codes.
See CUTOUT DIMENSIONS for recommended
receptacle location.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Electrical 1
Cutout Dimensions
PREPARE SITE
Your U-Line product has been designed exclusively for
a built-in installation. When built-in, your unit does
not require additional air space for top, sides, or rear.
However, the front grille must NOT be obstructed.
The product is designed and manufactured for
seamless integration in the specified cutout opening
shown, which requires precise measurements. The
opening must be square and plumb front to back.
Although not required, you may choose to increase
the overall cutout width for ease of installation.
The Modular 3000 Series units are engineered with a
variety of adjustment features to help ensure a
seamless installation. Adjustable doors, leveling legs
and grille will assist in fine tuning the installation.
All 3000 Series models fully integrate into
overlay/face frame, inset or European/frameless
cabinet styles and install seamlessly into standard 24"
(610 mm) depth cabinet base.
CAUTION
Unit can NOT be installed behind a closed
cabinet door.
CUTOUT DIMENSIONS
Metric measurements rounded and optimized.
Cutout Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Product Dimensions

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Product Dimensions 1
Side-by-Side Installation
OTHER SITE REQUIREMENTS
Side-by-Side Installation
Units must operate from separate, properly grounded
electrical receptacles placed according to each unit’s
electrical specifications requirements.
Cutout width for a side-by-side installation is the total
of the widths listed under Cutout Dimensions in each
unit’s Installation Guide. Each door can be opened
individually (one at a time) without interference.
However, to ensure unobstructed door swing
(opening both doors at the same time), 1/4" (6.4
mm) of space needs to be maintained between the
units.
Hinge-by-Hinge Installation (Mullion)
When installing two units hinge-by-hinge, 13/16" (22
mm) is required for integrated models. Additional
space may be needed for any knobs, pulls or handles
installed.
Stainless steel models which include the standard
stainless handle will require 4-9/16" (116 mm) to
allow both doors to open to 90° at the same time.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Side-by-Side Installation 1
Anti-Tip Bracket
CAUTION
The anti-tip bracket must be installed to prevent
the unit from tipping when doors are fully
opened or excess weight is placed on the front
of the unit.
The anti-tip bracket has multiple mounting options.
Mounting will depend on your particular cabinet
configuration. Locate 3 #8x5/8" screws included with
your unit.
TOP MOUNT
For ease of installation, the anti-tip bracket is pre-
installed in the top mount position.
1. Completely slide the unit into its position in the
cabinet. Be certain unit height is properly adjusted.
(See GENERAL INSTALLATION).
2. Open door completely. Make certain door clears
surrounding cabinetry.
3. Using a 3/32" (2.50 mm) drill bit, drill 3 pilot holes
5/8" (16 mm) deep into bottom of counter top. Use
the anti-tip bracket as a template.
4. Install 3 #8x5/8" screws into the plate using a #2
Phillips head screwdriver.
SIDE MOUNT
Side mount position is used when you are unable to
mount the bracket to the underside of your
countertop.
1. Remove the pre-installed anti-tip bracket from the
top mount position and align the bracket to the
hinge side of the unit as shown above.
2. Reinstall the 2 #8x5/8" screws into the plate using
a #2 Phillips head screwdriver.
3. Completely slide the unit into its position in the
cabinet. Be certain unit height is properly adjusted.
(See GENERAL INSTALLATION).
4. Open door completely. Make certain door clears
surrounding cabinetry.
5. Using a 3/32" (2.50 mm) drill bit, drill 3 pilot holes
5/8" (16 mm) deep into cabinetry frame using the
anti-tip bracket as a template.
6. Install 3 #8x5/8" screws into the plate using a #2
Phillips head screwdriver.

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Anti-Tip Bracket 1
General Installation
LEVELING INFORMATION
1. Use a level to confirm
the unit is level. Level
should be placed along
top edge and side
edge as shown. 1
2. If the unit is not level,
remove grille and
adjust legs as 2
necessary. Use included
tool to adjust the height of the rear legs.
3. Confirm the unit is level after each adjustment
and repeat the previous steps until the unit is
level.
INSTALLATION TIP
If the room floor is higher than the floor in the cutout
opening, adjust the rear legs to achieve a total unit
rear height of 1/8" (3 mm) less than the opening’s
rear height. Shorten the unit height in the front by
adjusting the front legs. This allows the unit to be
gently tipped into the opening. Adjust the front legs
to level the unit after it is correctly positioned in the
opening.
INSTALLATION
1. Plug in the power/electrical cord.
2. Gently push the unit into position. Be careful not
to entangle the cord.
3. Re-check the leveling, from front to back and side
to side. Make any necessary adjustments. The
unit’s top surface should be approximately 1/8" (3
mm) below the countertop.
4. Install the anti-tip bracket.
5. Remove the interior packing material and wipe out
the inside of the unit with a clean, water-
dampened cloth.
General Installation 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Dimensions 1
USER GUIDE
u-line.com
Integrated Panel Dimensions Integrated Panel Dimensions
Metric measurements rounded and optimized.
INTEGRATED PANEL
NOTICE
Due to differences in surrounding cabinetry the panel
may not perfectly align with door. The procedure below
is designed to provide a finished integrated panel that
seamlessly integrates with surrounding cabinetry.
Panel Preparation
A full integrated door panel completely covers the door frame
and provides a built-in appearance.
NOTICE
The door panel must not weigh more than 20 lbs (10
kg).
It is important to ensure that all drilled holes are drilled
to the correct depth in order to avoid splits in the wood
when hardware is installed.
1. Cut the panels to the dimensions listed in the diagram
below.
2. Optional: Stain or finish panel to desired stain or color. Be sure to closely follow the
instructions provided by the manufacturer.
3. Optional: Install handles and hardware.
NOTICE
When applying an integrated panel to a unit,
ensure that both sides are finished in order to
prevent warping. In some panel installations,
the panel may be visible through the glass while
the door is open.
HANDLELESS INTEGRATED DOOR PANEL
The following procedure is designed to provide a
finished, handleless solid panel for an 18" (450 mm)
door that seamlessly integrates with its surrounding
cabinetry.
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT OVERLAY PANEL FLAT AND WITHOUT
INTERFERENCE
/4"
3
)
mm
(20
Integrated Panel
17-5/8
"
(445
mm
)
30
"
(762
mm
)

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Dimensions 2
USER GUIDE
u-line.com
NOTE: Many cabinet manufacturers provide a ready
solution for a handleless, integrated design that can
be easily applied to your U-Line 3000 Series model.
Consult your cabinet manufacturer for applicable
design and installation details. The cabinet
manufacturer’s solution to this design and integration
detail will often result in an integrated panel solution
wherein the size of the panel may result in a height
dimension taller than what we specify. This can be
achieved provided the additional height is positioned
above the appliance door.
NOTICE
The integrated panel aligns with the surrounding
cabinetry and, due to differences in cabinetry,
may not align perfectly with the door.
The appliance will need up to 34-1/2" (876 mm)
to the underside of the counter to leave room for
leveling adjustments.
A single prepared panel with insert must not
weigh more than 20 lbs (10 kg).
Integrated Panel Preparation
1. Cut the main panel to the dimensions below. For
details, see the drawings on the next page.
Main panel width
Main panel height
17-5/8" (445 mm)
28-13/16" (732 mm)
2. Create the top design for the handleless feature
and the 1/8" (3 mm) notch for the insert(s)
indicated on the Top Detail drawing, on the next
page.
3. Prepare the insert(s) that will back up the
handleless design. Wooden Insert –Cut 1/8" (3
mm) thick wooden insert(s) to the dimensions
below.
Wooden insert width
Wooden insert height
17-5/8" (445 mm)
3-1/2" (89 mm)
Integrated Panel
4. Optional: Stain or finish panel and wooden insert
to desired stain or color. Be sure to closely follow
the instructions provided by the manufacturer.
NOTICE
If finishing panel or wooden insert, all sides
must be finished to prevent warping.
5. Attach the insert to the panel. Wood glue or
equivalent adhesive should be used to attach
insert to panel.
Attach Wooden Insert
Handleless Integrated Panel Dimensions
Top Design
and Insert Notch
Wooden Insert
Main Panel

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Dimensions 3
USER GUIDE
u-line.com
Wooden Insert Dimensions
EXTENDED INTEGRATED PANEL
NOTICE
Due to differences in surrounding cabinetry the
panel may not perfectly align with door. The
procedure below is designed to provide a
)
3
/4" (20 mm
28-13/16
"
)
mm
(732
2-3/4
"
(70
mm
)
2-3/4
"
70
mm
R 5/8"
)
R 16 mm
(
1
)
/8" (3 mm
1
)
/4" (6 mm
Wooden Insert
Notch Depth: 1/8" (3 mm)
2-3/8
"
(60
mm
)
7
/8" (22 mm
)
Ref.
Top Detail
Insert Notch
Top Design
17-5/8
"
(445
mm
)
1
/8" (3 mm
)
3-1/2
"
(89
mm
)
17-5/8
" (445 mm
)

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Dimensions 4
USER GUIDE
u-line.com
finished panel that seamlessly integrates with
surrounding cabinetry.
Panel Preparation
An extended integrated panel can be used to maintain
alignment with an adjacent extended cabinet height or a
reduced toe-kick/grille application.
1. Cut the panels to the dimensions listed in the
appropriate diagram on the next page.
2. Optional: Stain or finish panel to desired stain or
color. Be sure to closely follow the instructions
provided by the manufacturer.
3. Optional: Install handles and hardware.
NOTICE
The door panel must not weigh more than 20 lbs
(10 kg).
It is important to ensure that all drilled holes are
drilled to the correct depth in order to avoid
splits in the wood when hardware is installed.
Appliance will need up to 34-1/2" (876 mm) to
the underside of the counter to leave room for
leveling adjustments.
When applying an integrated panel to a unit,
ensure that both sides are finished in order to
prevent warping. In some installations, the
panel may be visible through the glass while the
door is open.
Front Side
Integrated Panel/Integrated Frame
Integrated Panel

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Dimensions 5
USER GUIDE
u-line.com
3-5/16" (89 mm)3-5/16" (89
mm) toto
4-5/16" (114 mm)4-5/16" (114 mm)
Front
Side
Extended Integrated Panel/Extended Integrated Frame
Integrated Panel
*Panel can extend beyond the door frame.
**A minimum of 1" (25 mm) from the floor is required for proper ventilation.
3-5/16" (89 mm)
to
1" (25 mm)**
Extended Integrated Panel Dimensions
U-Line
Unit
U-Line
Unit
Floor
Cabinet
>
3-5/16"
(>
89 mm
)
3-5/16
" (89 mm
)
to
)**
" (25 mm
1
U-Line
Unit
Floor
Cabinet
*
U-Line
Unit

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
Integrated Panel Dimensions 6
USER GUIDE
u-line.com
*A minimum of 1" (25 mm) is required from the floor to the bottom
of the extended integrated panel/frame for proper ventilation.
BACK SURFACE MUST HAVE AMPLE FLAT SURFACE
TO MOUNT INTEGRATED PANEL FLAT AND
WITHOUT INTERFERENCE
3
/4"
(20
mm
)
Integrated Panel
17-5/8
"
mm
)
(445
30.0
" -
33-7/8
"
(762
mm -
860
mm
)*

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
Integrated Grille - Plinth
Dimensions
PREPARE AND INSTALL INTEGRATED GRILLE
(PLINTH STRIP/BASE FASCIA)
1. Use the dimensions provided in the diagram to cut
and shape your integrated grille (plinth strip/base
fascia) panel. Recommended panel thickness is
between 1/4" (6 mm) and 3/8" (9 mm). Height will
vary from 3-5/16"
(84 mm) to 4-5/16" (110 mm) based on your grille
(plinth strip/base fascia) height.
2. Finish or stain your grille (plinth strip/base fascia)
panel to match your surrounding furniture. Finish
front, back and edges to prevent warping.
Carefully follow the manufacturer’s
recommendations for finish application and cure
times.
3. Apply double sided tape to the backside of the
integrated grill (plinth strip/base fascia). Use the
diagram below for reference. U-Line recommends
3M™VHB™tape, a high strength bonding tape.
Apply Tape To Shaded Area
4. Remove backing paper from double sided tape.
5. Carefully align grille (plinth strip/base fascia) over
integrated panel and press into position.
INTEGRATED GRILLE (PLINTH STRIP/BASE
FASCIA) DIMENSIONS
Integrated Grille - Plinth Dimensions 1

SAFETY • INSTALLATION & INTEGRATION • OPERATING INSTRUCTIONS • MAINTENANCE • SERVICE
USER GUIDE
u-line.com
5. Align top of panel with top edge of door. Center
panel on door. (For 3036/3090 models, align panel
on the hinge side-edge of door.)
NOTICE
Due to differences in floor construction or
surrounding cabinetry, the panel may not sit
flush with the top of the door.
6. Secure integrated
panel to door using
clamps. A robust
tape may also be
used. U-Line
recommends the
use of bar clamps
to secure the panel
to the door. If
using
tape will not
damage panel
finish upon
removal.
7. Using a 7/64"
(3 mm) drill bit,
drill 6 pilot holes
into the wood
panel 1/2" (12
mm) deep using
the holes in the
door frame as a
guide.
10.Ensure the screws sit flush against the bottom of
the channel.
Integrated Panel Integrated Panel
11.Remove clamps from door.
1. Fully open door.
NOTICE
It is important to ensure that all drilled holes are
4. Upon removal, lay gasket down on a flat surface.
9. Using a Phillips screwdriver, place one screw into
each of the 6 pilot holes and screw down. Do not
overtighten
Integrated Panel Installation
drilled to the correct depth in order to avoid splits in the wood when hardwood is
installed. 2. Starting at corner, pull gasket away from door.
8. Locate 6 of the #6x 1-1/2" (38 mm) screws provided with your unit. 3. Continue to pull gasket
free from gasket channel.
screws.
