U-Line RESCUE H-7357 User manual

PAGE 1 OF 6 1018 IH-7357
πH-7357
RESCUE®
JUMP STARTER
1-800-295-5510
uline.com

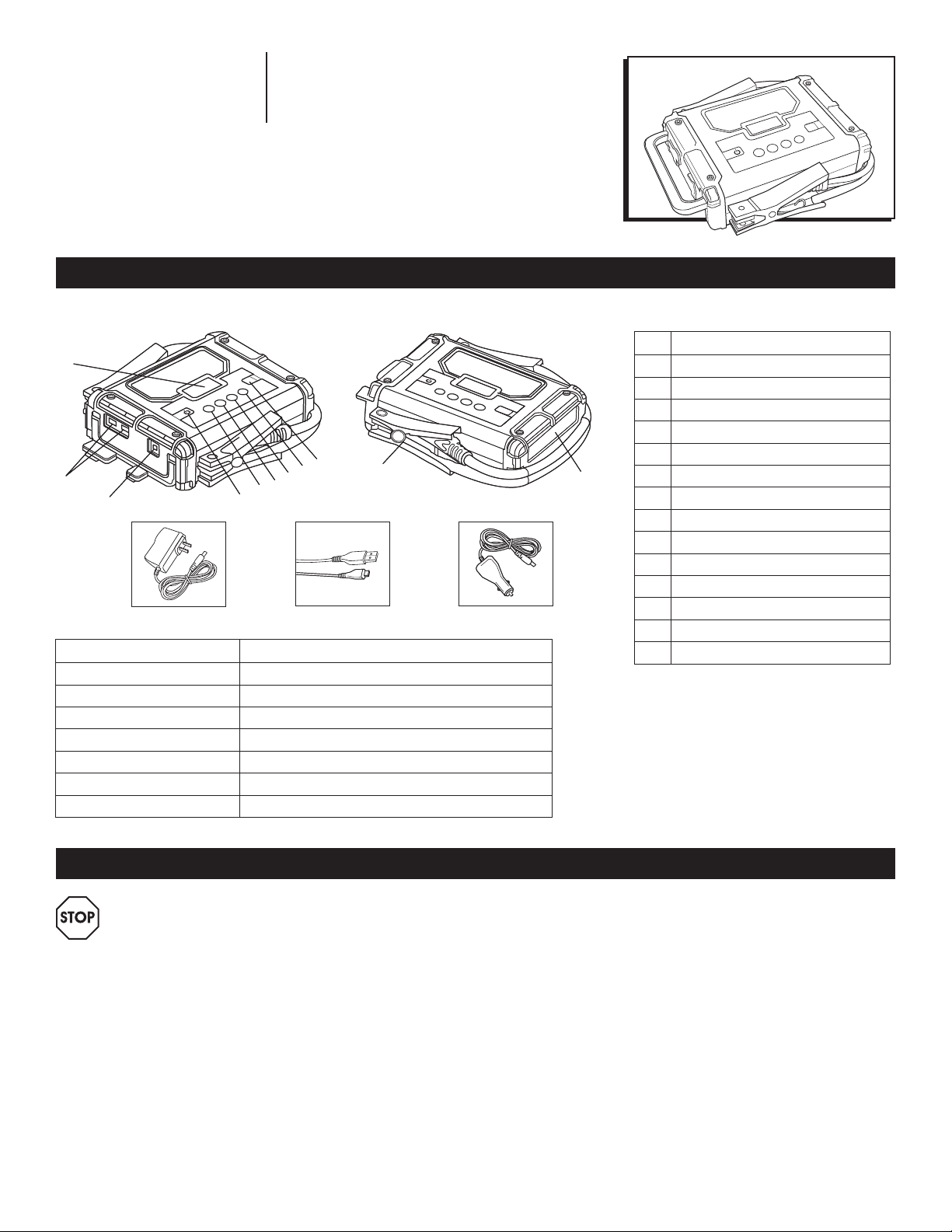

SPECIFICATIONS AND FEATURES
SAFETY
#DESCRIPTION
1LCD Display
2Power Switch
3Override Button
4 Engine Start Button
5Battery Charger/Maintainer Button
6 Safety/Work Light Button
7 Test Function Button
8USB Output
9Charge Input
10 Light
11 Jumpstart Clamps
12 AC Charging Adapter Cord 15V, 1A
13 USB to Micro USB Cord
14 DC Charging Adapter Cord 12V, 1A
FEATURES
WARNING! Risk of explosion or fire.
• Failure to follow these instruction may result in
personal injury, destruction of the jump starter, or
damage to your vehicle.
• Read these instructions before use.
• Wear safety goggles whenever working around
vehicle batteries.
• Wear gloves and protective clothing.
The H-7357 Rescue®Jump Starter is capable of delivering
significant current to start cars, light trucks, ATVs, boats,
lawn and garden equipment and other 12V equipment.
Units feature a 5V USB. Unit also features a safety/work
light that can be set to continuous on or flashing mode.
LCD display screen provides indication of reserve power
level and shows when unit is charged or fully charged.
Each LCD display will also prompt an error protection
code if the unit is incorrectly connected, short circuited,
overheated, overloaded or if no battery charge is found.
Unit includes rugged hard plastic storage case for
safe transportation, 12V power socket, integrated jump
cables/clamps and 12V adapter cable.
8
1
9234567
8
1
9234567
10
11 10 11
1212 14141313
ITEM DESCRIPTION
Internal Battery Lithium Ion Phosphate (LiFePO4)
USB Output 2 x Ports 5VDC, up to 2.4A maximum
Peak Current/Start Current 1600A peak/800A cranking
Battery Charger/Maintainer 14.4V @ 1A
Safety/Work Light 4W White Flashing/White Work Light
AC Input Charge Port 15V @ 1A
DC Input Charge Port 12V @ 1A
SPECIFICATIONS

PAGE 2 OF 6 1018 IH-7357
SAFETY CONTINUED
IMPORTANT! To reduce the risk of battery
explosion or fire, follow these instructions and
those published by the battery manufacturer
and the manufacturer of any equipment or
vehicle that you intend to use the jump starter on.
• Read these instructions completely before using
product. Failure to do so could result in serious injury
or death.
• Do not use the jump starter if case, cable clamps or
cords are damaged.
• Do not operate the unit if it is damaged in any way;
take it to a qualified service person for review.
• Do not put fingers or hands into any of unit’s outlets.
• Do not short circuit the unit or touch the clamps to
any conductive material.
• No lubrication is recommended or required.
• Do not attempt to repair the unit or replace parts.
Unauthorized repairs will void warranty.
• If jump starter requires service, contact Uline
Customer Service at 1-800-295-5510.
• Do not open the jump starter unit’s case, as there
are no user-serviceable parts; take the unit to
a qualified service person if repair is required.
Opening and closing the unit could cause a fire or
electric shock.
• Check vehicle battery terminals before using the
jump starter; clean them if necessary.
• Do not operate unit in explosive atmospheres, such
as in the presence of flammable liquids, gases or
dust.
• Do not expose the unit to excessive heat.
• Do not allow the unit to become wet or submerged
in water.
• Do not use as a toy, this jump starter is not intended
for use by young people without supervision.
• Do not set the unit on flammable materials, such as
carpeting, upholstery, paper, cardboard, etc.
• Never place the unit directly above battery being
jumped.
WARNING! Working in the vicinity of a lead-
acid battery is dangerous. Batteries generate
explosive gases during normal battery
operation. It is important to follow these
instructions each time you use this device.
• Wear safety goggles whenever working around lead
acid batteries.
• Wear gloves and protective clothing.
• Consider having someone assist when working near
a lead acid battery.
• Have plenty of fresh water and soap nearby for
use if battery acid contacts skin, clothing or eyes.
If battery acid contacts skin or clothing, wash
immediately with soap and water.
• Avoid touching eyes while working with battery.
Airborne particles may get into eyes. If acid enters
eye, immediately flood eye with running cold water
for at least 10 minutes. Get immediate medical
attention.
• Remove all metal articles such as rings, bracelets,
necklaces and watches when working with a lead
acid battery. A lead acid battery can produce a
short-circuit current high enough to weld these items
to a metal surface, causing a severe burn.
• Take care not to drop metal tool or other metal
onto the battery. Metal may cause sparking or
short circuit the battery or another electrical device.
Sparking may cause an explosion.
• Never smoke or allow a spark or flame in the vicinity
of a battery or engine.
• Do not permit the internal battery of the unit to
freeze.
• Never attempt to charge a frozen battery.
• Never allow clamps to touch together or come into
contact with the same piece of metal.

PAGE 3 OF 6 1018 IH-7357
STORAGE
CHARGING INSTRUCTIONS
OPERATION
• Charge battery every three to six months in storage
to keep the internal battery fully charged to prolong
the overall battery life.
• Avoid storing in direct sunlight, in extreme heat or
cold, and wet or damp areas.
• It is recommended to keep this unit indoors when
outside temperature is below 32°F.
• Always store battery clamps attached to the posts
on the unit and accessories properly within the jump
starter.
IMPORTANT! Charge immediately after
purchase, after each use and every three
to six months. Only use the charging cables
provided with the unit.
• Keeping the internal battery fully charged will help
to prolong the overall battery life.
• Always disconnect and store charging accessories
properly within the jump starter case.
• AC charging cable and DC charging cable are
included with unit.
• AC charging cable: Connect the AC plug to the
unit, then connect the charger to a grounded AC
electrical outlet. The charger is now activated.
• DC charging cable: Connect the DC plug to the
unit, then plug the 12 volt adapter into the DC
socket or the car. The charger is now activated.
TURNING JUMP STARTER ON/OFF
• Press the power button for three seconds to switch
on the device.
• Press the power button for three seconds to switch
off the device.
USING LED LIGHT
• Activate power button on the jump starter.
• The light works in the following sequence by pressing
the switch:
• Press light button once – flashing white light.
• Press light button twice – steady white light.
• Press light button third time – turns off light.
USING USB PORTS
• The two USB ports provide up to 2.4A at 5V DC.
• Activate power button on the jump starter power
pack.
• Plug USB device into the connector port of the unit.
TEST – VEHICLE BATTERY
• Make sure the vehicle ignition is turned off, and that
the engine is not running.
• Connect clamps to red positive (+) clamp to the
positive (+) post of battery, then connect the black
negative (–) clamp to the negative (–) post of battery.
• Activate power button on the jump starter.
• Press the test button once to choose battery test
function ( ); LCD will display vehicle battery voltage
and its status (low, mid or full).
TEST – VEHICLE ALTERNATOR
NOTE: The vehicle's engine will need to be
running for this test.
• Connect the jumpstart red positive (+) clamp to
the positive (+) post of battery, then connect the
jumpstart black negative (–) clamp to the negative (–)
post of battery.
• Activate power button on the jump starter.
• Press the test button twice to choose alternator test
function ( ); LCD will display vehicle alternator
output voltage and its status (low or full).

PAGE 4 OF 6 1018 IH-7357
OPERATION CONTINUED
BATTERY CHARGER / MAINTAINER FUNCTION
NOTE: For use with 12 volt lead acid battery
types only.
• The battery charger/maintainer function ( ) can be
used to maintain the charge of a 12 volt lead acid
battery while not in use.
• Connect the jumpstart red positive (+) clamp to
the positive (+) post of battery; then connect the
jumpstart black negative
(–) clamp to the negative (–)
post of battery.
• Connect the AC charging plug into to the unit; then
connect the charger to a grounded AC electrical
outlet. The charger
( ) is now activated.
• Press and hold the battery charger button for two
seconds; the symbol of clamps will appear on the
LCD screen and the unit will charge and maintain
the 12 volt lead acid battery.
WARNING! Risk of battery explosion, fire or
failure.
• Failure to keep internal battery charged will lead to
permanent battery damage.
• Connecting a discharged battery to charged
system could cause overheating or explosion.
TO JUMP START A 12V GASOLINE ENGINE
WITH A BATTERY IN VEHICLE
• Make sure vehicle’s ignition is in the off position.
• Turn off all electrical accessories within the vehicle,
including lights, heater blower and air conditioner.
• Connect the jumpstart red positive (+) clamp to
the positive (+) post of battery; then connect the
jumpstart black negative (–) clamp to the negative (–)
post of battery.
• After a proper connection has been made, activate
power button on the jump starter.
• Press the "Engine Start" button; the LCD will display
"READY" in the upper left corner and a 120 second
"Ready" cycle will begin. Attempt to start the vehicle
during "Ready" cycle.
NOTE: If the LCD display does not show READY
and instead shows CONNECTING, the battery
voltage being detected as less than two volts.
If this occurs, see Override Mode instructions.
• Starting the engine (engaging the ignition) activates
a 10 second start cycle countdown.
• After each starting attempt, the unit will cool down
for 30 seconds. LCD will display the remaining time
of the cool down.
• After the engine starts, disconnect the black clamp (–)
and then the red clamp (+).
TO JUMP START A 12V GASOLINE ENGINE
WITHOUT BATTERY IN VEHICLE – OVERRIDE MODE
WARNING! While activating the override mode,
this unit will fail to provide protection against
short circuit or reverse polarity.
• Connect the jumpstart red positive (+) clamp to the
vehicle’s positive (+) connection; then connect the
jumpstart black negative (–) clamp to the vehicle’s
negative (–) connector.
• After a proper connection has been made, the LCD
displays a flashing CONNECT.
IMPORTANT! Before continuing, make sure
that the clamps are properly connected, not
touching each other and are not reversed in
polarity. While activating the override mode,
this unit will fail to provide protection against
short circuit or reverse polarity.
• After rechecking connections, press and hold the
override button for two seconds to enter override
mode. the LCD will then display OVERRIDE, READY,
and a 20 second countdown will begin.
NOTE: Pressing override button again will return
to the main menu and finish override mode.
• Start the engine within 20 seconds after pressing
override button. After each starting attempt, the unit
will cool down for 30 seconds. LCD will display the
remaining time of the cool down.
• After the engine starts, disconnect the black clamp (–)
and then the red clamp (+).

PAGE 5 OF 6 1018 IH-7357
LCD DISPLAY
READING THE DISPLAY
READY Jump starter is ready for use.
CONNECT Clamps are disconnected or there is no or
very low battery voltage detected.
COOLING Internal battery temperature is too warm,
cooling process begins.
OVERRIDE Override mode has been engaged and
clamps are live. Protections are removed.
LOW Battery or alternator voltage is low and
needs to be recharged.
CHARGE Unit is charging or battery or alternator
being tested is bad.
FULL Battery or alternator being tested is good.
0000% Displays level of internal battery or displays
level of vehicle battery charge in test mode.
0000 V Displays voltage level of vehicle electrical
system in test mode.
FAULT/ERROR CODES
Over-Discharged Battery Protection –
Fault/Error Code: F01
• During the normal operation of this unit, if the
voltage drops below a safe point, the error code
F01 will display.
• Plug jump starter into a charging source and
recharge the internal battery.
Low Temperature Protection – Fault/Error Code: F02
• When the core temperature on the surface of the
battery drops below 32°F, the unit stops working. The
error code F02 will display.
• Bring jump starter indoors and allow it to warm at
room temperature. Once battery temperature is
above 32°F unit will operate again.
Overheat Protection – Fault/Error Code: F03
• When the temperature on the surface of the battery
exceeds 131°F, the unit will stop working to prevent
damage to the internal battery.
• The error code F03 will display and flash until the
unit is cool enough to use again.
• The unit should not operate or be subjected to
temperatures at or above 518°F.
Overload Protection – Fault/Error Code: F04
• If a user attempts to start a vehicle’s engine whose
cranking current is higher than the rated current of
the jump starter, the unit will stop cranking and an
error code F04 will display.
• The unit will enter into COOLING mode and a
second attempt can be made once cooled.
Reverse Polarity – Fault/Error Code: F05
• Once the engine start button is pressed, the unit will
shut down and the error code F05 will display. This
occurs if the unit senses that the clamps are not
connected positive (+) to positive battery post and
negative (–) to negative battery post.
• Recheck connections and connect correctly.
WARNING! This protection is disabled when
using Override Mode.
Short Circuit Protection – Fault/Error Code: F06
• Once the engine start button is pressed, the unit will
shut down and the error code F06 will display if the
clamps are short circuited, connected to each other
or there is a dead short.
• Recheck connections and connect correctly.
WARNING! This protection is disabled when
using Override Mode.
v
/
READY
LOW CHARGE CHARGE
CONNECT
OVERRIDE
COOLING
ERROR CODE MEANING
F01 Recharge unit
F02 Battery temperature is low
F03 Battery temperature is high
F04 Current overload
F05 Clamps reversed
F06 No battery found

PAGE 6 OF 6 1018 IH-7357
LCD DISPLAY CONTINUED
TROUBLESHOOTING
Backward Current Protection – Fault/Error Code: 0000
• Once the engine has been started, the unit will
turn off after five seconds of sensing large current
charging, typically due to the initial alternator surge,
which can be greater than 50 amps.
• After the engine starts, disconnect the black clamp (–)
and then the red clamp (+).
Over-Charge Protection – Fault/Error Code: 0000
• Once the battery is fully charged, the charging
circuit automatically senses full charge and turns off
charging.
• Remove charge cord, and press and hold power
button to turn off unit.
Overloaded USB Output Port – Fault/Error Code: 0000
• If the unit senses a current overload from either of
these ports, the unit will flash fault/error code 0000
and turn off completely.
• Remove USB device and discontinue use of device
with this unit.
OPERATING ISSUE CAUSES RECOMMENDATIONS
The unit won't jump
start car. Clamps are not making a good
connection to the battery.
The unit is not charged.
The vehicle's battery voltage is
over 15V.
The vehicle does not have a
battery.
The temperature of the jump
starter’s internal battery is low.
Check for poor connection to
battery. Make sure connection
points are clean.
Check the battery charge status
and recharge unit if necessary.
You cannot use this jump starter
for this vehicle.
Follow the instructions on how to
use the Override Mode function.
Place the unit indoors at
temperatures above 32°F until
warm.
The unit won't power
USB device. The device is not turned on.
The jump starter is turned off.
Turn on the device.
Turn unit on, if internal battery of
the jump starter is low, recharge.
Inspect all attachments for:
• Cuts or abrasions in the cable.
• Cracks or broken connectors.
• Excessive corrosion on any connections.
• Damaged housing.
• Broken LCD.
WARNING! If any of these problems are found,
discontinue using the jump starter and contact
Uline Customer Service at 1-800-295-5510.
πCHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA
1-800 -295-5510
uline.com
