U.S.SAWS 5” GRINDER
OPERATING MANUAL
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
02-09-2021
Notice of Copyright Protection
Copyright 2020, by U.S.SAWS . All rights reserved. This work may not be reproduced or disseminated in whole or in part by any
means without the prior written permission of U.S.SAWS
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
U.S. English

INTRODUCTION & SPECIFICATIONS
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
Model Identication: Record machine serial number plate information
below for future reference
Table of Contents & Introduction .........................................2
Symbols & Decals ............................................................. 3
Safety Instruction .............................................................. 4 - 5
Safety & Operation ....................................................... 6

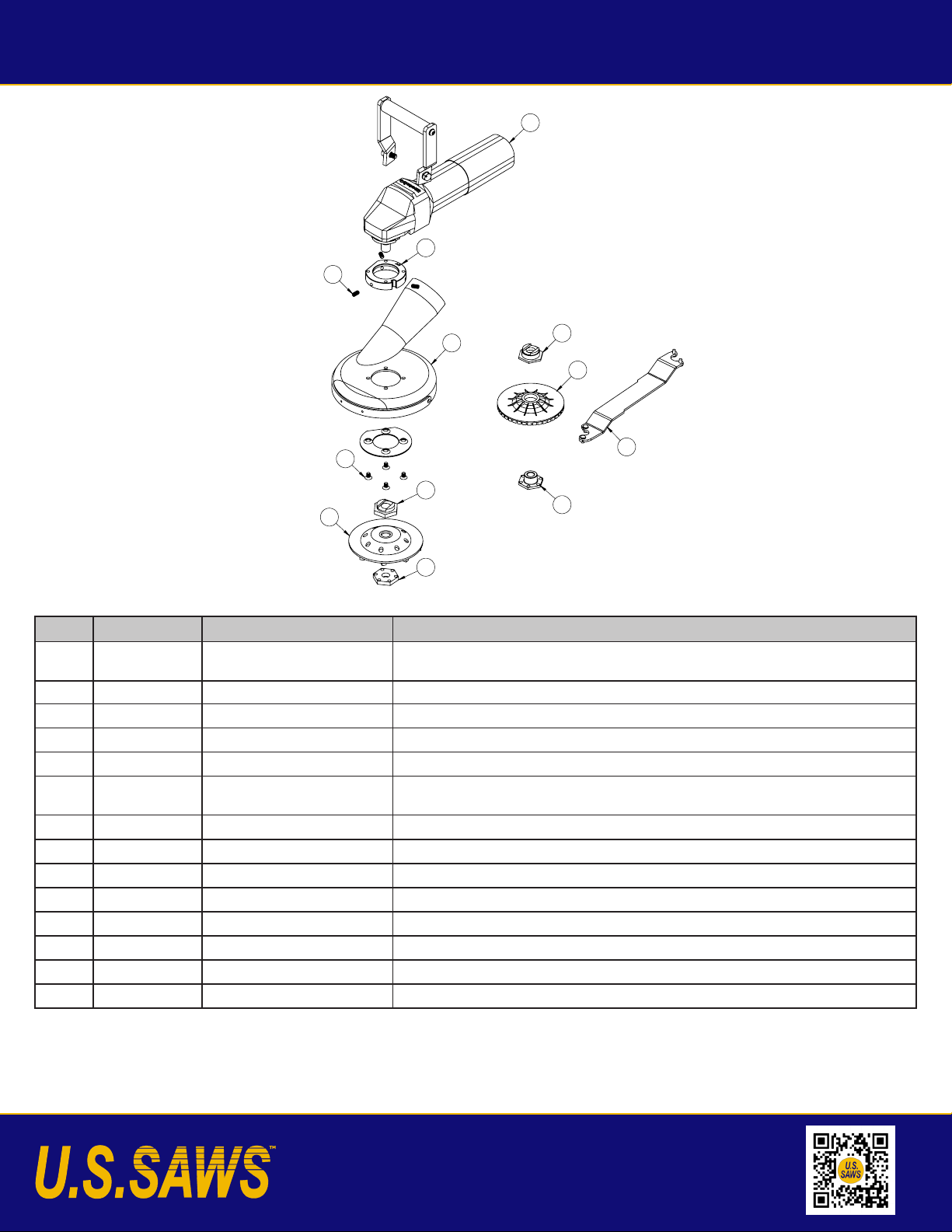

Parts Breakdown ................................................................... 7
Recommended Cup Wheels ................................................ 8
Warranty & Service .............................................................. 9 - 10
1.0 INSTRUCTIONS FOR USE OF MANUAL SECTIONS
Section Page
2.0 SPECIFICATIONS
Foreword/Introduction
2
The owner’s manual is intended to point out some of the basic safety situa-
tions that may be encountered during the normal operation & maintenance
of the 5” Grinder & to instruct you in safety practices for dealing with these
conditions. Keep all manuals provided with your machine in a safe place at
all times.
The information and specications included in this publication were
in effect at the time of approval for printing. However, U.S.SAWS reserves
the right to discontinue or change specications or design at any time with-
out notice and without incurring any obligation.
The U.S.SAWS 5” Grinder was designed for concrete oor grinding and pol-
ishing concrete surfaces near walls and other vertical surfaces. This grinder
can be used indoors or outdoors in small or large spaces. The grinder
utilizes 5” diamond cup wheel to level, smooth, or clean the edges of the
concrete slab. The U.S.SAWS 5” grinder features the U.S.SAWS Generation
2 concrete dust shroud system for a clean, dust-free work environment.
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
DANGER: Indicates an imminently hazardous situation that, if not avoided,
will result in death or serious injury. This signal word is limited to the most
extreme situations.
WARNING: Indicates a potentially hazardous situation that, if not avoided,
could result in death or severe injury.
CAUTION: Indicates a potentially hazardous situation that, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices that may cause property damage.
Dangers, Warnings and Cautions.
The purpose of safety symbols and explanations is to attract your atten-
tion to possible hazards and how to avoid them. The safety symbols and
explanations do not by themselves eliminate any danger. The instructions
or warnings they give are not substitutes for proper accident prevention
measures.
Size 5”
Part Number w/
Convertible Shroud SX65000C SX65000EC SX65005C
Production Capacity
(sq ft/hr)** 75-150 75-150 75-150
Grinder Model
Metabo WEV15-
125
Quick HT
Metabo WEV15-
125
Quick HT
Metabo W9-
115
Power Source 13.5 amp Electric
Variable Speed 13.5 amp 8 amp Electric
RPM 2,800 - 9,600 2,800 - 9,600 10,000
Power
Requirements 120V, 60Hz 120V, 60Hz 120V, 60Hz
Wheel Diameter 4.5” 4.5” 4.5”
Weight 15 lb 15 lb 15 lb

SYMBOLS & DECALS
3
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Comm unication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
WARNING
Read and understand
operator's manualbefore
using this machine.
Failure to follow operating
Instructions could result
in injury or damage to
equipment.
Use only diamond blades (steel
centered diamond cutting-off
wheels) with this machine. RPM
rating on blade must exceed
machine max rpm rating. The use
of any other blade could result in
death or serious injury.
5400 MAX. RPM
Avoid injury.
Do NOT operate with
guard removed.
Replace guard before
operating machine.
C1h azard Comm unication Syw ems. LLLLCCMMOO--774466--00224411
To avoid injury:
Always inspect saw
blades before use.
Replace all cracked or damaged
blades.
Rotating blade
hazard.
Do NOT operate with
guard up.
Keep hands and feet
away.
Engine exhaust
contains poisonous
ccaarrbboonnmmoonnooxxiiddeeggaass..
Breathing it could cause
death.
Operate machine in well
ventilated area.
This product can expose you to chemicals, including NICKEL. When used, serviced, cleaned, or maintained equipment could generate particulates
that contain chemicals, including silica. These chemicals are known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information, visit www.P65Warnings.ca.gov
4.0 Rules for safer operation
Read and understand the operator’s
manual before using this machine.
Failure to follow operating instruc-
tions could result in injury or dam-
age to equipment
Always wear protective glasses
or full face protection
Wear safety boots when
operating this machine
Wear appropriate clothing
Wear hand protection
Wear Head Protection, breath-
ing protection, and the use of
hearing protection is manda-
tory
TO PREVENT SERIOUS INJURY DO NOT OPERATE SAW WITHOUTPROPER TRAINING AND.
UNDERSTANDING OF THE OWNERS MANUAL
WHEN OPERATING THIS MACHINE
ALWAYS WEAR SAFETY APPROVED
HEARING PROTECTION
EYE OR FACE PROTECTION
PROTECTIVE HELMET
PROTECTIVE GLASSES OR FULL FACE PROTECTION
WEAR HAND PROTECTION
WARNING: Improperly maintaining the JS including the Honda engine or failing to correct a problem before
operation could cause a malfunction resulting in a serious injury. Always perform a pre-operation inspection before
each operation and correct any problem. See Honda Engines Owner's Manual.
5.2 Check the condition of the Honda engine. See the section titled "Before operation - is your
engine ready to go?" in the Honda Engines Owner's Manual.
WARNING: Exhaust gas from gasoline engines contains dangerous carbon monoxide. Breathing it can cause
unconsciousness and even kill you. Always operate gasoline engine machines in a well-ventilated area. Do not
operate in areas where exhaust fumes could accumulate without wearing appropriate respiratory protection.
Consult your employer and OSHA regarding use of appropriate respirator for dangerous carbon monoxide
gases. See Figure 7.
EEnnggiinneeeexxhhaauussttccoonnttaaiinnss
ppooiissoonnoouussccaarrbboonn
mmoonnooxxiiddeeggaass..Breathing
it could cause death.
Operate machine in well
ventilated area.
FFiigguurree77--WWaarrnniinnggllaabbeell--eennggiinneeeexxhhaauussttccoonnttaaiinnssccaarrbboonnmmoonnooxxiiddeeggaass1111
For Safe Operation
You must be qualied for safe operation of the U.S.SAWS 5”
Grinder. You must clearly understand the written instructions
supplied by U.S.SAWS, be trained - including actual operation - &
know the safety rules & regulations for the job site. It is a safe
practice to point out & explain safety signs & procedures to oth-
ers & to make sure they understand the importance of following
these instructions.
Be Safe
Human error results from many factors: carelessness, fatigue,
sensory overload, preoccupation, unfamiliarity with the machine
or attachments, or drugs or alcohol, to name a few. You can avoid
serious injury or death caused by these & other unsafe work prac-
tices. Be safe and never assume accidents cannot happen to you.
For your safety and the safety of others, act safely and encourage
your fellow workers to operate safely as well.
Wear proper electrostatic
grounding equipment at all
times.
3.0 SYMBOLS & DECALS

SAFETY INSTRUCTIONS
4.1 KNOW THE RULES & YOUR EQUIPMENT.
Most job sites have rules governing equipment use & mainte-
nance. Before starting at a new work location, check with the
supervisor or safety coordinator. Ask about any rules or regula-
tions you need to abide.
OSHA enforces federal laws within the United States that apply to
the safe operation, application, & maintenance of equipment on
job sites. It is the employer’s responsibility to comply with these
laws.
Do not operate this machine unless you have read the operations
and maintenance manual carefully.
4.2 RECEIVE PROPER TRAINING.
Do not operate this machine unless you have received opera-
tional and maintenance training from a U.S.SAWS representative
or from an authorized distributor for U.S.SAWS.
4.3 PROTECT YOUR FEET.
Observe all applicable local, state and federal safety regulations.
Wear OSHA approved foot protection.
4.4 PROTECT YOUR EYES.
Observe all applicable local, state and federal safety regulations.
Wear OSHA approved safety glasses.
4.5 PROTECT YOUR LUNGS.
Breathable silica may be generated by use of this product. Silica
can cause severe and permanent lung damage, cancer, and
other serious diseases. Do not breathe the dust. Do not rely on
your sight or smell to determine if the dust is in the air. Silica may
be in the air without a visible dust cloud. If air monitoring equip-
ment for silica is not provided by your employer at your work site,
you MUST wear appropriate respiratory protection when using or
servicing the machine. Consult your employer and OSHA regard-
ing the appropriate respiratory protection.
4.6 PROTECT YOUR HEARING.
Observe all applicable local, state and federal safety regulations.
Wear OSHA approved hearing protection.
4.7 DRESS PROPERLY.
Do not wear loose clothing or jewelry that can be caught in
moving parts. Wear protective hair covering to contain long hair.
Keep hair away from motor air vent. Rubber gloves and non-skid
footwear are recommended when working outdoors.
4
4.8 AVOID A DANGEROUS ENVIRONMENT.
Do not expose machine to rain. Do not use machine in wet condi-
tions. Water entering a power tool will increase the risk of electric
shock. Keep work area well lit. When working at an elevated loca-
tion, pay attention to articles and persons below. If operating the
power tool in damp locations is unavoidable, use a Ground Fault
Circuit Interrupter (GFCI) protected supply. Use of an GFCI reduce
the risk of electric shock.
4.9 ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodied plugs and matching outlets will reduce the
risk of electric shock.
Avoid body contact with earthed or grounded surfaces such as
pipes, radiators, ranges and refrigerators. There is an increased risk
of electric shock if your body is earthed or grounded.
4.10 ELECTRICAL CORD MANAGEMENT
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the
risk of electric shock. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
4.11 AVOID ANY AREAS OR ACTIONS THAT EXPOSE YOU TO
CARBON MONOXIDE.
Exhaust gas from gasoline engines contains dangerous carbon
monoxide. Breathing it can cause unconsciousness and even kill
you. Always operate gasoline engine machines in a well-ventilated
area. Do not operate in areas where exhaust fumes could accumu-
late without wearing appropriate respiratory protection. Consult your
employer and OSHA regarding the use of an appropriate respirator
for dangerous carbon monoxide gases.
4.12 KEEP WORK AREA CLEAN. DO NOT RUN OVER ANY-
THING.
Loose objects could be thrown from crack. Make sure area to be cut
is clear from people and any loose objects, nuts, bolts, etc. Never
run over any loose objects.
4.13 KEEP CHILDREN AND VISITORS AWAY.
Do not allow anyone to stand in line with the blade path. Do not let
children or visitors contact machine or extension cord. Keep chil-
dren and visitors away from the work area.
4.14 KEEP FIRM GRIP ON MACHINE.
Keep a rm hold on the handle grips and maintain control of the
machine until the blade completely stops.
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
4.0 SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS
5
4.15 SHUT OFF MACHINE.
When not in use, before servicing and when changing accesso-
ries, shut off engine. Release the lever switch and move the on/
off switch to the OFF position. Move the fuel valve lever to the OFF
position.
4.16 STORE IDLE EQUIPMENT.
The machine and tools should be stored in a dry and secure loca-
tion when not in use. Keep equipment out of reach of children.
4.17 OBTAIN SAFETY DATA SHEET (SDS) FOR ALL
WORKSURFACE MATERIALS.
This includes primers, all coatings, adhesives, tile and crack lling materials, etc.
Do not attempt to cut, clean out or remove material without SDS information. Con-
sult SDS sheet for hazards information. Be aware that some materials are explosive
as a dust.
4.18 DO NOT OVERREACH.
Keep proper footing and balance at all times.
4.19 MAINTAIN MACHINE WITH CARE.
Keep machine clean and follow maintenance procedures for better and safer
performance. Keep handles dry, clean, and free from oil and grease. Follow instruc-
tions for lubricating and changing accessories.
4.20 REMOVE ADJUSTING TOOLS.
Form a habit of checking to see that tools such as adjusting wrenches are
removed from the machine and properly stored before starting the engine.
4.21 STAY ALERT.
Watch what you are doing. Use common sense. Do not operate machine
when you are tired or fatigued.
4.22 DO NOT USE DRUGS, ALCOHOL, MEDICATION.
Do not operate machine while under the inuence of drugs, alco-
hol,
or any medication.
4.23 KEEP THE RIGHT PARTS IN THE RIGHT POSITIONS.
Do not operate machine with parts missing or improperly mounted.
4.24 CHECK DAMAGED PARTS.
Verify all machine guards are in good condition and will function
properly before using the machine. Check for alignment of moving
parts, binding of moving parts, breakage of parts, mounting, and
any other conditions that may affect machine operation. A guard,
power switch or other part that is damaged should be properly re-
paired or replaced by an authorized service center unless indicat-
ed elsewhere in this instruction manual. Do not operate machine if
lever or engine on/off switch does not function properly.
4.25 SECURELY MOUNT ACCESSORIES TO THE MACHINE.
Extra care must be taken an elevated location to prevent injury to
someone on a lower level in the event the tool or accessory should
drop. Do not operate without fall protection for operator and debris
protection for public.
4.26 NEVER TOUCH THE MOVING PARTS.
Never touch moving parts such as blades, belts and others.
4.27 STOP OPERATION IMMEDIATELY IF ANY ABNORMALITY
IS DETECTED.
Stop using machine immediately if any abnormalities are observed
during operation. Examples of abnormalities include unusual noise
and vibration.
4.28 WHEN REPLACING A PART, USE THE SAME TYPE
AND QUALITY.
When replacing a component part with a new one, use only the
same type and quality of new part. Never attempt to repair a ma-
chine if you are unfamiliar with proper procedures and techniques
required.
4.29 LOAD AND UNLOAD SAFELY.
Use proper heavy lifting procedures. Read & understand manuals
before loading & unloading.
4.30 SAVE THESE INSTRUCTIONS.
Refer to this operations and maintenance manual as well as any
additional instructions included from other manufacturers and
organizations such as Metabo® and the Masonry and Concrete
Saw Manufacturers Institute®. Never permit anyone to operate the
machine without proper instructions.
DUST WARNING
Cutting, especially when DRY cutting, generates dust that comes
from the material being cut, which frequently contains silica.
Silica is a basic component of sand, quartz, brick clay, granite and
numerous other minerals and rocks. Exposure to excessive amount of
such dust can cause:
• Respiratory diseases (affecting your ability to breath), including
chronic bronchitis, silicosis and pulmonary brosis from exposure
to silica. These diseases may be fatal;
• Skin irritation and rash; and
• Cancer according to NTP* and IARC*
* National Toxicology Program, International Agency for Research
on Cancer
Take precautionary steps
• Avoid inhalation of and skin contact with dust, mist and fumes;
• Wet cut when feasible, to minimize dust;
• Wear and ensure that all bystanders wear appropriate respiratory
protection such as dust masks designed to lter out microscopic
particles. (See OSHA 29 CFR Part 1910.1200)
California Prop 65 Warning: Use of this product can cause exposure to
materials known to the State of California to cause cancer and/or birth
defects or other reproductive harm.
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]

SAFETY & OPERATION INSTRUCTIONS
6
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
5.0 OPERATION
Assembly of Dust Shroud Onto Grinder
1. Place dust shroud and adaptor around the grinder
arbor.
2. Hose nozzle should be at upper right (when looking
down on grinder)
3. Slowly tighten the 3 set screws on the adaptor ring in
small increments. Make sure that the spacer washer
is centered around the blade nut. Tightening one
screw all the way down before the other two may
cause interference.
4. Ensure the nozzle does not touch the handle mount-
ing bolt. Leave 3/4” gap.
Assembly and Removal of Cup Wheel or Grinding Disk
1. Make sure power is disconneted.
2. Using the wrench provided, or a 1 1/2” box wrench,
remove the blade nut.
3. Depress the spindle lock on the grinder to stop the
spindle from rotating while tightening and loosening
the blade nut.
4. Note: both blade nut and arbor nut vary in length,
depending on the type of wheel to be used.
4.30 The Grinder-Vac is designed for simple operation and has
been proven to be extremely useful and versatile. A 4.5” diamond
cup wheel or zec style abrasive disk may be mounted on the saw
if it is rated and approved for operation at 2,800 - 10,000 RPM.
READ AND CAREFULLY FOLLOW THE OPERATION AND SAFETY
INSTRUCTIONS OF THIS MANUAL BEFORE USING THIS PRODUCT.
Since safety regulations can vary between counties and states,
you must contact proper authorities and follow all appropriate
regulations.
4.31 No person should attempt to operate this machine with-
out rst being trained in the operation of industrial cutting and
grinding tools. These instructions are not intended as a substitute
for training experience. The operator must observe safeguards
that include, but are not limited to, the following:
• DO NOT MODIFY ANY MACHINE FROM IT’S ORIGINAL DESIGN
WITHOUT THE WRITTEN PERMISSION OF THE MANUFACTUR-
ER. UNAUTHORIZED MODIFICATIONS CAN LEAD TO SERIOUS
INJURY OR DEATH TO YOURSELF OR OTHERS.
• DO NOT use any cup wheel or grinding disk marked for less
than 10,000 RPM.
• DO NOT service the machine or change cup wheel or grinding
disk without rst disconnecting the power.
• DO NOT install a cup wheel or grinding disk before inspecting
the part for damage.
• DO NOT operate with a damaged cup wheel or grinding disk.
A damaged cup wheel or grinding disk may y apart and
cause serious injury or death.
• DO NOT use a cup wheel or grinding disk that wobbles when
mounted.
• Verify cup wheel or grinding disk is correct for application
before use.
• Verify cup wheel or grinding disk rotation matches the direc-
tion arrow on the grinder motor.
• DO NOT apply power to the machine before spinning the cup
wheel or grinding disk by hand to check alignment.
• DO NOT operate with any loose nuts or bolts. Check all nuts
and bolts for tightness.
• DO NOT operate without appropriate eye, ear, foot, hand, and
breathing protection.
• DO NOT operate around any loose or foreign objects that may
damage the system.
• DO NOT operate if arbor shaft has excessive end play.
• DO NOT grind material that the cup wheel or grinding disk is
not designed for.
• DO NOT operate machine near combustible material or
fumes.
• DO NOT operate without appropriate dust collection system.
• DO NOT force cup wheel or grinding disk through material to
be ground. Always ease cup wheel or grinding disk through
material.
• DO NOT operate on not horizontal work surface.

7
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
PARTS BREAKDOWN
6.0 PARTS BREAK DOWN
1
2
3
5
9
6
7
8
10
11
12
13
TABLE OF REVISIONS
REV. DESCRIPTION DATE APPROVED
ITEM
NO.
DESCRIPTION PART NUMBER QTY.
1 METABO W9-115 8.5AMP 10500 RPM 4.5" ANGLE GRINDER SXW9-115 1
2
ADAPTER - METABO "AH" SX50210 1
3 5" GRINDER-VAC SHROUD (CONVERTIBLE) SX65852 1
4 5" GV SPACER WASHER SX75825 1
5
ARBOR NUT "R" SX91524 1
6
4.5X5/8/8-11 9 SEG PREM TURBO CUP WHEEL CW45TR9PDB 1
7 BLADE NUT "S" SX91525 - S 1
8
1/4"-20X1/2" SOCKET SET SCREW 91549 3
9 SCREW, 1/4-20 X 3/8 FLAT HEAD PHILLIPS 90471A405 4
10 ZEC ARBOR NUT "J" SX65030 1
11 4.5" #16 GRIT ZEC LITEX SILICON CARBIDE DISC - NOT INCLUDED ZEC4516L 1
12 ZEC BLADE NUT "K" SX65020M 1
13 TWO SIDED SPANNER WRENCH: CUP AND ZEC WRENCH SX60001 1
14 5" LOOP HANDLE ASSEMBLY SX53900 1
A A
B B
4
4
3
3
2
2
1
1
-
5" GRINDER VAC
-
DO NOT SCALE DRAWING
SX65005C
SHEET 1 OF 1
02/25/21
JG
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
B
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
APPLICATION
USED ON
NEXT ASSY
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
<INSERT COMPANY NAME HERE>. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
<INSERT COMPANY NAME HERE> IS
PROHIBITED.
DIMENSIONS ARE IN INCHES
TOLERANCES:
DRILLED HOLES +.008/-.001
FRACTIONAL
1/64
ANGULAR: MACH
.1 BEND 1/2
ONE PLACE DECIMAL
.03
TWO PLACE DECIMAL
.01
THREE PLACE DECIMAL
.005
ITEM QUANTITY PART NUMBER DESCRIPTION
1 1 SXWEV15-125 QUICK HT
SXW9-115
METABO WEV15-125 QUICK HT 5” 13.5 AMP 2,800-9,600 RPM ANGLE GRINDER OR
METABO W9-115 8.5AMP 10500 RPM 4.5” ANGLE GRINDER
2 1 SX50210 ADAPTER - METABO “AH”
3 1 SX65852 5” GRINDER-VAC SHROUD (CONVERTIBLE)
4 1 SX75825 5” GV SPACER WASHER
5 4 SX91524 ARBOR NUT “R”
6 1 CW45TR10SDS
CW45TR9PTB
4.5X7/8 10 SEG TURBO CUP WHEEL OR
4.5X5/8-11 9 SEG PREM TURBO CUP WHEEL
7 1 SX91525 BLADE NUT “S”
83 SX91549 1/4”-20X1/2” SOCKET SET SCREW
9 4 US31076 SCREW, 1/4-20 X 3/8 FLAT HEAD PHILLIPS
10 1 SX65030 ZEC ARBOR NUT “J”
11 1ZEC4516L 4.5” #16 GRIT ZEC LITEX SILICON CARBIDE DISC - NOT INCLUDED
12 1 SX65020M ZEC BLADE NUT “K”
13 1 SX60001 TWO SIDED SPANNER WRENCH: CUP AND ZEC WRENCH
14 1 SX53900 5” LOOP HANDLE ASSEMBLY

RECOMMENDED CUP WHEELS
8
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
TURBO CUP WHEELS | THIN COATING REMOVAL
Part Number Description
CW45TR9SDB 4.5x7/8-5/8 9 Segment Standard Turbo Wheel
CW45TR9STB 4.5x5/8-11 9 Segment Standard Turbo Wheel
CW45TR18SDB 4.5x7/8-5/8 18 Segment Standard Turbo Wheel
CW45TR18STB 4.5x5/8-11 18 Segment Standard Turbo Wheel
CW5TR9SDB 5x7/8-5/8 9 Segment Standard Turbo Wheel
CW5TR9PTB 5x5/8-11 9 Segment Premium Turbo Wheel
BI-TURBO CUP WHEELS | PLANING DOWN HIGH SPOTS & THIN COATING REMOVAL
The Two Segment Types Help Eliminate Gouging and Cover More Surface To Increase Production
Part Number Description
CW5BT99PDB 5x7/8-5/8 Supreme Bi-Turbo Wheel
CW5BT9918SDN 5x7/8-5/8 #16/20 Grit Bi-Turbo Wheel
CW5BT9960SDN 5x7/8-5/8 #60/80 Grit Bi-Turbo Wheel
CW5BT99120SDN 5x7/8-5/8 #120 Grit Bi-Turbo Wheel
7.0 RECOMMENDED CUP WHEELS

WARRANTY & SERVICE
8.1.1 Warranty
This document is to be used as a guide in determining warranty policies and procedures for U.S.SAWS and its U.S.SAWS products. It is to be used
in determining whether a warranty is justied and as a procedural guide in completing a U.S.SAWS warranty claim form.
8.1.2 Warranty Responsibility
The distributor or the end user must prepare a Machine Warranty Information Card when the machine is delivered. Failure to comply will make
any and all warranties on this equipment null and void. Credit for warranty repairs will be given only after receipt of the WARRANTY CLAIM FORM,
properly completed with all the required details. Submittal details are described later in this document.
8.1.3 Warranty Policy
8.1.3.1 U.S.SAWS warrants its U.S.SAWS products against defects in material and workmanship under normal and proper use for a period
of one year (365) days from the date of delivery; in the case of Rental Fleet Machines, date of assignment to Rental Fleet. Such warranty is
extended only to the buyer who purchases the equipment directly from U.S.SAWS or its authorized distributor. This warranty does not include
expendable parts such as, but not limited to, plugs, cutters, blades, blast wheel, wear parts, liners and seals.
8.1.3.2 The obligation under this warranty is strictly limited to the replacement or repair, at US SAWS’s option, of machines and does not in-
clude the cost of transportation, loss of operating time, or normal maintenance services.
8.1.3.3 This warranty does not apply to failure occurring as a result of abuse, misuse, negligence, corrosion, erosion, normal wear and tear,
alterations or modications made to the machine without express written consent of U.S.SAWS .
8.1.3.4 Warranty request must be submitted in writing within thirty (30) days after failure.
8.1.3.5 Written authorization to return merchandise under warranty must rst be obtained from U.S.SAWS .
8.1.3.6 U.S.SAWS reserves the right to inspect and make the nal decision on any merchandise returned under warranty.
8.1.3.7 U.S.SAWS offers no warranty with respect to accessories, including but not limited to, engines, motors, batteries, electrical boards, tires
and any other parts not manufactured by us but which the original manufacturer warrants.
8.1.3.8 U.S.SAWS reserves the right to make product changes or improvements without prior notice and without imposing any obligation upon
itself to install the same on its products previously sold.
8.1.3.9 The above warranty conditions can only be altered by US SAWS. US SAWS must conrm alterations in writing for each specic transac-
tion.
8.1.3.10 U.S.SAWS reserves the right to establish specic warranty terms for used or demo machines on an individual transaction basis.
Invoices covering such merchandise will clearly state the provisions of the applicable warranty for each specic transaction.
8.1.3.11 WE DO NOT AUTHORIZE ANY PERSON, REPRESENTATIVE OR SERVICE OR SALES ORGANIZATION TO MAKE ANY OTHER WARRANTY OR TO
ASSUME FOR US ANY LIABILITY IN CONNECTION WITH THE SALE OF OUR PRODUCTS OTHER THAN THOSE CONTAINED HEREIN.
8.1.3.12 UNDER NO CIRCUMSTANCES SHALL US SAWS BE LIABLE TO CUSTOMER OR ANY OTHER PERSON FOR ANY DIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT OR ARISING OUT OF ANY BREACH OF ANY WARRANTY OR FOR ANY
SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY CHARACTER, INCLUDING WITHOUT LIMITATIONS, DAMAGES FOR ANY LOSS OF GOODWILL,
WORK STOPPAGE, OR ANY AND ALL OTHER COMMERCIAL DAMAGES OR LOSSES.
8.1.3.13 U.S.SAWS MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO THE US SAWS PRODUCTS SOLD PURSUANT THERETO.
9
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
8.0 WARRANTY AND SERVICE

MACHINE WARRANTY INFORMATION CARD
TO ENSURE THE PROPER WARRANTY COVERAGE IS EXTENDED TO THE OWNER OF THIS MACHINE,
FILL OUT THE ATTACHED CARD COMPLETELY AND ACCURATELY.
WARRANTY REGISTRATION CARD
IMPORTANT! To ensure that your U.S.SAWS machine is covered under warranty, please ll in the following information and mail or
fax it to U.S.SAWS, 8004-B E Broadway Avenue Tampa, FL 33619, Fax No. [phone]
If you are not the owner of record as shown on the manual copy of the warranty registration card, do not operate this
machine before contacting U.S.SAWS at 1-877-817-6687. Verify the following before operating the equipment:
CHANGE OF OWNER OR NEW ADDRESS REGISTRATION CARD
IMPORTANT! To ensure that your U.S.SAWS machine is covered under warranty, please ll in the following information and mail or
fax it to U.S. SAWS, 8004-B E Broadway Avenue Tampa, FL 33619, Fax No. [phone]
COMPANY
COMPANY
NAME
NAME
ADDRESS
ADDRESS
INTENDED USE
INTENDED USE
DATE OF PURCHASE
DATE OF PURCHASE
INTENDED USE
INTENDED USE
SERIAL NUMBER
SERIAL NUMBER
10
Surface Prep
Division
P: 877-817- 6687 F: 813-621-7125
Visit us at www.ussaws.com
[email protected]
