U_RIGHT TD-4279 User manual

owner’s manual
Blood Glucose Monitoring System
TD-4279

Jan.2010 Version 1.0
311-4279000-002
MANUAL
OWNER'S
Blood Glucose Monitoring System
TD-4279

Dear U-RIGHT TD-4279 System Owner:
Thank you for purchasing the TD-4279 Blood Glucose Monitoring
System. This manual provides important information to help you to
use the system properly. Before using this product, please read the
following contents thoroughly and carefully.
Regular monitoring of your blood glucose levels can help you and
your doctor gain better control of your diabetes. Due to its compact
size and easy operation, you can use the TD-4279 Blood Glucose
Monitoring System to easily monitor your blood glucose levels by
yourself anywhere, any time.
If you have other questions regarding this product, please contact
the place of purchase or call the Customer Care Line.

IMPORTANT SAFETY PRECAUTIONS
READ BEFORE USE
1. Use this device ONLY for the intended use described in this
manual.
2.DoNOTuseaccessorieswhicharenotspeciedbythemanufac-
turer.
3. Do NOT use the device if it is not working properly or if it is dam-
aged.
4. Do NOT use the equipment in places where aerosol sprays are
being used or where oxygen is being administered.
5. This device does NOT serve as a cure for any symptoms or dis-
eases. The data measured is for reference only.
6. Before using this device to test blood glucose, read all instructions
thoroughly and practice the test. Carry out all the quality control
checks as directed.
7. Keep the device and testing equipment away from young children.
Small items such as the battery cover, batteries, test strips, lan-
cets and vial caps are choking hazards.
8. Use of this instrument in a dry environment, especially if synthetic
materials are present (synthetic clothing, carpets etc.) may cause
damaging static discharges that may cause erroneous results.
9. Do not use this instrument in close proximity to sources of strong
electromagnetic radiation, as these may interfere with the ac-
curate operation.
KEEP THESE INSTRUCTIONS IN A SAFE PLACE

TABLE OF CONTENTS
BEFORE YOU BEGIN 8
Important Information 8
Intended Use 9
Test Principle 9
Contents of System 10
Meter Overview 11
Display Screen 12
Test Strip 13
Setting the Meter 14
THE FOUR MEASURING MODES 18
BEFORE TESTING 19
Calibration 19
How to Code Your Meter 19
Checking the Code Number 20
Control Solution Testing 21
Performing a Control Solution Test 21
TESTING WITH BLOOD SAMPLE 24
Overview of the Lancing Device 24
Setting up the Lancing Device 24
Preparing the Puncture Site 25
Performing a Blood Glucose Test 27
METER MEMORY 30
Reviewing Test Results 30
Reviewing Blood Glucose Day Average Results 30

Downloading Results onto a Computer 32
MAINTENANCE 34
Battery 34
Caring for Your Meter 36
Caring for Your Test Strips 36
Important Control Solution Information 37
SYSTEM TROUBLESHOOTING 38
Result Readings 38
Error Messages 39
Troubleshooting 41
DETAILED INFORMATION 42
Reference values 42
Comparing Meter and Laboratory Results 43
SYMBOL INFORMATION 45
SPECIFICATIONS 46

8
Important Information
Severe dehydration and excessive water loss may cause readings
which are lower than actual values. If you believe you are suffering
from severe dehydration, consult a healthcare professional im-
mediately.
If your blood glucose results are lower or higher than usual, and
youdonothaveanysymptomsofillness,rstrepeatthetest.If
you have symptoms or continue to get results which are higher or
lower than usual, follow the treatment advice of your healthcare
professional.
Use only fresh whole blood samples to test your blood glucose.
Using other substances will lead to incorrect results.
If you are experiencing symptoms that are inconsistent with your
blood glucose test results and you have followed all the instruc-
tions given in this owner’s manual, contact your healthcare profes-
sional.
We do not recommend using this product on severely hypotensive
individuals or patients in shock. Readings which are lower than
actual values may occur for individuals experiencing a hypergly-
caemic-hyperosmolar state, with or without ketosis. Please consult
the healthcare professional before use.
BEFORE YOU BEGIN

9
Intended Use
This system is intended for use outside the body (in vitro diagnostic
use) by people with diabetes at home and by health care profes-
sionals in clinical settings as an aid to monitoring the effectiveness of
diabetes control. It is intended to be used for the quantitative mea-
surement of glucose (sugar) in fresh whole blood samples. It should
not be used for the diagnosis or screening of diabetes.
Professionals may test with capillary, venous, arterial and neonatal
whole blood, home use is limited to capillary whole blood testing.
Capillarysamplesmaybedrawnfromthengertip.
Test Principle
Your system measures the amount of sugar (glucose) in whole
blood. The glucose testing is based on the measurement of electrical
current generated by the reaction of glucose with the reagent of the
strip. The meter measures the current, calculates the blood glucose
level, and displays the result. The strength of the current produced
by the reaction depends on the amount of glucose in the blood
sample.

10
Contents of System

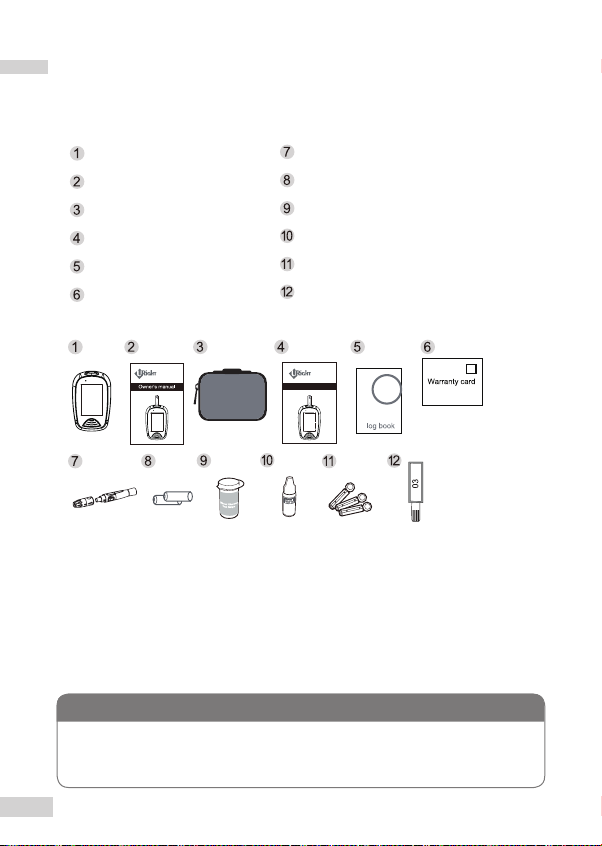

Your new U-RIGHT TD-4279 system kit includes:
Test strips, control solutions, or sterile lancets may not be included in
the kit (please check the contents on your product box). They can be
purchased separately.
If any items are missing from your kit or opened prior to use,
please contact local customer services or place of purchase for
assistance.
NOTE
Meter
Owner’s Manual
Protective Wallet
Quick Start User Guide
Daily Log Book
Warranty Card
Quick start user guide
Lancing Device
2 x 1.5V AAA Alkaline Batteries
Test Strips
Control Solution
Lancets
Code strip

11

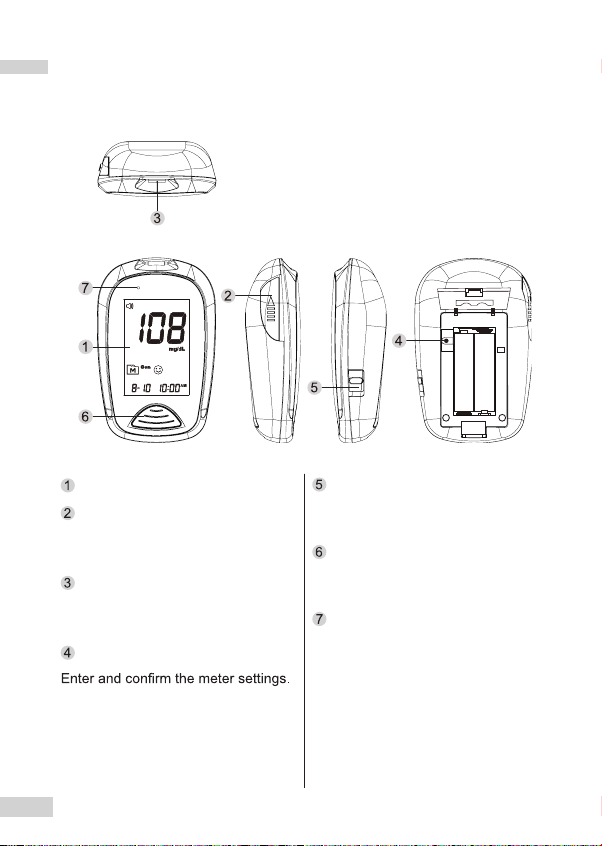

Meter Overview
Code
Blood drop symbol
Test strip symbol
Low battery symbol
Test result
Error warning
Ketone warning
Face/Low/High symbol
Measurement unit
Memory symbol
Measurement mode
Control solution mode
Reminder alarms
Day average
Time
Date

12

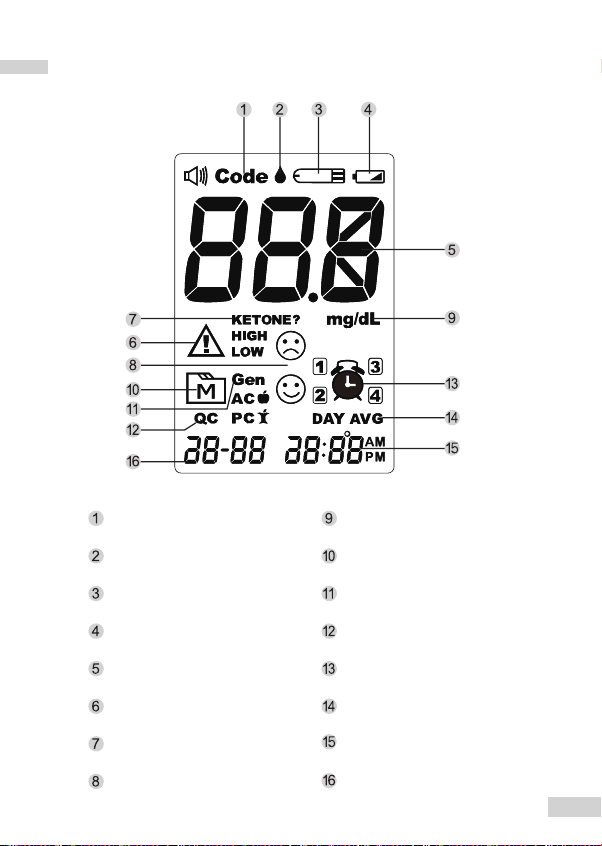

Display Screen
Display Screen
Test Strip Ejector
Eject the used strip by pushing up this
button.
Test Slot
Insert test strip here to turn the meter
on for testing.
SET Button
Data Port (for USB model)
Download test results with a cable
connection.
M Button
Bluetooth Indication Light
(for Bluetooth model)
Enter the meter memory and silence
a reminder alarm.
SET
Top
Front Side Back

13
Test Strip
The TD-4279 meter should only be used with TD-4279 Test
Strips. Using other test strips with this meter can produce inac-
curate results.
NOTE
Contact Bars
Insert this end of the test strip into the meter. Push it in
rmlyuntilitwillgonofurther.
Test Strip Handle
Hold this part to insert the test strip into the slot.
Conrmation window
Thisiswhereyouconrmifenoughbloodhasbeen
applied to the absorbent hole in the strip.
Absorbent Hole
Apply a drop of blood here. The blood will automati-
cally be absorbed.
Test results might be wrong if the contact
bar is not fully inserted into the test slot.
Attention!
The front side of the test strip should face
up when inserting the test strip.
Front Back

14
Setting the Meter

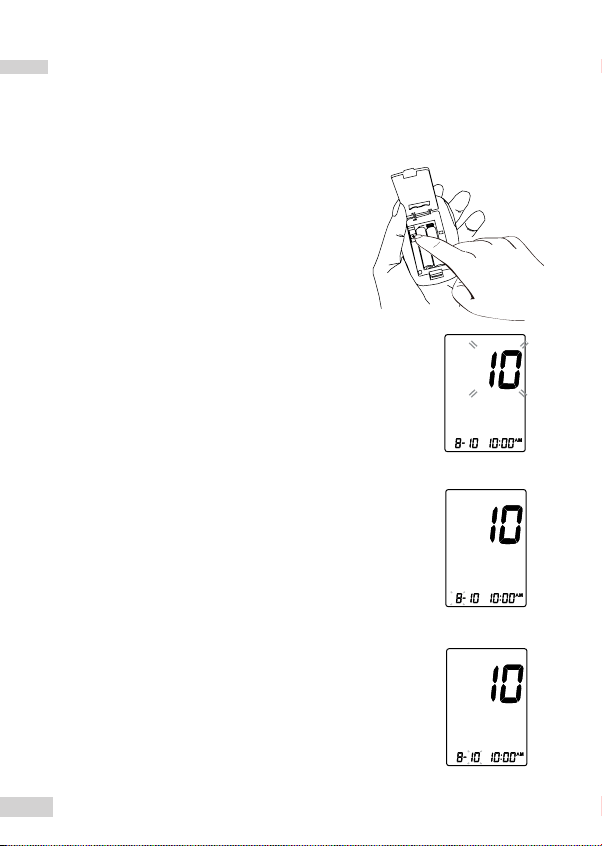

Beforeusingyourmeterforthersttimeorifyouchangethemeter
battery, you should check and update these settings. Make sure you
complete the steps below and have your desired settings saved.
Entering the setting mode
Start with the meter off (no test strip inserted).
Press SET button to turn on the meter.
1. Setting the date
Withtheyearashing,pressM button until the cor-
rect year appears. Press SET button.
Withthemonthashing,pressM button until the
correct month appears. Press SET button.
Withthedayashing,pressM button until the cor-
rect day appears. Press SET button.
SET

15
2. Setting the time format
Press and release M button to select the desired time format --- 12h
or 24h. Press SET button.
3. Setting the time
Withthehourashing,pressM button until the cor-
rect hour appears. Press SET button.
Withtheminuteashing,pressM button until the
correct minute appears. Press SET button.

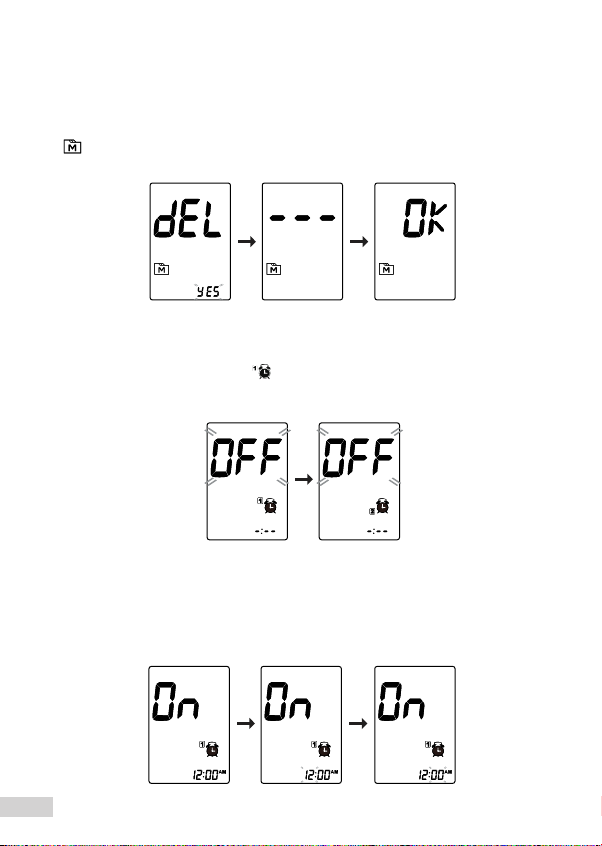

4. Deleting the memory
With “dEL” and a “ ” symbol on the display, press
M button and select “No” to keep the results in
memory then press SET button to skip.

16
5. Setting the Reminder Alarm
You may set up any or all of the reminder alarms (1-4). The meter
displays “On” or “OFF” and , press M button to turn on or turn off
tosettherstreminderalarm.
To delete all the results, press M button. and select “Yes” to delete
the results in memory, then press SET buttontoconrm.“OK”and
“ ” are displayed on the meter, which indicates that all data stored
is deleted.
Press M button to select “On”, then press SET button to set the
hour.Whenthehourisashing,pressM button to add an hour.
Press SET buttontoconrmandgotominutes,pressM button to
add one minute. Hold M button longer to add faster. Press SET but-
tontoconrmandgotothenextalarmsetting.

17
If you do not want to set an alarm, press SET button to skip this
step.
Ifyouwanttoturnoffanalarm,ndthealarmnumberbypressing
SET button in the setting mode, press M button to change from
“ON’ to “OFF”.
At the time of your alarm, the meter will beep and automatically turn
on. You can press M button to silence the alarm and insert a test
strip to begin testing. If you do not press M button, the meter will
beep for 2 minutes then switch off. If you do not want to test at this
time, press M button to switch off the meter.
Congratulations! You have completed all settings!
These parameters can ONLY be changed in the setting mode.
If the meter is idle for 3 minutes during the setting mode, it will
switch off automatically.
NOTE

18
THE FOUR MEASURING MODES

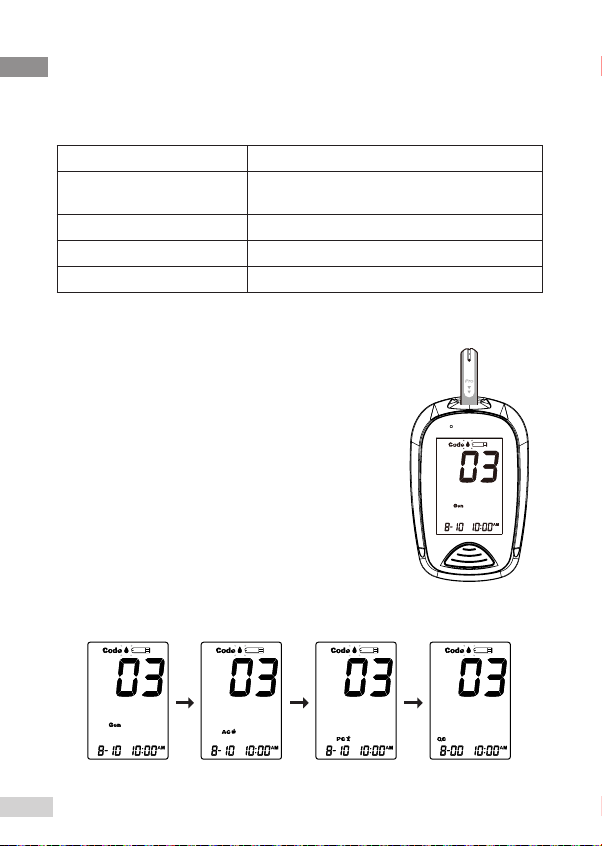

The meter provides you with four modes for measuring General, AC,
PC and QC.
2. Press M button to switch between General, AC, PC and QC mode.
Modes Use when
General (displays as “Gen”) any time of day without regard to time since
last meal
AC no food intake for at least 8 hours
PC 2 hours after a meal
QC testing with the control solution
You can switch between each mode by:
1. Start with the meter switched off. Insert a test
strip to turn on the meter. The screen will display a
ashingblooddropand“Gen”.

19
BEFORE TESTING
You must calibrate the meter every time you begin to use a new vial
of test strips by setting the meter with the correct code. Test results
may be inaccurate if the code number displayed on the monitor does
not match the number printed on the strip vial. You can easily code
your meter by selecting the correct code number in the meter.
How to Code Your Meter

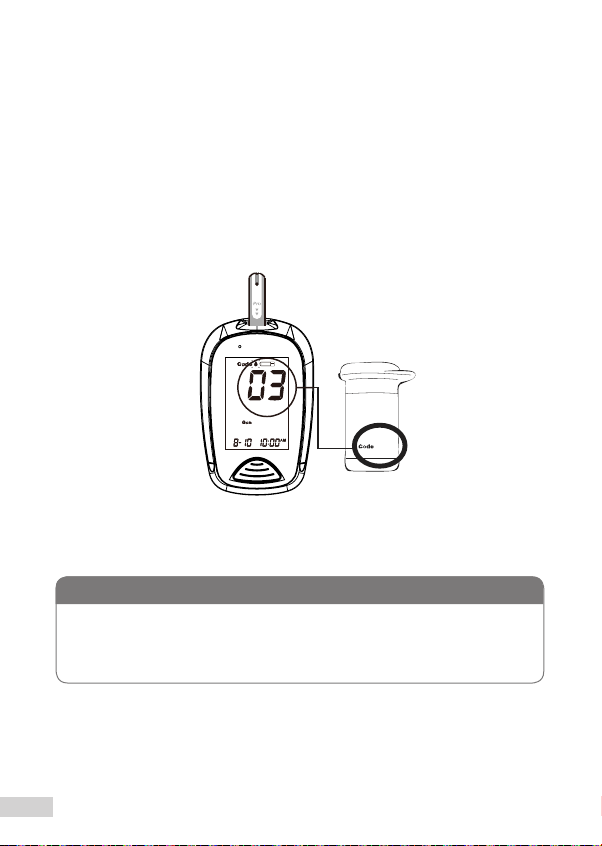

1. Insert the code strip when the monitor is off. Wait until the code
number appears on the display.
Note : Make sure the code number on display, code strip, and
test strip vial are the same.
2. Remove the code strip, the display will show “OK”. This tells you
thatthemeterhasnishedcodingandisreadyforbloodglucose
testing.
Calibration
03
03

20
Checking the Code Number
You need to make sure that the code number displayed on the meter
matches the number on the test strip vial before you proceed. If it
matches, you can proceed with your test. If the codes do not match,
please stop testing and repeat the calibration procedure. If the prob-
lem persists contact Customer Service for help.
It is important to make sure that the LCD displayed code is the
same as the code on the test strip vial before testing. Failure to
do so will get inaccurate results.
Warning
03
