Ubiquiti PowerBridge M10 User manual

10 GHz Carrier Class
airMAX BaseStation with
Dish Antenna
10
PowerBridge

1
Package Contents
Package Contents
Rocket Dish Feed Main Mounting
Bracket
Mast Brackets
(Qty. 2)
Stabilizer Brackets
(Qty. 2)
Tilt Screw M10x150 Bolts
(Qty. 4)
M10x100 Bolts
(Qty. 2)
M10x25 Bolts
(Qty. 3)
M4x12 Screw and
Washer Assembly
(Qty. 4)
M4x18 Screw and
Washer Assembly
(Qty. 4)
M10 Hex Nuts
(Qty. 9)
M16 Hex Nuts
(Qty. 2)
M10 Spring Lock
Washers (Qty. 9)
M16 Spring Lock
Washer (Qty. 1)
M10 Washers
(Qty. 9)
M16 Washers
(Qty. 2)
24V PoE Adapter Power Cord
10 GHz Carrier Class
AirMax BaseStation with
Dish Antenna
10
PowerBridge
O-Ring (Qty. 1) Quick Start Guide

2
PowerBridge M10
Installation Requirements
• Adjustable wrench or one 16 mm and one 24 mm wrench
• Phillips screwdriver
Hardware Installation
To install the PowerBridge M10, perform the following steps:

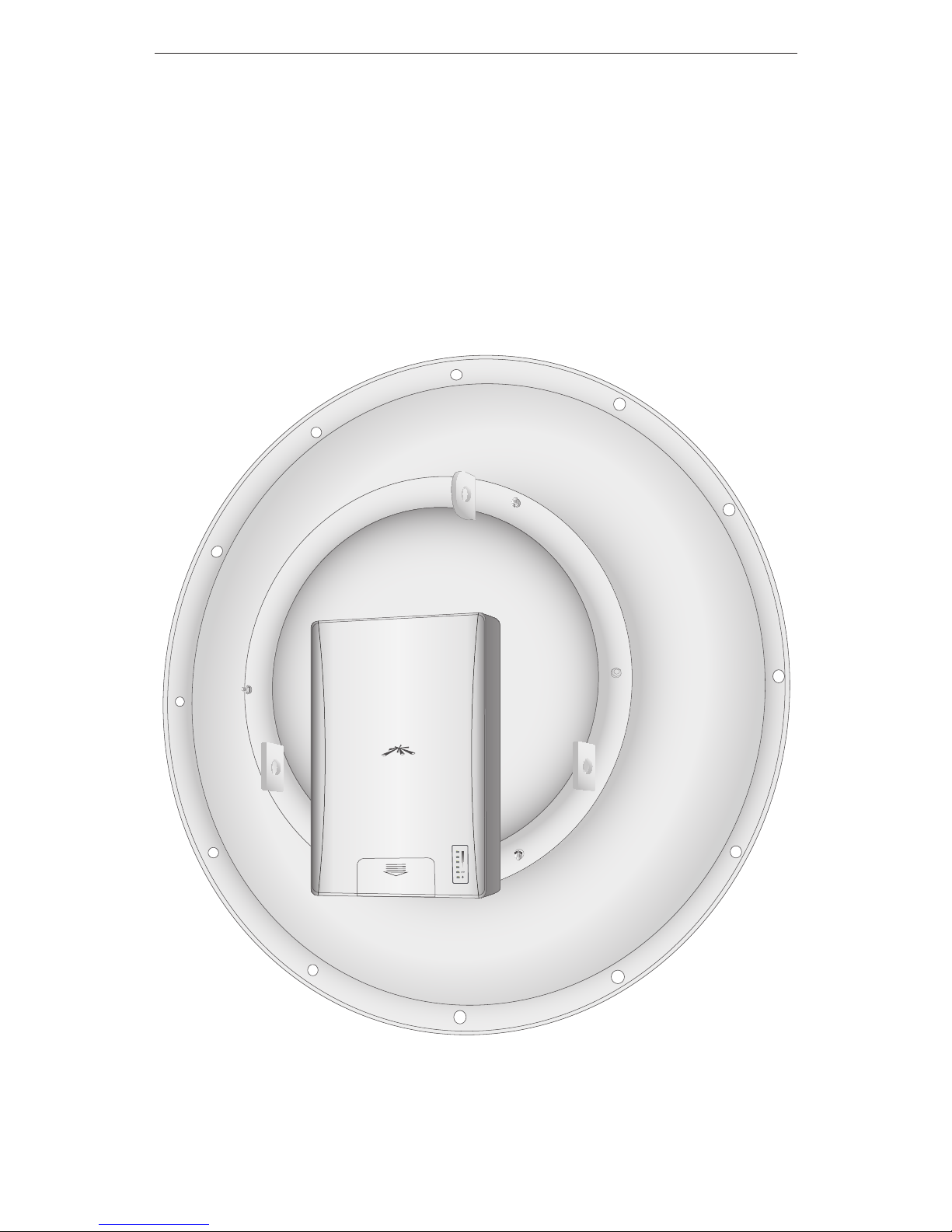

1. Align the Rocket to the back of the Dish.

3
Hardware Installation
2. On the front of the Dish, use the four M4x18 Screw and Washer
Assemblies to secure the Rocket to the Dish.

4
PowerBridge M10

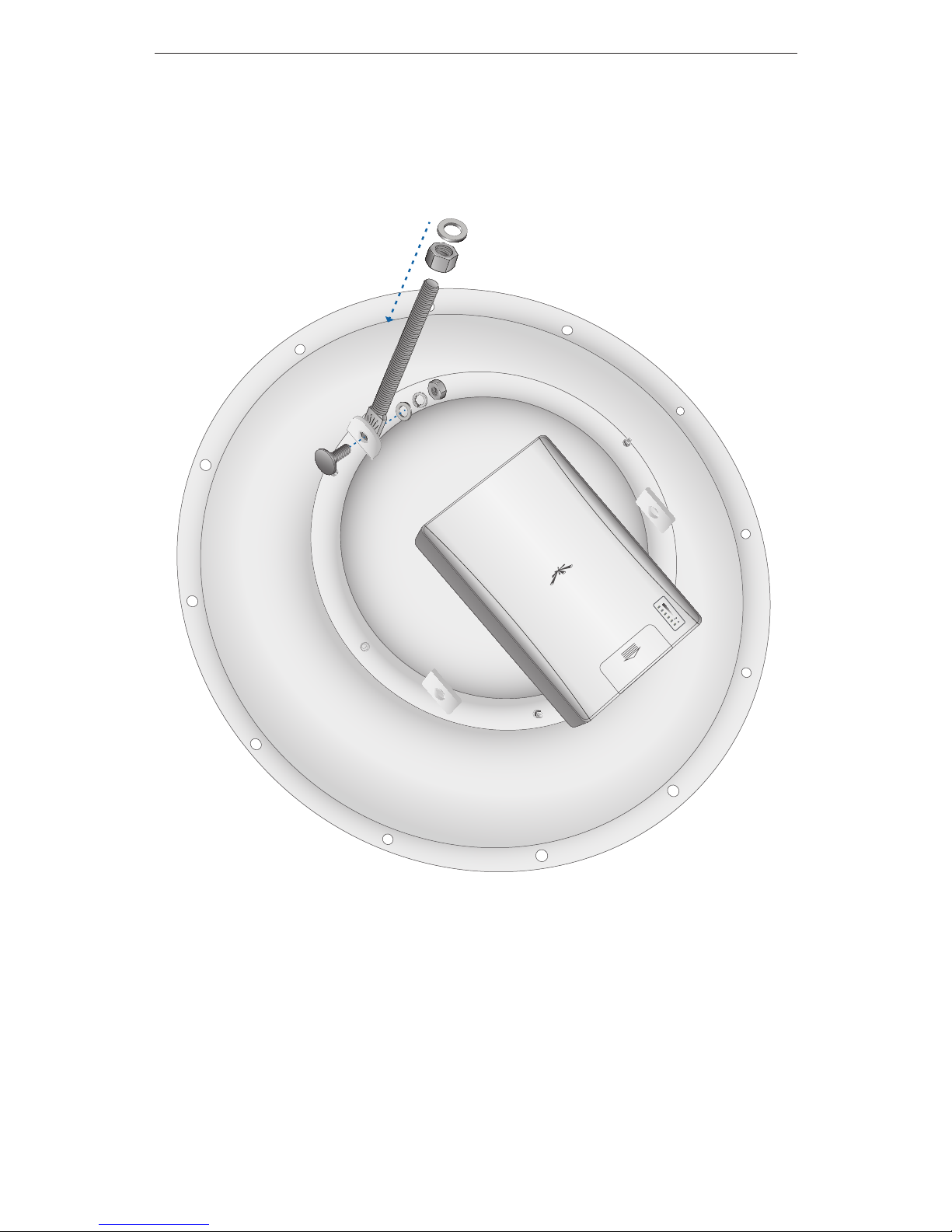

3. Connect the Tilt Screw to the back of the Dish using a M10x25
Bolt, a M10 Washer, a M10 Spring Lock Washer, and a M10 Hex
Nut. Install a M16 Hex Nut about halfway down on the Tilt Screw
and then install a M16 Washer on the Tilt Screw.

5
Hardware Installation
4. Connect the Main Mounting Bracket to the Dish:
a. Insert two M10x25 Bolts through the bottom of the Main
Mounting Bracket and through the Dish. The bolts should be
on the inside facing outward.
b. Secure each bolt using a M10 Washer, a M10 Spring Lock
Washer, and a M10 Hex Nut.
c. Slide the Main Mounting Bracket onto the Tilt Screw.
d. Secure the Main Mounting Bracket to the Tilt Screw using a
M16 Washer, a M16 Spring Lock Washer, and a M16 Hex Nut.

6
PowerBridge M10
5. Lift the cover on the Rocket by pressing down and raising it up.
Connect an Ethernet cable to the Rocket and place the cover
back on the Rocket. There is an opening for the Ethernet cable.
Slide the cover over the cable.
6. Make sure the O-Ring is secure on the Feed.
O-Ring

7
Hardware Installation
7. On the front of the Dish, connect the Feed to the Rocket and
Dish using the four M4x12 Screw and Washer Assemblies.
Note: DO NOT handle the assembled unit by the feed
at any time, especially during installation of the dish to
thepole.Alwaysholdthedishorthebracketswhile
installing the product.

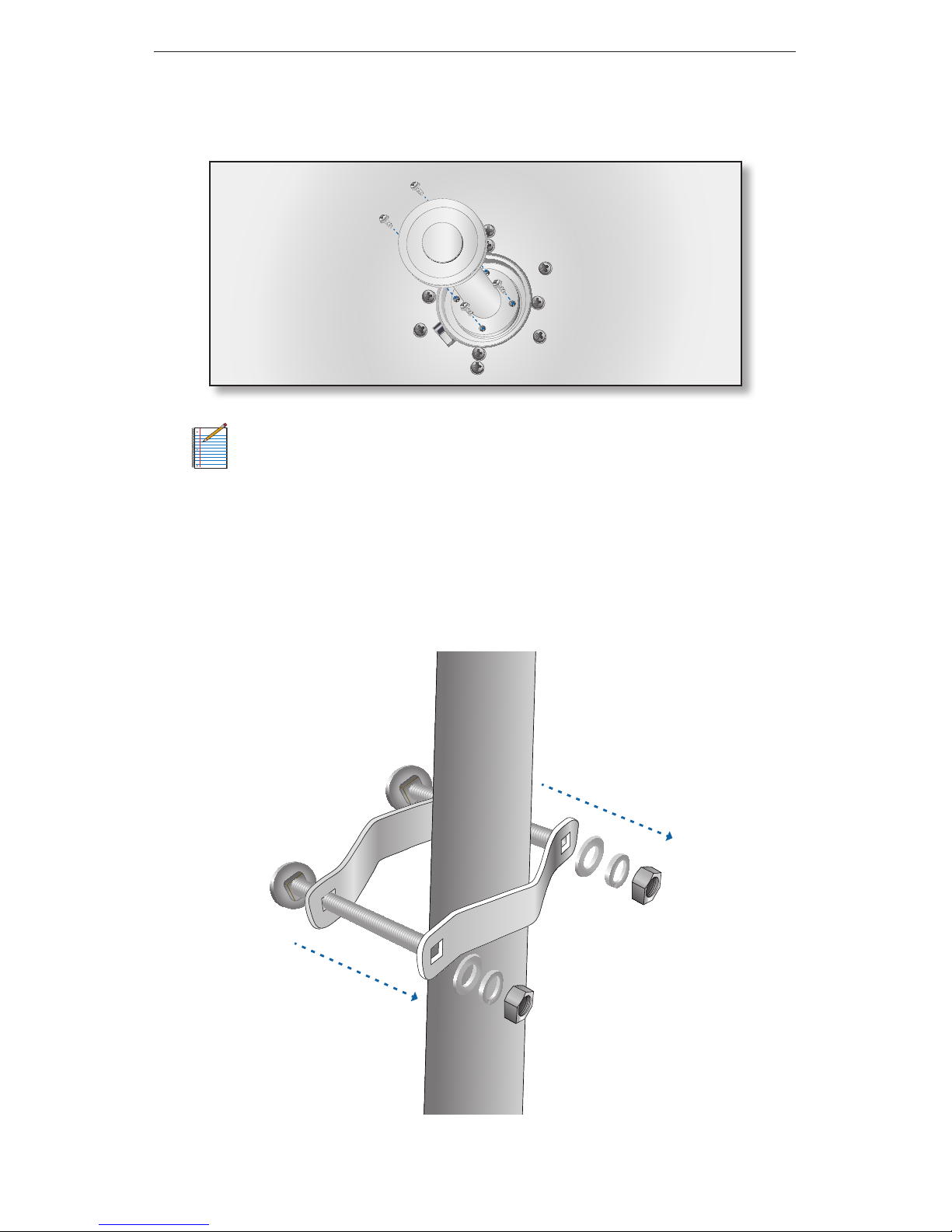

8. Select a mounting location for the Dish antenna and connect
the Stabilizer Brackets to the pole just below where the Dish will
be installed. Use two M10x100 Bolts, two M10 Washers, two M10
Spring Lock Washers, and two M10 Hex Nuts.

8
PowerBridge M10
9. Place the Mast Brackets on the other side of the pole that
the Dish will be mounted on and connect them to the Main
Mounting Bracket using M10 Washers, M10 Spring Lock Washers,
and M10 Hex Nuts.

9
Hardware Installation
10. Adjust the Azimuth and Elevation. Azimuth can be adjusted by
rotating the antenna while supported by the stabilizer bracket.
Elevation is adjusted by loosening the Tilt Screw.
elevation
azimuth
11. Connect the other end of the Ethernet cable from the Rocket to
the Ethernet port labeled POE on the PoE Adapter.

10
PowerBridge M10
12. Connect an Ethernet cable from your LAN to the Ethernet port
labeled LAN on the PoE Adapter.
13. Connect the power cord to the power port on the PoE Adapter.
Connect the other end of the power cord to a power outlet.

11
Accessing airOS™
Accessing airOS™
1. Make sure that your host machine is connected to the LAN that
is connected to the Rocket.
2. Configure the Ethernet adapter on your host system with a
static IP address on the 192.168.1.x subnet.

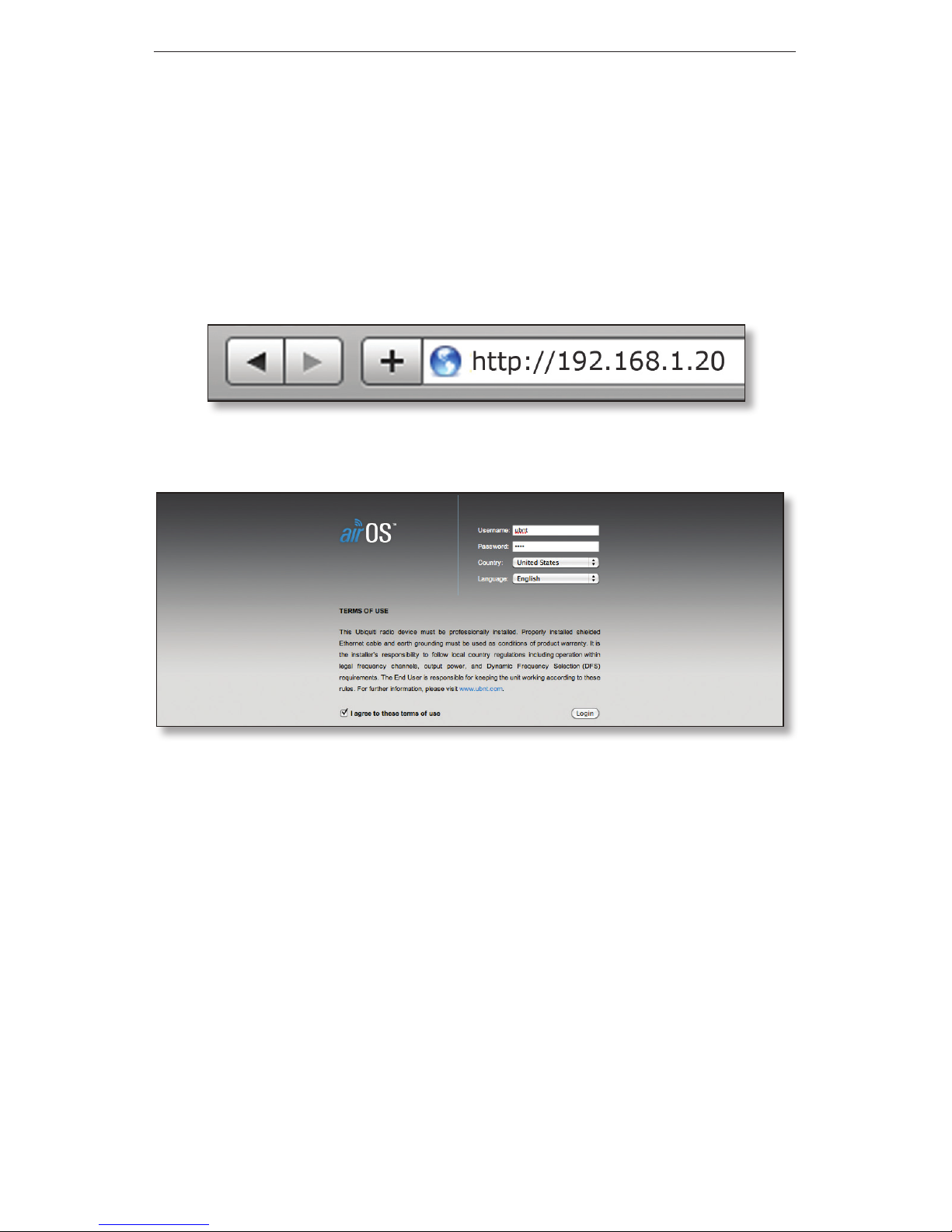

3. Launch your Web browser. Type http://192.168.1.20 in the
address field and press enter (PC) or return (Mac).
4. The login screen will appear. Enter ubnt in the Username and
Password fields and click Login.
The airOS Configuration Interface will appear, allowing you to
customize your settings as needed.
Congratulations! Installation is complete.
