Ubiquiti RocketDish 5G30 User manual

airMAX ® 2x2PtPBridge
DishAntenna
Model:RD-5G30-LW

Introduction
Thank you for purchasing the Ubiquiti Networks® RocketDish™,
an airMAX® 2x2 PtP Bridge Dish Antenna. This Quick Start
Guide is designed to guide you through the installation of the
antenna. This Quick Start Guide also includes the warranty
terms and is for use with the RocketDish, modelRD-5G30-LW.
Package Contents
Dish Antenna Mounting
Bracket
Antenna Feed Lower Pole
Bracket
Upper Pole
Bracket
Support Arm Brace Screws
(M6, Qty. 4)
Protective
Shroud
Hex Head Bolts
(M8, Qty. 5)
Lock Washers
(M8, Qty. 5)
Flat Washers
(M8, Qty. 5)
Stabilizer Brackets
(Qty. 2)
airMAX®2x2PtP Bridge
DishAntenna
Model:RD-5G30-LW
M10x100 Bolts
(Qty. 2)
Serrated
Flange Nuts
(M10, Qty. 2)
M8x150 Carriage
Bolts (Qty. 4)
Pole Clamps
(Qty. 2)
Quick Start
Guide
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable™
is designed for outdoor installations. It is the customer’s responsibility to follow local country
regulations, including operation within legal frequency channels, output power, and Dynamic
Frequency Selection (DFS) requirements.

Installation Requirements
• Rocket™5ac PtP, Rocket5ac Lite, RocketM5 Titanium, or
RocketM5 (sold separately)
• Phillips screwdriver
• 13 mm wrench
• Wrench or channel lock pliers with 63.5 mm (2.5") capacity
• Shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded
through the AC ground of the PoE.
We recommend that you protect your networks from the
most brutal environments and devastating ESD attacks
with industrial-grade shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable
Hardware Overview
Fully Assembled Back View
Mounting Bracket
Pole Clamp
Protective Shroud
Stabilizer Brackets
Pole Clamp
Elevation Rod

Installation
Important: Handle the Dish Reflector with care.
Deformations in its shape may reduce the RocketDish's
effectiveness.
1. Line up the alignment tabs of the Mounting Bracket with
the alignment slots of the Dish Reflector. Insert the tabs and
rotate the Mounting Bracket until they lock intoplace.
Note: Ensure that the antenna feed slot of the
Mounting Bracket lines up with the antenna feed slot
of the Dish Reflector, as shown below:

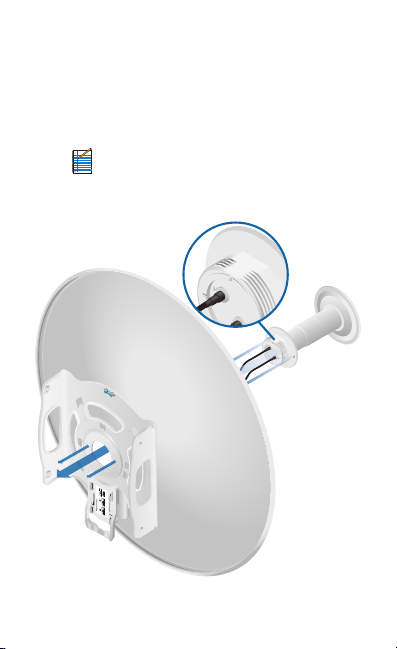

2. The Dish Reflector and Antenna Feed are keyed so the
Antenna Feed can only be installed in a single orientation.
Follow these steps:
a. Remove the knob from the Antenna Feed.
b. Line up the alignment pins of the Antenna Feed with
the alignment holes of the Dish Reflector and Mounting
Bracket.
Note: Ensure that the straight edge of the
Antenna Feed end (shown below) and arrow on
the Antenna Feed cap are pointing straight up.
c. Insert the Antenna Feed.

3. To secure the Antenna Feed to the Dish Reflector:
a. Replace the knob and tighten it by hand until the knob
touches the surface of the Mounting Bracket.
b. Use a wrench or channel lock pliers to tighten the knob
an additional ¼ turn. Do NOT over-tighten the knob.
Note: Ensure that the Antenna Feed is securely
attached by the knob.
Important: Do not handle the RocketDish by the Antenna
Feed once the feed is attached.
*640-00148-03*
640-00148-03

4. Attach the Rocket to the Mounting Bracket.
a. Align the mounting tabs on the back of the Rocket with
the Rocket mount.
b. Slide the Rocket down to lock it into place.
5. Attach the other end of the RF Cables to the RF connectors
on the Rocket in this combination: Hto Chain 1 and Vto
Chain 0. Then slide the jackets over the RF connectors to
protect them.

6. Attach the Protective Shroud.
a. Align the hash mark on the top of the shroud with the
notch on the Dish Antenna.
b. Rotate the shroud clockwise until it locks into place.

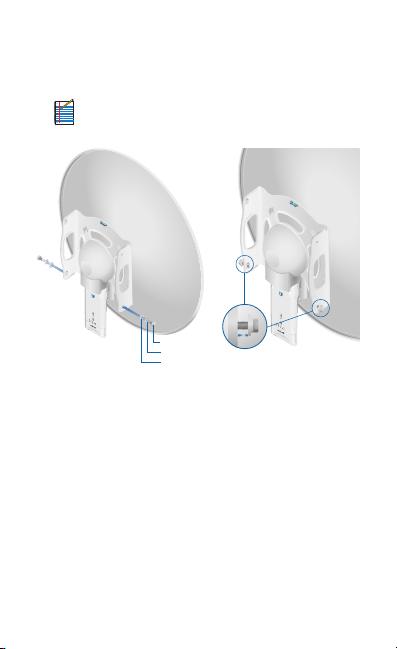

7. Attach two Hex Head Bolts, two Lock Washers, and two Flat
Washers to the bottom of the Mounting Bracket. Ensure that
there is a gap of 8 mm between each Flat Washer and the
Mounting Bracket.
Note: Ensure that each Lock Washer is always
installed between the Hex Head Bolt and Flat Washer.
Hex Head Bolt
Flat Washer
Lock Washer
8 mm

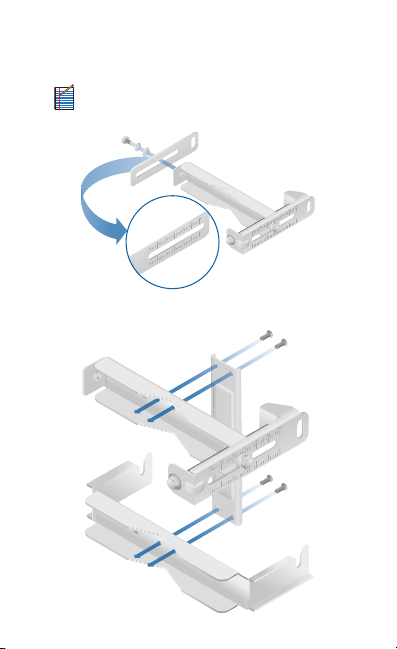

8. Attach the horizontal slot of the Support Arm to the Upper
Pole Bracket using a Hex Head Bolt, Lock Washer, and
FlatWasher.
Note: Ensure that the degree settings are the same
on both arms of the Upper Pole Bracket.
Degree markings
facing outward
9. Attach the Brace to the pole brackets using the four Screws.

10. Each M8x150 Carriage Bolt includes a serrated flange nut.
Remove these and use them in the next step.
11. Attach one Pole Clamp to each pole bracket.
a. Insert two M8x150 Carriage Bolts into each pole bracket.
b. Slide the hole of a Pole Clamp over one bolt of each
pole bracket.
c. Place one serrated flange nut on each bolt.

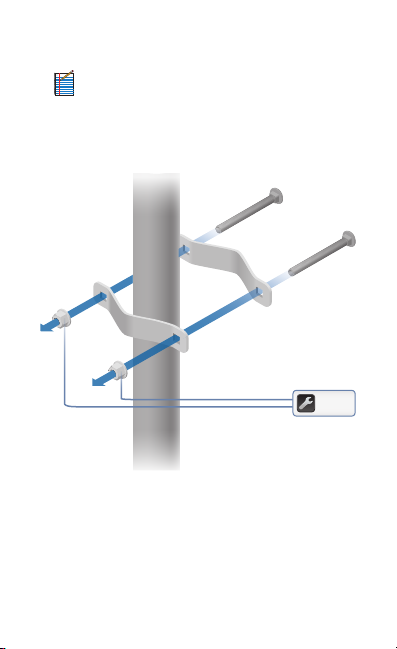

12. Attach the Stabilizer Brackets to the pole just beneath the
area where the RocketDish will be attached.
Note: The pole-bracket assembly can accommodate
a Ø 38 - 101mm pole.
a. Place one Stabilizer Bracket on each side of the pole.
b. Insert the two M10x100 Bolts into the Stabilizer Brackets.
c. Secure each bolt with one Serrated Flange Nut.
50 N-m

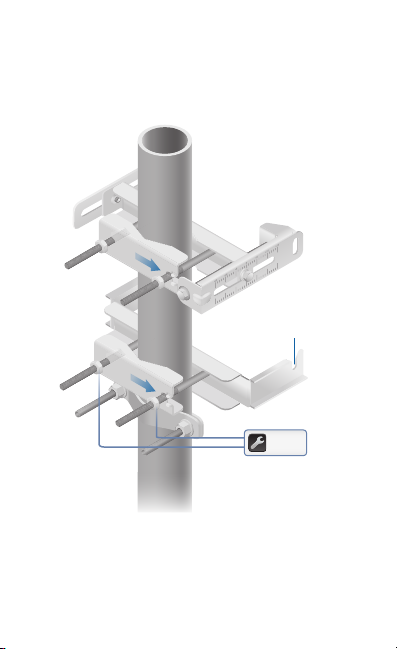

13. Attach the pole-bracket assembly to the pole:
a. Slide the slot of each Pole Clamp over the
corresponding M8x150 CarriageBolt.
b. Tighten the serrated flange nuts of the bolts to secure
the pole-bracket assembly to the pole.
Proper slot orientation
25 N-m

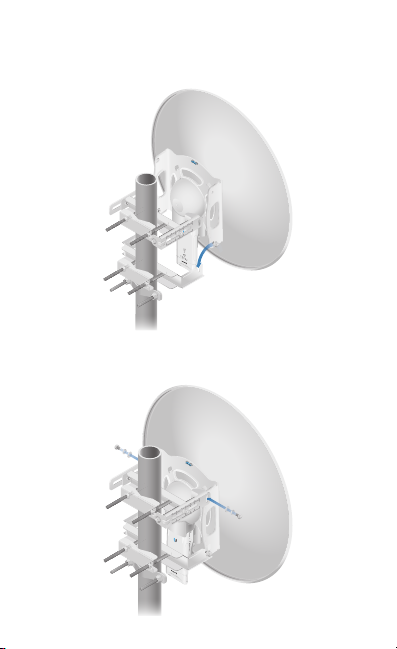

14. Lift the Dish Reflector and align the two lower Hex Head
Bolts with the slots on the Lower Pole Bracket. Seat the bolts
in the slots.
15. Attach each arm of the Upper Pole Bracket to the Mounting
Bracket using a Hex Head Bolt, Lock Washer, and Flat Washer.

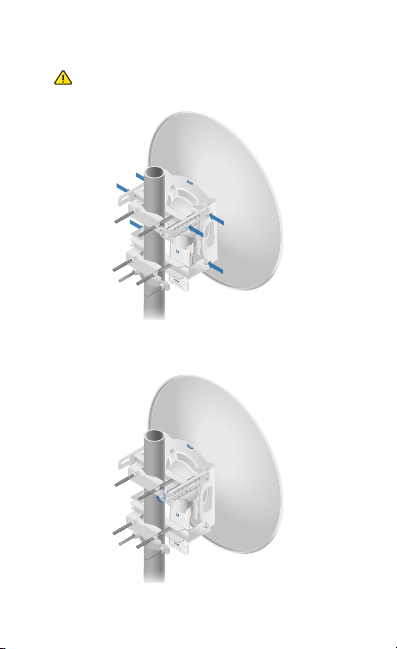

16. Before adjusting the tilt angle, ensure that the six Hex Head
Bolts are loose enough to allow movement.
IMPORTANT:If you cannot spin the washers freely by
hand, then loosen the Hex Head Bolts until you can.
17. To adjust the tilt angle, turn the screw head of the Elevation
Rod until the desired tilt is reached.
18. Lock the alignment by tightening all six Hex HeadBolts to
25 N-m.

Specifications
RocketDish RD-5G30-LW
Dimensions 650 x 650 x386 mm (25.6 x 25.6 x 15.2")
Weight 7.4 kg (16.31 lb)
(Mount Included)
Frequency 5.1 - 5.9 GHz
Gain 30 dBi
Max. VSWR 1.6:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 790 N @ 200 km/h (178 lbf @ 125 mph)
Polarization Dual Linear
F/B Ratio 30 dB
ETSI Specication EN 302 326 DN2
Mounting Universal Pole Mount, Rocket Bracket, and
Weatherproof RF Jumpers Included
Safety Notices
1. Read, follow, and keep these instructions.
2. Heed all warnings.
3. Only use attachments/accessories specified by the manufacturer.
WARNING: Do not use this product in location that can
be submerged by water.
WARNING: Avoid using this product during an electrical
storm. There may be a remote risk of electric shock from
lightning.
Electrical Safety Information
1. Compliance is required with respect to voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a
different power source than those specified may result in improper
operation, damage to the equipment or pose a fire hazard if the
limitations are not followed.
2. There are no operator serviceable parts inside this equipment. Service
should be provided only by a qualified service technician.

Limited Warranty
UBIQUITI NETWORKS, Inc (“UBIQUITI NETWORKS”) warrants that the
product(s) furnished hereunder (the “Product(s)”) shall be free from defects
in material and workmanship for a period of one (1) year from the date
of shipment by UBIQUITI NETWORKS under normal use and operation.
UBIQUITI NETWORKS’ sole and exclusive obligation and liability under
the foregoing warranty shall be for UBIQUITI NETWORKS, at its discretion,
to repair or replace any Product that fails to conform to the above
warranty during the above warranty period. The expense of removal and
reinstallation of any Product is not included in this warranty. The warranty
period of any repaired or replaced Product shall not extend beyond its
original term.
Warranty Conditions
The above warranty does not apply if the Product:
(I) has been modified and/or altered, or an addition made thereto,
except by Ubiquiti Networks, or Ubiquiti Networks’ authorized
representatives, or as approved by Ubiquiti Networks in writing;
(II) has been painted, rebranded or physically modified in any way;
(III) has been damaged due to errors or defects in cabling;
(IV) has been subjected to misuse, abuse, negligence, abnormal
physical, electromagnetic or electrical stress, including lightning
strikes, or accident;
(V) has been damaged or impaired as a result of using third party
firmware;
(VI) has no original Ubiquiti MAC label, or is missing any other original
Ubiquiti label(s); or
(VII) has not been received by Ubiquiti within 30 days of issuance of
the RMA.
In addition, the above warranty shall apply only if: the product has been
properly installed and used at all times in accordance, and in all material
respects, with the applicable Product documentation; all Ethernet cabling
runs use CAT5 (or above), and for outdoor installations, shielded Ethernet
cabling is used, and for indoor installations, indoor cabling requirements
are followed.
Returns
No Products will be accepted for replacement or repair without obtaining
a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS
during the warranty period, and the Products being received at UBIQUITI
NETWORKS’ facility freight prepaid in accordance with the RMA process of
UBIQUITI NETWORKS. Products returned without an RMA number will not
be processed and will be returned freight collect or subject to disposal.
Information on the RMA process and obtaining an RMA number can be
found at: www.ubnt.com/support/warranty.

Disclaimer
EXCEPT FOR ANY EXPRESS WARRANTIES PROVIDED HEREIN, UBIQUITI
NETWORKS, ITS AFFILIATES, AND ITS AND THEIR THIRD PARTY DATA,
SERVICE, SOFTWARE AND HARDWARE PROVIDERS HEREBY DISCLAIM
AND MAKE NO OTHER REPRESENTATION OR WARRANTY OF ANY KIND,
EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO,
REPRESENTATIONS, GUARANTEES, OR WARRANTIES OF MERCHANTABILITY,
ACCURACY, QUALITY OF SERVICE OR RESULTS, AVAILABILITY,
SATISFACTORY QUALITY, LACK OF VIRUSES, QUIET ENJOYMENT, FITNESS
FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT AND ANY
WARRANTIES ARISING FROM ANY COURSE OF DEALING, USAGE OR
TRADE PRACTICE IN CONNECTION WITH SUCH PRODUCTS AND SERVICES.
BUYER ACKNOWLEDGES THAT NEITHER UBIQUITI NETWORKS NOR
ITS THIRD PARTY PROVIDERS CONTROL BUYER’S EQUIPMENT OR THE
TRANSFER OF DATA OVER COMMUNICATIONS FACILITIES, INCLUDING
THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS
AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS
FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD
PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS,
DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT
CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY
OF THE FOREGOING. In addition, UBIQUITI NETWORKS does not warrant
that the operation of the Products will be error-free or that operation will
be uninterrupted. In no event shall UBIQUITI NETWORKS be responsible
for damages or claims of any nature or description relating to system
performance, including coverage, buyer’s selection of products (including
the Products) for buyer’s application and/or failure of products (including
the Products) to meet government or regulatory requirements.
Limitation of Liability
EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL
UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR
DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES
(INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING
OUT OF THE USE, INABILITY TO USE, OR THE RESULTS OF USE OF THE
PRODUCT, WHETHER BASED IN WARRANTY, CONTRACT, TORT OR OTHER
LEGAL THEORY, AND WHETHER OR NOT ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES.

Note
Some countries, states and provinces do not allow exclusions of implied
warranties or conditions, so the above exclusion may not apply to you.
You may have other rights that vary from country to country, state to
state, or province to province. Some countries, states and provinces do not
allow the exclusion or limitation of liability for incidental or consequential
damages, so the above limitation may not apply to you. EXCEPT TO
THE EXTENT ALLOWED BY LOCAL LAW, THESE WARRANTY TERMS DO
NOT EXCLUDE, RESTRICT OR MODIFY, AND ARE IN ADDITION TO, THE
MANDATORY STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF ANY
SOFTWARE (EMBEDDED IN THE PRODUCT) TO YOU. The United Nations
Convention on Contracts for the International Sale of Goods shall not apply
to any transactions regarding the sale of the Products.
Compliance
RF Exposure Warning
The antenna and transmitter must be installed to provide a separation
distance from all persons and must not be located or operating in
conjunction with any other antenna or transmitter. For the specific
separation distance, refer to the Quick Start Guide for your Rocket device
(transmitter).
L’antenne et l’émetteur doit être installé pour fournir une distance de
séparation de toute les personnes et ne doit pas être situé ou opérant en
conjonction avec une autre antenne ou un autre émetteur. Pour la distance
spécifique de séparation, se référer au Guide de démarrage rapide pour
votre appareil Rocket (l’émetteur).

RoHS/WEEE Compliance Statement
English
European Directive 2002/96/EC requires that the equipment bearing
this symbol on the product and/or its packaging must not be disposed
of with unsorted municipal waste. The symbol indicates that this
product should be disposed of separately from regular household waste
streams. It is your responsibility to dispose of this and other electric and
electronic equipment via designated collection facilities appointed by the
government or local authorities. Correct disposal and recycling will help
prevent potential negative consequences to the environment and human
health. For more detailed information about the disposal of your old
equipment, please contact your local authorities, waste disposal service, or
the shop where you purchased the product.
Deutsch
Die Europäische Richtlinie 2002/96/EC verlangt, dass technische
Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem
Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall
entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt
von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es
liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische
und elektronische Geräte über die dafür zuständigen und von der
Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu
entsorgen. Ordnungsgemäßes Entsorgen und Recyceln trägt dazu bei,
potentielle negative Folgen für Umwelt und die menschliche Gesundheit
zu vermeiden. Wenn Sie weitere Informationen zur Entsorgung Ihrer
Altgeräte benötigen, wenden Sie sich bitte an die örtlichen Behörden oder
städtischen Entsorgungsdienste oder an den Händler, bei dem Sie das
Produkt erworben haben.
