Ubiquiti SunMax SolarPoint SM-SP-40 User manual

4x PoE Smart MPPT Charger
Model: SM-SP-40
SolarPoint

Introduction
Thank you for purchasing the Ubiquiti® SolarPoint™MPPT
Charger. This Quick Start Guide is designed to guide you through
installation and includes the warranty terms.

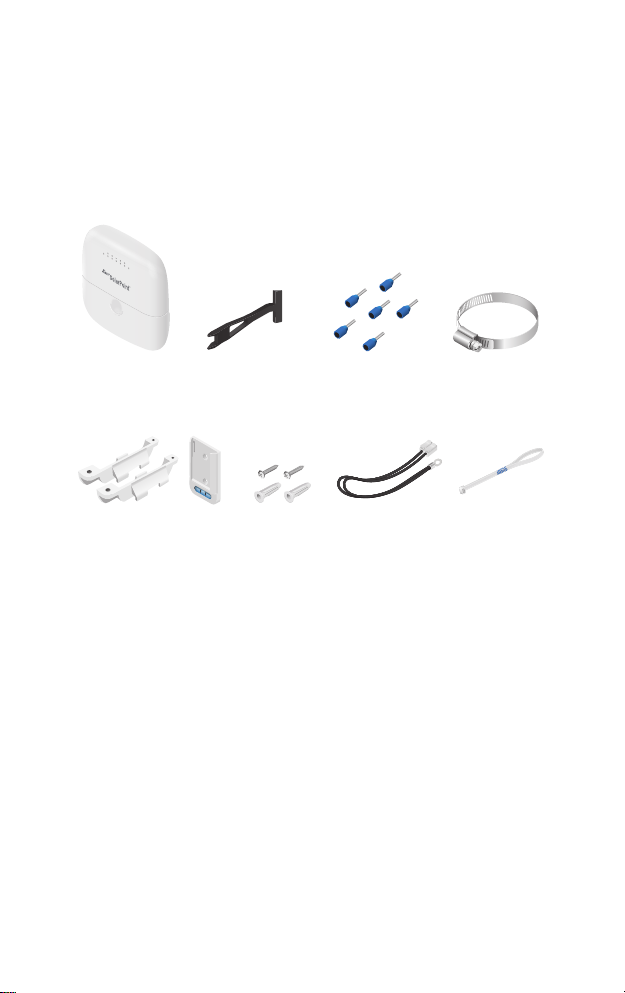

Package Contents
SolarPoint H4 Connector
Removal Tool
Ferrules
(Qty. 6)
Metal Strap
Wall Mount Kit Screw Kit NTC Thermistor Zip Tie
Installation Requirements
• Flathead screwdriver
• 7 mm socket wrench
• Ferrule crimper or pliers
• 18 - 14 AWG wires for battery connection
• 24V or 2x 12V SLA, AGM, or Gel Lead battery
• Solar panel with H4 connectors (10 - 60V open circuit voltage)
• Shielded Category 5 (or above) cabling should be used for all
wired Ethernet connections
• We recommend that you protect your networks from harmful
outdoor environments and destructive ESD events with
industrial-grade, shielded Ethernet cable from Ubiquiti. For
more details, visit: ui.com/toughcable

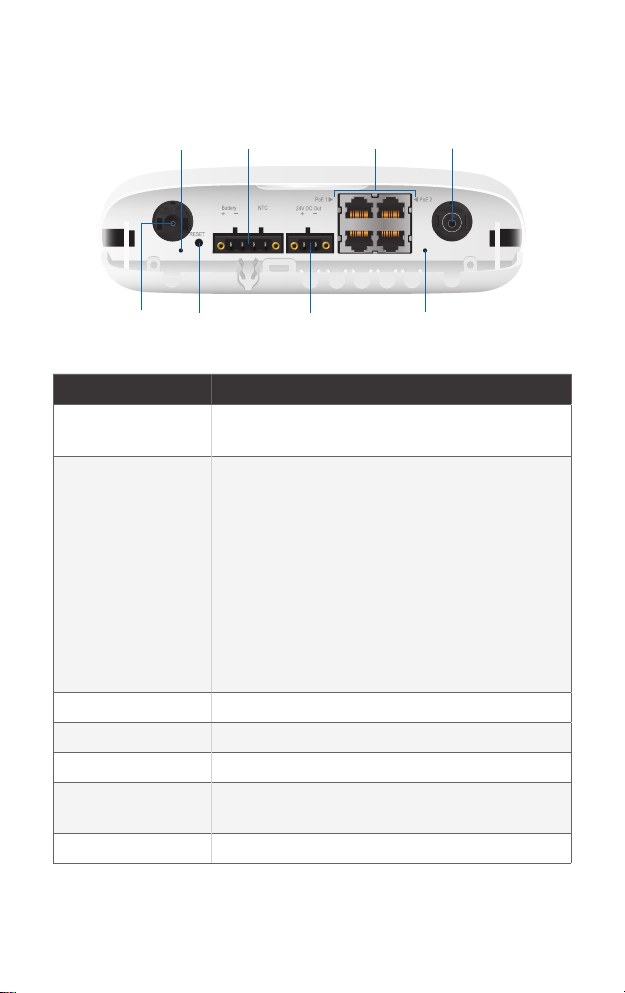

Hardware Overview
Reset
Button
Power
Terminal
Battery
Terminal
Ethernet
Ports
Output
LED
System
LED
PV Panel
Terminal
PV Panel
Terminal
Interface Description
System LED
Steady on when system is powered on;
Red when battery polarity is reversed.
Reset
Button
Press and hold the Reset button for 10
seconds to restore factory default settings.
Press and hold the Reset button for 16
seconds if:
• The device does not respond to a factory
reset.
• The web interface is unreachable.
• There doesn't appear to be any other
noticeable activity
Battery Terminal Four-pin terminal block for NTC and battery
Power Terminal Two-pin terminal block for power (24VDC out)
PV Panel Terminals H4 connectors for solar panel
Ethernet Ports
Supports 10/100 Ethernet connections and
passive 24V, 2-pair PoE output.
Output LED Steady on when output power is enabled.

Hardware Installation
Note: Prior to use, it is recommended to write down the
factory default password for this device. The password can
be found on the sticker located under the SolarPoint cover.
Pole Mounting
1. Open the Metal Strap and feed it through the mounting slots
on the back of the SolarPoint.
2. Wrap the Metal Strap around the pole. Use a 7 mm socket
wrench to turn the screw clockwise and securely fasten the
strap to the pole.

Wall Mounting
1. Attach the two wall mount brackets to the back of the
SolarPoint.
2. Install the wall mount level securely to the wall.

3. Align the wall mount brackets over the wall mount level and
slide it down until it is secure.

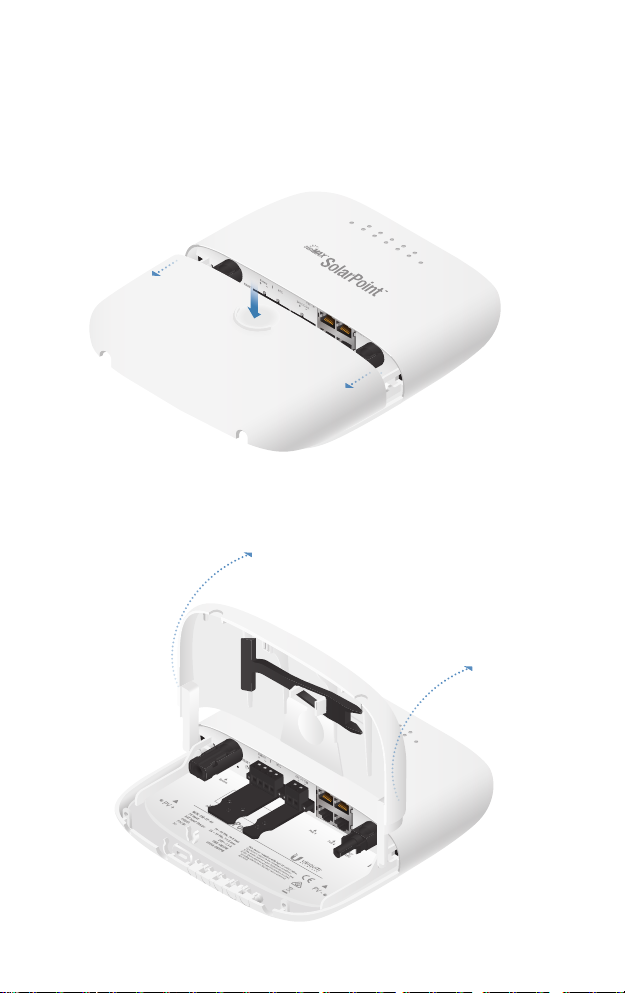

Opening the Port Cover
1. Press down and slide the port cover forward.
2. Lift the port cover up.

3. Remove the four-pin connector from the battery terminal block.
4. Crimp a ferrule on one end of the wire.
5. Insert the crimped wire into the appropriate slot on the
four-pin connector. Using a flathead screwdriver, secure the
wire to the connector by tightening the screw until it stops.

6. Repeat steps four and five until the connector is fully occupied
with all four wires.

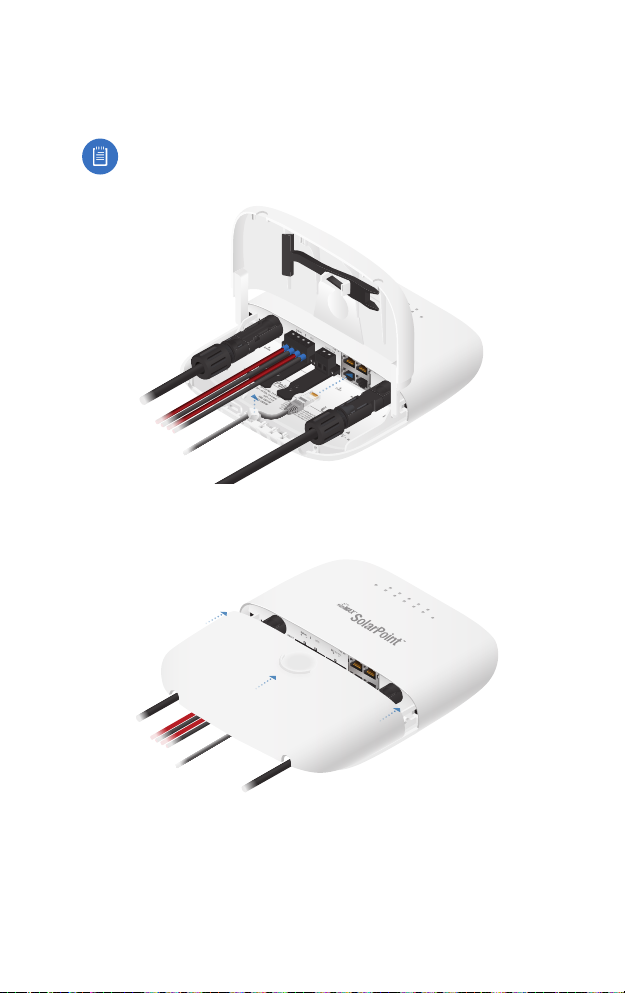

7. Attach the NTC and battery cable using the four-pin connector.
8. Attach the PV panel cables.

Connecting Ethernet
1. Connect Ethernet cable(s) to the Ethernet port(s).
Note: PoE is disabled by default and can be enabled
using the configuration interface.
2. When you are finished, close the port cover.

Configuration
Connect to your LAN via Ethernet or Wi-Fi.
Ethernet
If connected to the LAN via Ethernet, the SolarPoint will attempt
to obtain an IP address automatically from a DHCP server. Use the
Ubiquiti Device Discovery Tool to determine its IP address.
If there is no DHCP server on the LAN, the SolarPoint will fall back
to the following IP address: 192.168.1.20
Wi-Fi
Connect your notebook, tablet, or smartphone to the SolarPoint
SSID named SolarPoint-XYZ, where XYZ represents the last three
characters in the MAC address of the SolarPoint.
Once connected to your wireless network, the SolarPoint will use
the following IP address: 192.168.153.1

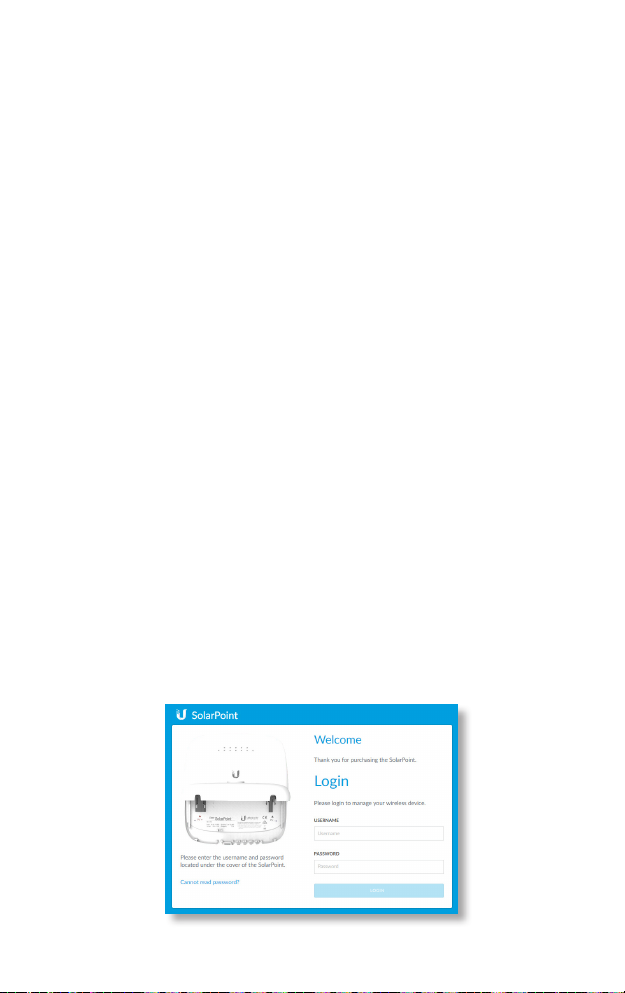

User Interface
1. Launch a web browser and enter the IP address of the
SolarPoint. Press Enter (PC) or Return (Mac).
2. Enter ubnt in the Username field.
3. Enter the password in the Password field (the password can be
found on the sticker located under the port cover.)

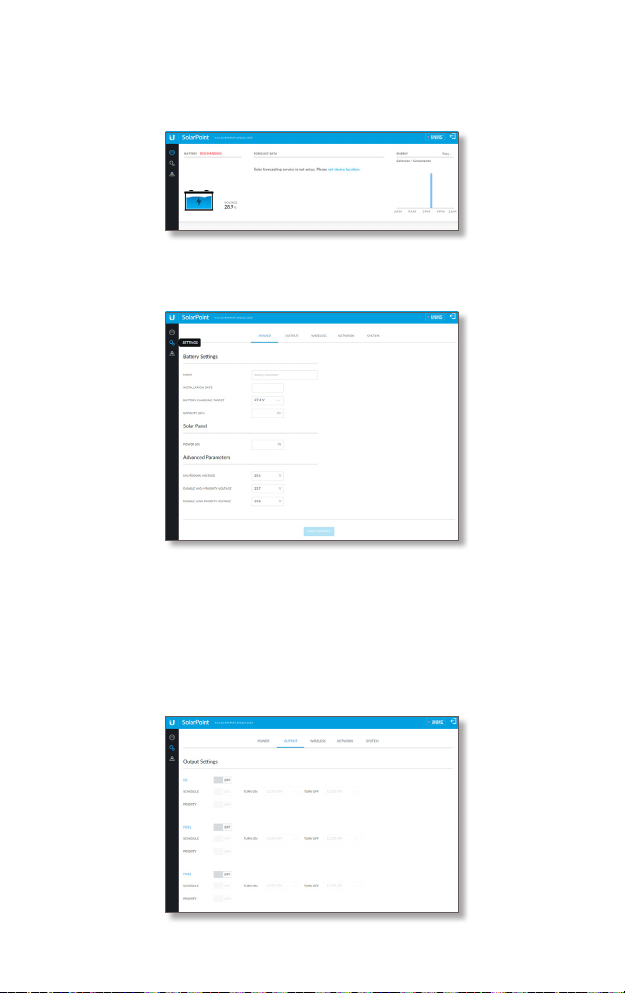

4. Click Set Device Location to set the location for your solar
system installation.
5. Click Power on the Settings screen and fill out the battery and
solar panel information.
Enabling PoE
To enable PoE on the SolarPoint:
1. Click Output on the Settings screen.
2. Click the toggle button from OFF to ON, for each port you
want to enable.

Specifications
SM-SP-40
Dimensions 202 x 186 x 50 mm (7.95 x 7.32 x 1.97")
Weight 650 g (1.43 lb)
Enclosure Characteristics UV-Resistant Polycarbonate, Outdoor Use
Max. Power Consumption 2W
Networking Interface (4) 10/100 Fast Ethernet Ports
Management Interface Ethernet
Wi-Fi (2.4 GHz)
Button Reset
LEDs System, Output
Power Source PV Panel (H4 Connectors)
PV Input Voltage Range 10 - 60V
(Reverse Protection, Surge Protection)
PV Maximum Current 10A
PV Power Control MPPT
Output Interfaces 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
24VDC Terminal Block
Output Voltage Battery Voltage Limited to 24V
(Surge Protection)
Maximum Power Output PoE: 17W
DC Out: 24W
Total: 40W Max.
Battery Type 24V SLA, AGM, Gel lead battery
Boost Voltage Steps 27.4V, 28.2V, 29.1V, 30V
Float Charge Voltage 95% of Boost Voltage
Max. Charge Current 7A
Under Voltage Protection 22 – 23.6V Software Congurable
22V Hardware Protection
Two Priority Levels for Output Disable
Operating Temperature -20 to 50° C (-4 to 122° F)
Operating Humidity IPx4
Certications FCC, IC, CE
