InCharged Energy ICE-40A AC User manual

ICE-40A AC
Level 2 Charger
Installation Manual
Revision 1.0
October 2023

Installation Manual Rev 1.0
ICE-40A AC 1
IMPORTANT SAFETY INSTRUCTIONS
This document contains instructions and warnings that must be followed when installing and using the
Electric Vehicle Supply Equipment (EVSE). Before installing or using the EVSE, read this entire document
as well as WARNING and CAUTION markings in this document.
Safety Instructions
The symbols used have the following meaning:
The charge point must be installed only by licensed electricians.
Make sure that the materials used and the installation procedures follow local building codes and
safety standards.
The information provided in this manual in no way exempts the user of responsibility to follow all
applicable codes or safety standards.
This document provides instructions for the charge point and should not be used for any other
product. Before installation or use of this product, review this manual carefully and consult with
a licensed contractor, licensed electrician, or trained installation expert to make sure of
compliance with local building codes and safety standards.
Repair and Maintenance Clause
Only licensed electricians can repair or maintain the charge point. It is forbidden for general users
to repair or maintain it.
WARNING: RISK OF PERSONAL INJURY
WARNING: RISK OF ELECTRIC SHOCK
WARNING: RISK OF FIRE
CAUTION: RISK OF DAMAGE TO THE EQUIPMENT

Installation Manual Rev 1.0
ICE-40A AC 2
Turn off input power before repair or maintenance the charge point.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with greater than 20cm between the radiator & your
body.
Industry Canada statement:
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

Installation Manual Rev 1.0
ICE-40A AC 3
Le présent appareil est conforme aux CNR d’ ISED applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes : (1) le dispositif ne doit pas produire de
brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage
susceptible de provoquer un fonctionnement indésirable.
Radiation Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with greater than 20cm between the radiator & your
body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements ISED établies pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à plus de 20 cm entre le
radiateur et votre corps.
WARNING: RISK OF ELECTRIC SHOCK
When using electric products, basic precautions should always be followed, including the
following. This manual contains important instructions that shall be followed during
installation, operation and maintenance of the unit.
• Read all the instructions before using this product.
• This device should be supervised when used around children.
• Do not put fingers into the EV connector.
• Do not uses this product if the flexible power cord or EV cable is frayed, has broken
insulation, or any other signs of damage.
• Do not use this product if the enclosure or the EV connector is broken, cracked, open, or
shows any other indication of damage.
• To avoid a risk of fire or electric shock, do not use this unit with an extension cord.
WARNING: RISK OF ELECTRIC SHOCK
Improper connection of the equipment grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded.
Do not modify the plug provided with the product – if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.

Installation Manual Rev 1.0
ICE-40A AC 4
SAVE THESE INSTRUCTIONS
WARNING: RISK OF ELECTRIC SHOCK
Do not remove the cover or attempt to open the enclosure. No user serviceable parts inside.
Refer servicing to qualified service personnel.
WARNING: RISK OF ELECTRIC SHOCK
• Do not touch live electrical parts.
• Incorrect connections may cause electric shock.
• Do not Disconnect Under Load.
WARNING: This equipment is intended only for charging vehicles that do not require ventilation
during charging. Please refer to your vehicle’s owner’s manual to determine ventilation
requirements.
WARNING: Do not use extender cables to increase the length of the charging cable. Maximum
length is limited to 25 feet by the National Fire Protection Agency.
WARNING: Do not drag the charge point by input power cord.
CAUTION: Do not expose to liquid, vapor or rain.
CAUTION: If this unit is installed outdoors, the outlet must be rated for outdoor installation.
The outlet must be installed properly to maintain the proper NEMA rating of the enclosure.
• Installation work and electrical wiring must be done by qualified person(s) in accordance
with all applicable codes and standards, including fire-rated construction.
• Do not touch the terminals or other current-carrying parts.
• Take care not to drill into any pipes or power lines beneath the surface during mounting
holes preparation. Use power line / metal detector.
• Do not trample or drive over the product’s cables.
• Do not put any foreign objects into the enclosure.
• Do not start the engine when the charging connector is still connected.
CAUTION: Do not use this product if there is any damage to the unit. Send the unit back to the
manufacturer in the event the unit is not operational.

Installation Manual Rev 1.0
ICE-40A AC 5
Contents
1 Introduction .......................................................................................................................................... 7
Product view ............................................................................................................................... 7
2 Specifications ...................................................................................................................................... 13
Product specifications ............................................................................................................... 13
3 Installation .......................................................................................................................................... 15
Before installation ..................................................................................................................... 15
3.1.1 Safety check ................................................................................................................. 15
3.1.2 Grounding instructions ................................................................................................ 15

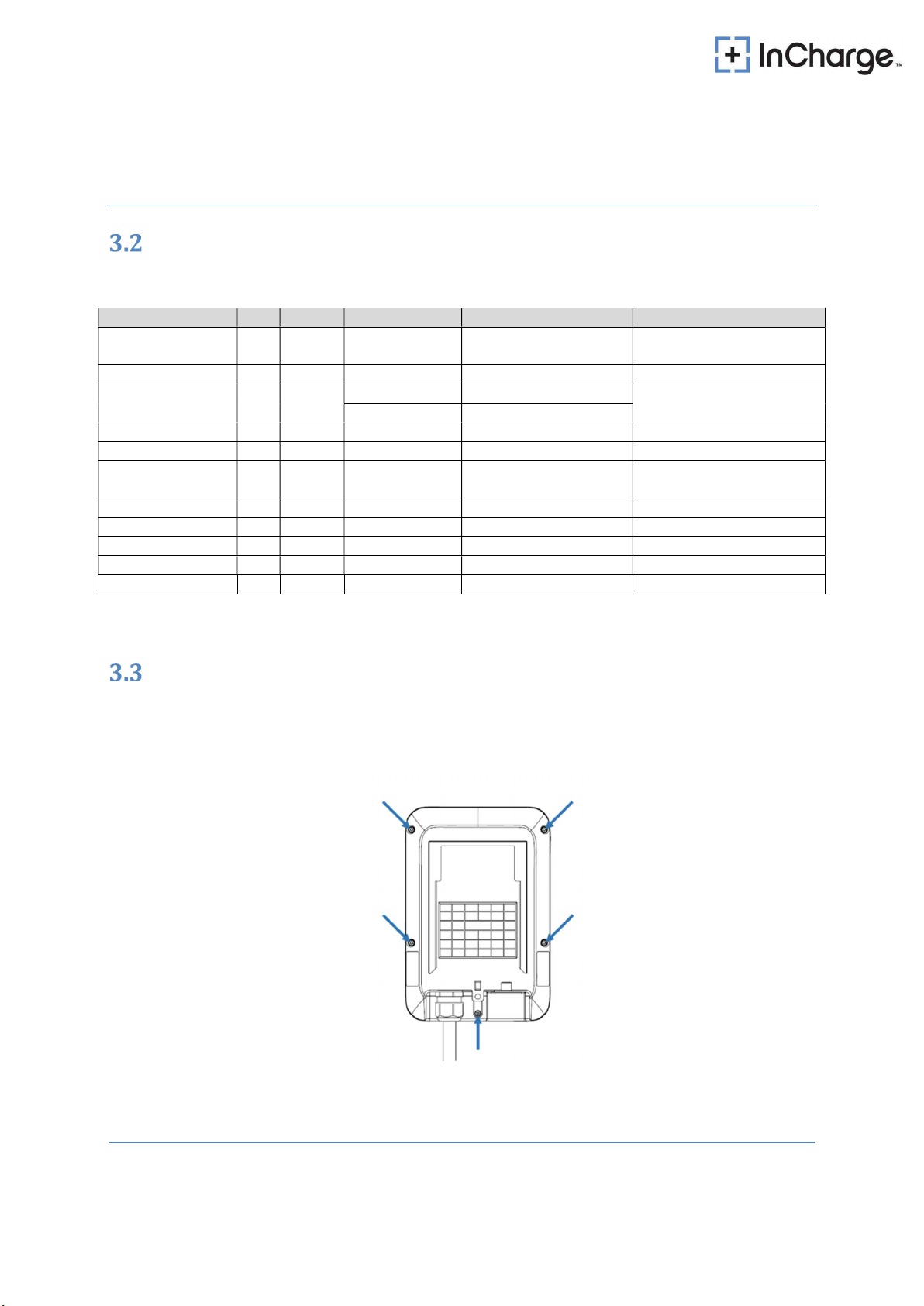

Tools & parts required for installation ...................................................................................... 16
Install the SIM card (for IC3 only) ............................................................................................. 16
Install the Ethernet Cable ......................................................................................................... 20
Install the charge point ............................................................................................................. 20
Input cord connection ............................................................................................................... 24
Install the holster ...................................................................................................................... 27
4 Operations .......................................................................................................................................... 30
Charging status indicators ......................................................................................................... 30
Authorization (for SC3+/IC3) ..................................................................................................... 31
4.2.1 Online Authorization .................................................................................................... 31
4.2.2 Local Authorization ...................................................................................................... 31
Charging an Electric Vehicle (EV) .............................................................................................. 32
4.3.1 Plug and Charge ........................................................................................................... 32
4.3.2 RFID card (for SC3+/IC3) ............................................................................................... 32

Installation Manual Rev 1.0
ICE-40A AC 6
Stop charging ............................................................................................................................ 32
4.4.1 Interrupt charging ........................................................................................................ 32
4.4.2 Auto restart .................................................................................................................. 32
4.4.3 Power outage recovery ................................................................................................ 33
General care .............................................................................................................................. 33
Customer support ..................................................................................................................... 33

Installation Manual Rev 1.0
ICE-40A AC 7
1 Introduction
This user manual applies to “40A Level 2 AC Charger for Plug-in Electric Vehicles (PEVs) and Battery Electric
Vehicles (BEVs)”.
The Level 2 Electric Vehicle Supply Equipment (EVSE) with 40A capabilities will be used in North America.
It can provide a shorter charging time than the traditional 16A EVSE.
!!! Any unauthorized modifications will void the manufacturer’s warranty. !!!

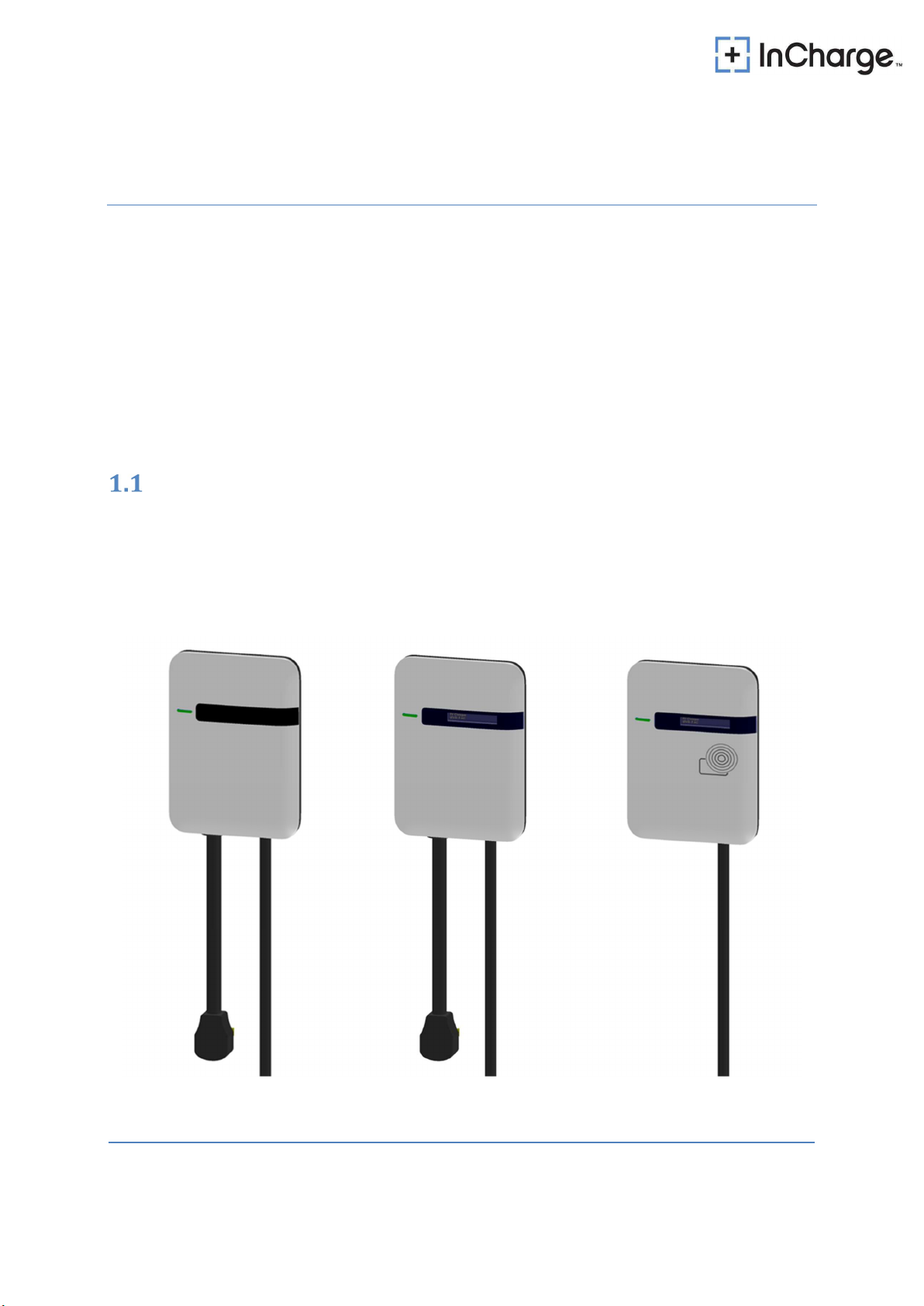

Product view
Different models of the 40A Charger:
Basic Charger-40A (BC3) Smart Charger-40A (SC3) Intelligent Charger-40A (IC3)
/ Smart charger 40A(SC3+)
Figure 1-1 Front view

Installation Manual Rev 1.0
ICE-40A AC 8

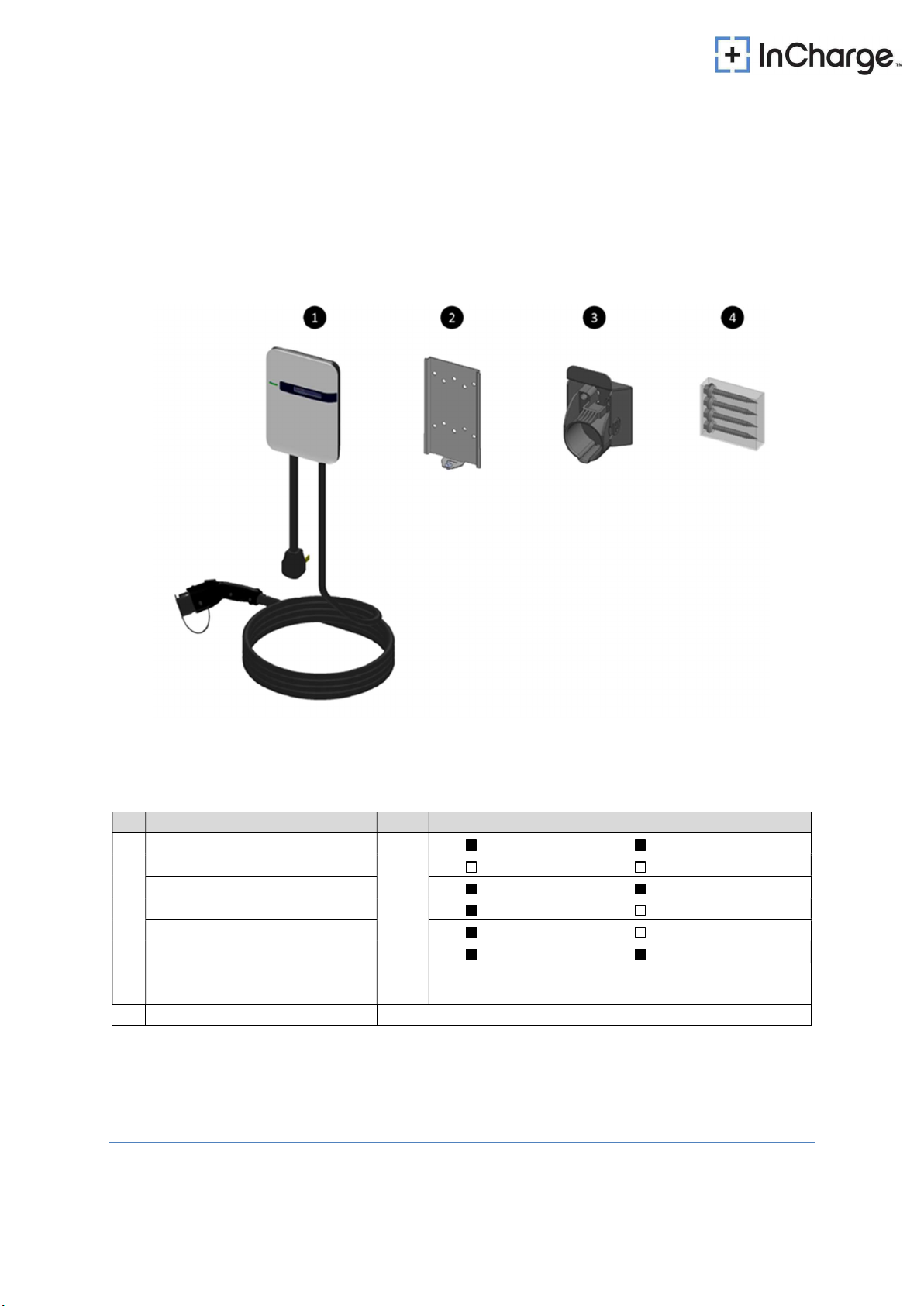

Box Contents
See the table for content differences of three models.
Figure 1-2 Box contents
Table 1-1 Accessories in the box
Description QTY Remark
1
Basic Charger-40A (BC3)
1
Charging Plug Input Power Cord
OLED Display
RFID
Icon
Smart Charger-40A (SC3)
C
harging
P
lug
I
nput
P
ower
C
ord
OLED Display RFID Icon
Intelligent Charger-40A (IC3)
Smart Charger Plus-40A (SC3+)
Charging Plug Input Power Cord
OLED Display
RFID
Icon
2
Mounting Bracket
1
Attached to the back of
the charge point
3
Holster ASSY
1
W
ith
H
ook x1, Holster x1 & M4xL15 tapping screw x2
4
Screw Bag
1
W
ith
#12
xL
50
tapping screw x
4

Installation Manual Rev 1.0
ICE-40A AC 9
Box Opening Process (Take Intelligent Charger-40A as example.)
1. Open the carton and remove the upper partition.
Figure 1-3 Opening the carton
Figure 1-4 Charge point device

Installation Manual Rev 1.0
ICE-40A AC 10
2. Take out the charge point and upturn middle partition. The charging plug is in the bottom of the carton.
Figure 1-5 Take out the charge point
Figure 1-6 Charging plug

Installation Manual Rev 1.0
ICE-40A AC 11
3. The hook and holster are placed inside the right of the middle partition.
Figure 1-7 Accessories inside the middle partition
Figure 1-8 Hook and holster

Installation Manual Rev 1.0
ICE-40A AC 12

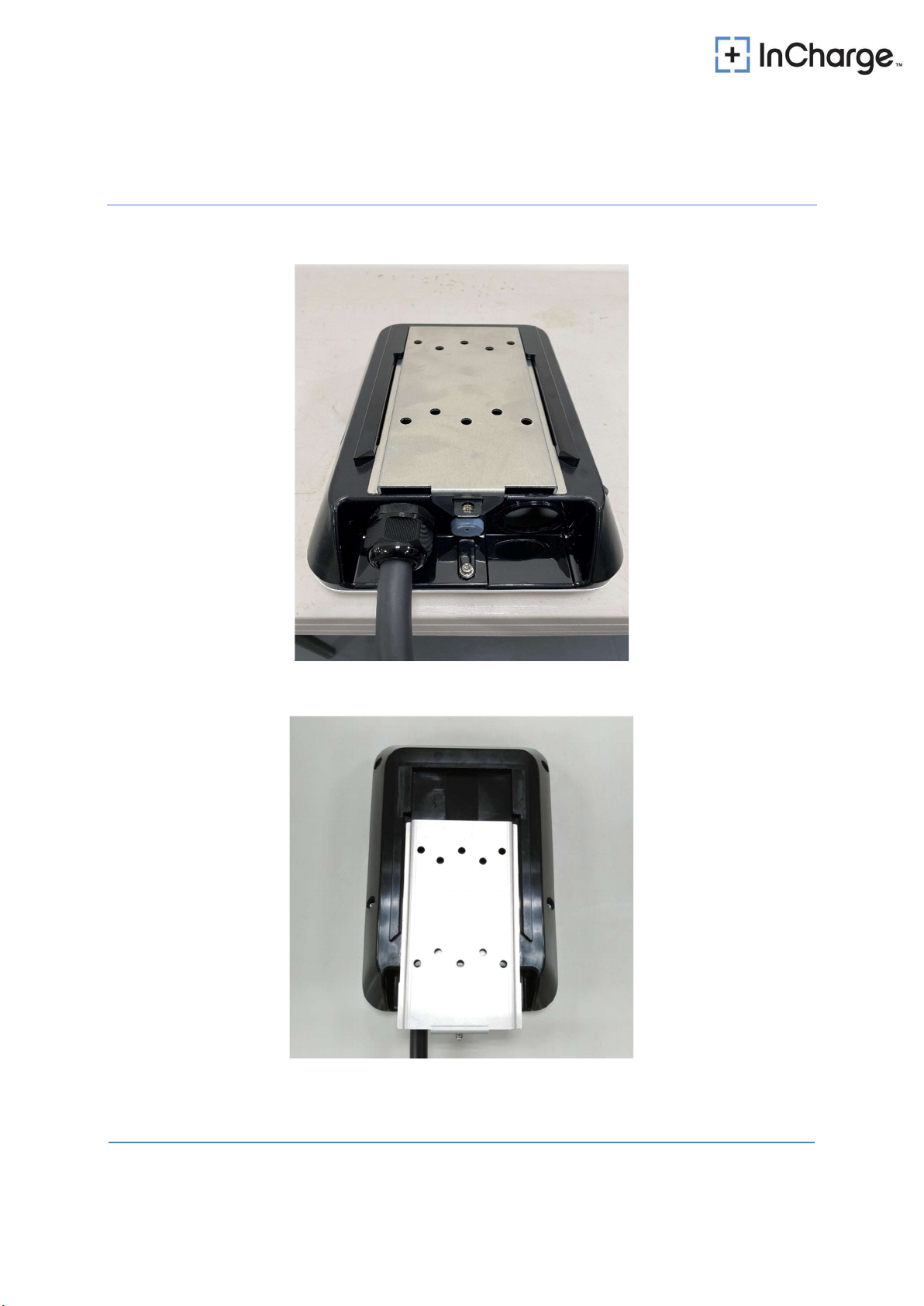

4. Release the bottom screw, then the wall mounting bracket can be removed.
Figure 1-9 Release the screw
Figure 1-10 Remove the mounting bracket

Installation Manual Rev 1.0
ICE-40A AC 13
2 Specifications
Product specifications
(Note: Certification in process)
Table 2-1 Product specifications
Item
BC40A SC40A SC40A+
IC40A
Application Residenti
al
Residential Commercial
Commercial
Voltage (Vac)
208/240VAC, Single Phase
Frequency (Hz)
60 Hz
Current (Rms)
40 A
Charging Connector
SAE J1772 Type 1
Charging Cable Length
25 ft. (18 ft. optional)
Metering Accuracy
N/A Embedded ± 1%
Real Time Clock
N/A Yes (min. 7 days)
Protection Over Voltage, Under Voltage, Surge Protection, GM/I, CCID20, Over Current, Over
Temperature, Under Temperature, Short Circuit,
Relay Malfunction/Welding Protection
Indication
LEDx1 with multiple colors(RGB)
• STEADY FREEN : Standby, SLOW FLASH GREEN : EV connected, FAST FLASH GREEN :
Authenticating
• SLOW FLASH BLUE : Charging
• SLOW FLASH RED : Recoverable fault, STEADY RED : Unrecoverable fault
Wi-Fi
N/A 802.11 b/g/n
Ethernet
N/A Yes
Cellular N/A LTE Cat. 1
(AT&T or Verizon)
RFID N/A
ISO 14443 A/B,
ISO 15693,
NEMA interoperability protocol
Display N/A
5*8 DOT MATRIX
Data Protocol
N/A OCPP 1.6J
Operation Temp.
-30 ~ 50
℃
/ -22 ~ 122
℉
Storage Temp.
-40 ~ 70
℃
/ -40 ~ 158
℉
Mounting Type
Wall mount / Pole mount (optional)
Wiring Type
NEMA 6-50/Hard-wired Hard-wired

Installation Manual Rev 1.0
ICE-40A AC 14
Item
BC40A SC40A SC40A+
IC40A
IP Performance
NEMA 4
Impact Resistance
IK10
Dimension (H x W x D, inch)
11.14” x 7.56” x 3.11”
Weight
< 6kg
Web Portal Management
N/A Yes
Console Management
Yes
Certification
UL 1998/2231/2594
FCC Part 15B
N/A FCC Part
15.247
FCC Part 15.225, FCC Part 15.247
N/A Energy Star
FCC Part 27, Energy Star

Installation Manual Rev 1.0
ICE-40A AC 15
3 Installation
Before installation
3.1.1 Safety check
• Check for transport damages.
• Before connecting the product to the power supply, check that the power supply voltage and
current rating corresponds with the power supply details shown on the product rating label.
The charge point must be installed only by a licensed electrician in accordance with the provisions of the
local electrical industry construction and should comply with national electrical codes and standards.
Before installing the charge point, make sure you have read all of these instructions in this manual and
fully understand its contents.
Appropriate protection is required when connecting to a main switchboard. The tools and parts used as
outlined in the section “Tools & parts required for installation”.
3.1.2 Grounding instructions
The charge point must be implemented equipment grounding through a permanent wiring system or an
equipment grounding conductor. Use a wire with a dedicated grounding wire and a ring terminal and
connected to the equipment ground terminal block for grounding.
CAUTION
: Disconnect the power
supply before installing or repairing the charge point. Failure
to do so may result in physical injury or damage to the power supply system and the charge
point.
CAUTION: Avoid touching or pressing the OLED screen all times, as this may result in damage
to the OLED screen.
DANGER: RISK OF SUFFOCATION
Keep any packing materials away from children – these materials are a potential source of
danger, e.g. suffocation.

Installation Manual Rev 1.0
ICE-40A AC 16
Tools & parts required for installation
Table 3-1 Tools & parts required for installation
Tool QTY Model Size Supplier Remark
Mounting Bracket 1 All 194x109x9 mm Model Accessories Fasten charge point to the
wall
Holster
ASSY
1
All
58x
58
x
70
mm
Model Accessories
Hold EV charging plug
Screw 4 All Tapping: #12 Model Accessories Fasten Mounting Bracket &
Hook
Mechanical: M6 Commercially Available
Wire, Copper
3
IC
3
8 AWG
Commercially Available
UL1015
(recommended)
Heat Shrink
Tube
3
IC
3
F
or
8 AWG wire
Commercially Available
Protect
wire
s & terminals
Terminal 3 IC3 For 8 AWG wire Commercially Available Connect input wires to the
terminal block
Conduit 1 IC3 1 inch Commercially Available Protect power cable
Torx Screwdriver 1 All T20 Commercially Available
Philips Screwdriver
1
All
PH3
Commercially Available
Hexagon Socket
1
All
5/16
Commercially Available
Tigh
ten
#12
Tapping
screw
s
Torque Wrench
1
All
35
kgf
-
cm min
Commercially Available
Install the SIM card (for IC3 only)
1.
Disassemble top cover
1-1 Loosen the star screws (x5).
Figure 3-1 Five screws in the Base Cover position

Installation Manual Rev 1.0
ICE-40A AC 17
2. Find SIM card socket
Figure 3-2 Position of SIM card socket
3. Insert SIM card
Figure 3-3 SIM card socket and cover Open/Close direction

Installation Manual Rev 1.0
ICE-40A AC 18
3-1. Push down the cover to open SIM card socket.
Figure 3-4 Open SIM card socket
3-2. Prepare the SIM card. (Use micro-SIM, 15mm x 12mm.)
.
Figure 3-5 Prepare the SIM card

Installation Manual Rev 1.0
ICE-40A AC 19
3-3. Insert the SIM card.
Figure 3-6 Insert the SIM card
3-4. Close the SIM card socket and push the cover toward lock direction to lock the cover.
Figure 3-7 Lock SIM card socket cover
3-5. Reassemble the top cover. Please refer to the following torque. SIM card installation is
completed.
Screw Torque
M4 16 kgf.cm 13.88 lb-in
