UCEC Video Capture All in One Pro Version User manual

1
UCEC Video Capture All
in One Pro Version
Thanks for your purchase-UCEC USB2.0 Video Capture All In One - Pro Version.
The following steps will guide you how to set it up. Hope this device will bring you
nice digital experience.
IMPORTANT: Before you connect this video capture device to your computer,
please insert the “CD-ROM” into your CD drive and install the drivers. First, you
must install the drivers on your Windows and Mac. It's very important for it. The
included software and drivers are for windows and Mac. If you use Macbook, you
can directly use the QuickTime Player or OBS Studio software to capture your
video, But if you use Windows Computer, here provide you with 2 types of video
capture and edit software ( VHS to DVD 5.0 SE and OBS Studio) , you can install
any one of them depending on your needs.
Here is the OBS Studio software link:
https://obsproject.com/download
VHS to DVD 5.0 software:
https://www.mediafire.com/file/waz1z6hmmaqvmsw/Application+VHS+5.0.rar/file
PC Driver:
https://www.mediafire.com/file/9vwz0twnjs5egyu/BDA_111819_5126_UCEC_Video
Capture_Win.zip/file
Mac Driver:
https://www.mediafire.com/file/ezd286fkbo8pl4n/Empia+Technology+Video+Capture
+Device+Installer_EB1A_5126_v21.zip/file
CONTACT US:
♦ Send the message to us by your order detail page.
♦ Or send your Email to this address : yelpde[email protected]m (Reply as soon as
possible)
Our goal is to bring you the best shopping experience on Amazon. We’d really
appreciate it if you can share your experience with our product on Amazon.

2
NOTE:
UCEC provides 24-hour technical support. Please feel free to contact us if you have
any questions. If you are not satisfied with our products, UCEC offers 30-day
money-back guarantee.
BOX CONTENTS
● UCEC USB2.0 Video Capture Pro Version
● Software CD and User Manual
● Composite (RCA) Cable
● Two Free Blank DVDs

3
Contents
Part 1. Connections........................................................................................1
♦ OVERVIEW..............................................................................................................1
♦ The function of each port of UCEC All-in-One Video Capture Pro................ 1
♦ Connection Types................................................................................................... 2
Part 2. How to use Video Capture Pro Version on MacBook................. 3
►Steps.........................................................................................................................3
Part 3. How to capture video on Windows Computer?............................7
♦ How to use VHS to DVD 5.0 on Windows Computer?.....................................7
1. Install the driver.......................................................................................................................7
2. Install VHS to DVD 5.0SE..................................................................................................... 7
3. Starting honestech VHS to DVD 5.0....................................................................................8
♦ How to use OBS Studio on Windows Computer?........................................... 12
1. Install the driver................................................................................................................... 12
2. Install OBS Studio............................................................................................................... 12
3. Starting OBS Studio............................................................................................................12
4. Some Personalized Settings............................................................................................. 17
Part 4. Troubleshooting............................................................................... 18
1. Installation Problems.......................................................................................... 18
2. Video Problems................................................................................................... 19
2.1 No video.............................................................................................................................19
2.2 Black & White video.........................................................................................................19
2.3 Choppy video or Choppy audio..................................................................................... 19
2.4 Can't recognize this video capture when is plugged into any of the USB Port?...... 19
3. Converting PAL / NTSC (and other video standards)...................................20

1
♦ OVERVIEW
Part 1. Connections

2
♦ The function of each port of UCEC All-in-One Video Capture
Pro Version
1. USB PORT – Connect the USB port of device to an available USB 2.0 port on your
computer (preferably a port on the real panel).
2. AUDIO INPUTS (red and white) – Use standard RCA cables to connect these left
and right audio inputs to the left and right audio outputs of your playback device. Be
sure to match the colors properly – red to red (right channel), white to white (left
channel).
3. COMPOSITE VIDEO INPUT (yellow) – Use a standard composite video cable to
connect this input to the composite video output of your playback device.
4. S-VIDEO INPUT (black) – Use a standard S-Video cable to connect this input to the
S-Video output of your playback device.

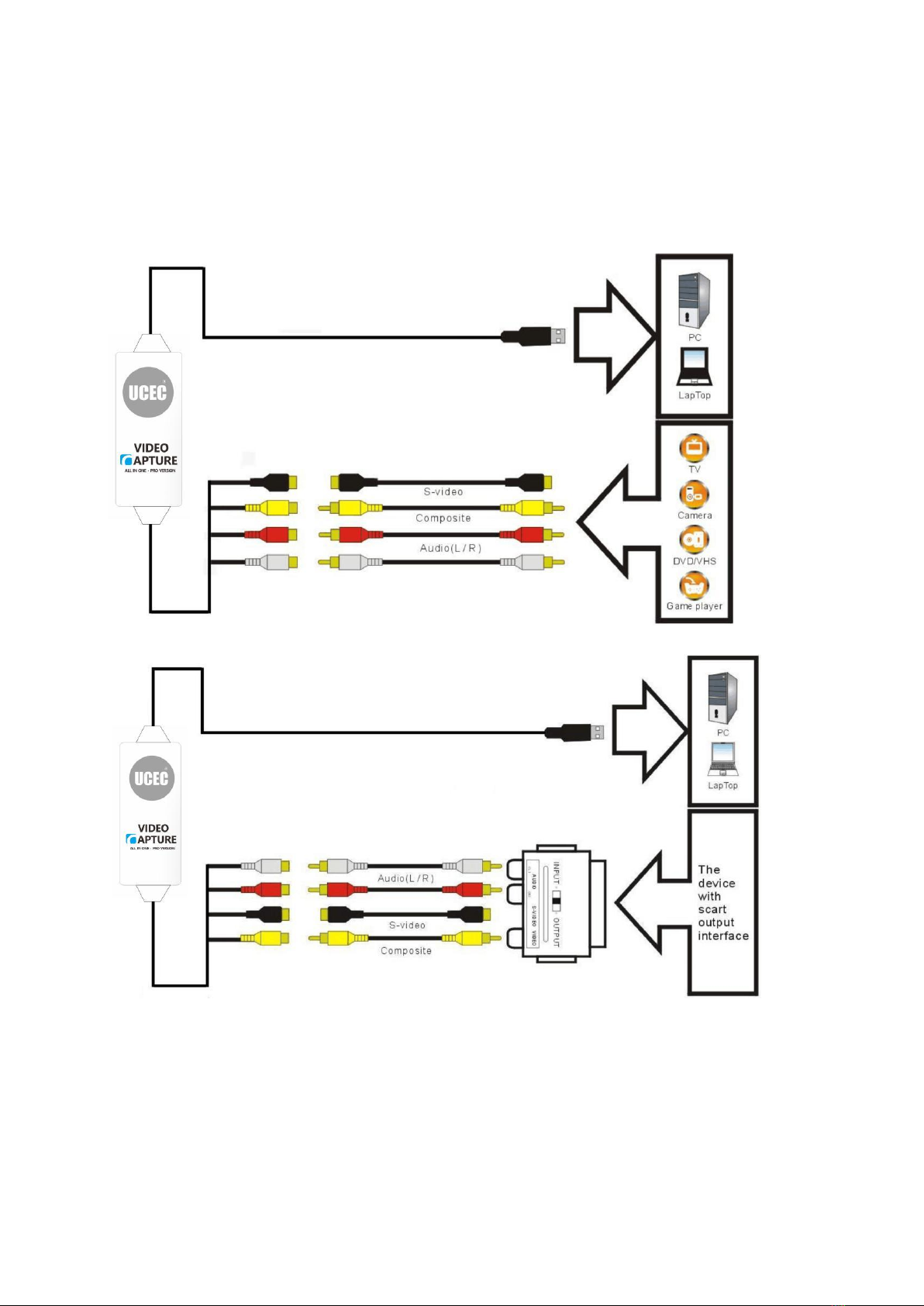

♦ Connection Types
There are two kinds of video connection types: RCA(Composite) or S-Video. You
only can choose one of them.

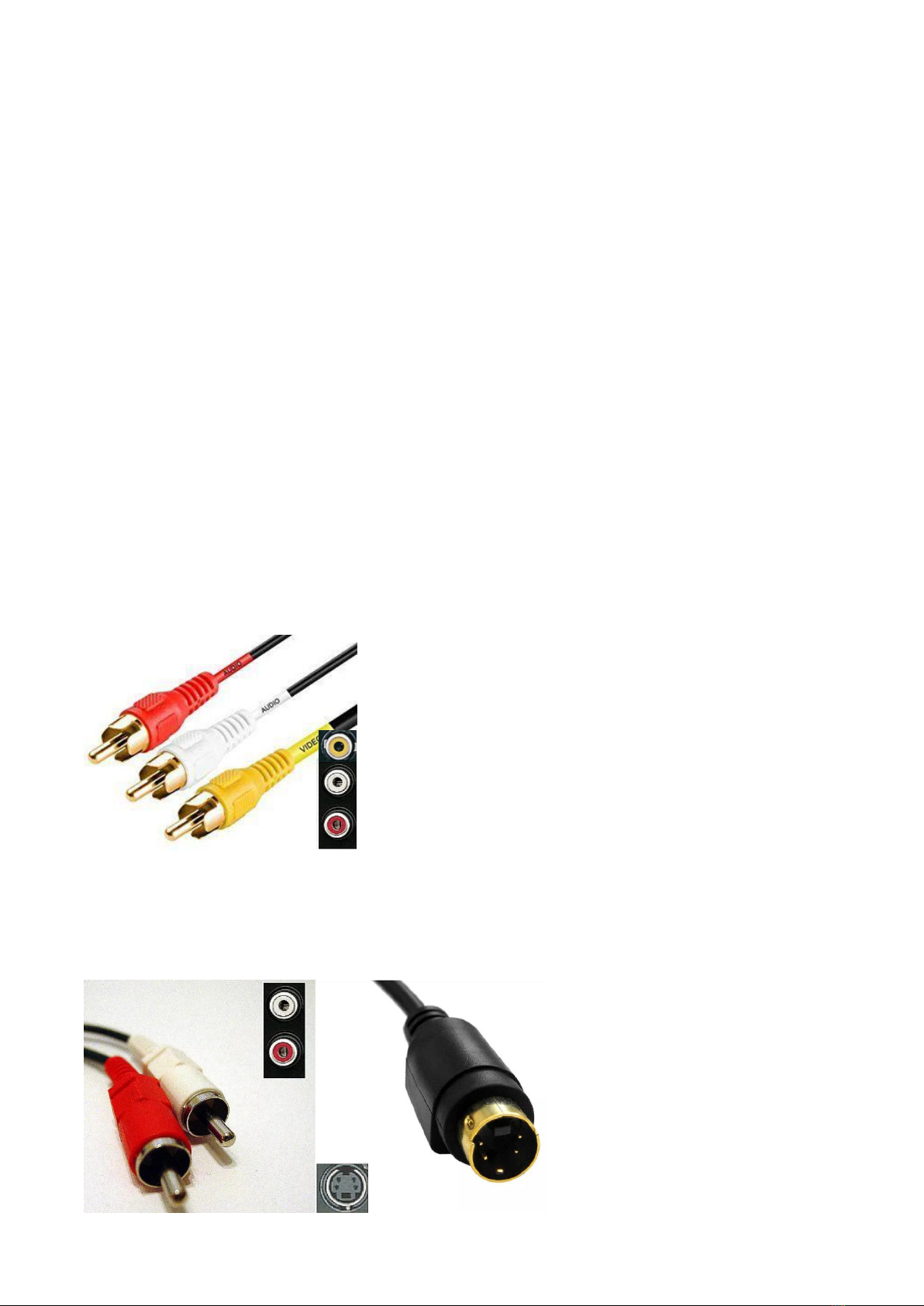

● RCA(Composite) Connection:
● S-Video Connection:
If your camcorder has a standard S-Video output connection, use the appropriate
S-video and composite audio connection(White &Red Port). An extra S-video cable
is necessary for it.

3
S-Video cables can transmit a higher quality video signal than regular RCA (Composite)
cables, but they do not carry an audio signal. RCA (Composite) audio cables are still
required when you are making an S-Video connection.
NOTES:
● To capture a video’s sound, connect the left and right AUDIO INPUTS to the left and
right audio outputs of your playback device.
● To capture video with scart output, you should buy one scart-composite converter.
● Please don’t connect composite video and S-Video at the same time.

4
Part 2. How to use Video Capture Pro
Version On MacBook
Hardware Driver Installation
1. Yon must install the driver on you Mac, then this video capture card can work.
Insert the “CD-ROM” into your CD drive. Double click “ucec.pkg” to start the hardware
driver installation.
Please click “Continue” and “Install Succeeded” to finish the installation. Or you can
download the deiver online.
Mac Driver:
https://www.mediafire.com/file/ezd286fkbo8pl4n/Empia+Technology+Video+Capture+De
vice+Installer_EB1A_5126_v21.zip/file
2.Then, connect UCEC Video Capture card to a USB 2.0 port on your computer. Click
on the Apple LOGO – About this Mac – More info – Hardware – USB, “UCEC Video
Capture/ USB Audio” should be seen in the list to indicate the driver has installed
correctly.
3.The software that we provided is for Windows computer. So if you use Mac or
iMac, you can directly use QuickTime Player or OBS Studio software to capture
your video.
Here is the OBS Studio software link:
https://obsproject.com/download

5
► Steps:
1. Connect the RCA cable to the video capture card and your VCR, Digital Camcorder,
DVD player, TV. Insert the USB port of the Video capture card to your MacBook.

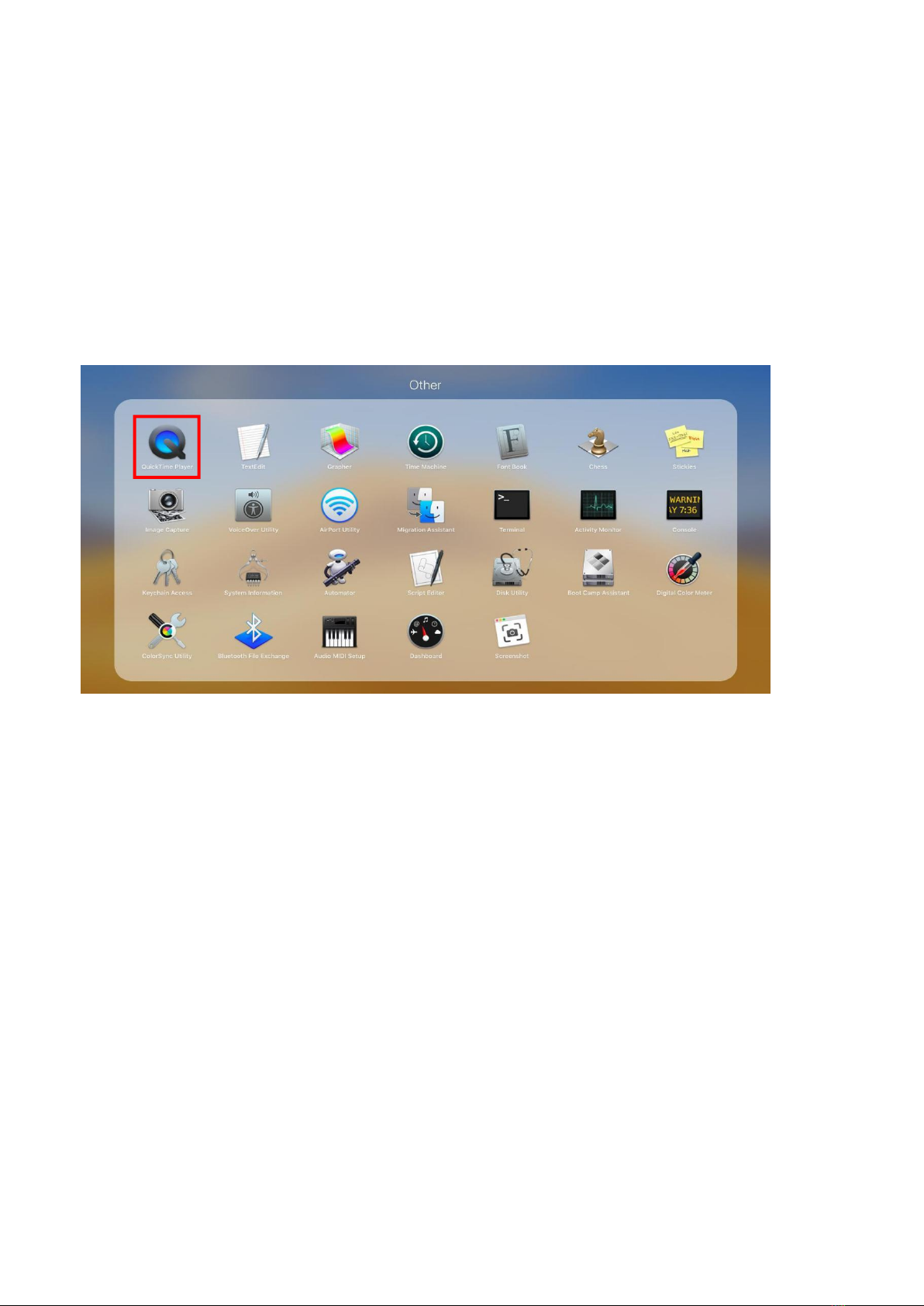

Then, open QuickTime Player. You can find the software by going to Applications –
QuickTime Playe

6

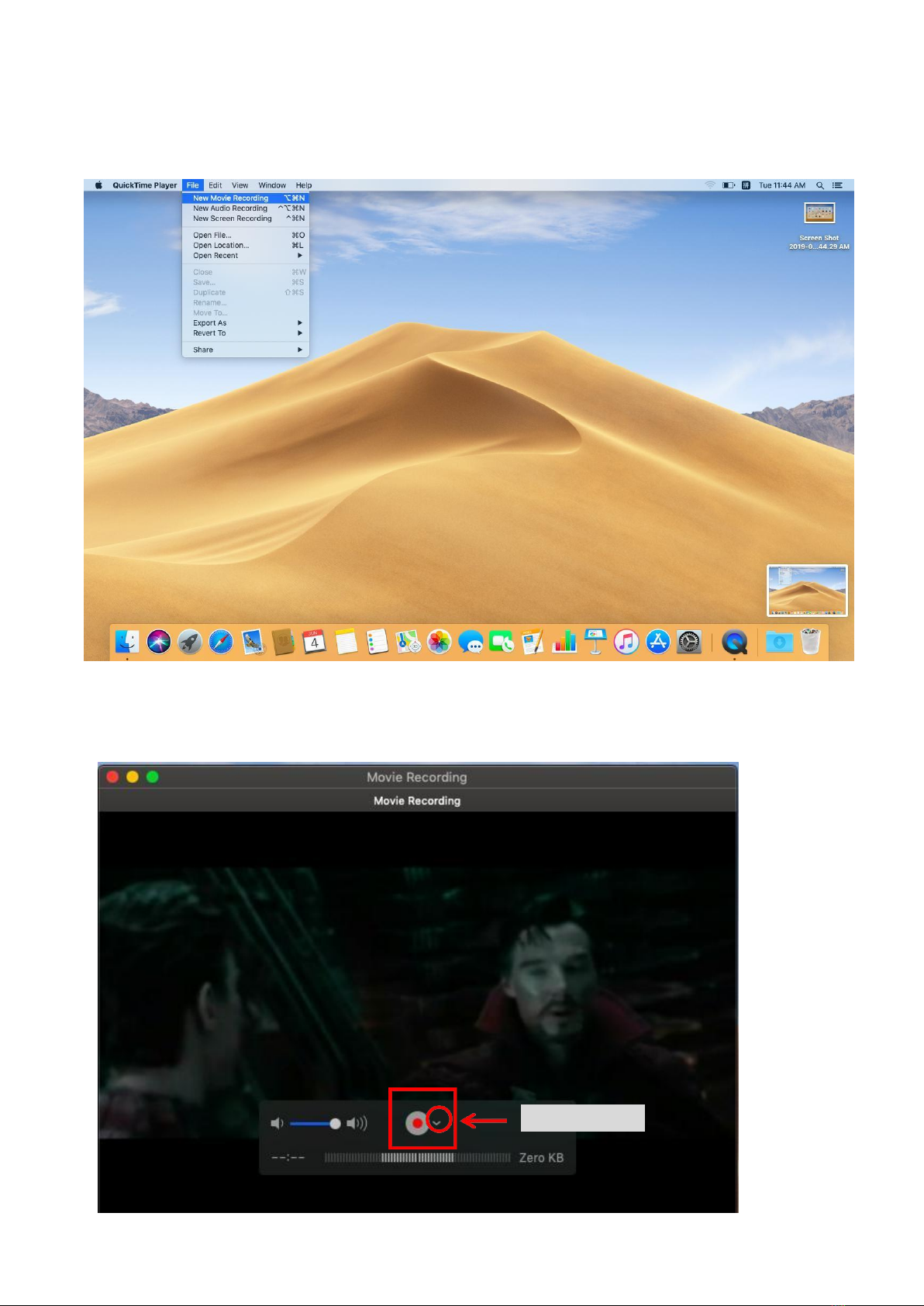

2. After the software opens, click the File menu and select New Movie Recording.
3. Click the Drop Box next to Red Record icon, Then, select UCEC Video Capture
under the Camera Option. And choose UECE USB Audio in the Microphone option.
(Next Page)
Drop Box

7
4. To start recording. Play your video source (connected to Video Capture device),
click Red Record icon to start recording. The Red Record icon will turn grey. Youcan
adjust the volume by drag the volume bar.

8
5. When you are done capturing your video, click Grey Stop Recording icon in the
screen to stop recording. QuickTime Player automatically saves your captured videos
as .mov file.
For more information on using QuickTime Player, please click Help on panel.

9
Part 3. How to capture video on Windows
Computer?
First, you need to install the driver on your Windows computer. You can install VHS
to DVD 5.0 SE or OBS Studio to capture your videos. We recommend you to
install VHS to DVD 5.0 SE which is easy to use, supports burning to DVD, and can
be shared on social media. Or you can choose OBS Studio, Because can provide
you more output settings. For example, MP4 and other digital formats.
♦ How to use VHS to DVD 5.0 on Windows Computer?
1. Install the drivers
1) Before you connect the UCEC video capture card to your computer, you
must install the PC Driver. Disable any Anti-Virus or Anti-Spyware. Please insert
the “CD-ROM” into your CD drive and select the option “Drivers” to install the driver.
Or you can download the driver online(the driver is placed on the 1st page).
Follow the “Next” prompts then click “Finish” to end the driver installation, you will
need to restart the computer.
2) Connect the UCEC video capture card to a free USB 2.0 port on your computer.
Select the option “Install the software automatically” and click “Next”. When
“Completing the Found New Hardware Wizard”, window appears click the “Finish”
button to complete the driver installation.

10
2. Install VHS to DVD 5.0
2.1 Disable any Anti-Virus or Anti-Spyware. Insert the CD into your computer’s CD
drive. Double click My Computer then double click the CD. Once the CD’s contents
are show up, unzip the file, open the folder “Application”, double click Setup.exe.
2.2 Click “Next” to continue to install the software. Read the License Agreement. Click
[Next >] after accepting the License Agreement to continue with the installation.
Choose the setup language and click “Next” to continue. The setup status screen
will display the installation progress. Please wait until is complete. After the
installation is finished, click Exit and eject the CD. We recommend restarting your
computer once more before using the software.

11
3. tarting honestech VHS to DVD 5.0
3.1 Double-click the “honestech VHS to DVD 5.0 SE” icon on your desktop. You need
to enter the Product Key when you use this software for the first time. When asked
to enter a ‘Product Key’, enter the code which can be found on the label of the
CD envelope.
3.2 The Advanced Mode opens to the Capture screen upon selection from the Main
Menu. You can choose to use any of the three modes, Capture, Edit or Burn, at any
time, by selecting one from the top of the screen.

12

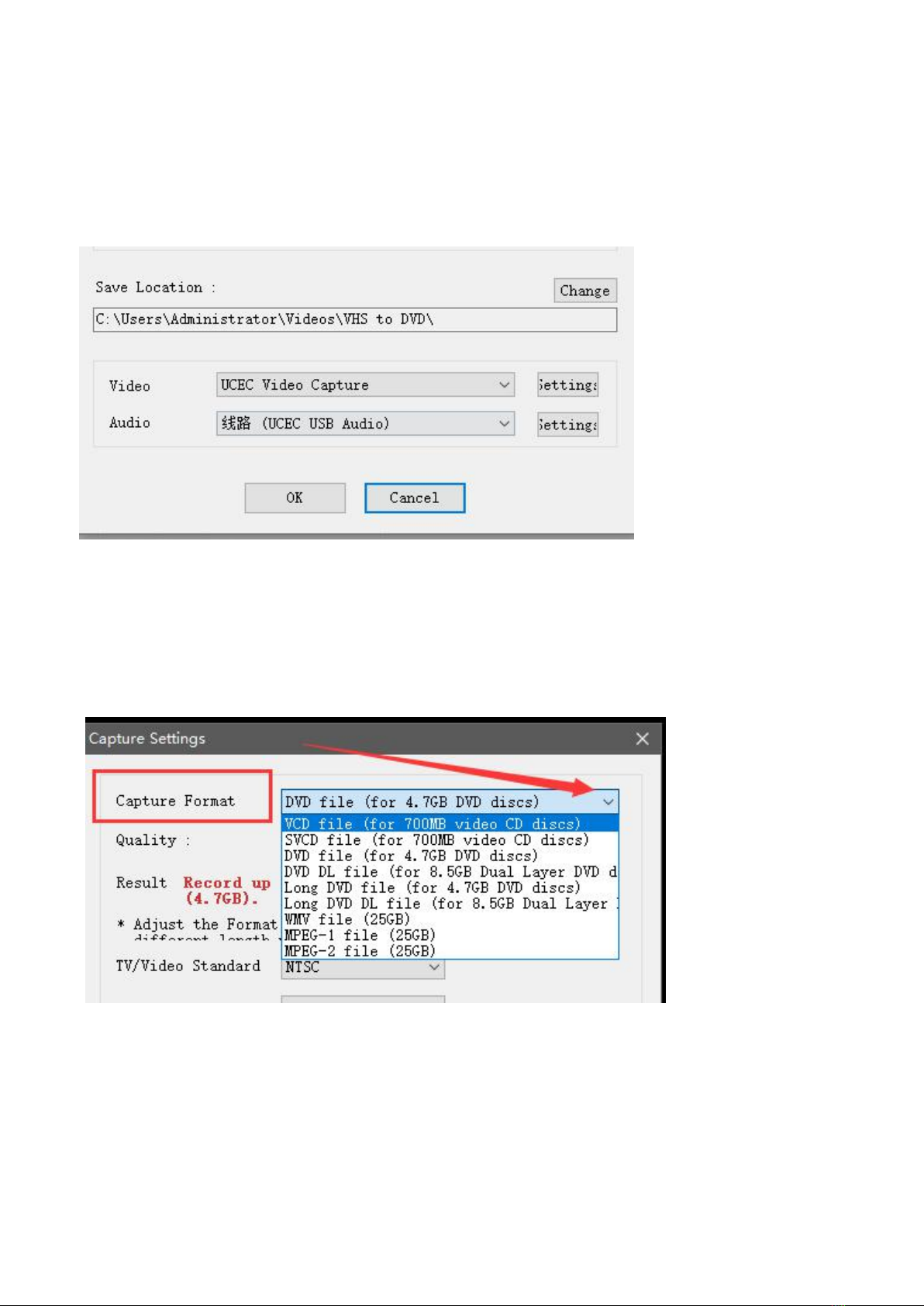

3.3 Click the drop-down box next to Video menu, and select UCEC Video Capture
from the list and Click the drop-down box next to Audio menu and select UCEC
USB Audio from the list. And In Settings Option, you can select Composite Video
or S-Video from the list according to your device connection.
3.4 Click the drop-down box next to Capture Format, and select what video format
you want. And click Setting menu that is next to the drop-down box to choose capture
resolution. Click OK when is done.

13

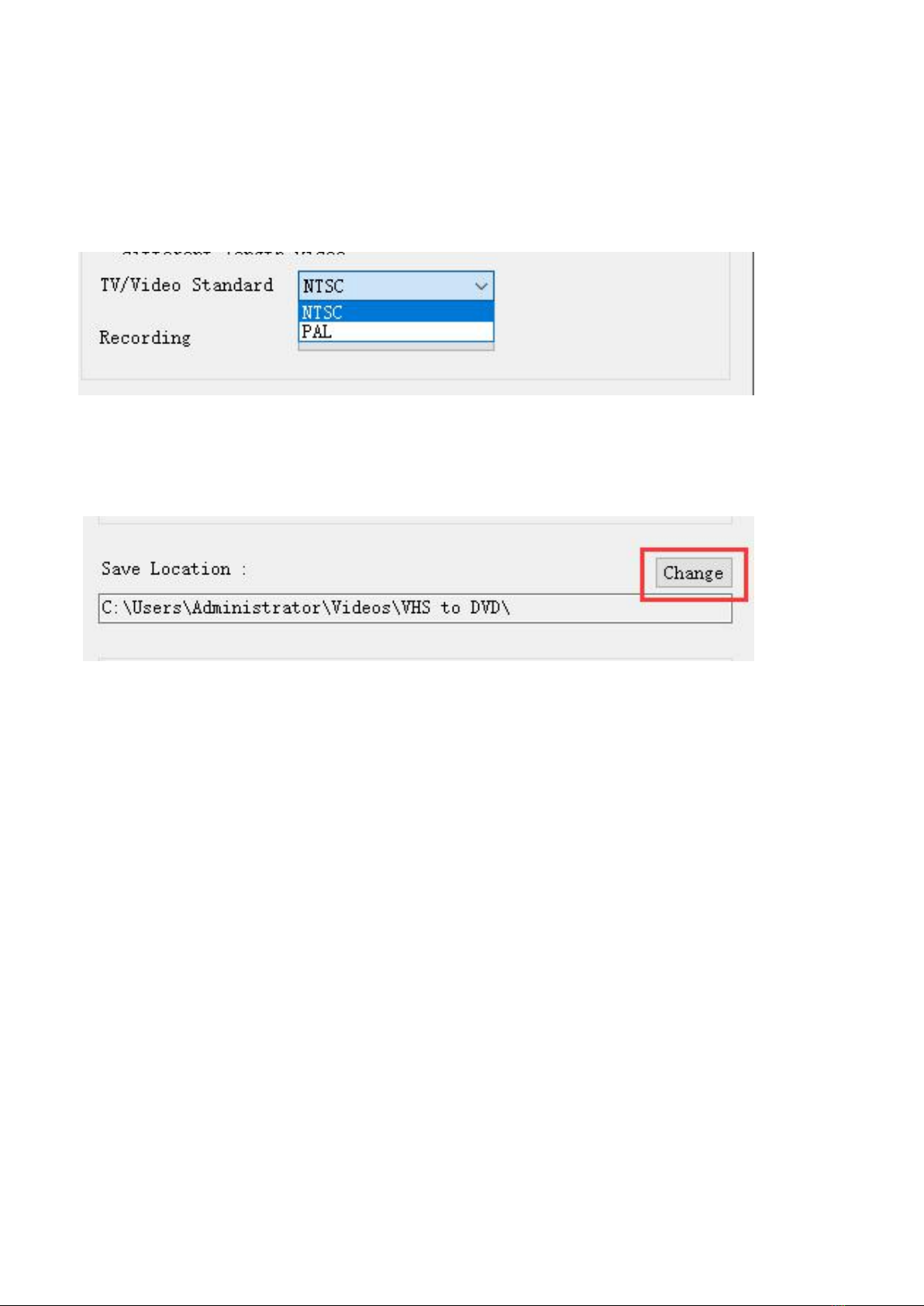

3.5 Click the drop-down box next to Video Standard, and choose video standard - PAL
or
NTSC. In the US,Mexico and Japan, Select NTSC. For Europe, Please select PAL.
3.6 Click Change next to the Save Location: and select where you want to save
your captured video.

14

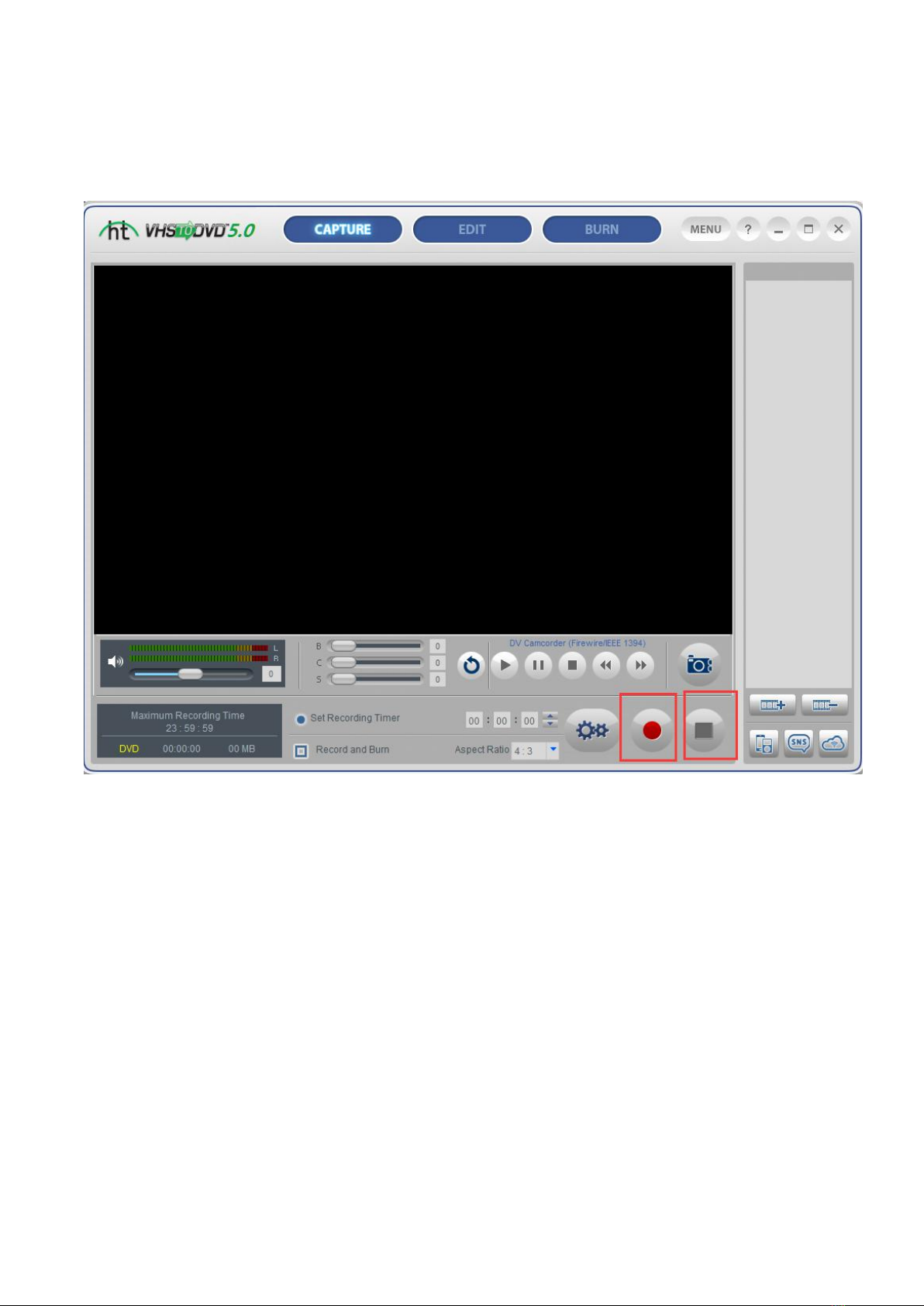

3.7 Play your video source (with your Video Capture device connected), and click
Record button to start recording. When you finish, click the Stop button.

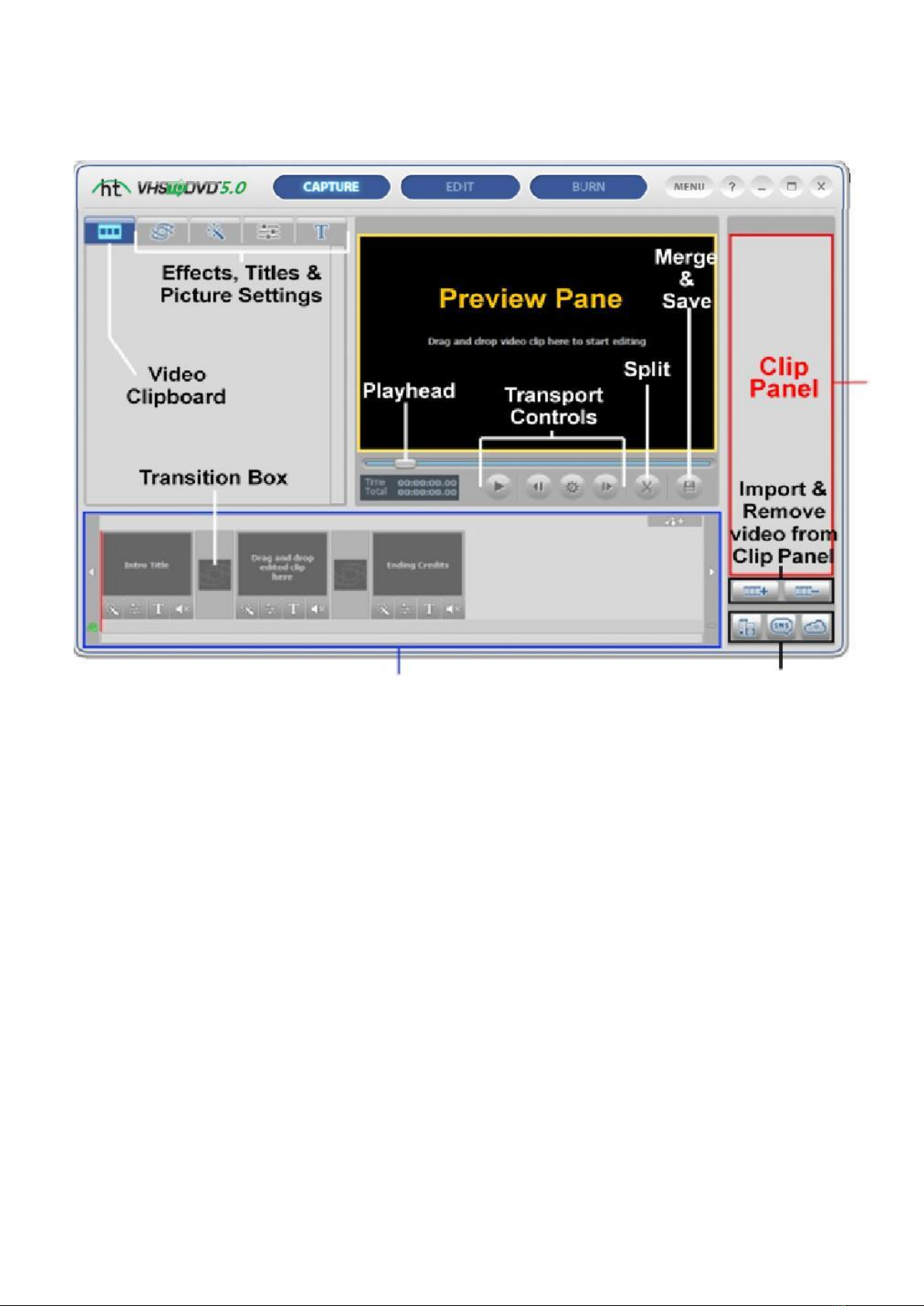

3.8 The captured videos will be shown in the right panel of main window. To edit your
video, click the Edit tab. In the edit screen, you can split your video clips into smaller
segments, arrange segments within the storyboard, add background music and
transitions, apply effects and overlay text. Editing is an optional process and is not a
required step in the conversion process. If you do not need to perform any editing,
you should select the Burn button from the top of the screen.

15
3.9 You can learn more by clicking "?" icon in the upper right corner and selecting
Help to open the user manual, VHStoDVD5UserGuide.pdf

16

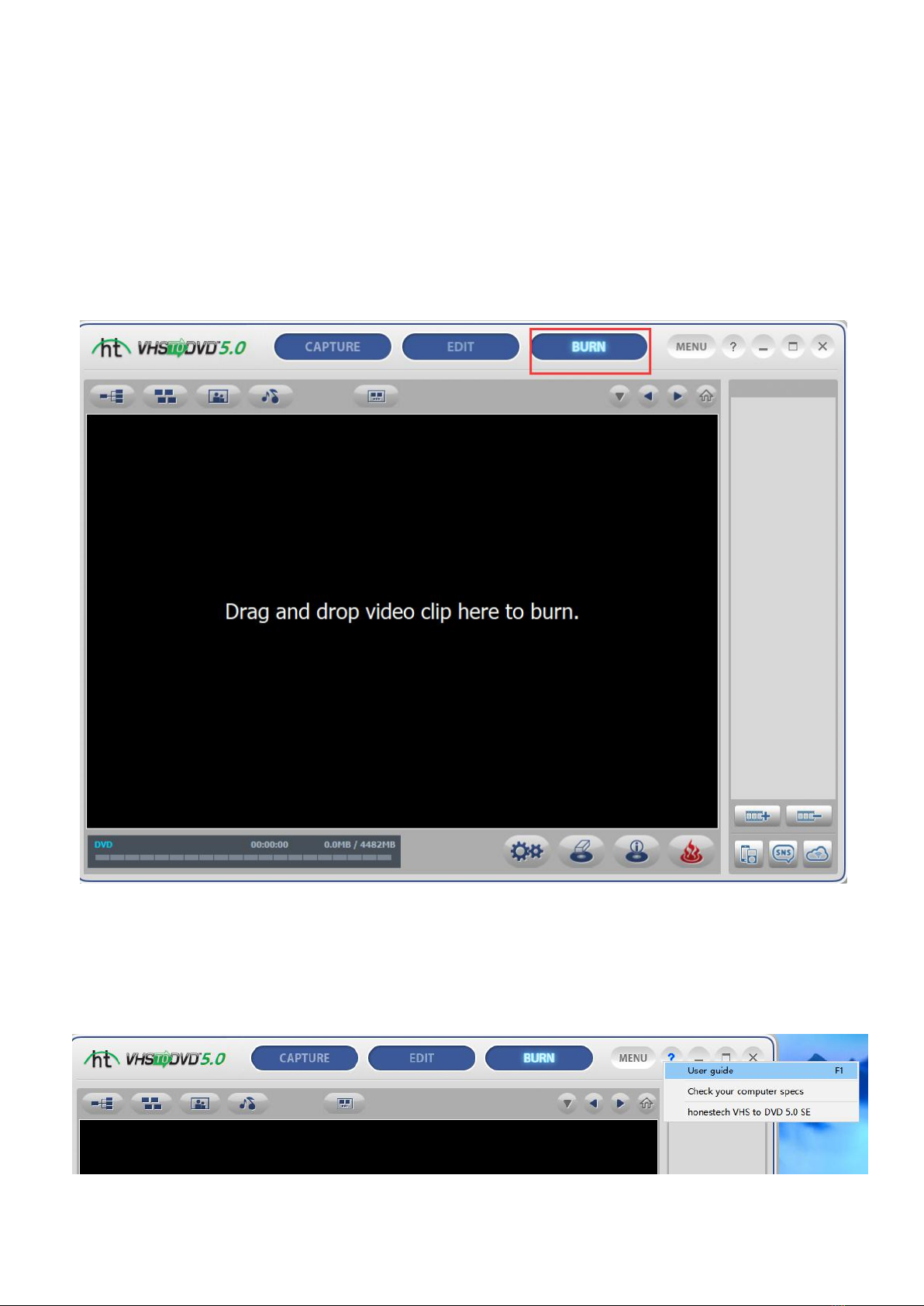

3.10 Click the Burn tab, and select the captured video to burn DVD or other type disc
format. The Burn screen is primarily used to create menus and burn video clips to disc.
You can choose from a list of default themes, or customize your own menu to include
chapters, personal background images, and background music. You can also burn to
multiple disc types including DVD, Blu-ray, SVCD, and VCD. *Disc type availability will
depend on the file format of your video clips.
3.11 To learn more about the software’s features, double click the Honestech VHS to
DVD 5.0 SE User Guide shortcut icon on your computer’s desktop. Or click ?menuin
the upper right corner and select Help to open the user manual,
VHStoDVD5UserGuide.pdf

17
♦ How to use OBS Studio on Windows Computer?
1. Install the drivers
1.1 Before you connect the UCEC video capture card to your computer, please
insert the “CD-ROM” into your CD drive and install the driver. Select the option
“Drivers”.Or you can download the driver online(the driver is placed on the 1st
page). Follow the “Next” prompts then click “Finish” to end the driver installation, you
will need to restart the computer.
1.2 Click on the “Sound, video and game controllers”on the Device Manager, you
should see the “UCEC Video Capture and UCEC USB Audio”, that means the driver
installed successfully.
2. Install OBS Studio
Insert the installation CD into the CD/DVD drive on your computer. Or you can
download it online(https://obsproject.com/download).
3. Starting OBS Studio
3.1 To open the software, double click the shortcut icon on your computer’s Desktop.
3.2 Connect the RCA cable to your DVD, VCR, VHS audio and video connectors.
3.3 Open OBS Studio and point "+" at the source.
