UDI RC UDI002 User manual

UDI002
Operation Manual for 2.4 G Wireless RC Boat
1. The product adopts 390 magnetic motor driving system as well as advanced 2.4 G
frequency pairing automatically technology for longer controlling distance.
2. Be equipped with Li Battery. The highest speed is about 25km/h.
3. Boat Specification: 424*114*119 mm
4. Special anti- capsize function: turn over when capsize for normal sailing.
5. Motor cooling system: extend use life of the boat.
6. Build-in left and right navigation rudder: enhance sailing stability.
7. Low battery alarm function: the transmitter issues sound of “dididi...” low battery
alarm. Please recall the boat in on minute.
Security Warning
For the safety and avoid hitting people which around propeller, the boat can’s work
properly till put into the water. Never touch the rotating propeller.
1. The product is suitable for more than 14 years old people. Please use it under
adult’s supervision and guidance.
2. Never mixed use old and new battery or different types of batteries. Never charge
a non-rechargeable battery.
3. Never charge the battery at once after using till cooling down.
4. Make sure that there is no one swimming around to avoid injury before sailing.
Keep away form water plant and debris to avoid the propeller tied up in the water
and cause damage.
5. The effective control distance is about 150m. Never exceed the range or the boat
may be out of control.
6. The transmitter will issue sound of “dididi” when low battery in the sailing. At this
time the boat will slow down and the battery only can maintain one minute. Please
recall the boat in one minute to avoid out of control.
7. The power indicator light of the transmitter flashes if the boat sails too far from the
transmitter, which may lead to weak signal and effect the timeliness and accuracy
of low battery alarm. Please remote control the boat to near (power indicator light
keeps bright) to make sure normal low battery alarm mode.
8. Please power off the transmitter and the boat when the boat not in use.
9. Please attach great importance on safety first when sailing. If the boat out of control,
retrieve the boat by safe and reliable method. Never retrieve the boat without any
safe measure.
Maintenance and Repair
1. Take out the battery when the boat stops working.
2. The boat surface should avoid long time exposure to prevent paint-shedding.
Each time after use, clean the boat surface by dry and soft cloth to absorb water.
Keep the boat clean and dry to prevent oxidation of internal components and wire,
which may result in dysfunction.
3. If the RC boat is not used for a long time, remove the battery to avoid leakage
damaging form battery to the transmitter.
2
8. Weak signal alarm function: the transmitter indicator light flashes to remind weaker
2.4 G signal.

Transmitter Battery Installation
Battery Charging
Battery installation: Open the battery cover of the transmitter. Install four 1.5V AA
batteries to battery box in accordance with the positive and
negative pole indication, and then close the battery box.
Battery Box
Battery Cover
Connect the battery with USB wire, and then connect the USB with the computer or
the adapter. The USB light is red when charging and turns to green when fully
charged. The charging time is about 220 minutes. Please cut off the charging wire
after fully charged.
3 4

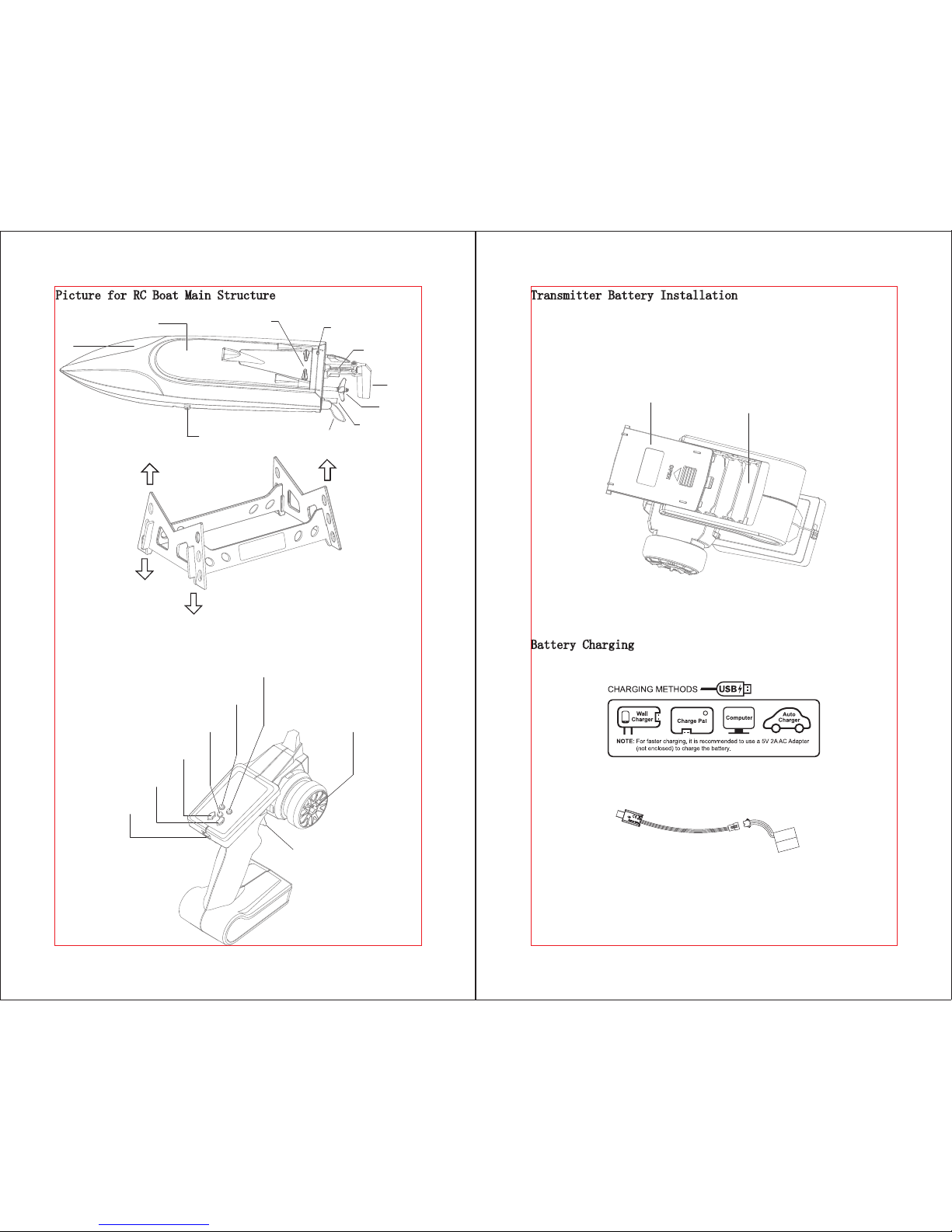

Picture for RC Boat Main Structure
Display Support Holder
Forward Trim
Backward Trim
Power Indicator Light
Left Rudder Trim
Right Rudder Trim
Power Switch
Rudder Knob
Throttle Trigger
Capsize Switch
Steering
Engine Rod
Steering
Rudder
Propeller
Navigation Rudder
Balance Rudder
Outlet
Hull
Cabin Cover Cabin Cover Switch

RC Boat Battery Installation
1. Twist the cabin cover switch towards counterclockwise
direction and spare no effort to lift the cabin cover upward.
2. Put the Li battery to the battery box of
the hull. (put the battery wire to boat side)
3. Connect the battery with the power plug.
4. (1) Insert the cabin cover to the hull. (2) Press upper cover. (3) Twist the two cabin cover
switch tightly / press to buckle the cabin cover tightly.
Note: 1. Make sure the battery stay in the battery holder to prevent battery dislocation
or damaged.
2. Install the cabin cover and buckle it in place to prevent water penetration.
5 6
Operating Method
1. Pull back the throttle trigger of the transmitter and the boat goes forward.
Forward
2. Push forward the throttle trigger of the transmitter and the boat goes backward.
Backward
Code Pairing Between Transmitter and RC Boat
Power on the transmitter, and the power indicator light of the transmitter flashes and
issues sound of “di”. Put the boat into water and the transmitter issues constantly
sound of “dididi”. The power indicator light of the transmitter keeps bright, which
indicates successful code pairing and the boat is ready to be operated.
3. Pull back the throttle trigger of the transmitter, and twist the rudder knob towards
counterclockwise direction and the boat turns left.
Turn Left
4. Pull back the throttle trigger of the transmitter, and twist the rudder knob towards
clockwise direction and the boat turns right.
Turn Right
3
2
1

Screw Rod Main Arbor Pipe
Navigation Rudder USB Wire Circuit Board
Support HolderSteering Engine Rod
UDI002-04
UDI002-09 UDI002-10 UDI002-11
Li Battery
UDI002-14UDI002-12
Balance Rudder
UDI002-15
UDI002-13
Cooling Pipe Transmitter
UDI002-17UDI002-16
UDI002-05
7 8
Spare Parts
Steering Engine Propeller Motor
UDI002-01 UDI002-02 UDI002-03
Hull
Cabin CoverTail Rudder
UDI002-06 UDI002-07 UDI002-08
5. If the boat capsizes in the water, push forward the throttle trigger of the transmitter and
then pull back at once and the boat will return to normal.
RC Boat Capsize
FirstAfter
6. If the boat drifts to right, press the left rudder trim of the transmitter the and the boat
will back to correct rudder slowly and sails straightly.
Left Rudder Trim
Left Trim
7. If the boat drifts to left, press the right rudder trim of the transmitter the and the boat
will back to correct rudder slowly and sails straightly.
Right Trim Right Rudder Trim
8. If the boat still goes forward when the throttle trigger of the transmitter back to middle,
press backward trim till the boat stop going forward.
Backward Trim
Backward Trim
9. If the boat still goes backward when the throttle trigger of the transmitter back to middle,
press forward trim till the boat stop going backward.
Forward Trim
Forward Trim
