MT micro
1 ELECTRICAL SAFETY
INSTRUCTIONS
1Before connecting the dispenser to the
mains, check that the voltage shown on the
rating plate matches your electricity supply.
Connect the dispenser to a single-phase supply
through an earthed socket as required by current
regulations. If the dispenser is to be
disconnected from the power supply using a
single pole switch, the gap between the contacts
on this switch must be sufficiently wide to
guarantee full disconnection under category III
overload conditions.?
2Do not use extension cables to connect the
appliance.
3To avoid any risks, if the power cable is
damaged, it must be replaced by the
manufacturer, by an authorised technician or by
a similarly qualified person.
4The dispenser is not suitable for outdoor use.
5The dispenser must be installed in the
upright position.
6Before cleaning, always disconnect the
dispenser by removing the plug from the socket.
7Always disconnect the dispenser before
removing any of the panels for cleaning or
maintenance work.
8Do not use a water jet to clean the dispenser.
9This appliance must not be operated by
children.
10 Do not let children play with the appliance.
11 This appliance must not be used by persons
with reduced physical, sensory or mental
capabilities or with a lack of experience and
knowledge unless they have supervision or have
been trained regarding the safe use of the
appliance and understand the risks involved.
12 Only persons who know and have practical
experience of the appliance are permitted access
to the inner components of the dispenser,
especially when dealing with issues regarding
safety and hygiene.
2 HYGIENIC SAFETY
INSTRUCTIONS
1This appliance is intended exclusively for
domestic and similar use.
2For the appliance to operate correctly, room
temperature must be between +5° and +32°C.
3Use the appliance to cool the indicated
liquids only.
4Do not introduce dangerous or toxic liquids
to the appliance.
3 TECHNICAL CHARACTERISTICS
The electric diagram of the dispenser is
located in the inner part of the dispensing side
panel.
Transparent removable bowls n 1
Capacity of each bowl, approx. l 3
Dimensions:
width cm 18
depth cm 47
height cm 51
Net weight, approx. kg 20
Gross weight, approx. kg 22
Adjustable thermostats n 1
Hermetic compressor
Air-cooled condenser
Overload protector
Noise level lower than 70 dB (A)
IMPORTANT
Read electrical ratings written on the data
plate of the individual units; the data plate
is adhered on the dispensing side panel of
the unit, just behind the drip tray (the right
side drip tray in multiple bowl models). The
serial number of the unit (preceded by the
symbol #) is adhered inside the left switch
box. Data plate specifications will always
supersede the information in this manual.
MT 1 MICRO

15
Specifications are subject to change without
notice.
4 INTRODUCTION
It is necessary to read all sections of this manual
thoroughly to familiarize yourself with all aspects
of the unit.
Like all mechanical products, this machine will
require cleaning and maintenance. Besides,
dispenser working can be compromised by
operator’s mistakes during disassembly and
cleaning. It is strongly recommended that
personnel in change of the equipment’s daily
operations, disassembly, cleaning, sanitizing and
assembly, go through these procedures in order
to be properly trained and to make sure that no
misunderstandings exist.
5 INSTALLATION
1Remove the corrugate container and packing
materials and keep them for possible future use.
2Inspect the uncrated unit for any possible
damage. If damage is found, call the delivering
carrier immediately to file a claim.
3Install the unit on a counter top that will
support the combined weight of dispenser and
product bearing in mind what is stated in the
preceding point 1 IMPORTANT warning.
4A minimum of 15 cm (6”) of free air space all
around the unit should be allowed to guarantee
adequate ventilation.
5Ensure that the legs are screwed tightly into
the base of the machine.
Replace the standard legs originally installed
with the 100 mm (4”) legs whenever they are
provided with the unit.
6The unit doesn’t come presanitized from the
factory. Before serving products, the dispenser
must be disassembled, cleaned and sanitized
according to this handbook instructions (chapter
7.3 CLEANING AND SANITAZING
PROCEDURES).
6 TO OPERATE SAFELY
1Do not operate the dispenser without
reading this operator’s manual.
2Do not operate the dispenser unless it is
properly grounded.
3Do not operate the dispenser unless all
panels are restrained with screws.
4Do not put objects or fingers in panels
louvers and faucet outlet.
5Not to grasp into the moving machine.
6Do not remove bowls, augers and panels for
cleaning or routine maintenance unless the
dispenser is disconnected from its power source.
7This appliance is intended to be used in
household and similar applications.
8The cover must be always closed.
7 OPERATING PROCEDURES
1Clean and sanitize the unit according to the
instructions in this manual. See chapter 7.3
CLEANING AND SANITIZING PROCEDURES.
2Fill the bowls with product to the maximum
level mark. Do not overfill.
The exact quantity of product (expressed as
liters and gallons) is shown by marks on the
bowl.
3In case of products to be diluted with water,
potable water, pour water into bowl first, then add
correct quantity of product. In case of natural
squashes, it is advisable to strain them, in order
to prevent pulps from obstructing the faucet
outlet.
4To obtain the best performance and result,
use bases designed to be run in Granita
IMPORTANT
When handling the machine never grasp it
by the bowls or by the evaporator
cylinders. The manufacturer refuses all
responsibilities for possible damages
which may occur through incorrect
handling.
ATTENTION
Failure to provide proper electrical ground
according to applicable electrical codes
could result in serious shock hazard.
IMPORTANT
Install the dispenser so that the plug is
easily accessible.

16
MT micro
freezers. Such bases have a sugar content of 34
degrees Baumé corresponding to 64 degrees
Brix.
For soft drinks the bases are to be diluted with
more water, on a 1 plus 5/5.5 basis.
In any case follow the syrup manufacturer’s
instructions for both Granita and soft drink
recipes.
If natural juices (e.g. lemon, orange) as well as
sugarless products (e.g. coffee) are used,
dissolve 150 - 200 grams of sugar per liter.
5Set the control switches as shown in chapter
7.1 DESCRIPTION OF CONTROLS.
6Always leave the dispenser on, as the
refrigeration stops automatically when Granita
reaches the proper thickness. The mixers will
continue to turn.
7. 1 DESCRIPTION OF CONTROLS
The dispenser is equipped with a power switch. In
addition each bowl is individually operated by a
mixer/refrigeration switch. In fact it is possible to
dispense both soft drinks and Granita.
When a bowl is in Soft Drink mode the beverage
temperature is controlled by the corresponding
thermostat.
When a bowl is in Granita mode the mix viscosity
is controlled by the corresponding adjustment
screw located in the rear wall of each container
(for temperature and viscosity setting make
reference to chapter 7.2 OPERATION HELPFUL
HINTS).
ETC VERSION
All the switches are located on the faucet side of
the dispenser.
Dispenser controls functions are as follows (see
figure 1).
figure 1
Power switch (A)
Mixer/Refrigeration switches ( C) and (D)
Thermostat (B)
It displays the temperature of product inside the
bowl.
Temperature alarm : if the temperature on display
flashes, it means that product remained for a
certain period at a temperature higher than the
max. admitted conservation temperature , and
therefore it is necessary to check the product
conditions.
Press for three seconds the button (D) to reset
the display .
IMPORTANT
Operate the dispenser with food products
only.
IMPORTANT
However Granita mix may be done, its Brix
(sugar percent content) must be at least 13.
0 position :power is turned OFF to all
functions.
I position :power is turned ON to all
functions and mixer run too.
Switch C :if pressed it activates the function
'DRINK'. In this case the (E) led
lights up.
Switch D :if pressed it activates the function
'SLUSH'. In this case the (F) led
lights up.
IMPORTANT
If the dispenser is switched on when bowls
contain products at a temperature higher
than conservation temperature, the display
will flash. To have a fixed display , it is
necessary to press for three seconds the
button (D).

17
Cleaning mode: hold down key (C) for three
seconds to enable CLEANING mode, during
which the display shows " --.-- ". In this mode, the
mixer turns but the cooling is not enabled. This
function is useful during machine rinsing, washing
and sanitising to prevent the contents of the unit
from being cooled. It is nonetheless always
possible to quit cleaning mode simply by pressing
any key.
Temperature adjustment in DRINK mode: the
optimal temperature of drinks (when the
dispenser works as a drinks cooler rather than as
an ice crusher) is factory set to 4°C. If you want to
adjust the temperature, hold down keys (C) and
(D) simultaneously for two seconds. The indicator
light (E) and the temperature set will flash and you
can adjust it using keys (C) and (D). The display
will go blank for a few seconds and then the
current temperature will be displayed.
Minimum temperature adjustment in
GRANITA mode: you can also adjust the
minimum temperature of the product when the
dispenser is operating in granita mode. This
minimum temperature is factory set to -10°C. If
you want to adjust it, hold down keys (C) and (D)
simultaneously for two seconds to go into drink
temperature adjustment mode and the indicator
light (E) will flash. Press keys (C) and (D) for two
seconds to go into granita minimum temperature
adjustment mode and the indicator light (F) and
temperature set will flash. You can adjust the
temperature using keys (C) and (D). The display
will go blank for a few seconds and then the
current temperature will be displayed.
To operate the unit :
1Set the power switch to I position
2Select :
-Button (C) to get cold drink ( without freezing it)
-Button (D) to get slush
Cleaning function: during sanitizing operations, it
may be useful to have the mixers turning , without
cooling. To get this, press for three seconds the
button (C ) : the display of thermostat will show "-
-.-- "
By pressing any button, the dispenser will get out
from cleaning function and will operate normally.
ELECTROMECHANICAL VERSION
All the switches are located on the faucet side of
the dispenser in switch panels protected by
switch covers (see figure 1).
figure 2
With reference to figure 3 dispenser controls
functions are as follows:
figure 3
Power switch (A)
Mixer/refrigeration switch (B)
Thermostat (D)
To operate the unit:
3 Set the power switch to I position.
Set the mixer/refrigeration switches as follows:
- to the I position to get soft drink.
- to the II position to get Granita.
7. 2 OPERATION HELPFUL HINTS
1Granita viscosity adjustment: proper
Granita viscosity is factory preset. To change the
viscosity, if needed, use a standard screwdriver
to turn the adjustment screw located in the rear
IMPORTANT
Conservation temperature is set at the
factory at 4°C.
0 position :power is turned OFF to all
functions.
I position :power is turned ON to all
functions and the other switches
are enabled. The fan motor runs.
I position :mixer and refrigeration ON.
SOFT DRINK mode.
0 position :OFF.
II position :mixer and refrigeration ON.
GRANITA mode.
Turn clockwise :to decrease temperature
Turn
counterclockwise :to increase temperature

18
MT micro
wall of each container as follows (see figure 4):
- towards right (clockwise) to obtain a thicker
product (the indicator F will go down in
opening G).
- towards left (counterclockwise) to obtain a
thinner product (the indicator F will go up in
opening G).
figure 4
2The length of time for freeze down of Granita
is governed by many variables, such as ambient
temperature, mix initial temperature, sugar
content (Brix level) and viscosity setting.
3To shorten Granita recovery time and
increase productivity, it is advisable to pre-chill
the product to be used in the dispenser.
4To shorten Granita recovery time and
increase productivity, the bowl should be refilled
after the product level drops lower than half of
the evaporator cylinder and at the start of each
day.
5For good product conservation the dispenser
must run overnight, at least in Soft Drink mode.
If this is not possible and product is left in the
bowls overnight, the mixer/refrigeration switches
must be set to the I position at least one hour
before the unit is switched off. This eliminates
any block of iced product forming overnight,
which could result in damage to mixers or to their
motor when the unit is switched back on. In any
case, before the unit is restarted, make sure that
no blocks of ice have been formed; if so, they are
to be removed before the unit is switched on.
Overnight operation in drink mode also
eliminates possible ice accumulation from
condensation all around the bowls.
6Mixers must not be turned off when frozen
product is in the bowl: if not agitated, the product
may freeze to a solid block of ice. If the mixers
are turned back on in this situation, damage to
the mixers and their motor may result. Therefore,
mixers may be restarted only after product is
melted.
7The dispenser is equipped with a magnetic
coupling by which the gear motor (located
outside the bowl) drives the mixers (inside the
bowl).
The magnetic drive operates as an “intelligent
clutch” able to automatically disconnect the
mixers in case they are seized by ice or other
causes.
This inconvenience can be soon noticed since an
intermittent dull noise warns that mixers are still.
In this case it is necessary to unplug immediately
the dispenser, empty the bowl and eliminate the
cause of seizing.
8The dispenser must be able to emit heat.
In case it seems excessive, check that no
heating source is close to the unit and air flow
through the slotted panels is not obstructed by
wall or boxes. Allow at least 15 cm (6”) of free
clearance all around the dispenser.
In any case if the product in the bowls is frozen
and the pressure switch warning light is OFF the
unit is running properly.
9The product is for use with confectionery
only.
7. 3 CLEANING AND SANITIZING
PROCEDURES
1Cleaning and sanitizing of the dispenser are
recommended to guarantee the conservation of
the best product taste and the highest unit
efficiency. This section is a procedural guideline
only and is subject to the requirements of the
local Health Authorities.
2Prior to the disassembly and cleaning, the
machine must be emptied of product.
7. 3. 1 DISASSEMBLY
1Remove cover from the bowl.

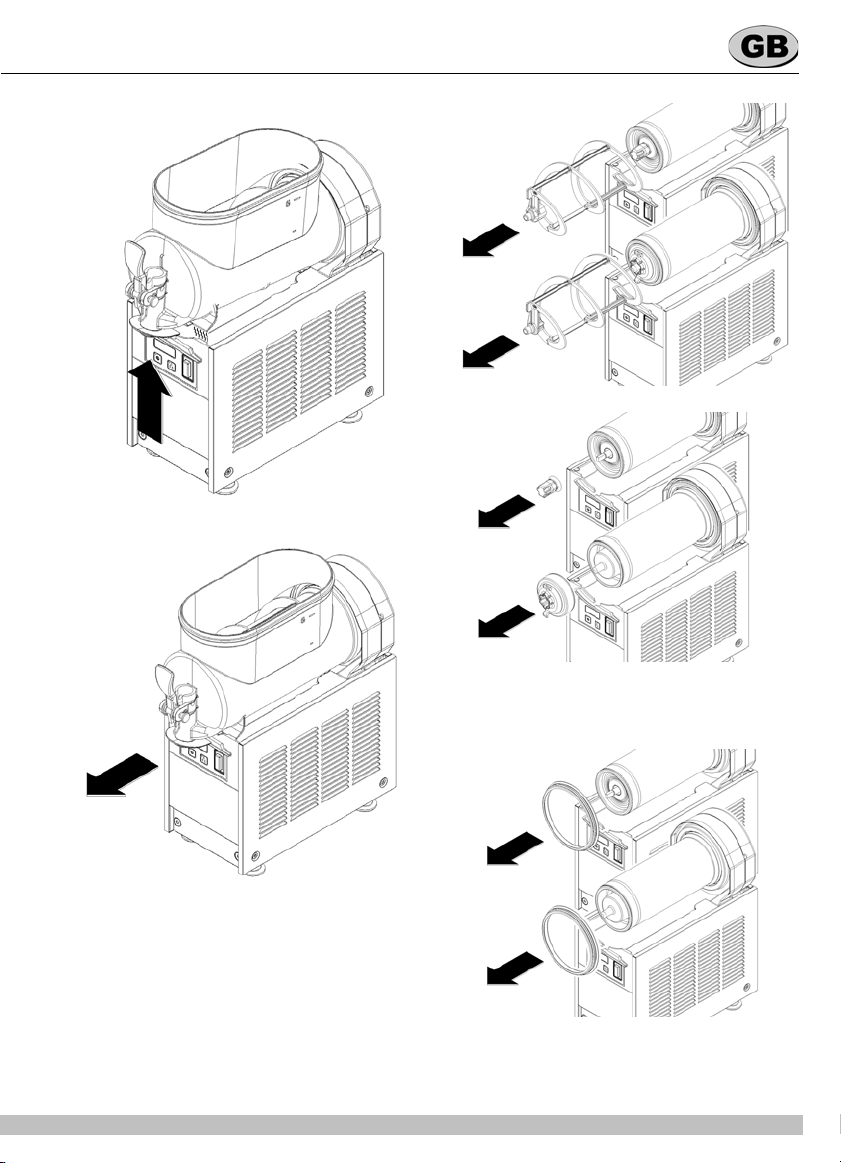

2Remove the bowl by lifting its faucet side up
and off the fastening hooks (see figure 5) and
ATTENTION
Before any disassembly and/or cleaning
procedure make sure that the dispenser is
disconnected from its power source by
unplugging it.

19
slide it out (see figure 6).
figure 5
figure 6
3Slide the outer spiral out (see figure 7) and
then Outside magnetic rotor assembly (see
figure 8).
figure 7
figure 8
4Remove the bowl gasket from its seat (see
figure 9).
figure 9
5Dismantle the faucet assembly (see figure

20
MT micro
10).
figure 10
6Slide the drip tray out and empty it.
7. 3. 2 CLEANING
1Prepare at least two gallons of a mild
cleaning solution of warm (45-60 °C 120-140 °F)
potable water and dishwashing detergent. Do not
use abrasive detergent.
Important: if present, follow label directions, as
too strong a solution can cause parts damage,
while too mild a solution will not provide
adequate cleaning.
2Using a brush, suitable for the purpose,
thoroughly clean all disassembled parts in the
cleaning solution.
3In the same manner clean the evaporator
cylinder(s) using a soft bristle brush.
4Rinse all cleaned parts with cool clean water.
7. 3. 3 SANITIZING
Sanitizing should be performed immediately
prior to starting the machine. Do not allow the
unit to sit for extended periods of time after
sanitization.
1Wash hands with a suitable antibacterial
soap.
2Prepare at least two gallons of a warm (45-
60 °C 120-140 °F) sanitizing solution (100 PPM
available chlorine concentration or 1 spoon of
sodium hypoclorite diluted with 2 litres of water)
according to your local Health Codes and
manufacturer’s specifications.
3Place the parts in the sanitizing solution for
five minutes.
4Place the sanitized parts on a clean dry
surface to air dry.
5Wipe clean all exterior surfaces of the unit.
Do not use abrasive cleaner.
7. 3. 4 ASSEMBLY
1Slide the drip tray into place.
2Lubricate faucet piston, outer spiral and
outside magnetic rotor (see points A, B and C of
figure 11) only with the grease supplied by the
manufacturer or other food grade approved
lubricant.
figure 11
3Assemble the faucet by reversing the
disassembly steps (see figure 10)
ATTENTION
Before any disassembly and/or cleaning
procedure make sure that the dispenser is
disconnected from its power source.
IMPORTANT
Do not attempt to wash any machine
components in a dishwasher.
IMPORTANT
In order to prevent any damages to the
dispenser use only a detergent suitable
with plastic parts.
ATTENTION
When cleaning the machine, dump it, do
not allow excessive amounts of water
around the electrically operated
components of the unit. Electrical shock or
damage to the machine may result.

21

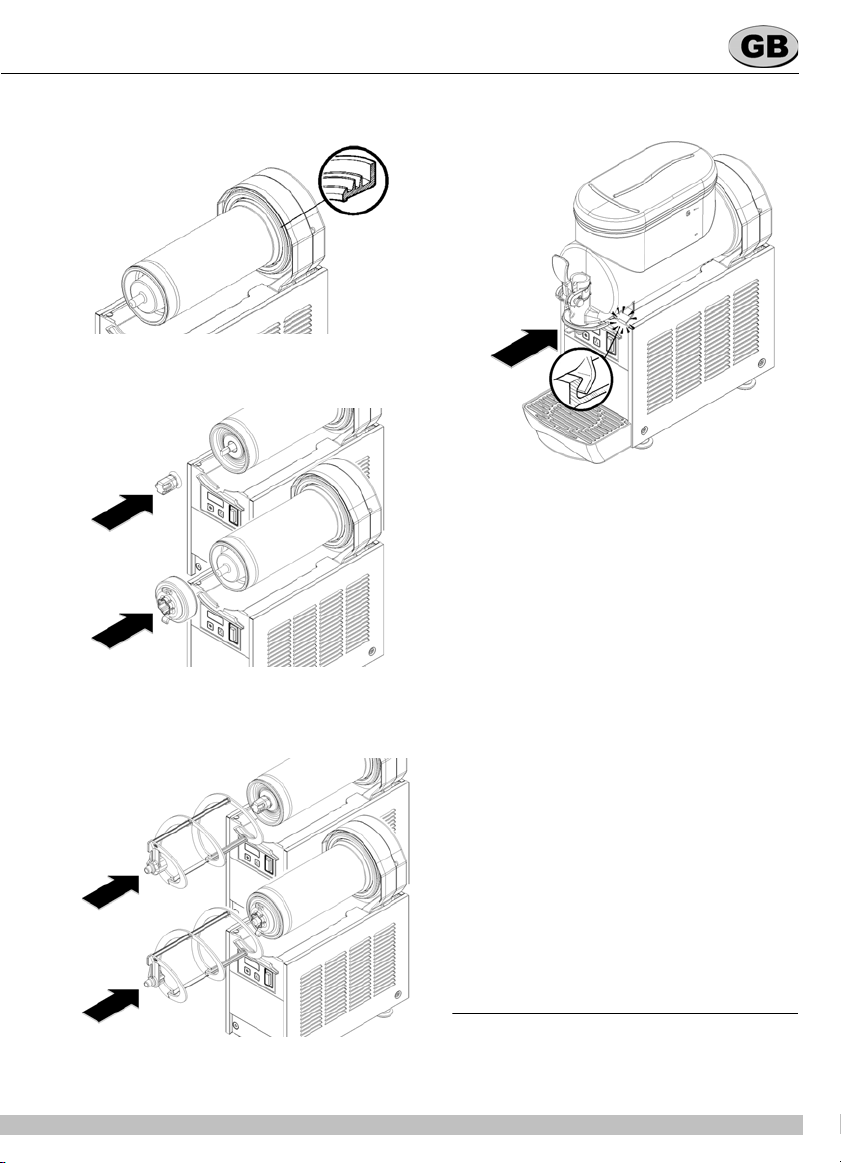

4Fit bowl gasket around its seat.
Note: the largest brim of gasket must face
against the rear wall (see figure 12).
figure 12
5Insert the magnetic outside rotor in the
evaporator taking care to accompany it to the
end (see figure 13).
figure 13
6Install the outer spiral. Slide it over the
evaporator until its hexagonal front notch
engages with the hexagonal exposed end of the
magnetic outside rotor (see figure 14).
figure 14
7Push the bowl towards the rear wall of the
unit until it fits snugly around the gasket and its
front fastening hooks are properly engaged (see
figure 15).
figure 15
8Use fresh product to chase any remaining
sanitizer from the bottom of the bowl(s). Drain
this solution. Do not rinse out the machine.
7. 4 IN-PLACE SANITIZATION
The In-Place Sanitization prior to starting the
machine may be performed, if needed, only as
further precaution, in addition to the
Disassembled Parts Sanitization described
before, but never in lieu of it.
1Prepare two gallons of a warm (45-60°C,
120-140 °F) sanitizing solution (100 PPM
available chlorine concentration or 1 spoon of
sodium hypoclorite diluted with 2 liters of water)
according to your local Health Codes and
manufacturer’s specifications.
2Pour the solution into the bowl(s).
3Using a brush suitable for the purpose, wipe
the solution on all surfaces protruding above the
solution-level and on the underside of the top
cover(s).
4Install the top cover(s) and operate the unit.
Allow the solution to agitate for about two
minutes. Drain the solution out of the bowl(s).
5Use fresh product to chase any remaining
sanitizer from the bottom of the bowl(s). Drain
this solution. Do not rinse out the machine.
8 ROUTINE MAINTENANCE
1Daily: inspect the machine for signs of
product leaks past seals and gaskets. If proper
assembly does not stop leaks around seals or

22
MT micro
gaskets, check for improper lubrication, worn or
damaged parts. Replace parts as needed.
2In case of noise it needs to unplug the cooler
and call for service.
3In case of failure unplug the machine,
because unexpected start again would be
possible.
4It needs to fix everything back in the initial
position after any repairmen, like screws and
covers.
8. 1 MAINTENANCE (TO BE CARRIED
OUT BY QUALIFIED SERVICE
PERSONNEL ONLY)
1Monthly: remove the dust from the
condenser. To do this unplug the unit.
2Annually: remove the panels and clean the
inside of the machine including the base, side
panels, condenser, etc.
3Annually: Check if the auger bushings are
worn out or ovalized. If they are, replace them
with new ones.
4Never remove the insulating jacket from
around the suction tubing of the evaporator (the
copper tubing located on the right side of gear
motor). In case the insulating jacket is missing
replace the entire parts with original spare parts
from the supplier.
5In order to prevent any damages to the
dispenser, all plastics parts must be lubricated
only with grease supplied by the manufacturer or
with another lubricating product suitable for
polycarbonate.
ATTENTION
Condenser fins are very sharp. Use
extreme caution when cleaning.
