ultega US330400000017 User manual

US RACER ERGOMETER 700M
USER MANUAL
US330400000017

Dear customer!
The manufacturer is constantly improving all types and models. Please understand
that changes to the delivered product in terms of form, features and technology are
thus possible at any time. Therefore no claims may be derived from the information,
illustrations and descriptions in this manual.
Reprint, duplication or translation, also of excerpts, is not permitted without the
written permission of the manufacturer.
All rights according to the law or to copyright law are expressly reserved by the
manufacturer.
Subject to alterations

www.ultega.net
US
INDEX
SAFETY INSTRUCTION 1
BEFORE YOU BEGIN 2
COMPONENTS - PARTS 3
COMPONENTS - FIXINGS 4
ASSEMBLY STEP 5
COMPUTER FUNCTION 10
TENSION ADJUSTMENT 11
CARE AND MAINTAINANCE 12
TROUBLE SHOOTING 12
DISPLAY OF APPLIANCE 12
TRAINING ORGANISATION 13
CONDITIONING GUIDELINES 14
WARM-UP AND COOL-DOWN 15
PARTS LIST 17
EXPLODED 18

www.ultega.net
1
US
SAFETY INSTRUCTION
WARNING :
Safety Instruction before using the ULTEGA Racer 700M.
To reduce the risk of serious injury, read the following.
1. Use the ULTEGA Racer 700M only on a level surface.
2. Keep children and pets away from this equipment at all times.
3. The ULTEGA Racer 700M should not be used by persons weighing more than 120kgs.
4. The ULTEGA Racer 700M should be used by only one person at a time.
5. Be careful to maintain your balance while using, mounting, dismounting, folding, unfolding or
assembling the ULTEGA Racer 700M, loss of balance may result in a fall and serious bodily injury.
6. Use the ULTEGA Racer 700M only as described in the manual.
7. Before using this equipment to exercise, always do stretching exercises to properly warm up.
8. Always make sure all bolts and nuts are tightened prior to each use.
WARNING
Before starting any exercise or conditioning program you should consult your personal physician to see
if you require a complete physical exam. This is especially important if you are over the age of 35, have
never exercised before, are pregnant, or suer from any illness.

www.ultega.net
2
US
BEFORE YOU BEGIN
Thank you for choosing the ULTEGA Racer 700M. We take great pride in producing this quality product
and hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life
to its fullest.
Yes, it’s a proven fact that a regular exercise program can improve your physical and mental health. Too
often, our busy lifestyles limit our time and opportunity to exercise.
The ULTEGA Racer 700M provides a convenient and simple method to get your body in shape and to
achieve a healthier lifestyle.

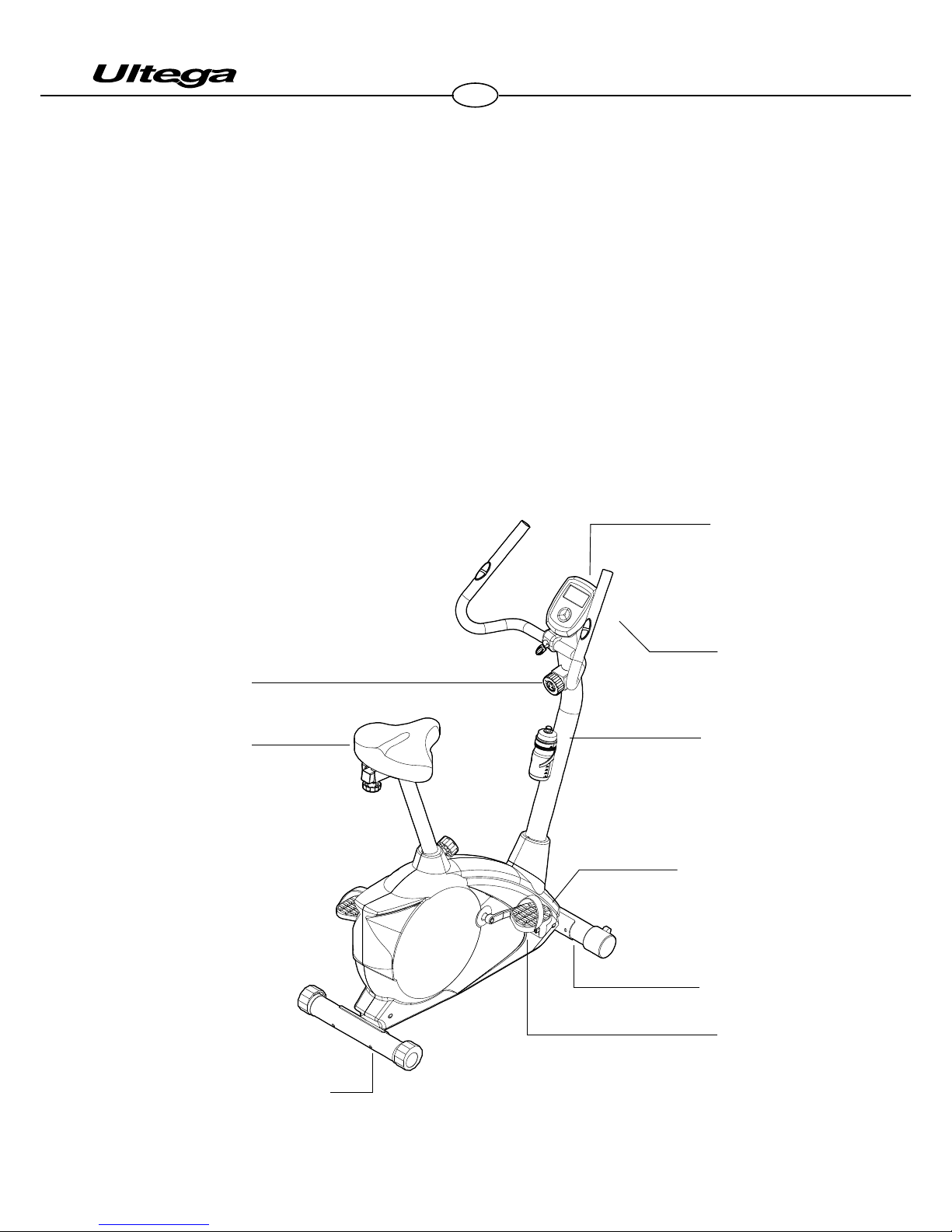

Please review the drawing below and familiarize yourself with the parts that are labeled.
Handlebar
Seat
Tension Knob
Chain Cover
Pedal (Right)
Upright Post
Computer
Front Stabilizer
Rear Stabilizer

www.ultega.net
3
US

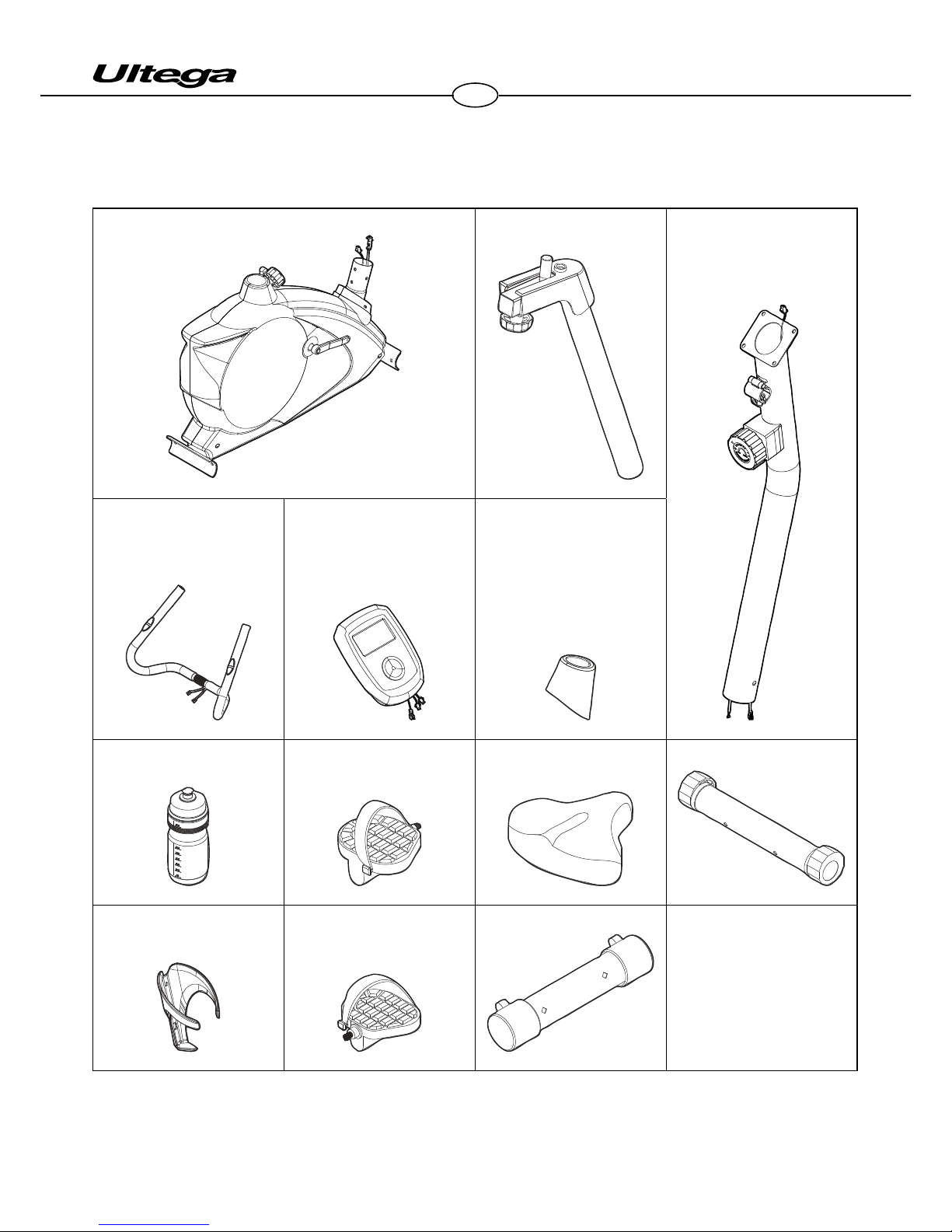

COMPONENTS - PARTS
No.1 Main Frame x 1pc No.3 Seat Post x 1
No.2 Front Post x 1No.7 Handlebar x 1 No.8 Computer x 1 No.9 Front Cover x 1
No.72 Bottle x 1 No.10 Left Pedal x 1 No.12 Seat x 1 No.6 Rear Stabilizer x 1
No.71 Bottle Holder x 1 No.4 Right Pedal x 1 No.5 Front Stabilizer x 1

www.ultega.net
4
US

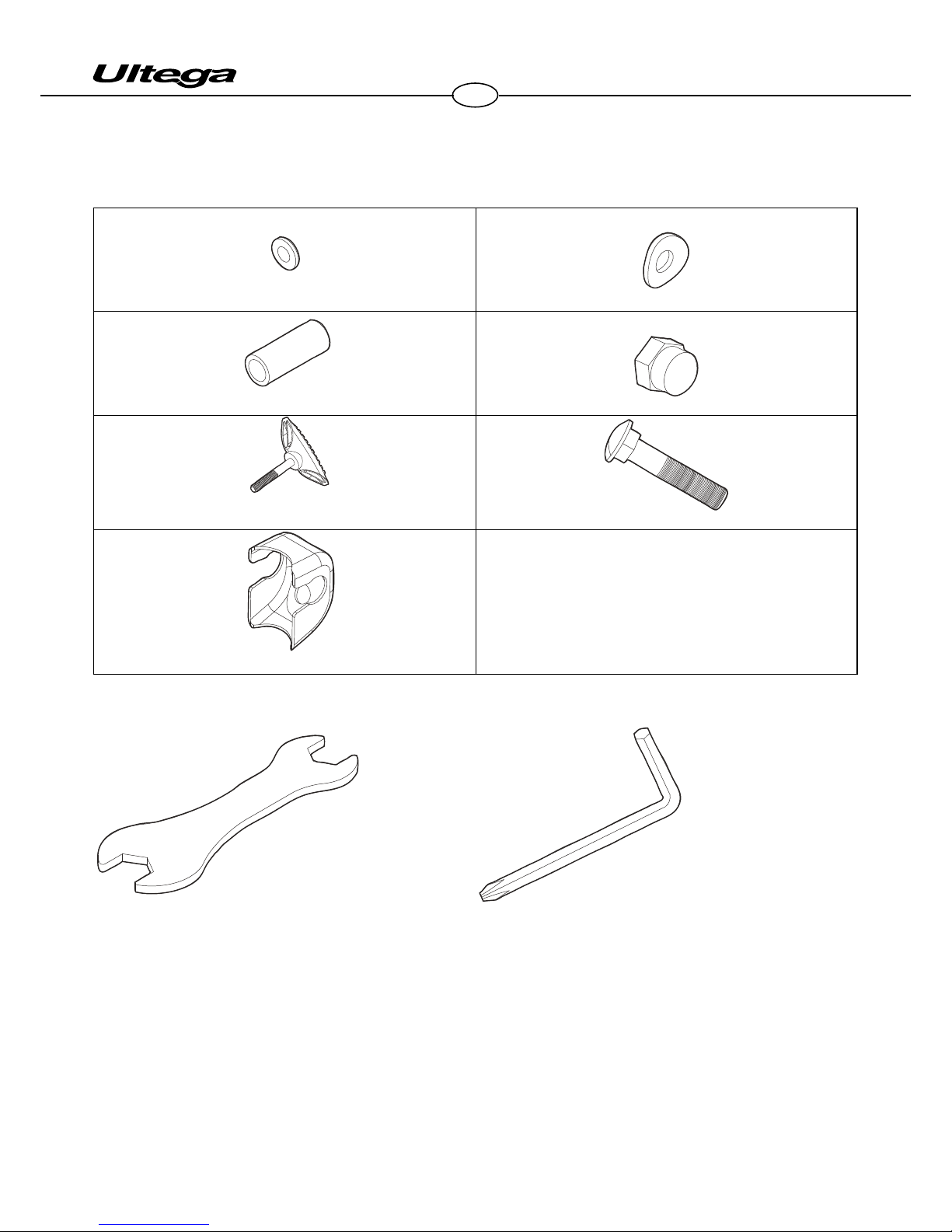

COMPONENTS - FIXINGS
No.26 (ø8.5 x ø16 x 1.5T) Flat washer x 1pc No.15 (ø8.3 x ø20 x 1.5T) Curved Washer x 4pcs
No.11 Spacer x 1pc No.16 (M8) Domed Nut x 4pcs
No.13 T Type Knob x 1pc No.21 (M8x70L) Carriage Bolt x 4pcs
No.14 Clamp Cover x 1pc
FIXING TOOLS
Universal Wrench x 2 Allen Wrench x 1
NOTE :
The described parts are all you need to assemble this machine.
Before starting assembly, please check the hardware packing to make sure they are included.

www.ultega.net
5
US
ASSEMBLY STEP
Step 1
• Attach Front Stabilizer (5) to Main Frame (1)
using 2pcs x Allen Bolt (21), Curved Washer (15)
and Domed Nut (16).
• Attach Front Stabilizer (6) to Main Frame (1)
using 2pcs x Allen Bolt (21), Curved Washer (15)
and Domed Nut (16).
Step 2
• Attach the right and left pedal straps to the
Right And Left Pedals (4/10). Note: The end with
four adjustable holes must be set outwards.
• Attach the Left And Right Pedals (10/4) to the
Left And Right Crank Arms (25). Note: The pedals
and crank arms are marked with R & L. The right
pedal (R) should be threaded in clockwise and
the left pedal (L) should be threaded counter-
clockwise.
1
6
21
15
16
16
16
15
15
5
21
1
4
10
25R

www.ultega.net
6
US
Step 3
• Pull out the Quick Release Knob (17) from Main Frame (1). Insert Seat Post (3) to Main Frame (1).
Attach Seat (12) to Seat Post (3) and fasten the screw.
• Line up the holes and secure seat in position with the Quick Release Knob (17).
ASSEMBLY STEP
1
12
3
17

www.ultega.net
7
US

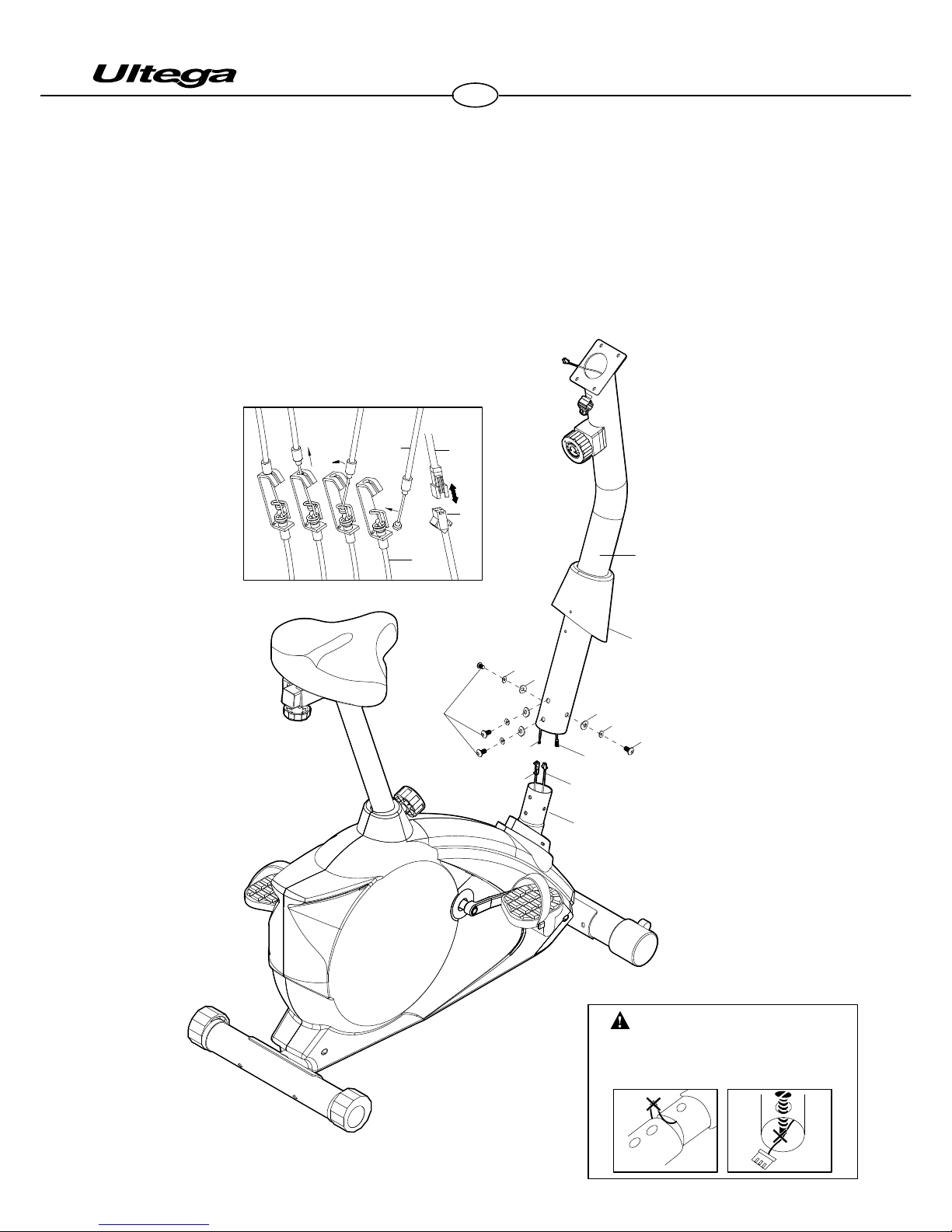

Step 4
• Insert the Front Post (2) through the Front Cover (9) and connect the Upper Computer Wire (24) from
the Front Post (2) to the Lower Computer Wire (22).
• Connect the Wire Of Tension Control Knob (37) with Extension Control Wire (19).
• Insert Front Post (2) into Main Frame (1). Secure using 4sets x Spring Washer (74), Curved Washer (15)
and Allen Screw (20).
ASSEMBLY STEP
CAUTION:
• Assemble product carefully.• Do not pinch or damage the wires.• Avoid damaging wires with bolts.19
37
22
24
1
2
15
15
20
20
24
22
22
19
37
74
74
