Ultra-safe UX-96305NQL Operator's manual

WARNING!
This produ t is part of a personal fall
arrest system. The user must read and
follow the manufa turers instru tions
for ea h omponent of the system.
These instru tions must be provided to
the user of this produ t. The user must
read and understand these instru tions
before using this produ t. Manufa tures
instru tions must be followed for proper
use and maintenan e of this produ t.
Alteration or misuse of this produ t, or
failure to follow instru tions may result
in serious injury or death.
1

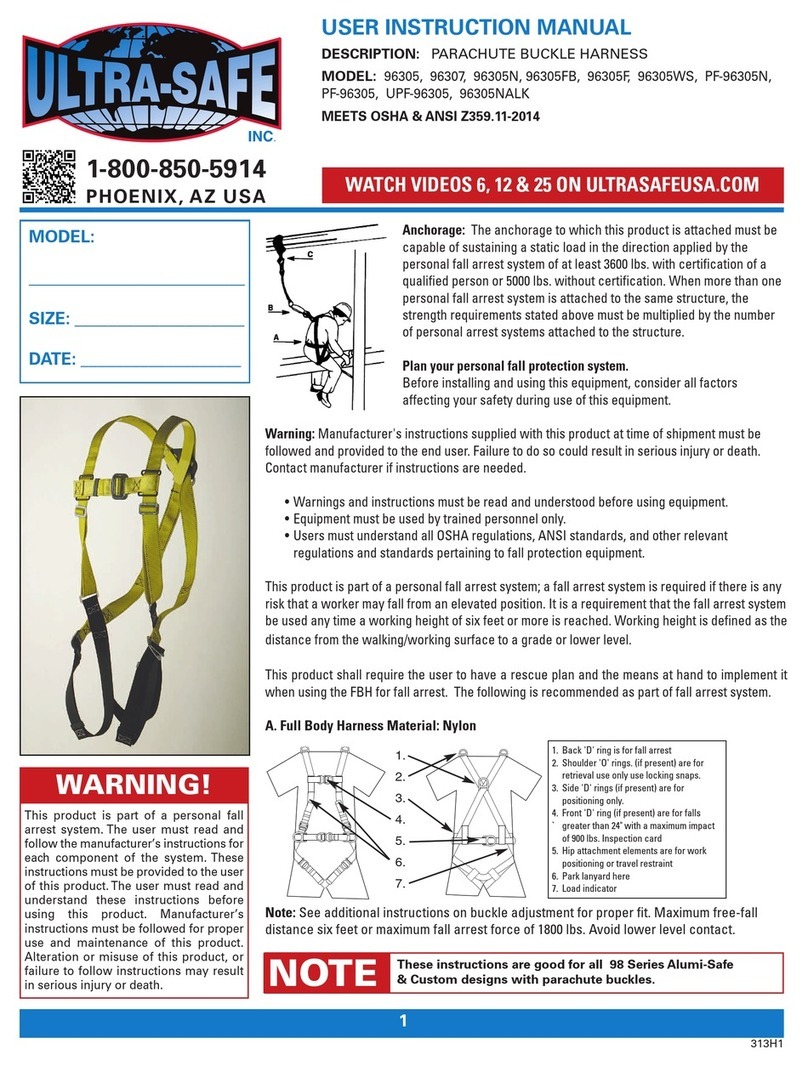

USER INSTRUCTION MANUAL
MODEL:
UX-96305NQL, UPF-96305WSQL,
UPF-96305NQL, UPF-96305FBQL, UPF-96305QL,
UPF-96305WSQL, UPF-96096BFQL, UPFX-96305NQL,
UPFX-96305WSQL, UPFX-96096BFMSQL, 96305EQLMX,
UPFX-96305NQLTPTS, 96400QLNP
DESCRIPTION: QUICK RELEASE HARNESS
1-800-8 0- 914
PHOENIX, AZ USA
WWW.ULTRASAFEUSA.COM
MODEL:
_________________________
_
SIZE: ____________________
DATE: ___________________
_
Anchora e: The anchorage to which this product
is attached must be capable of sustaining a static
load in the direction applied by the personal fall
arrest system of at least 3600 lbs. With
certification of a qualified person or 5000 lbs.
without certification. When more than one
personal fall arrest system is attached to the
same structure, the strength requirements stated
above must be multiplied by the number of
personal arrest systems attached to the
structure.
Plan: Your personal fall protection system.
Before installing and using this equipment,
consider all factors affecting your safety during
use of this equipment.
Warnin : manufacturer's instructions supplied
with this product at time of shipment must be
followed. Failure to do so could result in serious
injury or death. Contact manufacturer if
instructions are needed.
• Warnings and instructions must be read and
understood before using equipment.
• Equipment must be used by trained
personnel only.
• Users must understand all OSHA regulations,
ANSI standards, and other relevant
regulations and standards pertaining to fall
protection equipment.
This product is part of a
personal fall arrest
system; a fall arrest
system is required if
there is any risk that a
worker may fall from an
elevated position. It is a
requirement that the fall
arrest system be used
any time a working
height of six feet or more
is reached. Working
height is defined as the
distance from the walking/working surface to a
grade or lower level.
The following is recommended as part of fall
arrest system.
A. Full Body Harness Material: Nylon
1. Back D-ring is for fall arrest
2. Shoulder D-rings (if present) are
for retrieval use only.
3. Side D-rings (if present) are
for positioning only.
. Warning tags.
Note: see additional instructions on buckle adjustment
for proper fit. Maximum free-fall distance six feet or
maximum fall arrest force of 1800 lbs. Avoid lower level
contact.
B. Shocks Absorbin Lanyard Material: Nylon
Warnin ta s located
in front and back of
shock absorber or
located towards hook,
D-rin or eye end.
• Energy absorber resting force 900 lbs.
Plus 2 inch maximum extension.
• Rig lanyard to allow a maximum free fall distance
of not more than six feet.
• Connectors and anchorage points must be
compatible and able to support 5,000 lbs.
• Do not allow lanyard to contact sharp or abrasive
surfaces, sparks or temperature above 180 degrees.
• Snap hooks with gate openings larger than
one inch (1") must not be connected to d-rings
on harnesses and belts.
• Remove from service if any damage is detected.
C. Anchora e connector material: Nylon
Warnin ta s are
located towards hook,
D-rin or eye end.
•
Use energy absorbers
or retractable lanyards
when hazard of free fall can occur.
• Connectors and anchorage points must be compatible
and able to support 5,000 lbs. Always work directly
under anchorage to avoid a swing fall injury.
• Anchorage and tie off points must be at a height
that will not allow a lower level to be struck should
a fall occur. Do not allow product to contact sharp
or abrasive surfaces, sparks or temperatures
above 180 degrees.
• Snap hooks with gate openings larger than
one inch (1”) must not be connected.
•
Remove from service if any damage is detected.
313H3

ATTACH ENERGY
ABSORBER
ONLY TO DORSAL
D-RING
MAXIMUM ATTACHMENT DISTANCE
WITH HOOK WITHOUT HOOK
ACCEPTABLE DESIGNED RETAINER
DO NOT
ATTACH ENERGY
ABSORBER
TO ANCHOR
1. Hold harness by back
D-rin . Shake harness
to allow all straps to
fall into place.
2. Slip straps over
shoulders so D-rin
is located at
middle of back.
3. Adjust strap for the
correct torso len th.
4. Pull chest strap around
shoulder strap and fasten
at mid chest. Ti hten to
keep shoulder straps taut.
5. Pull le straps around
to the outside of le
and fasten.
6. Properly worn harness.
7. To remove harness,
reverse procedure.
8. Li ht wei ht quick
release buckles allow
for ettin in and out
of the harness quickly.
When using lanyards commonly referred to
as "100% tie-off”, "Y" type, "double" or "twin
leg" shock absorbing lanyards. This
supplement provides additional information
on the use of these types of lanyards that are
used with a personal fall arrest systems.
Practices that must be followed in order to
use a 100% tie-off lanyard safely.
1. The shock absorber pack portion of the
lanyard assembly MUST be connected
to the back dorsal D-ring ONLY, by way
of a double locking lanyard snap hook
(other connectors provided, consult
ULTRA-SAFE, INC.) connect shock
absorber directly to the dorsal D-ring.
2. Do not connect shock absorber to the
anchorage point at any time.
3. Do not connect the unused leg of the
lanyard assembly to any portion of the
full body harness, unless a specifically
designed lanyard snap hook loop
retainer is provided for this purpose.
. When connecting from one anchorage
point to the next (traversing a vertical or
horizontal structure) do not connect to
an anchorage point further apart than,
the length of the lanyard.
5. When using a 100% tie-off lanyard
assembly, do not allow any part of the
lanyard to pass under arms or legs.
6. Connection of both lanyard legs to
separate anchorage points is
acceptable, as long as anchorage
points are within the length of the
lanyard.
2
Quick release buckle harnesses come in different styles, pads on back, no tool belt, etc.,
but proper adjustment and fit is critical. Refer to these instructions for key adjustment points.
Note: For more on proper fit, refer to our website. Click on Download DVD’s and refer to Video #12.

3
General -
1. Check for wear and deterioration.
Before each use, carefully inspect your harness for
signs of wear, deterioration, or evidence of impact
loading. Visually inspect for loose threads, pulled
rivets, burns, cuts, distortions, abrasions, or any other
evidence of chemical or physical deterioration that
may have weakened the material or assembly.
2. Inspect hardware for malfunctions and cracks.
Check all snap hooks, buckles and D-Rings.
3. Remove from service and replace all worn
or dama ed equipment.
If any part does not pass inspection, immediately
remove the harness from service and destroy.
Specific -
1. Stitchin and webbin .
Check stitching for broken, burned, cut or pulled
stitches. Broken strands appear as tufts on the surface.
To inspect, hold the webbing with your hands six to
eight inches apart. Bend the webbing in an inverted
U to cause surface tension, exposing problem areas.
Inspect all web areas. Damage from cuts, abrasion,
corrosives, heat or chemicals should be apparent.
2. Buckle and belt ends.
Inspect the ends of all straps. They are subject to
wear as a result of repeated opening and closing.
Enlargement or distortion of holes may indicate
excessive wear or possible damage through impact
loading. Harnesses with unusually enlarged or
distorted holes should fail inspection.
3. D-Rin s.
All D-Rings should be checked for distortion. D-ring
attachment points should be checked for unusual
wear or damaged Fibers. Badly pitted D-rings indicate
chemical corrosion, and the equipment should
fail inspection.
4. Stitchin or rivets at hardware attachment points.
For stitched attachment points, check that stitching
is not broken, burned, cut or pulled. Check all riveted
attachment points for tightness. Badly pitted rivets
indicate chemical corrosion, and the equipment
should fail inspection.
5. Ton ue buckles.
All tongue buckles should be checked for distortion,
sharp edges and cracks. The tongue should move
freely and overlap the frame. Rollers should not be
distorted and should roll freely.
6. Friction slide adjusters.
Friction slide adjusters should be checked for sharp
edges, distortion. Make sure that the outer bars and
center bars are straight. Also check corners and
attachment points for wear and cracks.
7. Easy-connect buckle.
Easy-connect buckle (square rings) should be checked
for distortion, sharp edges and cracks. For stitched
attachment points, check that stitching is not broken,
burned, cut or pulled.
8. Friction style buckle.
Friction style buckles should be checked for sharp
edges, cracks and distortion. Make sure outer bars
and center bar are straight. Also check corners
and attachment points for wear.
9. Leather.
Leather should be soft and supple. Visually check
leather for cracks tears, burns, brittleness or other
signs of damage age or abuse. While the leather
components of the system are not load bearing,
damage to the leather is a sign that the entire harness
MAY NOT be in acceptable condition. Re-inspect
entire system. Leather should both look and feel good.
1O. Destroy or replace worn or dama ed Harnesses.
If evidence of excessive wear, deterioration or
mechanical malefaction is observed; the harness
should be destroyed. Never work with worn or
damaged equipment. Using damaged or worn
equipment can cause serious injury or death.
11. The inspector is the most important part
of any inspection procedure.
Check all equipment thoroughly and follow all safety
procedures and guidelines. Don't take any shortcuts.
Harness System Inspection Procedures
Serial Number:
Model Number:
Date Purchased:
Inspection Date Inspection Items Noted Corrective Action Maintenance Performed
Date of First Use:
INSPECTION AND MAINTENANCE LOG
IMPORTANT NOTE: OSHA specifies that all employers covered by the Occupational Safety and Health Act are responsible for inspection and
maintenance of all tools and equipment used by employees, whether owned by the employees or by the company. All Ultra-Safe equipment
should be inspected before each use, and immediately removed from service if equipment does not pass inspection.
Approved By:
Approved By:
Approved By:
Approved By:
Approved By:
Approved By:
Approved By:
Approved By:

4
Inspection Date Inspection Items Noted Corrective Action Maintenance Performed
Approved By:
Approved By:
Approved By:
Approved By:
Approved By:
Approved By:
Approved By:
Approved By:
WARNING!
The user must read and understand these
instructions or have them explained to
them, before using this equipment. Failure
to follow instructions may result in serious
injury or death.
INSPECTION AND MAINTENANCE LOG
This manual suits for next models
11
Other Ultra-safe Security Sensor manuals
Popular Security Sensor manuals by other brands

B.E.G.
B.E.G. LUXOMAT PD4-S-DAA4G Installation and operating instruction

Chauvin Arnoux
Chauvin Arnoux C.A762 user manual

Watts
Watts BLK01 RF installation manual

Waytronic
Waytronic MicroSound V3.11 quick start guide

STI
STI F3SJ-AM P Series user manual

evology
evology SA003E-B Assembly, Use, Maintenance Manual

Martec
Martec Sentinel MLXSP524WS quick start guide

Bosean Electronic Technology
Bosean Electronic Technology BH-4S user manual

König
König SAS-DVRPIR10 manual

Safety Vision
Safety Vision SV-CLCD56B Quick installation guide

Buckingham
Buckingham K9RETRO Attachment instructions

Politec
Politec Sandor Plus Installation and commissioning manual
