Ultra Start 430 Series User manual

FCC/ID Notice
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
CAUTION: Changes or modifications not expressly approved by the part responsible for compliance
void the user’s authority to operate this devise.
INSTALL GUIDE
www.ultrastarters.com
Technical Support: 866-698-5872 ext 0
[e-mail]
Covers All 430, 440, 441 and CJ Series
Advanced Security Systems

COMPONENTS
- Three Button Remote transmitter’s (430 Series) -Control Module
- Four Button Remote transmitter’s (440 Series) - Plug-in Led
- Plug-in Valet Switch (Program Switch) - Multi-Tone Siren
- 10 Pin Main Harness - Installation Guide
- 2 pin Keyless Entry harness - Owners Manual
Table Of Contents Page 2
Components
Wiring Diagram (With 10 pin connector) Page 3
Wiring Diagram (With 11 pin connector) Page 4
Wiring Description Pages 5-6
Recommended Installation Procedures
Basic Installation - Quick start
Shock Sensor Adjusting
Test The System
Programming Page 7-9
Program Overview
Quick View Programming
Program Menu
System Reset
Transmitter Programming Page 10
Car Jack Mode (CJ series Only)
System Operation Page 11
Relay Diagrams Page 12
INSTALL MANUAL REMOTE VEHICLE SECURITY
PAGE 2
Table of Contents

Blue
Connect to hood and / or trunk pin Hood Input
Green
Connect to door pin. (-) when opened Door Input
Purple
Connect to door pin. (+) when opened Door Input
Black
Connect to chassis ground Ground Input
Brown
Connect to Siren wire. 2amp Maximum Siren Output
Red
Connect to constant power. 20amp input 12 Volt Input
Yellow
Connect to vehicles ignition wire Ignition Input
Gray
*500ma negative output
Trunk Release
Orange
*500ma negative output (-) When Armed
REMOTE VEHICLE SECURITY INSTALL MANUAL
PAGE 3
For modules with 10 pin connector only. See page 4 for 11 pin connector.

INSTALL MANUAL REMOTE VEHICLE SECURITY
PAGE 4
Blue
Connect to hood and / or trunk pin Hood Input
Green
Connect to door pin. (-) when opened Door Input
Purple
Connect to door pin. (+) when opened Door Input
Blk/White
Dome Light Supervision Output (-) Dome Light
Black
Connect to chassis ground Ground Input
Brown
Connect to Siren wire. 2amp Maximum Siren Output
Red
Connect to constant power. 20amp input 12 Volt Input
Yellow
Connect to vehicles ignition wire Ignition Input
Gray
*500ma negative output
Trunk Release
Orange
*500ma negative output (-) When Armed
Red
Blue
For modules with 11 pin connector only.

REMOTE VEHICLE SECURITY INSTALL MANUAL
PAGE 5
Recommended Installation Procedures
White (+) Park lights Park light output.
Orange* (-) When Armed Negative output when system is armed.
Grey* (-) Trunk Release Negative output for trunk release.
Yellow (+) Ignition Input Input from vehicles ignition wire.
Red (+) 12Volt Input Constant 12 Volt input.
Brown (+) Siren Output Positive output for siren.
Black (-) Ground Input System ground input.
Purple (+) Door Input Positive door pin switch input.
Green (-) Door Input Negative door pin switch input.
Blue (-) Hood Input Negative input from hood pin switch.
Blk/White* (-) Dome Supervision 30 second (-) output when disarmed.*
*This wire is only available on models with the 11 pin connector.
10 Pin / *11 Pin Connector
Green* (-) Door Lock Door Lock Output (Programmable)
Red* (+) 12 Volt Output 12Volt Output for voltage inverter.
Blue* (-) Door Unlock Door Unlock Output (Programmable)
*NOTE: 500ma outputs ONLY!
3 Pin Connector Red
Under Hood Connections- Route the hood pin (optional) and Siren wire
through the firewall, into the engine compartment. Always try to pull the wires
through a factory rubber grommet. If drilling through the firewall, BE CAREFUL.
Check for obstructions on both sides of the firewall. After drilling use a snap in
grommet to protect the wires from sharp edges.
Mounting the module-Never mount the module in the engine compartment.
Select a location under the dash to install the main module. Be certain that the
module is securely attached and does not obstruct any serviceable areas.
Mount the module so that it cannot be seen if looking under the dash as it could
be easily unplugged by a thief. The module must be free from all moving parts.
Mounting the Siren- Choose a location in the engine compartment that is
away from high heat sources and direct exposer to water. The siren should be
mounted as well as grounded to solid metal. Run the wiring for the siren so that
it can not be seen or reached from below the vehicle.
Wiring Descriptions

INSTALL MANUAL REMOTE VEHICLE SECURITY
PAGE 6
Step 3- Test And Adjust The Shock Sensor (see page 3)
Recommended Installation Procedures
Basic Install
Installing the LED- Choose a location that will be highly visible when the
LED is installed. Most vehicles are equipped with knock out panels in the
dashboard, these panels are easily removable and can be easily replaced if
necessary. Once the location is picked, use drill bit and drill a hole through the
panel. Test fit the LED into the hole. Plug the Led into the Red connector on the
main module.
Installing the Program Button- Choose a location to mount the Program
Button. This location should be hidden and not visible from outside the vehicle.
Once the location of the switch is picked, use a 1/4” drill bit and drill a hole.
Remove the nut and push the Program Button through the hole. Replace the
nut and tighten until the switch is secure. Plug the Program Button into the
Blue connector of the main module.
Step 1 - Connect All Of the Following Wires
Black Ground Input System ground input.
Yellow Ignition Input Input from vehicles ignition wire.
Red Power Input Constant 12 Volt input.
Brown (+) Siren Output Positive output for siren.
White (+) Park lights Positive park light output.
Green* (-) Door Input Negative door pin switch input.
Purple* (+) Door Input Positive door pin switch input.
*Test for door pin type (+ or -) then connect the appropriate wire.
Step 2- Plug-In The Module
Step 4- Test The System
Your Basic Install Is Complete!

REMOTE VEHICLE SECURITY INSTALL MANUAL
PAGE 7
Changing A Programmable Setting
Quick View Programming
To Enter Program Mode
1) Make sure ignition is in the off position.
2) Within three seconds turn the key ON the OFF.
3) Press and release the Program Button two times.
4) The siren will chirp and the lights will flash once to confirm.
NOTE: If unit does not enter Program Mode, repeat steps 2-3.
** The ignition input wire(yellow on the 10 pin connector) MUST be connected.
If it is not connected it will not be possible to enter the Program Mode.
1) Enter Program Mode As explained above.
2) When in program Mode, change the desired Program Setting by pressing
the transmitter buttons in the following sequences.
NOTE: The Systems Default Setting Are Shown In Bold Lettering.
Programmable Feature Press Buttons One Chirp Two Chirps
Shock Sensor Disable #3-#3-#1 Disabled Enabled
Arm / Disarm Chirps #2-#1-#1 Chirps Off Chirps On
Ignition Auto Locks #1-#3-#2 Off On
Door Lock Timing #1-#3-#1 3 Second .75 Second
Double Pulse Unlock #2-#2-#1 Two Pulses Single Pulses
Door Input / Voltage Sense #1-#1-#3 Voltage Door Pin
Passive / Active Locks #3-#3-#2 Active Passive
Passive / Active Arming #1-#2-#3 Active Passive
Car Jack Mode*#2-#1-#3 Deactivated Activated
Siren/ Horn Output** #3-#2-#1 Siren Horn
System Reset #3-#3-#3 Confirmed by Three Siren Chirps
*CJ series ONLY
**441 series ONLY
Programming
#1#1 #2#2
#3#3
#1#1 #2#2
#3#3

INSTALL MANUAL REMOTE VEHICLE SECURITY
PAGE 8
Enter Program Mode
Entering program mode is done by the following steps:
1) Make sure ignition is in the off position.
2) Turn the ignition key ON - OFF, leaving key in the OFF position.
3) Press and release the Valet button two times.
4) The siren will chirp one time to confirm entering program mode.
( If this does not happen, turn ignition off, wait five seconds and repeat steps 1-4).
Shock Sensor Disable
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence:
#3 - #3 then #1
3- The siren will respond with the following:
1 Chirp Shock Sensor OFF
2 Chirps Shock Sensor ON
Arm/ Disarm Chirp
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#2 - #1 then #1
3- The siren will respond with the following:
1 Chirp Chirps Disabled
2 Chirps Chirps Enabled
Ignition Auto Locks
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#1 - #3 then #2.
3- The siren will respond with the following:
1 Chirp Auto Lock Disabled
2 Chirps Auto Lock Enabled
Door Lock Timing
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#1 - #3 then #1
3- The siren will respond with the following:
1 Chirp 3 Second Door Locks
2 Chirps 0.75sec Pulses
Double Pulse Unlock
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#2 - #2 then #1.
3- The siren will respond with the following:
1 Chirp Double Pulse Unlock
2 Chirps Single Pulse Unlock
NOTE: Repeat sequence to change selection

REMOTE VEHICLE SECURITY INSTALL MANUAL
PAGE 9
Voltage / Door Pin Sensing
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#1 - #1 then #3
3- The siren will respond with the following:
1 Chirp Voltage Sensing- No Door Pin Connection Needed
2 Chirps Door Pin- Door Pin Connection Required
Passive / Active Locks
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#3 - #3 then #2
3- The siren will respond with the following:
1 Chirp Active Locks
2 Chirps Passive Locks
Passive / Active Arming
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#1 - #2 then #3
3- The siren will respond with the following:
1 Chirp Active Arming
2 Chirps Passive Arming
Car Jack Mode (CJ series ONLY)
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#2-#1 then #3
3- The siren will respond with the following:
1 Chirp Inactive
2 Chirps Active
Siren/ Horn Output (441 series ONLY)
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#3-#2 then #1
3- The siren will respond with the following:
1 Chirp Siren
2 Chirps Horn
Reset System
1- Enter Program Mode - (Ignition ON-OFF, followed by Valet 2 times)
2- Press & release transmitter buttons in the following sequence
#3-#3 then #3
3- The siren will respond with the following:
3 Chirps System Reset
NOTE: Repeat sequence to change selection

INSTALL MANUAL REMOTE VEHICLE SECURITY
PAGE 10
Transmitter Programming
Follow the steps below to program the transmitters to the system s memory
Step 1 - Turn the Ignition key ON then OFF - Leaving Key Off.
Step 2 - Press and release the Program Button twice then press and hold.
Step 3 - The siren will respond with five chirps to confirm Transmitter Program Mode.
Note: If the siren does not respond, repeat Steps1&2
Step 4 - Continue to hold the Program Button and press lock button on each of the
transmitter’s to be programmed(Maximum of 3 Different transmitter codes).
Step 5 - The system will respond with a siren chirp each time a transmitter is programmed.
Exit - After five seconds the system will exit transmitter program mode automatically.
NOTE: You must program ALL of the transmitters to be used at one time. For the owner’s
security any transmitters not programmed at this time will be erased from memory.
*** This system will store a maximum of three transmitter codes in memory.
Car Jack Mode Activation (CJ series ONLY).
1) If the ignition key is On and a door is opened the Car Jack Mode
Timer will start. The siren will chirp one every second for 10
seconds then trigger into full alarm.
2) If the timer was activated by accident, within 10 seconds turn the
ignition key back to On then press and release the program
button one time. The Car Jack Mode Timer will stop.
3) If the timer is not deactivated Car Jack Mode will trigger into full
alarm. To deactivate turn the ignition On, then press and release
the program button 5 times then press unlock on the remote
transmitter.
Emergency Override.
If Car Jack Mode is not deactivated in time, the system will need to
be placed into Emergency Override. Turn the ignition key to the On
position then press and hold the program button for 20seconds. At
this time the customer can bring the vehicle back to the dealer for a
system reset.

REMOTE VEHICLE SECURITY INSTALL MANUAL
PAGE 11
Arm
1. Press and release the button.
2. The park lights will flash and the siren will chirp one time.
3. The doors will lock (optional).
NOTE:The LED will start flashing within five seconds. If installed, the starter
disable will activate.
Disarm
1.Press and release the button on the remote transmitter.
2.The park lights will flash and the siren will chirp two times.
3.The doors will unlock (optional).
NOTE:The LED will stop flashing. If installed, the starter disable will deactivate.
Silent Arm/Disarm
1. Press and release the button then press and release the button to
silent arm. The park lights will flash once to confirm.
2. Press and release the button then press and release the button to
silent disarm. The park lights will flash twice to confirm.
Panic
1. Press and hold the button on the remote transmitter.
2. The park lights will flash and the siren will sound.
3. Press and release the or the button to deactivate*.
*Panic will be active for 60 seconds or until disabled by the remote transmitter.
Trunk
1. Press and hold the button for 3 seconds.
2. The doors will unlock (optional), continue holding until the Trunk Release
activates.
Car Finder
1. Press and hold the button for 3 seconds.
2. The park lights will flash and the siren will chirp 5 times.
Alarm Functions

87
86 85
87a
30
87
86 85
87a
30
87
86 85
87a
30
87
86 85
87a
30
87
86 85
87a
30
Negative Type Door Locks
Positive Type Door Locks
5 Wire / Reverse Polarity Type Door Locks
Negative Park Lights- In some cases the park lights may flash erratically after
installing the negative park light relay. To correct this issue add a diode between the coil
pins of the relay as shown.
White
Ground
Negative park light output
Add IN4001 Diode
as shown

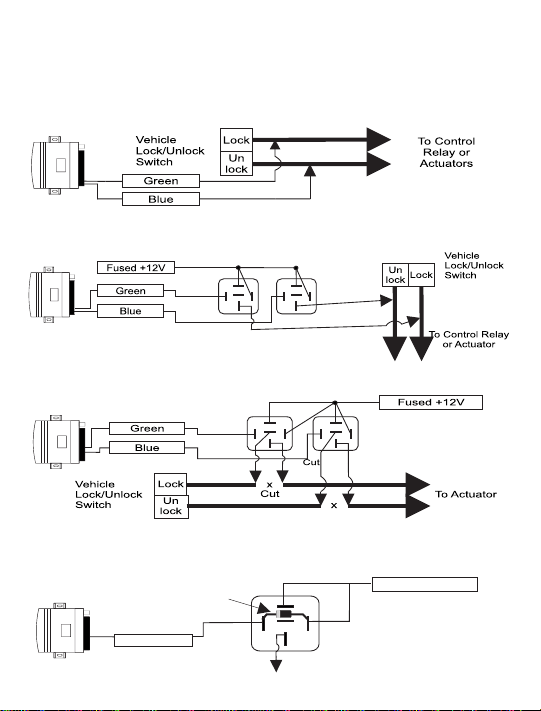

Relay Wiring Diagrams
INSTALL MANUAL REMOTE VEHICLE SECURITY
PAGE 12
