Ultra Start 1270 series User manual

INSTALL GUIDE
The system must be placed into Service Mode before any service work
is started on the vehicle. It is the sole responsibility of the vehicle owner
to ensure that this is done. The manufacturer accepts no liability or
responsibility for accidental starting of the vehicle.
CARBON MONOXIDE - Never Start in an Enclosed Building (Garage,
Warning!!
CARBON MONOXIDE MAY CAUSE SERIOUS INJURY, EVEN DEATH!
It is the sole responsibility of the user to place the system in Service Mode
when parking in an enclosed area ex: garage, partially enclosed area
ex: carport, or when the vehicle is being serviced.
NEVER INSTALL IN A MANUAL TRANSMISSION VEHICLE!!!
REV.2006.04
AUTOMATIC TRANSMISSION ONLY!
www.ultrastarters.com
Technical Support: 866-698-5872 ext 0
[e-mail]

Table of Contents
Table of Contents Page 2
Component/Feature List Page 3
Recommend Installation Procedures Pages 4-5
Wiring Diagrams Pages 6-7
Wiring Descriptions Pages 8-10
6 Pin Connector
Auxiliary Connectors
Quick Start Installation Page 11
Basic Installation
Important Tach Notes Pages 12-13
Auto Tach Learn
Quick Learn Tach
System Reset Page 14
Programming Overview Pages 15-16
Entering Program Mode
Quick View Programming
Program Menus Pages 17-22
Program Menu 1 (User Settings)
Program Menu 2 (Additional Settings)
Program Menu 3 (Starter Settings)
Program Menu 4 (Tach Settings)
Remote Transmitter Page 23
Transmitter Programming
Battery Replacement
Shock Sensor Page 24
Important Security Notes
Install Notes Page 25
Door Lock Relay Wiring Diagrams Pages 26-27
Diagnostics Page 28
INSTALL GUIDE PAGE 2
Please read manual thoroughly.

Feature List
- Control module
- Antenna with built in
Program Button and LEDs
- 3 pin auxiliary harness (not available on all models)
- 2 Remote Transmitters
- 6 pin Main harness
- 14 pin auxiliary harness
- 3 pin keyless entry harness
- Owner and Install guide’s
- Hood pin switch
- Auto Tach (Tachless, TL series only) learning with Quick Learn
- Run Time: 4/15/45 minutes
- Door locks: .125s/.75s/3s / Double unlock / Ignition lock/unlock
- Horn* or Siren** output 5ms/10ms/50ms
- Timer Mode Star with 3 different start intervals
- Programmable Wait to Start or (+/-) diesel Glow plug input
- Ground While Running/Anti-grind protection/Starter kill
- System Override Protection/Service Mode (Valet)
- Park light and LED diagnostics
- Panic mode
- Engine Idle mode
*1270/3270/3265 series
**2270/4270/4265 series
IMPORTANT!
NEVER INSTALL IN A MANUAL TRANSMISSION VEHICLE!!!
Components
PAGE 3 INSTALL GUIDE

Recommended Installation Procedures
Remote car starters and alarms should be professionally
installed. Review the installation and owner manuals and acquire a
vehicle wiring diagram for the vehicle to be worked on. Take a few
moments to walk around the vehicle looking for any damages and
make note if any are found. Also check other functions such as the
lighting system, warning or check engine lights. Check if the vehicle
has a factory security or anti-theft system (Transponder or PASS-
LOCK). These systems will require additional parts and labor to
complete the installation. Use of the proper tools and testing
equipment is also very important. Never use a grounding style test
light. Use only a circuit safe test light or digital Volt/Ohm meter to
test for wires in the vehicle. It is the sole responsibility of the installer
to test and verify all connections.
Proper Connections - Remote Starters can handle loads of up to
30 amps for extended periods of time. It is critical to insure that all
high current connections are properly soldered and insulated with
quality electrical tape. Failing to insure proper connections will result
in warranty being VOID and can result in damage to the vehicle and
remote starter module. The manufacture is not responsible for any
such damages. It only takes a few more minutes to do the job right.
Under Hood Connections - Route the hood pin and tach wire
through the firewall into the engine compartment. If possible route
the wires through a factory rubber grommet. If drilling a hole through
the firewall, BE CAREFUL. Always check for obstructions on both
sides of the firewall. After drilling, use a snap in grommet to protect
the wires from sharp edges. Use split loom to insulate the wires, route
the wires clear of moving parts and extreme heat. The hood pin
switch must always be installed and the tach wire should always be
soldered and taped properly.
INSTALL GUIDE PAGE 4

Recommended Installation Procedures
Mounting The Control Module - Never mount the module in the
engine compartment. Select a location under the dash to install the
main module. Be certain that the module is securely attached and
does not obstruct any serviceable areas. Do not force or jam the
module into tight places instead of mounting. The module must be
free from all moving parts such as brake, clutch and gas pedal
linkages. Do not place the module directly in front of a heater vent.
Installing the External Long Range Antenna - To insure the best
possible reception, place the antenna in the center of the windshield
below the tint screen and behind the rear view mirror. Before
attaching to the glass ensure that the surface is clean and dry. Run
the cable under the head liner and behind the A-pillar panel. Be
careful not to pinch the antenna cable. Plug the antenna into the
BLUE connector on the Control Module.
Testing The System - When the installation is complete, it will be
necessary to test that the system is working correctly. The system’s
default programming will work on the majority of vehicles, but might
need to be adjusted for some applications. If the installation
requires special timing or additional features, proceed to Program
Mode. The system must be Tach Learned (Tachless learned on TL
models) before the remote starter will make a start attempt. If the
remote starter does not make a start attempt check if the park lights
are flashing a diagnostic code, if so look the code up in the
Diagnostic Chart to find the shutdown input that is preventing the
system from starting. If the vehicle does make a start attempt but
fails to start. Check all connections and insure that all wiring is
connected correctly. The vehicle may be equipped with a factory
anti-theft system. Vehicles equipped with factory anti-theft systems
will usually have some sort of Security or Anti-Theft light located in
the instrument cluster.
PAGE 5 INSTALL GUIDE

INSTALL GUIDE PAGE 6

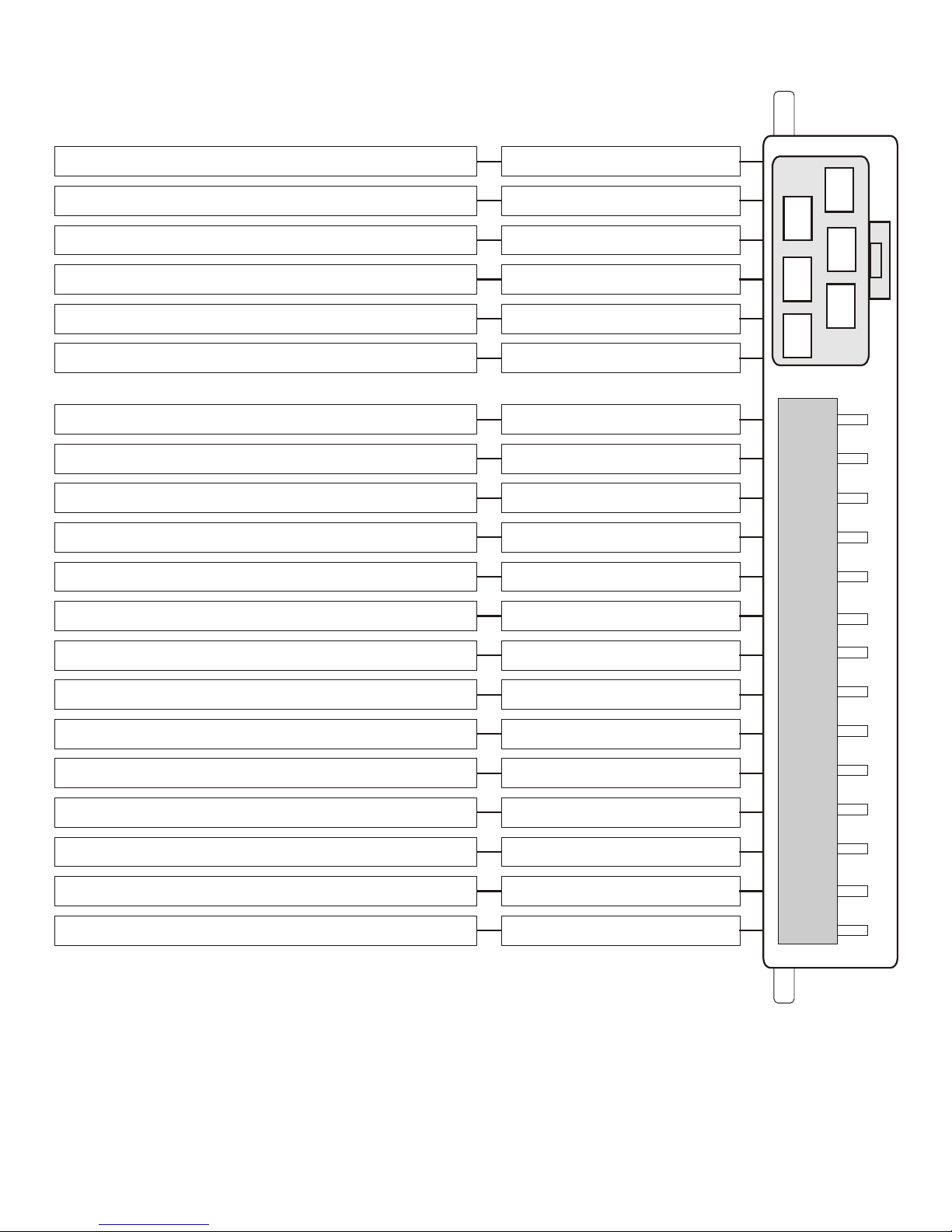

Wiring Diagram
11
55
33
22
44
66
1
2
3
4
5
6
7
8
9
10
11
12
13
14
YELLOW
YELLOW
PURPLE**
BLUE/WHITE
GREEN
RED/WHITE
WHITE
BLUE
RED
BROWN
GREEN/WHITE
RED
ORANGE
GREEN**
WHITE*
WHITE/BLUE
BLACK
BLUE
BLACK/WHITE
PINK
Re-arm Output (-)250ma
Door Pin Input (+)
Tach Detection Input (A/C)
Heater/Accessory Output (+)
Trunk Release Output (-)250ma
Park Light Output (+)10amp
Diesel Wait To Start Input (+or-)
12volt Input (+)30amp
Dis-arm Output (-)250ma
Hood Pin Switch Input (-)
Ignition Output (+)
N/A
Brake Light Switch Input (+)
Selectable Output (+)
Horn***/Siren**** Output (-/+)250ma
System Ground Input (-)
12volt Input (+)30amp
Anti-Grind/Starter Kill Output (-)250ma
Door Pin Input (-)
Starter Output (+)
*See pages 8 for jumper selection.
**Available on the 22xx & 42xx series.
Only one of the door inputs must be connected.
***Horn (-) Output on the 1270/3265/3270 series
****Siren (+) Output on the 2270/4265/4270 series.
NOTE: 250ma outputs are low current and may require the installation of a relay
for the activation of optional features and inputs.

PAGE 7 INSTALL GUIDE
ACTIVE RF ANTENNA
1 2
3
NOTE: The jumpers control the output from the WHITE wire on the
main 6- pin harness. This is an 30amp relayed output.
*The factory default setting of the Selectable Output jumper is position #3.
Output on White wire Jumper position
Second Starter Position 1
Second Accessory Position 2
Second Ignition Position 3
Status Led’s
Program Button
**The antenna MUST be connected for the system to operate
*The centre pin of the keyless entry harness is ONLY available with plug-in
devices such as the VP-1, DL-3, DL-7 and Data Bus Modules.
Overloading this output will damage the remote starter.
1
2
3
1
2
3
4
Jumpers
Wiring Diagram
GREEN
RED
BLUE
Door Lock Output (-)250ma
12v Output (+)250ma (see notes above)
Door Unlock Output (-)250ma
1
2
3
WHITE/VIOLET
BLACK
RED
Ground While Running Output (-)250ma
Ground Output (-)250ma
12Volt Output (+)250ma
**
*

INSTALL GUIDE PAGE 8
Wiring Descriptions
MAIN CONNECTOR (6pin)
Pin Function Description
1-YELLOW Starter Output - This wire will test 0V in OFF, ACCESSORY
and in the ON key positions. 12v during
START ONLY.
2-GREEN Heater/Acc Output - This wire will test 0V in the OFF and
START key positions. 12-14V in the
ACCESSORY key position.
3-RED 12volt Input(30amp) -Supplies 12votls for the IGNITION,
PARK LIGHT and SELECTABLE outputs.
4-RED 12volt Input(30amp) - Supplies 12 volts for ACC and
STARTER outputs.
5-BLUE Ignition Output - This wire will test 0V in the OFF and
ACCESSORY key positions.12V in the
IGNITION and START.
6-WHITE Selectable Output - Output for 2nd IGNITION, 2nd
ACCESSORY or 2nd STARTER.
OFF
ACCESSORY/ HEATER
RUN/ IGNITION 1
START
1.
2.
3.
TYPICAL IGNITION SWITCH

PAGE 9 INSTALL GUIDE
Wiring Descriptions
AUXILIARY CONNECTOR (14 pin)
Pin Function Description
1-YELLOW Re-arm(-) - 0.75 second pulse output when button is
pressed and after remote start shutdown.
Used for factory alarm re-arm.(menu 3)
2-RED/ Trunk Release(-) - Programmable output. Hold the button
WHITE for 3 seconds, output will stay active (max
5 seconds) or programmable (-)park light.
3-BROWN Dis-arm(-) - 0.75 second pulse when the button is pressed
and before remote starter activation.
Used for factory alarm dis-arm.
4-ORANGE Anti-Grind/Starter Kill(-) -Output active during remote start.
Programmable Starter Kill (menu 3)
5-WHITE/ Horn(-) - Output to activate factory horn. (12xx/32xx series) or
BLUE Siren(+) - Output to activate external siren. (22xx/42xx series)
6-N/A
7-PURPLE Door Pin(+) - Input to detect 12v when door is open.
8-WHITE Park Light(+) - 10amp positive output to activate park lights.
Programmable output (menu 2)
9-GREEN/ Hood Pin(-) - Input to detect ground when hood is open.
WHITE MUST BE CONNECTED.
10-GREEN Door Pin(-) -Input to detect (-) when door is open.
11-BLACK Ground(-) - System chassis ground input.
12-PINK Brake Light (+) - Positive brake light switch input. Used to
detect the brake switch being applied.
13-BLUE/ Tach(A/C) - A/C Tach signal input. Used to detect engine
WHITE speed to indicate vehicle is running.
(Coil, Injector, cam/crank position sensors)
14-BLUE Diesel(+/-) - Programmable Wait to Start Input. Detects 12v or
negative signals.(menu 3)

INSTALL GUIDE PAGE 10
Wiring Descriptions
LOCK/ UNLOCK CONNECTOR (3pin red)
Pin Function Description
1-GREEN Lock(-) - Programmable LOCK output. (Menu 1)
2-RED 12volts - 250ma 12volt output.
3-BLUE Unlock(-) -Programmable UNLOCK output
ANTENNA CONNECTOR (4pin Blue)
RF Antenna with Program Button and LEDs
AUXILIARY BYPASS CONNECTOR (3pin white)
Pin Function Description
1-WHITE/ Ground While Running(-) - 250ma ground output while
VIOLET remote starter is active.
2-BLACK Ground(-) - 250ma ground output.
3-RED 12volts(+) - 250ma 12volt output.

PAGE 11 INSTALL GUIDE
Step 1 - Connect All Of the Following Wires
Main Connector (6pin)
YELLOW Starter Output - 12volts during start position only.
GREEN Heater/Acc Output - 12volts in the accessory position off during
start and 14volts during run.
RED 12volt 30amp Input - 12volts from ignition harness or battery.
RED 12volt 30amp Input - 12volts from ignition harness or battery.
BLUE Ignition Output - 12volts in the ignition, start and run positions.
WHITE* Selectable Output - Selectable Output for vehicles that may
require a 2nd Ignition, Accessory or Start.
Auxiliary Connector (14pin)
BLACK System Ground Input - Connect to Chassis Ground.
WHITE Park Light Output - Connect to Park Light system.
GRN/WHT Hood Pin Input - Connect to the Hood Pin Safety Switch.
BLUE/WHT Tach Input - Connect to A/C Tach source. (Above 2 volts AC)
PINK Brake Switch Input - Connect to 12volts when the brake pedal
is applied.
for alarm series (2270/4270/4265 series)
GREEN** or Door pin Input - Connect to (-) wire when door open
PURPLE** Door pin Input - Connect to (+) wire when door open
Important!
Never install an AUTOMATIC TRANSMISSION module into a
MANUAL TRANSMISSION vehicle!
*See jumper selector position (page 7).
**Connect only ONE of the door input wires.

INSTALL GUIDE PAGE 12
IMPORTANT! The system must be Tach Learned before remote starting.
1) Turn the ignition key to the “ON” position. The park lights will turn “ON”
2) Start the vehicle with the key. The LEDs on the antenna will turn on if a
proper tach signal is detected**, after 30-35 seconds the park lights will flash
and the siren will chirp twice to confirm Tach Learn.
NOTE: The LEDs will not turn “ON” for Auto Tachless Learn on the TL series.
* If the LEDs do not come “ON” during tach learn, a proper tach signal
was not detected.
**If the park lights do not turn on check for proper connection on the BLUE
ignition wire at the 6-pin connector. This wire should be connected to the
vehicle main ignition wire and must not turn off during the start position.
If the ignition connection is correct, reset the system
(see System Reset page 14) and repeat step #1.
***If the park lights do not flash in auto tach learn mode it may be
necessary to connect to a different tach source. It is important the
ignition output from the remote starter is connected to a wire that does
not turn off in the crank position. The remote starter will not tach learn
if connected to the wrong wire.
For best results connect the tach wire to the coil pack or to a fuel injector wire.
New - If the original Tach source is changed a system reset must be
preformed before a new tach signal can be learned to the system.
This does not apply if the Quick Learn feature is being used.
(See page 14 for System Reset).
Your Basic Install Is Complete!
NOTES:
1) If the vehicle does not start when the remote starter is activated, the
park lights will flash a diagnostic code. (See Diagnostic Chart page 28).
2) If the vehicle still does not start, check all connections and check for
factory Anti-Theft system.
Auto Tach/Tachless Learn

PAGE 13 INSTALL GUIDE
Tach Learning the remote starter is one of the most important steps in
the installation process. Do not tach learn vehicle while the engine is
in high idle. To ensure the best possible tach setting, ensure that the
vehicle is at low idle/ normal operating RPM. Vehicles such as Toyota
and Honda may idle much higher when the engine is warm compared
to starting the vehicle when the engine is cold. The Quick Learn
feature may be used to tach learn the vehicle again but at a normal
engine RPM.
BRAKEBRAKE
1) Start the vehicle and leave it running with the ignition key
until the engine idles down.
2) Press and hold the brake pedal.
3) Press and release, then press and hold the Program Button.
4) The park lights will flash to confirm Quick Learn Tach*.
Important Tach Notes
Quick Learn Tach (with Blue/White connected only)
Quick Learn Tach is designed to re-learn the remote starters tach
setting while the vehicle is at normal idle RPM. Vehicles such as
Toyota and Honda will run at a very high idle for a number of minutes
when first started. If tach learned when the vehicle is at high Idle, then
remote started when the vehicle is cold. The engine does not
increase to the RPM that is was learned at. The following steps can
be used to learn tach at a more suitable idle:
NOTE: The System MUST be “Tach Learn” before the “Quick Learn”
feature will function.
TIP:“Manual Low Idle Learn”. While in “Auto Tach Learn” mode,
firmly apply the park brake and press the brake pedal. Place the
transmission into reverse gear this will lower the Engine Idle.

INSTALL GUIDE PAGE 14
The system reset will clear any changes made to the Program Menu
as well as the Tach setting.
1) Turn the ignition key from “Off” to “On” 3 times, ON-OFF-ON-OFF-
ON within three seconds. (Leave the key in the ON position)
2) Press and release the Program Button located on the antenna.
The park lights will turn on and the siren or horn (optional) will chirp
one time.
3) Then press and hold the Program Button until the park lights
flash and the siren or horn (optional) will chirp 3 times slowly to
confirm system reset. System is now reset to factory defaults.
NOTE: System Reset does not delete the remote transmitter codes
from memory.
Important! When the system reset is complete, the system must be
Auto Tach/Tachless learned before the remote starter will operate.
System Reset

PAGE 15 INSTALL GUIDE
1) With the ignition in the OFF position, turn the ignition key from “Off” to “On”
3 times, ON-OFF-ON-OFF-ON within three seconds.
NOTE: Leave the key in the ON position
2) Press and release the Program Button. The park lights will flash and the horn
(optional) or siren will chirp to confirm entering program mode.
3) Select desired Program Menu (See below). The park lights will flash and the
horn (optional) or siren will chirp to confirm the selected menu.
4) Select Programmable Setting:
a) Press and release the Program Button the correct number of times to
select the desired Program Setting. The park lights and LEDs will flash
and the horn (optional) or siren will chirp to indicate the Program Setting
that has been selected. For example: 1 flash/chirp= Program Setting 1;
2 flashes/chirps= Program Setting 2; etc…
b) Press and Hold the Program Button until the park lights flash and the horn
(optional) or siren chirps to confirm the desired setting. For example:
1 flash/chirp= Setting 1; 2 flashes/chirps= Setting 2; etc...
c) Turning the ignition key to the “Off” position or 30 seconds of no activity
will exit Program Mode. This will be confirmed with a light flash and a
long siren chirp or honk (optional). The Program Menu may be changed
at any time by pressing the transmitter button (below), this will allow the
installer to jump from one menu, then quickly jump to another menu and
change another setting without re-entering Program Mode.
Ignition 3x
On/Off
On/Off On
Press and
Release the
Program Button
For Menu 3,
press the
button
For Menu 1,
press the
button
For Menu 4,
press the
button
For Menu 2,
press the
button
Entering Program Mode
Program Menus
Menu 1: User Settings ( Button) Pages 17-18
This program menu is for the adjustments for the user and door lock options.
Menu 2: Additional Settings ( Button) Page 19
This program menu is for additional settings.
Menu 3: Starter Settings ( Button) Pages 20-21
This program menu is for various remote car starter applications.
Menu 4: Tach Settings ( Button) Page 22
This program menu is for tach signal adjustments.

INSTALL GUIDE PAGE 16
Menu 1 - Press 1 Flash 2 Flashes 3 Flashes
1 Ignition Lock Enabled Lock Only Disabled
2 Siren Output Type 1 Type 2 All chirps
3 Lock&Unlock Options Double Unlock 3 second 3/4 second
4 Unlock/Disarm 125ms 750ms
5. Passive Locks* Disable Enable
6. Shock Sensor* Disable Enable
7. Passive Arming* Type 1 Type 2 Disable
Menu 2 -Press 1 Flash 2 Flashes 3 Flashes
1 Secure Service Mode 15 seconds 5 seconds
2 Park Light Output 30 seconds (-) Park Light (+)Park Light
3 Siren Timing 5ms 50ms 10ms
4 The Button Output Trunk N/A Car Finder
5 Siren/ Horn Output* Horn Siren
Menu 3 -Press 1 Flash 2 Flashes 3 Flashes
1 Lock/ Unlock Type Type 1 Type 2 Normal
2 Gas/ Diesel Negative 15 second Gas/Positive
3 Rearm Output Type 1 Type 2 Rearm
4 Run Time 4 Min 45 Min 15 Min
5 Crank Time 10 seconds 3 seconds 5 seconds
6 Starter Disable/GWR Active Passive GWR
7 Safety Start** 2 Press Start 1 Press Start
Menu 4 -Press 1 Flash 2 Flashes 3 Flashes
1 Low Idle Learn Low Idle Learn
2 Adjust For Over Crank Reduced by 10%
3 Adjust For under Crank Increased by 10%
Bold type indicates settings that are Factory Default.
*Available on 2270/4270/4265 series ONLY.
**Not available on 3270/3265 and 4270/4265 series.
See the following pages for more detailed programming instructions.
Quick View Programming

PAGE 17 INSTALL GUIDE
Setting 1 Ignition Auto Lock
1) Enable 1 Flash/Chirp Doors Lock/Unlock with Ignition key.
2) Ignition Lock Only 2 Flashes/Chirps Doors Lock when ignition is turned “ON” only.
*3) Disable 3 Flashes/Chirps Lock/Unlock with remote transmitter ONLY.
Press & Release the Program Button 1 Time (Setting 1) Confirmed with 1 LED flash.
Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release
Press & Release the Program Button to proceed to the next step.
Setting 2 Siren/Horn Chirp Settings (14 pin auxiliary connector, pin 5)
1) Lock/Unlock chirps Disable 1 Flash/Chirp Chirps for Panic/Car Finder Only.
2) Lock/Unlock chirps Enable 2 Flashes/Chirps No Chirps for Start ONLY
*3) All Chirps Enable 3 Flashes/Chirps Chirps for all features.
Press & Release the Program Button 2 Times (Setting 2) Confirmed with 2 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 3 Door Lock Options
1) Double Unlock Pulse 1 Flash/Chirp .75 Second lock & 2 unlock pulses
2) 3 Second Lock & Unlock 2 Flashes/Chirps 3 Second Lock & Unlock Pulses
*3) .75 Sec Lock & Unlock 3 Flashes/Chirps .75 Second Lock & Unlock Pulses
Press & Release the Program Button 3 Times (Setting 3) Confirmed with 3 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 4 Door Unlock & Disarm Pulse Duration
1) Short Pulses 1 Flash/Chirp 125ms pulses on Unlock & Disarm outputs
*2) Normal Pulses 2 Flashes/Chirps 750ms pulses on Lock/Unlock & Disarm outputs
Press & Release the Program Button 4 Times (Setting 4) Confirmed with 4 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 5 Active/Passive Locks (2270/4270/4265 series ONLY)
1) No Auto-Lock with Passive Arm 1 Flash/Chirp Doors do not auto-lock with passive arming
*2) Doors Auto-Lock with Passive Arm 2 Flashes/Chirps Doors Lock when passive arming
Press & Release the Program Button 4 Times (Setting 5) Confirmed with 5 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
*(Default Settings)
Menu 1- User Settings
Press and
Release the
button for
Menu 1
Press and Release
the Program Button
Number of Times for
the Setting Chosen
Press and Hold
the Program Button
to Change Option
Ignition 3x
On/Off
On/Off On
Press and
Release the
Program
Button

Menu 1- User Settings...continued
Setting 6 Sensor Enable/Disable (2270/4270/4265 series ONLY)
1) Sensor Disabled 1 Flash/Chirp Impact Sensor Disabled
*2) Sensor Enabled 2 Flashes/Chirps Impact Sensor Enabled
Press & Release the Program Button 6 Times (Setting 6) Confirmed with 6 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/ siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 7 Passive/Active Arming (2270/4270/4265 series ONLY)
1) Passive Arming 1 Flash/Chirp Auto Arms 30 seconds after last door is closed
2) Active Arming with Rearm 2 Flashes/Chirps If unlock is pressed and no door is opened
*3) Active Arming 3 Flashes/Chirps Arms with remote transmitter only
Press & Release the Program Button 7 Times (Setting 7) Confirmed with 7 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/ siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
INSTALL GUIDE PAGE 18

PAGE 19 INSTALL GUIDE
Setting 1 Secure Valet Mode (time required to set the system into Service Mode)
1) Secure Valet 1 Flash/Chirp Hold the Program Button for 15 seconds
*2) Normal Valet 2 Flashes/Chirps Hold the Program Button for 5 seconds
Press & Release the Program Button 1 Time (Setting 1) confirmed 1 LED flashes.
Press & Hold the Program Button until the appropriate # of park light/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 2 Parking Light/Trunk Output (14 pin auxiliary connector, pins 2&8)
1) 30 sec. Output 1 Flash/Chirp On for 30 seconds when is pressed
2) Negative Park Lights 2 Flashes/Chirps Switches the Park Light/Trunk Outputs
*3) Park Lights 3 Flashes/Chirps 2 Flashes when is pressed
Press & Release the Program Button 2 Times (Setting 2) confirmed 2 LED flashes.
Press & Hold the Program Button until the appropriate # of park light/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 3 Siren Chirp Timing (14 pin auxiliary connector, pin 5)
1) 5 ms Pulse Output 1 Flash/Chirp Short(Quiet) siren Output
2) 15 ms Pulse Output 2 Flashes/Chirps Long(Loud) siren Output
*3) 10 ms Pulse Output 3 Flashes/Chirps Normal(Medium) siren Output
Press & Release the Program Button 3 Times (Setting 3) confirmed 3 LED flashes.
Press & Hold the Program Button until the appropriate # of park light/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 4 - The Button Output
1) Trunk
2) N/A
*3) Car Finder
Press & Release the Program Button 4 Time (Setting 4) confirmed 4 LED flashes.
Press & Hold the Program Button until the appropriate # of park light/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 5 Siren or Horn Output (2270/4270/4265 series ONLY)
1) Horn Output 1 Flash/Chirp Pulsed when alarm is triggered or panic.
2) Siren Output 2 Flashes/Chirps Constant output when alarm triggered.
Press & Release the Program Button 5 Time (Setting 5) confirmed 5 LED flashes.
Press & Hold the Program Button until the appropriate # of park light/siren chirps, then release.
Press & Release the Program Button to proceed to the next step
*(Default Settings)
Press and
Release the
button for
Menu 2
Ignition 3x
On/Off
On/Off On
Press and
Release the
Program
Button
Press and Hold
the Program Button
to Change Option
Menu 2- Additional Settings
Press and Release
the Program Button
Number of Times for
the Setting Chosen

INSTALL GUIDE PAGE 20
Setting 1 Special Door Lock/Unlock Operations (Factory Alarm Rearm).
1) Type 1 1 Flash/Chirp Unlock before start. Lock pulse after start and shutdown.
2) Type 2 2 Flashes/Chirps Lock pulse ONLY after remote start shutdown.
*3) Type 3 3 Flashes/Chirps Default Lock/ Unlock Pulses.
Press & Release the Program Button 1 Time (Setting 1) Confirmed with 1 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 2 Gas/Diesel Mode (14 pin auxiliary connector, pin 14)
1) (-) Input 1 Flash/Honk (-) Glow Plug input. Waits maximum 30 seconds.
2) Time Delay 2 Flashes/Honks Waits for approximately 15 seconds.
*3) Gas/ (+) Input 3 Flashes/Honks Waits 2 seconds if no diesel input is detected.
Press & Release the Program Button 2 Times (Setting 2) Confirmed with 2 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 3 Rearm Output (14 pin auxiliary connector, pin 1)
1) Type 1 1 Flash/Chirp Pulse after start and with lock.
2) Type 2 2 Flashes/Chirps Pulse after start only.
*3) Factory Re-arm 3 Flashes/Chirps Pulse with lock and after starter shutdown.
Press & Release the Program Button 3 Times (Setting 3) Confirmed with 3 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
Setting 4 Run Time
1) 4 Minutes 1 Flash/Chirp Runs for approx. 4 minutes when activated.
2) 45 Minutes 2 Flashes/Chirps Runs for approx. 45 minutes when activated.
*3) 15 Minutes 3 Flashes/Chirps Runs for approx. 15 minutes when activated.
Press & Release the Program Button 4 Times (Setting 4) Confirmed with 4 LED flashes.
Press & Hold the Program Button until the appropriate # of park lights/siren chirps, then release.
Press & Release the Program Button to proceed to the next step.
*(Default Settings)
Menu 3- Starter Settings
Press and
Release the
button for
Menu 3
Ignition 3x
On/Off
On/Off On
Press and
Release the
Program
Button
Press and Hold
the Program Button
to Change Option
Press and Release
the Program Button
Number of Times for
the Setting Chosen
