Ultrak CCU-100HD User manual

CCU-100HD
USER’S MANUAL
MANUAL NUMBER 518452-1960
Ultrak®
4465 Coonpath Road
Carroll, OH 43112
[phone]•[phone]•FAX [phone]
CENTRAL
CONTROL UNIT

Issue 1 – November 1998
Issue 1, Revision A – March 1999 – added host computer interface on COM 1, added operation and
programming for video alarms and optional MX-4248 I/O board for HD switcher.
1999 BY ULTRAK, INC.
ALL RIGHTS RESERVED
PRINTED IN THE UNITED STATES OF AMERICA
ULTRAK, INCORPORATED
P.O. BOX 200
LANCASTER, OHIO 43130
[phone]
ALL RIGHTS RESERVED. NO PART OF THIS PUBLICATION MAY BE REPRODUCED BY ANY MEANS WITHOUT WRITTEN PERMISSION FROM
ULTRAK, INCORPORATED.
THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS. HOWEVER, ULTRAK, INCORPORATED
CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THEREOF. THE INFORMATION CONTAINED
HEREIN IS SUBJECT TO CHANGE WITHOUT NOTICE. REVISIONS OR NEW EDITIONS TO THIS PUBLICATION MAY BE ISSUED TO
INCORPORATE SUCH CHANGES.

WARNING
THIS IS A CLASS A PRODUCT. IN A DOMESTIC ENVIRONMENT,
THIS PRODUCT MAY CAUSE RADIO INTERFERENCE IN WHICH
CASE THE USER MAY BE REQUIRED TO TAKE ADEQUATE
MEASURES.
NOTE
This equipment has been tested and found to comply with the limits
for a class A digital device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.

DECLARATION OF CONFORMITY
To The European Community Council Directive 89/336/EEC
ISSUED BY: Ultrak®, Inc.
4465 Coonpath Road NW
Carroll, OH 43112
USA
Tel: [phone]
Fax: [phone]
MANUFACTURER: Ultrak®, Inc.
DATE OF ISSUE: December 22, 1995
TYPE OF EQUIPMENT: CCTV and Security Surveillance Equipment
MODEL NUMBER: Alarm Interface Unit
AIU-100 - may be followed by any number of alphanumeric characters.
Auxiliary Interface Units
AIF-100/CO
Central Control Unit
CCU-100 - may be followed by any number of alphanumeric characters.
CCU-150 – may be followed by any number of alphanumeric characters.
CCU-200 – may be followed by any number of alphanumeric characters.
Joystick Multiplexer
MUX-100 – may be followed by any number of alphanumeric characters
MUX-05 – may be followed by any number of alphanumeric characters
Joystick Controller*
JPD-100, JPD-101, JPD-200 - may be followed by any number of alphanumeric
characters.
Small System Interface*
SSI-100 - may be followed by any number of alphanumeric characters.
Control Output Expander
COE-08, COE-16 - may be followed by any number of alphanumeric characters
Control Receiver
CRX-610/BX, CRX-801AX, CRX-801BX
*Standard EN60065 does not apply.
STANDARDS TO WHICH
CONFORMITY IS DECLARED:
EN50081-1 Emissions Standard, and EN50082-1 Immunity Standard.
EN55022 Radiated, Class A, EN55022 Conducted, Class A, IEC-1000-4-2, ESD, IEC-
1000-4-3, RF Fields, IEC-1000-4-4, Fast Transients/Burst.
EN60065 Safety Requirements for Mains Operated Electronic and Related Apparatus for
Household and Similar General Use
Ultrak®, Inc. hereby declares that the models specified above conform to the directive and standard as specified.
Donald L. Stephenson
Compliance Engineer
517775-3 Rev. O August 25, 1999

IMPORTANT SAFEGUARDS
1. Read Instructions - All the safety and operating instructions should be read before the unit is
operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the unit and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Cleaning - Unplug the unit from the outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning. See cleaning procedures under Maintenance.
6. Attachments - Do not use attachments not recommended by the product manufacturer as they
may cause hazards.
7. Water and Moisture - Do not use this unit near water - for example, near a bath tub, wash bowl,
kitchen sink, or laundry tub, in a wet basement, near a swimming pool, in an unprotected outdoor
installation, or any area which is classified as a wet location.
8. Accessories - Do not place this unit on an unstable stand, tripod, bracket, or mount. The unit may
fall, causing serious injury to a person and serious damage to the unit. Use only with a stand,
tripod, bracket, or mount recommended by the manufacturer, or sold with the product. Any
mounting of the unit should follow the manufacturer’s instructions, and should use a mounting
accessory recommended by the manufacturer.
A cart should be moved with care. Quick stops, excessive force, and uneven surfaces may cause
the cart to overturn.
9. Ventilation - Openings in the enclosure, if any, are provided for ventilation and to ensure reliable
operation of the unit and to protect it from overheating. These openings must not be blocked or
covered. This unit should not be placed in a built-in installation unless proper ventilation is
provided or the manufacturer’s instructions have been adhered to.
10. Power Sources - This unit should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply you plan to use consult your dealer
or local power company. For units intended to operate from battery power, or other sources, refer
to the operating instructions.
11. Grounding or Polarization - This unit may be equipped with a polarized alternating-current line
plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing
the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the polarized plug.
Alternately, this unit may be equipped with a 3-wire grounding-type plug, a plug having a third
(grounding) pin. This plug will only fit into a grounding-type power outlet. This is a safety feature.
If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete
outlet. Do not defeat the safety purpose of the grounding-type plug.
12. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying particular attention to cords
and plugs, convenience receptacles, and the point where they exit from the equipment.

13. Power Lines - An outdoor system should not be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it can fall into such power lines or circuits. When
installing an outdoor system, extreme care should be taken to keep from touching such power
lines or circuits as contact with them might be fatal. U.S.A. models only - refer to the National
Electrical Code Article 820 regarding installation of CATV systems.
14. Overloading - Do not overload outlets and extension cords as this can result in a risk of fire or
electric shock.
15. Object and Liquid Entry - Never push objects of any kind into this unit through openings as they
may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the unit.
16. Servicing - Do not attempt to service this unit yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
17. Damage Requiring Service - Unplug the unit from the outlet and refer servicing to qualified service
personnel under the following conditions:
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the unit.
c. If the unit has been exposed to rain or water.
d. If the unit does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions as an improper adjustment of
other controls may result in damage and will often require extensive work by a qualified
technician to restore the unit to its normal operation.
e. If the unit has been dropped or the cabinet has been damaged.
f. When the unit exhibits a distinct change in performance - this indicates a need for
service.
18. Replacement Parts - When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
19. Safety Check - Upon completion of any service or repairs to this unit, ask the service technician to
perform safety checks to determine that the unit is in proper operating condition.
20. Coax Grounding - If an outside cable system in connected to the unit, be sure the cable system is
grounded. U.S.A. models only - Section 810 of the National Electrical Code, ANSI/NFPA No. 70-
1981, provides information with respect to proper grounding of the mount and supporting
structure, grounding of the coax to a discharge unit, size of grounding conductors, location of
discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
21. Lightning - For added protection of this unit during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from the wall outlet and disconnect the cable
system. This will prevent damage to the unit due to lightning and power-line surges.

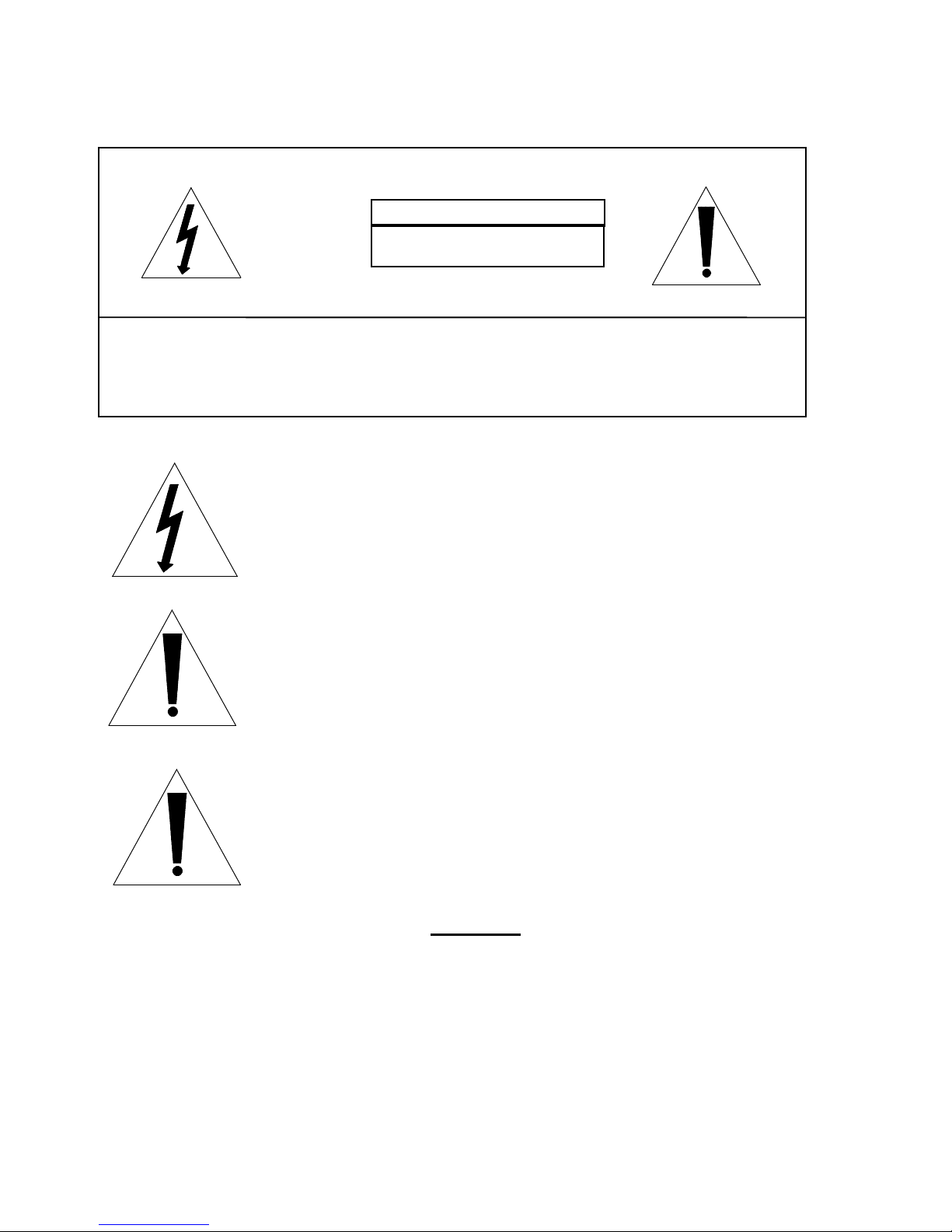

SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC
SHOCK, DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN
COVERS. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This label may appear on the bottom of the unit due to space limitations.
The lightning flash with an arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to presence of important operating and maintenance
(servicing) instructions in the literature accompanying the equipment.
220-240 Vac, 50 Hz power cords, input and output, must comply with
the latest versions of IEC Publication 227 or IEC Publication 245.
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.

HANDLING ELECTROSTATIC-SENSITIVE DEVICES
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
SENSITIVE
DEVICES
WARNING
ELECTROSTATIC SENSITIVE DEVICE. USE PROPER
CMOS/MOSFET HANDLING PRECAUTIONS TO AVOID
ELECTROSTATIC DISCHARGE.
NOTE: Grounded wrist straps must be worn and proper
ESD safety precautions observed when handling the
electrostatic-sensitive printed circuit boards.

DEFINITIONS OF TERMS
The following terms are used often in this manual. Please become familiar with
them before programming and operating the CCU-100/HD or CCU-100/HD/X
Central Control Unit.
TERM DEFINITION
PreShot A PreShot is a camera/lens position including pan, tilt, zoom, and
focus that is given a number and 16-character name. The
number is used by the operator to send the SmartScan unit to the
PreShot position. Up to 100 (00-99) PreShots can be
programmed and stored in each SmartScan unit. PreShots are
programmed using a KBD-100 Programming Keyboard and a
JPD-100 Controller. An operator sends a SmartScan unit to a
PreShot using the JPD-100 Controller or the KBD-100 Keyboard.
MultiCalls can also send cameras to PreShots. When the
SmartScan unit is viewing the PreShot, the title of the PreShot is
added to the video signal. If the SmartScan unit is called up on a
monitor, the title appears on the top of the monitor in a 60 Hz
system and on the bottom of the monitor in a 50 Hz system.
VectorScan A VectorScan is a video tour that is given a number and a 16-
character name. It is two or more PreShots (up to 64) from the
same SmartScan unit linked together with specified dwell times.
Up to ten (0-9) VectorScans can be stored in each SmartScan
unit. The number is used by the operator to start the VectorScan.
VectorScans are programmed using the KBD-100 Keyboard and
the JPD-100 Controller. They can be started/stopped by an
operator using the JPD-100 Controller or KBD-100 Keyboard.
VectorScans can also be started in a MultiCall. When a
VectorScan is running in a SmartScan unit, the title of the PreShot
currently being viewed is added to the SmartScan video signal.

TERM DEFINITION
Sector ID Sector IDs are used for labeling specific areas that the SmartScan
unit views. Up to 16 Sector IDs can be programmed and stored in
each SmartScan unit. Sector IDs are programmed using a KBD-
100 Programming Keyboard and the JPD-100 Controller.
Whenever the dome is under manual control and viewing a
programmed sector, the sector title is added to the SmartScan
video signal. The camera ID display must be enabled for the
Sector ID title to be added to the video signal. If the SmartScan
unit is being viewed on a monitor, the label appears across the
top of the monitor in a 60 Hz system and on the bottom of the
monitor in a 50 Hz system.
MultiCall A MultiCall can be programmed to perform one or more system
functions at the same time or one function at a time with
programmable dwell times between each function. The system
functions that can be included in a MultiCall are PreShots,
VectorScans, video switching, turning on/off VCRs or other
auxiliary devices, or starting a MultiCall (including itself).
MultiCalls are used to define the system's "automatic" response to
events such as date and time, alarms, JPD-100 Controller
function keys, and SHB-100 ShotBox function keys. MultiCalls
can be started/stopped "manually" by an operator at a JPD-100
Controller or KBD-100 Keyboard. Up to 256 (00-255) MultiCalls
can be programmed and stored with a number and a 16-character
title in the CCU-100. The number is used by an operator to start
a MultiCall or assign the MultiCall to alarm inputs, function keys,
etc.

i
TABLE OF CONTENTS
Page
SECTION 1. INTRODUCTION ....................................................................................1-1
1.1 DESCRIPTION...............................................................................................1-1
1.2 FEATURES ....................................................................................................1-1
1.3 SPECIFICATIONS .........................................................................................1-6
SECTION 2. INSTALLATION AND INTERCONNECTIONS.......................................2-1
2.1 GENERAL ......................................................................................................2-1
2.2 SETUP ...........................................................................................................2-1
2.2.1 DIP Switches...........................................................................................2-1
2.2.1.1 DIP Switches (S1-S4) for Communication Settings.............................2-2
2.2.1.2 DIP Switch (S5) for JPD Selection ......................................................2-4
2.2.2 Jumpers ..................................................................................................2-5
2.2.2.1 Enabling Channel 7 and Channel 8 or COM 1 and COM 2.................2-5
2.2.2.2 Battery Backup ....................................................................................2-5
2.2.2.3 Watchdog Timer..................................................................................2-6
2.2.2.4 Interrupt Jumper ..................................................................................2-6
2.3 INSTALLATION..............................................................................................2-6
2.3.1 Model CCU-100/HD Front Panel.............................................................2-8
2.3.1.1 Front Panel Cabling Requirements .....................................................2-9
2.3.1.2 Front Panel Connector Pin-Out Assignments......................................2-9
2.3.2 Model CCU-100/HD Rear Panel. ..........................................................2-10
2.3.2.1 Rear Panel Cabling Requirements ....................................................2-11
2.3.2.2 Rear Panel Connector Pin-Out Assignments ....................................2-12
2.3.2.3 Equipment Interconnections..............................................................2-14
2.4 INSTALLATION DRAWINGS.......................................................................2-25
SECTION 3. OPERATION ..........................................................................................3-1
3.1 CONTROLS AND INDICATORS....................................................................3-1

ii
TABLE OF CONTENTS (CONT)
Page
3.2 OPERATING PROCEDURE ..........................................................................3-1
3.2.1 JPD-100 Controller Interface...................................................................3-1
3.2.2 RS-485 Control Output Interface ............................................................3-5
3.2.3 Ultrak HD Series Video Switcher Interface .............................................3-5
3.2.3.1 MX-4248 I/O Module Option................................................................3-8
3.2.4 Time Initiated MultiCall............................................................................3-8
3.2.5 Alarm Interface........................................................................................3-9
3.2.6 SHB-100 ShotBox Interface ..................................................................3-13
3.2.7 AIF-100/CO Contact Output Control Interface ......................................3-14
3.2.8 Host Computer Interface.......................................................................3-14
SECTION 4. PROGRAMMING....................................................................................4-1
4.1 ON-SCREEN HELP .......................................................................................4-1
4.2 PROGRAMMING NOTES ..............................................................................4-2
4.3 PROGRAMMING THE CCU-100/HD CENTRAL CONTROL UNIT................4-3
4.3.1 Defining MultiCalls ..................................................................................4-5
4.3.2 List Programmed MultiCalls ....................................................................4-6
4.3.3 Programming MultiCalls ..........................................................................4-6
4.3.3.1 P - PreShot..........................................................................................4-9
4.3.3.2 V - VectorScan ..................................................................................4-10
4.3.3.3 M - MultiCall.......................................................................................4-11
4.3.3.4 C - Call ..............................................................................................4-12
4.3.3.5 A - Auxiliary Output Control (such as VCRs) .....................................4-16
4.3.4 Editing an Existing MultiCall..................................................................4-18
4.3.5 Deleting a MultiCall ...............................................................................4-18
4.3.6 Run MultiCall.........................................................................................4-19
4.3.7 Stop MultiCalls ......................................................................................4-19

iii
TABLE OF CONTENTS (CONT)
Page
4.3.7.1 JPD-100 Function Key or SHB-100 Function Key.............................4-20
4.3.8 Assigning MultiCalls to Alarm Inputs.....................................................4-20
4.3.9 Assigning MultiCalls to SHB-100 Function Keys...................................4-22
4.3.10 Assigning MultiCalls to JPD-100 Function Keys ...................................4-23
4.3.11 Assigning MultiCalls to Date and Time .................................................4-24
4.3.12 Setting the Date and Time in the CCU-100/HD Central Control Unit ....4-26
4.3.13 Camera and Monitor Setup...................................................................4-27
4.3.14 HD Switcher MX-4248 Optional I/O Module..........................................4-31
4.4 SETTING UP ALARM MONITORS AND VCRs. ..........................................4-32
4.5 SAMPLE SYSTEM PROGRAMMING ..........................................................4-34
SECTION 5. MAINTENANCE .....................................................................................5-1
5.1 GENERAL ......................................................................................................5-1
5.2 MAINTENANCE PROCEDURES...................................................................5-1
5.3 RETURNING EQUIPMENT TO ULTRAK®.....................................................5-2
APPENDIX A. SYSTEM CONFIGURATION .............................................................. A-1
A.1 GENERAL ..................................................................................................... A-1
A.1.1 JPD-100 Joystick Controllers ................................................................. A-1
A.1.2 AIU-100 Alarm Interface Unit ................................................................. A-1
A.1.2.1 AIU-100 Cross Reference for Alarm Numbers ................................... A-2
A.1.3 SHB-100 Shotbox .................................................................................. A-3
A.1.4 Camera Numbers................................................................................... A-4
A.1.5 Monitor Numbers ................................................................................... A-4
A.1.6 VCRs...................................................................................................... A-4
A.1.7 Alarm VCR On/Off Control..................................................................... A-4
A.2 PROGRAMMING RECOMMENDATIONS .................................................... A-7
A.3 PROGRAMMING WORKSHEETS................................................................ A-8

iv
TABLE OF CONTENTS (CONT)
Page
APPENDIX B. PROGRAMMING AIF-100 ALARM INPUTS ...................................... B-1
B.1 GENERAL ..................................................................................................... B-1
B.2 AIF-100/IN ALARM INPUT AUXILIARY INTERFACE UNIT ......................... B-1
B.2.1 Assigning a MultiCall to an AIF-100/IN Alarm Input ............................... B-2
B.3 AIF-100/AL ALARM INPUT AUXILIARY INTERFACE UNIT AND AIF-100/IO
ALARM INPUT AUXILIARY INTERFACE UNIT ...................................................... B-5
B.3.1 Assigning MultiCalls to AIF-100/AL and AIF-100/IO Alarm Inputs ......... B-9
APPENDIX C. MODEL CCU-100/HD QUICK REFERENCE GUIDE......................... C-1
LIST OF FIGURES
Figure 2-1. MODEL CCU-100/HD or CCU-100/HD/X EQUIPMENT BLOCK
DIAGRAM..................................................................................................2-7
Figure 2-2. FRONT PANEL EQUIPMENT CONNECTIONS .......................................2-8
Figure 2-3. EQUIPMENT CONNECTIONS FOR CHANNELS 1, 2, AND 3...............2-15
Figure 2-4. EQUIPMENT CONNECTIONS FOR CHANNELS 4 AND 7....................2-18
Figure 2-5-1. EQUIPMENT CONNECTIONS FOR CHANNEL 5...............................2-21
Figure 2-5-2. EQUIPMENT CONNECTIONS FOR CHANNEL 5...............................2-22
Figure 2-5-3. EQUIPMENT CONNECTIONS FOR CHANNEL 5...............................2-23
LIST OF DRAWINGS
Installation, CCU-100 Central Control Unit, Rack Mount (D/N 517815-1440) ............2-25
Installation, CCU-100 Central Control Unit, Desk Top Chassis (D/N 517815-2440) ..2-26

v
LIST OF TABLES
Table 4-1. KEYBOARD PROGRAMMING NOTES .....................................................4-2
Table 4-2. KEYBOARD COMMANDS ........................................................................4-43
Table A-1. AIU-100 ADDRESSING ............................................................................ A-2
Table A-2. SHB-100 Addressing ................................................................................ A-3

1-1
SECTION 1. INTRODUCTION
1.1 DESCRIPTION
This manual provides the installation, operation, programming, and maintenance
procedures for the CCU-100/HD or CCU-100/HD/X Central Control Unit. The only
difference between the CCU-100/HD and the CCU-100/HD/X is the input power
requirements. The CCU-100/HD is set up at the factory for 110-120Vac power input
and the CCU-100/HD/X is setup for 220-240Vac power input. Throughout this
manual, these units may be referred to as a CCU-100 or simply a CCU. Both units
are available in a rack mount or desk-top chassis.
1.2 FEATURES
The CCU-100/HD Central Control Unit has the following features to control Diamond
Series FastScan/SmartScan assemblies, CRX-500 Series, CRX-600 Series, and
CRX-800 Series Control Receivers, and an Ultrak HD Series Video Switcher.
•Control Input Multiplexing
Control Input Multiplexing means having more than one JPD-100 Joystick
Controller in the system controlling the FastScan/SmartScan assemblies, CRX-
500 Series and CRX-800 Series Control Receivers, and the HD Video Switcher
at the same time. Only one operator can control a receiver at a time. The
operator that requests control of a receiver last gets control. The CCU provides
control input multiplexing for up to four JPD-100 Joystick Controllers.
•RS-485 Control Output
The CCU-100/HD has two RS-485 data outputs for sending control commands to
Diamond series FastScan units, SmartScan units, and CRX-500 or CRX-800
receivers for conventional pan and tilts.

1-2
•SmartScan Programming
PreShots, VectorScans, and Sector IDs stored in SmartScan assemblies are
programmed using the CCU-100 Central Control Unit, a JPD-100 Joystick
Controller, and a KBD-100A Keyboard. Refer to your specific SmartScan
Operation and Programming Manual for programming procedures.
•MultiCall Control
MultiCalls are programmed and stored in the CCU to perform one or more of the
system control functions at once, or one function at a time with dwell times
between each function.
An operator can start a MultiCall manually at a JPD-100 Controller, KBD-100A
Keyboard, or SHB-100 ShotBox. MultiCalls can be started automatically in
response to an alarm or date/time.
•Time Initiated MultiCalls
The Central Control Unit is programmed to start MultiCalls, up to nine, on
selected dates at specific times. After a MultiCall is programmed to start at a
specific time, you can program it to repeat at specific intervals. This feature can
be used to accomplish fully automatic video tours at specific times of the day.
•Alarm Interface
The CCU-100/HD can receive 255 alarm inputs from AIU-100 Alarm Interface
Units, a Host Computer, or the MX-4248 I/O Module Option on the HD Series
Video Switcher. When the CCU receives an alarm, the CCU-100 starts the
MultiCall assigned to the alarm. Monitors and VCRs can be programmed as
alarm monitors and alarm VCRs. The video switched to an alarm monitor or
alarm VCR in response to an alarm is not released from the alarm device until
the alarm is acknowledged.

1-3
Up to eight AIU-100 units can be connected to the CCU-100 for 255 alarm
inputs. Up to eight AIF-100/IN units can be connected to the CCU-100 for 64
alarm inputs. A combination of AIUs and AIF-100/INs (totaling eight units) can
be connected to the CCU for various numbers of alarm inputs. The CCU polls
the AIUs and/or AIFs for changes of state (alarms). MultiCalls are programmed
and assigned to alarms.
The CCU accepts 255alarm numbers from a host computer. When the CCU
receives an alarm number from the host computer, it starts the MultiCall
assigned to the alarm number.
The MX-4248 I/O module has 24 alarm inputs. If the MX-4248 I/O Module is
installed, it replaces AIU-100, address 0, alarms 1 through 32. Alarms 25
through 32 on AIU-100, address 0, are not available. The host computer,
however, can use alarms 25 through 32.
Alarms are acknowledged automatically in the MultiCall assigned to the alarm or
by an operator at the JPD-100 Joystick Controller. Refer to the JPD-100 user’s
manual for manually acknowledging alarms. Refer to Section 4, paragraph
4.3.3.4 of this manual for programming a MultiCall to automatically acknowledge
an alarm.
•SHB-100 ShotBox Control Interface
A SHB-100 ShotBox has 16 quick keys. Up to 16 ShotBoxes can be connected
to the CCU-100 Central Control Unit. The user programs and assigns a MultiCall
to the quick key. When an operator presses a quick key, the CCU starts the
MultiCall assigned to the key. If an operator presses the same quick key while
the MultiCall is in progress, the CCU stops the MultiCall.

1-4
•Ultrak HD Series Video Switcher Interface
The CCU-100/HD Central Control Unit communicates with an Ultrak HD Series
Switcher at COM2. The CCU sends video switching commands (128 video
inputs by 32 video outputs) to the switcher, provides programming for the video
alarms monitored by the HDswitcher, and sendspan, tilt, and camera lens
commands to the HD switcher.
The camera title for each video input on the switcher can be programmed using
the CCU and a KBD-100A keyboard. The time and date in the switcher is
programmable through the CCU. The CCU updates the time and date in the
switcher every minute to keep the time in both units synchronized. The
positioning of the camera title and the date and time on each video output can be
programmed through the CCU.
The HD switcher can be programmed through the CCU to monitor each video
input channel for Video High, Video Low, and Loss of Video Sync and generate
an alarm. Video alarms for each channel can be enabled or disabled
individually. If a video alarm is enabled, the HD switcher monitors the video
level. If a video alarm is disabled, the HD switcher ignores the video level. If the
switcher detects high video, low video or loss of video sync, an alarm is
generated. When a video alarm occurs, the switcher sends the type of alarm and
the channel in alarm to the CCU. The CCU sends a message to the HD switcher
to display text for the oldest video alarm on one of the system monitors. This
monitor is referred to as the alarm display monitor and is user programmable
through the CCU. The CCU keeps track of which video channels are switched to
which monitors. If the video channel on the selected alarm display monitor is in
alarm, the alarm text cannot be displayed on the monitor. In this case, the CCU
searches its tables for a video channel that is not in alarm and sends a message
to the switcher to switch the channel with a good video signal to the alarm
display monitor so the alarm text can be displayed.
