Safety Notices
Please read the following safety notices before installing or using this
phone. They are crucial for the safe and reliable operation of the device.
Please use the external power supply that is included in the package.
Other power supplies may cause damage to the phone, affect the behavior
or induce noise.
Before using the external power supply in the package, please check with
home power voltage. Inaccurate power voltage may cause fire and
damage.
Please do not damage the power cord. If power cord or plug is impaired,
do not use it, it may cause fire or electric shock.
The plug-socket combination must be accessible at all times because it
serves as the main disconnecting device.
Do not drop, knock or shake it. Rough handling can break internal circuit
boards.
Do not install the device in places where there is direct sunlight. Also do
not put the device on carpets or cushions. It may cause fire or breakdown.
Avoid exposure the phone to high temperature, below 0℃or high
humidity. Avoid wetting the unit with any liquid.
Do not attempt to open it. Non-expert handling of the device could
damage it. Consult your authorized dealer for help, or else it may cause
fire, electric shock and breakdown.
Multi-media Video Phone UTT-990 User Manual

2
Do not use harsh chemicals, cleaning solvents, or strong detergents to
clean it. Wipe it with a soft cloth that has been slightly dampened in a mild
soap and water solution.
When lightning, do not touch power plug or phone line, it may cause an
electric shock.
Do not install this phone in an ill-ventilated place.
You are in a situation that could cause bodily injury. Before you work on
any equipment, be aware of the hazards involved with electrical circuitry
and be familiar with standard practices for preventing accidents.
Multi-media Video Phone UTT-990 User Manual

UTT-990
3
Contents
INTRODUCTION ............................................................................. 6
MULTI-MEDIA VIDEO PHONE OVERVIEW ...............................................6
WITH ATTACHMENT.....................................................................................................6
PHONE COMPONENT DESCRIPTIONS .............................................................................7
INTERFACE INTRODUCTION..........................................................................................9
TOUCH SCREEN DESCRIPTION ...................................................................................11
UPDATE OF THE PHONE ..............................................................................................13
BASIC FUNCTION ......................................................................... 15
SCREEN KEYBOARD ..................................................................................................15
STATUS BAR ..............................................................................................................16
MAIN SCREEN ...........................................................................................................18
FUNCTIONALAPPLICATIONS:......................................................................................20
DESKTOP WIDGETS....................................................................................................22
SETTINGS..................................................................................... 27
SYSTEM INFO.............................................................................................................27
NETWORK..................................................................................................................28
Network.................................................................................................................................28
PPPoE ....................................................................................................................................29
QoS........................................................................................................................................31
Port........................................................................................................................................33
Stun .......................................................................................................................................34
ACCOUNT ..................................................................................................................35
CALL .........................................................................................................................40
General..................................................................................................................................40
Dial plan ................................................................................................................................48
Account .................................................................................................................................49
DISPLAY ....................................................................................................................52
Screen saver ..........................................................................................................................52
Power indicator .....................................................................................................................54
TONE .........................................................................................................................54
Tone.......................................................................................................................................54
Volume ..................................................................................................................................55
Tone profile ...........................................................................................................................56
DATE TIME.................................................................................................................57
MAINTAIN..................................................................................................................58
Update...................................................................................................................................58
Multi-media Video Phone UTT-990 User Manual
UTT-990 ..........

4
Service port ...........................................................................................................................63
Password ...............................................................................................................................64
CWMP set..............................................................................................................................64
Backup...................................................................................................................................66
Update...................................................................................................................................67
AUDIO .......................................................................................................................67
Audio.....................................................................................................................................67
Audio param..........................................................................................................................68
VIDEO........................................................................................................................69
Video param..........................................................................................................................69
Bandwidth.............................................................................................................................70
REBOOT.....................................................................................................................71
PHONE APPLICATION................................................................... 72
PHONE.......................................................................................................................72
CONTACTS .................................................................................................................79
CALL LOGS ................................................................................................................84
NETWORK PHONEBOOK.............................................................................................85
MWI .........................................................................................................................87
MULTI-LINE OPERATION ............................................................................................88
OTHER APPLICATION ................................................................... 89
EMAIL .......................................................................................................................89
CALCULATOR.............................................................................................................92
NOTE PAD ..................................................................................................................94
BROWSER ..................................................................................................................96
RECORDER.................................................................................................................97
CLOCK.......................................................................................................................98
GALLERY.................................................................................................................101
FILE MANAGER .......................................................................................................103
FUNCTION—KEY.....................................................................................................105
EXPORTMANAGER...................................................................................................109
CAMERA..................................................................................................................112
SMS........................................................................................................................114
MUSIC .....................................................................................................................115
CALENDAR ..............................................................................................................118
MOVIE STUDIO ........................................................................................................119
PPPOE.....................................................................................................................120
DOWNLOADS ...........................................................................................................121
ANDROID SYSTEM SETTING ....................................................... 122
WIRELESS&NETWORKS ..........................................................................................122
Multi-media Video Phone UTT-990 User Manual

5
Ethernet configuration ........................................................................................................122
EQUIPMENT .............................................................................................................123
Voice....................................................................................................................................124
Display .................................................................................................................................124
Store ....................................................................................................................................124
Application ..........................................................................................................................124
PERSONAL ...............................................................................................................125
Security ...............................................................................................................................125
Language and input method ...............................................................................................126
Backup and reset.................................................................................................................126
WEB PAGE CONFIGURATION DESCRIPTION................................ 126
BASIC ......................................................................................................................127
NETWORK................................................................................................................128
VOIP ........................................................................................................................131
PHONE.....................................................................................................................136
MAINTENANCE ........................................................................................................138
SECURITY ................................................................................................................145
LOGOUT ..................................................................................................................146
Multi-media Video Phone UTT-990 User Manual

D900
6
Introduction

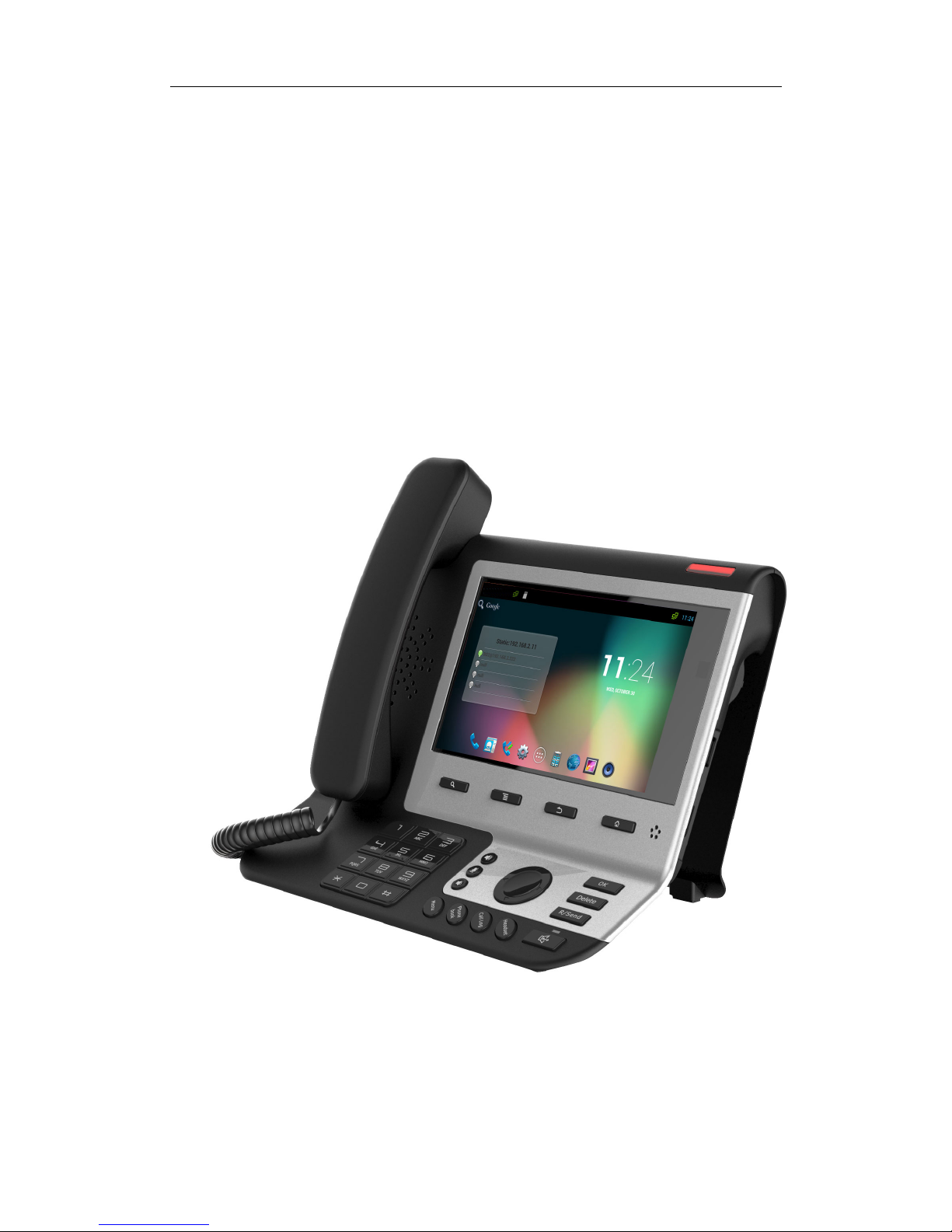

Multi-media Video Phone UTT-990 Overview
With Attachment
Item Function
Power Adapter Power supply for telephone.
Network Cable Used to access network for the phone.
Handset Make phone calls with the phone’s basic functions.
Handset Line Connected with the Handset and the phone.
Multi-media Video Phone UTT-990 User Manual

7
Phone component descriptions
Phone elements icon
Key Function
Search key. Tap the key and you can enter the search
interface.
Option key. You can browse and accomplish all
functions of the phone through pressing this key.
Return key. Press this button in the detailed interface, it
will return to the previous interface; If it is pressed in the
application program interface, the current program will be
closed.
Home key. Press this key, the phone will return to the idle
screen.
Multi-media Video Phone UTT-990 User Manual

8
Volume control key. Turn down or turn up all kinds of
volume by pressing these two keys.
Mute key. In the call mode, press this key in calling mode,
you can hear the other side, and the other side cannot hear
you; press this button again to leave this mode.
When the phone call is ringing, press this button to turn
off the ring tips.
Confirm key.
Delete key.
R/Send key. Use the key to dial the last call number. It
also could be used to make a phone call by sending a
phone number.
Navigation key.
Menu key.
Phone book. Tap to enter the contacts interface.
Call log. Tap to see call logs.
Headset key.
Digital keyboard.
Multi-media Video Phone UTT-990 User Manual

9
The hands-free key.
Interface introduction
Interface illustration picture 1
Name Meaning
（Left first）
SD Card interface Connect SD Card for
saving data.
（Left second）
DC Power Interface Input: 220V AC
Output: 12V DC
LAN Network interface
Specification RJ45, connect it
computer.
Multi-media Video Phone UTT-990 User Manual

10
（Left third）
(Right second）
WAN Internet interface Specification RJ45, connect it
to network.
（Right first）
Handset interface
Specification RJ9, used to
connect the Handset to the
phone.
Interface illustration picture 2
Name Meaning
(Left)
USB interface. Connect it to USB disk.
(Center)
Headset interface. Connect the Headset.
Multi-media Video Phone UTT-990 User Manual

11
(Right) HDMI interface.
Interface for high-definition
audio and video. A-A interface,
A to A interface.
Note:
1. Put the handset line into the handset interface according to the interface
illustration picture 1.
2. Install the backplane to the bottom of the phone with any of the above two
methods.
3. Plug the power adapter into the DC port; poke the other side of the power
adapter into an electric socket.
4. Insert one end of RJ45 network cable into the phone’s WAN port (Please
refer to the interface illustration picture 1) and put the other end into the
network equipment. After that, if the network connection status on the status
bar is displayed as , actions such as making some telephone calls and
surfing the internet could be done. If the network connection status on the
status bar is displayed as , please verify whether the network was
configured correctly and the network cable was plugged in correctly.
Touch Screen Description
You can touch the screen manually to complete the corresponding operation.
Here are three ways to use:
Click: Any icon or button can be clicked to realize its function.
Multi-media Video Phone UTT-990 User Manual

12
Long press:
Long press the standby will pop-up choice wallpaper desktop option box,
you can according to the prompt to change the wallpaper.
Figure:
Slide:
Slide your finger on the screen upward or downward slowly to move the
interface on the screen.
On some kinds of screen such as idle desktop, you can switch the desktop just
Multi-media Video Phone UTT-990 User Manual

13
by moving your fingers on the screen to left or right. Dragging your finger to
slide will not select or activate anything on the screen.
You can just wait or gently press any place of the screen to stop the sliding
after your finger rapidly sliding on the screen. Gently pressing or touching to
stop the scrolling will not select or activate anything on the screen.
Update of the phone
Please contact with service provider to get the new version to upgrade.
Strongly recommended:
1）Before the upgrade the new version, please send personal data backup to
mobile devices, to prevent accidental loss.
2）Once the upgrade process, please do not power blackout, equipment may not
be able to start.
Auto provision: Keep phone registered successfully and configure parameters
about automatic updates such as server address, upgrade file name, time
interval and so on. And then the phone will check for updates from the server at
a fixed time intervals and upgrade itself. See the specific automatically upgrade
instructions, please switch to Update.
Manual upgrade---- USB:Will upgrade package in U disk and inserted the U
disk into the USB interface (the content of the need to be updated).Before the
phone restart, at the same time hold down the "handfree sets" and "headset
button", then insert the power supply and will enter the unit at this time to
Recovery mode, you can see under the Recovery operation menu, shown below：
Multi-media Video Phone UTT-990 User Manual

14
Through the hard on the keyboard "navigation button", "backspace", "enter", to
operate on the Recovery menu.
Select “apply update from udisk” or “apply update from external storage” (SD
card), enter the subdirectory and select the upgrade packages, click on “OK”
key to start upgrade .After the success of the upgrade, there will be prompt on
interface, the user can immediately return to the main menu select “reboot
system now ”to restart the system to start using the new version.
Notes: In some cases after upgrading, in order to avoid new and old version
data of incompatible problems, needs to remove user data and system cache
(the so-called double wiper) whether you need specific clear, please refer to the
Release Note.
Web Update：
Input the phone’s IP on the web;
Input the username and password to phone’s web;
Enter “MAINTENANCE”—“UPDATE”;
Click the button “Browser”to select the image on your PC and click the button
“Update”;
Waiting, the system will be update success.
Multi-media Video Phone UTT-990 User Manual

15
Basic Function
Screen Keyboard
If you need to input, click on the input box. A screen keyboard will
automatically be displayed. (Every input method has its own unique screen
keyboard).For instance:
Press the “return key”to close the screen keyboard after finishing the input.
Input Text:
1. Tap the text field.
2. Tap the screen keys on the keyboard.
Type in capital letters Shift key , tapping shift key can switch
the uppercase and lowercase.
Delete character
Delete character, tab key to delete a
character, if you want to delete many characters,
tap this icon for a long time.
Type in digital, Tap key to switch to digital,
Multi-media Video Phone UTT-990 User Manual

16
punctuation and
symbols
punctuation and symbols input interface.
Space Space symbol.
Enter Enter symbol, tap this key to switch to next line.
Status Bar
All of the status information about UTT-990 is displayed on the top of the screen.
You can click on the notification icon in the left of the status bar or drag down
the drop-down list with your fingers to enter the notification panel to further
review and deal with all of the information.
Note:The right icon of the status bar can’t be drag, just the left can.
Status bar Meaning
The rig The right icon of the status bar
Handset mode Indicates that the phone is in the handset
mode.
Headset mode Indicates that the phone is in the headset
mode.
Silent mode
Shows that the phone is in silent mode.
This mode can be canceled by directly
clicking the mute button when the
screen is in the idle interface.
Hands-free mode Indicates that the call is in hands-free
status.
Alarm clock If you set an alarm clock, the alarm
clock icon will display on the status bar.
The left icon of the status bar
Network
status (successful)
Displays that the network connection is
successful. Tap the icon directly into
Multi-media Video Phone UTT-990 User Manual

17
the network settings.
Network status
(failed)
Shows that the network connected
failed. You need to check the network is
properly connected and the parameters
are configured correctly.
SD card
Displays that the phone successfully
identifies the USB device. Tap the icon
directly to switch into the USB
application wizard.
Missed calls
Shows that there are several missed
calls. You can click on the icon
directly to switch into the call log.
Open the DND
Shows that the phone is on “Do Not
Disturb”mode. Any of the call could
be directly rejected before it’s ring
interface appears. There is only a
missed call icon leaving in the status
bar.
Call forward Shows that the call forward function is
opened.
Auto answer Shows that the auto answer function is
opened.
Black list
If a phone number is
added to the firewall, then open
the firewall function, all calls about this
phone number could be rejected
directly.
New record Indicates that there are several new
Multi-media Video Phone UTT-990 User Manual

18
unread phone recordings.
Main Screen
UTT-990 will go directly to the main screen after rebooting.
The main screen contains five idle interfaces. Each one can display some
programs shortcuts. You can switch the desktop just by moving your fingers on
the screen to left or right.
Default Screen:
The idle interface
The icon at the upper left of the idle interface is the phone status icon. It can
display some status including network connection status and the registration
status of each line in time.
Click the "Application" icon , and then it will jump to the following
interface.
You can slide your fingers on this interface to glance over all of the
applications. You can click on some program icons to open the corresponding
Multi-media Video Phone UTT-990 User Manual

19
application program.
The application program interface
If you want to delete application shortcuts on the idle interface, you can long
press the shortcut, and then put it into the dustbin at the bottom of the interface.
(Note: Let it go just as the icon and the dustbin turned red as is shown at the
following picture.)
Multi-media Video Phone UTT-990 User Manual
