Hyundai Accent In-Dash Navigation
DIY Installation Guide
[Single CD Player Use Only]
MODEL: Hyundai Accent 2012
(Professional Use)
WWW.BUYUNAVI.COM

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
2
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
Accent fascia kit:
- Fascia
- Main LCD Panel w/Mounting Bracket
DISCLAIMER:
This ‘Do-It-Yourself Installation Guide’ is intended for informational and reference purposes only.
We do not recommend implicitly or explicitly, to anyone, performing any of the procedures
described in this guide. We are also not responsible for any property damage, personal injury
and/or death, or any other loss or damage that may result from following this informational guide.
Proceed with caution and care when performing modifications to your vehicle.
Be advised that making modification to your vehicle may void your manufacturer’s warranty.
Hyundai is a registered trademark of Hyundai Motor America. iPod is a registered trademark of Apple, Inc.
Kia is a registered trademark of Kia Motors America, Inc. Bluetooth is registered trademark of Bluetooth SIG, Inc.
Take care not to scratch the center fascia panel, dash trim, shift knob, etc.
Eject disc before removing the audio unit to prevent damaging the CD player’s load mechanism.
Disconnecting the negative (-) battery terminal is recommended prior to installation.
Do not touch the circuit board and the terminal connector of the flat cable with your bare hands.
Make sure all connectors and cables are plugged in properly.
All ground wires provided must be connected to chassis ground.
MAIN COMPONENTS
(Not actual size, Items shown may vary)

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
3
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
Front bracket replacement
Trip interface board
GPS antenna + Magnetic plate
Control box + SD Card
External speaker
SMART cable
SD + USB interface cables
Front replacement bracket
Bluetooth ant. board
(Continued)
Mounting brackets (L & R)

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
4
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
TOOLS REQUIRED:
Masking Tape
Double-sided Tape *
Electrical Tape
Velcro
Dash Trim Removal Tool *
Zip/Cable Ties
Scissor *
Plastic/Tin Snips *
Pliers *
Screwdriver (Phillips-head, Magnetized) *
Magnetic Screw & Bolt Tray
Power Drill
Unibit
Electrical Connectors & Tools -
(Wire stripper, Crimper, T-Tap, etc.)
*Required Tools
Pre-installation picture of non-navigation equipped models
(Trim levels may vary)

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
5
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
TPMS (TIRE PRESSURE MONITORING SYSTEM)
WARNING LAMP –ELECTROMAGNETIC INTERFERENCE
SYMPTOM/CONDITION
The TPMS malfunction indicator lamp may be illuminated if the vehicle is moving around electric power
supply cables or radio transmitters at police stations, government and public offices, broadcasting
stations, military installations, airports, transmitting towers, etc. External electronic devices connected
to the vehicle's power outlets (notebook computer, seat warmer, massager, coolers, GPS navigation,
mobile phone charger, etc.) may also cause this condition. The TPMS malfunction indicator lamp
generally turns off after the vehicle is removed from such interferences.
DIAGNOSIS:
If the TPMS indicator lamp is ON, and all four wheel sensors are checked and are working correctly,
external electronic devices connected to the vehicle's power outlets (notebook computer, seat warmer,
massager, coolers, etc.) may be the cause of this condition. Car manufacturers are aware that any
aftermarket device operating especially on the CAN-Bus system can trigger random warning lamps.
ACTION:
1. Please inspect if there are any other electronic devices inside the vehicle that may cause
electromagnetic interferences with the TPMS.
2. Drive the vehicle out of the strong electric field for about 5 minutes to verify that the condition is
corrected.
3. Relocate the Control Box and its related cables away from the TPMS sensor (typically located
behind the glove compartment).
4. If the above doesn’t work, use a metallic shield wrap or a similar material to wrap around the
Control Box and its cables with both ends of the shield connected to chassis ground at the point
of entry.
GPS ANTENNA INSTALLATION
The delay when the GPS receiver is first switched on is due to the latest ephemeris data being
downloaded, which is essential for the GPS receiver. The data is valid for around 4 hours and takes
approximately 20 seconds with a clear line of site to a satellite. It takes longer if using multiple satellites,
for instance if the GPS receiver is moving during first acquisition.
The antenna needs to be facing the sky through a non-metallic enclosure.Ametallic enclosure (including
window tints) will prevent the RF signal being received by the antenna and cause a Faraday cage effect.
Likewise, positioning the antenna near to obstructions such as laptop screen or where hands will be over
the antenna should also be avoided, as the shielded will have a negative performance.
The GPSAntenna base is magnetic. On metal vehicles, position the antenna in the center of the vehicle
at the highest point.
For vehicles with non-metallic mounting surfaces, a metal plate with adhesive strips has been included
in the kit for easy mounting and installation. It is STRONGLY recommended to use this metal plate
underneath the antenna as it will improve signal acquisition.
Once the antenna has been positioned, route the antenna cable carefully to avoid damage.
Position the GPS antenna in the center of the vehicle at the highest point with a clear view of the sky.

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
6
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
> INSTALLATION STARTS HERE <

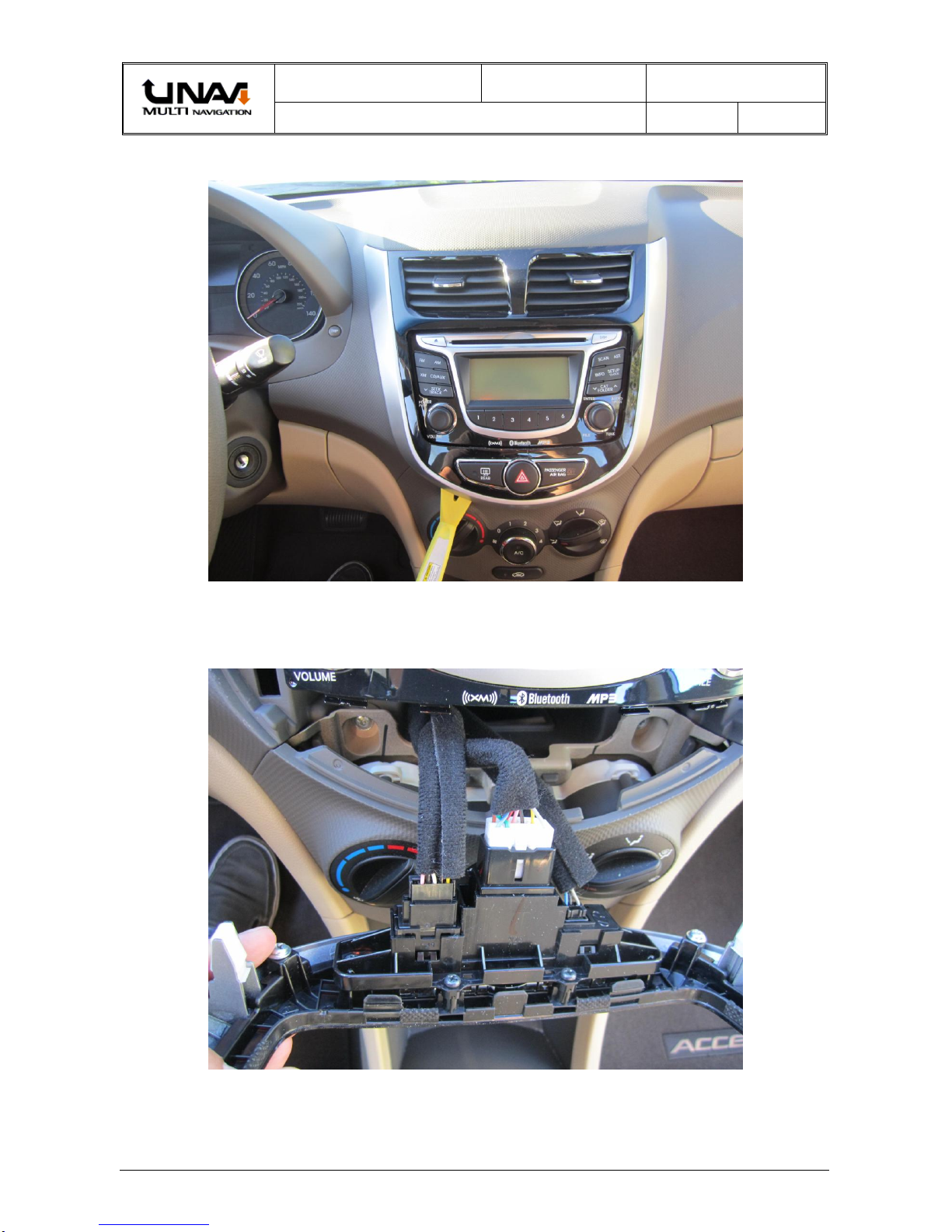

Gently pull out the center fascia panel using a panel removal tool.
(Apply protective tapes and take care not to damage and scratch the interior dash and its related parts)
Carefully disconnect all connectors behind the panel assembly.

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
7
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
Disassemble the following components from the factory fascia panel:
Air vents (L/R), Fascia panel garnish, Hazard lamp switch assy., Mounting clips
Assemble the removed components directly on to the UNAVI fascia kit as shown.

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
8
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012

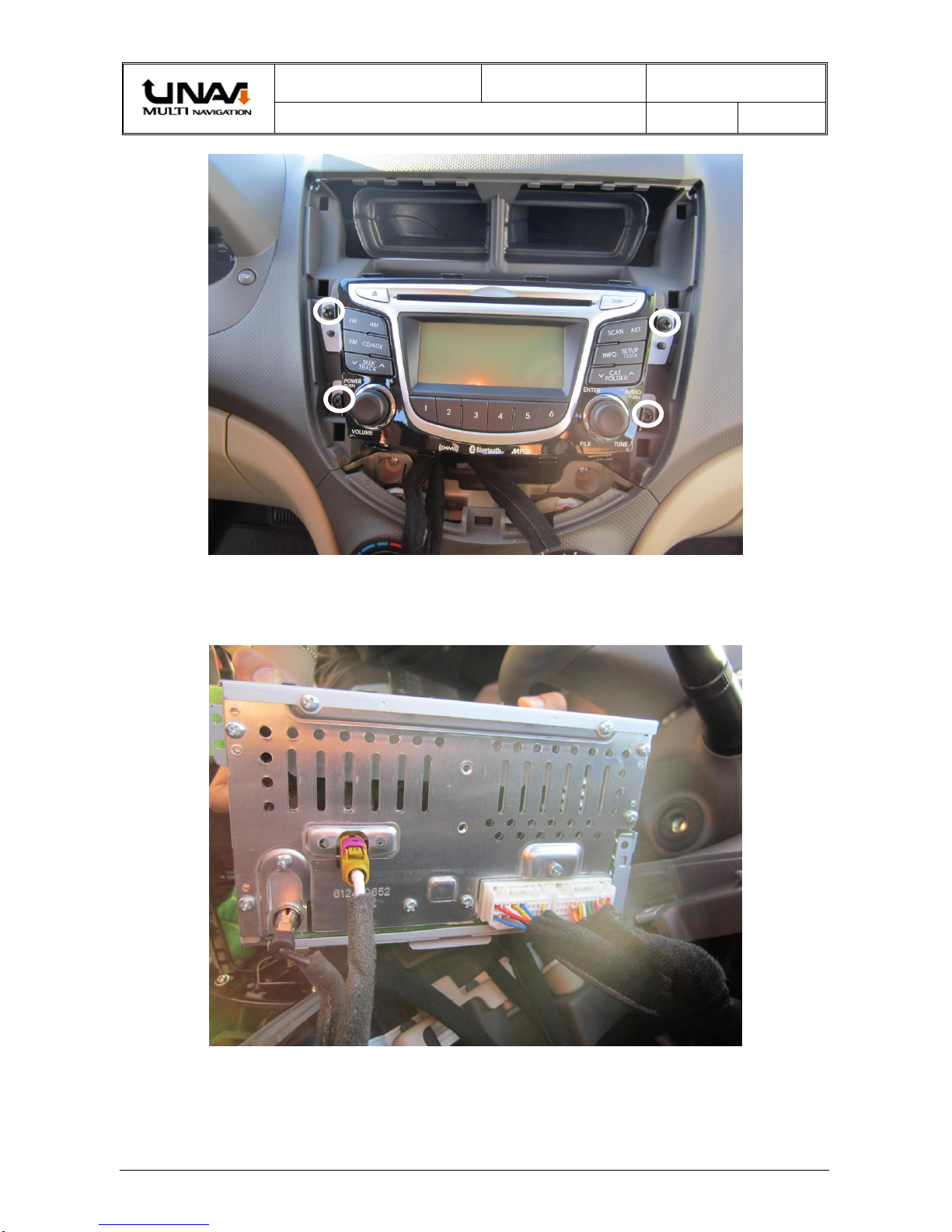

Remove the audio assembly after loosening the mounting screws (4EA).
As the audio assembly is being pulled out, carefully disconnect all cables behind the unit.

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
9
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
As shown, remove all screws securing the audio faceplate.
Loosen the screws (Left 3EA, Right 3EA) and remove the mounting brackets.

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
10
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
Use a flathead screwdriver to loosen the tabs and gently pull out the audio faceplate.
Gently pull back the sleeve of the Bluetooth antenna cable
to disconnect it from the back of the audio faceplate.
(Applies only to models equipped with the Bluetooth system)

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
11
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012

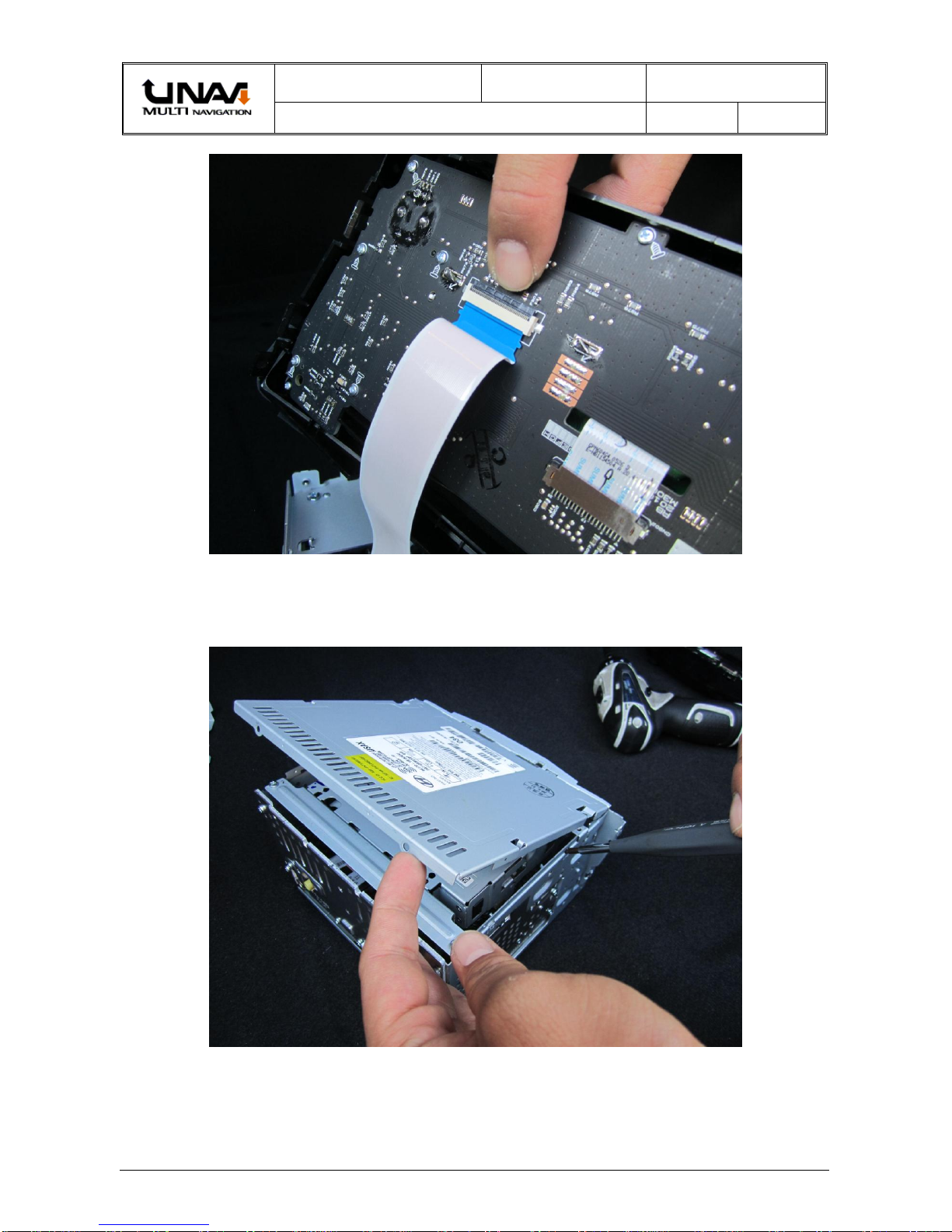

Disconnect the ribbon cable (FCC) from the back of the faceplate. **Use Caution**
Remove the screws (4EA) to disassemble the top cover of the head unit.

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
12
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012

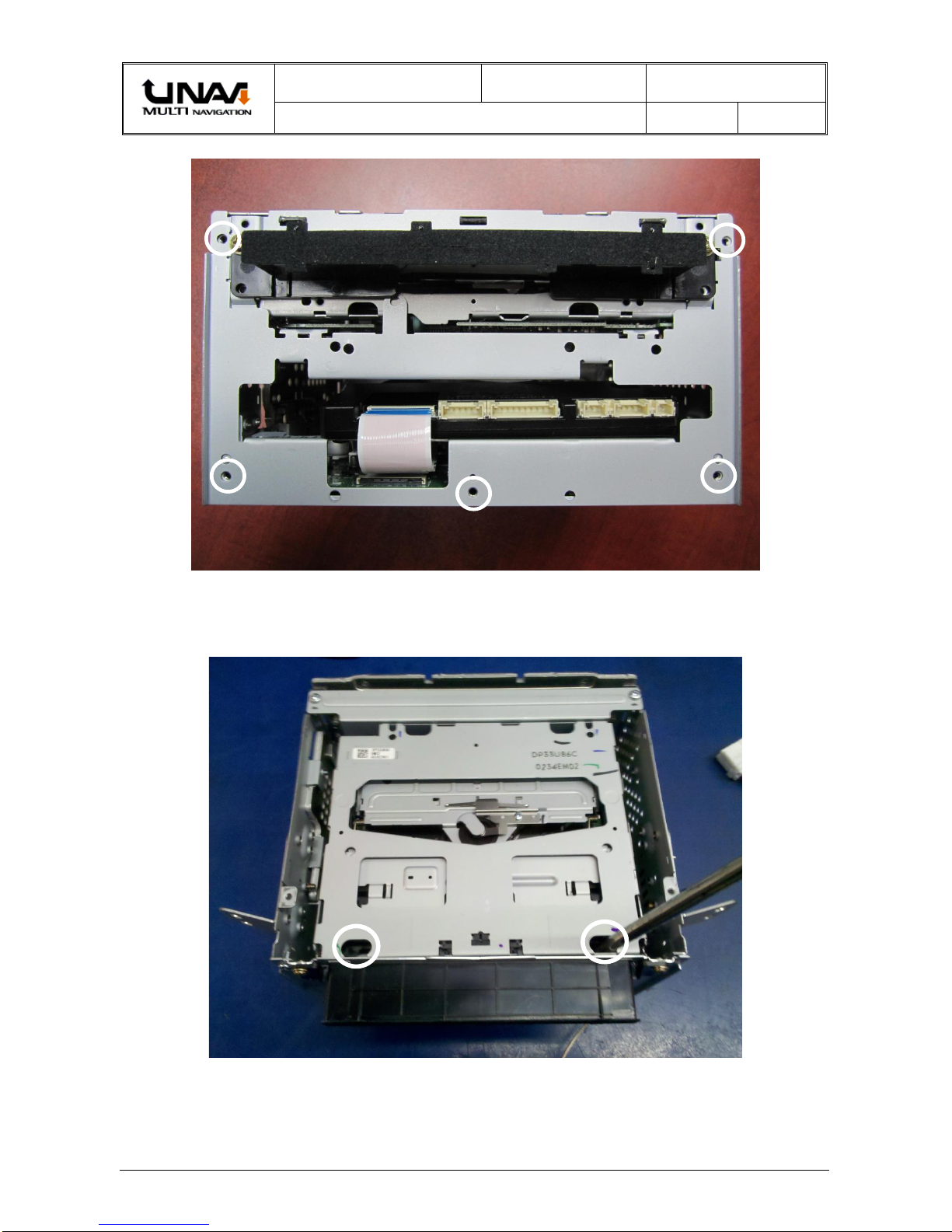

Remove the screws hidden underneath the two openings marked in white circle.
Front view of the audio head unit with faceplate removed.
Remove the screws (6EA) securing the front bracket. (These screws will be reused)

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
13
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
Image of the audio head unit with front bracket removed.
(Do not disconnect the ribbon cable from the audio side and take care not to damage it)
Assemble the Trip interface board onto the front replacement bracket piece as shown.
(Use screws provided in the kit to mount the Trip interface board).

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
14
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
If the vehicle is equipped with the Bluetooth system, mount the Bluetooth
antenna board behind the front replacement bracket using a double-sided tape.
Slide in the ribbon connector through the bottom opening of the front replacement bracket.

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
15
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012

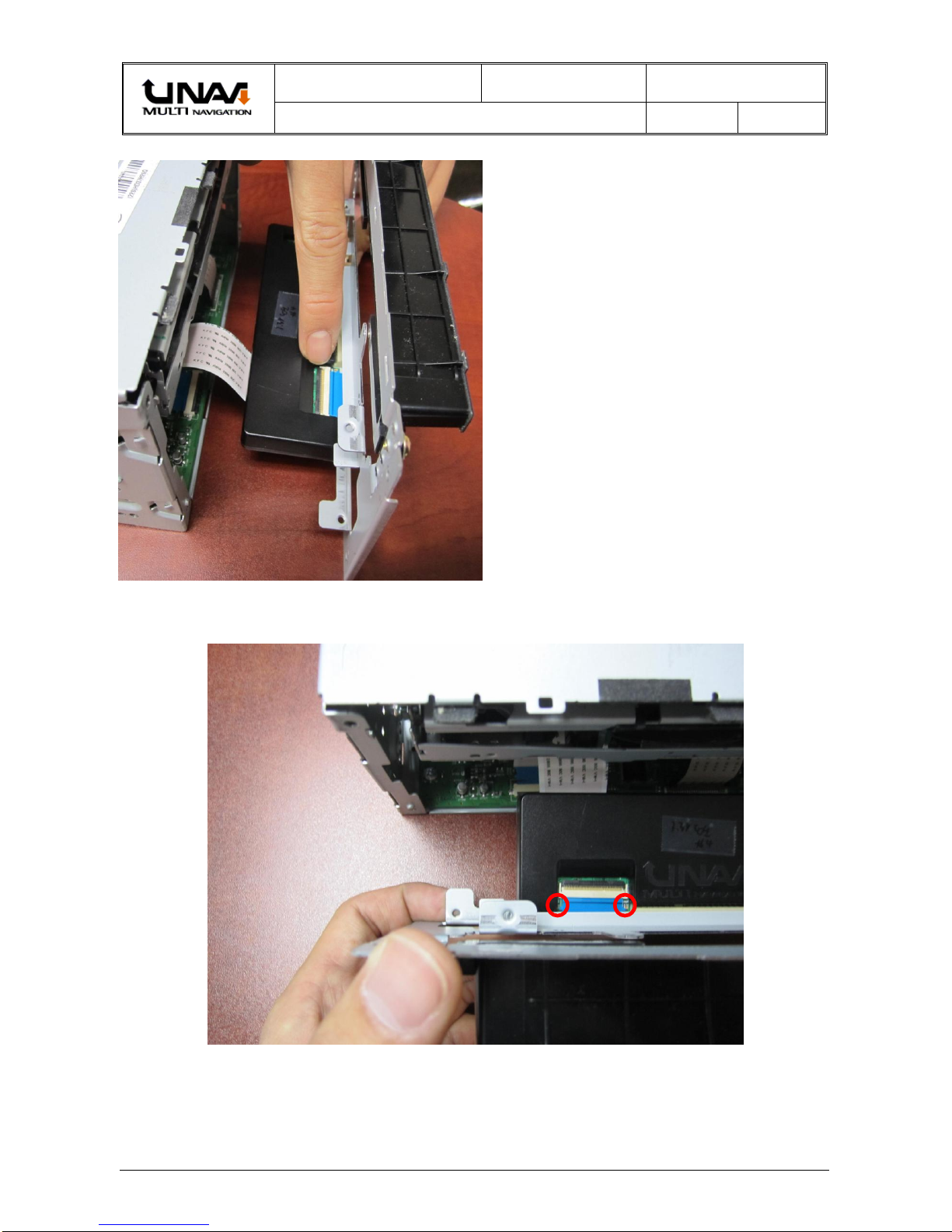

NEVER attempt to connect the ribbon cable to the Trip Interface Board like the
picture shown above as it may cause permanent damage to the audio unit!

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
16
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
*Please check after installation when the radio unit is powered on*
Red LED lights on the circuit board will flash intermittently indicating data communication.
Please proceed with CAUTION when
inserting the ribbon cable into the Trip
Interface Board.
DO NOT twist the cable as this may result
in a damaged board and/or the audio unit!
The Trip Interface Board is designed to
communicate with either side of the pins.
Connecting the ribbon connector between the
trip interface board and the audio head unit:
- Lift up the lock on the Trip Interface Board
- Gently slide in the ribbon able (typically blue
end facing up) until it can’t slide in any
further
- Push the lock down to secure the cable

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
17
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012

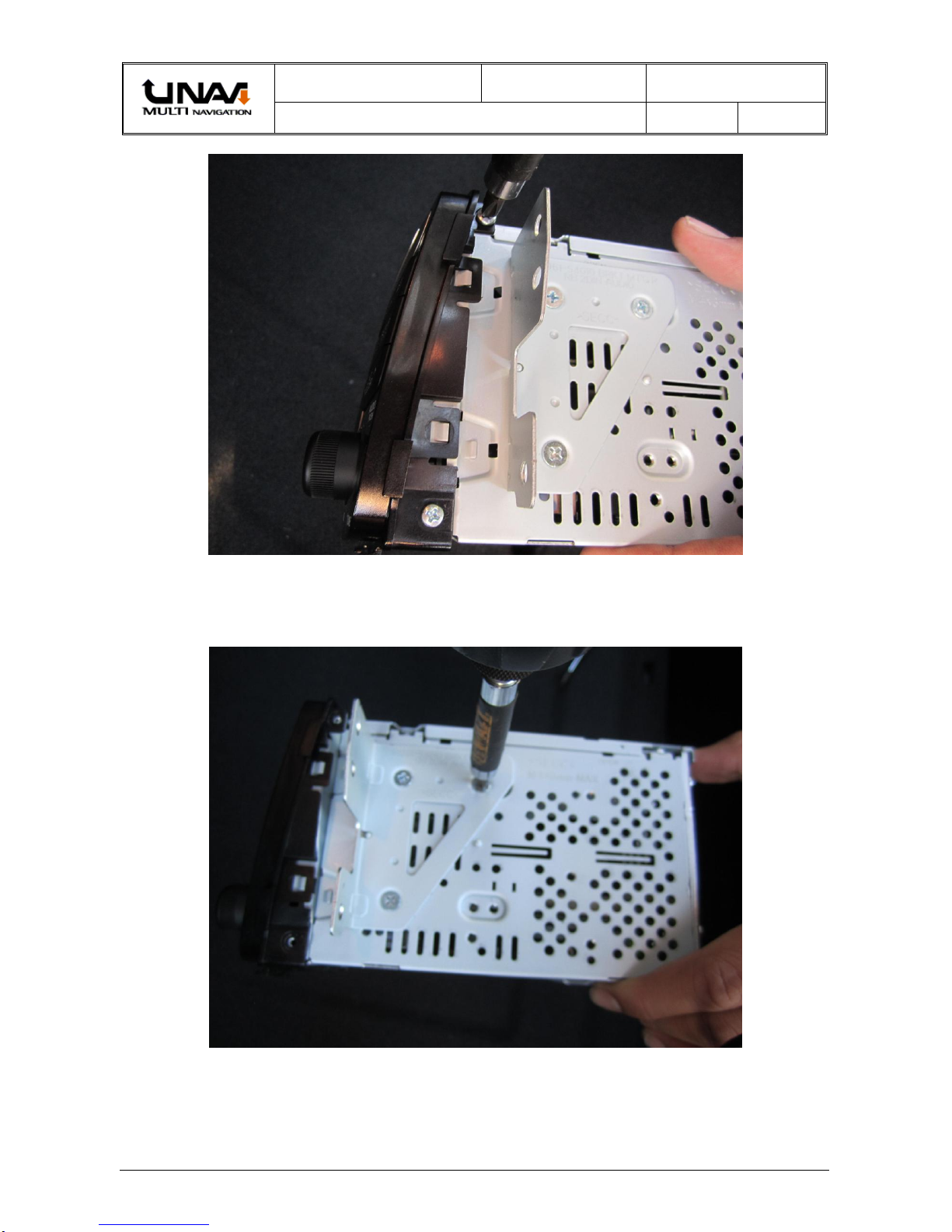

Use remaining screws from the original bracket to mount the
front replacement bracket onto the audio head unit.
Screw under the two openings as shown and assemble the top cover.

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
18
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012
Screw on the replacement mounting brackets (Left & Right) as shown.
Open the glove box and turn the dampers to disconnect it from the compartment.

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
19
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012

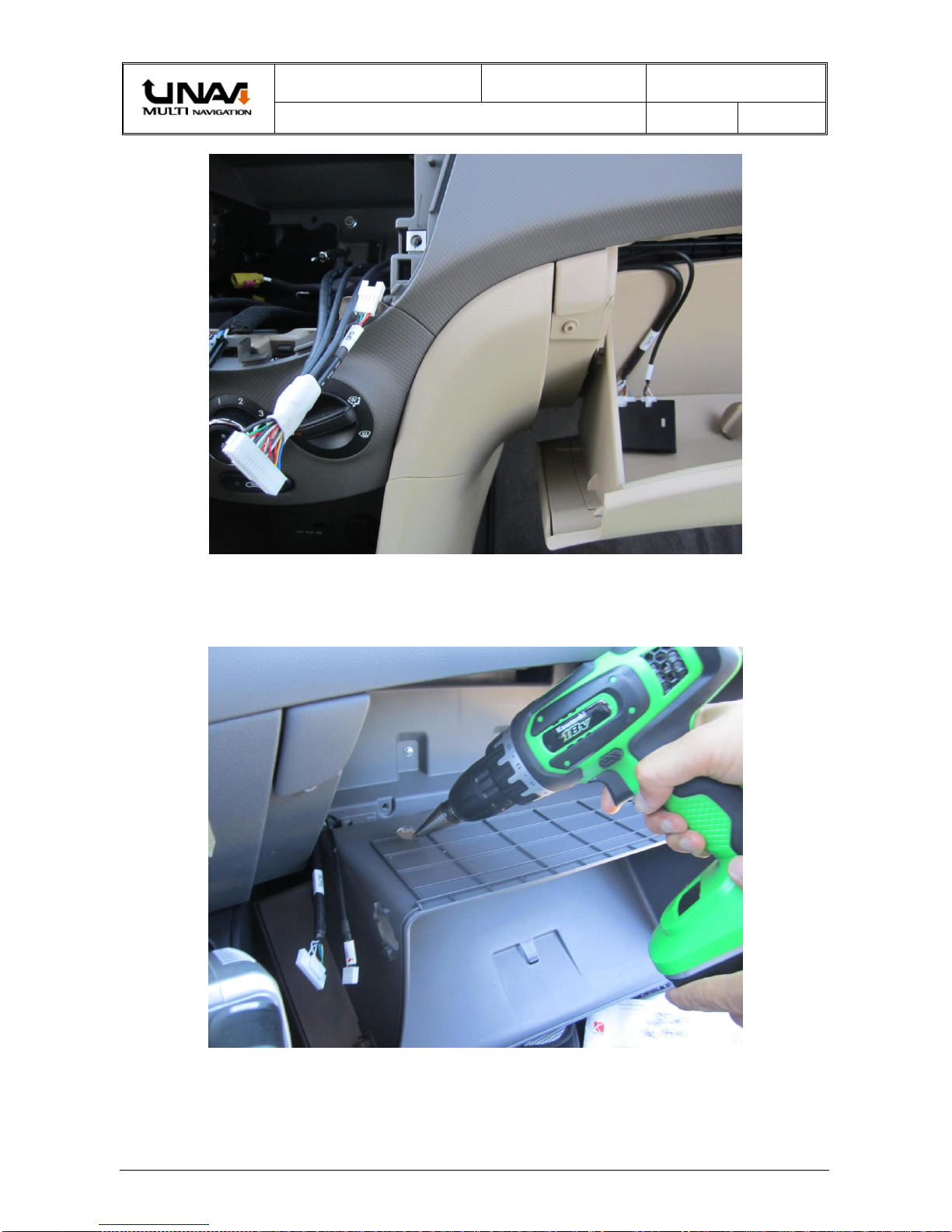

Route the SD/USB interface cable around from behind the
glove box and out through the center dash panel opening.
Use Unibit to drill a hole on the back of the glove box (about 3/4-inch) just wide
enough for the SD/USB interface cables to slide through.**Proceed with Caution**

CLASSFICATION.
Installation Manual
MODEL. ENB-X1
DOCUMENT NO.
BU No. 10
Hyundai Accent In-Dash Navigation DIY Installation Guide
VERSION
1.2
PAGE
20
Information & Manual Copyright © 2012 UNAVI USA, Inc. All rights reserved. Date: 4/18/2012

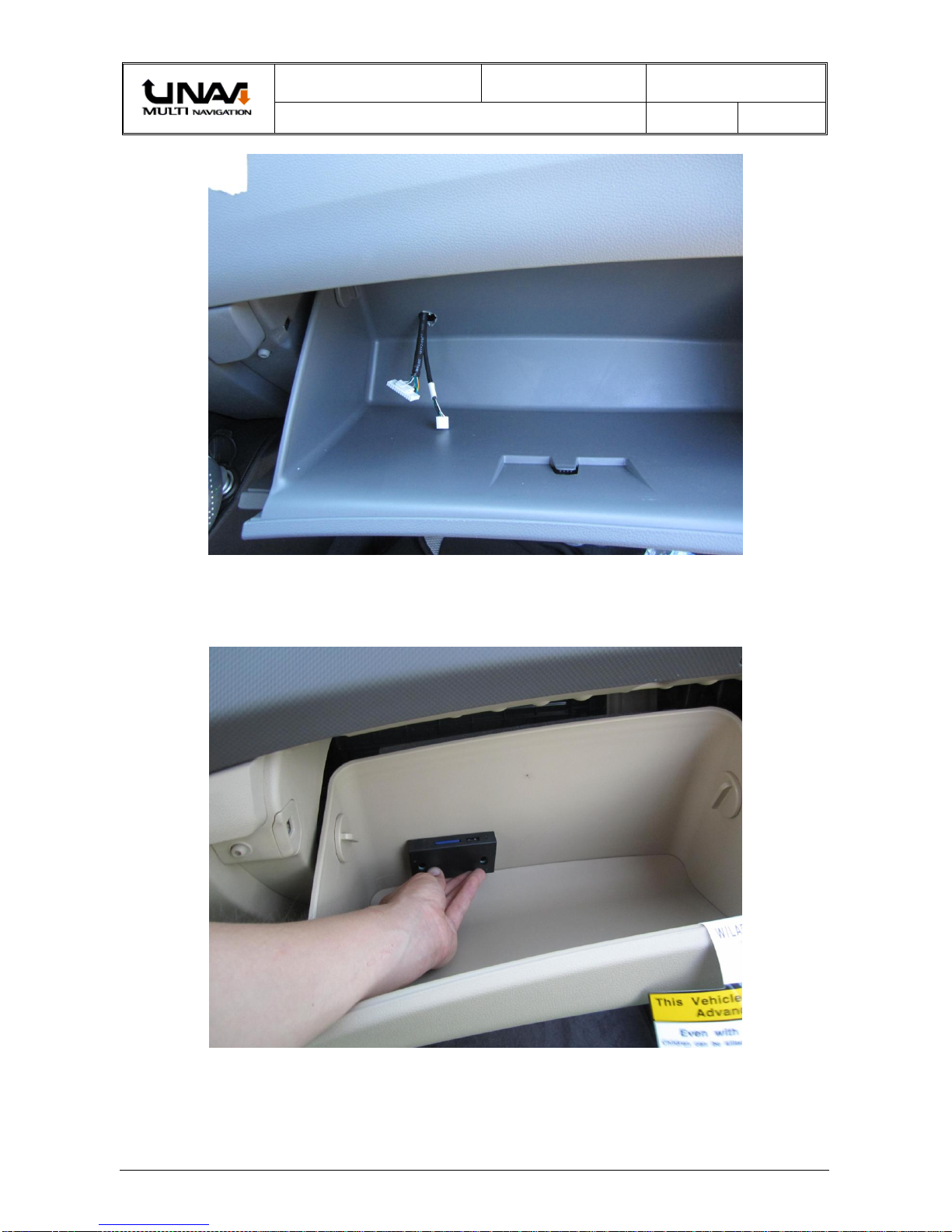

Run the interface cables through the drilled hole
and assemble the glove box back together.
Mount the control box inside the glove box using a double-sided tape or Velcro.
