Unibor EQ100 User manual

2
1
17
14
13
60
59
10
9
66
58
45
44
8
27
31
68
1
ISSUE
1:7
Drilling & Cutting
DI MENSION S IN MILLIMETER S
ITEM NO PART NO DESCRIPTION QTY
1M0005F BODY (ORANGE) 1
2
M0033
MAGNET BASE (LARGE)
1
3
20355
EIBENSTOCK CRADLE
1
4
M0103
BRASS RAIL (MT50)
2
5
M0442
G.F.S. (MT50)
1
6
M0813
TOP PLATE (MAGTRON DOVETAIL)
1
7 M0833 RACK (MT50) 1
8
M0042
PINION - MAGTRON (LARGE)
1
9
M0071
PINION END CAP (SHALLOW)
1
10
M0081
BUSH (PINION)
2
11
20346
HANDLE (12mm LARGE)
3
12
10082
HANDLE KNOB (12mm KNOCK ON)
3
13 M0224 WARNING PLATE (MT50) 1
14
M0443
CONDUIT (MAGTAP M13)
1
15
10231
M16 STRAIN RELIEF CABLE GLAND
1
16
40026
M16 PUSH FIT GLAND
1
17
10237-1
CABLE YELLOW (110V)
1
18 EIB03 EIBENSTOCK UNI111 DRILL - 110V 1
19 STRAP01 POLYESTER WEBBING SAFETY STRAP 1
20
KEY01
ALLEN KEY 2.5MM
1
21
KEY03
ALLEN KEY 4MM
1
22
KEY04
ALLEN KEY 5MM
1
23
DRIF02
DRIFT (No.3 M/TAPER)
1
24 CASE14 CARRYING CASE UNIBOR - PLASTIC 1
25
BOX01
BOX (UNIBOR SLEEVE)
1
26
VISO10
SAFETY GUARD ( UNI 3 )
1
27
M0242N
LARGE MAGTRON SWITCH PLATE NEW
1
28
10093
M6 X 35 GUARD THUMB SCREW
2
29
10094
M6 GUARD SPACER
2
30 10089 LARGE 2 LEG GUARD GUIDE 2
31
MM1-17
PCB SUPPORT PLATE
1
32
40025
PG9 PUSH FIT GLAND
1
33
ARBQR03-A
EIBENSTOCK Q/R UNI3 ARBOR BODY
1
34
10205A
ARBOR EJECTION PLUG (M/TAPER)
1
35
SPRI01
ARBOR SPRING (M/TAPER)
1
36 ARBQR-02 QUICK RELEASE ARBOR COLLAR 1
37
ARBQR-03
QUICK REL ARBOR LOCK SHOE
1
38
ARBQR-04
Q/RELEASE COLLAR SPRING
1
39
ARBQR-05
QUICK REL ARBOR TOR SPRING
2
40
ARBQR-06
20MM O/D X 4MM NITRILE O RING
1
41 CCP-38V 38OD V INTERNAL CIRCLIP 1
42 30046 LARGE OIL CUP ASSEMBLY 1
43
10076C
OILFEED BRACKET
1
44
50015C
1/8" BSP - 6MM PUSH FIT CONNEC
2
45
BD029
6mm OIL PIPE (OIL FEED ASSY)
1
46
10076
OIL CUP RETAINING CLIP
1
47 MM1-1 MM1 MAGNET BUTTON - YELLOW 1
48 MM1-2 MM1 MOTOR BUTTON - GREEN 1
49
MM1-10
MM1 POWER BUTTON - RED
1
50
MM1-3
MM1 L.E.D. GROMMET
3
51
MM1-4
MM1 LED BOARD - C/W LEDs
1
52
MM1-5
MM1 REPLACEMENT PCB
1
53 MM1-6 MM1 3 PIN PLUG 1
54
MM1-7
MM1 4 PIN PLUG
1
55
MM1-11
MM1 HEAT CONDUCTOR
3
56
MM1-16
STAND OFF CLIP FOR NEW PANEL
3
57
MM1-13
NEW PANEL INSULATING BUSH
2
58 M5-NUT M5 NUT 5
59 SC620CAP M6 x 20 CAP SCREW 9
60 SC3TAP M3 SELF TAPPING SCREW 8

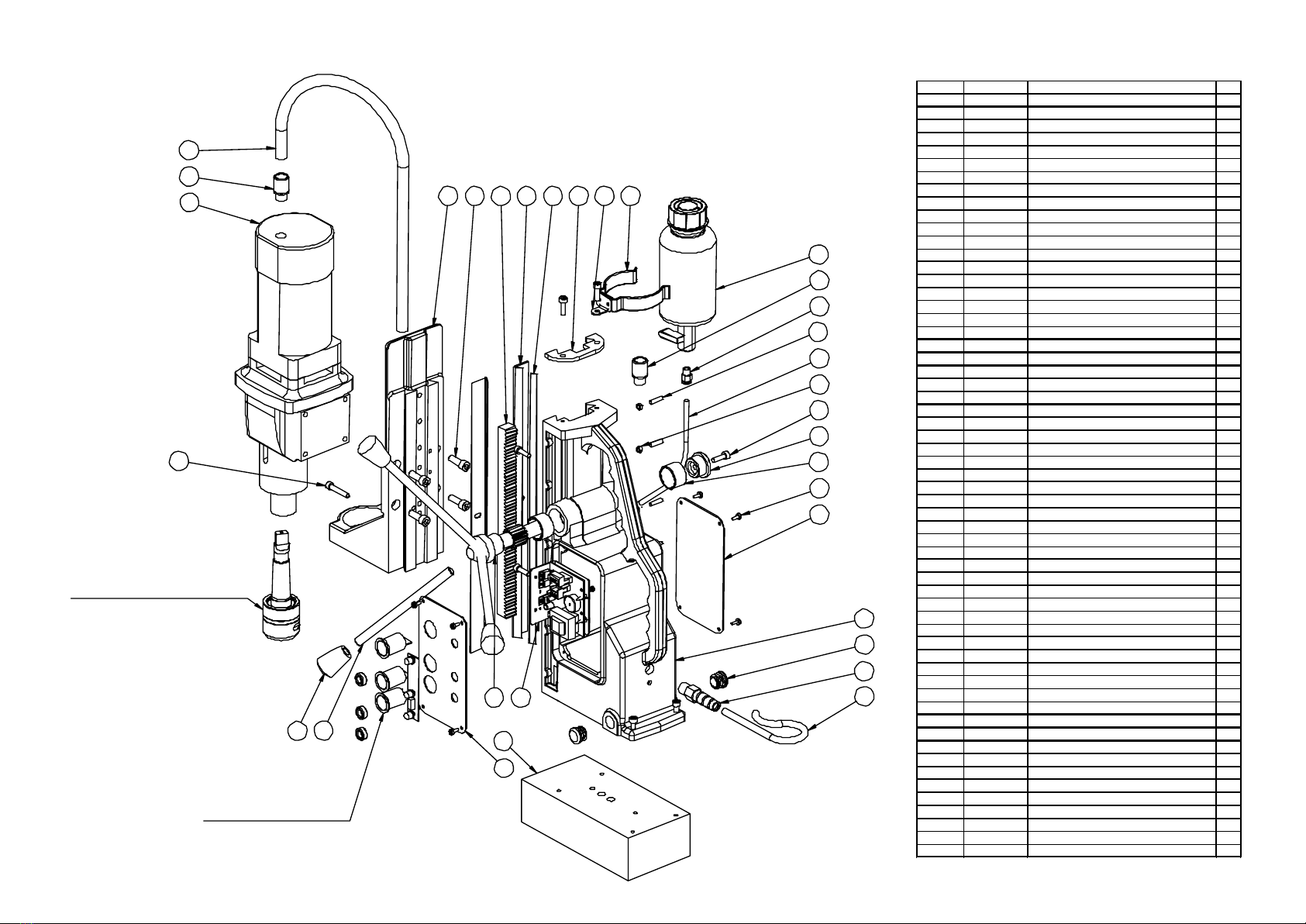

EQ100 Assembly & Parts List
6
INCLUDES ITEMS 47 TO 57
43
2
1
17
14
13
60
59
10
9
66
58
45
44
42
15
46547
8
673
14
32
18
65
12 11
27
31
CONTROL PANEL ASSEMBLY
68
QUICK RELEASE ARBOR ASSEMBL Y
INLUDES ITEMS 33 TO 41

SEQ100 Assembly & Parts List
12
31
QUICK RELEASE ARBOR ASSEMBLY
INLUDES ITEMS 33 TO 41
2
70
69
68
67
66
65
1
64
17
15
63
62
61
13
60
59
10
9
76
58
45
44
42
15
466 5 4 7
8
3 87
14
32
18
75
11
43
27
77
CONTROL PANEL ASSEMBLY
INCLUDES ITEMS 47 TO 57
3.2
0.10
SCALE
DRAWN BY
APPROVED BY
DWG NUMBER
1
01/08/05
ISSUE
DATE
DATE
1:1
L. STOREY
EQ100S
TITLE
FIRST ANGLE PROJECTION DO NOT SCALE IF IN DOUBT - ASK
WITHOUT THE EXPRESS PERMISSION OF UDCE Ltd.
THIS DRAWING MAY NOT BE REPRODUCED OR COPIED IN PART OR WHOLE,
COPYRIGHT 1998, UDCE Ltd. 43 CATLEY ROAD, DARNALL, SHEFFIELD, S9 5JF
(C)
ISSUEDESCRIPTION
1.00
0.25
DATE
EXPLODED VIEWTel.+44(0)114 2911000. Fax.[phone]
universalEQUIPMENT LIMITED

43 Catley Road, Darnall, Sheffield, England. S95JF
DIMENSIONS IN MILLIMETERS
NO DECIMAL PLACE
ONE DECIMAL PLACE
TWO DECIMAL PLACES
ANGULAR
SURFACE FINISH
EQ100S
QUICK RELEASE DRILL0.05
ITEM NO PART NO DESCRIPTIONQTY
1M0005BLU MT50 BODY (CAPRI BLUE) 1
2M0036LARGE SWIVEL BASE 1
320355EIBENSTOCK CRADLE 1
4M0103 BRASS RAIL (MT50) 2
5M0442G.F.S. (MT50) 1
6M0813TOP PLATE (MAGTRON DOVETAIL) 1
7M0833RACK (MT50) 1
8M0042PINION - MAGTRON (LARGE) 1
9M0071PINION END CAP (SHALLOW) 1
10 M0081BUSH (PINION) 2
11 20346 HANDLE (12mm LARGE) 3
12 10082HANDLE KNOB (12mm KNOCK ON) 3
13 M0224WARNING PLATE (MT50) 1
14 M0443CONDUIT (MAGTAP M13) 1
15 10231M16 STRAIN RELIEF CABLE GLAND 1
16 40026M16 PUSH FIT GLAND 1
17 10237-1CABLE YELLOW (110V) 1
18 EIB03 EIBENSTOCK UNI111 DRILL - 110V 1
19 STRAP01POLYESTER WEBBING SAFETY STRAP 1
20 KEY01ALLEN KEY 2.5MM 1
21 KEY03ALLEN KEY 4MM 1
22 KEY04ALLEN KEY 5MM 1
23 DRIF02DRIFT (No.3 M/TAPER) 1
24 CASE14CARRYING CASE UNIBOR - PLASTIC 1
25 BOX01 BOX (UNIBOR SLEEVE) 1
26 VISO10SAFETY GUARD ( UNI 3 ) 1
27 M0242NLARGE MAGTRON SWITCH PLATE NEW 1
28 10093M6 X 35 GUARD THUMB SCREW 2
29 10094M6 GUARD SPACER 2
30 10089LARGE 2 LEG GUARD GUIDE 2
31 MM1-17PCB SUPPORT PLATE 1
32 40025PG9 PUSH FIT GLAND 1
33 ARBQR03-A EIBENSTOCK Q/R UNI3 ARBOR BODY 1
34 10205AARBOR EJECTION PLUG (M/TAPER) 1
35 SPRI01ARBOR SPRING (M/TAPER) 1
36 ARBQR-02 QUICK RELEASE ARBOR COLLAR 1
37 ARBQR-03 QUICK REL ARBOR LOCK SHOE 1
38 ARBQR-04Q/RELEASE COLLAR SPRING 1
39 ARBQR-05 QUICK REL ARBOR TOR SPRING 2
40 ARBQR-0620MM O/D X 4MM NITRILE O RING 1
41 CCP-38V38OD V INTERNAL CIRCLIP 1
42 30046LARGE OIL CUP ASSEMBLY 1
43 10076C OILFEED BRACKET 1
44 50015C1/8" BSP - 6MM PUSH FIT CONNEC 2
45 BD029 6mm OIL PIPE (OIL FEED ASSY) 1
46 10076OIL CUP RETAINING CLIP 1
47 MM1-1 MM1 MAGNET BUTTON - YELLOW 1
48 MM1-2 MM1 MOTOR BUTTON - GREEN 1
49 MM1-10MM1 POWER BUTTON - RED 1
50 MM1-3 MM1 L.E.D. GROMMET 3
51 MM1-4 MM1 LED BOARD - C/W LEDs 1
52 MM1-5 MM1 REPLACEMENT PCB 1
53 MM1-6 MM1 3 PIN PLUG 1
54 MM1-7 MM1 4 PIN PLUG 1
55 MM1-11MM1 HEAT CONDUCTOR 3
56 MM1-16STAND OFF CLIP FOR NEW PANEL 3
57 MM1-13NEW PANEL INSULATING BUSH 2
58 M5-NUTM5 NUT 5
59 SC620CAPM6 x 20 CAP SCREW 9
60 SC3TAP M3 SELF TAPPING SCREW 8
12
31
QUICK RELEASE ARBOR ASSEMBL Y
INLUDES ITEMS 33 TO 41
2
70
69
68
67
66
65
1
64
17
15
63
62
61
13
60
59
10
9
76
58
45
44
42
15
4665 47
8
38 7
14
32
18
75
11
43
27
77
CONTROL PANEL ASSEMBL Y
INCLUDES ITEMS 47 TO 5 7

EQ100 Mechanical Switchplate (NCP Panel ) 120v

EQ100 Mechanical Switchplate (NCP Panel ) 240v

0.10
SCALE
DRAWN BY
APPROVED BY
DWG NUMBER
1
21.05.06
ISSUE
DATE
DATE
N.T.S
M.KAYE
PANELP
TITLE
FIRST ANGLE PROJECTION DO NOT SCALE IF IN DOUBT - ASK WITHOUT THE EXPRESS PERMISSION OF UDCE Ltd.
THIS DRAWING MAY NOT BE REPRODUCED OR COPIED IN PART OR WHOLE,
COPYRIGHT 1998, UDCE Ltd. 43 CATLEY ROAD, DARNALL, SHEFFIELD, S9 5JF
(C)
ISSUE DESCRIPTION DATE
3.2
1.00
BREAKDOWN Tel.[phone]. Fax.[phone]
universal
universaluniversal
universal EQUIPMENT LIMITED
Drilling & Cutting
Drilling & CuttingDrilling & Cutting
Drilling & Cutting
43 Catley Road, Darnall, Sheffield, England. S95JF
DIMENSIONS IN MILLIMETERS
NO DECIMAL PLACE
ONE DECIMAL PLACE
TWO DECIMAL PLACES
ANGULAR
SURFACE FINISH
0.25
PANELP
COMPONENT 0.05
5
3
4
15
8
1
2
7
6
15 13
10
14
11 12 9
ITEM N O. QTY. PART NO. DESCRIPTION
1 1 MM 1-1 M M1 M AGNET BUTTON - YELLOW
2 1 MM1-2 MM1 MOTOR BUTTON - GREEN
3 3 MM1-3 MM1 L.E.D GROMMET
4 1 M M 1-4 M M 1 LED BOARD - C/W LED'S
5 1 M M 1- 5 R E P LAC E M EN T P C B BO AR D
6 1 M M 1-6 M M 1 3 PIN PLUG
7 1 M M 1-7 M M 1 4 PIN PLUG
8 1 M M 1-10 M M 1 POW ER BU TTO N - R ED
9 3 M M 1-11 M M 1 HEAT CONDU CTO R
10 2 M M 1-13 NEW P ANEL INSU LATI NG BU SH
11 3 M M 1-16 STAND O FF CLIP FO R N EW P ANEL
12 1 MM1_17 PCB SUPPORT PLATE
13 3 NU T-M 3 M 3 NYLO C NU T
14 3 SC36CSK-X M 3 X 6 C'SINK CROSS HEAD SCREW
15 1 - P ANE L FAC IA P L ATE
EQ100 Electronic Switchplate (Panel P) Dual voltage

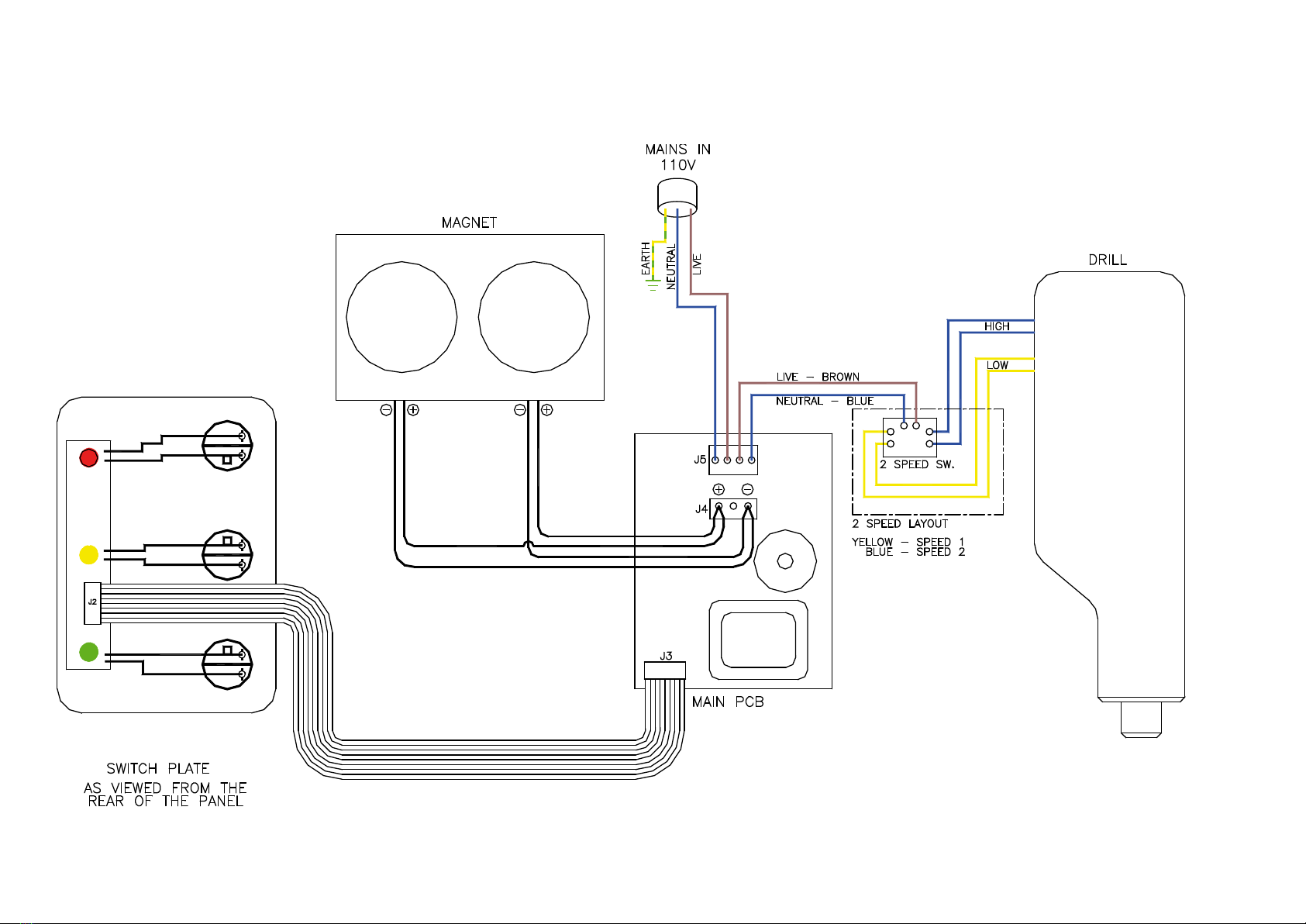

EQ100 Electronic Switchplate (Panel P) Wiring Diagram (110v)

EQ100 Electronic Switchplate (Panel P) Wiring Diagram (240v)
