unicraft ESW 900 User manual

ESW 900
ESW 900
Operating Instructions
Electric Wire Rope Hoist
ESW 900

2ESW 900 | Version 2.04
Imprint
Product identification
Electric wire rope hoist Item number
ESW 900 6190900
Manufacturer
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Fax: [phone] - 55
Email: [email protected]
Internet: www.unicraft.de
Indications regarding the operating instructions
Original instructions
Edition: 01/08/2017
Version: 2.04
Language: English
Author: SN
Indications regarding the copyright
Copyright © 2017 Stürmer Maschinen GmbH, Hallstadt,
Germany.
The contents of these operating instructions are the sole
property of the company Stürmer.
Passing on as well as copying of this document, the use
and distribution of its content are prohibited if not explic-
itly permitted. Contraventions are liable to compensa-
tion.
Subject to technical modifications and error.
Content
Imprint
1 Introduction .............................................................3
1.1 Copyright............................................................ 3
1.2 Customer service................................................ 3
1.3 Limitation of liability ............................................ 3
2 Safety........................................................................3
2.1 Symbol explanation ............................................ 3
2.2 Obligations of the operating company............... 4
2.3 Requirements to staff.......................................... 5
2.4 Personal protective equipment........................... 5
2.5 General safety regulations.................................. 6
2.6 Safety information for operating personnel ........ 6
2.7 Checks................................................................ 6
3 Intended use ............................................................6
3.1 Foreseeable misuse ........................................... 6
3.2 Residual risks ..................................................... 6
4 Technical data .........................................................7

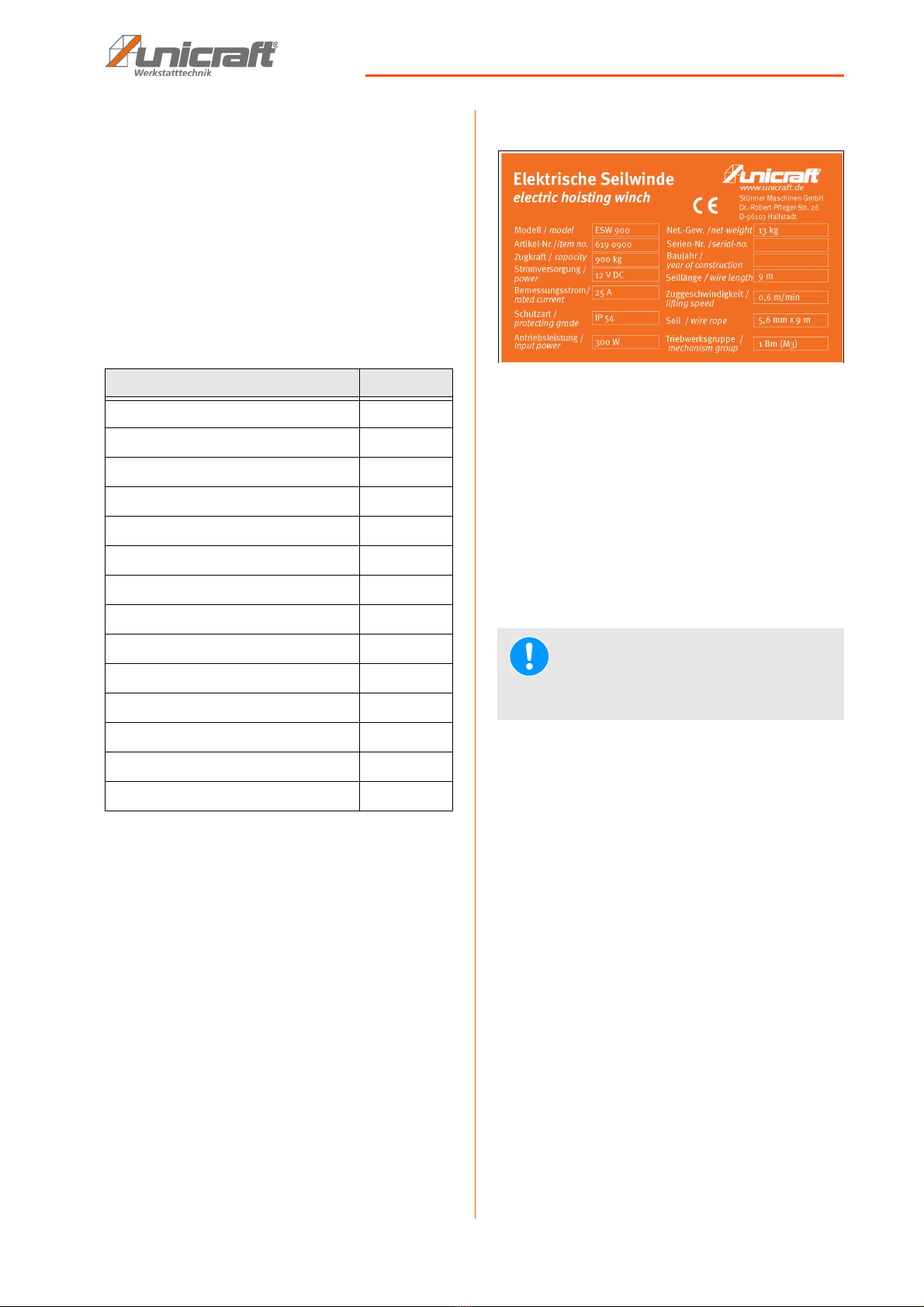

4.1 Type plate........................................................... 7
5 Transport, packaging, storage...............................7
5.1 Transport ............................................................ 7
5.2 Packaging........................................................... 7
5.3 Storage ............................................................... 7
6 Description of the device........................................8

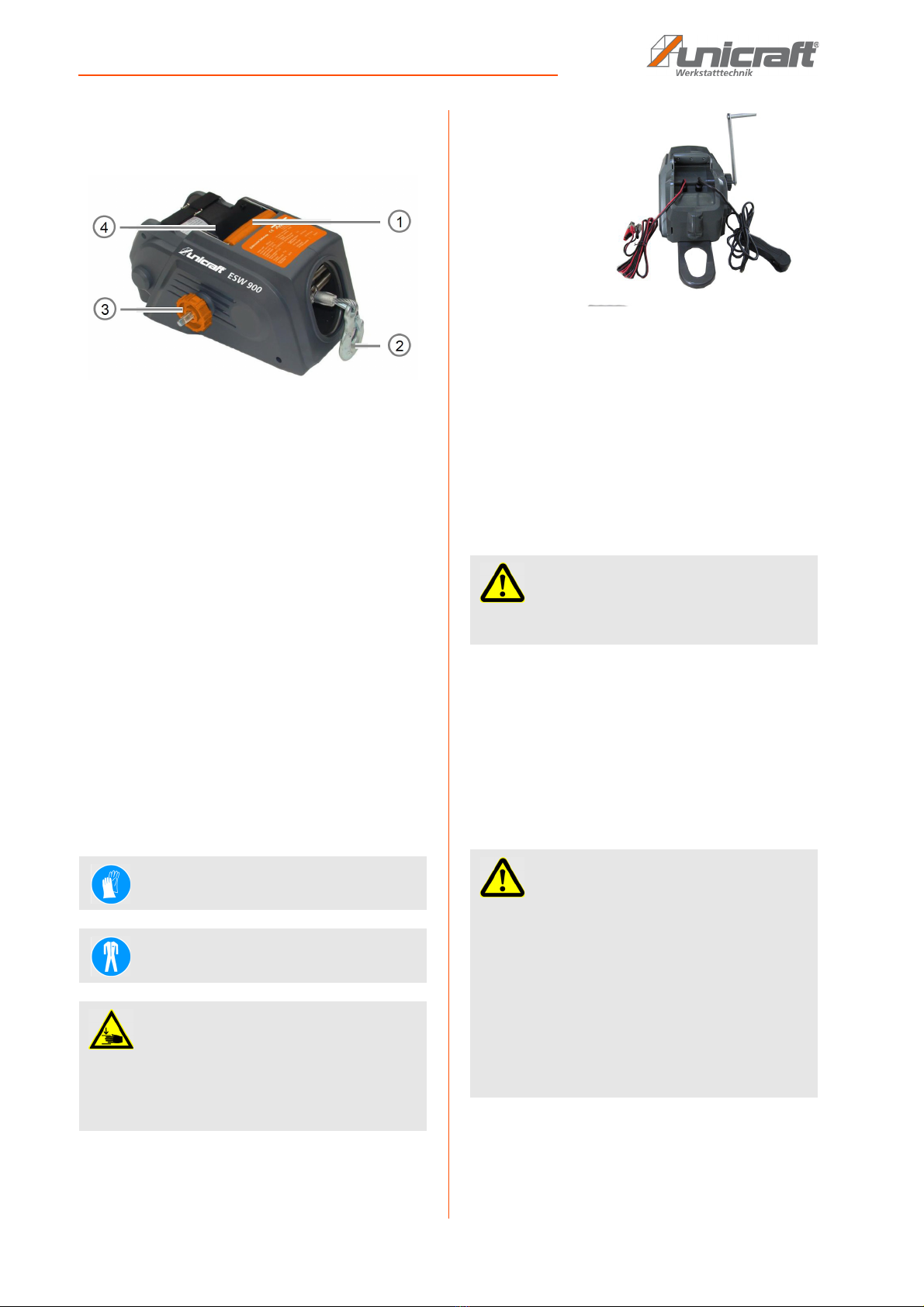

6.1 Image ................................................................ 8
6.2 Scope of delivery................................................ 8
7 Assembly and Connection .....................................8
8 Operation .................................................................8
8.1 Operating conditions........................................ 10
8.2 Test run............................................................. 10
8.3 Raising a load................................................... 10
9 Care, maintenance and repair ..............................11
9.1 Care by cleaning .............................................. 11
9.2 Maintenance and repair .................................. 11
10 Testing the wire rope hoist.................................14
11 Disposal, recycling of used devices..................14
11.1 Decommissioning........................................... 14
11.2 Disposal of lubricants..................................... 14
12 Fault finding.........................................................14
13 Spare parts...........................................................15
13.1 Ordering spare parts ...................................... 15

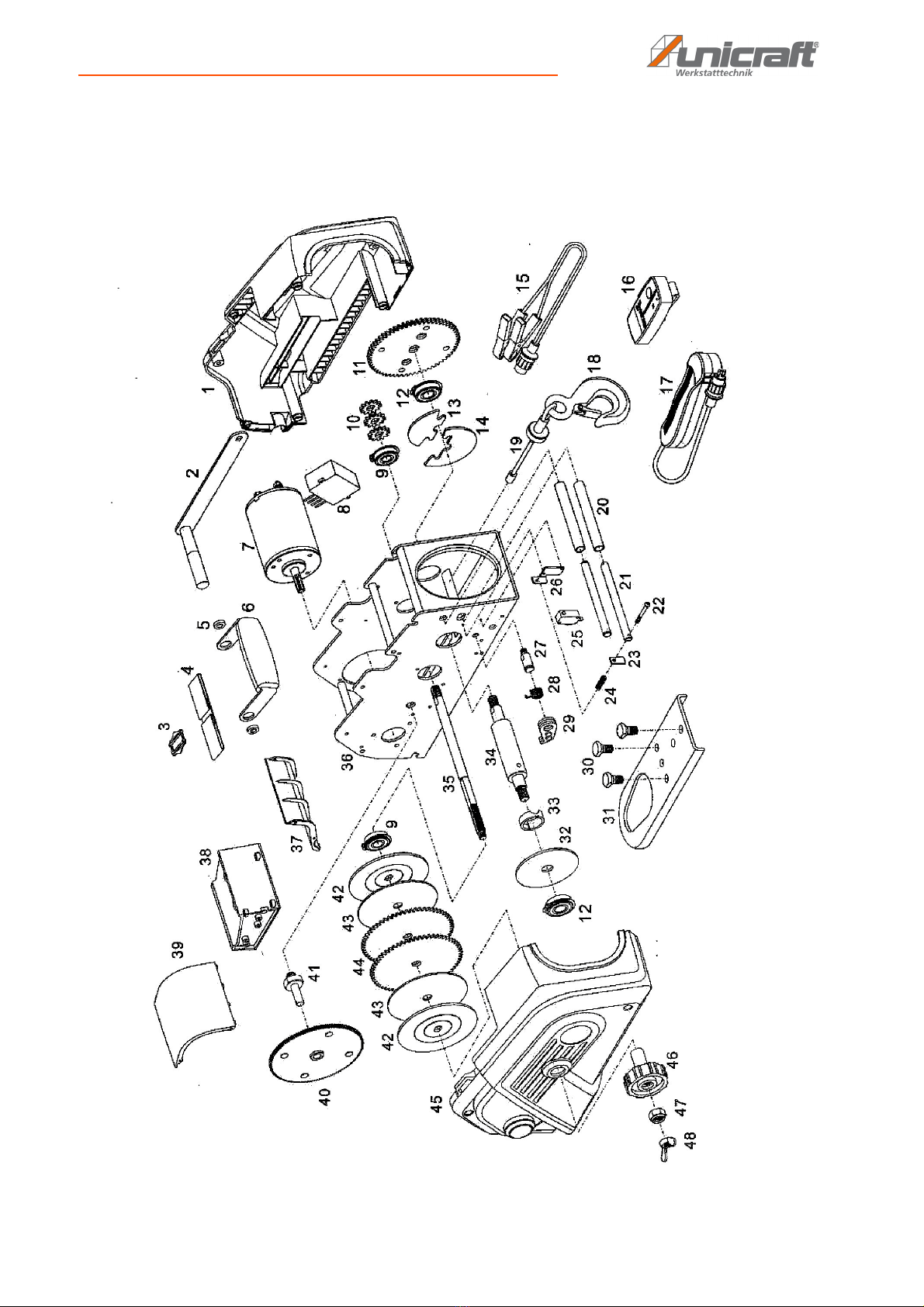

13.2 Spare parts drawing....................................... 16

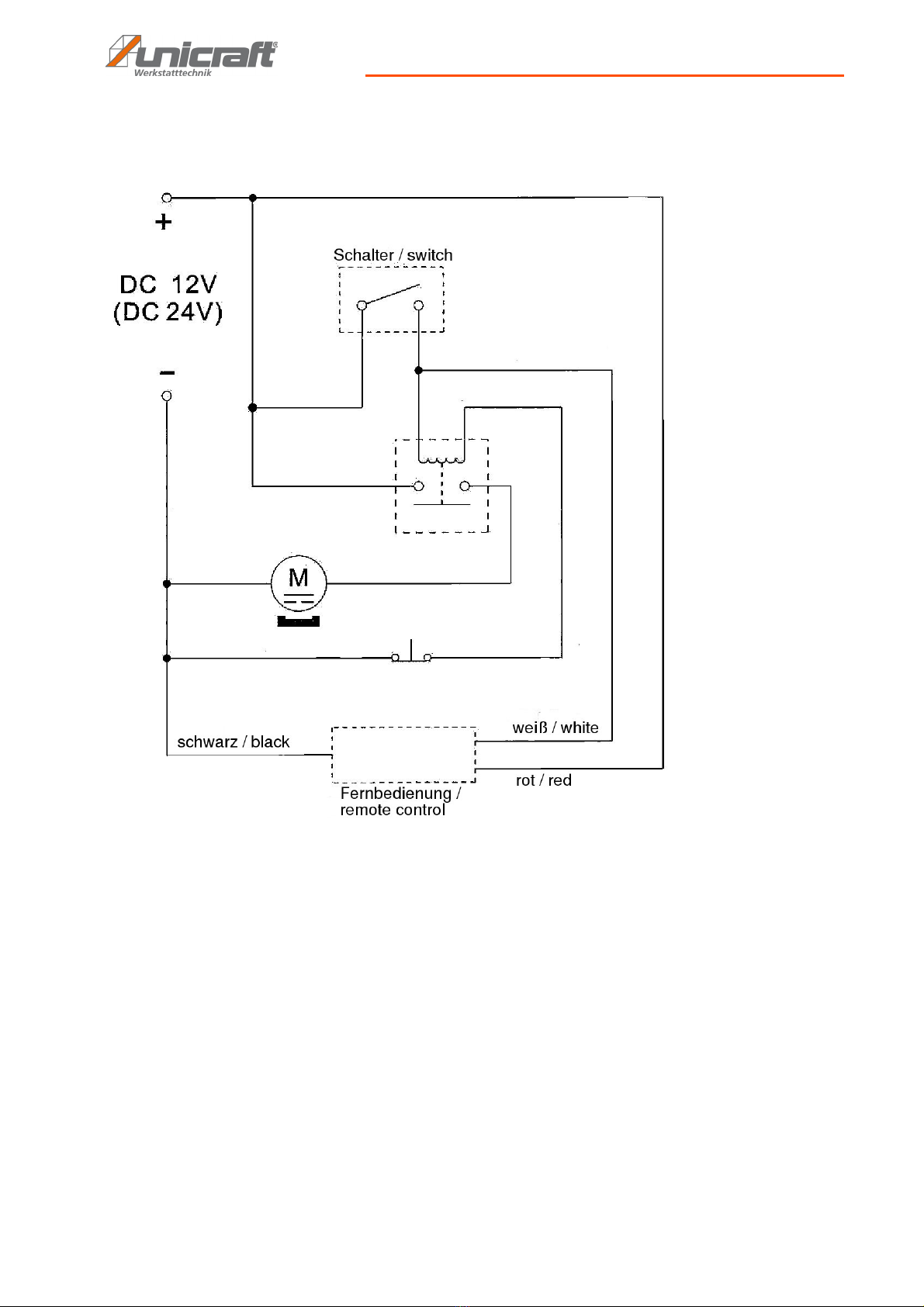

13.3 Electrical wiring diagram................................ 17
14 EC Declaration of Conformity ............................18
15 Maintenance plan ................................................19

Introduction
ESW 900 | Version 2.04 3
1Introduction
You have made a good choice by purchasing the
Unicraft electric wire rope hoist.
Read the operating manual thoroughly before commissioning
the machine.
It gives you information about the proper commission-
ing, intended use and safe and efficient operation and
maintenance of your electric wire rope hoist.
The operating manual is part of the electric wire rope
hoist package. Always keep this operating manual in the
location where your electric wire rope hoist is being op-
erated. All local accident prevention regulations and
general safety instructions for the operating range of
your electric wire rope hoist must also be complied with.
1.1 Copyright
The contents of these instructions are copyright. They
may be used in conjunction with the operation of the
electric wire rope hoist. Any application beyond those
described is not permitted without the written approval
of Stürmer GmbH.
1.2 Customer service
Please contact your dealer if you have questions con-
cerning your wire rope hoist or if you need technical ad-
vice. They will help you with specialist information and
expert advice.
Germany:
Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
Repair service:
Fax: [phone]-111
Email: [e-mail]
Spare part orders:
Fax: [phone]-119
Email: [e-mail]
We are always interested in valuable experience and
knowledge gained from using the application-which
then could be shared and be valuable to develop our
products even further.
1.3 Limitation of liability
All information and notes in these operating instructions
were summarised while taking applicable standards
and rules, the state-of-the-art technology and our long-
term knowledge and experiences into consideration.
In the following cases the manufacturer is not liable for
damages:
- Non-observance of the operating instructions,
- Inappropriate use
- Use of untrained staff,
- unauthorised modifications
- technical changes,
- Use of not allowed spare parts.
The actual scope of delivery may deviate from the ex-
planations and presentations described here in case of
special models, when using additional ordering options
or due to latest technical modifications.
The obligations agreed in the delivery contract, the gen-
eral terms and conditions as well as the delivery condi-
tions of the manufacturer and the legal regulations at the
time of the conclusion of the contract are applicable.
2 Safety
This section provides an overview of all important safety
packages for the protection of operating personnel as
well as for safe and fault-free operation. Other task-
based safety notes are included in the paragraphs of
the individual phases of life.
2.1 Symbol explanation
Safety instructions
The safety notes in these operating instructions are
highlighted by symbols. The safety notes are introduced
by signal words which express the concern of the risk.
DANGER!
This combination of symbol and signal words indi-
cates an imminently dangerous situation which may
lead to death or severe injury if not avoided.
WARNING!
This combination of symbol and signal words indi-
cates a potentially dangerous situation which may
lead to death or severe injury if not avoided.

4ESW 900 | Version 2.04
Safety
Tips and recommendations
It is necessary to observe the safety notes written in
these operating instructions in order to reduce the risk of
personal injuries and damages to property.
2.2 Obligations of the operating company
of the operator
The operating company is the person who operates the
wire rope hoist for business or commercial reasons by
herself, or leaves it to a third party for use or application,
and who bears the legal product responsibility for the
protection of the user, the staff or for third parties.
Obligations of the operating company
If the chain hoist is used for commercial purposes, the
operating company of the wire rope hoist must comply
with the legal working safety regulations. Therefore, the
safety notes in this operating manual, as well as the
safety, accident prevention and environment protection
regulations applying for the area of application of of the
wire rope hoist must be met. The following applies in
particular:
- The operating company must be informed about
the applying industrial safety regulations and fur-
ther analyse hazards resulting from the special
working conditions at the place of use of the wire
rope hoist. She must implement these in form of
operating manuals for the operation of the wire
rope hoist.
- During the entire lifetime of of the wire rope hoist,
the operating company must verify whether the
operating manuals prepared by her correspond to
the current status of the regulations, and must
adapt these if necessary.
- The operating company must unambiguously reg-
ulate and determine the responsibilities for instal-
lation, operation, troubleshooting, maintenance
and cleaning.
- The operating company must ensure that all per-
sons who work with the wire rope hoist, have read
and understood this manual. Furthermore she
must instruct the staff in regular intervals and in-
form them about the hazards.
- The operator must provide the necessary protec-
tive equipment to the staff and order the use of the
necessary protective equipment in a binding way.
Furthermore the operating company is responsible to
keep the chain hoist always in a technically flawless
state. Thus, the following applies:
- The operator must ensure that the maintenance in-
tervals described in this manual are kept.
- The operator must have all safety devices
checked regularly for their good working order
and their integrity.
CAUTION!
This combination of symbol and signal words indi-
cates a potentially dangerous situation which may
lead to slight or minor injury if not avoided.
ATTENTION!
This combination of symbol and signal words indi-
cates a possibly dangerous situation which may
lead to property and environmental damages if they
are not avoided.
NOTE !
This combination of symbol and signal words indi-
cates a potentially dangerous situation which may
lead to material or environmental damage if not
avoided.
Tips and recommendations
This symbol highlights useful tips and recommenda-
tions as well as information for an efficient and trou-
ble-free operation.

Safety
ESW 900 | Version 2.04 5
2.3 Requirements to staff
Qualifications
The different tasks described in this manual represent
different requirements to the qualification of the persons
entrusted with these tasks.
Only persons reliable working procedures can be ex-
pected from, are allowed to perform all works. Persons
the responsiveness of which is affected by e. g. drugs,
alcohol or medication, are not allowed to work with the
machine.
The qualifications of the personnel for the different tasks
are mentioned below:
Operator
The operator is instructed by the operating company
about the assigned tasks and possible risks in case of
improper behaviour. Any tasks which need to be per-
formed beyond the operation in the standard mode
must only be performed by the operator if it is indicated
in these instructions and if the operating company ex-
pressively commissioned the operator.
Qualified personnel
Due to their professional training, knowledge and expe-
rience as well as their knowledge of relevant regulations
the specialist staff is able to perform the assigned tasks
and to recognise and avoid any possible dangers them-
selves.
Manufacturer
Certain works may only be performed by specialist per-
sonnel of the manufacturer. Other personnel is not au-
thorized to perform these works. Please contact our cus-
tomer service for the execution of all arising work.
2.4 Personal protective equipment
The personal protective equipment serves to protect
persons against impairments of safety and health while
working. The staff member has to wear personal protec-
tive equipment while performing different tasks on and
with the machine which are indicated in the individual
paragraphs of these instructions.
The personal protective equipment is explained in the
following paragraph:
WARNING!
Danger in case of insufficient qualification
of the staff!
Insufficiently qualified persons cannot estimate the
risks while using the wire rope hoist and expose
themselves and others to the danger of severe or
lethal injuries.
- Have all works only performed by qualified per-
sons.
- Keep insufficiently qualified persons out of the
working area.
Head protection
The industrial helmet protects the head against fall-
ing objects and hitting on fixed objects.
Protective gloves
The protective gloves serve to protect the hands
against sharp components as well as against fric-
tion, abrasions or deep injuries.
Safety boots
Safety boots protect the feet from being crushed, fall-
ing parts and slipping over on slippery ground.
Protective clothes
Protective clothes are made of a tightly fitted fabric
without the protruding parts of low tear strength.

6ESW 900 | Version 2.04
Intended use
2.5 General safety regulations
Setting up, retrofitting, maintenance and inspection
work may be carried out only on equipment that is not in
operation. The work is allowed for trained personnel
only.
It is important to point out that the making of any unau-
thorised modifications or changes to the machine is not
permitted.
Operating personnel must always ensure that the maxi-
mum load is never exceeded.
Personnel must not stand underneath a suspended load
as this could come loose and fall.
Personnel must not ride on or be lifted by the equip-
ment. Access to lifting equipment is not permitted.
2.6 Safety information for operating personnel
No operational mode which could compromise the
safety of the wire rope hoist may be undertaken.
It is the responsibility of the operator to ensure that no
unauthorised personnel work on the wire rope hoist (e.g.
also by working on equipment in a manner contrary to
authorised use).
It is the responsibility of the operator to check the wire
rope hoist at least once before use (once a day) for ex-
ternally apparent damage or defects and to report any
changes (including to the way the machine is operating)
which are likely to compromise safety.
It is the responsibility of the operator to ensure that the
the wire rope hoist is operated only in perfect order and
condition.
It is the responsibility of the operator to insist that oper-
ating personnel must wear protective clothing wherever
necessary.
Under no circumstances must safety devices be re-
moved or put of operation (potential risk of serious
crushing, danger to life).
If it is necessary to remove any safety devices for fitting,
repair or maintenance work, they must be re-installed
immediately after maintenance or repair is complete.
2.7 Checks
Hoisting cables are classed as a load-carrying device
requiring inspection. For this reason, the following
guidelines issued by the trade association central office
for accident prevention regarding steel cables used in
lifting operations must be complied with: DIN 685 Part 5
Nov. 1981, UVV, BGV D8 (VBG 8 April 1997) and UVV,
BGV D6 (VBG 9 April 2001) and DIN EN 818-7 Septem-
ber 2002.
A record of maintenance and inspections carried out
must be entered in the crane inspection log book (e.g.
any adjustment to the brakes or clutch).
3 Intended use
The electric wire rope hoist must only be used for lifting
free-moving loads weighing up to the maximum speci-
fied load.
The electric wire rope hoist may be operated only by
personnel who have been trained in its use.
The proper use also includes observing all indications in
these operating instructions. Any use beyond the proper
use or any other use is regarded as misuse. Under no
circumstances may personnel be lifted.
Stürmer Maschinen GmbH accepts no liability for any
constructional or technical modifications carried out on
the electric wire rope hoist.
Any claims due to damages because of not intended
use are excluded.
3.1 Foreseeable misuse
If the intended use is observed, any reasonably foresee-
able misuse which could lead to hazardous situations
with personal damage is impossible with the wire rope
hoist.
3.2 Residual risks
Even if all safety regulations are observed a residual risk
in the operation of the wire rope hoist will remain, as de-
scribed below.
All persons working with the wire rope hoist must be
aware of these residual risks and follow the instructions
NOTE!
All local regulations (the latest valid version) which
apply in the country where the device is used must
be complied with
In Germany, currently
BGV A1 - Principles of Prevention
BGV A3 (VBG 4) - Electrical systems and equipment
BGV D6 (VBG 9) - Cranes
BGV D8 - Winching, lifting and pulling equipment
BGR 500 (VBG 9a) - Load carrying devices used
with lifting equipment
BGV B3 (VBG 121) - Noise
BGG 905 (ZH 1/27) - Principles for testing cranes
EC Machine guidelines 2006/42/EC

Technical data
ESW 900 | Version 2.04 7
which prevent any accidents or damage caused by
these residual risks.
- Risk of crushing of upper and lower limbs while
equipment is operating.
- During set-up and adjustment works it may be-
come necessary to remove safety devices in-
stalled by the customer. This causes different re-
sidual risks and hazard potentials each operator
must be aware of.
4 Technical data
The traction is reduced with increasing angle of traction.
A rolling load can be moved by a pitch of 45° only with
about 20 % of the traction, which is available in horizon-
tal moving direction.
4.1 Type plate
Fig. 1: Electric wire rope hoist type plate ESW 900
5 Transport, packaging, storage
5.1 Transport
Check the electric wire rope hoist on delivery for any vis-
ible transportation damage. If you notice any damage to
the device please report this immediately to the carrier
or dealer.
5.2 Packaging
All used packaging materials and packaging aids are
recyclable and should be taken to a materials recycling
depot to be disposed of.
The delivery packaging is made of cardboard, so
please dispose carefully by having it chopped up and
given to the recycling collection.
The film is made of polyethylene (PE) and the cushioned
parts of polystyrene (PS). Deliver these substances to a
collection point for recyclable materials or to the waste
disposal company which looks after your region.
5.3 Storage
The electric wire rope hoist should be lubricated and
then stored in a dry, frost-free environment. Do not set
anything down on the electric wire rope hoist.
ESW 900
Maximum load [kg] 900
cable length [m] 9
cable thickness [mm] 5,6
Lifting speed [m/min] 0,6
Power supply 12 V DC
Rated current [A] 25
wire rope hoist output [kW] 0.3
mechanism group 1Bm (M3)
Dimensions:
Length (casing only) [mm] 390
Bride (without cable) [mm] 260
hight (retracted handle) [mm] 185
Degree of protection IP 54
Net weight [kg] 13
NOTE!
The wire rope hoist should be protected from humid-
ity.

8ESW 900 | Version 2.04
Description of the device
6 Description of the device
6.1 Image
Fig. 2: Components
1 Handle
2 Load hook with safety bar
3 Handwheel for manual operation with plug connec-
tion to connect with a crank.
4 Connections for battery connection cable and control
panel
Illustrations in these operating instructions may deviate from
the original.
6.2 Scope of delivery
- Electric wire rope hoist
- Connection cable
- Control panel
- Operating manual
7 Assembly and Connection
.
Abb. 3: Connection
Step 1: Choose the position of the wire rope hoist, so
that objects to be pulled or lifted are in one
plane and in one line with the wire rope hoist.
Observe the freedom of movement of the crank
for the manual operation.
Step 2: Screw down the wire rope hoist with the fixing
screws on the bottom onto an appropriate
beam.
Step 3: Oil the cable before you use it for the first time.
Step 4: Connect the battery-connection cable and the
control panel with the connections of the wire
rope hoist.
8Operation
Wear protective gloves !
Wear Protective clothes!
CAUTION!
Risk of crushing!
Injuries to hands and fingers may result from
improper use of the electric wire rope hoist.
- Never grasp the cable while the equipment is in op-
eration.
ATTENTION!
The beam has to be designed for the tensile load of
900 kg.
DANGER!
Overloading is life-threatening!
Beams not intended for use with the wire rope hoist
and its load-bearing capacity can give way.
- The wire rope hoist should always be suspended
from suitable equipment which has sufficient load-
bearing capacity to withstand the weight of the
load and the wire rope hoist.
If the load-bearing capacity is exceeded, the wire
rope hoist may fail and the load may fall.
- Only loads which do not exceed the load-bearing
capacity may be suspended.

Operation
ESW 900 | Version 2.04 9
The working area has to be protected against fire and
explosions and free from corroding and toxic sub-
stances.
Dangerous goods like molten, toxic or radioactive mate-
rial must not be moved with the wire rope hoist.
The appliance must not be used in the open air if it is
raining.
The cable has to be under a light tension for winding.
Hold the rope with gloves in one hand and use the con-
trol button with the other hand.

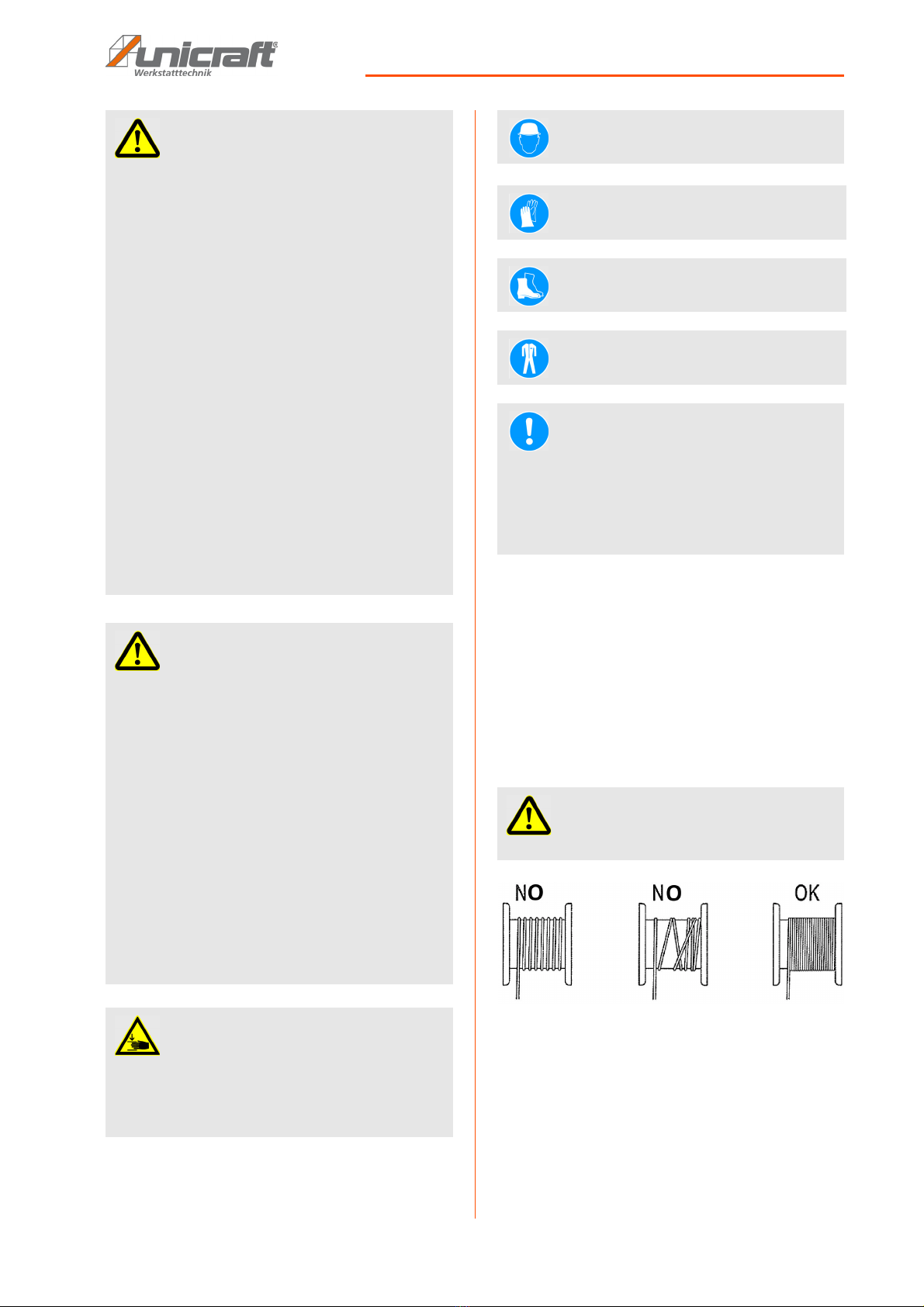

Abb. 4: correct winding of the cable
DANGER!
Danger of life by crashing the load!
Falling loads can cause serious injury or death.
- Never stand, linger or work below a suspended
load.
- Loads may only be moved under supervision.
- A load must not be lifted by the wire rope hoist if it
is slipping, falling or if its component parts are not
secured firmly together.
- A rusted or damaged wire rope hoist must never be
used.
- A load lifted by the wire rope hoist should not be left
unattended.
- Care should be taken during lifting that the opera-
tor does not stand within the working range of the
load.
- When leaving the workplace, lower the load.
- Unsuitable suspension points can fail and the load
may drop. The wire rope hoist load hook should
only be secured to suitable suspension points on
the load.
- Under no circumstances may a load be subjected
to a heavy blow or collision.
ATTENTION!
- Do not carry people on the wire rope hoist.
- Do not move loads which exceed the maximum
load-bearing capacity of the wire rope hoist (see
type plate).
- Never use the wire rope hoist with damaged or
kinked cable.
- The wire rope hoist must not be used for moving
jammed or wedged loads.
- Avoid over-use of jog control (repeated short im-
pulses to the motor).
- Do not change the direction of movement sud-
denly.
- In order to prevent accidents and to minimise strain
on the wire rope hoist, never leave a heavy load
suspended for a lengthy period of time.
CAUTION!
Risk of crushing!
Injuries to hands and fingers may result from
improper use of the electric wire rope hoist.
- Never grasp the cable while the equipment is in op-
eration.
Head protection must be worn!
Use protective gloves!
Use protective boots!
Wear protective clothes!
NOTE!
- Operating personnel must be familiar with the oper-
ation and functions of the wire rope hoist and the
safety regulations pertaining to it.
- The operator is responsible for ensuring that all op-
erating personnel have had the necessary training.
ATTENTION!
Ensure that the cable is rolled up evenly.

10 ESW 900 | Version 2.04
Operation
8.1 Operating conditions
The working area must be dry, fire and explosion pro-
tected and free of any corrosive or poisonous sub-
stances.
The wire rope hoist must not be used to lift or move dan-
gerous goods such as molten, poisonous or radioactive
materials.
The appliance must not be used in the open air if it is
raining.
Before starting to work ensure that the control switch is
in the OFF position and that the cable is not overlapping
about each other on the reel.
Also leave in fully extended condition always at least 2
turns on the cable reel, so as not to damage the rope.
When the wire rope hoist does not pull a weight at once,
so switch off the wire rope hoist immediately.
Ensure that the cable isn‘t moved out more than 15° or
rather is pulled over sharp edges. Ensure also that the
cable isn‘t fixed in a way crossing sharp edges.
8.2 Test run
Before using the wire rope hoist to lift a load, a no-load
test should be carried out to test all functions. In particu-
lar, the function of the raising and lowering limits should
be tested.
8.3 Raising a load
Step 1: Check that the winch is in perfect and undam-
aged condition.
Step 2: Check that the voltage of the voltage source is a
12 V direct current.
Step 3: Connect the crocodile clips to a 12 V battery.
The red cable with the positive pole and the
black cable with the negative pole of the bat-
tery.
Step 4: Function test: Pull the cable at the load hook a
few metres out and check, whether the wire
rope hoist pulls back the cable in, after you
have touched the button on the control bar.
Step 5: Attach the wire rope hoist hook to a suitable sus-
pension point on the load and check that the
safety catch on the hook is closed.
EKZT Series
Temperature range [°C] from 0 to +40
Humidity max. 60%
Operating environment non-combustible, dry
and dust-free
ATTENTION!
The wire rope hoist may only be connected to 12 V
DC!
ATTENTION!
- Take care that no person is in vicinity or in line of
the cable behind the wire rope hoist, when the wire
rope hoist is under load.
- Make sure that the route of load is free from barri-
ers.
NOTE!
- The cable must not be unwound completely! At
least 2 turns must remain on the reel.
- Do not wrap the load cable around the load.
- Check the location of the centre of gravity in order
to prevent the load from slipping or moving.
- The means of attachment (eyelet, cable or similar)
must sit loosely in the base of the hook.
- The point of the hook must not bear the load.
- Close the safety catch.

Care, maintenance and repair
ESW 900 | Version 2.04 11
Step 6: Push the button of the electrical entry and push it
as long until the cable is tensioned.
Step 7: Raise the load only a little way initially and check
that the cable and load are stable.
Step 8: Raise the load slowly and steadily upwards.
Step 9: Open the safety device of the load hook and
take down the load.
9 Care, maintenance and repair
9.1 Care by cleaning
The electric wire rope hoist must always be kept in a
clean condition.
All plastic and lacquered surfaces should be cleaned
using a soft, damp cloth and a neutral cleaning agent.
Remove any excess lubricant or leaked oil using a dry,
lint-free cloth.
9.2 Maintenance and repair
If the electric wire rope hoist is not functioning properly,
contact a specialised dealer or our customer service.
Please find the contact data on chapter 1.2 Customer
service.
Immediately reassemble all protective and safety equip-
ment after completing the repair and maintenance of the
device.
Maintenance plan
If an increase in wear is noted during regular inspec-
tions, the maintenance intervals should be decreased in
accordance with the actual signs of wear. Contact the
manufacturer for further information concerning mainte-
nance tasks and intervals. Please find the contact data
on chapter 1.2 Customer service.
Step 1: Lubricate all moving parts of the wire rope hoist
(gears, bearings) with good quality grease.
Step 2: Check the wire rope hoist before each operation
for visible signs of wear.
Step 3: Always ensure that all safety information on the
wire rope hoist is clearly legible.
NOTE!
- Suspension hooks and load hooks becomes dis-
torted if overloaded; there is no brittle fracture.
Use protective gloves!
NOTE !
Never use strong cleaning agents to clean the de-
vice. Such cleaning agents might damage or destroy
the device.
NOTE !
Oil, grease and cleaning agent are endangering the
environment and must not be given into the waste
water or into the normal household waste. Dispose
these cleaning agents environmentally friendly. The
cleaning rags that are impregnated with oil, grease or
cleaning agent are easily flammable. Collect the
cleaning rags or the cleaning wool in one suitable,
closed container to ensure that they are disposed of
environmentally friendly.
- Do not throw them into the normal household waste.
ATTENTION!
- Maintenance and repair works must only be per-
formed by specialists.
- Use only original spare parts in case of a repair.

12 ESW 900 | Version 2.04
Care, maintenance and repair
Visual inspection and maintenance
Checking the load cable for wear
The wire rope hoist is subjected to periodic mainte-
nance and supervision. In many cases is the procedure
of monitoring regulated in norms and directives (e.g.
DIN 15020 paper 2 ,, principles of wire rope hoist, moni-
toring and use“).
The typical evaluation criteria described in norms with
regard the wire rope discard in case of e.g. wire break,
wire break nests, strand breakages, structural changes,
mechanical wear or corrosion can be assessed by ap-
propriate qualified specialists, which are trained in
maintenance and assessment of cranes.
Continuous monitoring of the hoist in compliance with
DIN 685 Part 5 and UVV BGV D8 Section 27 (VBG 8
Section 27) is a compulsory requirement. The load ca-
ble should be inspected before starting up and under
normal operating conditions after about 200 operating
hours or 10,000 load cycles, under heavy operating
conditions at shorter intervals.
Particular checks should be made on the links, espe-
cially contact points, for wear, deformation, wire breaks,
structural changes, corrosion and other damage.
The cable guide should be checked when changing the
cable and replaced if necessary.

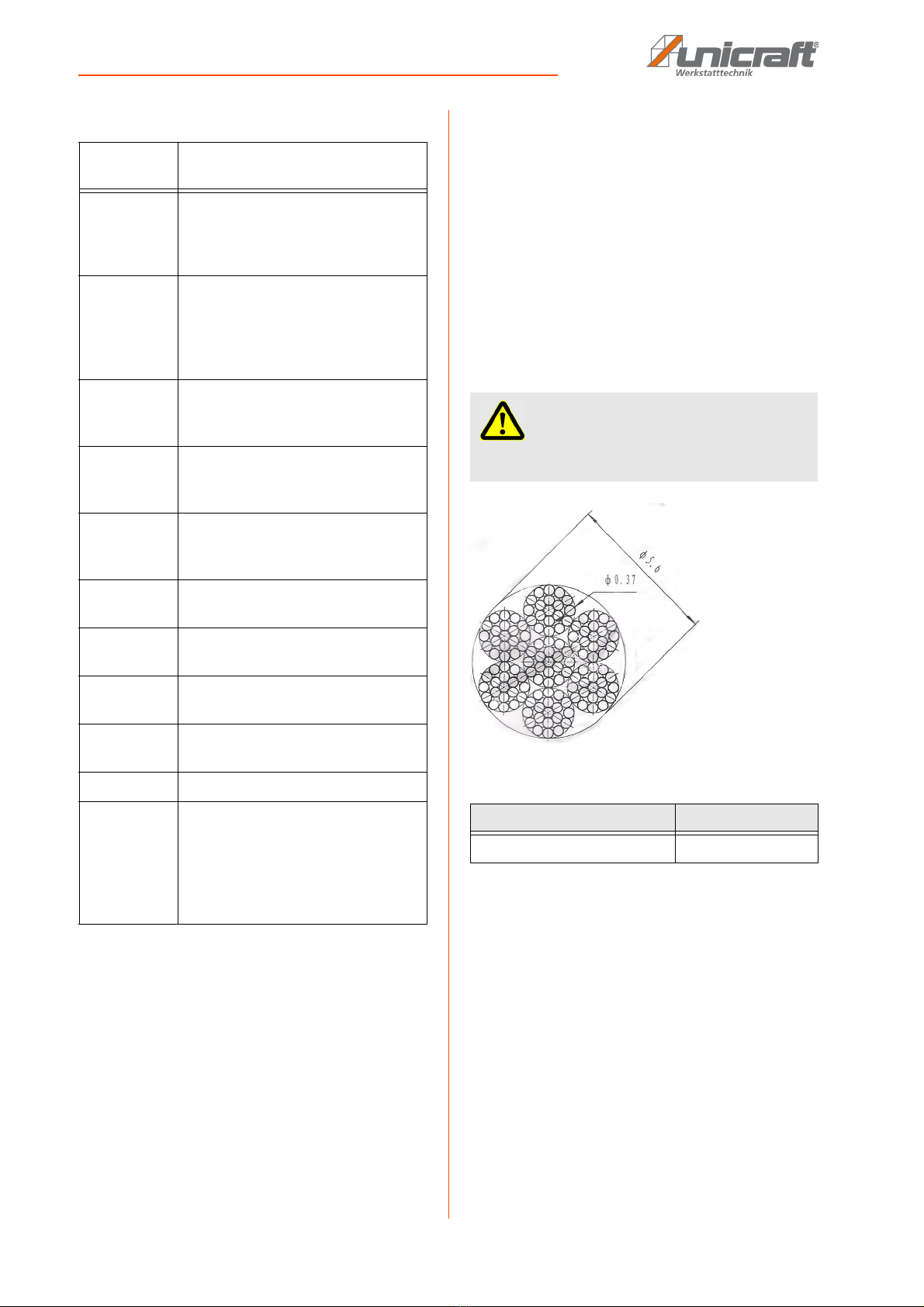

Fig. 5: Steel cable
Maintenance
intervals
Maintenance tasks
before each
operation
Check wire rope hoist for damage
and wear, look particularly at the ca-
ble and check for deflection, stretch-
ing, fissures or corrosion.
Check the load and suspension
hooks for wear or loss of substance
from abrasion. If the wear exceeds
10% of the normal working level, the
hook must be replaced.
Check the switch for function and do
a visual inspection of the connection
cable.
following
each opera-
tion
Clean the wire rope hoist thoroughly
and lubricate well. Oil the load hook
well.
every 40
hours
Function check of the coupling.
Clean it if necessary.
every 200
hours
Check and measure the amount of
wear on the cable and load hook.
every 200
hours
Check and measure the amount of
wear on the coupling.
as required Replacing the cable and the load
hook
as required Replacing the switch and connection
cable
as required Replacing the coupling
annually Safety check: If the wire rope hoist is
used commercially it must be in-
spected annually in compliance with
industrial safety regulations and the
inspection must be recorded as per
Section 10.
ATTENTION!
Only use original spare parts of the manufacturer or
spare parts admitted by the manufacturer.
Model ESW 900
cable diameter [mm] Ø 5,6

Care, maintenance and repair
ESW 900 | Version 2.04 13

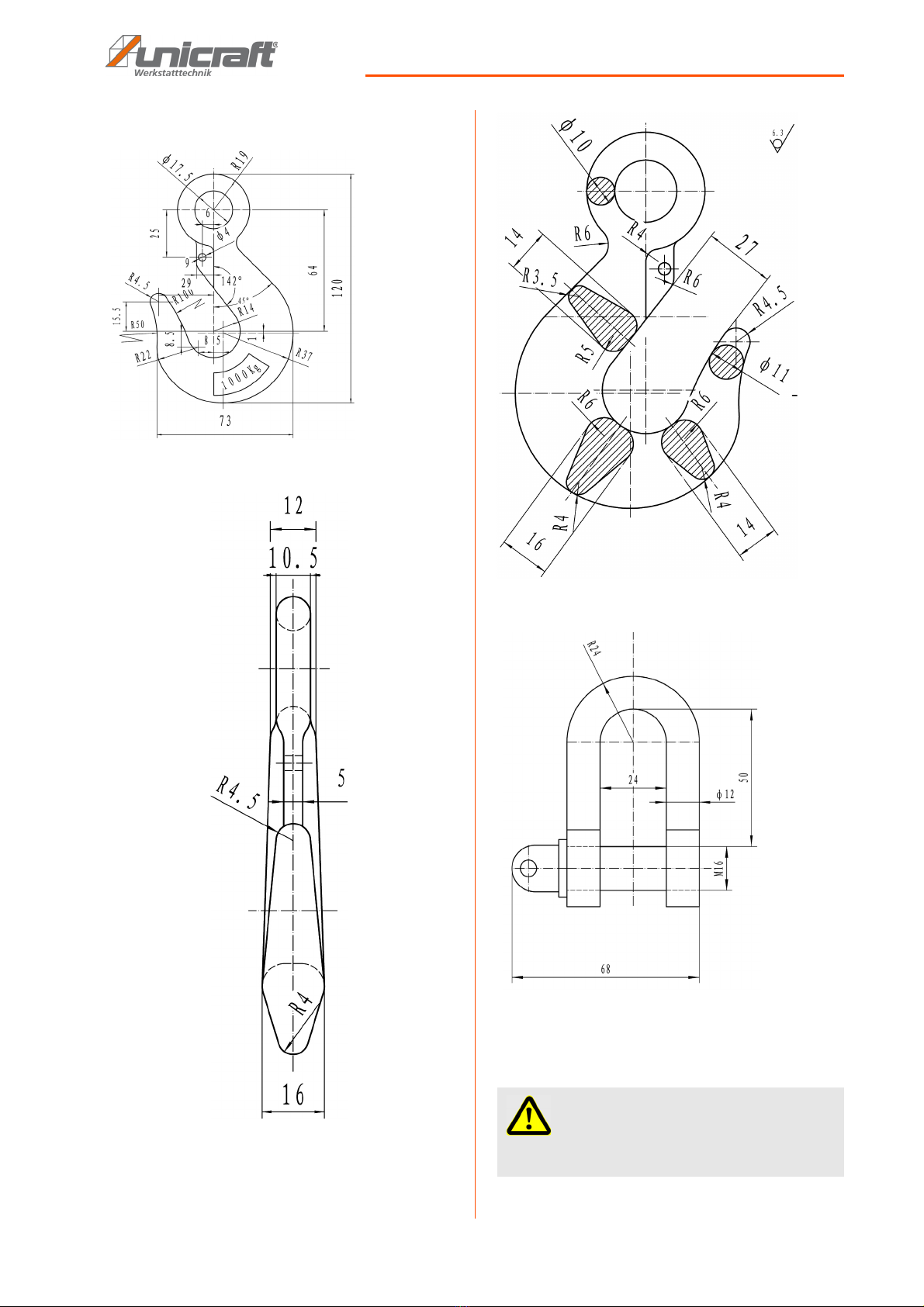

Wear measurement and replacement of load hooks
Fig. 6: Dimension of the hook - part 1
Fig. 7: Dimension of the hook - part 2
Fig. 8: Dimension of the hook - part 3
Fig. 9: Dimension of the hook - part 4
According to DIN 15405 Part 1, the load hook should be
replaced if it has widened by more than 10%.
ATTENTION!
Only genuine replacement parts from the manufac-
turer of the wire rope hoist should be used.

14 ESW 900 | Version 2.04
Testing the wire rope hoist
10 Testing the wire rope hoist
The electric wire rope hoist can be used after: UVV
"Winches, lifting and pulling equipment" BGV D8 (VBG
8), UVV "Cranes" BGV D6 (VBG 9).
Testing in compliance with BGV D8 Section 23 (VBG 8
Section 23) by a specialist before commissioning and
following major changes.
Testing in compliance with BGV D6 Section 25 (VBG 9
Section 25) by an authorised expert before commission-
ing and following any major changes.
Annual repeat testing of equipment, crane and support-
ing structures by a specialist. Where equipment is sub-
ject to heavy operational conditions (e.g. frequent oper-
ation with a full load, dusty or aggressive environment,
frequent stopping, long operation time) the testing inter-
vals should be reduced.
- With regard to testing cranes, experts are exclu-
sively TÜV experts or experts authorised by pro-
fessional bodies or associations.
- Specialists are customer service installers em-
ployed by the manufacturer or specially trained
specialist personnel.
Evidence of wire rope hoist testing should be kept in an
inspection log book.
Testing is generally a visual and functional test. It in-
cludes an inspection of the condition of the components
and equipment, the completeness and functionality of
the safety equipment and the completeness of the log
book.
11 Disposal, recycling of used devices
Please take care in your own interest and in the interest
of the environment that all component parts of the ma-
chine are only disposed of in the intended and permit-
ted way.
11.1 Decommissioning
Immediately decommission disused machines in order
to avoid later misuse and endangering of the environ-
ment or personal safety.
Step 1: Eliminate all environmentally hazardous operat-
ing materials from the used device.
Step 2: If required, disassemble the machine into easy-
to-handle and usable components and parts.
Step 3: Dispose of machine components and operating
materials by the disposal channels provided.
11.2 Disposal of lubricants
Remove any leaking, used or excessive grease at the lu-
bricating points.
Disposal notes for used lubricants are available from the
manufacturer of the lubricants. If necessary, request the
product-specific data sheets.
12 Fault finding
Failures Possible cause Solution
wire rope hoist motor is not function-
ing.
1. Switch defective.
2. Motor defective.
3. Bad contact.
1. Replace switch.
2. Change motor.
3. Check contacts.
Temperature of motor too high. Long service life. File cooling phases.
Motor operates, wire rope hoist does
not operate.
1. Coupling is not engaged. When the problem occurs further-
more, inform the service.
wire rope hoist operates with too low
power or too low speed.
1. Battery power is too low.
2. Bad contact.
3. Insufficient recharge.
1. Load or replace battery.
2. Check connections.
3. Check charger and replace if nec-
essary.
Motor is wet. Humidity is too high or water ingress. Drain the water. Dry the device. After
that start the motor and let it operate
for a little while. Repeat this proce-
dure a few times.

Spare parts
ESW 900 | Version 2.04 15
13 Spare parts
13.1 Ordering spare parts
The spare parts may be purchased with the authorised
dealer or directly with the manufacturer. Please find the
corresponding contact data in Chapter 1.2 Customer
service.
Indicate the following basic information for requests or
orders of spare parts:
- Type of device
- Item No.
- Position No.
- Year of construction:
- Quantity
- Required mode of dispatch (mail, freight, sea, air,
express)
- Address of dispatch
Spare part orders which do not include the above indi-
cations may not be taken into consideration. If the indi-
cations regarding the mode of dispatch are missing, the
product is dispatched at the discretion of the supplier.
You will find information regarding the device type, item
No. and year of manufacture on the type plate fixed to
the electric wire rope hoist.
Example
Load hooks for the electric wire rope hoist must be or-
dered.
- Type of device: Electric wire rope hoist ESW 900
- Item number:6190900
- Position No.: 18
The order No. is: 0-6190900-18
The order number consists of the item number, the posi-
tion number and one digit in front of the item number.
- Place the digit 0 in front of the item No.
- Also place the digit 0 in front of the position No 1
through 9.
The item No. of your device:
Electric wire rope hoist ESW 900: 6190900
DANGER!
Danger of injury by the use of wrong spare
parts!
Dangers may result for the user and damages as
well as malfunctions may be caused by using wrong
or damaged spare parts.
- Only use original spare parts of the manufacturer or
spare parts admitted by the manufacturer.
- Always contact the manufacturer in case of uncer-
tainties.
Tips and recommendations
The manufacturer's warranty will become null and
void if non-permissible spare parts are used

16 ESW 900 | Version 2.04
Spare parts
13.2 Spare parts drawing
In case of service, the following drawing shall help to identify the necessary spare parts. If necessary, send a copy of
the parts drawing with the marked components to your authorised dealer.
Fig. 10: Spare parts drawing

Spare parts
ESW 900 | Version 2.04 17
13.3 Electrical wiring diagram
ESW 900
Fig. 11: wiring diagram ESW 900

18 ESW 900 | Version 2.04
LAUFENDE K/F 1
14 EC Declaration of Conformity
According to machine directive 2006/42/EC Annex II 1.A
Manufacturer/distributing company: Stürmer Maschinen GmbH
Dr.-Robert-Pfleger-Str. 26
D-96103 Hallstadt
herewith declares that the following product
Product group: Unicraft® Werkstatttechnik
Designation of the machine: ESW 900
Serial number: 6190900
Machine type: Electric wire rope hoist
Serial number: ______________________
Year of manufacture: 20_____
complies with all relevant provisions of the above mentioned directive as well as the other applied directives (below) -
including their applicable modifications at the time of the declaration.
EU directives: 2014/30/EC Low voltage directive
The following harmonized standards were applied:
DIN EN 14492-1:2010 Crane - Power-driven winching and lifting gear -
Part 1: Power-driven lifting gear
DIN EN ISO 12100-1:2011 Safety of machines - General principles of design -
Risk evaluation and risk reduction
Person responsible for the documentation: Technical services, Dr.-Robert-Pfleger-Str. 26, D-96103 Hallstadt
Hallstadt, 18/04/2016
______________________
Kilian Stürmer
Manager

Maintenance plan
ESW 900 | Version 2.04 19
15 Maintenance plan
Maintenance plan ESW 900
40 h 200 h 200 h As nec-
essary
As nec-
essary
As nec-
essary
annu-
ally
Function test coupling; cleaning as necessary wear test coupling Measurement of wear Cable, hook Replacement switch, connection cable Replacement coupling Replacement Cable, hook Safety check wire rope hoist
Date operating
hours
Employee Signature
