Welcome/Features/
Terminology
Welcome/Features/Terminology [2] www.uniden.com

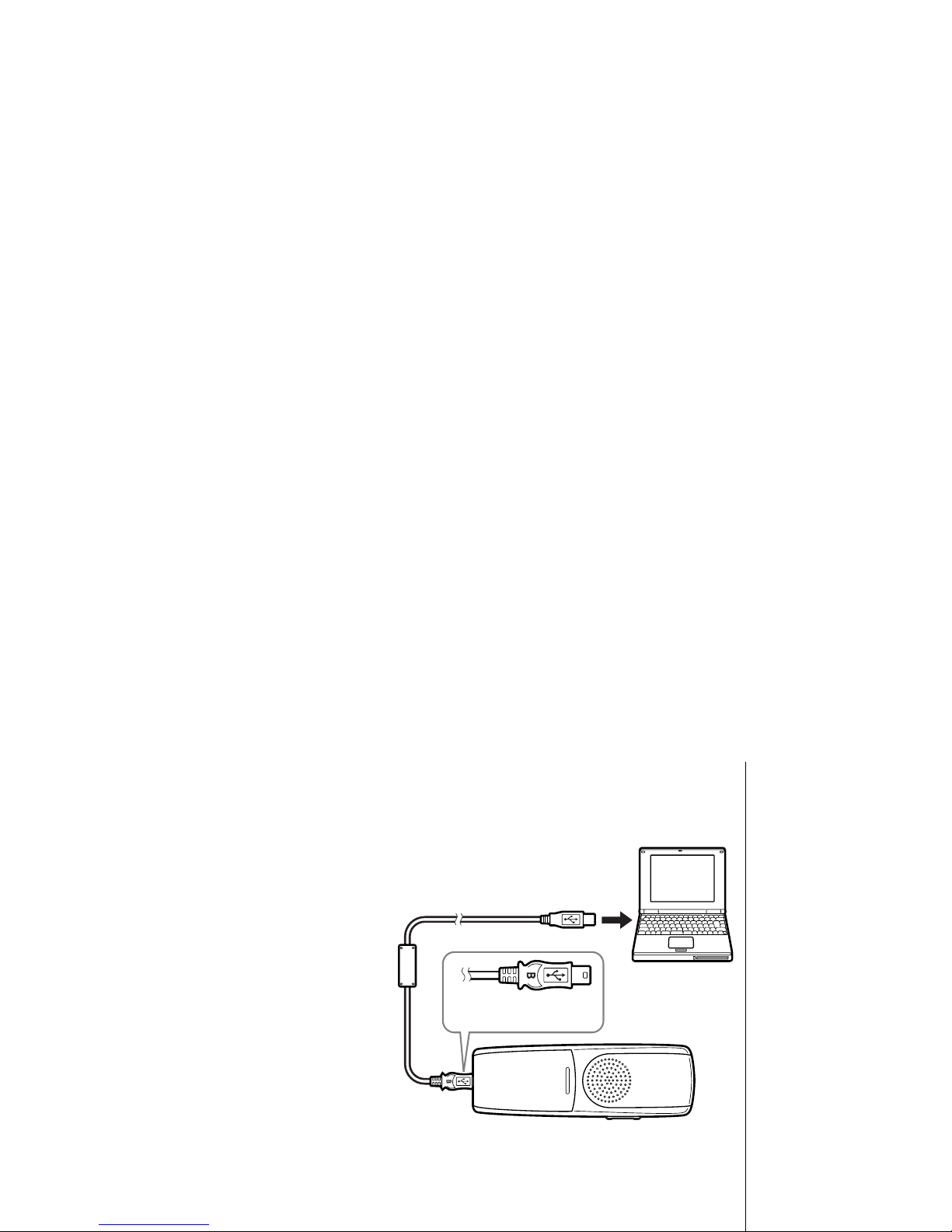

Thank you for purchasing a Uniden Multi-Handset phone. The USB connection lets
you use your personal computer to edit your phonebook, download schedule
reminders, and even import contacts from Microsoft Outlook.
Note: Illustrations in this manual are used for explanation purposes. Some
illustrations in this manual may differ from the actual unit.
As an Energy StarPartner, Uniden has determined that this product or product
models meets the Energy Starguidelines for energy efficiency.
Energy Staris a U.S. registered mark.
• 5.8GHz Digital Expandable System
• Caller ID/Call Waiting Deluxe Options
• Customize Handset Profiles Using Personal Computer
• 100 Phonebook Names (4 Numbers Per Name)
• Downloadable Images
• Recordable Ringer Tones
• Calendar with Schedule Reminder Capability
• Battery Backup During Power Failure (optional)
Unidenis a registered trademark of Uniden America Corporation. AutoStandby,
DirectLink, IntegriSound and Random Code are trademarks of Uniden America.
Microsoft and Windows are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Welcome
Features
Welcome/

Welcome/Features/
[3] Welcome/Features/Terminology www.uniden.com
Terminology
•Standby mode: The handset is not in use. If it is off the cradle, no line has been activated. No dial
tone is present.
•Talk mode: A telephone line has been activated on the handset, enabling a dial tone.
Accessibility
Uniden provides a customer service hotline for accessibility questions. If you have a disability and need
customer service assistance or if you have any questions about how Uniden's products can accommodate
persons with disabilities, please call the accessibility voice/TTY line:
1-800-874-9314
A representative is available to talk to you M-F, 8:00 am to 5:00 pm, CST. After hours, you can leave us a
message, and we will call you back. Information is also available on our website, www.uniden.com, under
the "Accessibility" link.

Controls & Functions
Controls & Functions [ 4] www.uniden.com
Controls & Functions

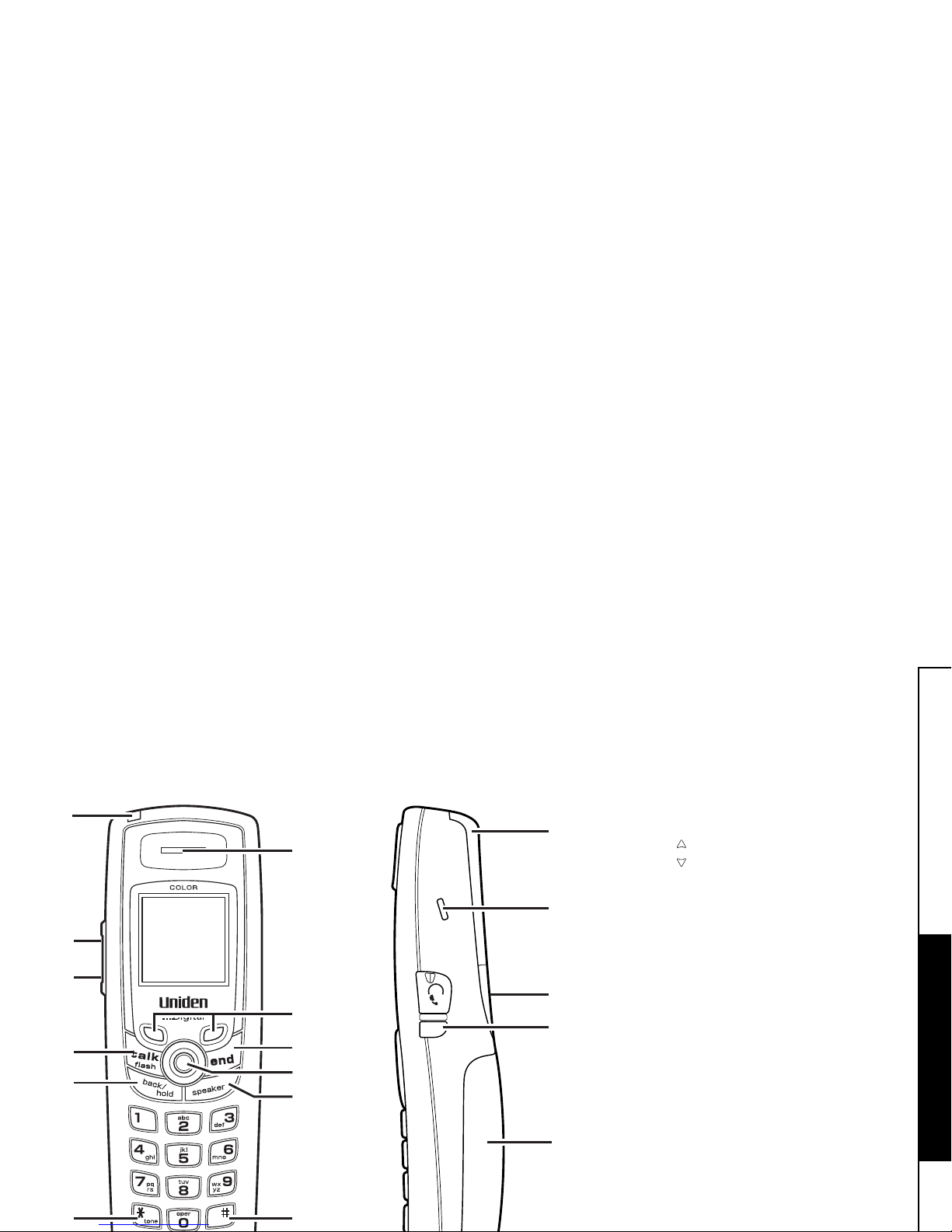

1.New Message LED
2.Volume (up) (P. 46)
3.Volume (down) (P. 46)
4.Talk/flash (P. 37 & 40)
5.Back/hold/intercom
(P. 21, 41 & 63)
6.
*
/tone (P. 60 & 47)
7.Ear Speaker
8.Soft menu keys (P. 20)
9.end (P. 39)
10.Joystick (P. 21)
11.Speaker Phone (P. 38)
12.# (P. 60)
13.Handset Microphone
14.Handset Charging Contacts
15.Handset Antenna
16.Beltclip Hole
17.Speakerphone Speaker and Ringer
18.Headset Jack
19.Handset Battery Compartment
20.USB jack
1
2
3
4
5
8
7
13
14
10
11
9
17
19
18
16
15
20
6 12

[5] Controls & Functions www.uniden.com
22
23
21 24 25 26 2827
38 39 40
43
44
31 42
32
33
34
35
36
37
41
30
29

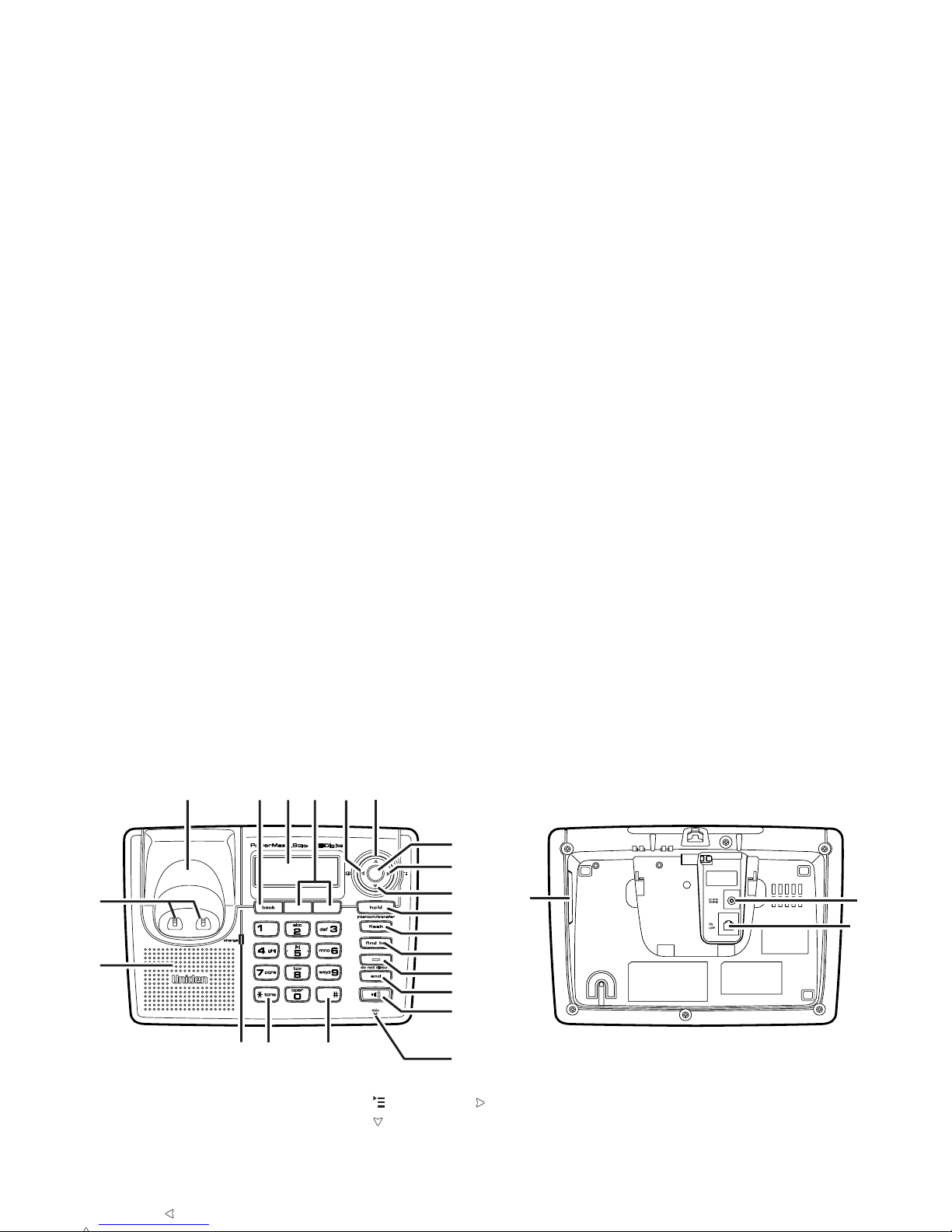

21. Base Antenna
22. Base Charge Contacts
23. Base Speaker
24. Back (P. 21)
25. LCD Display
26. Soft Menu keys (P. 20)
27. Phonebook/ (P. 52 & 21)
28. /Speaker Volume Up
(P. 21 & 44)
29. Menu/select (P. 21)
30. (Caller ID)/ (P. 60 & 21)
31. /Speaker Volume Down
(P. 21 & 44)
32. Hold/intercom/transfer
(P. 41 & 63 & 64)
33. Flash (P. 40)
34. Find hs (P. 48)
35. Do not disturb (DND) (P. 47)/
Dnd LED
36. End (P. 39)
37. Speaker (P. 38) /
Speaker LED
38. Handset charge LED
39.
*
/tone (P. 47 & 60)
40. # (P. 60)
41. Base Microphone
42. Backup Battery Compartment
43. DC IN 9V Jack
44. TEL LINE Jack

Setting up the Phone
Setting up the Phone [6] www.uniden.com
Setting up the Phone
Choose the best location
When choosing a location for your new phone, here are some important guidelines
you should consider:
• The location should be close to both a phone jack and a continuous power outlet (one
which is not connected to a switch).
• The base and handset should be kept away from sources of electrical noise such as motors,
Microwave ovens, and fluorescent lighting.
• For better reception, place the base as high as possible.
• The base should be placed in an open area for optimum range and reception.
• If your home has specially wired alarm equipment connected to your phone line, be sure
that installing the system does not disable your alarm equipment.
• If you have questions about what will disable alarm equipment, contact your telephone
company or a qualified installer.
• The base should be placed in an open area for optimum range and reception.
For maximum range:
•Do not hold the
handset where you
might block the signal.
•Metal and reinforced
concrete may affect
cordless telephone
performance.
note
Correct
Incorrect
Antenna

Setting up the Phone
[7] Setting up the Phone www.uniden.com
Optional Battery Backup Feature
The battery backup allows you to make and receive calls during a power failure. You
can use any handset or the base, just as you would normally.
Install the backup battery in the base
1) Open the battery case cover by pressing in slightly on the
right side of the base as shown.
2) Place the battery pack in the battery compartment with the
connectors on the battery and on the compartment aligned.
3) Push in the battery compartment.
• appears in LCD as
a warning that the
backup battery pack is
NOT installed in the
base unit.
•To use the backup
battery Feature you
need to connect the AC
adapter to the base,
and charge the base
battery for at least 24
hours.
•Use only the Uniden
(BT-0003) rechargeable
battery pack. The
battery may be
purchased by calling
Uniden's Parts
Department
(see back cover page).
note

Setting up the Phone
Setting up the Phone [8] www.uniden.com

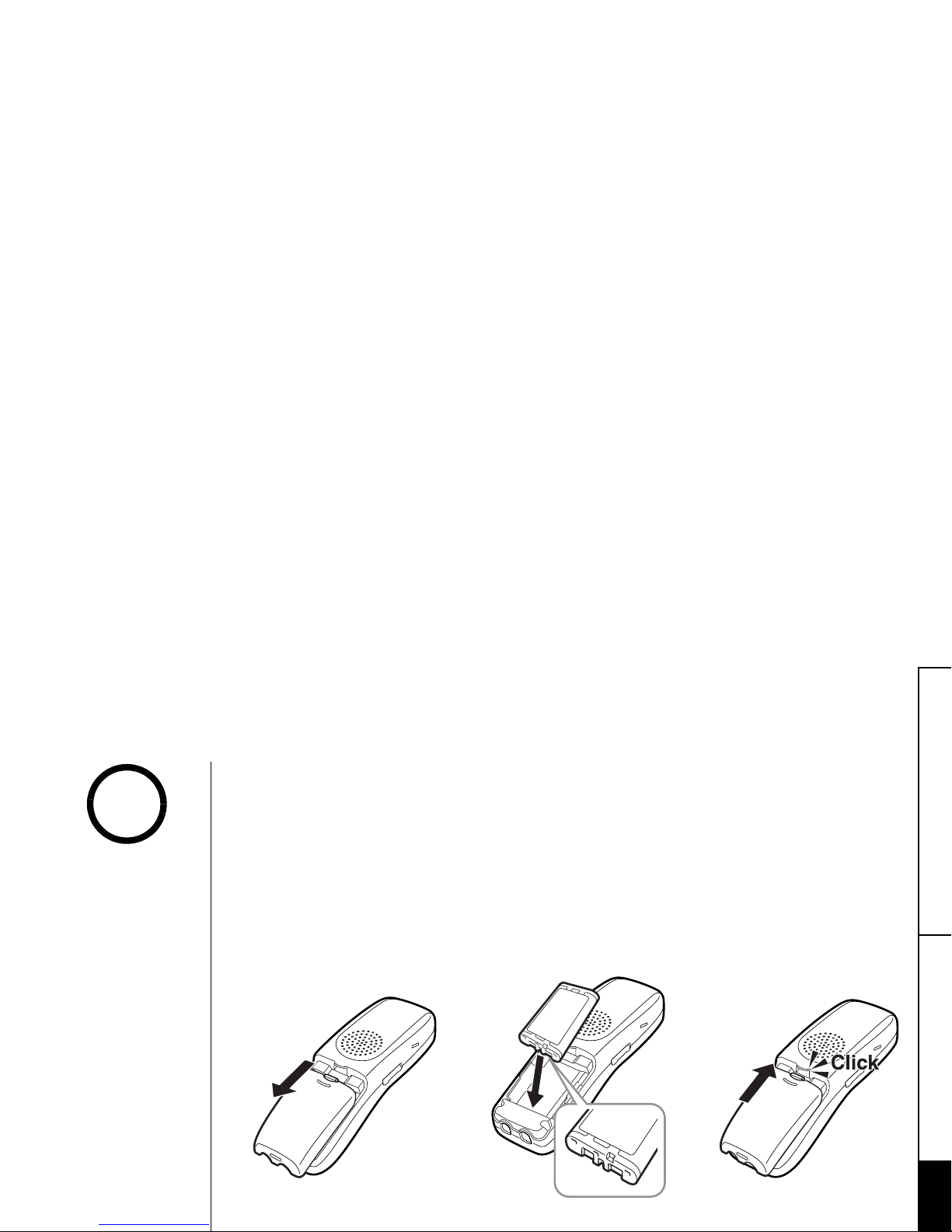

Install the rechargeable battery pack

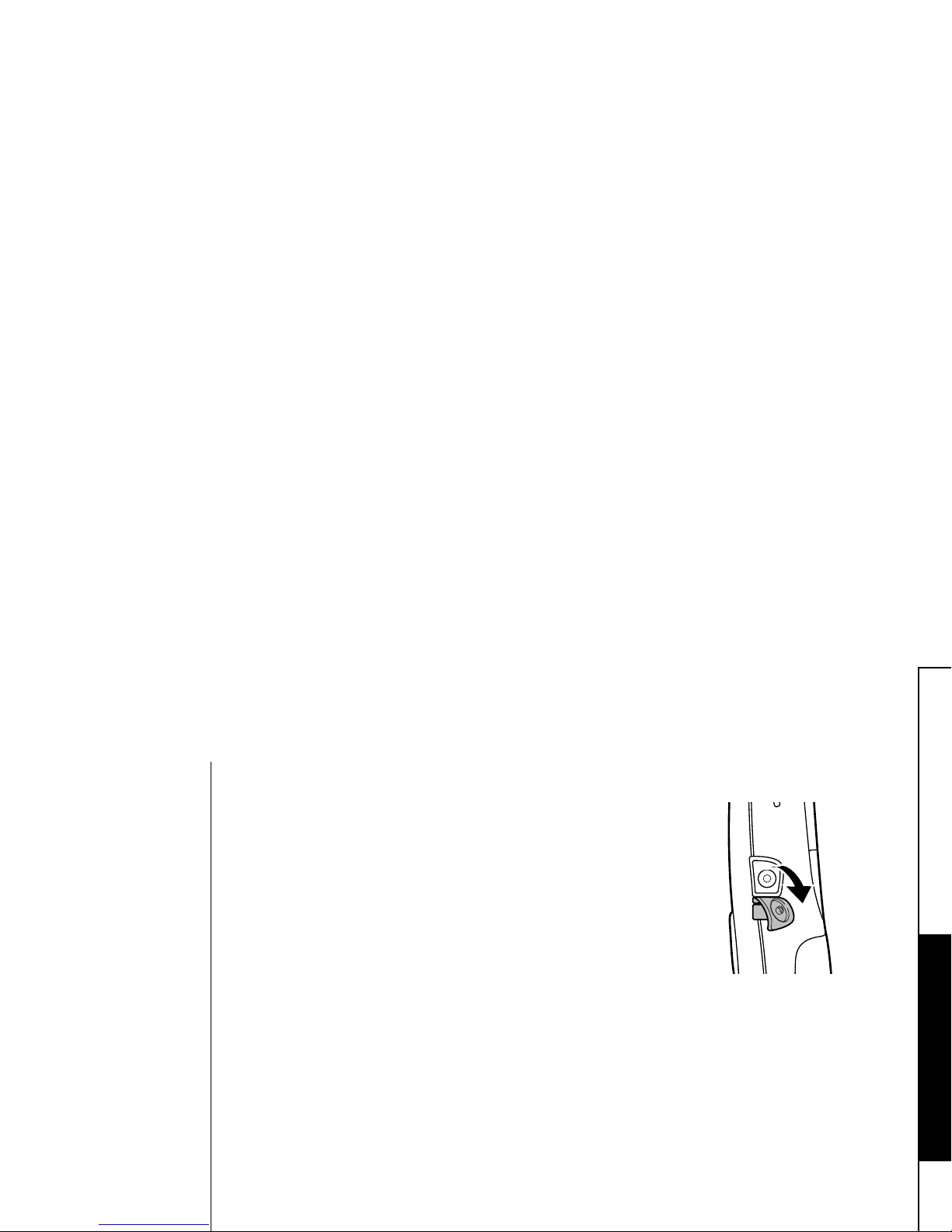

1) Press down on the handset battery case cover (use the finger indention for a better grip)
and slide the cover downward to remove.
2) Place the battery pack in the battery compartment with the connectors on the battery and
on the compartment aligned.
3) Place the battery case cover back on the handset and slide it upwards until it clicks into
place.
Use only the Uniden
(BT-0003)
rechargeable battery
pack supplied with
your cordless
telephone.
note

Setting up the Phone
[9] Setting up the Phone www.uniden.com
Low battery alert
When the battery pack is very low, the phone is programmed to eliminate functions
in order to save power.
The battery pack needs to be charged when:
- The empty battery icon appears.
-
Low Battery appears in the display.
If the phone is in standby mode, none of the keys will operate. If
you are on a call, complete your conversation as quickly as
possible, and return the handset to the cradle.
Cleaning the battery charging contacts
To maintain a good charge, clean the charging contacts on the handset once a
month. Dampen a cloth with plain water. Gently rub the damp cloth over the
charging contacts until all visible dirt is removed. Dry the contacts thoroughly
before returning the handset to the cradle.
Caution: Do not use paint thinner, benzene,
alcohol, or other chemical products. Doing so
may discolor the surface of the telephone
and damage the finish.
570#
.QY$CVVGT[
•Even when the battery
pack is not being used,
it will gradually
discharge over a long
period of time.
•For optimum
performance, be sure
to return the handset
to the cradle after
each telephone call.
•If the handset is left
off the base, the actual
talk mode duration will
be reduced respective
to the amount of time
the handset is off the
cradle.
note

Setting up the Phone
Setting up the Phone [10] www.uniden.com
Connect the base and charge the handset

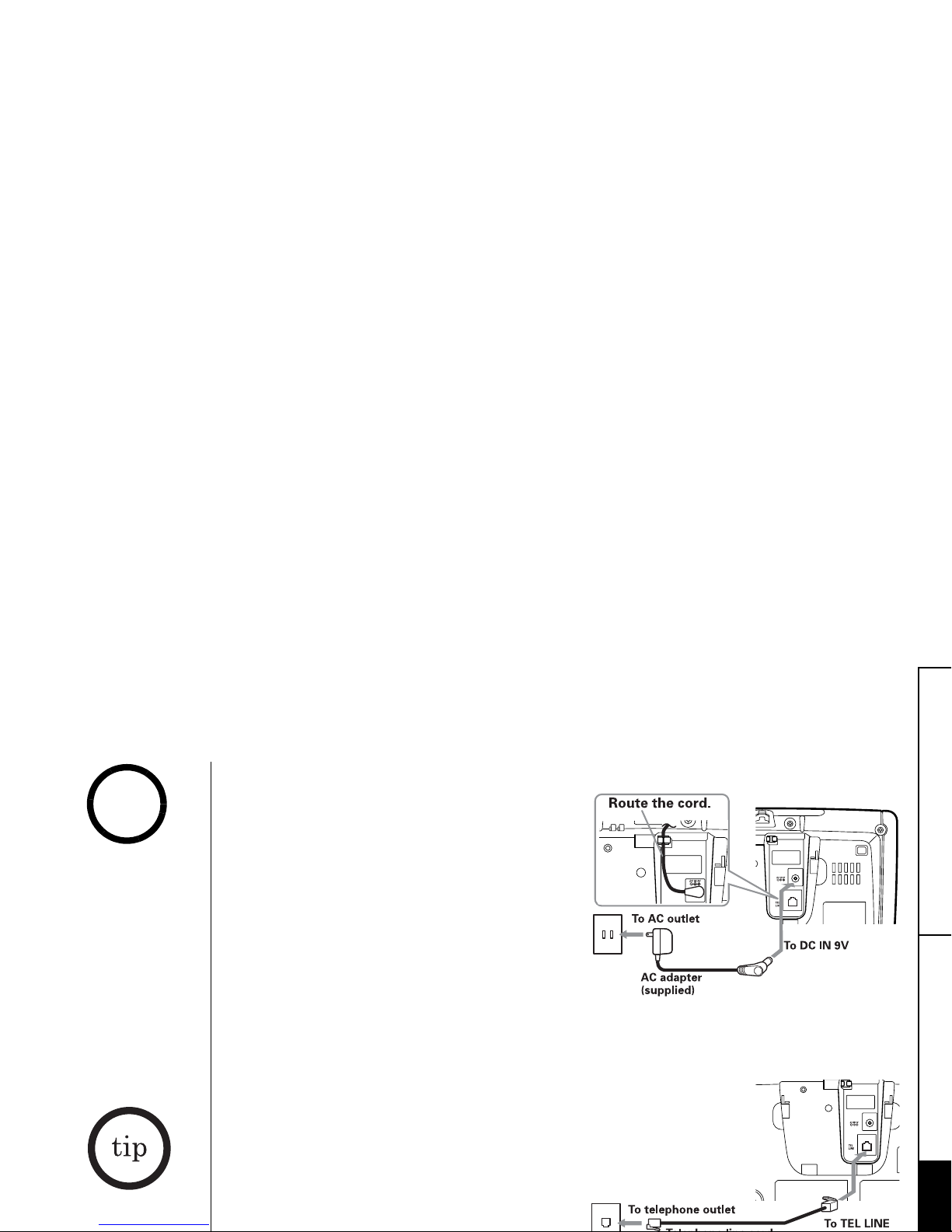

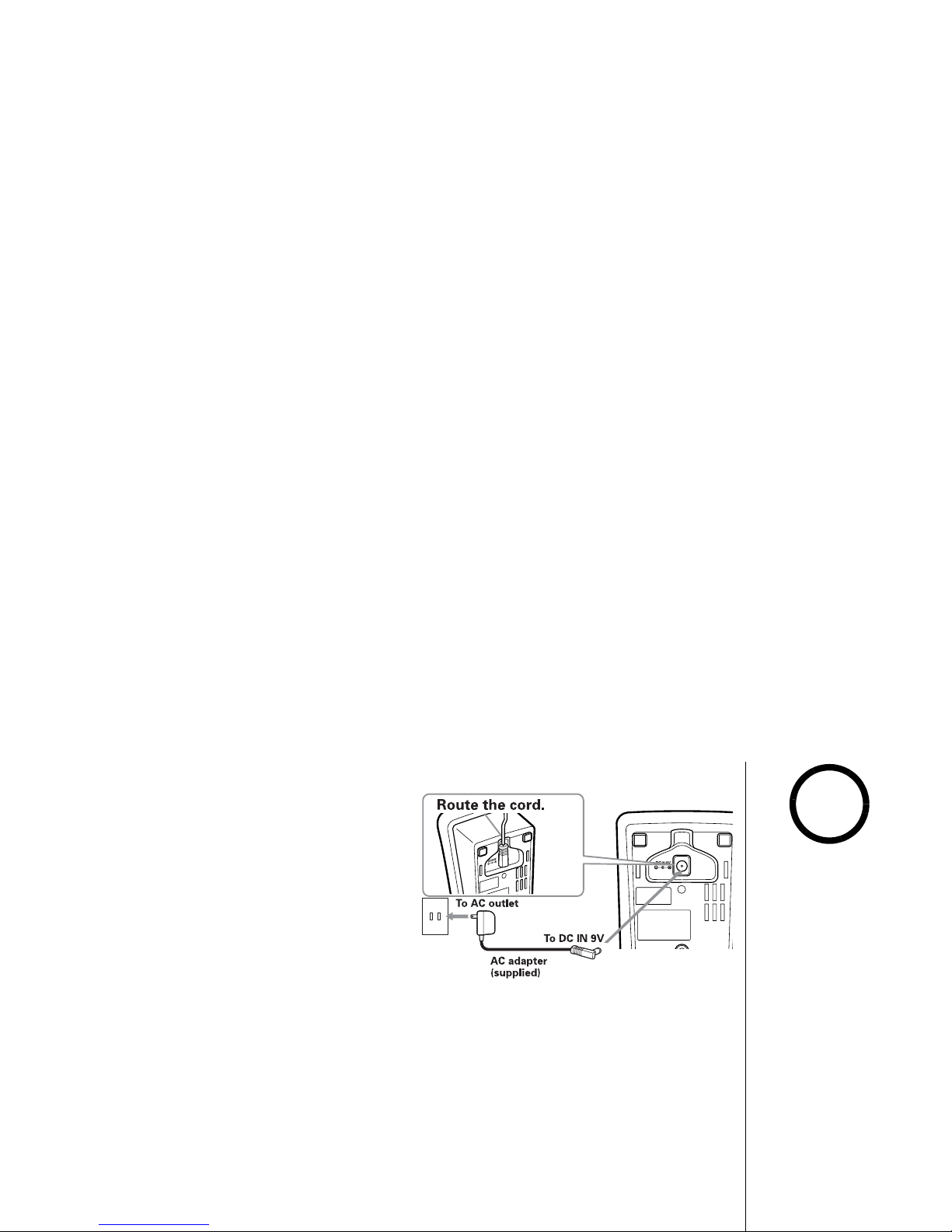

1) Connect the AC adapter to the DC IN 9V
jack.
Place the base close to the AC outlet to
avoid long extension cords.
2) Connect the AC adapter to a continuous
power supply (i.e., an outlet that is not
controlled by a switch).
3) Close the handset and place it in the base
with the handset facing forward.
4) Make sure that the charge LED illuminates.
If the LED does not illuminate, check to see that the AC adapter is plugged in and the
handset makes good contact with the base charging contacts.
5) Charge your handset at least 15 hours before plugging into the phone line.
6) Once the handset battery pack is fully
charged, connect the telephone line cord to
the TEL LINE jack and to a telephone
outlet.
• Use only the supplied
AD-0006 AC adapter.
Do not use any other
AC adapter.
•Do not place the power
cord where it creates a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.
•Don't place the base in
direct sunlight or
subject it to high
temperatures. The
battery may not charge
properly.
If your telephone
outlet isn't modular,
contact your
telephone company.
note

Mounting the Base Unit on a
[11 ] Mounting the Base Unit on a Wall www.uniden.com
Mounting the Base Unit on a Wall
Standard wall plate mounting

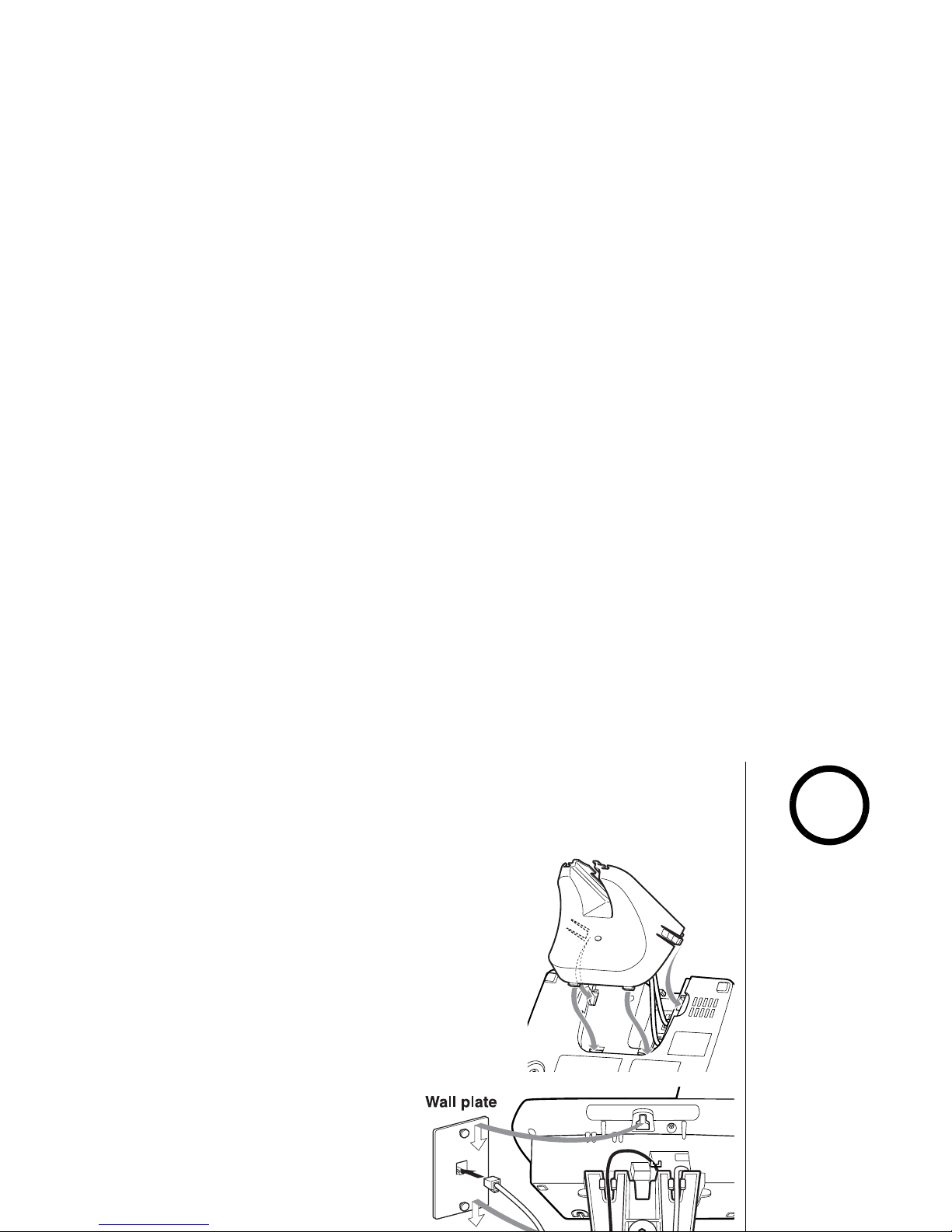

This phone can be mounted on any standard wall plate.
1) Plug the AC adapter into the DC IN 9V jack.
2) Plug the telephone line cord into the TEL
LINE jack.
Wrap the cord inside the molded wiring
channel as shown.
3) Snap the wall mount adapter into the
notches on the base top.
4) Wrap the AC adapter cord and telephone
line cord inside the molded wiring channel
as shown.
5) Plug the AC adapter into a standard 120V
AC wall outlet.
6) Plug the telephone line cord into the
telephone outlet.
7) Align the mounting slots on the base with
the mounting posts on the wall. Then push
in and down until the phone is firmly
seated.
DO NOT use an AC
outlet controlled by a
wall switch.
!

Expanding Your Phone
Expanding Your Phone [12] www.uniden.com
Expanding Your Phone
Your phone can support a total of
ten handsets. Expansion handsets
do not need to be connected to a
phone jack, and allow you to use
additional features such as
DirectLink Mode and up to 4-way
conference calling. Expansion
handsets need to be registered to
the base before they will operate.
Backwards/Forwards Compatibility
Your phone is compatible with other Uniden 5.8GHz Digital
Expandable Handsets. Compatible models include the TCX400,
TCX440, ELX500, TCX805, and TCX860. (Please check
www.uniden.com for an updated list of expansion handsets
compatible with this series.)
10 Handsets
•Advanced features may
not be supported by
older handsets.
•If you have any trouble
with your phone, visit
our web site at
www.uniden.com or call
our Customer Hotline at
1- 800-297-1023 (Mon
-Fri 7 am to 7pm, Sat/
Sun 9 am to 5pm, CST).
(The Customer Service
Hotline is closed on
holidays.)
note

Expanding Your Phone
[13] Expanding Your Phone www.uniden.com
Connect the expansion handset's charger
The handset's the battery recharges
automatically when the handset is placed
in the charger.
1) Connect the AC adapter to the DC IN 9V jack
and to a standard 120V AC wall outlet.
2) Set the charger on a desk or tabletop, and
place the handset in the charger with the
handset facing forward.
3) Make sure that the charge LED illuminates.
If the LED does not illuminate, check to see
that the AC adapter is plugged in and the
handset makes good contact with the
charger charging contacts.
4) Charge the handset battery pack for at least
15 hours before using your new cordless
telephone for the first time.
Register the Handset
Handsets supplied with the phone are registered to the base by the factory. Pre-
registered handsets display a handset ID number. Handsets that have not been
registered display
MUST place the handset in base to register! Models may vary,
refer to Owners Manual for
help. in the LCD. When you register an extra handset to
the base, the handset ID will be assigned. Only one handset can be registered at a
time.
•Use only the supplied
AD-0005 AC adapter.
Do not use any other
AC adapter.
•Your phone may be
compatible with other
Uniden 5.8Ghz Digital
Expandable Systems.
Look for the technology
icon on our boxes or
visit our website for a
list of compatible
models.
note

Expanding Your Phone
Expanding Your Phone [14] www.uniden.com
Register the TCX440 and TCX400 expansion handset to main
base
Before an expansion handset is registered, the battery pack MUST be charged for 15
hours.
To register TCX440 or TCX400 handset, simply place it in the main base.
While the handset is registering,
Handset Registering will appear in the LCD. When
Registration complete. is displayed, the handset has been registered to the base. If
Registration failed. appears, please try these steps again.
To register a TCX805, TCX860, ELX500 handset, follow the steps below:
1) From the base, press menu/select and select
System
Setup
menu.
2) Select
Register Handset , and press menu/select.
3) On the handset, press and hold # until you hear a beep.
While the handset is registering,
Handset Registering will appear in the LCD. When
Registration complete. is displayed, the handset has been registered to the base. If
Registration failed. appears, please try these steps again.
5[UVGO5GVWR
)NQDCN
4GIKUVGT*CPFUGV
5'.'%6
4KPIGT

Changing the Digital
[15 ] Changing the Digital Security Code www.uniden.com
Changing the Digital Security Code
The digital security code is an identification code used to connect the handset and
the base unit. Normally, setting the code is not necessary. In the rare situation that
you suspect another cordless telephone is using the same security code, you can
change the code. To change the digital security code:
1. "System Reset" options ("De-register the Handset" and "Replacing the Base
Setting") for all the handsets you have (see page 69).
2. Re-register each handset by following the steps on page 14.
Installing the Beltclip
To attach the beltclip
Insert the beltclip into the holes on each side of the handset.
Press down until it clicks.
To remove the beltclip
Pull either side of the beltclip to release the tabs from the
holes.

Optional Headset
Installation
Optional Headset Installation [1 6] www.uniden.com
Optional Headset Installation
Your phone may be used with an optional headset.
To use an optional headset, insert the headset plug
into the headset jack. Your phone is ready for hands-
free conversations. (Headsets may be purchased by
calling Uniden's Parts Department. See back cover
page.)
Installing Uniden's Cordless Telephone
Customization Tool
This phone includes Uniden's Cordless Telephone Customization Tool for your
Windows PC. You can use this software application to completely configure your
phone, download pictures for wallpaper, and import contacts from Microsoft
Outlook.

Installing Uniden's Cordless
[17] Installing Uniden's Cordless Telephone Customization Tool www.uniden.com
NOTE: Uniden's Cordless Telephone Customization Tool requires either Microsoft®,
Windows® 98SE, Windows ME, Windows 2000, Windows XP and more than 150MB
free hard drive space.
1) Insert the Cordless Telephone
Customization Tool CD into your
computer's CD-ROM drive. The
installation application should start
automatically.
2) If the application doesn't start, go
to the Start menu and select Run.
3) In the window, type d:\autorun.exe
(where dis the letter assigned to
your CD-ROM drive), and click OK.
4) Once the software is installed,
connect the USB cable to the
handset and your PC as shown.
5) Customize your Uniden cordless
handset with your personal
preferences.
For complete instructions on using Uniden's Cordless Telephone Customization Tool,
see the help file on the CD-ROM.
To PC
To the
USB jack

Using the Interface
Using the Interface [18] www.uniden.com
Using the Interface
Example of the standby mode display
•Handset
•Base
570#
0GY%+&
Battery icon
Date, Day of the week, and time
Number of new caller ID calls received
570#
4KPIGT
0GY%+&
Day of the week and time
Number of new caller ID calls received
Ringer Volume Level

[19] Using the Interface www.uniden.com
Display Icons
ICON DESCRIPTION
Handset Base
-
Battery icons indicate the handset battery status. This icon cycles depending on
the battery status (empty, low, medium, and full).
-Ringer off icon indicates that the ringer is turned off.
Telephone icon indicates that the line is in use.
Mute icon appears when you mute the handset or the base.
-Speaker icon appears when the handset speaker phone is use.
Envelope icon appears when a new message is received.
Privacy icon appears when the Privacy Mode is turned on.
Call record icon appears while recording a conversation.
