Uniden SS E15 Series User manual

Series Owner's Manual
OWNER'S MANUAL
SS E15

Welcome/Features 2
Controls and Functions 3
Terms Used in this Manual 4
Getting Started
Basics
Emergency Dial
Using the Speed Dial Memory
Caller ID Features
Additional Information
Installing the Phone 5
A. Choose the Best Location 5
B. Connect the Base Unit and Charge
the Handset 6
C. Set the Visual Ringer Brightness 8
D. Mount the Base Unit on a Wall 9
Installing the Belt Clip 10
Headset Installation 10
Basic Setup 11
Auto Talk 11
Activating Caller ID on Call Waiting 11
Name Tag (POP ID) 12
Insert 0 13
Selecting the Ringer Tone and Volume 14
Using Your Phone 15
Making and Receiving Calls 15
Adjusting the Handset Earpiece Volume 16
Traveling Out-of-Range 17
Selecting a Different Channel 18
Find Handset 18
Using Call Waiting 19
Visual Message Waiting Indicator 19
Emergency Dial 20
Storing the Emergency Dial 20
Using the Speed Dial Memory 21
Storing Names and Numbers in
Speed Dial Memory 21
Storing Caller ID Messages
in Speed Memory Locations 24
Making Calls from Speed Dial Memory 25
Easy Dial 25
Caller ID and CIDCW (Caller ID on Call Waiting) 26
When the Telephone Rings 26
Viewing the Caller ID Message List 27
Deleting Information from the Caller ID List 28
Making a Call from the Caller ID List 30
Changing the Digital Security Code 31
Note on Power Sources 32
Installing a Replacement Battery 33
Maintenance 34
Troubleshooting 35
Liquid Damage 37
General Information 38
Index 39
Warranty 40
Contents
[1]

Congratulations on your purchase of the Uniden cordless telephone. This
cordless phone is designed and engineered to exacting standards for reliability,
long life, and outstanding performance.
Note: Some illustrations in this manual may differ from the actual unit for
explanation purposes.
Be sure to visit our Website: www.uniden.com.au or www.uniden.co.nz
* The Caller ID and Caller ID on Call Waiting features require subscription to the
services provided by your network supplier. There is usually a fee for these
services. The Caller ID on Call Waiting service is currently unavailable in New
Zealand.
Welcome
Features
• 2.4GHz Extended Range
Technology
• Visual Ringer LED
• Large Backlit Keys
• Caller ID*
• Caller ID on Call Waiting*
(CIDCW)
• Name Tag* (POP ID)
• 10 Speed Dial Memory
• One-Touch Emergency Dial
• 3 Line Backlit Easy to Read Display
• Audio Boost
• Last Number Redial
• Find Handset Key
• Earpiece/Ringer Volume Controls
• Hearing Aid Compatible
• 20 Channel Auto Scan
• Desk or Wall Mountable
[2]

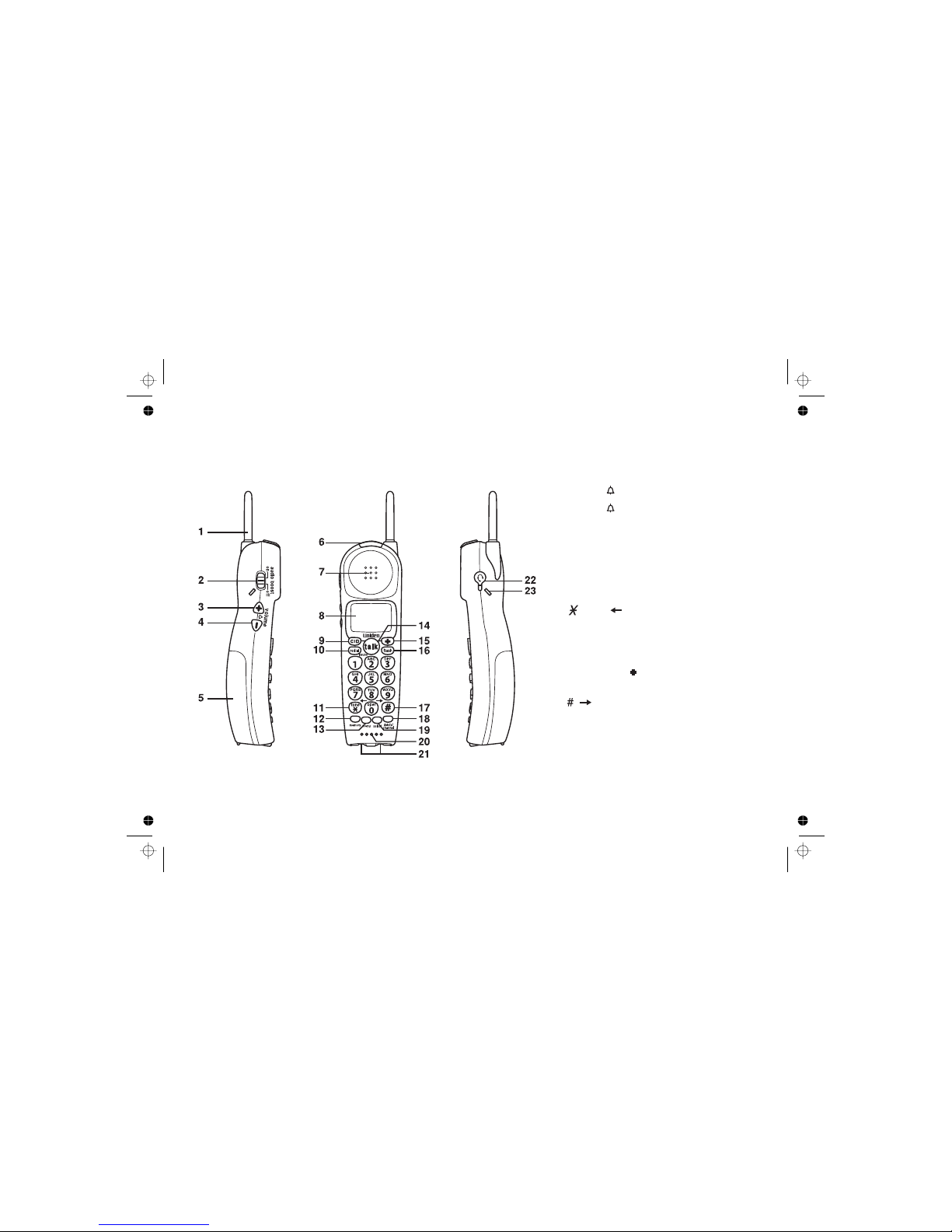

Controls and Functions
1. Handset antenna
2. Audio boost switch
3. key (p. 16/ 14)
4. - key (p. 16/ 14)
5. Handset battery compartment
6. Handset visual ringer LED
7. Handset earpiece
8. LCD display
9. key (p. 27)
10. key (p. 16/ 23)
11. key (p. 22)
12. key (p. 21)
13. key (p. 11)
14. key (p. 15)
15. ( ) key (p. 20)
16. key (p. 19)
17. key (p. 22)
18. key (p. 22/ 18)
19. key (p. 11)
20. Handset microphone and ringer speaker
21. Handset charging contacts
22. Headset jack
23. Beltclip hole
Volume/ (ring)/+
Volume/ (ring)/
CID
Redial/pause
/tone/
Memory
Menu
Talk
Emergency
Flash
/
Delete/channel
Select
[3]

24. DC in 9V jack
25. Telephone line jack
26. Visual ringer switch (p. 8)
27. Ringer tone button (p. 14)
28. Ringer volume adjuster (p. 14)
29. Ringer on/off switch (p. 14)
30. Base speaker
31. Base visual ringer LED
32. Base antenna
33. Charge/in use LED (p. 6)
34. Find handset key (p. 18)
35. Base charging contacts
• Standby Mode - The handset may be sitting in or off the base, but is NOT in use. The key has
not been pressed and there is no dial tone.
• Talk Mode - The handset is off the base and the key has been pressed, enabling a dial tone.
• CID - Caller ID
• CIDCW - Caller ID on Call Waiting
• Emergency Dial - One touch speed dial key
Terms Used in this Manual
talk
talk
[4]
35

Installing the Phone
Do the following steps:
A. Choose the best location
B. Connect the base unit and charge the handset
C. Set the visual ringer brightness (optional)
D. Mount the base unit on a wall (optional)
When choosing a location for your new phone, here are some important guidelines you should
consider:
• The location should be close to both a phone jack and a continuous power outlet (one which
is not connected to a switch).
• The base and handset should be kept away from sources of electrical noise such as motors
and fluorescent lighting.
• The base can be placed on a desk, tabletop, or mounted on a standard wall plate. For better
reception, place the base as high as possible.
• The base should be placed in an open area for optimum range and reception.

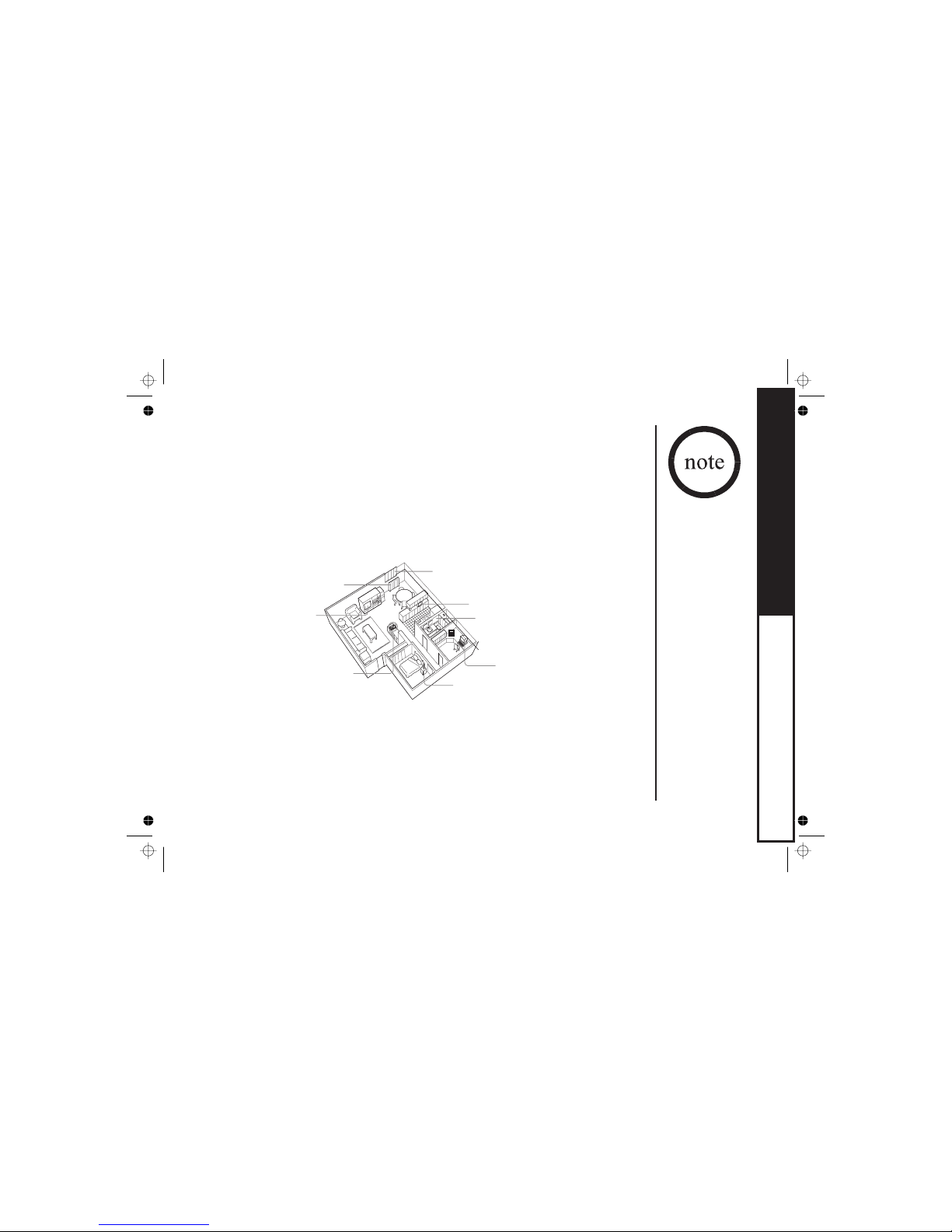

A. Choose the best location
Avoid noise sources such as a window
by a street with heavy traffic
Avoid heat sources, such as radiators,
air ducts, and sunlight
Choose a central location
Avoid other cordless telephones
Avoid personal computers
Avoid excessive moisture, extremely
low temperatures, dust, mechanical
vibration, or shock
Avoid microwave ovens
Avoid television sets and
other electronic equipment
!
!
If your home
has specially
wired alarm
equipment
connected to
the telephone
line, be sure
that installing
the system
does not
disable your
alarm
equipment.
If you have
questions
about what will
disable your
alarm
equipment,
contact your
telephone
company or a
qualified
installer.
GETTING STARTED
[5]

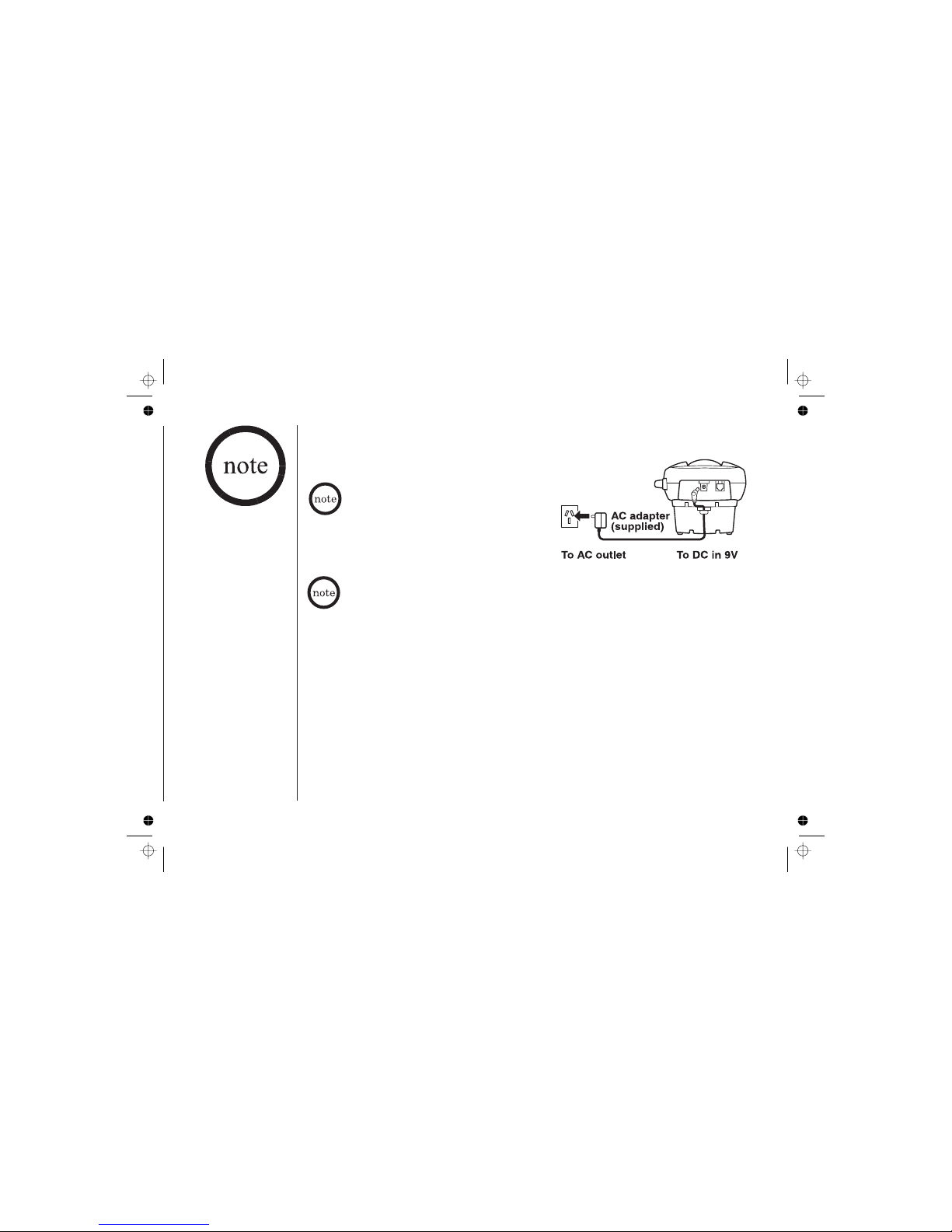

B. Connect the Base Unit and Charge the Handset
1) Connect the AC adapter to the
jack and to a standard 240V AC wall outlet.
2) Place the handset in the base unit.
3) Make sure that the LED illuminates.
If the LED does not illuminate, check to see that the AC adapter is plugged in
and the handset makes good contact with the base charging contacts.
4)
To maximize the charge
capacity of your battery pack, DO NOT plug the telephone cord into the base
unit and wall jack until the battery is fully charged.
DC in 9V
charge/in use
Charge the handset battery pack for at least 15-20 hours before using
your new cordless telephone for the first time!
• Connect the AC adapter to a continuous
power supply.
• Place the base unit close to the AC
outlet so that you can unplug the AC
adapter easily.
The rechargeable battery is already installed in your phone.
!
!
Use only the
supplied
AAD--041S
AC adapter.
Do not use
any other AC
adapter.
Do not place
the power cord
where it
creates a trip
hazard or
where it could
become
chafed and
create a fire or
electrical
hazard.
[6]

GETTING STARTED
5) Once the handset battery pack is
fully charged, connect the
telephone line cord to the
jack and to a telephone outlet. If
your telephone outlet isn't
modular, contact your telephone
company for assistance.
6) After the phone is connected, pick up the handset from the base and press
If you do not get a dial tone, check the following:
• Be sure the telephone cord is securely connected to both the base and an
active telephone jack.
• Be sure the LED is on. If not, check the AC adapter.
• Be sure the handset is fully charged.
• Be sure the battery is installed correctly.
tel line
talk.
charge/in use
Australia
Tel Line adaptor
(supplied)
[7]

C. Set the Visual Ringer Brightness
The switch allows you to set the
brightness of the
LED on the base. There are three options to
choose from: high, low and off. If you set the
switch to off, LED
never flashes.
visual ringer
visual ringer/messages
visual ringer/messages
[8]
