OWNER’S MANUAL TRU346
2.4GHz Owners Manual TRU346 7/6/01 4:07 PM Page 2

Welcome
Features
Congratulations on your purchase of the TRU 346 cordless telephone. This phone is
designed for reliability, long life, and outstanding performance utilizing the latest in
2.4 GHz Spread Spectrum technology.
NNoottee::SSoommeeiilllluussttrraattiioonnssiinntthhiissmmaannuuaallmmaayyddiiffffeerrffrroommtthheeaaccttuuaalluunniittffoorr
eexxppllaannaattiioonnppuurrppoosseess..
• 2.4 GHz Spread Spectrum Technology
• Caller ID and Call Waiting Caller ID
• 50 Number Caller ID Memory
• Advanced Caller ID with Call Waiting Options
• Lighted Keypad
• 3-Line, 16 Character Backlit Handset Display
• 20 Enhanced Memory Dial Locations
• 32 Digit Redial
• 3 Redial Memories
• Bilingual Language, option
• Flash
• Pause
• Pulse/Tone Dialing
• Page/Find
• 10 Day Standby Battery Life
• 6 Hour Talk Time
• Handset Earpiece and
Ringer Volume Control
• Hearing Aid Compatible
DDiiggiittaallSSpprreeaaddSSppeeccttrruummTTeecchhnnoollooggyyutilizes a “wider frequency band“ vs. a “single
narrow band“ used in standard digital transmissions. The 2.4 GHz frequency range was
recently released to commercial communications. The result is a more secure conversation
with the clarity of digital sound, extended range, and minimal interference from other
cordless phones.
RRaannddoommCCooddeeTM digital security automatically selects one of approx. 65,000 codes for the
handset and base.
These features enhance your phone´s security and also prevents unauthorized calls as a
result of your phone being activated by other equipment.
Uniden®is a registered trademark of Uniden America Corporation.
Random Code and AutoTalk are trademarks of Uniden America Corporation.
TRU346 CANADA 7/6/01 3:59 PM Page ii

Contents
Welcome/Features inside front cover
Controls and Functions 2, 3
Getting Started
Read this first 4
Step 1: Checking the package contents 5
Step 2: Setting up the base unit 6
Step 3: Preparing the battery pack 9
Adjusting the ringer and earpiece volume 11
Basics
Making a call 12
Receiving a call 14
Redialing a call 15
Traveling out-of-range 16
Telephone Features
Memory dialing
Storing phone numbers and names 17
Steps for entering names and special characters 19
Making calls with memory dialing 21
Chain dialing 22
Editing a stored name and/or phone number 23
Erasing a stored name and phone number 26
Paging 27
Caller ID Features
Caller ID 28
When the telephone rings 30
Viewing the Caller ID Message list 31
Deleting information from the Caller ID list 32
Using the Caller ID list 34
Using “Caller ID on call waiting“ service 36
Call Waiting features 37
Additional Information
Changing the digital security code 38
Beltclip installation 39
Headset installation 39
Note on power sources 40
Maintenance 40
Troubleshooting 41
General Information 43
Technical Information 44
Index 46
TRU346 CANADA 7/6/01 3:59 PM Page 1

CONTROLS AND FUNCTIONS[ 2 ]
Controls and Functions
1. Handset antenna
2. Headset jack cover
3. Handset battery compartment
4. Handset earpiece
5. LCD display
6. Memory key
7. Talk key
8. Vol (Volume)/Cursor down ▼key
9. */left cursor ( )/tone key
10. Redial/p (Redial/Pause) key
11. Options key
12. Handset microphone
13. Vol (Volume)/Cursor up ▲key
14. Flash key
15. Cid (Caller ID) key
16. #/right cursor ( ) key
17. Delete key
18. Select/Channel key
19. Handset charging contacts
TRU346 CANADA 7/6/01 3:59 PM Page 2

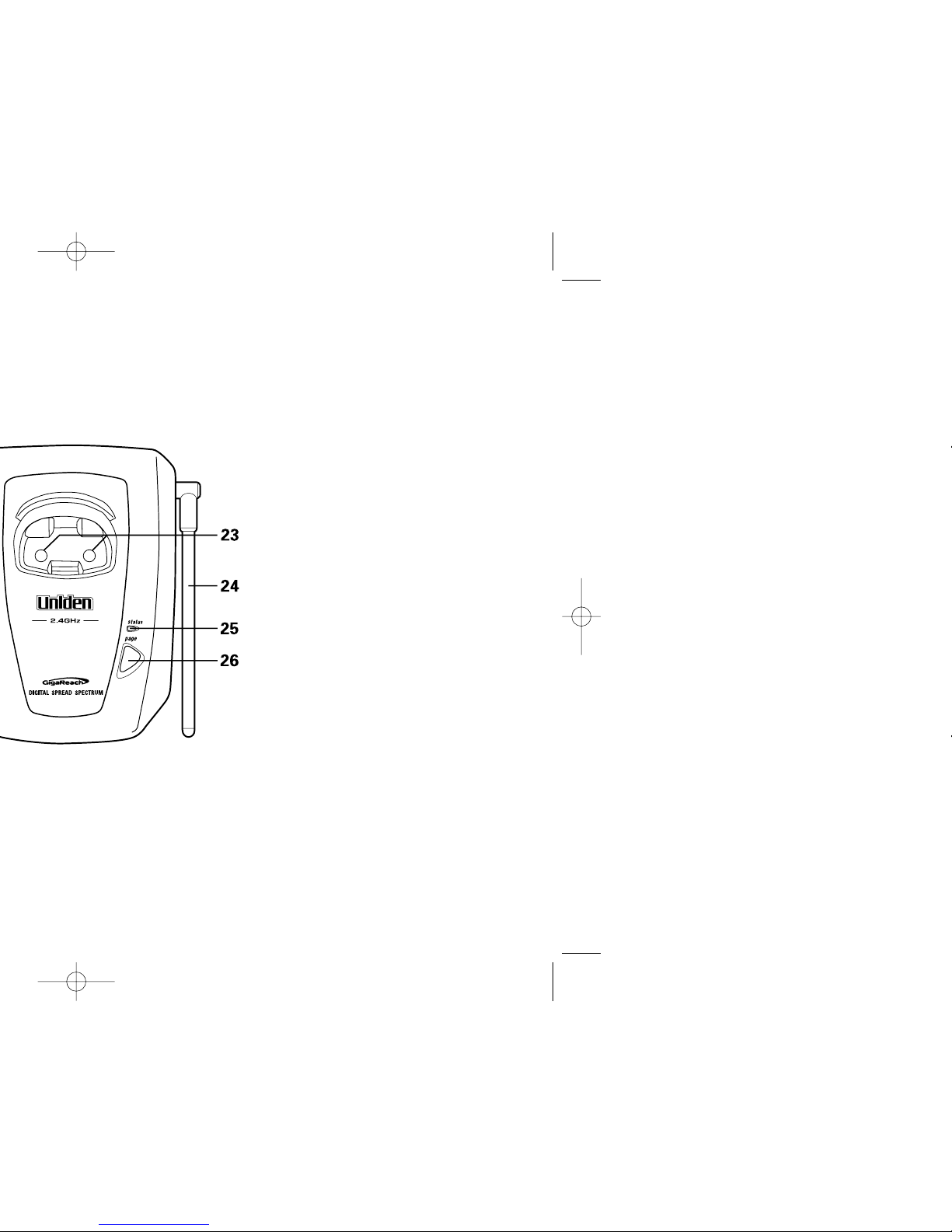

CONTROLS AND FUNCTIONS [3]
20. Pulse-Tone switch
21. DC power input
22. Phone jack
23. Base charging contacts
24. Base antenna
25. Status LED
26. Page key
TRU346 CANADA 7/6/01 3:59 PM Page 3

GETTING STARTED[ 4 ]
AAbboouutttthheeddiiggiittaallsseeccuurriittyyccooddee
This cordless telephone uses a digital
security code to prevent unauthorized
access to your base unit. This security
code prevents other cordless handsets
from making calls through your base unit.
A random security code will be assigned
automatically between your base unit and
handset when you charge the battery pack
for the first time.
If you want to reset the security code,
see page 38.
Read This First
This cordless telephone must be set up before use. Follow these steps:
SStteepp11((ppaaggee55))
Unpack and check the telephone
and accessories.
SStteepp22((ppaaggee66ttoo88))
Next, choose the best location
to set up the base unit.
SStteepp33((ppaaggee99ttoo1100))
Then, insert the battery pack into
the handset. You must charge the
battery pack for 1155--2200hhoouurrss
bbeeffoorreepplluuggggiinnggiinnttootthheepphhoonnee
lliinneeaanndduussiinnggtthheepphhoonnee.
BBaassee
HHaannddsseett
TRU346 CANADA 7/6/01 3:59 PM Page 4

GETTING STARTED
GETTING STARTED [5]
Checking the Package Contents
••TThhiissOOwwnneerr´´ssMMaannuuaall
••QQuuiicckkRReeffeerreenncceeGGuuiiddee
••OOtthheerrPPrriinntteeddMMaatteerriiaallss
••BBaasseeuunniitt••HHaannddsseett
••AACCaaddaapptteerr••RReecchhaarrggeeaabblleebbaatttteerryy
••TTeelleepphhoonneeccoorrdd
••BBeellttcclliipp
Make sure you have received the following items in the package.
Uniden Parts Department
[phone]
Hours: M-F 7:00 AM to 5:00 PM CST.
We can also be reached on the web at www.uniden.com
TRU346 CANADA 7/6/01 3:59 PM Page 5

Do the following steps:
• Choose the best location • Choose the dialing mode
• Connect the base unit
CChhoooosseetthheebbeessttllooccaattiioonn
Before choosing a location for your new phone, read the INSTALLATION CONSIDERATIONS included in
the PRECAUTIONS AND IMPORTANT SAFETY INSTRUCTIONS brochure. Here are some important
guidelines you should consider:
[ 6 ]
Setting up the Base Unit
GETTING STARTED
• After installing the battery pack in the handset, charge your handset at least 1155--2200hhoouurrss
bbeeffoorreeuussiinnggtthheepphhoonnee. Once the handset battery pack is fully charged, connect the telephone
line cord to the base and telephone wall outlet.
• The location should be close to both a phone jack and a continuous power outlet which is
not switchable.
• Keep the base and handset away from sources of electrical noise such as motors and
fluorescent lighting.
• Be sure there is sufficient space to raise the base antenna to a vertical position.
AAvvooiiddeexxcceessssiivveemmooiissttuurree,,
eexxttrreemmeellyylloowwtteemmppeerraattuurreess,,
dduusstt,,mmeecchhaanniiccaallvviibbrraattiioonn,,oorrsshhoocckk
AAvvooiiddhheeaattssoouurrcceess,,ssuucchhaassrraaddiiaattoorrss,,
aaiirrdduuccttss,,aannddssuunnlliigghhtt
AAvvooiiddtteelleevviissiioonnsseettssaanndd
ootthheerreelleeccttrroonniicceeqquuiippmmeenntt
AAvvooiiddnnooiisseessoouurrcceessssuucchhaassaawwiinnddooww
bbyyaassttrreeeettwwiitthhhheeaavvyyttrraaffffiicc
AAvvooiiddppeerrssoonnaallccoommppuutteerrss
CChhoooosseeaacceennttrraallllooccaattiioonn
AAvvooiiddootthheerrccoorrddlleesssstteelleepphhoonneess
AAvvooiiddmmiiccrroowwaavveeoovveennss
TRU346 CANADA 7/6/01 3:59 PM Page 6

GETTING STARTED
GETTING STARTED [7]

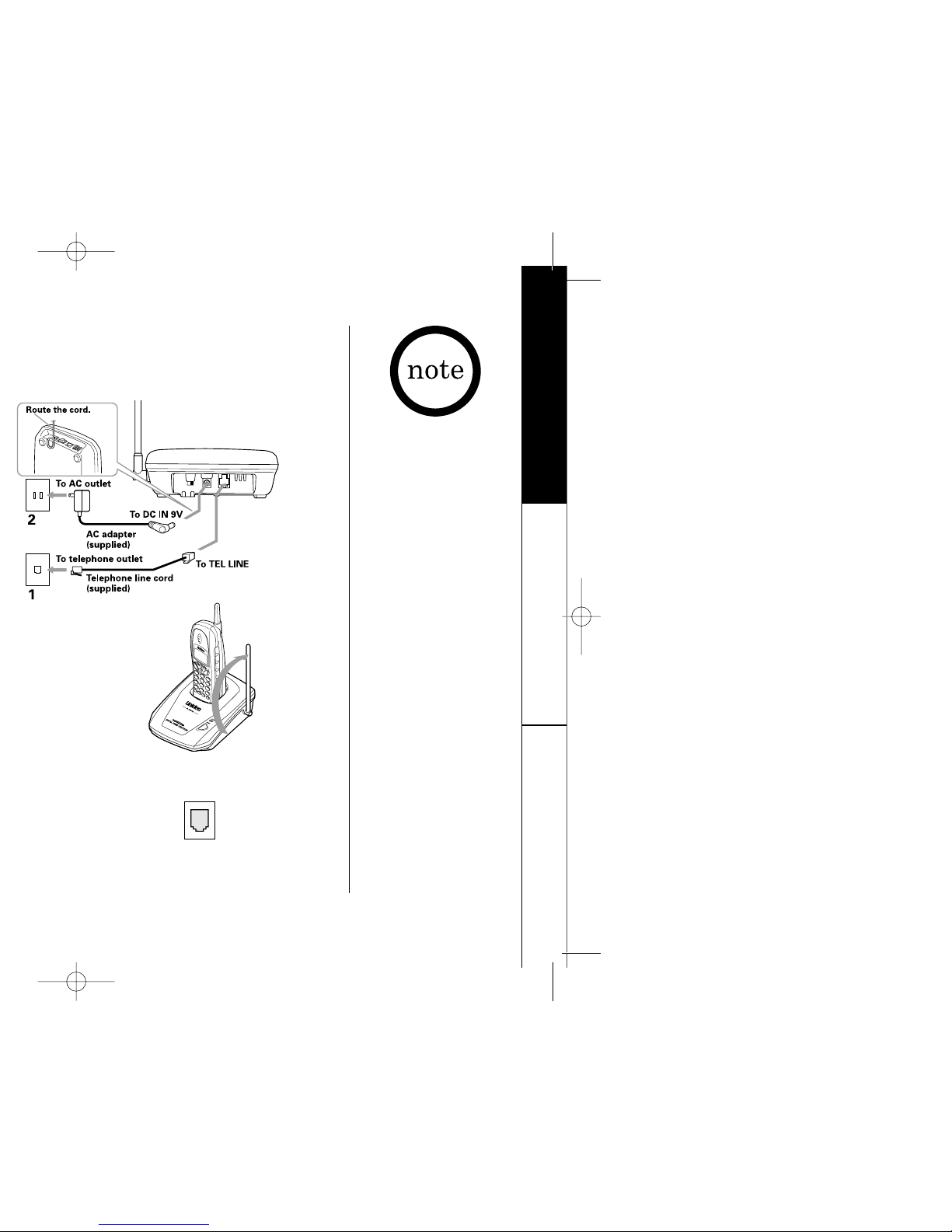

CCoonnnneecctttthheebbaasseeuunniitt
1 Connect the telephone line cord
to the TTEELLLLIINNEEjack and to a
telephone outlet.
2 Connect the AC adapter to the
DDCCIINN99VVjack and to a standard
120V AC wall outlet.
3 Set the base unit on a desk or tabletop and place
the handset on the base unit as shown.
Then raise the antenna to a vertical position.
Connect the AC adapter to a continuous
power supply.
If your telephone outlet isn´t modular,
contact your telephone company for assistance.
• Place the power cord
so it does not create a
trip hazard or where it
could become chafed
and create a fire or
electrical hazard.
• Use only the supplied
AD-312 AC adapter. Do
not use any other AC
adapter.
• Place the base unit
close to the AC outlet
so that you can unplug
the AC adapter easily.
MMoodduullaarr
TRU346 CANADA 7/6/01 3:59 PM Page 7

GETTING STARTED[ 8 ]
CChhoooosseetthheeddiiaalliinnggmmooddee
Depending on your dialing system, set the PPUULLSSEE--TTOONNEEswitch as follows:
IIffyyoouuaarreenn´´ttssuurreeooffyyoouurrddiiaalliinnggssyysstteemm
Make a trial call with the PULSE-TONE switch set to
TTOONNEE
.
If the call connects, leave the switch as is; otherwise, set to
PPUULLSSEE
.
IIffyyoouurrddiiaalliinnggssyysstteemmiissSSeetttthheesswwiittcchhttoo
Tone
TTOONNEE
Pulse
PPUULLSSEE
TRU346 CANADA 7/6/01 3:59 PM Page 8

GETTING STARTED [9]
CChhaarrggeetthheebbaatttteerryyppaacckkffoorraattlleeaasstt1155--2200hhoouurrssbbeeffoorreeyyoouussttaarrttuussiinngg
yyoouurrpphhoonnee..
1 Press in on the battery cover release and slide the
cover down until it comes off.
2 Connect the battery pack connector with the correct
polarity (black and red wires), then insert the
battery pack into the battery compartment.
3 Securely close the battery compartment cover by
sliding it up until it snaps into place.
4 Place the handset on the base as shown.
5 Make sure that the
ssttaattuuss
LED lights. If the LED
doesn´t light, check to see that the AC adapter is
plugged in and that the handset makes good contact
with the base charging contacts.
Use only the Uniden Battery (BT-800) supplied
with your phone. Replacement batteries are also
available through the Uniden Parts Department.
(see page 5)
GETTING STARTED
Preparing the Battery Pack
The plastic connectors
will fit together only one
way. Make sure the
battery´s connector is
properly aligned.
1
2
3
4, 5
ssttaattuuss
LED
TRU346 CANADA 7/6/01 3:59 PM Page 9

GETTING STARTED[ 10 ]
BBaatttteerryyuusseettiimmee((ppeerrcchhaarrggee))
From fully charged
• Six hours continuous use
• Ten days when the handset is in the standby mode
WWhheenntthheebbaatttteerryycchhaarrggeebbeeccoommeessllooww
When the battery pack is very low and needs to be
charged, the phone is programmed to eliminate
functions in order to save power. If the phone is not in
use, “Low Battery“ flashes and none of the keys will operate.
If the phone is in use, “Low Battery“ flashes and the handset beeps.
Complete your conversation as quickly as possible and return the handset to
the base unit for charging.
The last number dialed in the redial memory is retained for up to 2
minutes while you replace the battery pack.
CClleeaanniinnggtthheebbaatttteerryyccoonnttaaccttss
To maintain a good charge, it is important to clean the
battery contacts on the handset and base unit with a
dry cloth or a pencil eraser about once a month.
DDoonnoottuusseeaannyylliiqquuiiddssoorrssoollvveennttss..
• Even when the battery
pack is not being used,
it will gradually
discharge over a long
period of time. For
optimum performance,
be sure to return the
handset to the base
unit after each
telephone call.
• If you must replace
the battery pack
during a telephone
call, complete the
replacement within
30 seconds, and you
can return to the
original call.
contacts
TRU346 CANADA 7/6/01 3:59 PM Page 10

GETTING STARTED
GETTING STARTED [11]
Adjusting the Ringer and Earpiece Volume
HHaannddsseettrriinnggeerrttoonneeaannddvvoolluummee
Press or in Standby mode to select one of four
ringer tone and volume combinations.
EEaarrppiieecceevvoolluummee
Pressing or during a call will change the earpiece volume of the
handset. This setting will remain in effect after the telephone call has ended.
When you press in Maximum mode or in Low mode, an error
tone sounds.
RRiinnggeerrooffff
During the standby mode or tone/volume setting,
press and hold until the phone beeps and
“Ringer Off“ appears.
To turn the ringer back on, simply press or .
“Ringer A High“ appears.
Ringer A High
•
ª
Ringer A Low
•
ª
Ringer B High
•
ª
Ringer B Low
TRU346 CANADA 7/6/01 3:59 PM Page 11

BASICS[ 12 ]
Making a Call
1 Enter the phone number.
(Up to 32 digits.)
Example: Enter 8002971023
2 Press .
“Talk“ flashes on the display.
Then the volume setting is displayed.
Example: • Volume level Volume Medium
• Volume level Volume Medium
and Ringer Off.
3 The number is dialed.
After about 5 seconds, the call-time
display appears.
4 To hang up, press or place the
handset on the base. The call-time will
be displayed for about 5 seconds.
• Press if you
enter a wrong number
in step 1. To delete all
the numbers that you
have entered, press
and hold until
the display clears.
• You must press a key
within 20 seconds or
the phone will return
to standby.
DDiiaalliinnggffrroommssttaannddbbyy
TRU346 CANADA 7/6/01 3:59 PM Page 12

BASICS [13]
OOtthheerrOOppeerraattiioonnss
DDiiaalliinnggffrroommttaallkkmmooddee
BASICS
1 Press .
“Talk“ flashes on the display.
Then the volume setting is displayed.
Example: Volume level Volume Medium.
If you set the ringer to off,
“<Ringer Off>“ appears on the display.
After about 5 seconds, the call-time display appears.
2 Enter the phone number.
Example: Enter 8002971023
The number is dialed.
3 To hang up, press or place the handset on the base.
The call-time will be displayed for about 5 seconds.
TTooDDootthhiiss
To adjust the earpiece volume Press or during a call.
To temporarily switch to tone dial Press . The following numbers
(when the base is set to pulse mode) will be sent as tone dialing.
To enter a pause within the Press . “P“ appears in the display
dialing sequence which represents a pause.
To improve the reception Press during a call.
“Scanning“ appears on the display.
If the operation fails, the error tone sounds.
TRU346 CANADA 7/6/01 4:00 PM Page 13

BASICS[ 14 ]
Receiving a Call
FFrroommtthheehhaannddsseett
1 The phone rings. “ Incoming Call“
appears on the display.
2 Press . “Talk“ and volume setting
appear on the display.
If you set the ringer to off, “<Ringer Off>“
appears on the display.
3 Talk with the caller.
4 To hang up, press or place the
handset on the base.
The call time will be displayed for about
5 seconds.
AAuuttooTTaallkkwwhheennrriinnggiinngg
When the AutoTalk setting is on and there is an incoming call, simply lift the
handset from the base unit to answer the phone. See “Setting Caller ID
options“ on page 28 for more details.
AAnnyykkeeyyaannsswweerrwwhheennrriinnggiinngg
When the AutoTalk setting is on and the handset is off the base, press any
handset key to answer the incoming call.
CCaallllWWaaiittiinngg
NNoottee::YYoouummuussttssuubbssccrriibbeettooCCaallllWWaaiittiinnggsseerrvviicceettoouusseetthhiissffeeaattuurree..
When a call is received during a telephone call already in progress, press
to switch to the new call. If you also subscribe to Caller ID on Call Waiting,
you will see the name and number of the caller in call waiting. (See page 36.)
If you receive a Caller ID,
the received Caller ID
information appears.
TRU346 CANADA 7/6/01 4:00 PM Page 14

BASICS [15]
Redialing a Call
The last three phone numbers dialed can be quickly redialed.
RReeddiiaallffrroommssttaannddbbyy
BASICS
1 Press .
The phone number that was last dialed appears
on the display.
2 Press again.
Each press of will display one of the last three
numbers dialed.
3 Press . The number will be dialed.
MMoosstt
rreecceenntt
• If the number exceeds
32 digits, only the
first 32 digits are
retained for redialing.
• Press and hold
to delete the displayed
redial number.
TRU346 CANADA 7/6/01 4:00 PM Page 15

BASICS[ 16 ]
Traveling Out-of-Range
RReeddiiaallffrroommttaallkkmmooddee
1 Press .
“Talk“ and the volume setting appear
on the display.
If you set the ringer to off,
“<Ringer Off>“ appears
on the display.
2 Press .
The last number dialed will be displayed and redialed.
3 To hang up, press or place the handset on the base. The
call-time will be displayed for about 5 seconds.
Only the last number dialed can be
accessed after has been pressed.
During a call, as you begin to move your handset too far from your base unit,
noise increases. If you pass the range limits of the base unit, your call will
terminate within 30 seconds.
TRU346 CANADA 7/6/01 4:00 PM Page 16

TELEPHONE FEATURES [17]
Storing Phone Numbers and Names
TELEPHONE FEATURES
Memory Dialing allows you to dial a number using just a few key strokes. You
can store up to 20 phone numbers in the memory.
1 Press and hold until
“Memory Store“ is displayed.
2 Press and or enter a two-digit number (01 - 20) to
select the memory location where you would like to store
the number.
3 Press .
The following screen appears and a cursor
flashes indicating that the display is
ready for the name to be entered.
If this screen appears, the selected
memory location is already stored. Then,
you must either change the entry in this
location, clear the location, or select
“o Back“ to choose another location.
4 To enter a name (up to 13 characters), use the number keys.
• See the “Steps for entering names and special characters “ .
(See pages 19-20)
• Use and to move the cursor to the
desired location.
• Use to delete characters as needed.
• Press and hold to delete all the characters.
• If a name is not required, go to step 5.
TRU346 CANADA 7/6/01 4:00 PM Page 17

TELEPHONE FEATURES[ 18 ]
5 Press .
“Store Number“ is displayed. The cursor flashes
indicating that the display is ready for the number to
be entered.
6 Use the number keypad to enter the phone number.
The phone number cannot exceed 20 digits.
• Use to enter a pause in the dialing sequence. The
display shows a “P“. Each pause counts as one digit and
represents a two second delay in time between digits.
The pause feature is useful for long distance calling,
credit card dialing, or sequences that require a pause
between digits.
• Use to delete digits as needed.
7 Press .
The handset beeps and displays the confirmation screen.
Memory storage is complete.
For example, if you store a name and number into
memory location number 07, the display shows
“Memory07 Stored“.
After about 2 seconds, “Memory Store“ is displayed.
8 Press to return to standby mode.
TRU346 CANADA 7/6/01 4:00 PM Page 18
