Welcome
Welcome
Thank you for purchasing a Uniden Multi-Handset phone.
Note: Illustrations in this manual are used for explanation purposes. Some illustrations in this manual may differ
from the actual unit.
As an Energy Star®Partner, Uniden has determined that this product or product models meets
the Energy Star® guidelines for energy efciency. Energy Star®is a U.S. registered mark.
Uniden is a registered trademark of Uniden America Corporation.
Accessibility
Uniden provides a customer service hotline for accessibility questions. If you have a disability and need customer
service assistance or if you have any questions about how Uniden’s products can accommodate persons with
disabilities, please call the accessibility voice/TTY line: 1-800-874-9314.
Our customer care hours as well as accessibility information can be found on our website, www.uniden.com, under
the “Accessibility” link. If your call is received outside of our business hours, you can leave us a message and we will
call you back.
May be covered under one or more of the following U.S. patents:
4,797,916 5,426,690 5,491,745 5,493,605 5,533,010 5,574,727 5,581,598 5,650,790
5,660,269 5,663,981 5,671,248 5,717,312 5,732,355 5,754,407 5,758,289 5,768,345
5,787,356 5,794,152 5,801,466 5,825,161 5,864,619 5,893,034 5,912,968 5,915,227
5,929,598 5,930,720 5,960,358 5,987,330 6,044,281 6,070,082 6,076,052 6,125,277
6,253,088 6,314,278 6,321,068 6,418,209 6,618,015 6,671,315 6,714,630 6,782,098
6,788,920 6,788,953 6,839,550 6,889,184 6,901,271 6,907,094 6,914,940 6,940,867
6,953,118 7,023,176 7,030,819 7,146,160 7,203,307 7,206,403
Other patents pending.

5
Installing the Phone
6
Installing the Phone
Choosing the Best Location
When choosing a location for your new phone, here are some important guidelines you should consider:
Note: For maximum range:
Keep both the base and handset antennas free of obstruction.
When the handset is not in use, place the handset in an upright position.
Metal and reinforced concrete may affect cordless telephone performance.
•
•
•
PLACE YOUR BASE
Near anAC outlet and
a telephone wall jack.
• Microwave ovens
• Refrigerators
• TVs
• Other electronics
• Direct sunlight
• Extreme temperatures
• Fluorescent
lighting
• Personal computers
• Wireless LAN
equipment
• Dust
• Excessive
moisture
• Other cordless
telephones
• Areas with
a lot of
background
noise
• Shock
• Vibration
In a centrally-located
open area.
TRY TO AVOID
• TVs
• Other electronics
• Direct sunlight
• Extreme temperatures
• Personal computers
• Wireless LAN
equipment
• Dust
• Excessive
moisture
• Areas with
a lot of
background
noise
• Shock
• Vibration

5
6
Installing the Phone
Installing the Battery
Use only the Uniden BT-446 rechargeable battery pack supplied with your cordless telephone.
Locate the battery pack,
battery cover and the
handset.
Push the battery pack
connector in firmly. (You
should hear it click into
place.) Gently tug on the
battery wires to make
sure the connection is
secure.
Place the cover over the
battery compartment
and slide it up into
place.
Line up the red and black wires on
the battery pack connector with
the sticker in the handset’s battery
compartment.
Battery
pack
Battery
cover
Handset
Locate the battery pack,
battery cover and the
handset.
Push the battery pack
connector in firmly. (You
should hear it click into
place.) Gently tug on the
battery wires to make
sure the connection is
secure.
Place the cover over the
battery compartment
and slide it up into
place.
Line up the red and black wires on
the battery pack connector with
the sticker in the handset’s battery
compartment.
Battery
pack
Battery
cover
Handset

7
Installing the Phone
8

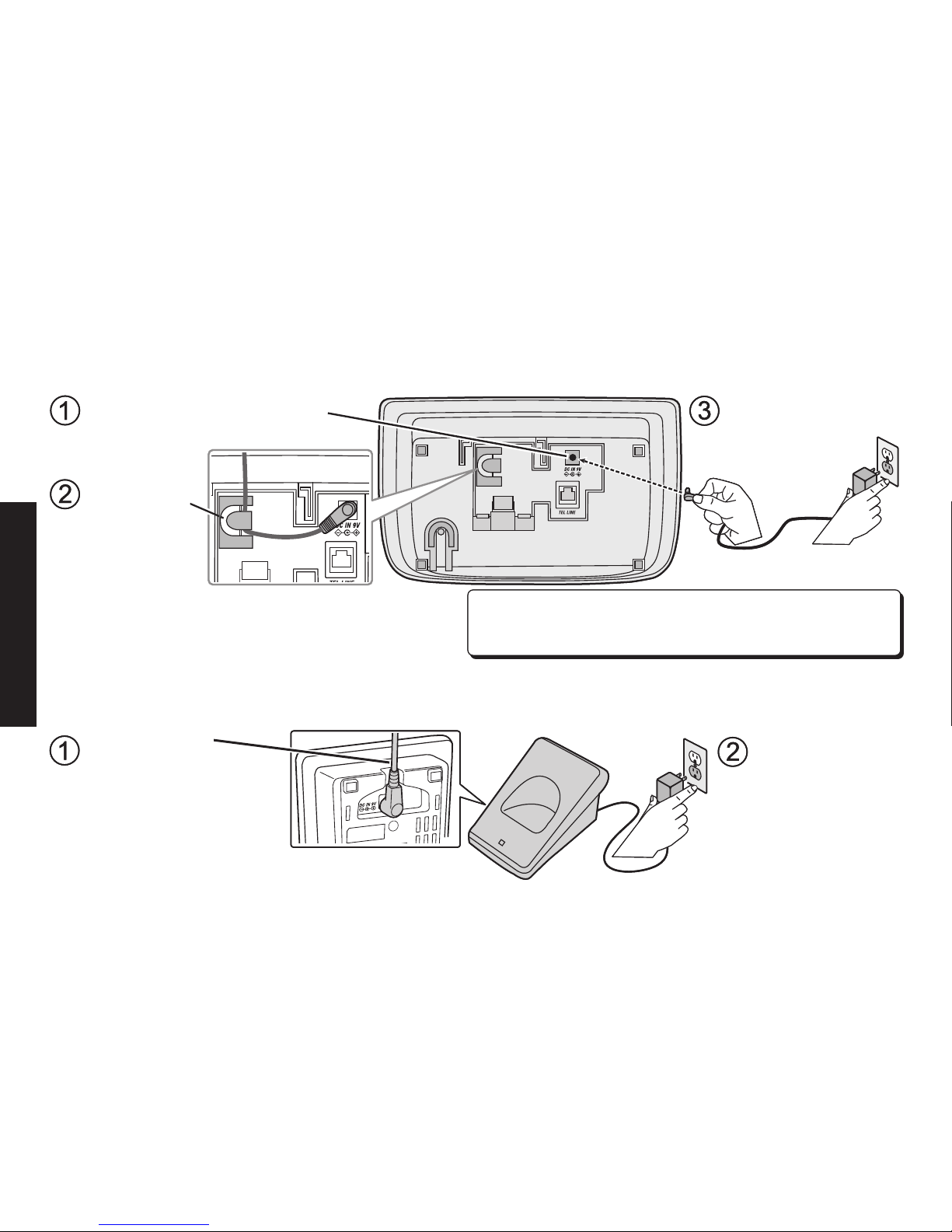

Connecting the AC adapter
To the base
To avoid risk of re and shock, only use the Uniden PS-0009 AC adapter with the base.
To the charging cradle (for multi-handset packs only)
Use only the Uniden PS-0007 AC adapter with the charging cradle.
Connect the AC adapter to the
DC IN 9V jack on the bottom
of the base.
Connect the AC
adapter to a
standard 120V
AC wall outlet.
Route the cord
through the
molded wiring
channel.
Don’t put any power cord where it people might trip
over it or step on it. If a power cord becomes chafed
or worn out, it can create a fire or electrical hazard.
Connect the AC adapter to the
DC IN 9V jack on the bottom
of the base.
Connect the AC
adapter to a
standard 120V
AC wall outlet.
Route the cord
through the
molded wiring
channel.
Don’t put any power cord where it people might trip
over it or step on it. If a power cord becomes chafed
or worn out, it can create a fire or electrical hazard.
Place the cord
through the molded
wiring channel.
Connect the AC
adapter to a
standard 120V
AC wall outlet.
Place the cord
through the molded
wiring channel.
Connect the AC
adapter to a
standard 120V
AC wall outlet.

7
8
Installing the Phone

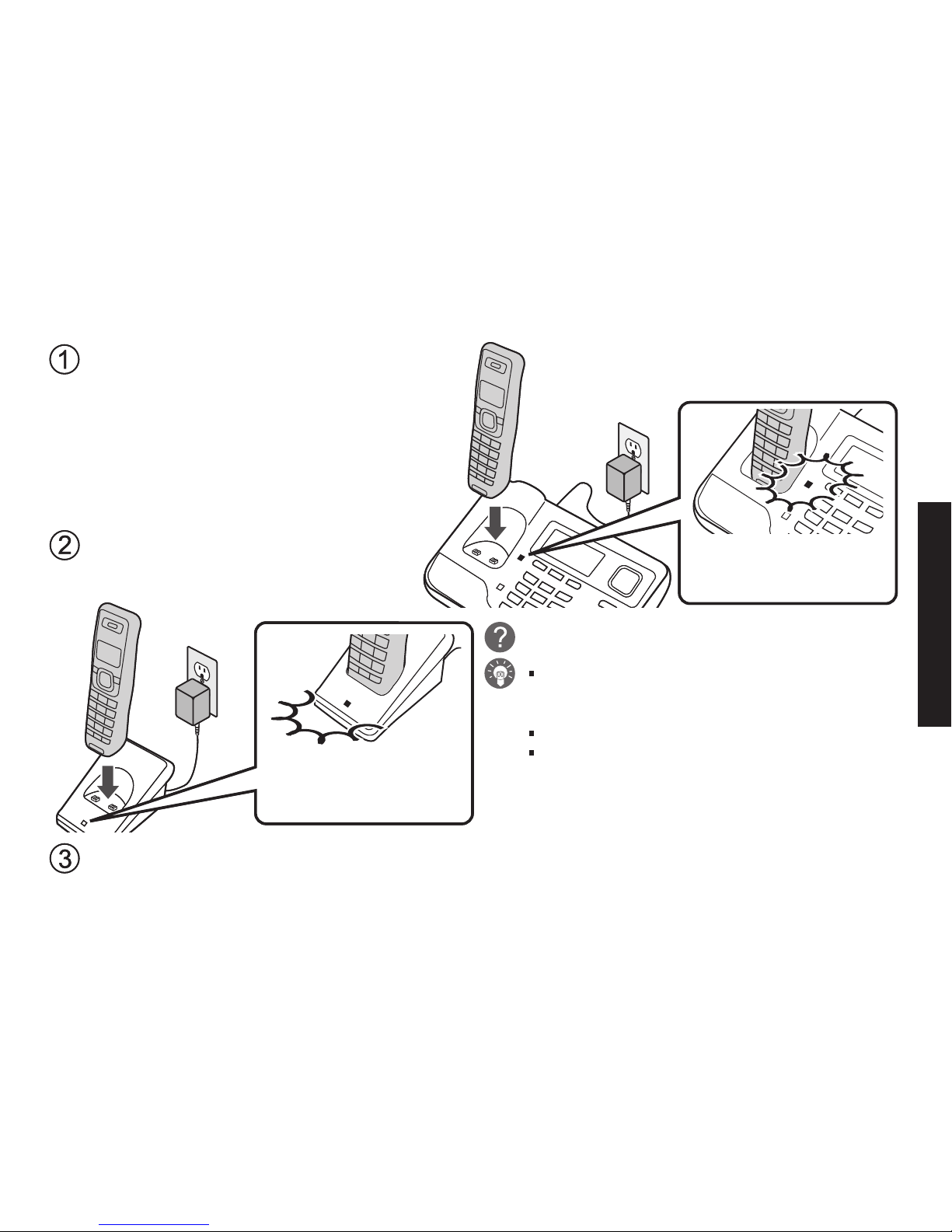

Charging the Handset
Place the handset in the base
cradle with the display facing
forward.
If you have an accessory handset,
place it in the charging cradle with
the display facing forward.
Make sure that the charge
LED illuminates when the
handset is seated.
What if the charge LED doesn’t light up?
Reseat the handset; make sure the contacts
on the bottom of the handset are lined up
with the contacts in the charging cradle.
Check the AC adapter connection.
Make sure you are not using an outlet that’s
controlled by a wall switch.
Make sure that the charge
LED illuminates when the
handset is seated.
Charge your handset at least 15 to 20 hours before plugging into the phone line.
Place the handset in the base
cradle with the display facing
forward.
If you have an accessory handset,
place it in the charging cradle with
the display facing forward.
Make sure that the charge
LED illuminates when the
handset is seated.
What if the charge LED doesn’t light up?
Reseat the handset; make sure the contacts
on the bottom of the handset are lined up
with the contacts in the charging cradle.
Check the AC adapter connection.
Make sure you are not using an outlet that’s
controlled by a wall switch.
Make sure that the charge
LED illuminates when the
handset is seated.
Charge your handset at least 15 to 20 hours before plugging into the phone line.

9
Installing the Phone
10
Connecting to the Phone Line
Make sure that the battery pack is fully charged.
Connect the
telephone
cord to the
TEL LINE jack.
Connect the
telephone cord to a
telephone wall jack.
What if CHECK
TEL LINE
appears on the
base or handset
display?
The telephone
cord may not be
connected
correctly. Check
the telephone
cord connection.
Do you have DSL or any high-speed Internet service
delivered through your phone line?
Try putting a DSL lter between the base and the wall
jack. Without a lter, telephone-line-based Internet
services can interfere with standard phones.
Telephone cord
Telephone wall jack
DSL filter

9
10
Installing the Phone

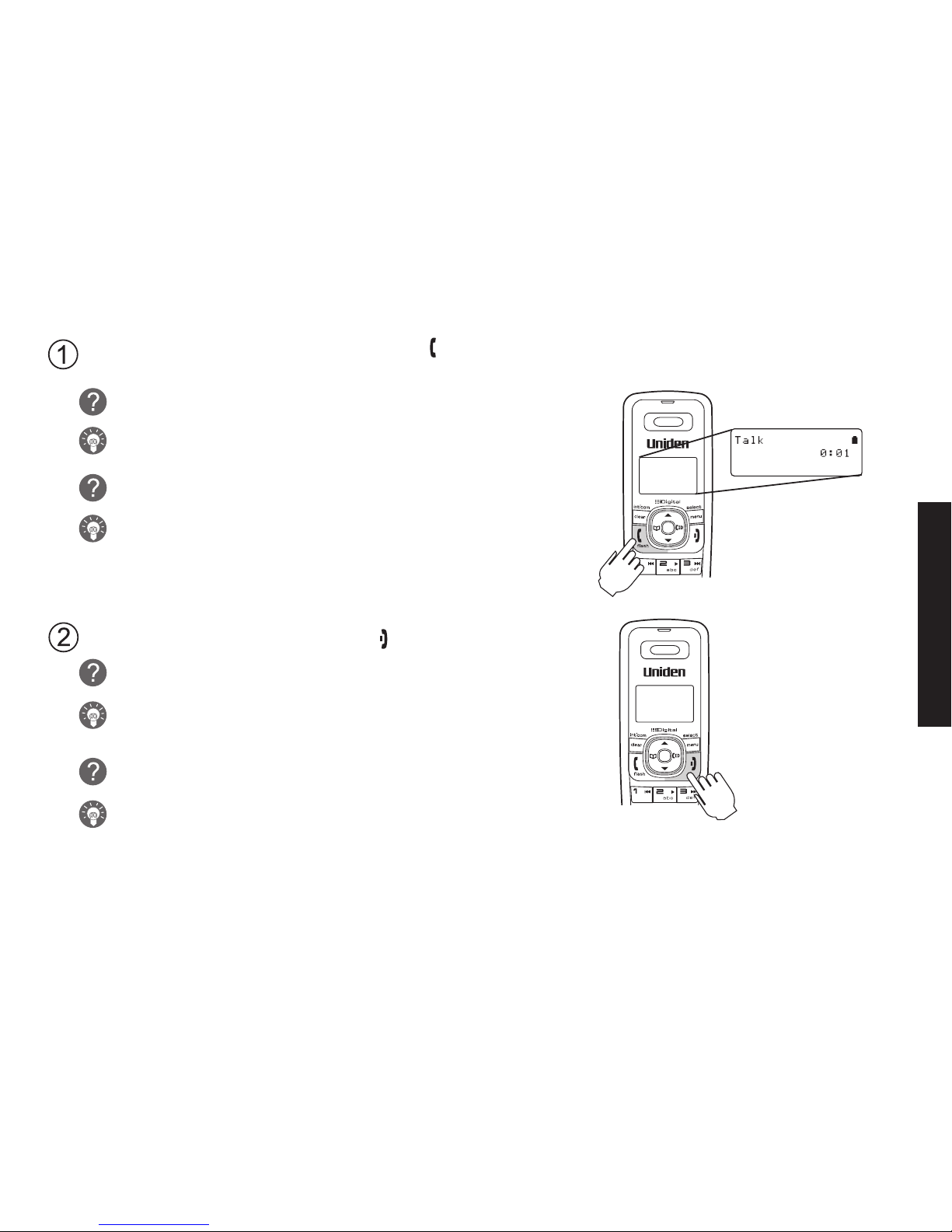

Testing the Connection
Pick up the handset from the base and press [/ash]. You should hear a dial tone, and the display should
show TALK.
What if I can’t hear a dial tone?
Check the telephone cord connection on the base.
What if the display doesn’t show TALK?
Check the battery pack connection in the handset.
Make sure the battery pack is fully charged.
Make sure the AC adapter cord is securely connected to the
DC IN 9V jack and a standard power outlet.
Try resetting the handset (see page 54).
Make a quick test call, and then press []to hang up.
What if there is a lot of static?
Check the sources of interference described in Choosing the
Best Location (see page 5): is the base near any of those?
What if the call doesn’t go through?
Try changing the dialing mode (see the next section).
Note: Make sure you can get a dial tone on any accessory handsets that were packaged with your phone.
•
•
•
•

11
Installing the Phone
12
Changing the dial mode
Your phone can communicate with the telephone network in two different ways: tone dialing or pulse dialing. These
days, most base networks use a method called tone dialing, so your phone comes programmed for tone dialing. If
your phone company uses pulse dialing, you will need to change your phone’s dial mode. If you don’t get a dial tone
or can’t connect to the telephone network, please follow the steps below to modify your phone’s settings:
Press [menu/select].
Select the GLOBAL SETUP menu, and then the DIAL MODE
submenu.
Scroll []to highlight PULSE.
Press [menu/select]. You will hear a conrmation tone.
If you ever need to change the dial mode back to tone dialing, follow the
same procedure, but select TONE in step 2.
NOW YOU ARE READY TO USE YOUR PHONE!
1)
2)
3)
4)
Installing the Belt Clip
Insert the tabs on the sides of the belt clip into the holes on either side of the handset.
Press the belt clip down until it clicks into place. (Tug on the clip to make sure it’s secure.)
To remove the belt clip, gently pull the tabs out of the holes, then slide the belt clip off of
the handset.

11
12
Installing the Phone
Expanding Your Phone
Adding accessory handsets
Your phone supports a total of ten cordless handsets, including any that were supplied with your phone. You can
now place a fully-featured cordless handset anywhere AC power is available to connect the charging cradle.
Your phone is compatible with the TCX950 accessory handset.
For instructions on connecting the charging cradle, see page 7.
If you purchase any accessory handsets separately, you must register the handsets to the base before you can
use them. (Accessory handsets that come packaged with a base are already registered to that base.)
Registering accessory handsets
When charged, registered handsets display a handset ID number. Handsets that have not been registered display:
↔
To register a TCX950 accessory handset:
Charge the handset for 15-20 hours.
Place the handset in the base cradle for about thirty seconds. HANDSET REGISTERING will appear in the LCD.
When the handset has registered to the base, the LCD will display REGISTRATION COMPLETE then show the
handset ID number.
If REGISTRATION FAILED appears in the LCD, please try these steps again.
Note: If a handset has ever been registered to a base, you must reset the handset before you can register it to a
new base. See Resetting the Handset on page 54.
•
•
•
1)
2)
3)

13
Installing the Phone
14

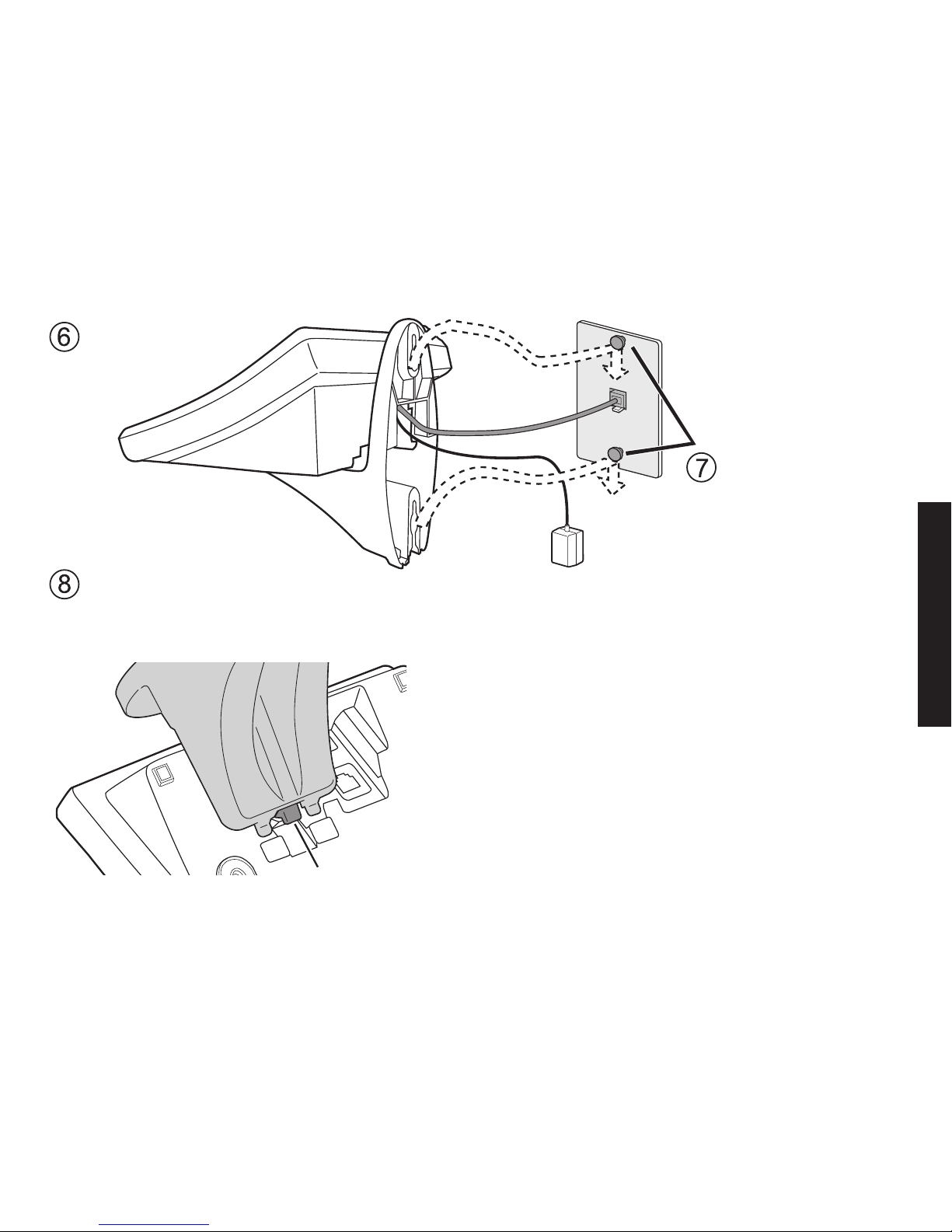

Wall Mounting the Base
This phone can be mounted on any standard telephone wall plate.
Route the AC adapter
and the telephone
cord through the
hole of the wall
mount bracket.
Line up the four tabs on the wall
mount bracket (two at the top and two
at the bottom) with the four notches
on the bottom of the base. Slide the
bracket into place.
Plug the telephone cord into the wall jack.
Hook both sides of the telephone cord into
the larger notch OR tuck the excess cord
into the open space in the bracket.
Connect the AC adapter
and the telephone cords
as shown on pages 7 and
9. Remember to route the
AC adapter cord through
the channel.
Hook the AC adapter
cord into the smaller
notch at the bottom
of the bracket, and
let the cord hang
below the bracket.
(Bottom of the base)
(To AC outlet)

13
14
Installing the Phone
Place the mounting
slots over the pins
on the wall plate.
Slide the base
down to lock it
into place.
Wall plate
At the bottom of the base, lift up on
the release latch between the two
bottom tabs and push the bracket up.
Removing the wall-mount bracket (To AC outlet)
Release latch
Note: Mounting the phone directly on the wall
Be sure the wall is capable of supporting the weight
of the phone, and use the proper type of anchoring
device for the wall material.
Insert two #10 screws (minimum length of 1 3/8
inches, not supplied) into the wall, 3 15/16 inches
apart.
Leave the screw heads 1/8inch away from the wall to
allow room for mounting the phone.
Align the mounting slots over the screws and slide
the base down into place as shown above.
•
•
•
•

15

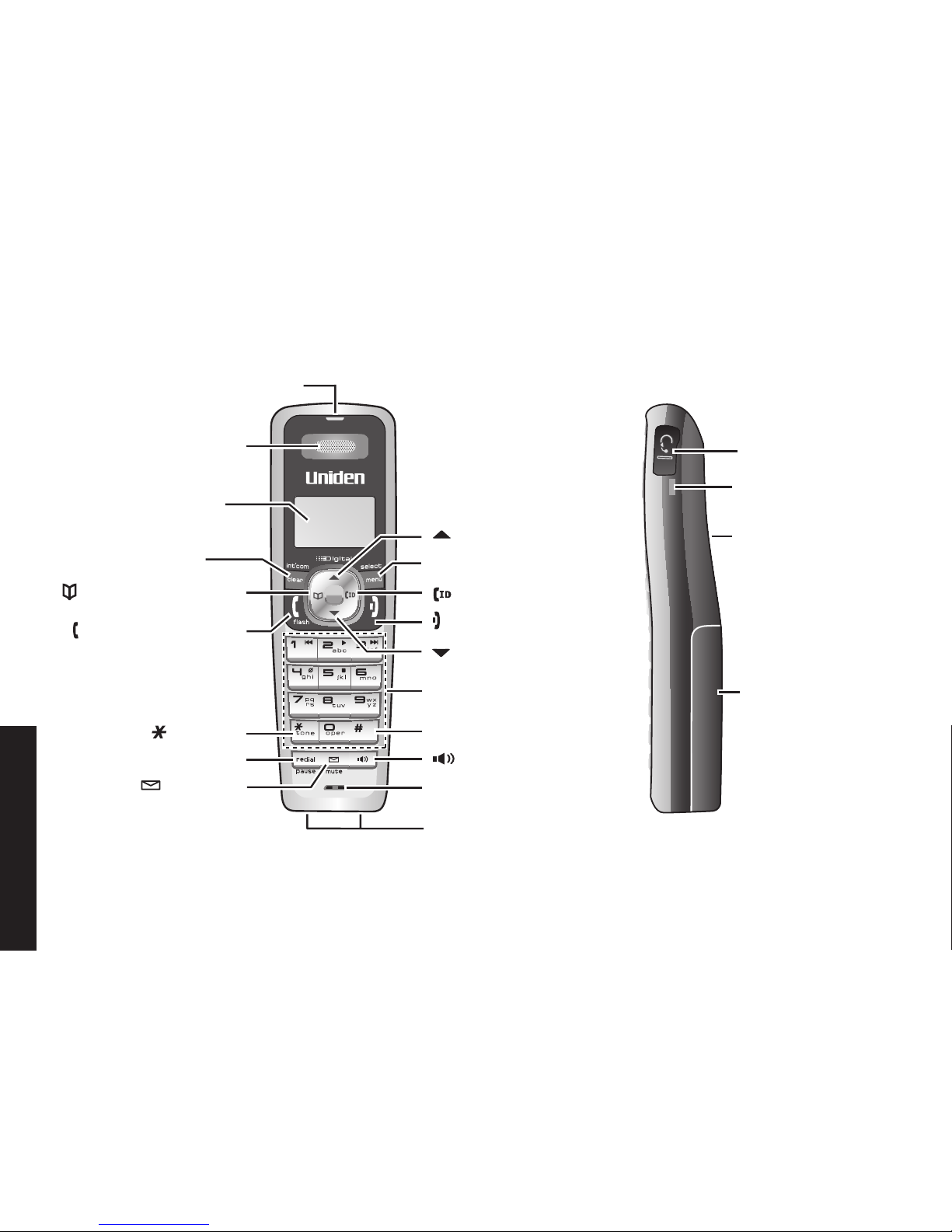

Getting to Know Your New Phone
16
Getting to Know Your New Phone
Features
5.8GHz FHSS expandable system
Expands up to 10 handsets
Integrated digital answering system
Caller ID/Call Waiting
Base keypad
Advanced phonebook features:
Store 70 phonebook entries on base & each
handset
Alphabetical search
Personalized ring by party (on handset)
Transfer single listing or entire phonebook
•
•
•
•
•
••
•
•
•
Store 30 Caller ID numbers on base & each handset
Speakerphone on base & handset
7 ringer options on handset (3 tones/4 melodies)
Last 5 number redial
Bilingual menu displays
(for US models: English and Spanish,
for Canadian models: English and French)
Call transfer
Conferencing
Intercom
•
•
•
•
•
•
•
•
Digital tapeless recording
Up to 14 minutes of recording time
Call screening
Personal or pre-recorded outgoing messages
Bilingual voice prompts
(for US models: English and Spanish,
for Canadian models: English and French)
•
•
•
•
•
Day and time announcement
Remote message retrieval
Toll saver
Message alert
Records up to 59 messages
•
•
•
•
•
Answering system features

15
16
Getting to Know Your New Phone
Terminology Used in this Manual
Accessory
Handsets Additional handsets that can register to the base, allowing you to add handsets without connecting another phone line. This base supports a total of ten cordless handsets; see page 12 for compatible handsets.
Base The main part of the phone that connects to your phone line and lets you make and receive calls.
Charging
cradle A cradle that comes with an accessory handset and charges the handset battery pack. It connects to power but does not connect to a phone line.
CID Caller ID is available from your telephone provider and is offered to users on a subscription basis.
With this service, you will be able to see the incoming caller information such as name and phone number.
CID/CW or
CIDCW Caller ID with Call Waiting is available by subscription from your telephone provider. With this service, you will be able to view incoming caller information while on a call with another user.
Global
Settings
Any settings that apply to all registered handsets and the base.
These features are available by selecting “GLOBAL SETUP”in the handset or the base menu. Only one
handset or the base can change global settings at a time, and you have to make sure the phone is not
currently being used.
Standby The handset and the base are not in use. (It doesn’t matter whether the handset is in the cradle: the [/ash]
or []on the handset or []on the base hasn’t been pressed, and there is no dial tone.)
Station Any registered handset or the base.
Talk A dial tone has been enabled, so you can dial and carry on a conversation with an outside party.
Manual Conventions
This manual uses several different type styles to help you distinguish between different parts of the phone:
Bold text with “[ ]” indicates a key or button on the phone
ALL CAPITALS indicates text on the display, such as menu options, prompts, and conrmation messages
lower case bold text indicates a status light on the phone
ALL CAPITALS BOLD indicates a connection jack on the base or charging cradle
•
•
•
•

17
Getting to Know Your New Phone
18
Parts of the Handset
Twelve-key dial pad
[ ] key (down)
[ ] key (caller ID/right)
[menu/select] key
[ /mute] key
(messages/mute)
[ ] key (end call)
[#] key
[ ] key (speaker)
Microphone
Charging contacts
[ /tone] key
[ ] key (up)
new message LED
Earpiece
Display (LCD)
[clear/int’com] key
(clear/intercom)
[ ] key (phonebook/left)
[redial/pause] key
[ /flash] key (talk/flash)
Headset jack cover
Belt clip hole
Speakerphone
speaker and ringer
Battery compartment

17
18
Getting to Know Your New Phone
[ answer on/off] key
(answering system on/off)
[flash] key
[ ] key and LED (speaker)
[ ] key (up)
[ ] key (down)
[/]key
(phonebook/repeat/left)
[/ ]key
(caller ID/skip/right)
[ ] key and LED (play/stop)
[redial/pause] key
[menu/select] key
[clear/mute] key
Display (LCD)
[int'com] key (intercom)
Speaker
Charging
contacts
charge LED
[#] key
Microphone (on bottom)
[ /tone] key
[ ] key (delete)
Parts of the Base

19
Using the Interface
20
Using the Interface

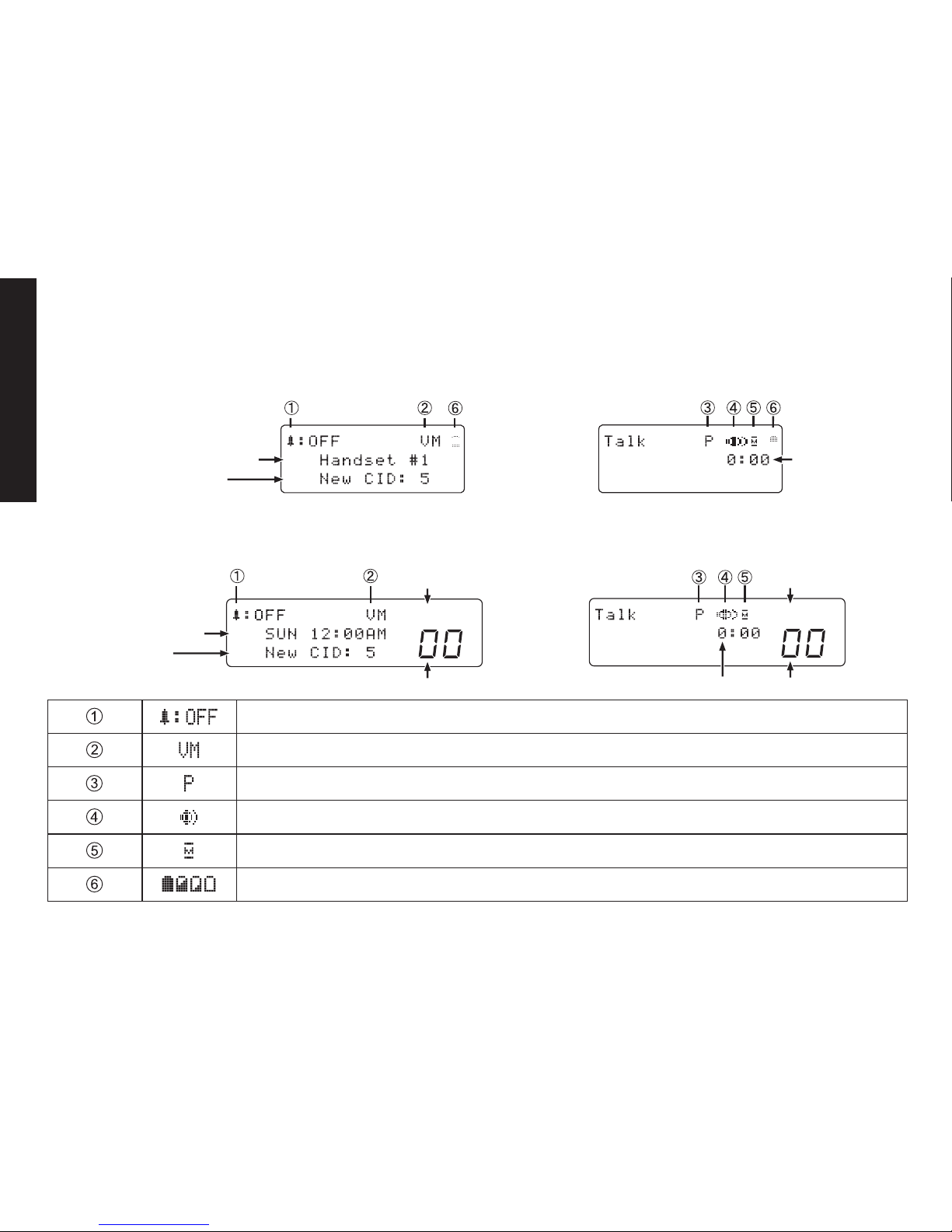

Reading the Display
Handset
Handset ID and banner
Number of new
Caller ID calls received
Call duration
In standby During a call
Note: The handset does not display the day and time.
Base
Status of your
answering system
Message counter
Day of the week
and time
Number of new
Caller ID calls received
Answer ON OFF
Status of your
answering system
Message counter
Call duration
Answer ON OFF
In standby During a call
The ringer off icon indicates that the ringer is turned off.
The voice mail icon appears when you have messages waiting in your voice mailbox.
The privacy icon appears when the Privacy Mode is turned on.
The speaker icon appears when the speaker phone is in use.
The mute icon appears while the microphone is muted.
The battery icon indicates the handset battery status: full, medium, low, and empty.
