Uniden UWS1100 User manual

UWS1100
Accessory Indoor Camera
for UWS1101
Surveillance System
UWS1100 OM.indd 1 18/11/09 6:55:26 PM

UWS1100 Accessory Camera Owner’s Manual

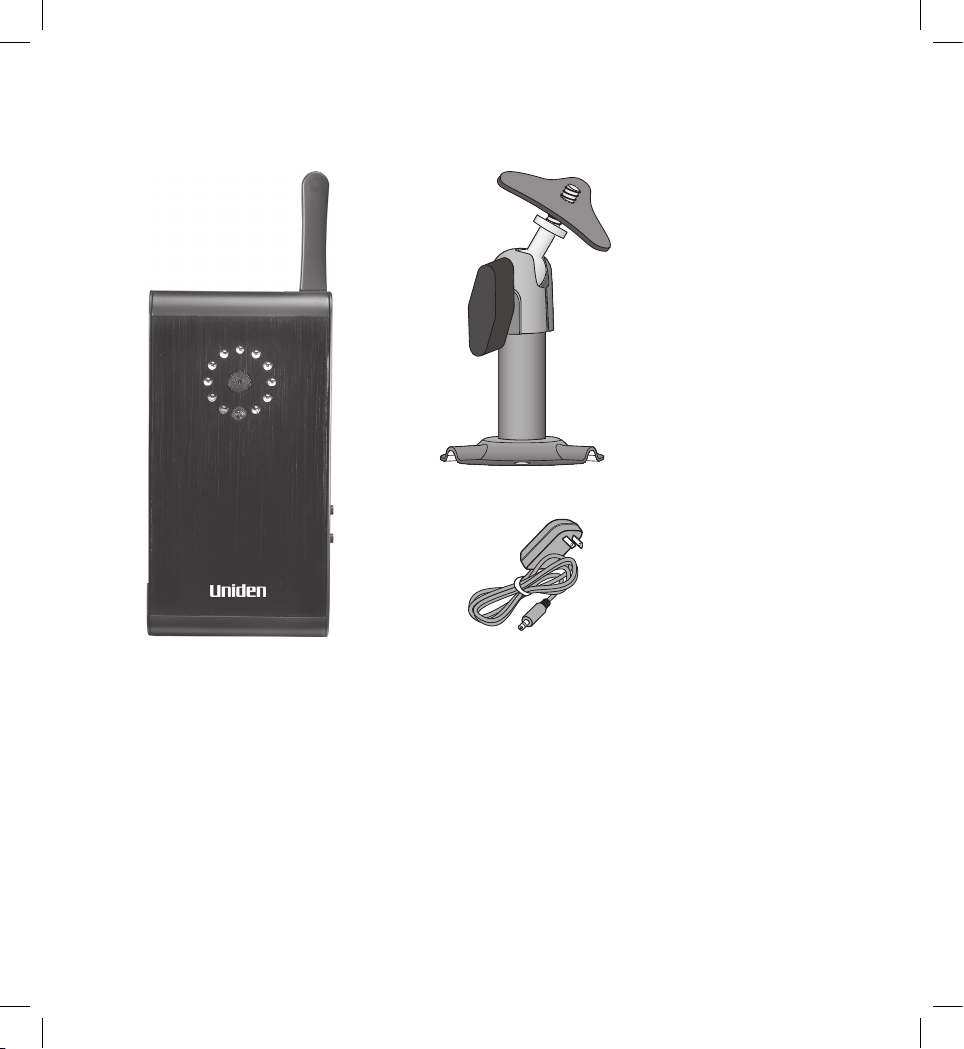

What’s in the Box
Portable video camera
Camera stand
If any items are
missing or damaged,
contact your place of
purchase immediately.
Never use damaged
products!
AC adapter
Need Help? Get answers at our website:
www.uniden.com.au for Australian model or
www.uniden.co.nz for New Zealand model.
UWS1100 OM.indd 2 18/11/09 6:55:28 PM

Important Safety Instructions!
This manual contains important information about this product’s operation. If you
are installing this product for others, you must leave this manual or a copy with the
end user.
When using your equipment, always follow basic safety precautions to reduce the risk of re,
electric shock and injury to persons, including the following:
This equipment is NOT waterproof. DO NOT expose it to rain or moisture.
►
DO NOT immerse any part of the product in water. Do not use this product near water,►
e.g., near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
To avoid any risk of electric shock from lightning, avoid handling any electronic devices
►
(except battery powered ones) during an electrical storm.
Use only the power cord and/or batteries indicated in this manual. Never dispose of any
►
batteries in a re: they may explode. Check with local codes for possible special disposal
instructions.
Never tug or pull on any power cord: be sure to leave some slack in the cord when placing
►
your equipment, and always use the plug to unplug cord from the wall outlet.
Never leave power cords where they can become crushed, cut, or frayed; when running
►
power cords, avoid letting them rub against any sharp edges or lie across any high trac
areas where people might trip over them.
Do not use the device if the adapter cords or plugs have been damaged, the unit has been
►
exposed to liquids, or the unit has been dropped or is damaged.
Warnings to Parents and Other Users
Failure to follow these warnings and the assembly instructions could result in serious injury or
death. This product is not designed or intended for use as a medical monitor, nor should this
product be used as a substitution for medial or parental supervision. Always be sure that both
the transmitter and receiver are working properly and are within range of each other.
STRANGULATION HAZARD. Keep the adapter cords out of the reach of children.
►
WARNING: KEEP OUT OF THE REACH OF CHILDREN. This product is not a toy and is not►
intended for use by any children under the age of 13. If you are between the ages of 13
and 18, review these terms, conditions and safety warnings with your parents or guardian
UWS1100 OM.indd 3 18/11/09 6:55:28 PM

Contents
Important Safety Instructions! .................... 2
Warnings to Parents and Other Users .........2
For best results: ....................................................3
Getting Started ............................................. 4
Connecting the Power..............................................4
Charging the Batteries.......................................4
Learning the Buttons and Lights ..........................5
Using the Camera Mount ........................................5
Pairing the Camera....................................... 7
Additional Information ................................ 8
Product Specications..............................................8
Polymer-Lithium Battery Warning ............. 9
One-year Limited Warranty.......................11
to make sure that you and your parent or guardian understand these terms, conditions,
and safety warnings.
Allow for proper ventilation when units are in use. Do not cover the camera or receiver
►
with any object such as a blanket. Do not place it in a drawer or in any location which
would mue the sound or interfere with the normal ow of air.
SAVE THESE INSTRUCTIONS!
For best results:
To avoid damage to your equipment, follow these simple precautions:
Do not drop, puncture or disassemble any part of the equipment. There are no user-
►
serviceable parts inside.
Do not expose the equipment to high temperatures, and avoid leaving the equipment in
►
direct sunlight for more than a few minutes. Heat can damage the case or electrical parts.
Do not place heavy items on top of the equipment or expose the equipment to heavy
►
pressure.
Remove the power adapter during long periods between usages.
►
Clean only with a dry cloth.►
Failure to follow the instructions in this operating manual will void the warranty.
Uniden assumes no liability for damages to property or injury to persons caused by
improper handling or failure to comply with these safety instructions.
UWS1100 OM.indd 4 18/11/09 6:55:28 PM

5
Getting Started
Connecting the Power
1. Connect one end of
the AC adapter
to the camera’s
power connector
and the other
end to a standard
240 volt AC
indoor outlet.
Press the2.
POWER
button on the
camera; the
Power status light
should turn on.
If it doesn’t, try
reconnecting the
AC adapter, and
make sure the
power outlet isn’t
controlled by a
wall switch.
Charging the Batteries
The batteries in your camera will charge whenever the power is connected. Let
the batteries charge completely (about 8 hours) before you unplug the camera
to move it around. (You can still use the camera: just keep it plugged in.)
LINK
POWER
Power
connector
Link
status
LINK
Antenna
Stand
Lens
Battery
status
Power
status
UWS1100 OM.indd 5 18/11/09 6:55:28 PM

6
Learning the Buttons and Lights
Button What it does
POWER Turn the camera on. Press and hold to turn it off.
LINK Enter pairing mode.
Light State What it means
Power Status
light
On The camera is on.
Off The camera is off.
Link Status
light
Flashing The camera is in pairing mode.
Orange The camera is connected to the receiver.
Off The camera is in standby.
Battery
Status light
Green The battery is charging.
Red The battery is low; the camera will turn off in 3 minutes.
Off The battery is fully charged.
Using the Camera Mount
The camera has a built-in stand so you can place it on any flat surface. If you
want to place your camera on a wall or a ceiling (or even if you just want to
secure it to a flat surface), you can use the included camera mount. (You might
want to bring the receiver along when you mount the camera; it’s much easier
to get the camera into the right position when you have the display handy.)
UWS1100 OM.indd 6 18/11/09 6:55:28 PM

7
Hold the base of the mount where you1.
want to attach it, and mark the location of the
screw holes.
Use the included screws and anchors to2.
attach the base to the wall or ceiling.
Attach the camera to the mounting screw.3.
Tighten it a few turns, then turn it to the
direction you want.
Tighten the camera brace up against the4.
back of the camera to secure it into place.
Unlock the mounting post by turning the5.
wingnut to the left a few turns.
Set the mounting post to the correct angle,6.
then tighten the wingnut until the post is
locked into place.
Camera
brace
Mounting
screw
Mounting
post
Post
lock
Screw
holes
1
2
4
3
Loosen the
wingnut to
unlock the
mounting
post.
Attach the camera
to the mounting
screw and turn it
to the desired
direction.
Adjust the post to
the correct angle,
then tighten the
wingnut to lock the
post into place.
Tighten the brace against
the camera to
secure it
in place.
UWS1100 OM.indd 7 18/11/09 6:55:28 PM

8
Pairing the Camera
Before you can use the camera, you’ll need to “introduce” or pair it to the
receiver so they can communicate. You might also perform the pairing
procedure if you are having trouble with the camera.
Make sure the camera is powered on.1.
On the receiver, select the channel you want to pair this camera to, and put2.
the receiver into pairing mode. (This process is slightly different on each
receiver. See the manual that came with your receiver for instructions.)
On the camera, press3.
LINk to put the camera into pairing mode.
Switch the receiver to this camera’s channel, and verify that the camera’s4.
video signal appears on the correct channel. (You might have to enable the
new channel first.)
For more information about pairing a camera to your receiver, see the manual
that came with your receiver.
If... Try...
the receiver’s signal status
icon shows no bars or the
display says No Signal
making sure the camera is turned on-
making sure the camera is paired to the-
correct channel
re-pairing the camera and receiver-
the signal status icon shows
one or two bars or the video
quality is poor
see the manual that came with your
receiver for tips on improving video quality
there is a lot of static on the
receiver
see the manual that came with your
receiver for tips on improving video quality
UWS1100 OM.indd 8 18/11/09 6:55:28 PM

9
Additional Information
Product Specications
Radio Frequency Transceiver
RF Frequency 2402 Mhz ~ 2483.5 Mhz
Modulation GFSK
Spread spectrum Frequency Hopping
Anti Interference Clean Channel Dynamic Select
Data rate 2 Mbps
Channel bandwidth 2 MHz
Transmitting range 200 meters/600 feet in an open area (line of sight)
Image Specification
Output Image resolution 640 x 480 (VGA)/ 320 x 240 (QVGA)
Image processing Motion JPEG
Exposure Auto
White balance Auto
Camera Specifications
Weight 110 g
Dimension 115 x 60 x 19 mm
Operating temperature -10° C (+14° F) to +50° C (122° F )
Battery charging temp. 0° C (32° F) to +45° C (113° F )
Input voltage 100-240 V AC @ 60 or 50 Hz
Operating voltage 5 V DC @ 1 Amp
Power consumption 650 mA max
UWS1100 OM.indd 9 18/11/09 6:55:29 PM

10
Camera Specifications
Low light solution 11 IR LEDs, 1 Low light sensor
Low light sensitivity 1-8 lux
Picture sensor OV7725 1/4’ Color CMOS
Lens F3.6mm H:53 V:40
Polymer-Lithium Battery Warning
This receiver and camera contains a lithium-polymer battery. The battery must be
recycled or disposed of properly. Contact your local waste management office for
information on battery recycling or disposal.
UWS1100 OM.indd 10 18/11/09 6:55:29 PM

11
One-year Limited Warranty
UWS1100 Accessory Indoor Camera
Important: Evidence of original purchase is required for warranty service.
Warrantor: Uniden Australia Pty Limited ABN 58 001 865 498
Uniden New Zealand Limited
Elements of Warranty: Uniden warrants to the original retail owner for the duration
of this warranty its UWS1100 Accessory Indoor Camera (hereinafter referred to as the
Product), to be free from defects in materials and craftsmanship with only the limitations
or exclusions set out below.
Warranty Duration: This warranty to the original retail owner only is only valid in the
original country of purchase and shall be of no further eect 1 year after the date of
original retail sale. This warranty will be deemed invalid if the Product is: (A) Damaged or
not maintained as reasonable and necessary, (B) Modied, altered or used as part of any
conversion kits, subassemblies, or any congurations not sold by Uniden, (C) Improperly
installed, (D) Repaired by someone other than an authorized Uniden Repair Agent for
a defect or malfunction covered by this warranty, (E) Used in conjunction with any
equipment or parts or as a part of a system not manufactured by Uniden. (F) Only available
in the original country of sale.
Parts Covered: This warranty covers for one (1) year, the Product and included accessories.
Statement of Remedy: In the event that the Product does not conform to this warranty
at any time while this warranty is in eect, the warrantor, at its discretion, will repair the
defect or replace the Product and return it to you without charge for parts and service. This
warranty does not provide for reimbursement or payment of incidental or consequential
damages. This EXPRESS WARRANTY is in addition to and does not in any way aect
your rights under the TRADE PRACTICES ACT 1974 (Cth) (Australia) or the CONSUMER
GUARANTEES ACT (New Zealand).
Procedure for obtaining performance or warranty: in the event that the Product does
not conform to this warranty, the Product should be shipped or delivered, freight prepaid,
with evidence of original purchase (e.g. a copy of the sales docket) to the warrantor at:
UNIDEN AUSTRALIA PTY LTD UNIDEN NEW ZEALAND LTD
Service Division Service Division
345 Princes Highway, 150 Harris Road, East Tamaki,
Rockdale, NSW 2216 Manukau 2013
Fax [phone] Fax [phone]
www.uniden.com.au www.uniden.co.nz
UWS1100 OM.indd 11 18/11/09 6:55:29 PM

© 2009 Uniden Australia Pty Ltd/Uniden New Zealand Limited
Printed in PRC
UWS1100 OM.indd 12 18/11/09 6:55:29 PM
