GPS Pet Tracker PT100
User Manual
Preface
Thank you for purchasing the tracker. This manual shows how to operate the device smoothly and
correctly. Make sure to read this manual carefully before using this product. Please note that
specification and information are subject to changes without prior notice in this manual. Any change
will be integrated in the latest release. The manufacturer assumes no responsibility for any errors or
omissions in this document.

UniGuard Technology Limited
2
1. Summary
Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and
monitor any remote targets by SMS or internet. The most advanced technology of GPS and AGPS
dual positioning. The waterproof level achieves IPX - 6.
2. Applications
Protect the lovely pets,likes cat,dog etc
3.Hardware Description
3.1 Front face
3.2 Accessories(without collar)
LED Light
ON/OFF Button
Waterproof plug
Sim Card slot
USB Charging port
Screw plug

UniGuard Technology Limited
3
4.Specs.
Content
Specs.
Dim.
70mm x 35mm x 20mm
Weight
75g
Network
GSM/GPRS
Band
850/900/1800/1900Mhz
GPS chip
UBLOX
GPS sensitivity
-159dBm
GPS accuracy
5m
Time To First Fix
Cold status 35-80s
Warm status 35s
Hot status 1s
Wall charger
110－220V input
5V output
Battery
Chargeable changeable 3.7V 1000mAh Li-ion battery
Standby
240hours
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95% non-condensing
5.Usage
Please charge 12hours at first use.
Insert SIM card in right way. Please put the unit outside and make sure the trademark side facing
up.
Confirm your SIM card have calling, send SMS, GPRS function.
Confirm your SIM card have enough balance (money).
Confirm your SIM card can show caller ID and don not use call forwarding function.
5.1 Device install and SIM card installation
5.1.1 Put the device near to the screw hole
5.1.1 Rotate device as following diagram

UniGuard Technology Limited
4
Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message
must in Text format, can’t be identified for PDU format.
5.2.1 Open the waterproof plug, put the SIM card into the card slot.
5.2.2 Put the waterproof plug back to the slot,press the on/off button.
5.2Battery and Charger
Do charge the battery to capacity in 8 -12 hours for first time. Please use the battery and charger
provided by the manufacturer. This unit adopts built-in Li-ion battery, and full battery can standby 80
hours. After first use, the battery usually should be charged fully in 3-5 hours.
Cautions:
a: For it’s Li-ion battery, which contains harmful chemicals and may burst, please don’t bump,
puncture it violently and keep it off fire.
b: Please charge the battery in time to keep it working normally.
5.3Startup
Put the SIM card in place.
Turn on the unit outdoors by pressing the “on/off” button until the indicator is on.
For first use, please initialize the unit and restore it to default setting. (Please refer to 5.4 for

UniGuard Technology Limited
5
instruction.)
In 10 or 40 seconds, the unit will begin to work and acquire the GSM signals as well as the GPS
signals. The indicator will keep flashing every 3 seconds when the unit has received the signals.
When this unit receives GPS signals normally, you can use it and do any setting as the
instructions of this manual.
Green LED for GPRS working status
Status of indicator
Meaning
Slow flash (flash 1s after every
2s)
GSM / GPRS conversation start
Continuously in bright status
No GPRS signal
Green Led off
Device fault or dormant
Blue LED for GPS working status
Status of indicator
Meaning
Slow flash (flash 1s after every
2s)
GPS location successful
Continuously in bright status
Searching GPS signal
Blue led off
Device fault or dormant
Red LED for power charging status
1.Google link: click link, there is map when positioning ok, no map means
no positioning.
2.V:A GPS signal ok.V:V no GPS signal
3.2013-08-30 20:54:15: the last time receive GPS signal.
4.Spd:000km/h: the speed of tracker ran.
5.Bat:6 battery balance（the range is from 1 to 9）
6.ID:4102000759: ID code of device(used for connect tracking website or
APP)
7.S19G04；plmn：46001 GSM operator data
8.Lac：9516，cellid:23596 LBS data

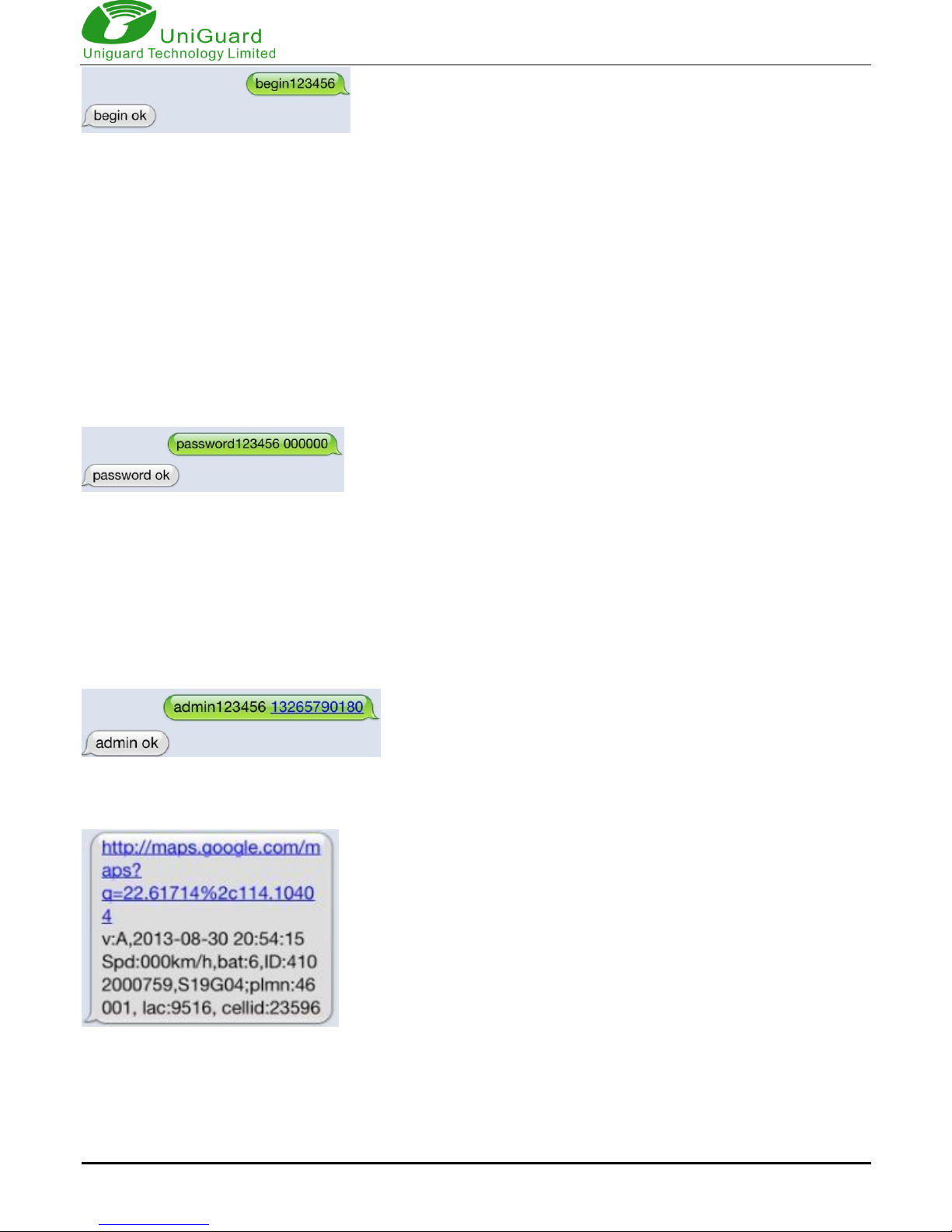

5.4Initialization
Send “begin+password” in SMS to the unit, it will reply “begin ok” and initialize all the settings. (Default
password: 123456)
For example, send SMS“ begin123456” to the tracker via a cell phone, If succeeded,
if will reply“begin ok”.
Status of indicator
Meaning
Red led on all the time
Charging
red led flash
Low battery
red led off
Full battery or charged full

UniGuard Technology Limited
6
5.5Change the password
5.5.1 Set Password: Send sms: “password+old password+space+new password” to the unit to change
the password.
For Example, pls send sms: “ password123456 000000” to terminal device, it will reply sms:
“password OK”. New password 000000 changed in success.
5.5.2 Be sure keep the new password in mind, you have to upload the software to restore the original
setting in case of losing the new password.
5.5.3 Make sure the new password is in 6 digits Arabic numbers, or the tracker can not recognize the
password.
5.5.4 Make sure that all the symbol“+”in sms commends is just for quick understanding, which don’t
need to enter “+” in sms, and “space” means press the spacebar button of the cell phone.
5.6Authorization
5.6.1 Send SMS：“ admin+password+space+cell phone number” to set up a authorized number. The
other authorized numbers should be set by the first authorized number. If the number is successfully
authorized, the unit will reply “admin ok!” in SMS.
5.6.2 Send SMS：“ noadmin+password+space+authorized number” to delete the authorized number.
for example, please send：“ admin123456 13265790180” to tracker to set 13265790180 as an
authorized number.
5.6.5When the authorized number call the device, it will hang up your phone and reply a real-time
latitude and longitude information, as below:
5.7Single Locating
5.7.1 If there is no authorized number, when any number dials up the unit, it will report a Geo-info; If
there is already an authorized number, then it will not respond when an unauthorized number calls it
up.

UniGuard Technology Limited
7
5.7.2Single message inquires the latitude and longitude information, any telephone number can send
instruction“where” to the equipment, then the equipment will reply the latitude and longitude informati
on to this telephone.
5.7.3 When an authorized number dials up the unit, it will hang up and report a real-time Geo-info as
below:
*Tracking location, When GPS signals is weak, the position of latitude and longitude included in the
SMS is the position that the tracker received GPS signals at last. If it is different with its exact current
location, pay attention to check the time included in the SMS you got.
5.8Auto Track
5.8.1 Send SMS command “t030s005n+password” to the tracker device, it will report the “no reply” at
30s intervals for 5 times. (s:second, m:minute, h:hour). This command setting must be in 3 digits and
the maximum value is 255.
5.8.2 Unlimited times auto track: Send SMS “t030s***n+password” to the tracker device, it will reply
the “no reply” continuously at 30 seconds intervals.
5.8.3 Cancellation: Send SMS “notn+password” to the tracker device, it will report the “notn ok”.
Note: the interval must not less than 20s.
5.9 Monitor (Voice Surveillance)
5.9.1 The command to switch between Track and Monitor are “tracker” and “ monitor”.
5.9.2 The default mode is “track” (Track mode).
5.9.3 Send SMS “monitor+password” to the unit, and it will reply “monitor ok!” and switch to “monitor”
mode.
5.9.4 Send SMS “tracker+password” to the unit, it will reply “tracker ok!” and restore to “track” mode.
5.10Geo-fence
Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the
message to the authorized numbers when it breaches the district.
5.10.1 Set up: When the unit stays immobile in a place for 3-10 minutes, the user can Send SMS:
“stockade+password+space+latitude,longitude; latitude,longitude” to unit to set the restricted district.
Remark: The first latitude&longitude is coordinate of the top left corner of the Geo-fence, while the

UniGuard Technology Limited
8
second latitude&longitude is the coordinate of the bottom right corner.
5.10.2 Cancel: Send SMS:” nostockade+password” to deactivate this function,tracker will reply
“nostockade ok”.
5.11Movement alert
5.11.1 Set up: When the unit stays immobile in a place for 3-10 minutes, the user can send SMS:
“move+password” to the unit, then the unit will reply “move ok!”. In case of such a movement（the unit
default distance is 500M）, it will send SMS “Move ALARM+ Latitude and longitude” to the authorized
number
5.11.2 Cancel: Send SMS:” nomove+password” to deactivate the movement alert, tracker will reply
“nomove ok”.
5.12 Overspeed alert
5.12.1 Set up: Send SMS: “speed+password+space+080” to the unit (suppose the speed is 80km/h),
and it will reply “speed ok!”. When the target moves exceeding 80 km/h, the unit will send
SMS :”speed ALARM !+ Latitude and longitude” to the authorized numbers every 5 minutes.
5.12.2 Cancel: Send SMS “nospeed+password” to deactivate the overspeed alarm, tracker will reply
“nospeed ok”.
Remark: The recommended speed should be not less than 50km/h. For below that rate, it will be
effected the accuracy by gps signals drift etc.

UniGuard Technology Limited
9
5.13Low battery alert
When GPS device battery is going to be about 3.7V, it will send SMS: “bat:l” at 30 minutes interval.
5.14Sleeping power-save mode
On normal status, when the unit stoped over 10minutes, it will change to sleeping mode, on this mode,
the power consumption is 4mah/h only. When it get any command or been moved, it will start GPS
locating automatically.
Forced sleeping mode, Setting: Send SMS “sleep+password”, the unit will reply “sleep ok”, it enter to
forced sleeping power-save mode.
Start device, send SMS “nosleep+password”,the unit will reply “nosleep ok”, it start GPRS and GPS
locating.
5.15 Shock alert
Note: It is effective sending by authorized number
Send SMS command“shock+password”, the unit will reply “shock ok.”
Cancel: Send SMS command “noshock+password”, the unit will reply “noshock ok.”

UniGuard Technology Limited
10
5.16Restore factory settings
Note: It is effective sending by authorized number
Send SMS command “format”, the unit will reply “The tracher will immediateiy restore the factory settings.All
previous settings will be canceled.”
5.17 GPRS setting
User must send SMS via cell phone to set up IP, port and APN before starting GPRS.
5.17.1 Setting up APN
5.17.1.1 APN standards for Access Point Name and differs from country to country. For more
information about the local APN, inquire with your local GPRS network operator.
5.17.1.2 Text the tracker a SMS “apn+password + Space + your local APN” via a cell phone and if
succeeded in setup, the tracker will return the message “apn ok”.
5.17.1.3 e.g. send SMS command “apn123456 cmnet”. If succeeded, “apn ok” is returned by the
tracker in SMS.
Notes: 123456 refer to password of tracker and CMNET is the APN of China Mobile (One of GSM
Operator in china).
5.17.1.4 Set IP Send SMS command：adminip123456 104.243.132.242 8000 If succeeded, “adminip ok”
6 .Cautions
Please comply with the instructions to extend the unit life:
6.1 Keep the unit dry. Any liquid, i.e. rain, moisture, may destroy or damage the inside circuitry.
6.2 Don’t use & store the unit in dusty places.
6.3 Don’t put the unit in overheated or overcooled places.
6.4 Handle carefully. Don’t vibrate or shake it violently.
6.5 Clear the unit with a piece of dry cloth. Don’t clean in chemicals, detergent.
6.6 Don’t paint the unit, this may cause some foreign materials left in between the parts.
6.7 Don’t disassemble or refit the unit.
6.8 Please use the battery and charger provided by manufacturer. Using other batteries and chargers

UniGuard Technology Limited
11
will cause unwanted situation.
7. Faults & The solutions
Faults
Solution
Startup Fail
Check the battery and see if it is fully charged or
correctly installed.
Hang up Fail
In existence of an authorized number, an unauthorized
number dials up the unit. Please initialize the unit and re-set up
the authorized numbers.
Monitoring failure
Please check the authorization number is set to the correct time
No GSM Signal
Please make sure SIM Card is GSM Net and installed correctly; also
call display should be on; but no call transfer and PIN code off.
