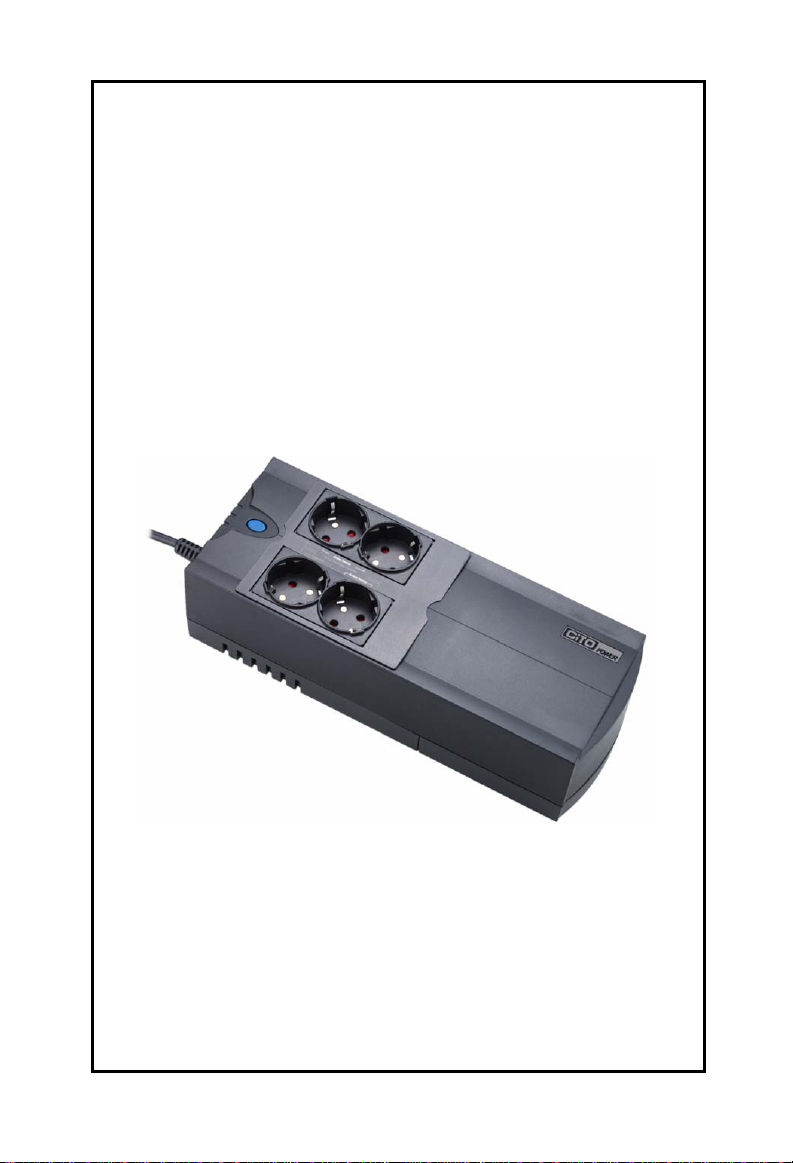

Uninterruptible Power Supply EASY CPF-M400S User manual

USER’S MANUAL
CiTO Power - EASY Series
CiTO Power Off-Line CPF-M400S/CPF-M600S
CPF-M400U/CPF-M600U
Uninterruptible Power Supply

IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
CAUTION!!
Please read the following information carefully and save this manual for
further reference. Disregard of these safety notes may endanger life or
health, as well as the function of the equipment and the safety of your
data.
zRisk of Electric Shock Heatsinks are live. Disconnect unit before
servicing.
zRisk of Electric Shock. This unit receives power from more than one
source. Disconnection of AC sources and the DC source is required
to deenergize this unit before servicing.
zRisk of Electric Shock. Hazardous live parts inside this unit are
energized from the battery supply even when the input AC power is
disconnected.
zRisk of Electric Shock. Do not remove cover. No user serviceable
parts inside. Refer servicing to qualified service personnel.
zTo reduce the risk of fire, replace only with same type of fuse. Refer
servicing to qualified service personnel only.
zThe sum of the leakage current of the UPS and the connected
equipment should not exceed 3.5mA.
zDo not dispose of batteries in a fire as they may explode.
zDo not open or mutilate the battery or batteries. Released electrolytes
are harmful to the skin and eyes. It may be toxic.
zA battery can present a risk of electric shock and of having a high
short circuit current. The following precaution should be observed
when working on batteries:
1) Remove watches, rings or other metal objects from the handles.
2) Use tools with insulated handles.
3) Wear rubber gloves and boots.
4) Do not lay tools or metal parts on top of batteries.
5) Disconnect charging source prior to connecting or disconnecting
batteries terminal.
zTo replace the batteries by qualified service personnel. Use the same
number and type of sealed lead-acid batteries.
zThis pluggable type A equipment with battery already installed by the
supplier is operator installable and may be operated by laymen.
zThe mains socket outlet that supplies the UPS shall be installed near
the UPS and shall be easily accessible.
zSealed, lead-acid, 6 cells battery.
zφon the rating label stands for phase symbol.
zThe maximum ambient temperature rating is 40°C.

WARNING!!
zRefer servicing to qualified service personnel only.
zTo reduce the risk of fire or electric shock, install in a temperature and
humidity controlled indoor area free of conductive contaminants.
zRisk of Electric Shock. Battery circuit is not isolated from AC input,
hazardous voltage may exist between battery terminals and ground.
Test before touching.

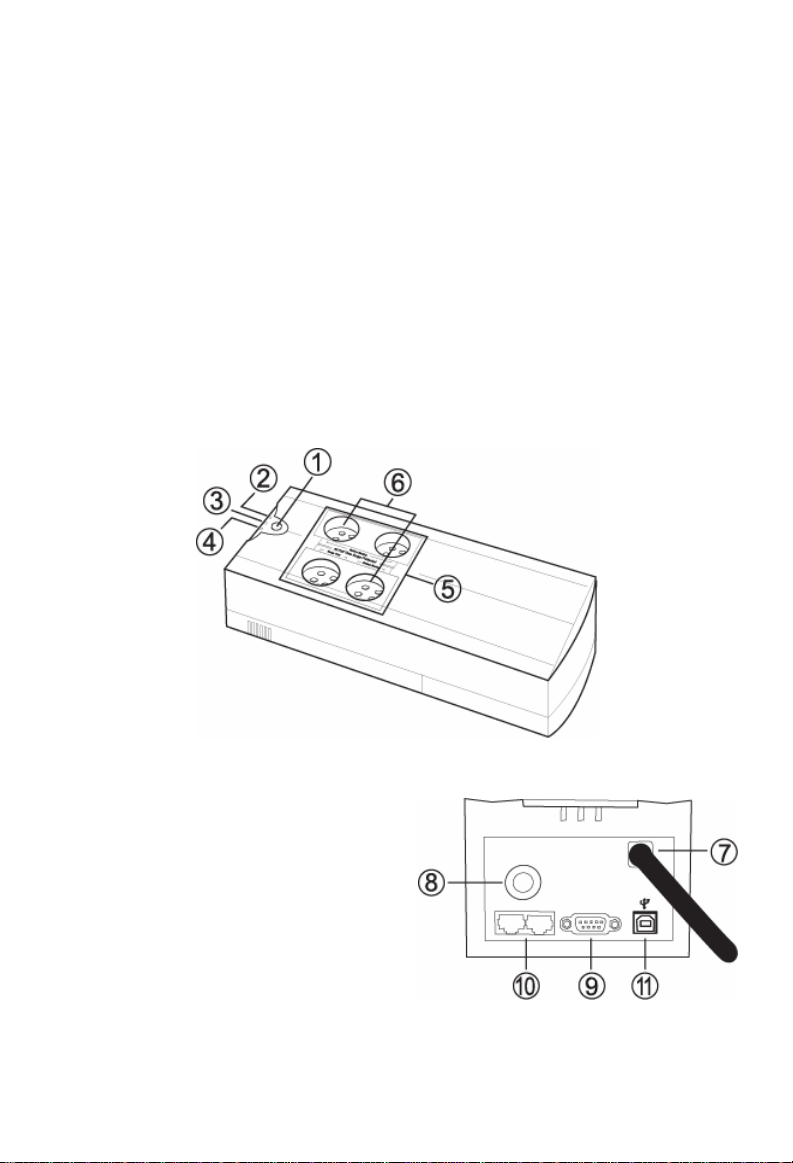

System Description
Top –
1. Power On/Off Switch
2. Green LED : AC Mode
3. Yellow LED : Battery Mode
4. Red LED: Fault LED
5. All receptacles are surge protected
6. 3 receptacles are battery power supplied
Side --
7. AC Input
8. Breaker
9. RS-232 Interface
10. Modem/Phone Line Surge
Protection
11. USB Port (option, for
CPF-M400U/CPF-M600U)

Installation & Operation
Installing the CiTO Power UPS is as easy as following the steps shown. Be
aware that the Power Switch must be kept in the “ON” position and all
equipment must be plugged into the Battery Power Supplied Receptacles,
otherwise, the UPS will be disabled and your equipment will not be protected
during a power failure.

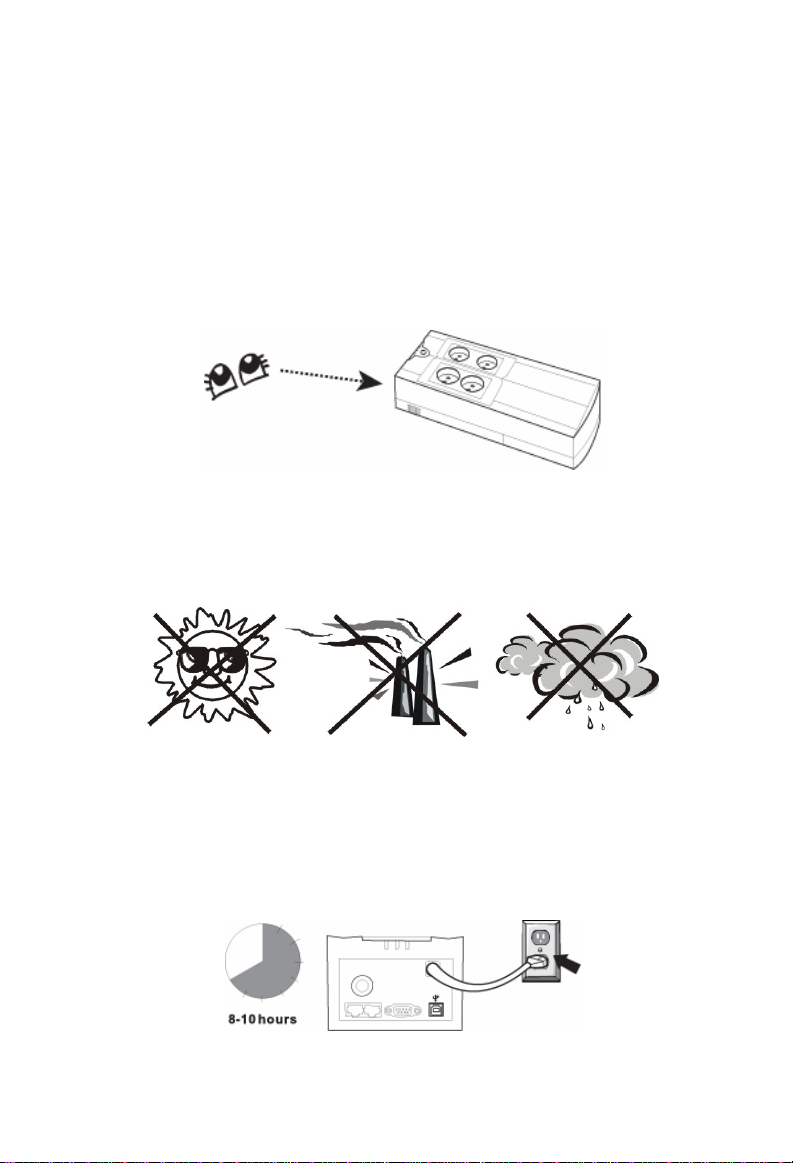

1. Inspection
Remove the UPS from its packaging and inspect it for damage that may
have occurred during shipping. If any damage is discovered, repack the
unit and return it to the place of purchase.
2. Placement
Install the UPS unit in any protected environment that provides adequate
airflow around the unit, and is free from excessive dust, corrosive fumes
and conductive contaminants. DO NOT operate your UPS in an
environment where the ambient temperature or humidity is high.
3. Charging
This unit is shipped from the factory with its internal battery fully charged.
However, some charge may be lost during shipping and the battery should
be recharged prior to use. Plug the unit into an appropriate power supply,
then switch on UPS and allow the UPS to charge fully by leaving it plugged
in for at least 8-10 hours with no load (no electrical devices such as
computers, monitors, etc.) connected.

4. Computer Connection
Connect one computer-related device into one of the battery supplied
receptacles on the top of UPS. CiTO Power UPS provides four receptacles,
all for surge protection, two plus battery backup.
5. Peripheral Equipment Connection
Plug your peripheral equipment (printer, scanners, speakers) into the
full-time surge protection outlets. These receptacles do not provide any
power during a power failure.
Note: DO NOT plug a laser printer, copier, space heater, vacuum or
other large electrical device into the UPS. The power demands of
these devices will overload and possibly damage the unit.
6. Modem/Phoneline Connection
Plug incoming internet line into the “In” socket at the side panel of the UPS.
Use one more internet line cable and plug one end of the internet line
cable to the “Out” socket at the side panel of the UPS. Plug the other end
of the modem input socket as shown.

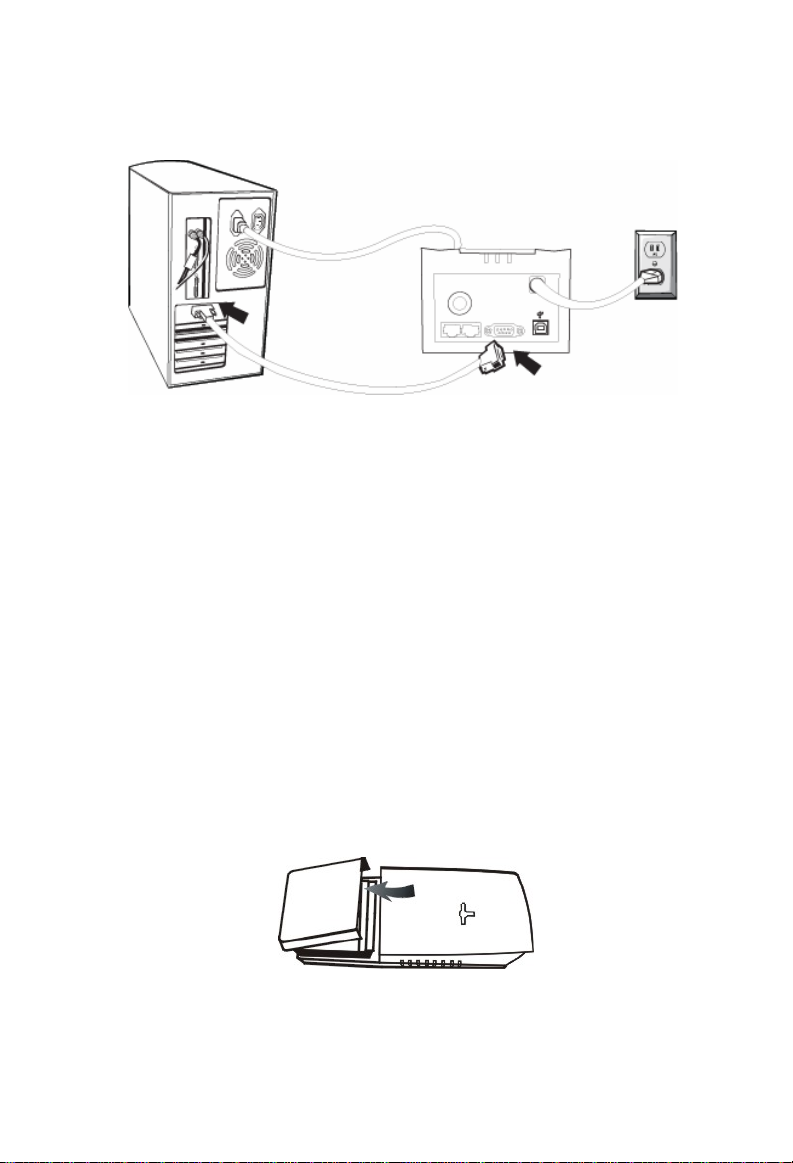

7. Serial Cable Connection
To allow for unattended system shutdown for your operating system,
connect the RS-232 serial cable as per diagram below. For the USB serial
cable, just simply plug into the UPS and PC and it will be auto detected.
8. Turn On/Off
Press power switch to turn on the CiTO Power UPS. Press power switch
again to turn off the UPS.
9. DC Start Function
DC Start Function enables UPS to be started up when AC utility power is
not available and battery is fully charged. Just simply press the power
switch to turn on the UPS.
10. Battery Replacement
CAUTION: Battery replacement should be performed by qualified
service personnel.
Follow the charts below to replace the batteries.
Step1: Remove the screws located on the bottom of the UPS to open the
battery cover.
Chart 1

Step2: After removing the battery cover, gently extract batteries from the
case.
Chart 2
Step 3: Disconnect the two wires connecting it to CiTO Power UPS and
replace the same type of batteries. Dispose of the old batteries properly
at an appropriate recycling facility.
Chart 3

Free Software Download

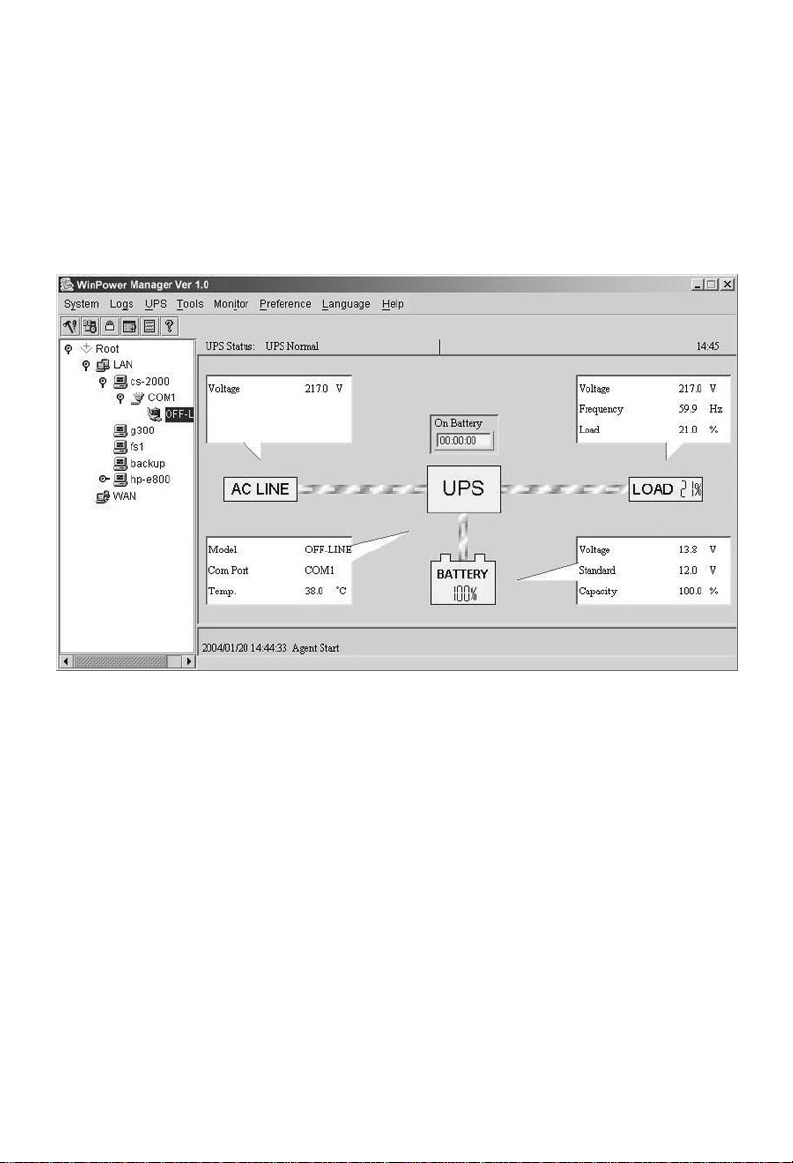

-- WinPower --
WinPower is a brand new UPS monitoring software, which provides
user-friendly interface to monitor and control your UPS. This unique software
provides safely auto shutdown for multi-computer systems while power
failure. With this software, users can monitor and control their UPS on the
same LAN no matter how far from the UPSs.
Installation procedure:
1. Go to the website:
http://www.ups-software-download.com/winpower.htm
2. Choose the operation system you need and follow the instruction
described on the website to download the software.
3. When downloading all required files from the internet, enter the serial
No: 511C1-01220-0100-478DF2Ato install the software.
When your computer restarts, the WinPower software will appear as a green
plug icon located in the system tray, near the clock.

Specification
MODEL CPF-M400S
CPF-M400U CPF-M600S CPF-M600U
CAPACITY 400 VA / 200W 600VA/ 300W
Voltage 120 VAC or 220/230/240VAC
Frequency 50/60 Hz
INPUT
Phase Single
Voltage Range 120 VAC or 220/230/240VAC ± 10%
Frequency 50Hz or 60 Hz ± 1Hz
OUTPUT
(Inverter Mode) Waveform Modified Sinewave
TRANSFER TIME 2-6ms Typical
Battery Type 12v/4.5Ah*1
or equal capacity 12V/5Ah*1 or equal capacity
Recharging Time 16 hours max.(Recharge to 90% Capacity)
BATTERY Backup Time (at a PC
load) typical 100W 10-15 minutes 10~18 minutes
DISPLAY LED Power on, Backup, Fault
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding every 0.5 second
AUIBLE ALARM
Fault Continuous Sounding
PROTECTION Full Protection Overload, Overcharge, Short Circuit and
Modem/Phone Line Surge Protection
Dimension (DxWxH) 300X125X85 (mm)
Net Weight 3.2kgs 3.5kgs
Schuko All for surge protection, 3 plus battery backup
PHYSICAL
Outlets French All for surge protection, 3 plus battery backup
Operation
Temperature 0-40℃
ENVIRONMENT Operation Humidity 0%-90%
Smart RS-232 Windows family, Sun Solaris, IBM Aix, Compaq
True64, UnixWare, FreeBSD, HP-UX, Linux
and MAC
INTERFACE USB Port
(Optional, for
CPF-M400U &
CPF-M600U)
Windows family and MAC

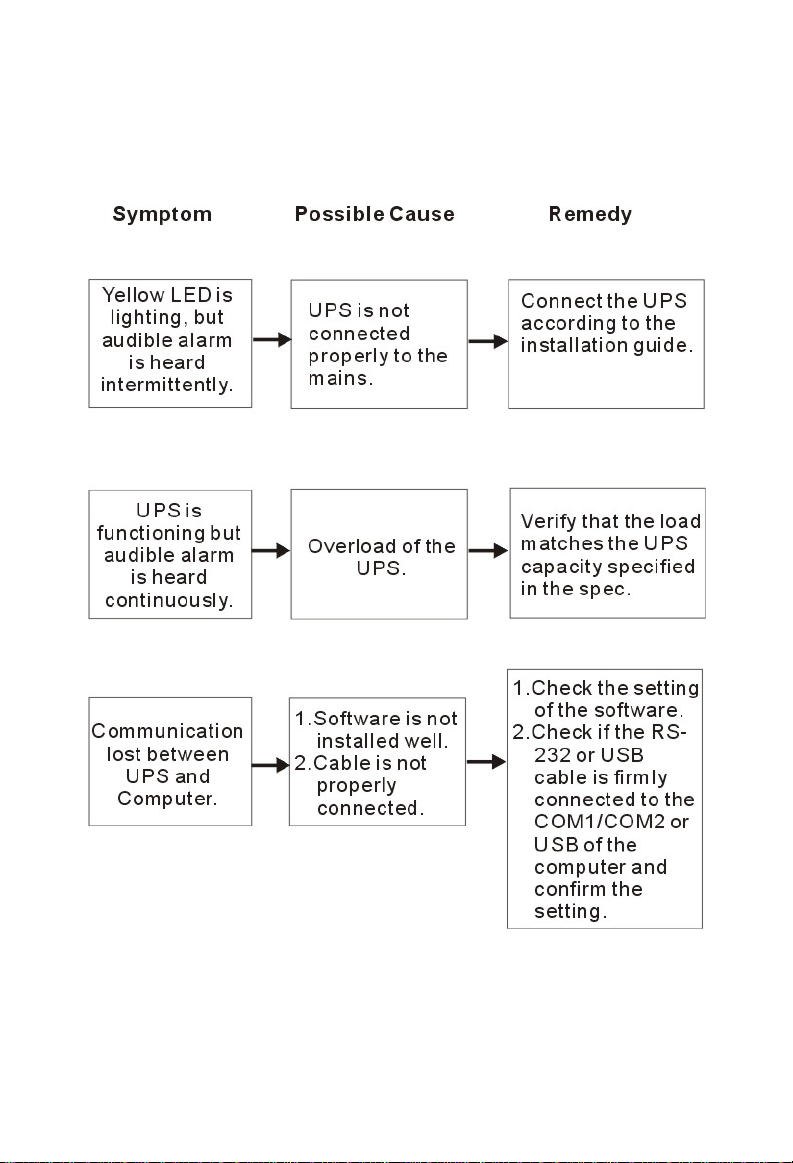

Trouble Shooting
If the UPS failed to operate properly, please review the following points firstly.
