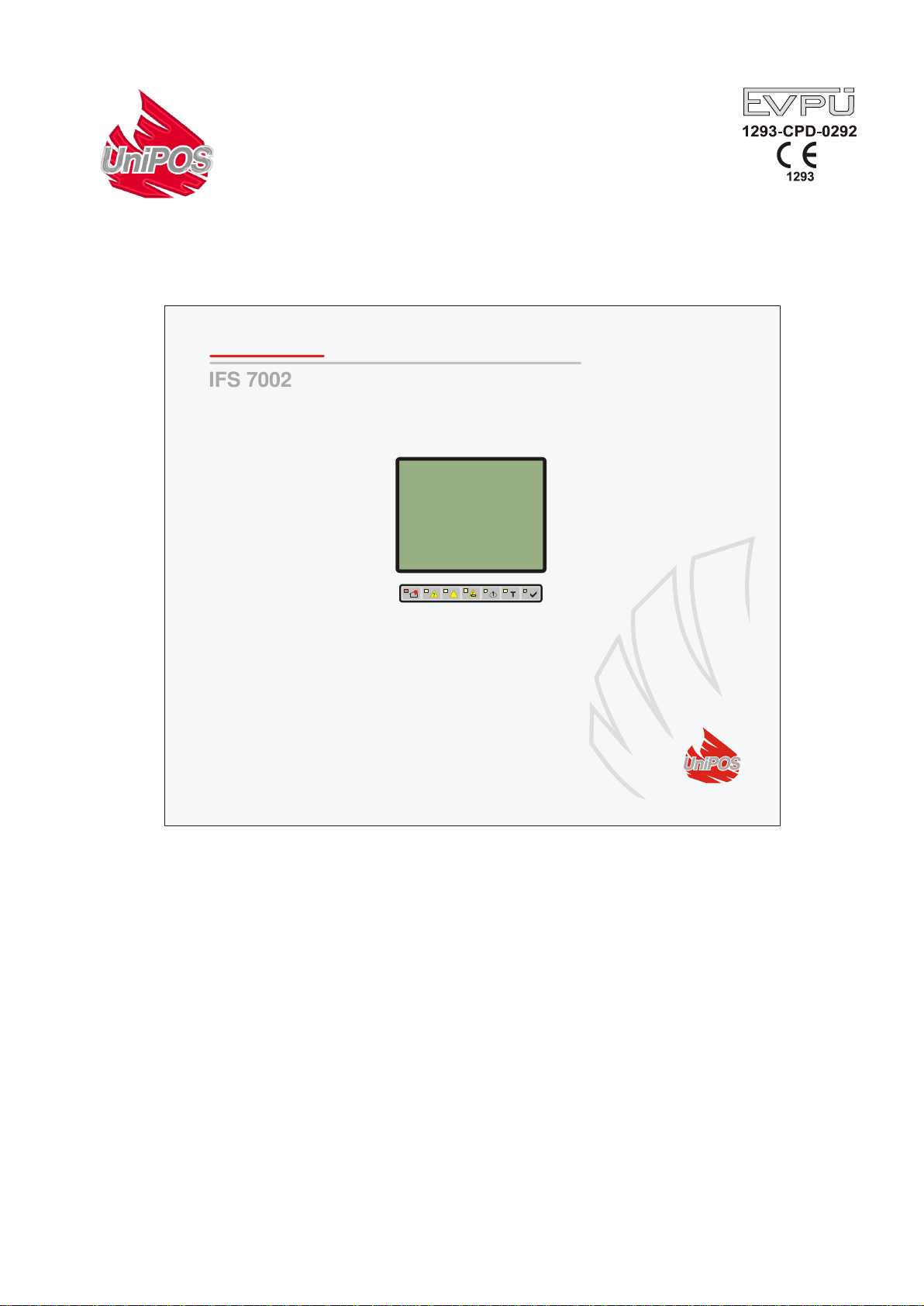

UniPOS IFS7002 User manual

Interactive Fire Control Panel
IFS7002
two signal loops
Instruction Manual
Revision 11/01.17

UniPOS IFS7002 two signal loops
Instruction Manual Page 2
Revision 11/01.17 Of 145
Contents
1. Introduction...................................................................................................................................6
2. Terminology...................................................................................................................................6
3. Function.........................................................................................................................................8
4. Technical data ...............................................................................................................................8
4.1. Physical configuration.........................................................................................................................8
4.2. Fire alarm zones ..................................................................................................................................8
4.3. Fire alarm loops...................................................................................................................................8
4.4. Power loop............................................................................................................................................9
4.5. Monitored outputs...............................................................................................................................9
4.6. Relay outputs for fire conditions........................................................................................................9
4.7. Relay output for fault conditions.......................................................................................................9
4.8. Performance.........................................................................................................................................9
4.9. Indications of registered events..........................................................................................................9
4.10. Power supply......................................................................................................................................9
4.10.1. Mains............................................................................................................................................................9
4.10.2. Back up batteries..........................................................................................................................................9
4.10.3. Consumption on back up batteries supply..................................................................................................10
4.10.4. Power supply to external devices...............................................................................................................10
4.11. Dimensions.......................................................................................................................................10
4.12. Weight ..............................................................................................................................................10
5. Contents of delivery.....................................................................................................................10
6. General information....................................................................................................................10
6.1. Access levels.......................................................................................................................................10
6.1.1. Access Level 1 .............................................................................................................................................10
6.1.2. Access Level 2 .............................................................................................................................................11
6.1.3. Access Level 3 .............................................................................................................................................11
6.1.4. Access Level 4 .............................................................................................................................................11
6.2. Indications and buttons for control.................................................................................................11
6.3. Zone in Coincidence Mode...............................................................................................................12
6.4. Addressing, initialization, re-initialization......................................................................................14
6.4.1. Addressing ...................................................................................................................................................14
6.4.2. Initialization .................................................................................................................................................15
6.4.3. Re-initialization............................................................................................................................................16
6.5. Operation of the fire control panel ..................................................................................................17
7. Duty Mode....................................................................................................................................18
7.1. Description.........................................................................................................................................18
7.2. Indication ...........................................................................................................................................18
7.2.1. LED and sound indication............................................................................................................................18
7.2.2. Text message................................................................................................................................................18
7.3. Using the keypad...............................................................................................................................18
8. Fire condition ..............................................................................................................................18
8.1. Description.........................................................................................................................................18

UniPOS IFS7002 two signal loops
Instruction Manual Page 3
Revision 11/01.17 Of 145
8.2. Indication ...........................................................................................................................................19
8.2.1. LED and sound indication............................................................................................................................19
8.2.2. Text messages ..............................................................................................................................................19
8.3. Using the keypad...............................................................................................................................20
9. Fault Condition ...........................................................................................................................23
9.1. Description.........................................................................................................................................23
9.2. Indication ...........................................................................................................................................24
9.2.1. LED and sound indication............................................................................................................................24
9.2.2. Text messages ..............................................................................................................................................24
9.3. Using the keypad...............................................................................................................................25
10. Disabled component ..................................................................................................................26
10.1. Description.......................................................................................................................................26
10.2. Indication .........................................................................................................................................26
10.2.1. LED and sound indication..........................................................................................................................26
10.2.2. Text messages ............................................................................................................................................26
10.3. Using the keypad.............................................................................................................................26
11. Test Mode...................................................................................................................................26
11.1. Description.......................................................................................................................................26
11.2. Indicators .........................................................................................................................................27
11.2.1. LEDs and sound indicators ........................................................................................................................27
11.2.2. Text messages ............................................................................................................................................27
11.3. Using the keypad.............................................................................................................................27
12. Information and Control Mode.................................................................................................27
12.1. Description.......................................................................................................................................27
12.2. Menu Lists........................................................................................................................................27
12.2.1. Menu Faults...............................................................................................................................................28
12.2.2. Menu Disables ...........................................................................................................................................29
12.2.3. Menu Zones in Test....................................................................................................................................31
12.2.4.Menu Input messages................................................................................................................................33
12.2.5. Menu Activated Outputs.............................................................................................................................33
12.2.6. Screen Panel configuration........................................................................................................................35
12.2.7. Menu Panel parameters.............................................................................................................................35
12.2.8. Menu Loops................................................................................................................................................35
12.2.9. Menu Zones................................................................................................................................................38
12.2.10. Menu Device Status..................................................................................................................................41
12.2.11. Menu Inputs .............................................................................................................................................44
12.2.12. Menu Archive...........................................................................................................................................46
12.2.13. Menu Select Loc/Rem. Control Panel......................................................................................................52
12.3. Menu System functions....................................................................................................................52
12.3.1. Menu Disables ...........................................................................................................................................53
12.3.2. Menu Zones in Test....................................................................................................................................56
12.3.3. Function Set Clock .....................................................................................................................................58
12.3.4. Function Set Mode......................................................................................................................................58
12.3.5. Function Check LEDs and Buzzer..............................................................................................................59
12.4. Menu Set Up.....................................................................................................................................59
13. Set Up Mode...............................................................................................................................60
13.1. Description.......................................................................................................................................60
13.2. Menu Panel configuration...............................................................................................................61

UniPOS IFS7002 two signal loops
Instruction Manual Page 4
Revision 11/01.17 Of 145
13.3. Menu Panel parameters...................................................................................................................61
13.4. Menu Loops......................................................................................................................................61
13.4.1. Menu Loop parameters..............................................................................................................................62
13.4.2.Screen List Devices ....................................................................................................................................62
13.4.3. Menu Device parameters...........................................................................................................................62
13.4.4. Function Check up......................................................................................................................................68
13.4.5. Function Manual addressing......................................................................................................................70
13.5. Menu Zones......................................................................................................................................77
13.5.1. Menu Devices.............................................................................................................................................78
13.5.2. Menus Fire Phase 1 Outputs and Fire Phase 2 Outputs............................................................................83
13.5.3. Menu Zone parameters ..............................................................................................................................86
13.5.4. Menu Service Rem. Zones..........................................................................................................................87
13.5.5. Screen Text message ..................................................................................................................................87
13.6. Menu Inputs.....................................................................................................................................89
13.6.1. Screen List of addressable outputs.............................................................................................................90
13.6.2. Menu Remove addressable output .............................................................................................................90
13.6.3. Menu Add addressable output....................................................................................................................91
13.6.4. Screen Outputs activation mode.................................................................................................................92
13.6.5. Menu Text message....................................................................................................................................92
13.7. Menu Initialization...........................................................................................................................94
13.7.1. Function Initialization................................................................................................................................95
13.7.2. Function Clean initialization......................................................................................................................96
13.7.3. Menu Readdressing....................................................................................................................................98
13.7.4. Menu Exclude devices................................................................................................................................99
13.7.5. Menu Check .............................................................................................................................................100
13.8. Menu Checks..................................................................................................................................102
13.8.1. Menu Monitored outputs..........................................................................................................................102
13.8.2. Menu Relay outputs..................................................................................................................................102
13.8.3. Menu Addressable outputs.......................................................................................................................103
13.8.4. Function Display......................................................................................................................................104
13.8.5. Menu Buttons...........................................................................................................................................104
13.9. Menu New passwords.....................................................................................................................106
13.9.1. Menu Level 2............................................................................................................................................106
13.9.2. Function Level 3.......................................................................................................................................106
13.10. Function Default parameters.......................................................................................................107
13.11. Function Clear archive ................................................................................................................108
14. Saving the parameters.............................................................................................................109
15. Labour protection requirements .............................................................................................109
16. Installation and arrangements................................................................................................109
16.1. To mount the fire control panel ...................................................................................................109
16.2. Periphery devices assembly..........................................................................................................110
16.2.1. Mounting periphery devices to monitored outputs...................................................................................110
16.2.2. Mounting periphery devices to relay outputs...........................................................................................110
16.3. Connecting interface devices........................................................................................................110
16.3.1. Global network.........................................................................................................................................110
16.3.2. Local network ..........................................................................................................................................110
16.4. Connecting addressable fie detectors...........................................................................................110
16.5. Power supply connection..............................................................................................................111
17. Fire control panel start up ......................................................................................................111
17.1. Sequence of start up......................................................................................................................111

UniPOS IFS7002 two signal loops
Instruction Manual Page 5
Revision 11/01.17 Of 145
17.2. Clean initialization of loops..........................................................................................................112
17.2.1. Clean initialization of loops with automated addressing..........................................................................112
17.2.2. Clean initialization of loops set to manual addressing .............................................................................112
17.3. Additional function buit-in IFS7002............................................................................................114
18. Troubleshooting.......................................................................................................................115
19. Conditions of operation, storage and transportation.............................................................117
19.1. Operation and storage...................................................................................................................117
19.1.1. Temperature .............................................................................................................................................117
19.1.2. Relative humidity.....................................................................................................................................117
19.2. Transportation...............................................................................................................................117
20. Warranty..................................................................................................................................117
21. Appendixes...............................................................................................................................118

UniPOS IFS7002 two signal loops
Instruction Manual Page 6
Revision 11/01.17 Of 145
1. Introduction
Interactive Fire Control Panel IFS 7002 is an up-to-date, high reliable, multifunctional and
versatile device, providing the user with unexpected potential in the design, installation and operation
of addressable fire alarm systems.
Some of its main features and possibilities are:
Adjustment of operating modes and parameters of each fire alarm line via built in keypad;
User oriented menu dialogue for easy and convenient operation;
LCD for visualization of system checkup and setup modes;
Touch-panel contributing to the creation of a dynamic keypad;
LEDs indication for early warning of a break down or extreme conditions;
Energy independent archive memory saving the event type, date and time, allowing for
detailed analysis of the actions of the authorized personnel and of possible problems in the
fire protection process of the area;
User oriented test modes allowing for a total control of the site protected;
Built-in serial interface for connection to other fire control panels of similar or higher level;
Built-in serial interface for connection to second level control devices, ability for connection via
telephone line and a standard modem;
System expansion and functional modification (our goal is to constantly improve the fire alarm
equipment features), no additional cabling necessary;
Compatible to random installation design, within the range of the available fire control panels
resources.
All these are realizable via fire control panel’s keypad and after a detailed examination of the
instructions set herewith.
2. Terminology
АDDRESSING –the method used for assigning addresses to addressable devices in a fire alarm
loop. The addressing can be automated or manual and shall be performed separately for each fire
alarm loop (see section 6.4.1).
ADDRESSABLE OUTPUT –potential or relay output of an addressable executive device included
in fire alarm loops. The executive device can be power supplied from the fire alarm loop or from the
power supply loop.
ADDRESSABLE DEVICE –a device included in one of the fire alarm loops that has its own
address for communication with the fire control panel. An addressable device can be a fire detector
(automatic or manual call point), a conventional line-monitoring module or an input/output module.
ASSOCIATED OUTPUT –addressable monitored or relay output, user programmed to react
upon Fire condition (separately upon Fire condition I and Fire condition II) via selected fire alarm
zone.
INSPECTION TIME –period of time added to the remaining time, before the system proceeds
from Fire condition stage I to Fire condition stage II, when button is pressed. Usually, this
period of time is long enough for the authorized personnel to check up the indicated premises. The
inspection time is user defined and is specified for each zone.
PROCEEDING FROM FIRE CONDITION STAGE I TO FIRE CONDITION STAGE II –the time is
user defined for each zone separately. During the phase Fire condition stage I the remaining time for
the selected fire alarm line is indicated on the LCD display. During the remaining time actions can be
taken, for example press or .

UniPOS IFS7002 two signal loops
Instruction Manual Page 7
Revision 11/01.17 Of 145
DISABLED ZONE –a zone that is not controlled for activated fire detectors and fault condition.
This condition is user defined. The indication for a disabled zone is common light indication and text
messages on the LCD display.
DISABLED ADDRESSABLE/MONITORED OUTPUT –the addressable/ monitored output is
switched off (the executive device can not be activated) and is not monitored for a fault condition. This
feature is user defined. The indication for a disabled addressable/monitored output is common light
indication and text messages on the LCD display.
DISABLED DEVICE –the addressable device (a fire detector) is switched off and is not
monitored for a fault condition. This feature is user defined. The indication for a disabled device is
common light indication and text messages on the LCD display.
SHORT CIRCUIT IN A LOOP –non-fatal fault condition, entered due to registered current value
in a loop, exceeding a threshold value. The threshold value for each loop shall be user defined.
ZONE IN TEST –a zone set in Test condition by the user. The zone is reset (the fire detectors in
fire condition receive a command to clear the condition) periodically every 60 s. The events registered
in a zone in Test condition are not saved in the archive and do not trigger the associated outputs or
the light and sound signalling. The indication for a zone in Test condition is common light indication.
SWITCHED-OFF ADDRESS –an address that will be skipped during initialization of a fire alarm
loop (see section 6.4.2). The feature allows including devices in the fire alarm loop later, without re-
assigning addresses to current devices.
INITIALIZATION –a process during which addresses are being assigned to addressable devices
in a fire alarm loop. The initialization can be two types –clear initialization and standard initialization
(see section 6.4.2).
MONITORED OUTPUT –a potential output that monitors the serviceability of the connection
wires between the fire control panel and the executive device. Follow the special diagram for
connection.
SHORT CIRCUIT IN A MONITORED OUTPUT –non-fatal fault condition, entered due to
registered current value in a monitored output, exceeding a threshold value.
LOCAL SOUNDER –a sounder built-in the fire control panel.
NON-FATAL FAULT CONDITION –fault condition that allows the fire control panel to continue
operation. The indication is common light indication, local sound indication and text messages on the
LCD display.
ACCESS LEVEL –access level to various indications and control functions.
LOW BATTERY –fatal fault condition due to full discharge of the backup batteries upon
interrupted power supply.
GROUNDS –non-fatal fault condition, due to leakage to a grounded wire.
FIRE ALARM ZONE (further on it will be referred as ZONE) –logical unification of automatic fire
detectors and addressable manual call points, physically allocated in fire alarm loops on random
principle. Interactive Fire Control Panel IFS7002 allows for formation of a maximum of 250 zones. Up
to 60 fire detectors can be integrated in each zone.
FIRE ALARM LOOP (further on it will be referred as LOOP) –automatic fire detectors and
addressable manual call points and addressable executive devices, physically connected by the
means of two-wire connection. The basic configuration of IFS 7002 includes two fire alarm loops; a

UniPOS IFS7002 two signal loops
Instruction Manual Page 8
Revision 11/01.17 Of 145
maximum of 125 devices (addressable fire detectors and/or addressable executive devices) can be
integrated into each loop.
FIRE CONDITION STAGE I –phase 1 of Fire condition; upon activation of automatic fire detector
the fire control panel enters Fire condition until the specified time expires. The common and local light
indicators, local sound signaling and a text message displayed on the LCD display indicate the phase.
FIRE CONDITION STAGE II –phase 2 of Fire condition; the fire control panel enters Fire
condition stage II when: a) the time for Fire condition stage I has expired or b) upon activation of a
manual call point. The common light indicators, local sound signaling and a text message displayed
on the LCD display indicate the phase.
INTERRUPTED LOOP OR MONITORED OUTPUT –non-fatal fault condition due to current
value in a loop or in monitored output lower than the threshold value. The user shall define the
threshold value separately for each loop.
COINCIDENCE MODE–mode of operation of the fire alarm zones, that requires activation of at
least two automatic fire detectors in a zone so the fire control panel is able to enter Fire condition,
phase Fire condition stage I, in this particular zone (see section 6.3).
RELAY OUTPUT –a relay, potential-free switching outputs provided for controlling external
executive devices.
POWER LOOP –a two-wire connection supplying power to addressable executive devices in
case their consumption exceeds the load carrying capacity of the fire alarm loops, which they have
been integrated into. IFS7002 has 1 power loop, its load carrying capacity is 1000 mA.
SYSTEM ERROR –fatal fault condition due to a fault in system’s basic component
SYSTEM OPERATION –the fire control panel executes internal operations to set its registers.
This is visualized on the LCD display with a text message for system operations, before the user is
allowed to proceed with his work with IFS7002.
DEVICE REMOVED –non-fatal fault condition due to removed device (addressable fire detector
of a specific zone and/or addressable executive device).
FATAL FAULT CONDITION –fault condition that prevents the fire control panel from continuing
its operation. The indication is common light indication, local sound indication and text messages on
the LCD display.
3. Function
Interactive Fire Control Panel IFS7002 is designed to operate with addressable automatic fire
detectors and manual call points. It controls addressable executive devices integrated into fire alarm
loops. The addressable executive devices can be power supplied from the fire alarm loop or from a
power loop. The panel has outputs provided for integration of external executive devices.
4. Technical data
4.1. Physical configuration
2 fire alarm loops
1 power loop
2 monitored outputs
2 relay outputs for fire condition
1 relay output for fault conditions
4.2. Fire alarm zones
Maximum number of zones - 250
Maximum number of fire detectors in a zone - 60
4.3. Fire alarm loops

UniPOS IFS7002 two signal loops
Instruction Manual Page 9
Revision 11/01.17 Of 145
Maximum number of fire detectors in a loop - 125
Connecting line - two-wire shielded
Maximum resistance of a loop - 100
Output resistance of a loop - 20
Maximum consumption of a loop - 120mA
4.4. Power loop
Connecting line - two-wire
Maximum resistance of the loop - 10
Output resistance of the loop - 2
Maximum consumption of the loop - 1A
4.5. Monitored outputs
Type - potential
Еlectrical characteristics - (24±5)V/1A
4.6. Relay outputs for fire conditions
Type - potential free, switching,
Electrical characteristics - 3A/125VAC; 3A/30VDC
4.7. Relay output for fault conditions
Type - potential free, switching
Electrical characteristics - 3A/125VAC; 3A/30VDC
4.8. Performance
Control over fire alarm loops and monitored outputs for fault conditions (short circuit
and interruption) and automatic reset
Detection of removed devices in the loops and automatic reset
Ability to set the zones in Coincidence Mode
Two phases of Fire condition, programmable time for Fire condition stage I,
separately for each zone
Option to prolong the time period for Fire condition stage I with programmable
inspection period, specified for each zone
Built-in sounder for fire condition –one tonal, discontinuous, can be switched off
Built-in sounder for fault condition –one tonal, discontinuous, can be switched off
Built-in real time clock
Set of test modes and options for adjustment:
Setting the clock;
Check ups on light and sound indications;
Test of fire alarm zones;
Adjustment of outputs and integrated external devices;
Programming of parameters and modes of operation;
Remote programming of the parameters from distant operator control point;
Energy independent archive of registered events with the events type, date and hour
–up to 1023 events;
Interfaces for communication with external devices - CAN 2.0B and RS-232
(directly or via modem).
4.9. Indications of registered events
Light indication - LED
Text messages - LCD display,
320 х 240 points, backlit
Sound signaling - built-in sounder
4.10. Power supply
4.10.1. Mains
voltage - 220/230V
frequency - 50Hz
4.10.2. Back up batteries
battery type - lead, gel electrolyte
number of batteries - 2 pcs
connection - serial connection

UniPOS IFS7002 two signal loops
Instruction Manual Page 10
Revision 11/01.17 Of 145
nominal voltage of the back up battery - 24V
nominal capacity C20 - 18Ah
extreme discharge voltage - 21V
charge voltage - 28,2V
4.10.3. Consumption on back up batteries supply
at 24V - < 250mA
at 26V - < 240mA
4.10.4. Power supply to external devices
Voltage - (24±5)V
Maximum current value (including current
of monitored outputs and power loop) - 5А
4.11. Dimensions
Overall dimensions - 480x445x100mm
4.12. Weight
Weight (batteries not included) - 7,1kg
5. Contents of delivery
Fire control panel IFS7002 - 1 pc
Resistors 5,6k/ 0,25W - 2 pcs
Jumper for the backup batteries - 1 pc
Fuse 4A - 1 pc
Fuse 6,3A - 1 pc
Instruction manual - 1 pc
Instructions for authorized staff - 1 pc
Packing - 1 pc
6. General information

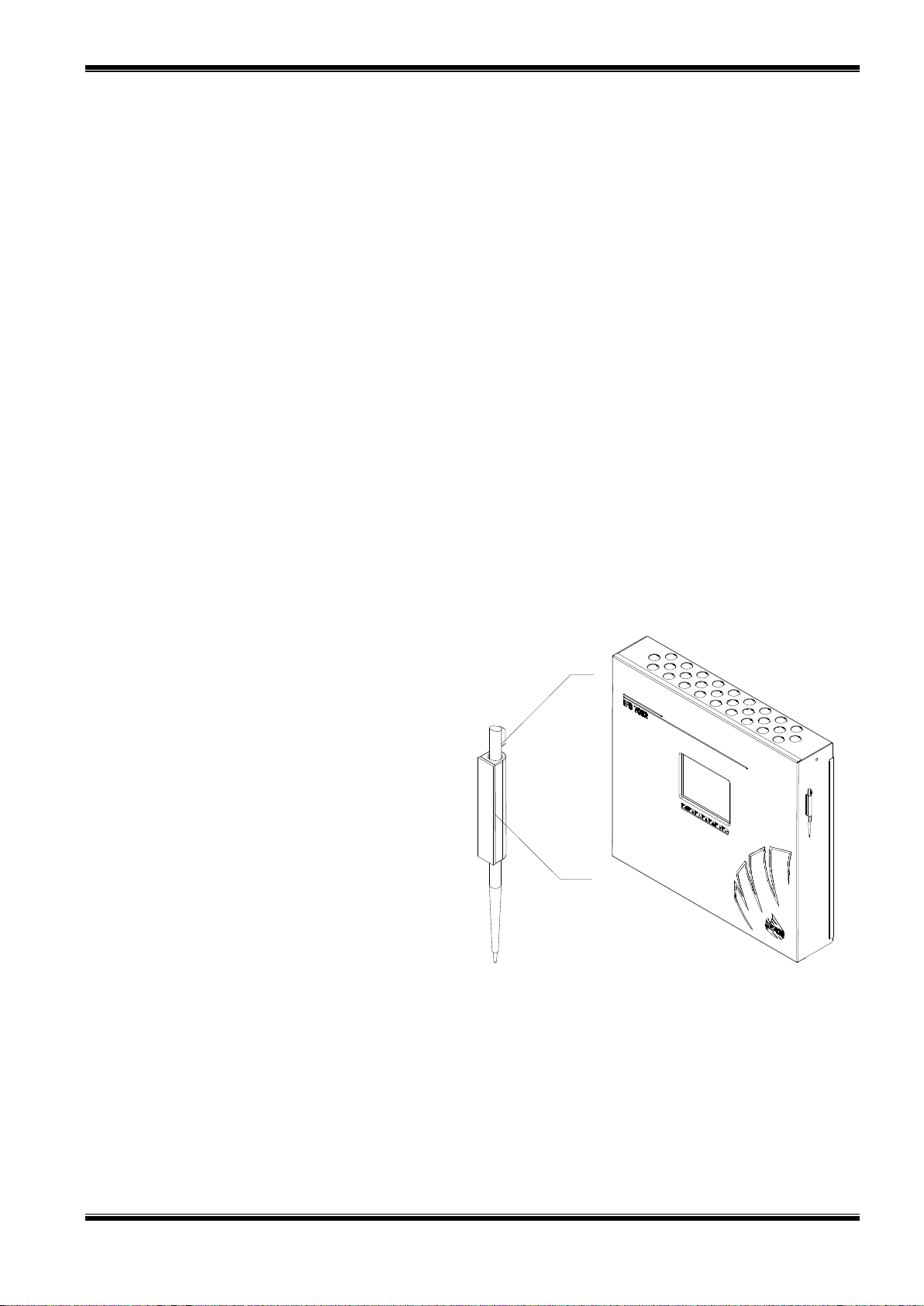

The stylus (pos.1, fig.1) is provided for
comfortable and safe operation of the touch-
screen of the IFS7002 fire control panel and
IFS7002R.
Use the stylus by slightly pressing its tip onto
the area of the designated button.
The self-adhesive pad of the carrier ( pos.2,
fig.1) allows for easy fixation at the proper place.
The recommended place on the fire control
panel IFS7002 is displayed on Fig. 2.
Usage of other objects for touch-screen
operation is not recommended due to possible
damage
1
2
Fig.1 Fig.2
6.1. Access levels
4 levels of access to the variable indications and control functions of IFS7002 are available.
6.1.1. Access Level 1
All persons who would presumably find out and react to alarm upon fault condition or fire
condition have access to level 1.
The following actions are accessible:
Displaying suppressed messages for Fire condition, Fault condition, Disabled
components and Zone in test (see sections 8.3.6, 12.2.1, 12.2.2 and 12.2.3);
