Unistellar eVscope v1.0 User manual

!
eVscope User Guide
Prepare to Be Amazed
V.2

!
Never use an eVscope
to look at the Sun
without an adapted filter!
Looking at or near the Sun
will cause irreversible damage
to your product.
Do not point the telescope at
or near the Sun.
Children should always have adult
supervision while observing.
Never charge an eVscope
if the temperature is under
10° Celsius.
It could cause irreversible damage to
the eVscope’s battery.
Always charge it between
10°C and 40°C.

CONTENTS:
Instructions
1. Tripod installation
2. Adjusting level bubble
3. eVscope installation
4. Starting the eVscope
5. Connecting the eVscope to your smartphone
6. Focus
7. Observation
8. Park mode
9. Improve your observations
10. Mirror alignment
11. Charge/discharge
12. Data
Safety instructions
Maintenance
Specifications
Declarations

Instructions
Box content:
- eVscope + Bahtinov mask included in the tube top cover
- Tripod
- Power supply with exchangeable plugs (EU, USA, UK)
- Quick start guide
- User Guide
- Accessories box with tools
Requirements:
-Avoid directly exposing the eVscope to strong wind and try to shelter it from moderate winds to
improve your observations.
-Use the eVscope on stable ground that doesn’t vibrate when you walk near the eVscope.
-Use the eVscope under a clear sky.
-Locate the eVscope away from direct streetlight.
-For best results, avoid a full moon.
In order to use your eVscope, please follow carefully these steps:

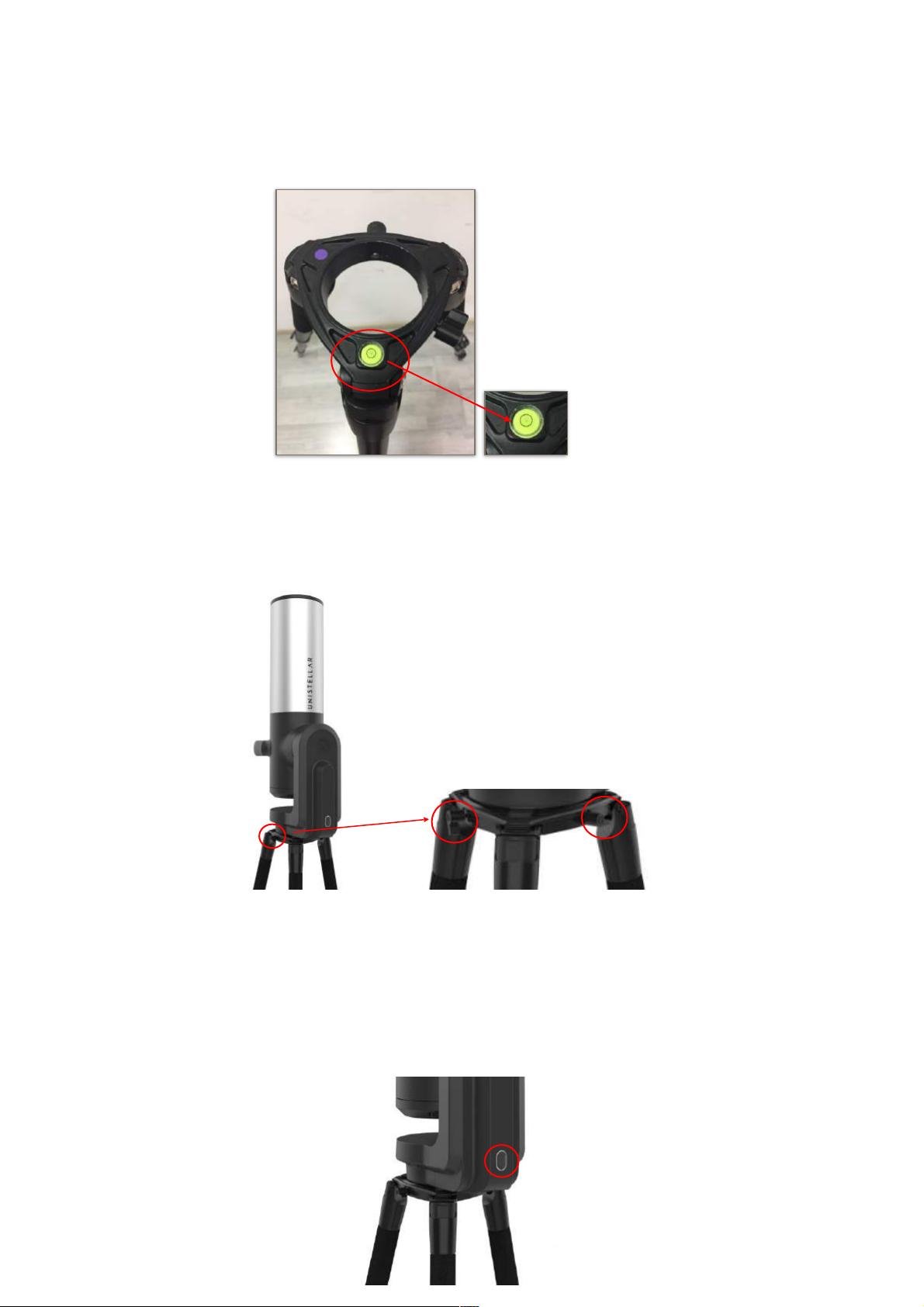

1. Setup the tripod: open the legs of the tripod and adjust the device to the height that works
best for you.
Warning: The internal tripod’s screws could have loosened during shipment.
Please check that all screws are tightened. If not, you can tighten them with the specific
tools you can find in the accessories box.!

2. Adjust the legs in order to put the level bubble in the middle of the black circle, as in the
image.
Note: each time you move your eVscope, we recommend resetting the level bubble.
!
3. Loosen the 2 tripod screws. Install your eVscope vertically on the tripod and tighten the "
screws. Be careful not to tighten it too hard.
4. Start the eVscope by pressing the On button for 2 seconds. When you see a red light, "
the eVscope is on and ready to use. "
Warning : if you turn on your eVscope in daylight, you might not see the button light "
because of its low intensity. It has been set up like this so it won’t dazzle you at night. "
"
Battery is not fully charged when shipped.

!
•Remove the dust caps from the top of the tube and the eyepiece.
5. Connection the smartphone:
oDownload the Unistellar app from the
Google Play Store or Apple Store.
oTurn on your smartphone’s Wi-Fi.
oCheck available Wi-Fi networks.
oConnect your smartphone to the
eVscope Wi-Fi network named
eVscope-abcdef (the network’s name
consists of eVscope and six random
characters).
oLaunch the Unistellar app on your
smartphone
oWarning: the connection between
your eVscope and your smartphone
may sometimes be lost, in this case
please restart your application. If you
encounter broken connections, we
advise you to disable Auto-Lock.
6. Focus :
oUsing the in-app joystick, lower the telescope to around 45°.
oBasic focus: Adjust the focusing wheel at the bottom of your eVscope to align
the visual cue with the top screw.
Note : To get a perfect focus, the visual cue might not be exactly aligned with the
top screw to have the perfect focus. You can focus "by eye" or focus precisely
using the Bahtinov mask (recommended for excellent results).

!
oAccurate focus: To ensure perfect accuracy, point the eVscope on a
bright star and use the Bahtinov mask to adjust the focus and the coma
(see Mirror Alignment).
i. Here’s how to focus with the mask. In the « Explore » tab of your app, go to Star and
select the first one. Select « GoTo » to move the eVscope on it. Go to « eVscope »
tab, then touch the Settings icon : on the top right of your screen and activate the
« Auto » mode. Put the mask on top of the tube. This will create a specific diffraction
pattern for that bright star, with a central line and two spikes forming an X, which you
can see in the eyepiece. If the central line is positioned exactly in the middle of X, it
means your eVscope is perfectly focused. To achieve this result, you just need to
manually rotate the bottom of your eVscope and observe the results in the eyepiece.
The orientation of the cross doesn’t matter

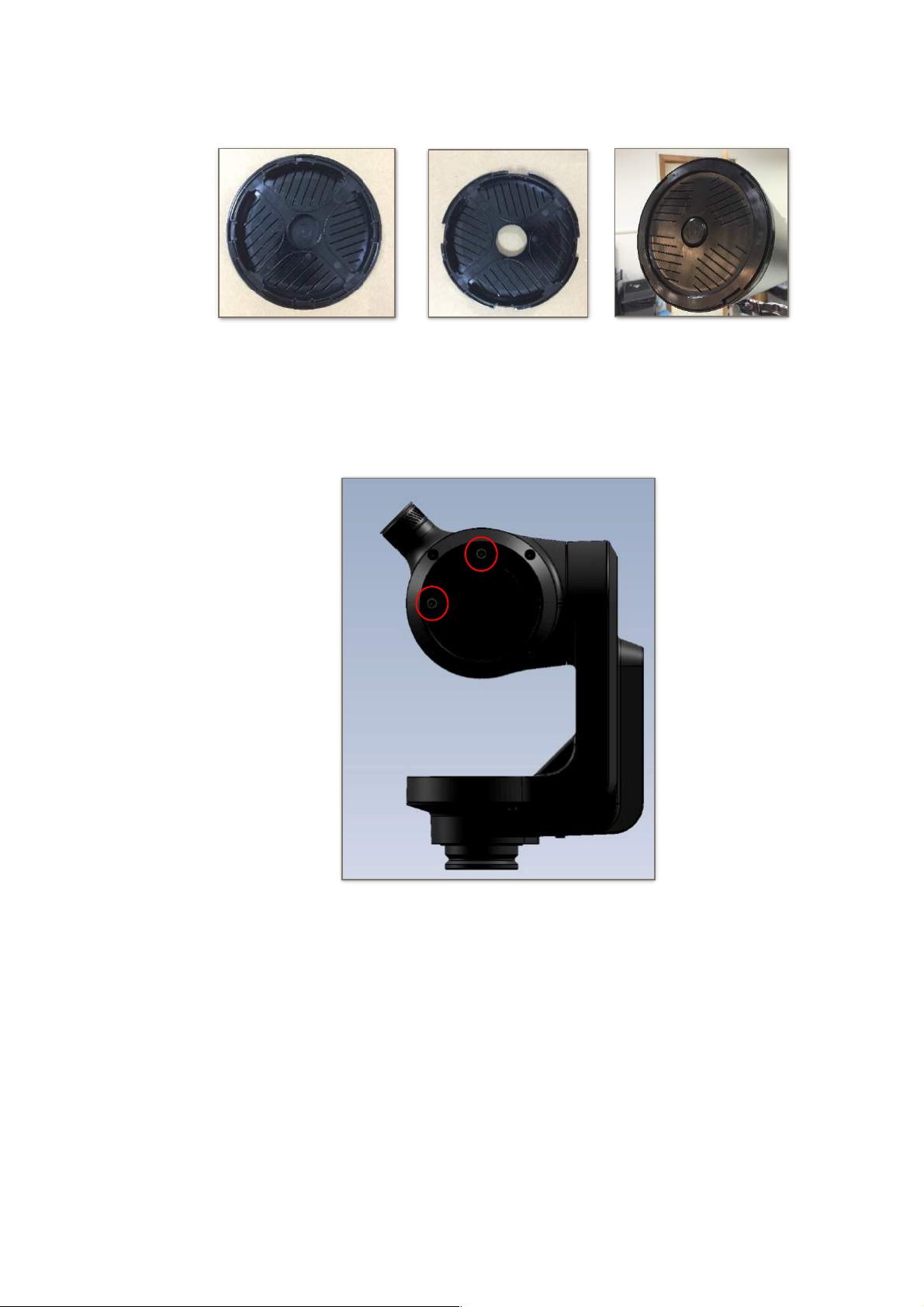

ii. In these three images, you can see the star Rigel observed with our mask. The first
two images are out of focus, but by rotating the wheel, we were able to achieve perfect
focus.

!
iii. The Bahtinov mask is included in the cover, in order to use it you should remove
the mask from the cover and install it on the eVscope, as in the pictures.
iv. In case you need to adjust the coma, use the two screws of the adjustment
mechanism (see Mirror Alignment on next page).
7. Observation:
oCheck the Quick Start Guide for detailed explanations on how to use your eVscope.
8. Park:
oWhen you’re done observing, use the « Park my eVscope » function so it automatically
moves to the zenith position and turns itself off. First, the tube will go a little further than
the zenith, then it will slowly go back. You will find the option « Park my eVscope » in the
User tab
oPut the dust caps back on the tube and eyepiece.

oYou can adapt the focus of your observations to your vision by rotating the ring
located on the eyepiece. Do not point at an object (star, galaxy,...) while proceeding
to this adjustment. For optimal results, we advise each user to use the “focus help”
available in the “User” tab of the app (this can be done during the day). You can
also adjust the eyepiece focus while observing, by turning the ring to obtain a sharp
image adapted to your vision.”
oCheck and adjust the mirror alignment (below).
oCheck the battery charge level in the "User" tab
oShare your observations with the community by sending us your data (Download
data, then Upload my data).
oEnjoy the multi-user experience.
oContribute to science by joining eVscope observing campaigns.
oCheck the online FAQ to learn more about your eVscope’s capabilities.
9. To improve your next observations:
oAdjust the gain and the exposure time in Live View mode.
oAdjust the contrast and brightness in Enhanced Vision mode.

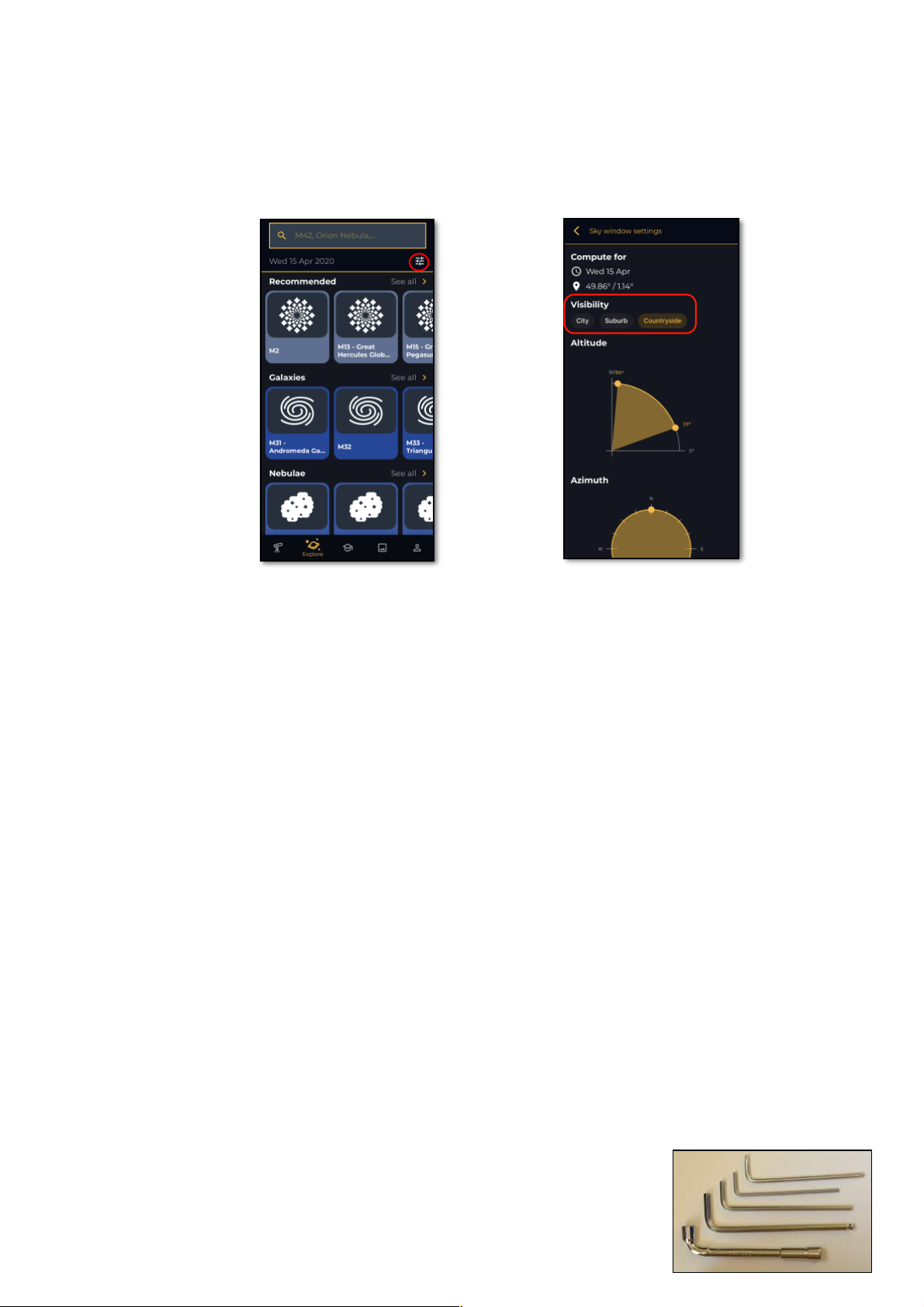

oSet up your observing conditions in the Explore settings (city, suburb, countryside)
10. Mirror Alignment
Mirror alignment is advised after each time your eVscope is having a long journey.
oFor this procedure, you will need:
a. The smallest hex key provided in the toolbox (S2
3mm),
b. A clear sky with visible bright stars.

oSet up the eVscope using the 1. INSTALL and 2. CONNECT and 3. FOCUS & TRACK
sections of the Quick Start Guide.
oPoint toward a bright star by selecting a visible one in the list of proposed stars.
oCenter the target using the joystick.
Note: the joystick of the app can be used in 2 different ways: drag the yellow dot for fast
movement or simply touch the edge of the disc for slow movement. The short touches allow
a slow movement. In the "eVscope" tab, display the settings by touching the icon at the top
right and activate the "Auto" mode.

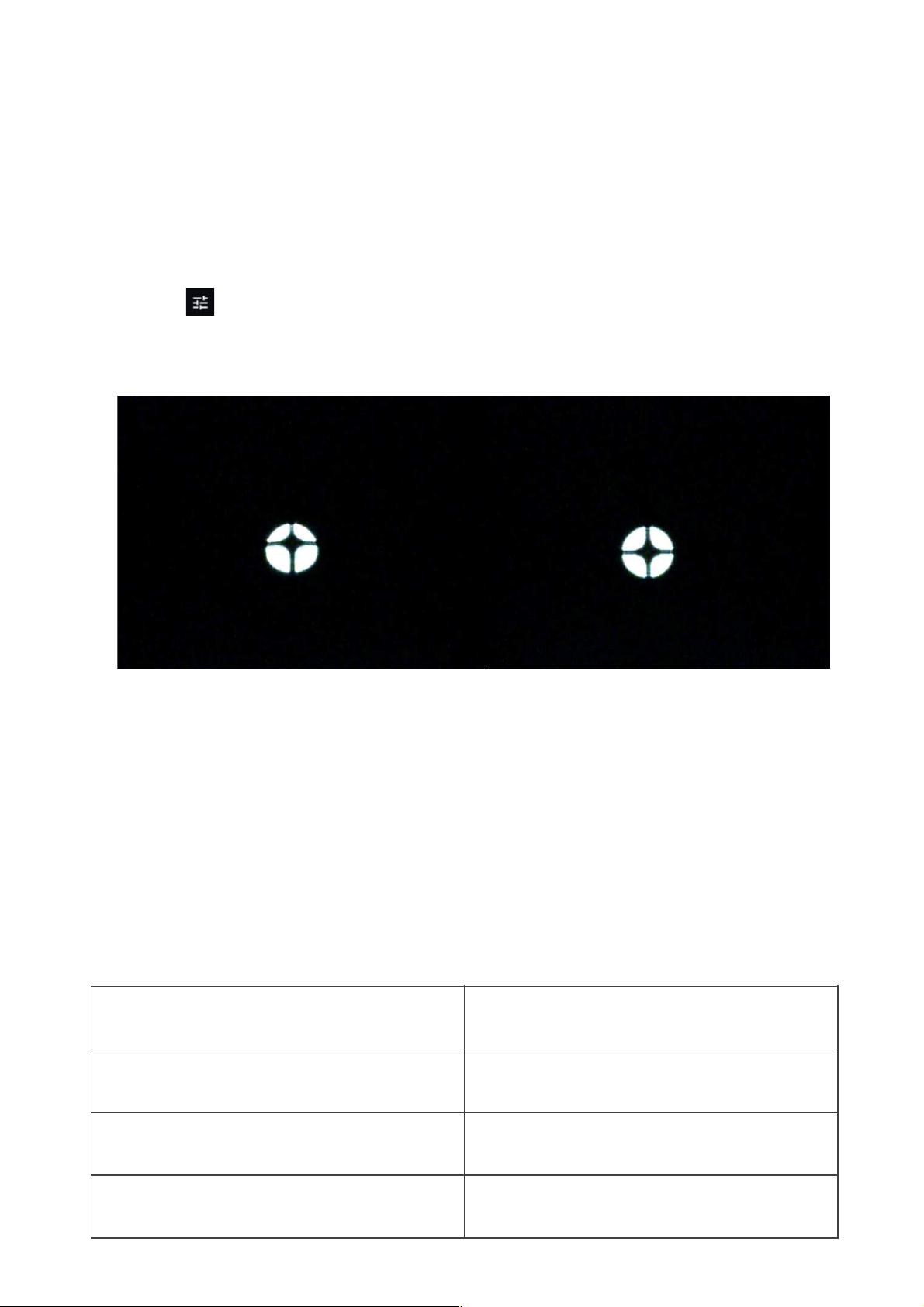

oFully rotate the large focus wheel clockwise without forcing. You should see this :
oIf the dark cross is not centered (as shown in the above image on the left), you need to
realign your mirror.
oFind the smallest hex key (S2 3mm) in the toolbox.
oFirst, move the telescope with the in-app joystick (touch the edge of the circle quickly) to
put the star at the edge in the direction indicated in the table below:
Bad alignment"
(the cross is not centered)
Good alignment"
(the cross is centered)
The cross is too high
Move the star on the top of the image
The cross is too low
Move the star on the bottom of the image
The cross is off-centered on the left
Move the star on the left of the image
The cross is off-centered on the right
Move the star on the right of the image

oThen turn the vertical or horizontal screw in the mirror mount to put the star back at the
center. For example, if the cross is too high :
oRepeat the procedure until the cross looks centered. You might have to do it several times.
oMove back the focus to the default position by aligning the visual cue with the top screw
(Section 3 in the Quick Start Guide).
oMove toward a target and enjoy. The image should look better now.
11. Charge/Discharge
oThe eVscope can be used while charging.
oIt can take from 7 to 8 hours to fully charge it.
oWhen the eVscope is charging, you will see a blue flashing LED that will go from six flashes
to none. Flashes decrease as the battery gets more charged.
oWe strongly advise not to recharge your eVscope below 10°C.
oWhen the battery is low, the performance of the eVscope can be compromised. You can
see the battery charge level in the "User" tab of the app. A fully charged battery is all yellow,
a fully discharged battery is black with a yellow border.
oWe advise to only use the USB-C charger provided by Unistellar.
oYou can also use an external battery to recharge your eVscope.
oYou can charge your smartphone with the eVscope. Plug it to the USB-A port, next to the
USB-C port. !
Ver$cal
Horizontal
1. Put the star on the edge of the
screen with the in-app joystick.
2. Use the hex key to turn the screw
(in this example the vertical screw)
3.Put back the star at the center of the
screen. The cross will recenter itself

12. Data
Raw data is saved during Enhanced Vision. You can empty your SD card when the
storage is full.
Safety instructions
!
To empty the SD card storage, first select
Download data, then when it’s done, select Upload
my data.
Download data sends data from eVscope to your
smartphone. Upload my data send data from your
smartphone to the Unistellar servers.
You are your observations owner. By sharing
your data with us, you allow Unistellar to provide its
users with continuous improvement of their
observation experience.
It also makes scientific discoveries possible,
for which your contribution will be mentioned if you
wish. As usual in these cases, the results of
analyzes will be the property of those who analyzed it :
Unistellar and its scientific partners.
Your eVscope and its accessories are not toys. Do not allow small children to play with
them because children could hurt themselves or others or damage your device. Keep
your device and all its parts and accessories out of the reach of small children.
Your eVscope is not meant to be used in wet environment. As every electronics
object (as exception of the waterproof ones), if water or another liquid enters into
the eVscope it can be definitively damaged. You should immediately turn off the
power and dry it.
Do not look at the Sun without an adapted filter. You eVscope can be definitively
damaged also after a short exposure. There is also an important fire hazard.
Furthermore, do not expose your eVscope at temperatures above 50°C or below
-20°C, the performances can be compromised by extreme temperatures.
Your eVscope is fragile, don’t let it drop or fall. In case of shocks it can be
definitively damaged.

Maintenance
1. Storage:
oStore the eVscope in its original packaging or in its backpack.
oStore the eVscope with its cover and with the eyepiece cover, in order to avoid dust
to enter in the device.
oDo not store the eVscope with empty battery.
oDo not store the eVscope in wet environment and temperatures below -20°C or
above 50°C.
oDo not store under direct sunlight.
2. Mirror removal and cleaning:

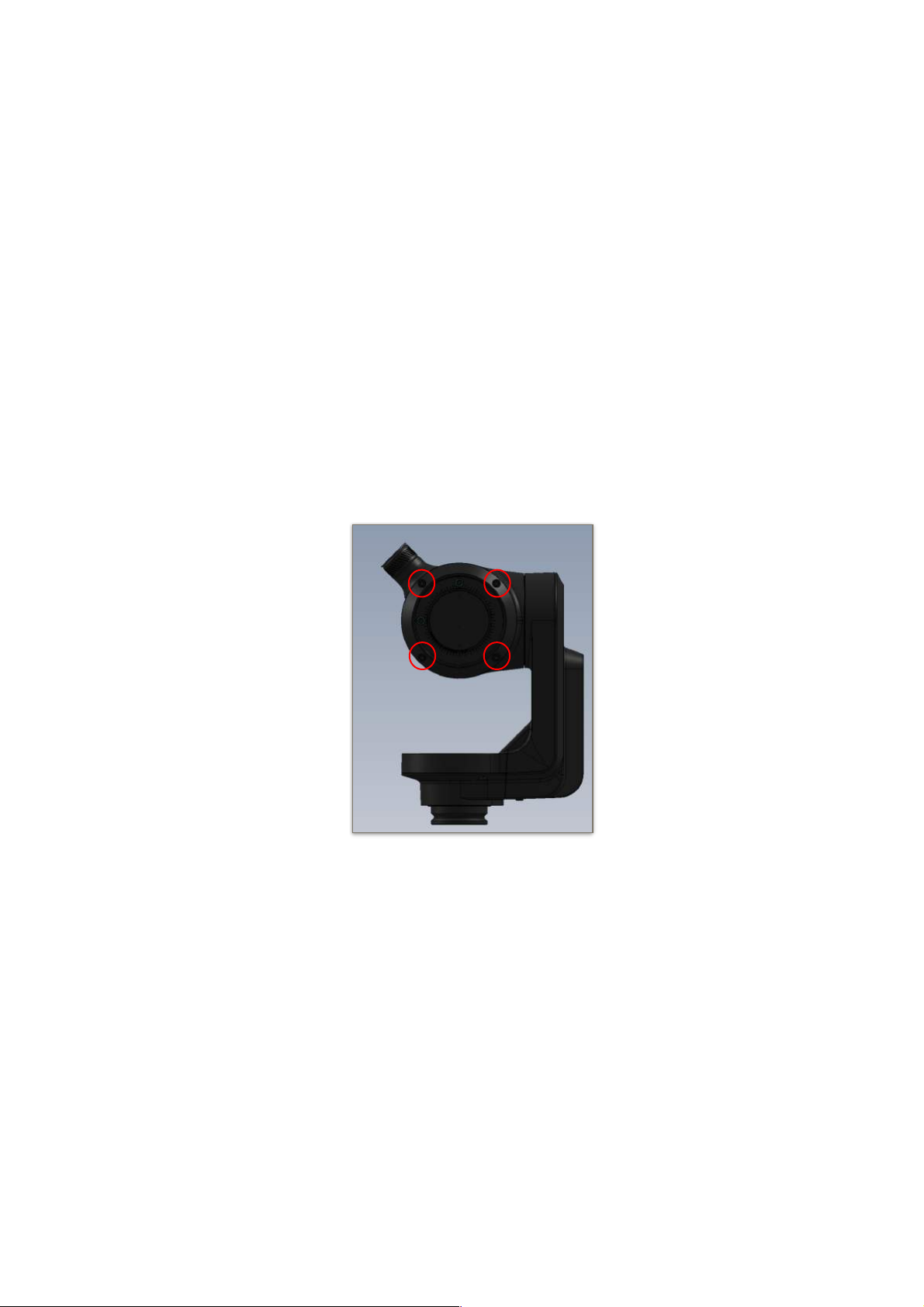

oThe mirror can be removed by removing the 4 screws on the back of the adjustment
mechanism, as in the picture:
oGloves must be used in order to manipulate the mirror.
oOnce the back removed the mirror can be cleaned with dry compressed air.
oNo liquids should be used in order to clean the mirror.
oNo wet tissues should be used in order to clean the mirror.
3. Tripod maintenance:
oThe tripod screws could untighten with the use.
oThree different “tripod tools” are provided in order to tighten the screws of the tripod
in case of loose performance.
4. Battery removal:
oThe battery is not meant to be removed by the user.

Specifications
Model: eVscope v1.0
Mirror specifications: diameter 112mm, focal length 450mm, material BK7
Battery specifications: 9 hours life, capacity 15 000 mAh
Power supply unit (PSU) input: 100-240 ~50/60 Hz 0.6A Max; Output: 5.0V, 2.4A
WIFI frequency and bandwidth: 2.4 GHz, 72.2 Mbit/s
WIFI range: 50m in free space
Input/output: USB-C (PSU); USB-A (smartphone recharge)
Tripod: aluminum, adjustable height; designed for the eVscope
Declarations
Hereby, Unistellar SAS declares that the radio equipment type eVscope V1.0 is in compliance with
Directive 2014/53/EU, the FCC 47 CFR Part 15 and the ICES-003 / NMB-003 standards. The full
text of the declarations of conformity is available at the following internet address: unistellar.com.
Recycling
This device is compliant to the 2012/19/UE directive and should not be disposed in
household waste. The special waste disposal varies according to local rules. The correct recycling
of electronic devices helps to preserve environment and health.
Unistellar SAS
19 rue Vacon
13001, Marseille
France
N° SIRET 81233935600022
Designed in France – Made in China
V.3
