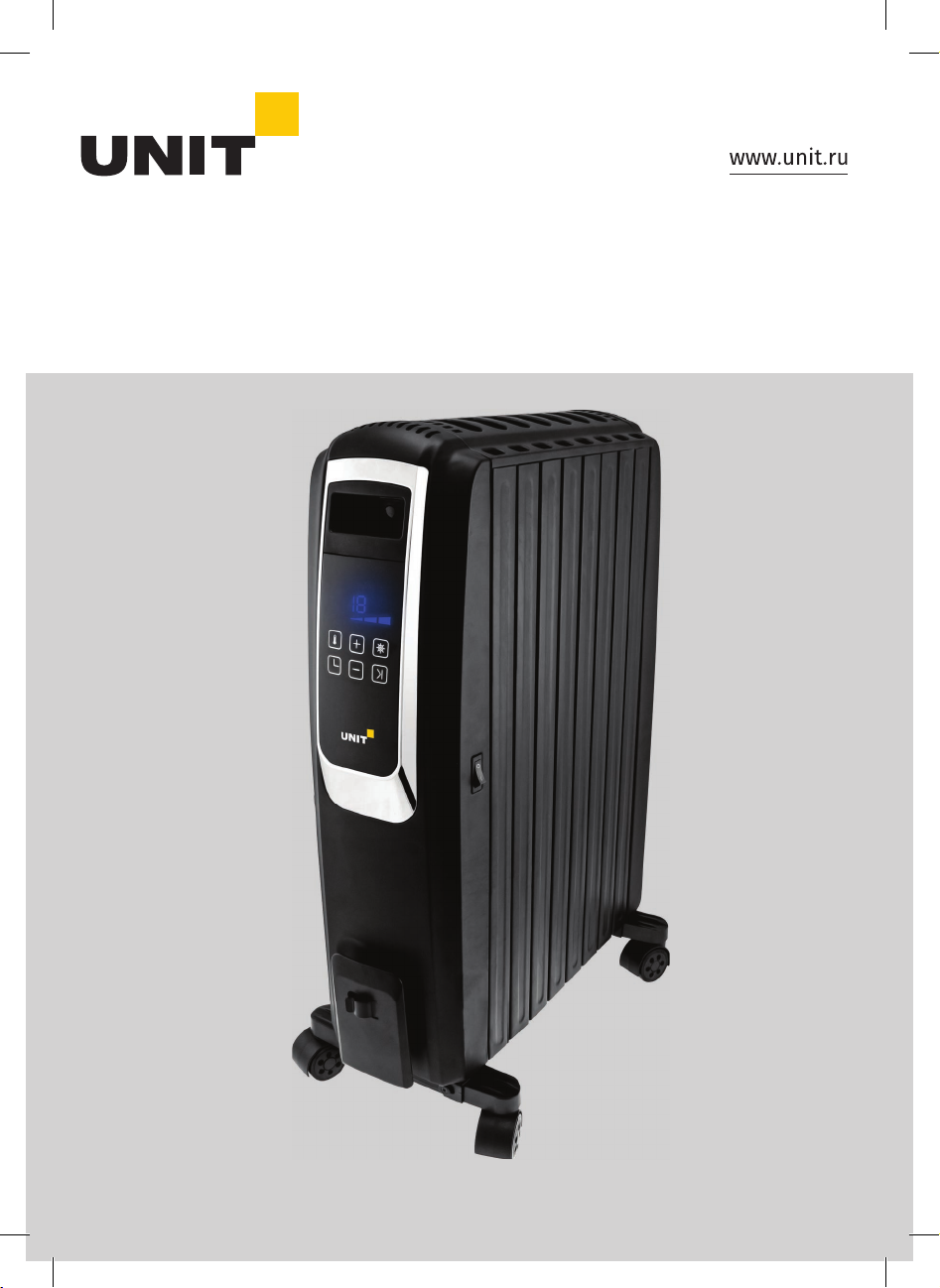

OIL RADIATOR
UOR-993
USER MANUAL

CONTENT |
Precautionary measures..................................................................................................................................4
Device description..............................................................................................................................................6
Preparation for using........................................................................................................................................6
Remote controls................................................................................................................................................. 8
Operation of the device................................................................................................................................... 8
Specification ......................................................................................................................................................11
 ................................................................................................................14
 ............................................................................................................................16
  ........................................................................................................................17
 ............................................................................................................................................................. 18
  ...............................................................................................................18
.................................................................................................................................................21

Oil radiator | UOR-993
4
PRECAUTIONARY MEASURES
Dear customer!
Thank you for purchasing the technique of UNIT. Before operating, please read this
manual carefully. This manual contains important instructions for safety, operation
and care.
1. The device intended for household use only. Do not use the device for
industrial purposes.
2. Before connecting the appliance to the mains supply make sure that the
parameters of the power source meets the specified on the label of the
device.
3. After use, always unplug the appliance from the mains.
4. Install the instrument vertically on the included stand with wheels. Install
the unit on a firm, level surface. Use of the device in any other position is
not allowed and may lead to failure of the device or fire.
5. This appliance not intended for use by persons with reduced physical or
mental capabilities (including children), as well as those that do not have
sufficient knowledge and experience to operate the appliance, unless they
are not looking after the people responsible for their safety.
6. At the beginning of use of the device may cause a smell. Over time, the
smell will disappear.
7. In operation, the device is very hot. To avoid burns, do not touch the
running tool. After turning off the device, give it some time to cool down.
8. Disconnecting the device from the mains supply never pull the cord, grasp
only plug.
9. Never use any damaged appliance. If damaged the power cord for
replacement, contact an authorized service center of the manufacturer.
10. Do not leave the appliance is unattended.
11. Do not allow children to use the appliance without your supervision. Do not
let children play with the appliance.
12. Do not cover the convection openings on the top and bottom sides of the
body. This can lead to overheating of the device and its failure.
13. In the event of a fault, you should contact an authorized service centers.
Unskilled repair and removes the device with a warranty.
14. Do not place the heater too close to electrical outlets.
15. Do not use the heater near bath, shower and other water sources.
16. Ensure that water not trapped inside the body of the instrument, as this
may cause fire.

Oil radiator | UOR-993
5
17. The heater filled with special oil. Do not open the housing yourself. Any
repair is only possible at an authorized service center.
18. To wipe dust from the housing unit, use a dry, soft cloth.
19. Do not clean appliance the wax, solvents and other strong chemicals.
20.If the device not used for a long time, to be disconnected it from the
mains.
21. Failure to comply with the safety could result in damage to the appliance,
injury, electric shock, short circuit or fire.
22. The manufacturer is not responsible for any damage resulting from
improper use of its products or failure to comply with precautions.
23. Store in a clean and dry condition reach of children cool and dry place.

Oil radiator | UOR-993
6
DEVICE DESCRIPTION

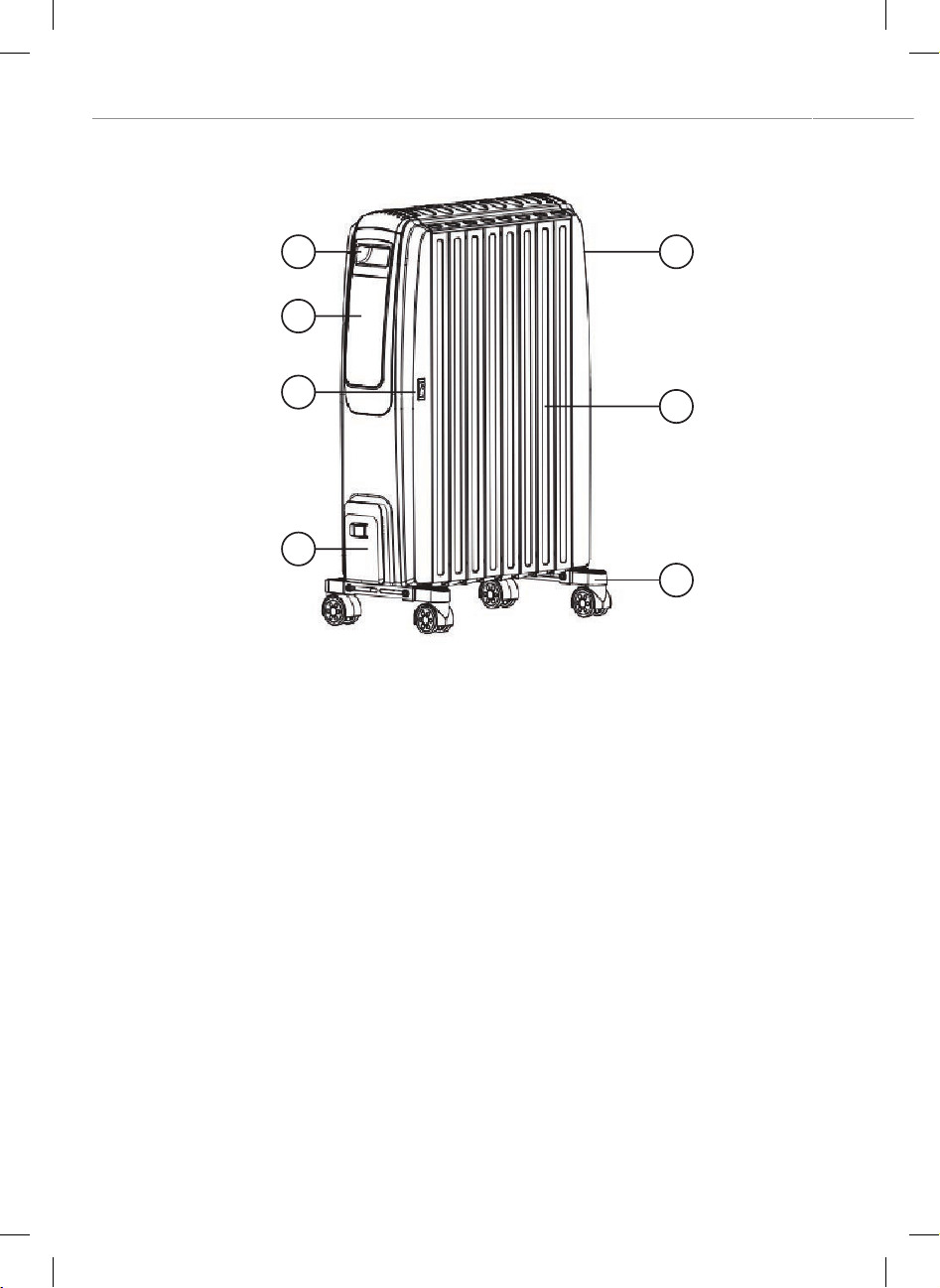

1 - Rear handle and Remote control storage slot
2 - Heater body
3 - Wheel base
4 - Front handle
5 - Control panel
6 - On/off power switch
7 - Cable storage
PREPARATION FOR USING
Turn the radiator upside-down on a scratch-free and stable surface to prevent damage
to the paint finish or your floor surfacing.
Turn the radiator upside-down

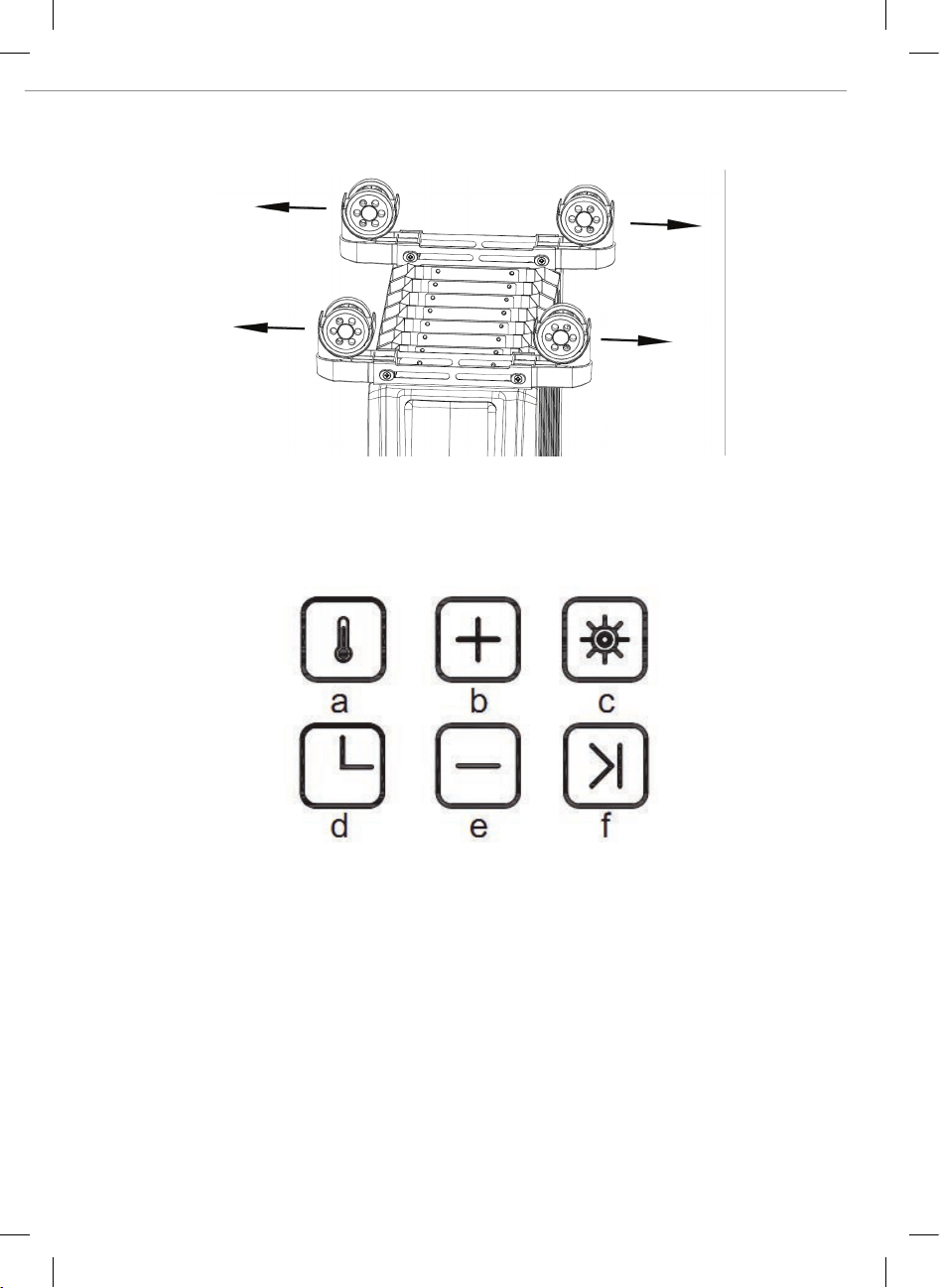

Pull out the wheel bases to both outmost sides, see Fig 1.
Only operate the radiator in normal upright position with wheels assemblies attached
to the bottom
1
2
3
4
5
7
6

Oil radiator | UOR-993
7
Figure 1
Control panel
a. Thermostat button
b. Temperature & hours increase button
c. Power/Mode button
d. Timer button
e. Temperature & hours decrease button
f. Stand-by button

Oil radiator | UOR-993
8
REMOTE CONTROLS

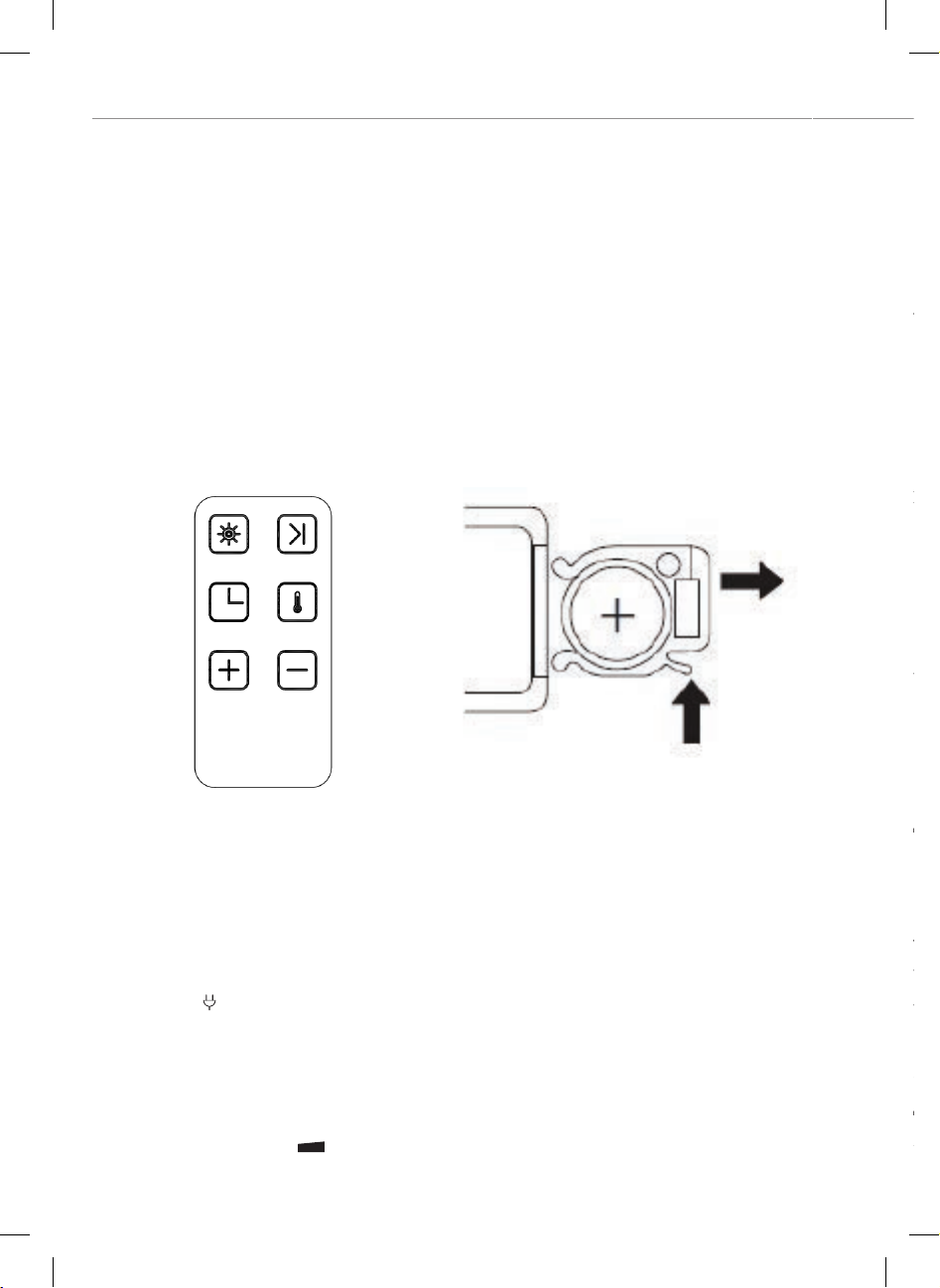

The remote control requires one CR-2025 – 3V cell (supplied).
Follow the +/- polarity indicated on the remote control.
The remote control must be pointed towards the remote sensor on the control panel.
The remote control can be stored in the slot integrated into the appliance at the rear
cover if not used.
OPERATION OF THE DEVICE
Press the on/off power switch (6) to turn the appliance on. The product is now in
stand-by awaiting a mode to be selected via the
buttons on the appliance or the remote control. The appliance emits a beep sound.
The light on ( ) will turn on.
The following settings can be performed using the touchpad or the remote control. A
beep sound is emitted at every key press.
Press the stand-by button (f) to exit the stand-by mode and begin selection of the
different modes. Heater will start working under low power ( ).
Heating power and Eco mode setting
Press the Power/Mode button(c), it will cycle from default Low power ( ); two clicks
- Medium power ( ); three clicks - High power ( ); four clicks - Eco mode
(ECO).

Oil radiator | UOR-993
9
Under Low power, Medium power and High power setting, the heater will keep working
controlled by thermal cut-out.
Note: The higher the power is, the quicker the desired temperature will be achieved but the
power consumption will be higher.
Lower power levels are recommended when the heater is being used for an extended
period of time.
Eco mode
Press the Power/Mode button (c), until the “ECO” light turn on. Under Eco mode, the
heating power will adjust automatically when the room temperature is approaching
the setting temperature.
Example:
The setting temperature is 25°C. When the room temperature is less than 22 °C, the
heater will work under High power ( ). When the room temperature rises to
23°C, the heater will change to work under Medium power ( ). When the room
temperature rises to 24 °C, the heater will change to work under Low power ( ).
When the room temperature reaches to the setting temperature 25 °C, the heater
will switch off automatically. And when the room temperature is lower than setting
temperature, the heater will switch on again under Eco mode.
Remark: if no thermostat setting, the default temperature is 23 °C under Eco mode.
Thermostat setting
Only under Eco model can make the thermostat setting.
Temperature setting possible in the range from 10 °C to 30 °C.
1. Press the Power/Mode button (c), until the “ECO” light turn on.
2. Press the thermostat button (a), the temperature digit will blink.
3. Use the “+” and “-” buttons to set the desired temperature.
4. The setting temperature digit will stop blinking and the current room temperature
will appear after the desired temperature is set.
5. The heater will maintain the air temperature in the room by switching on and off
automatically.

Oil radiator | UOR-993
10
Timer: Auto power on
Note: This function should only be set if you require the heater to be automatically
turned on after a certain period of time (1 to 24 hours from the time the function is
set). Only make timer power on setting under Stand-by mode.
1. Press the on/off power switch (6) to turn the appliance on. The light on ( )
will turn on. The appliance will be in Stand-by mode.
2. Press the Timer button (d), the light on (H) will turn on, and the start hour
digit (0.0) will blink.
3. Use the “+” and “-” buttons to set the heater operation time between 1 and
24 hours. 0.0 - 5.0 hours increase by 0.5 hour, 5.0 - 24 hours increase by
1 hour. This function will activate once the hour digit stops blinking. The
countdown digits will show on the display.
4. The heater will automatically turn on when the time runs out.
Remark: After the timer power on setting, make the power and ECO mode settings. And under
ECO mode, make the temperature settings. So that the heater will turn on at the desired
temperature or power setting.
Note: When using timer modes, consideration should be given to the fact that the heater may
come on whilst unattended. Always follow the safety instructions provided.
Timer: Auto power off
Note: This function should only be set if you require the heater to be automatically
shut off after a certain period of time (1 to 24 hours from the time the function is set)
1. When heater working, press the Timer button (d), the light on(H) will turn
on, and the start hour digit (0.0) will blink.
2. Use the “+” and “-” buttons to set the heater operation time between 1 and
24 hours. 0.0 - 5.0 hours increase by 0.5 hour, 5.0 - 24 hours increase by
1 hour. This function will activate once the hour digit stops blinking. The
countdown digits will show on the display.
3. The heater will automatically shut off when the time runs out.
Shutdown
Press the stand-by button (f) until sleep mode is selected and the control panel
screen goes off.

Oil radiator | UOR-993
11
Press the on/off switch (6) to turn the appliance off completely.
To disconnect the appliance, remove the plug from the socket.
SPECIFICATION
Power 2000 W
Supply voltage 230 V ~ 50 Hz
Section 8
Remote control yes
Weight 13,4 kg
Wheels yes
Timer on yes
Sleep timer yes
Touch control yes

Oil radiator | UOR-993
12
The head office of the manufacturer : «UNIT Handelsgesellschaft G.m.b.H.»
131, Gersthofer Str., A-1180, Vienna, Austria
Exported by: «UNIT Electronics (H. K.) Limited»
3905 Two Exchange Square, 8 Connaught Place,
Central, Hong Kong
Made in People’s Republic of China (P.R.C.)
This appliance is to be stored and used under the following conditions: temperature
– not less than
+5°C; relative humidity - not higher than 80%; aggressive impurities in the air: not
allowable.
As the Manufacturer is constantly working on the improvement of its products, the
design and
technical specifications are subject to change without prior notice.

14
Масляный обогреватель | UOR-993
 
 !
     UNIT.   , -
, ,   .   -
    ,      .
1.      . 
     .
2.       , 
      
.
3.  ,     .
4.        
 .      .
        
         .
5.         -
     ( .. ),
  ,        
,      , -
   .
6.       . 
  .
7.       .  -
      .  -
     ,    .
8.         , -
    .
9.    ,     -
    .    ,
        -
.
10.      .
11.        . 
    .
12.         -
 .         
 .
13.
14.
15.
16.
17
18.
19
20.
21.
22.
23.

15
Масляный обогреватель | UOR-993
, -
-
13.        -
  . ,  
   .
14.       
.
15.          -
 .
16.   ,       , 
     .
17.    .  
  .     
  .
18.        -
   .
19.      ,    -
  .
20.         -
.
21.       
  , ,   , 
  .
22.      - ,
     
    .
23.           
   .

16
Масляный обогреватель | UOR-993
 
1 -       
2 –  
3 –   
4 – 
5 –  
6 –  
7 –    
1
2
3
4
5
7
6

17
Масляный обогреватель | UOR-993
  
    .     , 
   .
       ,    . 1.
    ,  .
Рисунок 1
 
.    
b.     

18
Масляный обогреватель | UOR-993
.    
d.     
e.     
f.   
 
       CR-2025, 3.
  ,      .
         .
     ,     .
 
      (6).    -
 .         -
    .        
 ( )
           -
  .      .
   ,       
  .        -
  ( ).
 

 (



Прим
т
обогревате


 

 




(
 


Прим
с



1.  
2. 
 
3. 

19
Масляный обогреватель | UOR-993
   -
-

-

  -
    
  ()   :  ,  -
 ( );  ,   ( );  , 
 ( );  , ECO .
  ,       -
   .
Примечание: Чем выше мощность, тем быстрее будет достигнута желаемая темпера-
тура, но потребление энергии при этом будет выше. При длительном использовании
обогревателя рекомендуется использовать более низкие уровни мощности.
  (ECO)
    ()  ,   “ECO”-
  .
  ECO    ,  
     .
:
  25°C.      22 °C, -
      ( ).  -
  23 °C,      
().    24 °C,    
  ( ).    25 °C 
 .        -
,      ECO.
Примечание: Установленная, по умолчанию, температура в режиме ECO
составляет 23 °C.
 
      ECO
      10 °C  30 °C.
1.      (c)   “ECO”.
2.  (a)     ,   
  
3.  «+»  «-»,    .

20
Масляный обогреватель | UOR-993
4.        , -
       .
5.       
 ,    .
 .  
Примечание: Эта функция позволяет установить момент включения обогревателя в
интервале от 1 до 24 часов. Установка таймера включения возможна только в ждущем
режиме.
1.      (6).   
 ( ).     .
2.   (d),   (H)   
 (0.0).
3.   «+»  «-»     -
    1  24 .     0.0
 5.0      0.5 ,   5.0 
24    1 .   ,  
   .     -
  .
4.       -
.
Примечание: После установки таймера включения, вы можете провести установки
мощности и режима ECO. В режиме ECO установите значение температуры, чтобы
обогреватель включился при необходимых значениях температуры и мощности.
Примечание: При использовании таймера включения необходимо учитывать, что обо-
греватель может включиться без вашего присмотра. Всегда следуйте указаниям по
технике безопасности.
 .  .
Примечание: Эта функция позволяет установить момент выключения обогревателя в
интервале от 1 до 24 часов.
1.   ,   (d),  
(H)     (0.0).
2.
3.













