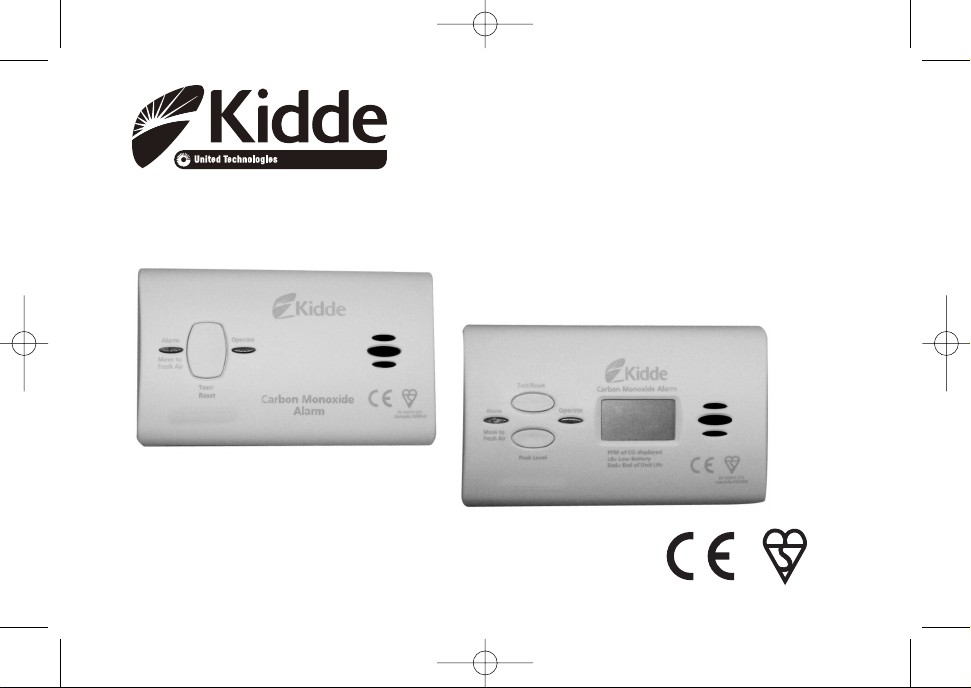

United Technologies Kidde 7CO User manual

Kidde Baery Carbon Monoxide Alarms
EN50291-1 : 2010
EN50291-2 : 2010
License No. KM98848
7DCO
7CO
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 1

1
Contents
1. What is Carbon Monoxide (CO)?
2. Important Safety Informaon
3. Switching on Your CO Alarm
4. Installaon Instrucons – Recommended Locaons
5. Installaon Instrucons – Mounng your alarm
6. Using your CO Alarm
Warning Signals, Tesng / Re-seng, LCD read-outs (model 7DCO only), Peak
Level Display (model 7DCO only)
7. Replacement Baeries / End-of-Life
8. What To Do If Your Alarm Sounds
9. Maintenance of your Alarm
10. Troubleshoong
11. Product Specificaons
12. Warnings and Important Noces
13. Warranty Informaon
14. Environmental Protecon
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 1

2
Green,
Power LED
Test / Reset
Button
Model 7CO
Model 7DCO
Carbon Monoxide
Alarm
Alarm
Move to
Fresh Air
Operate
Test/
Reset
Model: 7CO
Red,
Alarm LED Green,
Power LED
Red,
Alarm LED
Test / Reset
Button
Peak Level Button
Digital Display
Alarm
Move to
Fresh Air
Operate
PPM of CO displayed
LB= Low Battery
End= End of Unit Life
Test/Reset
Peak Level
Carbon Monoxide Alarm
Model: 7DCO
Product Features and Speci caons
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 2

3
1. What is Carbon Monoxide?
Carbon monoxide (CO) is a highly poisonous gas with no taste, colour or smell.
Potenal Sources of CO
•Wood-burning stoves
•Gas boilers and res
•Gas Hobs
•Oil and coal burning appliances
•Portable gas heaters
•Blocked flues and chimneys
•Fumes from integral garages
•Barbecues
•High concentraons of tobacco smoke
This CO alarm is not a substute for the correct maintenance of your
appliances.
Carbon monoxide can be produced from poorly burning appliances
or from blocked flues and chimneys.
If your alarm has sounded and you have venlated the room the CO
may have dispersed before help arrives. It is crucial that the source
of CO is determined and appropriate maintenance carried out.
Carbon monoxide is a cumulave poison. Longterm exposure to low levels may cause symptoms.
This Kidde alarm is me-weighted – the higher the level of CO, the sooner it will alarm.
NOTE: The apparatus may respond to brief exhaust gas emissions, for example during the inial
start-up of an appliance. Also, hydrogen acts as an interferent and can arise from some baery
charging acvies and the curing of concrete or cement under certain circumstances. Volale
Organic Compounds (VOCs), e.g. alcohols, which may eventually acvate the alarm, can be
generated from use of damp-proofing materials or other coangs containing alkylalkoxysilanes.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 3

4
2. Further informaon for Caravan and Boat Owners
The following can lead to carbon monoxide being produced:
• Using LPG cooking appliances for space heang
• Leaving LPG appliances on overnight
• Barbecues within the boat cabin or near a caravan door (e.g. under an awning)
To be safe, know the possible sources of CO in your home. Keep fuel burning appliances,
chimneys and vents in good working condion. Learn the early symptoms of exposure, and if
you suspect CO poisoning, move outside into fresh air and get emergency help. Your first line of
defence is an annual inspecon and regular maintenance of your appliances. Contact a licensed
contractor or call your local ulity company for assistance.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 4

5
2. Alarm levels as de ned by EN50291-1:2010
The table below shows the response mes at which your CO alarm will sound;
CO Advice and Informaon
The table below shows the effects of different levels of CO poisoning on the body;
Parts per Million (PPM) of CO Time unl Alarm
50 60 – 90 minutes
100 10 – 40 minutes
300 Must alarm in less than 3 minutes
Parts per Million (PPM) Effects on Adults
100 Slight headache, nausea, fague (flu-like symptoms)
200 Dizziness and headache within 2 – 3 hours
400 Nausea, frontal headache, drowsiness, confusion and rapid heart rate.
Risk to life aer over 3 hours of exposure
800 Severe headaches, convulsions, vital organ failures. Death possible within
2 – 3 hours
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 5

6
2. Important Safety Informaon
If you recognise any of the above symptoms consult your Doctor immediately.
Young children, elderly and pets are more suscepble to the dangers of CO.
Your Kidde alarm is designed to detect CO gas. It is not designed to detect smoke, re
or other gas such as natural gas.
This product is intended for use in ordinary family homes. It is not designed to meas-
ure compliance with occupaonal safety and the HSE.
Individuals with certain speci c medical condions may need an alarm that operates
below 30ppm. If this applies consult your Doctor.
IMPORTANT: Ensure that all family members are familiar with the symptoms of CO
poisoning and how your alarm works.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 6

7
3. Switching on Your CO Alarm
NOTE: Your CO alarm must be installed by a competent person using the guidance that follows:
1. Remove the baeries from the pack and insert them into the baery compartment. Make
sure that you fit the baeries correctly to the polarity markings (+ or -) shown within the
baery compartment. If correctly installed, the alarm will give a short beep.
2. To test the alarm, press the test buon. The alarm will beep once followed by 4 loud
pulses, then a brief pause and then 4 more pulses, ending with a single beep.
3. If you have a digital read-out alarm (model 7DCO) the LCD screen will show “---“ and then
“888” before seling at “0”
4. Check that the green LED flashes at 30 second intervals to show that the alarm has power.
This is easiest to see in a dark area, or with lights switched off.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 7

8
4. Installaon Instrucons – Recommended Locaons
• When wall-mounng place the alarm a horizontal distance of between 1 metre and 3 metres from a fuel
burning appliance.
• Wall-mounted alarms should be close to the ceiling, but at least 150mm away to avoid being in ‘dead-air’ space.
• Locate within hearing distance of bedrooms* and place at sleeping height if a heang appliance is in the
bedroom.
• CO alarms in rooms with sloped ceilings should be located on the high side of the room.
• Ceiling mounted alarms should be at least 300 mm from any wall.
• If there is a paron in the room, locate the alarm on the same side of the paron as the potenal source.
*A CO alarm should be installed in all rooms containing a fuel burning appliance. Addional CO alarms should be in-
stalled in rooms where most awake me is spent, in every sleeping area, and on every level of the home.
Locaons to Avoid
• Avoid locang next to draughts, such as doors, windows, extractor fans, air vents or other
similar venlaon openings.
• Avoid locang close to obstrucons (e.g. behind curtains, shelves or furniture).
• Avoid dusty, dirty or greasy areas, such as garages or workshops
• Avoid humid (bathrooms), cold (< -10 oC) or hot (> 40 oC) or damp areas and keep away from sinks.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 8

9
5. Installaon Instrucons – Mounng
THIS ALARM MUST BE INSTALLED BY A COMPETENT PERSON AND IS TO BE INSTALLED
ACCORDING TO THESE INSTRUCTIONS
Wall-mounng (recommended by the manufacturer, if possible)
1. Drill two holes in a wall 7.8 cm apart (you may wish to use the back-plate for guidance)
2. Insert the two rawl-plugs, that are supplied, into the holes
3. Insert the two screws as supplied into the holes ensuring enough of the screw scks out of
the wall (approx. 3mm)
4. Hook the alarm over the screws
Free-standing
ALWAYS BE CAREFUL TO LOCATE A FREE-STANDING ALARM WHERE IT IS UNLIKELY TO BE KNOCKED
TO THE FLOOR, AND IN ACCORDANCE WITH THE INSTALLATION INSTRUCTIONS -RECOMMENDED
LOCATIONS SECTION.
Ensure free-standing alarms are placed in the upright posion, and not lying flat on a surface.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 9

10
5. Installaon Instrucons for Caravans and Boats
As well as being recommended for use in homes, this alarm is approved for use in caravans,
motor homes and boats.
In addion to following CoGDEM (www.cogdem.org.uk) and NCC guidelines;
• Do not install directly above a source of heat or steam.
• Avoid locang close to vehicle and exhaust fumes as these can damage the alarm sensor
In addion to the instrucons for boats;
• Avoid locang near engine exhaust gases in the accommodaon space
• Avoid running the engine when moored alongside objects such as a wharf, a wall or another
boat
• Avoid running your engine when docked in a crowded marina as vehicle and exhaust fumes can
damage the alarm sensor. For further informaon visit www.boatsafetyscheme.com
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 10

11
6. Using Your Alarm (non-digital version, 7CO)
Recognising Alarm Signals and Warnings
Feature What this means Required Acon
Green LED flashes every 30 seconds Normal operaon None
The alarm chirps every 60 seconds and the red
LED flashes
Low baeries Replace baeries as soon
as possible
Alarm chirps twice every 30 seconds and the
red LED flashes twice
End of life of the alarm Replace the alarm
Alarm chirps every 30 seconds and red LED
flashes every 30 seconds
Fault Replace the alarm
Red LED on and constant tone Malfuncon Replace the alarm
Loud, connual alarm (4 beeps – 5 second
pause – 4 beeps...) and the red LED flashes
Dangerous levels of CO
have been detected
Follow emergency proce-
dures (see Page16)
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 11

12
6. Using Your Alarm (non-digital version, 7CO)
Tesng
Test your alarm each week by pressing the test buon. The alarm will beep once followed by
4 loud pulses, then a brief pause and then 4 more pulses, ending with a single beep. During
this test sequence, the red LED will flash for 10 seconds.
This confirms that the alarm is powered up and working.
Re-seng the Alarm
If the alarm sounds, the test / reset buon will silence the alarm unless it is sll detecng
dangerous levels of CO. The green light will then flash every 30 seconds to indicate that the
alarm has power.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 12

13
Digital Screen LED Sound emied What this means Required acon
Green flash every
30 seconds
None Normal operaon.
(LCD will not show levels <
30ppm)
None
Red LED flashes Full alarm
4 beeps - pause - 4
beeps (repeang)
Dangerous levels of CO has been
detected
Follow emergency procedures (see
Page 16)
Red LED flashes 1 beep, then
2 sets of 4 beeps,
followed by 1 beep
Successful test or reset sequence
in operaon
None - this is part of the standard test
or reset procedure
Red LED flashes
every 60 seconds
Chirp every
60 seconds
Low baeries (Lb) Change baeries
Red LED flashes Chirp every
30 seconds
Fault Replace the alarm
Red LED on Constant tone Malfuncon Replace the alarm
Red LED flashes
twice
Chirps twice every
30seconds
End of Life Replace the alarm
6. Using Your Alarm (for Digital unit only, 7DCO)
Addional features for the CO alarm with the digital display screen, model 7DCO;
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 13

14
6. Using Your Alarm (for Digital unit only) – Cont’d
Peak Level Display
Press peak level buon to display the most recent CO reading between 11 – 999ppm.
This feature is useful to help you to know what levels of CO may have been detected in your
absence so correcve acon can be taken (such as servicing your boiler).
NOTE: The peak level memory is cleared to zero if whilst holding the peak level buon the test
reset buon is pressed and released before releasing the peak level buon.
CO levels up to 30ppm can occur under normal non-dangerous condions. Such condions
could include nearby heavy tra c, starng a vehicle in an aached garage, starng a fire or a
nearby charcoal barbecue.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 14

15
7. Replacement of Baeries / End-of-life
Low Baeries
Type of Alarm LCD LED Sound Emied
Non-Digital N/A Red flashes every 60 seconds Chirp every 60 seconds
Digital LCD Screen Lb Red flashes every 60 seconds Chirp every 60 seconds
Slide alarm from back-plate.
Insert 3 x replacement ‘AA’ baeries
(nong polarity – see sketch)
Replace back-plate and test the alarm
Recommended Baeries.
Duracell MN1500, MX1500
Gold Peak 15A
Golden Power GLR6A
Energizer E91
Under normal operang condions, the baeries will last a minimum of one year.
NOTE: Constant exposures to extreme temperatures and humidies may a ect baery life.
These baeries can be purchased from your local retailer.
End-of-life - This alarm will chirp twice every 30 seconds with a red LED flash aer at least 10 years
operaon to let you know it has reached its end of life. A replacement needs to be purchased.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 15

16
8. What to do if Your Alarm Sounds!
Carbon Monoxide Alarm Procedure
WARNING! Acvaon of the alarm indicates the presence of Carbon Monoxide (CO) which can kill you.
Based on recommendaons from EN 50292, follow these steps if alarm sounds (4 loud audible pulses
followed by a pause for 5 seconds):
1. Keep calm and open all doors and windows. Turn off all fuel-burning appliances if possible. Note: it is possible
that outdoor condions could influence domesc CO alarms (bad tra c polluon in cold weather, for example).
In these circumstances, the level of indoor CO might actually increase when doors and windows are opened.
2. If the alarm connues to sound, even aer being reset (where appropriate), then evacuate the premises, alerng
other occupants to the risk. Leave doors and windows open. Do not re-enter the premises.
3. Get medical help for anyone suffering the effects of CO poisoning, and advise that CO inhalaon is suspected.
4. Call Gas Emergency Services: 0800 111 999, or your local Gas Safe Registered Engineer:
PHONE NUMBER:
Never restart the source of the CO problem unl it has been corrected. Never ignore the sound
of the alarm! If the alarm is sounding, pressing the test/reset buon will terminate the alarm.
If the CO condion that caused the alert in the first place connues, the alarm will reacvate.
If the unit alarms again within six minutes, it is sensing high levels of CO which can quickly
become a dangerous situaon.
!
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 16

17
9. Maintenance of Your Alarm
To keep your alarm in good working order:
•Test every week
•Vacuum regularly to remove dust
•Keep away from solvents or detergents
•Avoid spraying air-freshener, hair-spray near the alarm
•Do not paint the alarm. If decorang or using adhesives close to the alarm, remove it
temporarily
NOTE: there could be other compounds occurring within a parcular household which could cause
similar effects
The following substances can affect the sensor and cause false alarms:
Methane, Propane, Iso-butane, Iso-propanol, Ethylene, Benzene, Toluene, Ethyl
acetate, Hydrogen Sulphide, Hydrogen, Sulphur Dioxide, alcohol based products,
paints, thinners, solvents, adhesives, hair-sprays, aershaves or perfumes and
some cleaning agents.
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 17

18
10. Troubleshoong
Symptom LCD Screen Display (model
7DCO-UK only)
Problem Acon Required
Single chirp every 60
seconds plus flashing
red LED.
Low baeries Change the baeries
Single chirp every 30
seconds plus flashing
red LED
Alarm fault Replace alarm
(contact Kidde if sll in
warranty)
Red LED on and con-
stant tone Alarm malfuncon Replace alarm
(contact Kidde if sll in
warranty)
Two chirps plus red
LED flashes twice End of Life of the alarm Replace the alarm
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 18

19
11. Product Speci caons
Power 3 x AA baeries (as supplied)
Sensor Electrochemical CO Sensor
Accuracy Depending on the ambient condion (temperature, humidity) and the
condion of the sensor, the alarm readings may vary. The digital readings
tolerances are:
Ambient: 27°C +/- 12°C (80°F +/- 10°F), atmospheric pressure +/- 10%, 40% +/-
3% relave humidity
Temperature Range Operang range: 0°C to 40°C
Humidity up to 90% relave humidity (RH), non-condensing
Alarm Sound At Least 85dB (A) at 1 metre @ 3.4 +/- 0.5 KHz pulsing alarm
Size and weight Weight: 160g
Dimensions: 118mm x 70mm x 40mm
2530-7202-08_7CO(Caravans):_ 2016.7.28 11:36 AM Page 19
