UNITED UCS-3164M User manual

UCS-3164M

1
Contents
Care and maintenance ------------------------------------------------------------------
Failure analysis ----------------------------------------------------------------------------
Non-failure ----------------------------------------------------------------------------------
Technical parameter ---------------------------------------------------------------------
Climate classes ----------------------------------------------------------------------
Safety instructions ------------------------------------------------------------------------
Product introduction ----------------------------------------------------------------------
Handling and placement -----------------------------------------------------------------
Preparations prior to use ----------------------------------------------------------------
Operation keys ----------------------------------------------------------------------------
Operation and diagram of display board ---------------------------------------
Food storage --------------------------------------------------------------------------
Ice-making -----------------------------------------------------------------------------
Disassembly and assembly method of accessory ---------------------------
P2
P5
P6
P7
P8
P8
P8
P10
P11
P11
P9
P10
P13
P12
1.This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.Children should be supervised to ensure that they do not play with the appliance.
2.If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
3.This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
4.WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure,
clear of obstruction.
5.WARNING: Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
6.WARNING: Do not damage the refrigerant circuit.
7.WARNING: Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
8.Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
9.This appliance is intended to be used in household and similar applications such as
— Staff kitchen areas in shops, offices and other working environments;
— Farm houses and by clients in hotels, motels and other residential type environments;
— Bed and breakfast type environments;
— Catering and similar non-retail applications.
10.This product contains a light source of energy efficiency class F for light source ERP,
test with(without) light cover.
Thank you for buying UNITED UCS-3164M refrigerator.

2
Safety instructions
1.Warning
Warning: No barrier is allowed around the appliance or in the embedded structure in
order to ensure the free ventilation.
Warning: It is forbidden to speed up the defrosting process with any mechanical
equipment or by other method except for the method recommended by the manufacturer.
Warning: Never damage the refrigerating circuit.
Warning: Never use any electric apparatus in the food chamber of the appliance
except for the type recommended by the manufacturer.
Warning: Never place the liquid beverage or food contained with glass container in
the freezing chamber for fear of cracking.
Warning: If powered off, the refrigerator shall be powered on 5min later for fear of
damaging the compressor.
Warning: If any live part, abnormal noise, smell, smoke or other abnormality is found
during use, it is necessary to power o ffthe appliance immediately and contact the after-
sales service department of the Company timely.
Warning: Never place your finger or hand under the refrigerator, especially rear
bottom of refrigerator; otherwise, you may be hurt by the sharp matter.
Warning: The children must not play or climb the refrigerator. The operation by the
children must be supervised by their parents for fear of danger.
Warning: Never place your hand between the doors to open or close door for fear of
jamming your finger. The door handle shall be used to open or close the door.
Warning: Under the rated climate types SN, N and ST, the operating ambient range of
the appliance is 10℃~38℃; under the climate types SN, N, ST and T, the operating
ambient range of the appliance is 10℃~43℃. If the appliance operates outside the rated
climate type (ambient temperature range), the appliance may not maintain the satisfying
interior temperature.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances
Opening the door for long periods can cause a significant increase of the temperature in the
compartments of the appliance.
Clean regularly surfaces that can come in contact with food and accessible drainage systems.
Clean water tanks if they have not been used for 48 h; flush the water system connected to a
water supply if water has not been drawn for 5 days.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact
with or drip onto other food.
Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or
making ice-cream and making ice cubes.
One-, two- and three-star compartments are not suitable for the freezing of fresh food.
If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry,
and leave the door open to prevent mould developing within the appliance.
Warning: When positioning the appliance, ensure the supply cord is not trapped or
damaged.
Warning Risk of fire / flammable materials :
Warning: Do not locate multiple portable socket-outlets or portable power supplies at the
rear of the appliance.
2. Cautions
Cautions: The power supply of this product must be uniform with the power supply
mentioned on the nameplate, and the standard independent 3-hole socket shall be used
(above 10A, and reliably grounded). One socket must not be shared by more than one
appliance; otherwise, fire may be caused due to overheat.
Cautions: Never pull the power wire by hand. It is necessary to hold and unplug the
power connector from the socket to disconnect the power supply. The power wire or
connector must not be touched by the wet hand for fear of electric shock.
Cautions: The power wire must not be squeezed by the refrigerator or any heavy
load, and the power wire shall not be bent extremely. The damage or peeling of power
wire may result in fire or electric shock. If the power wire is broken or cut, please contact
the after-sales service department immediately.
Cautions: No flammable or explosive matter or corrosive acid or alkaline matter is
allowed in the refrigerator.
Safety instructions
3

4
Safety instructions
Cautions: The refrigerator must not be used in the rain or under the sunshine.
Cautions: It is forbidden to place the container with fluid on the refrigerator because
the breakage or turnover of the container may affect the electrical insulation of
refrigerator and result in electric shock or fire.
Cautions: The refrigerator must not be disassembled or modified without
permission. The repair of refrigerator must be performed by the specialist.
Cautions: In case of leakage of any flammable gas such as coal gas, it is necessary
to close the leaking valve first and then open the window for ventilation, and forbidden to
unplug the refrigerator connector immediately for fear of fire or explosion due to electric
spark.
Cautions: Refrigerating appliances – in particular a refrigerator-freezer Type I –
might not operate consistently (possibility of defrosting of contents or temperature
becoming too warm in the frozen food compartment) when sited for an extended period
of time below the cold end of the range of temperatures for which the refrigerating
appliance is designed;
Cautions: The fact that effervescent drinks should not be stored in food freezer
compartments or cabinets or in low-temperature compartments or cabinets, and that
some products such as water ices should not be consumed too cold.
Cautions: The need to not exceed the storage time(s) recommended by the food
manufacturers for any kind of food.
Cautions: The precautions necessary to prevent an undue rise in the temperature of
the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen
food in several layers of newspaper.
Cautions: The fact that a rise in temperature of the frozen food during manual
defrosting, maintenance or cleaning could shorten the storage life.
Cautions: The care required with regard to frozen food in storage in the event of an
extended non-running of the refrigerating appliance (interruption of power supply or
failure of the refrigerating system).
Cautions: The action to be taken when the refrigerating appliance is switched o ff
and taken out of service temporarily or for an extended period (e.g. emptied, cleaned
and dried, and the door(s) or lid(s) propped ajar).

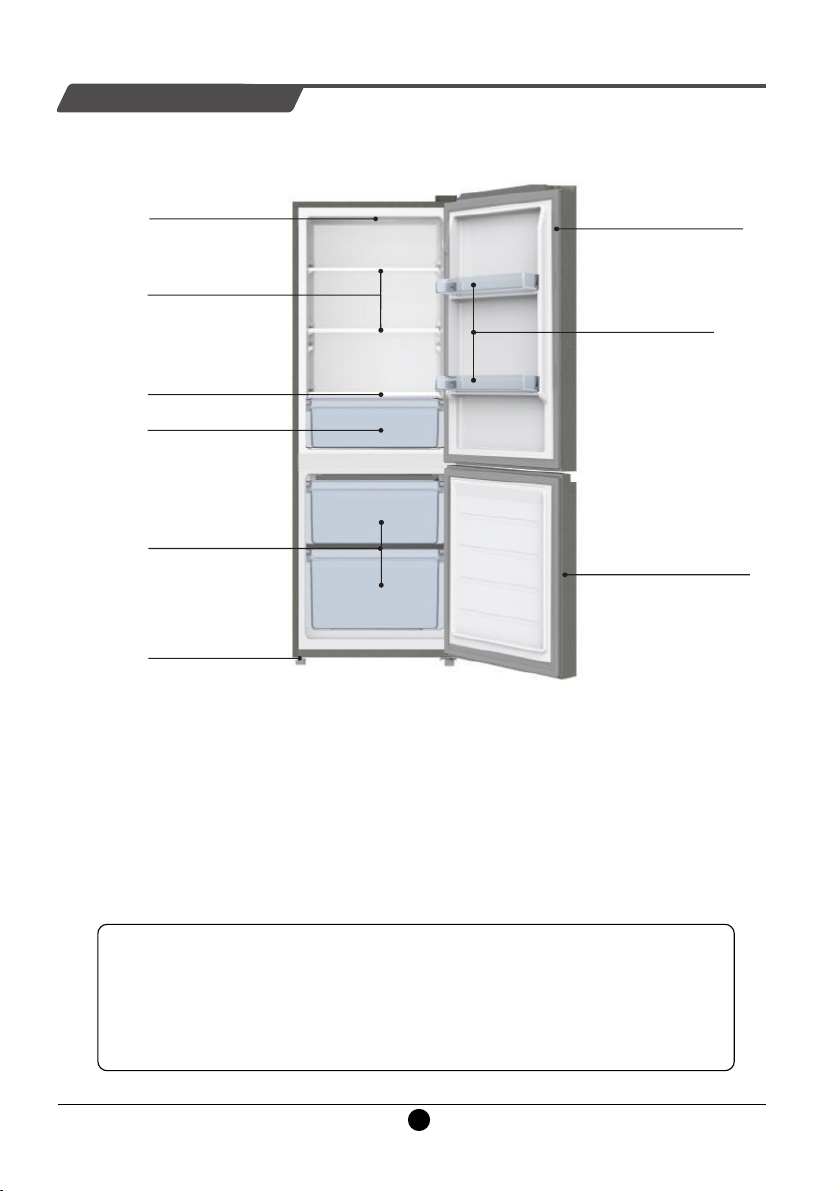

Refrigerating chamber light and
temperature controller module
Refrigerating shelf
Note: the number of racks
is subject to the packing list
Freezing drawer
Refrigerating drawer
Adjusting leg
Refrigerating chamber door
Refrigerating door bottle bracket
Freezing chamber door
Glass cover plate
5
Product introduction
Warm prompt:
If your product is improved product, it may not be totally same as that in the
instructions. But it will not change the performance and method of application.
Please feel relieved about usage.
The pictures are for reference only. Please refer to the object

6
Handling and placement
During handling, the door
side of the refrigerator shall
not contact with the
handling tools
Removing the foam base is
beneficial for bottom heat
dissipation and can avoid
fire.
The refrigerator shall be
placed in an environment
which is dry, has good
ventilation, far from direct
sunshine and heat source.
The refrigerator shall be
placed on the flat and firm
surface. If the ground is not
flat, adjust the adjusting leg
to keep it level.
Never place the refrigerator
into a too cold environment
that may get frozen.
Warm prompt:
--When handling the refrigerator, at least two persons are required – one lifts the top of
rear part, the other one handles the bottom (if one part is clamped, it is quite
dangerous and may cause accident).
--When moving the refrigerator, the lower runner may damage and scratch the floor. If you
need to move the refrigerator for a long distance, the internal accessories shall be fixed
using adhesive tape. Otherwise, the accessories may get damaged due to crashing each
other.
--Please place the refrigerator in the position with small vibration or little exposed to
vibration. For users in the area where earthquake often occurs, please fix the refrigerator
against the wall or pole. Otherwise, the falling of refrigerator will cause accident.
--Sufficient clearance shall be left around. If the clearance is too small or place goods on the
top or close to the side, or paste on the sides, the heat dissipation of refrigerator will be
affected, and thus to cause unnecessary electric energy waste as well as burn out of the wall
and other goods; the contact between the back and wall will cause vibration and noise;
--Adjust the front part and adjusting leg of the refrigerator to level it. Unlevel of the
refrigerator will cause vibration and noise.
Certain space shall be left
around the refrigerator,
shown in the figure.
>30cm
>10cm >10cm

7
515498 >L1+670 >W1+400>L1+100 >W1+200
The appliance should be located in the coolest area of the room, away from heat producing appliances or
heating ducts, and out of the direct sunlight.
Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the
compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down
on frost build-up inside the appliance.
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with
cold air circulation, making the appliance less efficient.
Organize and label food to reduce door openings and extended searches. Remove as many items as needed
at one time, and close the door as soon as possible.
Please refer to the product introduction picture on page 5 for the placement of accessories.
Preparations prior to use
1. Remove all packing assemblies such as case fixing tape etc., especially the foam base.
2. Use warm wet cloth to clean both interior and exterior of the refrigerator, (neutral detergent can
be added in warm water).
3. After leveling and cleaning the refrigerator, stand it for about 2 hours before plugging the power
plug for powering on, and cool the refrigerator for 2 to 3 hours before storing foods.
1. Remove fixing tape 2. Connect to power 3. Store food after
connecting to power
for 2-3 hours
Wipe with
warm and
wet cloth
In hot summer, 24 hours are
needed to fully freeze the food.
Check the refrigerating condition
on the second day.
Do not open the
doors frequently
to save electricity.
The plastics deodorant will disappear
automatically after freezing for a while.

Temperature controller
lighting combination panel
Foods storage
Freezing chamber (-22°C ~-15°C)
Temperature regulation
– Users can regulate the temperature in the refrigerator by
rotating the temperature control knob.
– Which is provided with 8 gears (0, 1, 2,......7).Temperature
controller lighting combination panel-- The temperature inside the
refrigerator decreases gradually when the temperature control knob
is turned from 0→7; conversely, the temperature increases
gradually.
– The use may set the temperature control knob at different
gears on the basis of refrigerator service environment and specific
situations of stored foods.
– The temperature inside the refrigerator will vary as the
temperature control knob is placed at different gears, and meanwhile
the power consumption will show some differences.
– Upon overall consideration of preservation effect and power
consumption, the recommended regulated values are as follows:
–2~4 gears in summer, 4 gear in spring and autumn and 4~6
gears in winter.
Refrigerating chamber (2°C ~ 8°C)
– The refrigerating chamber is mainly used for storing short-term foods, like milk, eggs and
bottled drink, etc.
– Vegetables, melons and fruits shall be put into the fruit and vegetable box to prevent water
loss.
– The cooked foods shall be put into the refrigerator after packaging with the preservative
bags, to prevent the back from frosting and the power from increasing.
– The freezing chamber is used for the foods to be stored for long-term.
– Fish and meat to be frozen shall be cut into small pieces, packaged with preservative bags
separately and then put into the frozen drawer.
– The glass container or the sealed container filled with liquid shall not be stored in the
freezing chamber, to prevent the risk of burst due to freezing.
– The fresh foods shall not be stored together with the frozen foods.
8
Operation keys

★★ Warm tips:
Defrost
If thicker layer of frost is detected at the back of the refrigerating chamber and the refrigeration
effect is affected, defrost the refrigerating chamber first. At defrosting, switch the temperature
control knob to gear “OFF” and switch the knob to original state after the frost is gone.
Overheated foods and articles must be cooled to room temperature before being put into the
refrigerator.
Defrost the refrigerating chamber
Defrost the freezing chamber
If thicker layer of frost is detected on the evaporator of the freezing chamber, it is necessary to
defrost. Pull out the plug and power off the refrigerator, take out the drawer in the freezing
chamber and keep the refrigerator door under open state. After the frost is melting automatically,
wipe off the water on the evaporator, the door gall and in the drawer with clean dry doth, and then
put the drawer back into the freezing chamber.
Self-induced temperature compensation
– When the ambient temperature is lower than 10 °C, the product will enable the electric heating
compensation function automatically. Please feel free to use this product.
Note:
1. Don't frost with metal tools, to avoid damaging the refrigerator.
2. Don't frost the refrigerator with electric heater.
9

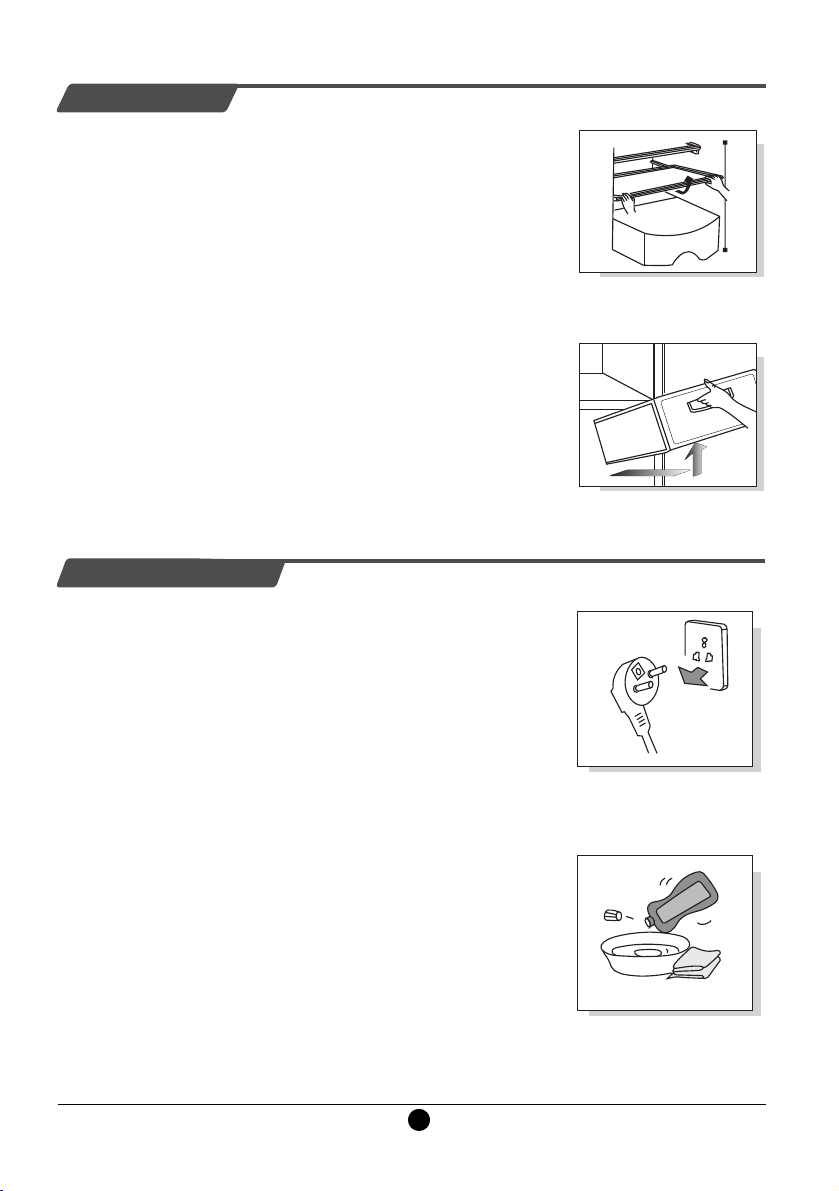

Operation keys
Ice-making (If the appliance has it)
Fill the ice-making box with 4/5 water and put the box into the
freezing chamber. After the water in the box turns into ice, twist the
box slightly to separate the ice from the box. However, don't bend
the box. When separating the ice, wrap the box with dry box to
avoid finger frostbite.

Disassembly and assembly method of accessory
--Glass shelf in the refrigerating chamber: the height of the shelf is
adjustable, which facilitates the storage of articles with different
volumes. Pull the shelf outwardly and upwardly in a slight way to
take out.
--Fruit and vegetable box: for storing vegetables and fruits. It can
be taken out by pulling outwardly.
--Drawer in the freezing chamber: storing foods to be preserved for
long-term, such as meat and fish. It can be taken out by pulling
outwardly and lifting upwardly.
Kindly tips: It is recommended to put into the large piece of meat
after being cut into small pieces, to avoid difficult cutting after being
frozen. The quick-freezing foods shall be distributed uniformly and
stored together after being frozen.
--Bottle pedestal at the refrigerating door: storing eggs, various
bottled drinks and other sundries. It can be taken out by being lifted
up slightly.
Note: Don't pull out the bottle pedestal at the refrigerating door
forcibly during disassembly, to avoid damaging the refrigerator.
It is suggested to maintain the refrigerator once per month;
--Unplug the power plug to prevent from electric shock;
--Use wet cloth or neutral detergent (cleanser essence) to wipe o ff
the oil contamination and other dirt. Then completely wipe o ffthe
detergent.
--Do not use alkaline detergent, soap powder, gasoline and
alcohol, talcum powder etc.; otherwise the coats or plastics may
be damaged;
--Regularly clean the refrigerator body and clear the ground dusts
to keep the refrigerator clean.
Inspections after maintenance:
1. Whether there are damages to the power line and plug; 2.
Whether there are dusts on the power plug; 3. Whether there is
abnormal heat on the plug; 4. Whether the socket is loose; 5.
Whether the plug is totally inserted.
Note:
If the power line and plug is damaged and there exist dusts,
electric shock or fire may occur;
After unplugging the plug, 5 minutes must pass before re-plugging
it;
Do not put your hands under the refrigerator to avoid getting hurt.
Care and maintenance
Take out by pulling upwardly
and outwardly in a slight way
Unplug the refrigerator
plug before cleaning
Take out by pulling outwardly
and upwardly in a slight way
Please use neutral
detergent
Neut ral det ergent
Operation keys
10
Changing the Light
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its
service agent or similar qualified person.

Failure analysis
11
The following items shall be inspected before occurring failures which require maintenance:
Failures:Refrigerator does not work,The refrigeration effect is poor
Causes:1. Check the connection of power supply. 2. Check whether the refrigerator is exposed to
direct sunlight or whether there is heat source nearby. 3. Check whether there is heat dissipation
space around refrigerator.
Remedies:1. Connect the power supply. 2. Move the refrigerator to a place without direct sunlight
and heat source. 3. Leave sufficient space between refrigerator and wall.
Failures:Foods in refrigerating chamber are frozen
Causes:1. Check whether the setting temperature is too low. 2. Check whether foods with too
much water are too close to the rear wall.
Remedies:1. Adequately increase the temperature. 2. Move the foods with too much water to the
door side of glass shelf
Failures:There is abnormal sound in refrigerator
Causes:1. Check whether the bottom of refrigerator is stable. 2. Check whether the refrigerator is
too close to the wall. 3. Check whether the refrigerator touches other objects.
Remedies:1. Adjust the bottom adjusting leg to stabilize the refrigerator. 2. Leave sufficient space
around refrigerator. 3. Remove the obstacles.
Failures:There is abnormal odor in refrigerator
Causes:1. Check whether the foods are sealed for storage. 2. Check whether the refrigerator is
clean. 3. Check whether the foods are stored for too long time.
Remedies:1. Sealed foods for storage. 2. Regularly clean the refrigerator. 3.Do not store foods
for too long time.
Non-failures
Phenomenon:Fever or hot on two sides and spacing part surface between refrigerating
chamber and freezing chamber.
Cause:Refrigerator pipes (condenser, anti-fog pipes) are on two sides and front part of refrigerator
for heat dissipation and to prevent from condensation.
Phenomenon:The door is too tight and not easy to open
Cause:Reopening of the door immediately after closing it is hard because hot air enters the
refrigerator and contracts to produce pressure difference. It is easy to open the door after a while.
Phenomenon:There is water ripple in refrigerator
Cause:When starting or stopping the compressor, the refrigerant will make such sound;
Water produced after defrosting will also make such sound.
Phenomenon:There is “Click” sound or tick sound in refrigerator
Cause:Shrinkage and swelling of case will make such sound;When the case is cold or the door is
opened, this sound will occur;Phenomenon:There is hum sound in refrigerator
Cause:Running of compressor will make such sound (if the refrigerator is not leveled, this sound
will be louder)
Phenomenon:There is condensation or frosting freezing chamber door surface or food
surface
Cause:Temperature or humidity around the refrigerator is high;The door is opened for too long
time;The foods with too much water are not sealed or tightly wrapped
Phenomenon:There is condensation on the built-in light surface
Cause:Light will produce heat after being lit, and the door is opened for too long time. So there is
temperature difference, and thus the light case will have condensation.
Phenomenon:There is condensation and water mist on body
Cause:Humidity around refrigerator is high, and the moisture in the air will gather in the case to
form condensation

12
Technical parameter
Model
Climate type
Electric shock resistance
Star sign
Rated current
Lamp power
Weight
Refrigerant and charge amount
Noise Volume
Annual energy consumption AE
Fresh food compartment
Total Volume
Dimension
Energy consumption E32
SN/N/ST
I
1W
R600a, 40g
35kg
180 kWh/a
120L
42L
0.4A
220~240V/50Hz
162L
49,8x51,5x145,5cm
0.695kWh/24h
3-star compartment
UCS-3164M
38dB
Power type

13

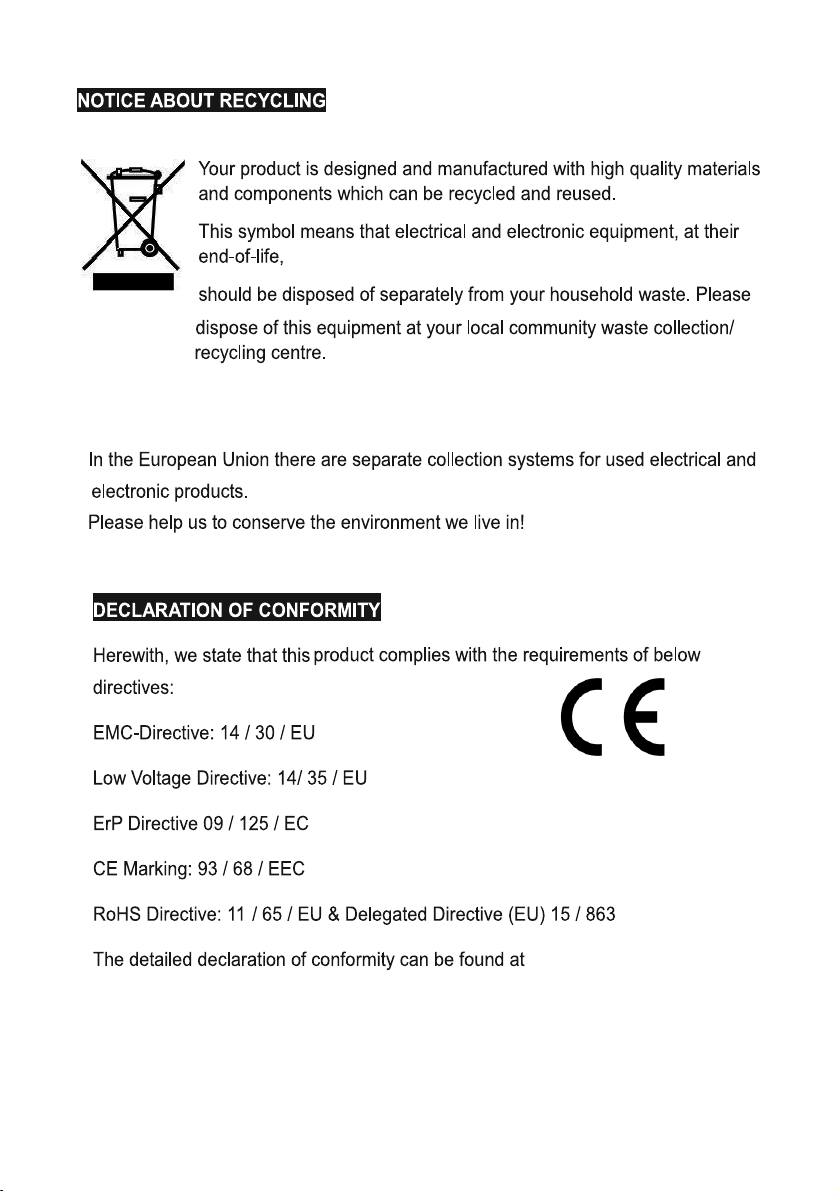

Dear customer
if you need customer service, please check warranty card for further information.
Climate classes

www.united-electronics.gr

Exclusive importer in Greece:
.DOOLRSL.DU\GD&R/3
87A, 17th Noemvriou str, P.C. 55534
Thessaloniki – Greece
T: +30231 |
F: +30231
