UNITED UND1093W User manual

REFRIGERATOR
UND1093W
-

Contents
1. SAFETY WARNINGS............................................................................................................ 1
2. INSTALLTION...................................................................................................................... 2
2.1 Location...................................................................................................................... 2
2.2 Reversing the Door Swing .......................................................................................... 2
2.3 Door Space Requirements.......................................................................................... 3
2.4 Levelling the Unit ....................................................................................................... 4
2.5 Cleaning Before Use ................................................................................................... 4
2.6 Before Using Your Unit............................................................................................... 4
2.7 Interior Accessories.................................................................................................... 4
3. PRODUCT OVERVIEW ........................................................................................................ 5
4. OPERATION........................................................................................................................ 5
4.1 Adjusting the Temperature........................................................................................ 5
◆The temperature selector knob is located on the right hand side.................................... 5
wall of the refrigerator interior ............................................................................................. 5
wall of the refrigerator interior ............................................................................................. 5
Setting“Off”：UnitOff......................................................................................................... 5
Setting“Min”：Less Cool Temperature .............................................................................. 5
Setting“Med”：Normal Operation(adequate for most situations).................................... 5
Setting“Max”：Coolest Temperature................................................................................. 5
◆During high ambient temperatures e.g. on hot summer days. It may be necessary to set
the.......................................................................................................................................... 5
thermostat to the Coolest setting(position“Max”).This may cause the compressor running
............................................................................................................................................... 5
continuously in order to maintain a low temperature in the cabinet. ................................. 5
◆For the first time you install your refrigerator, set the thermostat knob at “Med”. ........ 5
Give your refrigerator time to cool down completely before adding food. It is the best to
wait........................................................................................................................................ 5
24 hours before adding food. The thermostat knob controls the temperature. When the
thermostat control knob is set to OFF, the refrigerator will not be running. ....................... 5
4.2 Noise Inside the Unit!................................................................................................. 5
4.3 Tips for Keeping Food in the Unit............................................................................... 6
5. CLEANING .......................................................................................................................... 6

5.1 Defrosting................................................................................................................... 6
5.2 Cleaning the Interior and the Exterior of the Unit ..................................................... 6
5.3 Cleaning Tips .............................................................................................................. 6
6. MAINTENANCE .................................................................................................................. 6
6.1 Changing the Internal Light ........................................................................................ 7
6.2 Care When Handling / Moving Your Unit................................................................... 7
6.3 Servicing ..................................................................................................................... 7
6.4 Switching Of for Long Periods of Time....................................................................... 7
7. Trouble shooting ............................................................................................................... 7
7.1 Warm tips:.................................................................................................................. 7
8. TIPS FOR ENERGY SAVING ................................................................................................. 8
9. DISPOSAL ........................................................................................................................... 8

1
1. SAFETY WARNINGS
Cauon: risk of fire
1) WARNING―Keep venlaon openings, in the appliance enclosure or in the built-in
structure, clear of obstrucon.
2) WARNING―Do not use mechanical devices or other means to accelerate the defrosng
process, other than those recommended by the manufacturer.
3) WARNING―Do not damage the refrigerant circuit.
4) WARNING―Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
5) The appliance has to be unplugged aer use and before carrying out user maintenance on the
appliance.
6) This appliance can be used by children aged from 8 years and above and persons with reduce
physical sensory or mental capabilies or lack of experience and knowledge if they have been
given supervision or instrucon concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
7) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
8) Please abandon the refrigerator according to local regulators for it use flammable blowing gas
and refrigerant.
9) Please according to local regulaons regarding disposal of the appliance for its flammable
refrigerant and blowing gas. Before you scrap the appliance, please take offthe doors to prevent
children trapped.
10) This appliance is intended to be used in household and similar applicaons such as
– staffkitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residenal type environments;
– bed and breakfast type environments;
– catering and similar non-retail applicaons.
11) Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO
CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

2
2. INSTALLTION
2.1 Location
When selecting a position for your unit you should make sure the floor is flat and firm, and the
room is well ventilated with an average room temperature of between 16℃and 38℃. Avoid
locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it
may increase the electrical consumption. Extreme cold ambient temperatures may also cause the
unit not to perform properly. This unit is not designed for use in a garage or outdoor installation.
Do not drape the unit with any covering.
When installing the unit, ensure that 40 cm of free space is left at both sides, 15 cm at the rear
and 20 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and
improve the efficiency of the cooling process. The door can be opened to the right or the left,
depending on what better suits the location. Please ensure there is adequate space for the door
to fully open.
2.2 Reversing the Door Swing
Tools Required: Phillips style screwdriver / Flat blated screwdriver / Hexagonal spanner
◆If you want to have the door swing reversed, we recommend that you contact a
qualified technician. You should only try to reverse the door yourself if you believe that
you are qualified to do so.
◆Ensure the unit is unplugged and empty.
◆Adjust the two levelling feet to their highest position.
◆To take the door of it is necessary to tilt the unit backwards. You should rest the unit on
something solid so that it will not slip during the door reversing process.
◆All parts removed must be saved to do the reinstallation of the door.
◆Do not lay the unit fat as this may damage the coolant system.
◆We recommend that 2 people handle the unit during assembly.
1) Remove the plastic covering from the top door hinge.
2) Unscrew the three screws from the bottom bracket.
Remove the foot from opposite side.

3
3) Place to one side.
4) Slide the Appliance door down about 15cm and off the
top hinge pin and lift away from the Appliance.
5) Remove the two screws from top bracket and replace
on the otherside.You will need to first remove the plastic caps
from the other side.
6) Slide the Appliancedoor back on to the Top hinge,
making sure it’s the right way up.
Screw the bottom hinge into place on the new side.
Replace theother foot on the other side.Replace the
plastic covering by clicking back into position on the
door hinge.
7) Check that the door is aligned horizontally and
vertically and that the seals are closed on all sides
before finally tightening the bottom hinge.
Re-adjust the levelling feet.
2.3Door Space Requirements
The unit's door must be able to open fully as shown.
W×D≥900mm×800mm
W
D

4
2.4 Levelling the Unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the door and magnetic seal alignments
will not be covered properly.
2.5 Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm
water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water
and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.
If you require more information refer to the Cleaning section.
2.6 Before Using Your Unit
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
◆Before Plugging in
You must check that you have a socket which is compatible with the plug supplied
with the unit.
◆Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to
settle.
2.7 Interior Accessories
Various glass or plastic storage shelves are included with your appliance - different
models have different combinations.
You should always slide one of the full size glass storage shelves into the lowest set of
guides, above the fruit and vegetable containers, and keep it in this position. To do
this, pull the storage shelf forward until it can be swivelled upwards or downwards
and removed.
Please do the same in reverse to insert the shelf at a different height.
In order to make the most of the volume of the fresh food storage compartment and
frozen-food storage compartment, the user can remove one or more shelves, drawers, out
of the appliance, according to your daily use.

5

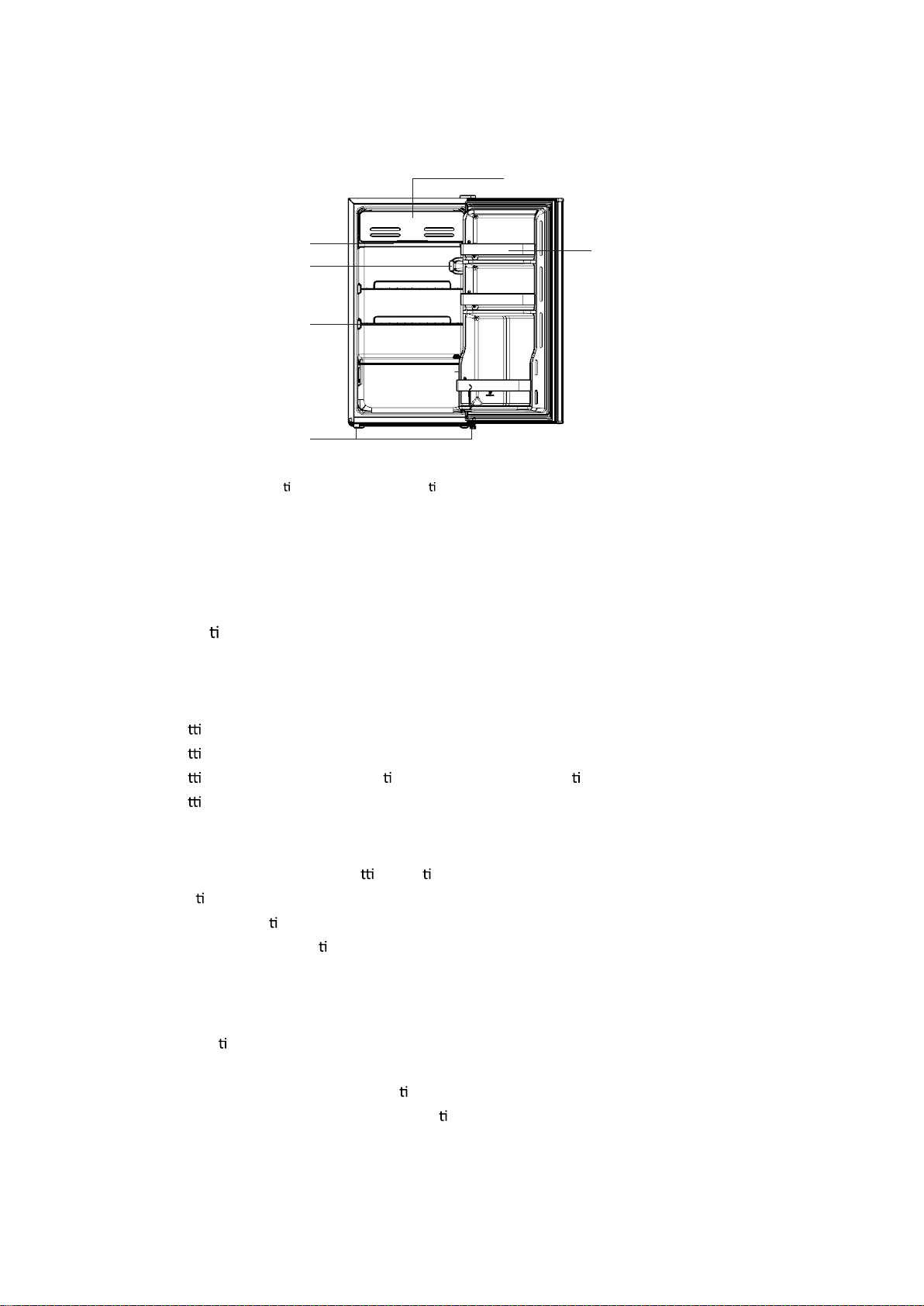

3. PRODUCT OVERVIEW
*All images in this instruc on manual are for indica on only; please refer to your individual unit for details.
OPERATION
4. OPERATION
4.1 Adjus ng the Temperature
◆The temperature selector knob is located on the right hand side
wall of the refrigerator interior
wall of the refrigerator interior
Se ng“Off”：UnitOff
Se ng“Min”：Less Cool Temperature
Se ng“Med”：Normal Opera on(adequate for most situa ons)
Se ng“Max”：Coolest Temperature
◆During high ambient temperatures e.g. on hot summer days. It may be necessary to set
the
thermostat to the Coolest se ng(posi on“Max”).This may cause the compressor running
con nuously in order to maintain a low temperature in the cabinet.
◆For the first me you install your refrigerator, set the thermostat knob at “Med”.
Give your refrigerator me to cool down completely before adding food. It is the best to wait
24 hours before adding food. The thermostat knob controls the temperature. When the
thermostat control knob is set to OFF, the refrigerator will not be running.
4.2 Noise Inside the Unit!
You may no ce that your unit makes some unusual noises. Most of these are perfectly normal,
but you should be aware of them!
These noises are caused by the circula on of the refrigerant liquid in the cooling system. It has
become more pronounced since the introduc on of CFC free gases. This is not a fault and will not
affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
Pan drain
，
Ther mos tat
Steel w ir e s h elf
Leveler leg
，
Small d oo r
Tray

6
4.3 Tips for Keeping Food in the Unit
◆Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices
and cover it properly. Place the container on the lowest shelf.
◆Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the
unit are kept cool.
◆To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
◆Always let pre-cooked food cool down before you put in the unit. This will help to maintain
the internal temperature of the unit.
◆To prevent cold air escaping from the unit, try to limit the number of times you open the
door. We recommend that you only open the door when you need to put food in or take food
out.
5. CLEANING
5.1 Defrosting
Frost may accumulate on the inner rear surface of the appliance
which will automatically defrost during the of cycle of the compressor.
Water is channelled via the drain hole to the collection tray above the
compressor where it will evaporate.
Please ensure the drain hole is checked and cleaned on a regular basis
so water can exit the storage compartment.
5.2 Cleaning the Interior and the Exterior of the Unit
◆Remove all the shelves and the salad bin. To remove the salad bin first remove the lower
door shelf.
◆Wipe the inside of the unit with a weak solution of bicarbonate soda and then rinse with
warm water using a“wrung-out”sponge or cloth. Wipe completely dry before replacing the
shelves and salad bin.
◆Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make
sure that the door is closed to avoid the polish getting on the magnetic door seal or inside
the unit.
◆The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a soft brush attachment.
5.3 Cleaning Tips
Condensation may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe of any moisture residue. If the problem continues, please contact a qualified
technician for assistance.
6. MAINTENANCE

7
6.1 Changing the Internal Light
Lamp replacement by professionals.
6.2 Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lifted
by holding the edges of the top surface.
6.3 Servicing
The unit should be serviced by an authorized engineer and only genuine spare parts should be
used. Under no circumstances should you attempt to repair the unit yourself. Repairs carried out
by inexperienced persons may cause injury or serious malfunction. Contact a qualitatively
technician.
6.4 Switching Of for Long Periods of Time
When the unit is not in use for a long period of time, disconnect it from the mains supply, empty
all food and clean the appliance, leaving the door ajar to prevent unpleasant smells.
7. Trouble shooting
The following simple issues can be handled by the user. Please call the after-sale service
department if the issues are not settled.
Inoperation
Whether the freezer is plugged and connected to power;
Low voltage;
Failure power or tripping circuit
Odor
Odorous foods should closely wrapped;
Whether foods are rotten;
Whether the interior shall be cleaned.
Long-term operation of
compressor
It is normal that refrigerator operates for longer time in
summer when the ambient temperature is higher;
Do not put too much food in the freezer at one time;
Do not put foods until they are cooled;
Frequent opening of refrigerator door.
Illuminating light does not
shine
Whether the refrigerator is connected to power,
whether the illuminating light is damaged.
The refrigerator door can not
be properly closed.
The freezer door is stuck by food packages;
Too much food;
Tilt refrigerator.
Loud noises
Whether the food is leveled, whether the refrigerator is
balanced;
Whether the refrigerator parts are properly placed.
7.1 Warm tips:
◆The refrigerator enclosure may emit heat during operation specially in summer, this is caused
by the radiation of the condenser, and it is a normal phenomenon.
◆Condensation: condensation phenomenon will be detected on the exterior surface and door
seals of the freezer when the ambient humidity is large, this is a normal phenomenon, and the
condensation can be wiped away with a dry towel.
