Univa U305-1 User manual

This manual is made with 100% recycled paper
5615100-C/2021 V1.0
Electrical Freestanding Stove
-Instruction Manual -
IN ORDER TO OBTAIN THE GREATEST SATISFACTION FROM
YOUR COOKWARE APPLIANCE, IT IS RECOMMENDED
YOU READ THE INSTRUCTIONS CAREFULLY.

2
Dear Customer：
Thank you for buying a quality Univa Electric Stove, designed to give years of safe,
convenient, economical and trouble-free cooking and baking.
To ensure that you get the best performance from your superb quality stove,
please read this instruction manual carefully. Familiarize yourself with the
information as it contains “How to use and take care of your stove”, together with
other useful hints.
ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE
IMPORTANT!
Keep this Instruction Manual safe for future reference!
SAFETY WARNINGS-----------------------------------------------------3
UNPACKING---------------------------------------------------------------4
DISPOSAL OF THE APPLIANCE----------------------------------------4
CONNECTION TO THE POWER SUPPLY-----------------------------5
INSTALLATION------------------------------------------------------------6
OPERATING INSTRUCTIONS-------------------------------------------9
HOW TO SAVE ENERGY-------------------------------------------------14
CLEANING AND MAINTENANCE--------------------------------------15
TROUBLESHOOTING-----------------------------------------------------19
SPECIFICATIONS----------------------------------------------------------20
UNIVA GUARANTEE-----------------------------------------------------22
INTRODUCTION
CONTENTS

3
The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
it is done under the supervision of a responsible adult.
Do not allow children to play or tamper with the appliance.
During use the appliance becomes hot. Care should be taken to avoid touching heated
elements inside the oven or on the hob surface (plates).
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven and oven
glass as it will scratch the surface, which may result in the inner/outer door glass
shattering.
Do not use a steam cleaner to clean the appliance.
The appliance is not intended to be operated by means of external timer or separated
remote-control system.
Danger of fire: Do not store flammable items inside or close to the appliance.
CAUTION: The cooking/baking process must be supervised continuously.
WARNING: Unattended cooking in the oven or on a hob with fat or oil can be
dangerous and may result in a fire. The appliance must not be installed behind a
decorative door to avoid overheating. The manufacturer shall not be liable for any
damage caused by improper use, installation, or handling.
CAUTION! Never use the oven or hob as a heater
SAFETY AND WARNINGS
Always disconnect the appliance from the mains power supply
before carrying out any maintenance or repairs.
Connection to a good earth wiring system is essential and
mandatory. Alterations to the domestic wiring system must only be
made by a qualified electrician. Failure to follow this advice may
result in electrical shock or death.

4
During transportation, protective packaging was used to protect the
appliance against any damage.
After unpacking, please dispose of all elements of packaging in a way that will
not cause damage to the environment.
All packaging materials used for the appliance are environmentally friendly;
they are 100% recyclable and are marked with the appropriate symbol.
CAUTION!
Keep packaging materials such as polythene bags, polystyrene pieces, etc. out of
reach of children.
Old appliances should not simply be disposed of with normal household waste
but should be delivered to a collection and recycling center for electric and
electronic equipment.
A symbol shown on the product, the instruction manual or the packaging shows
if it is suitable for recycling.
Materials used inside the appliance are recyclable and are labelled with the relevant
information. By recycling materials or other parts from used devices you are making a
significant contribution to the protection of our environment.
Information on appropriate disposal centers for used devices can be provided by your
local authority.
DISPOSAL OF THE APPLIANCE
UNPACKING

5
This appliance has a ‘Y’ type supply cord connection and must be installed by a
licensed Electrician, who will ensure that the stove is correctly connected and safely
earthed.
After installation, inspect the unit to make sure all connections are secured and
professionally installed and tightened.
If the supply cord is damaged for whatever reason, it must be replaced immediately.
The rated current is printed on the serial number label which is attached to the upper
back panel of the stove.
IMPORTANT!
The appliance must not be connected through an earth leakage system, please refer
to S.A.N.S. 10142.
The appliance must be connected to the mains through an isolator switch with a
minimum clearance of 3mm between the contacts.
CONNECTION TO THE POWER SUPPLY

6
Electrical installation (Model U305-1 only)
Insert the plug into a 230V 16A, earthed wall socket. The stove is a plug-in model with
a 16A power supply. It is therefore not possible to use all the plates and oven at the
same time. Set the selector to the required position. Do not set the knob to the
unmarked position.
Remove the cover and stove from the packaging, and position the stove on a hard,
even floor (do not put the stove on a base.)
Coating or veneer used on fitted furniture must be applied with a heat resistant
adhesive (100℃). This prevents surface deformation or detachment of the coating.
If you are unsure of your furniture’s heat resistance, leave approximately 25mm of
free space around the cooker. The wall behind the cooker should be resistant to high
temperatures. The back of the stove can warm up to approximately 50℃above the
ambient temperature when in use.
INSTALLATION
WARNING!
Do not use adapters, reducers, or extension cords to connect this
appliance to the mains power supply.
Failure to follow this advice may result in overheating, burning, or fire.
3 Plates
Bake and 2 small plates
Grill and 2 small plates

7
Anti-Tilt mechanism (Stabilizing bracket) – For 500mm range stoves only
Safety regulations stipulate that the Anti-Tilt mechanism supplied with the stove, must be
installed as shown.
IMPORTANT: The instructions below are only relevant to the 500mm-range stoves.
“A” 1 x Anti-Tilt chain.
“B” 1 x Anti-Tilt hook with anchor sleeve.
“A” is factory fitted at the rear of the stove.
Position the stove and move “A” to touch the wall behind the stove.
Mark the hole where “A” touches the wall behind the stove.
Move the stove away from the wall to allow for an area to work in.
Using a 6.0 mm concrete drill bit, drill a hole at the marked position.
Using the stability hook and anchor sleeve “B”, firmly secure “B” to the wall.
Slide the stove back in the position and engage the stability chain “A” onto the stability
hook “B”.
The stove is secured and will not accidentally tilt if downward pressure is applied to
the open oven door.

8

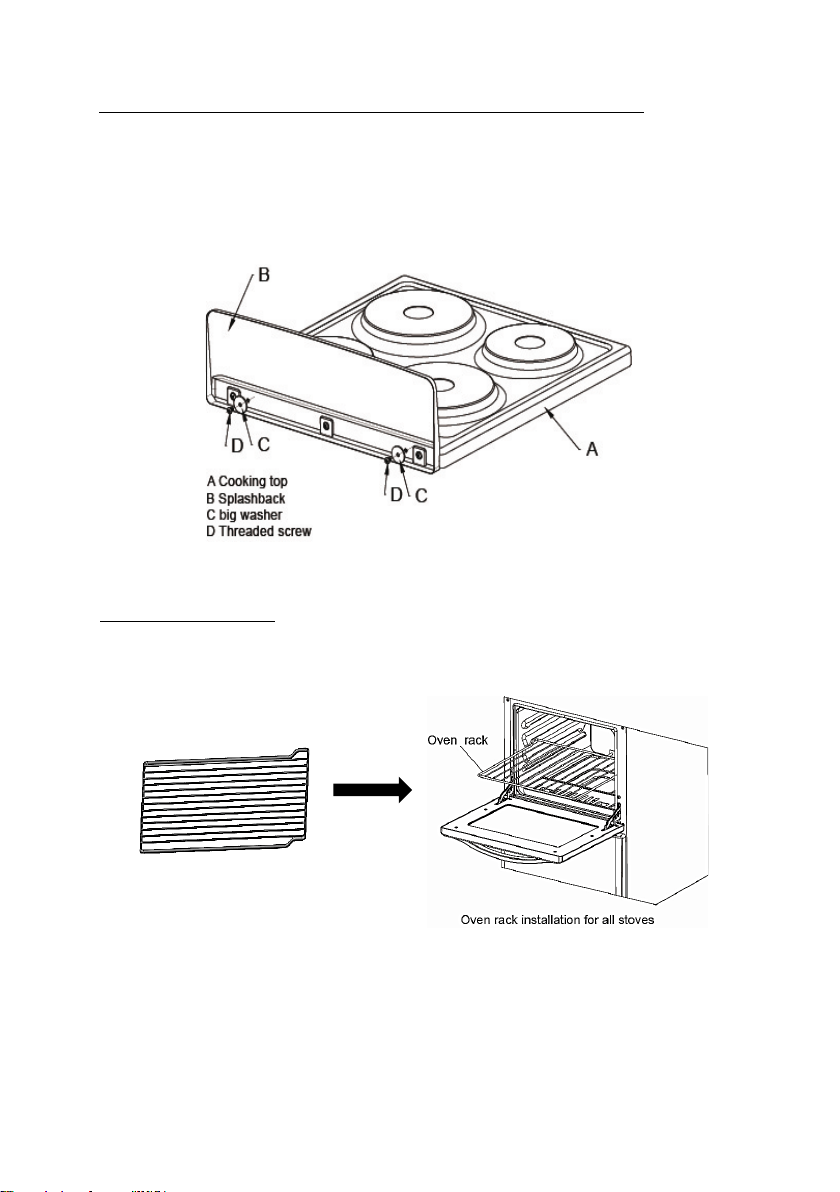

SPLASHBACK MOUNTING FOR 500mm RANGE AND U106 STOVES:
To install the rear splash back, slide the lugs on the bottom of the panel. Align the
splash back with the hole at the back of the stove and secure with screws.
INSTALL OVEN RACK:
Oven rack

9
1
2
3
4
5
6

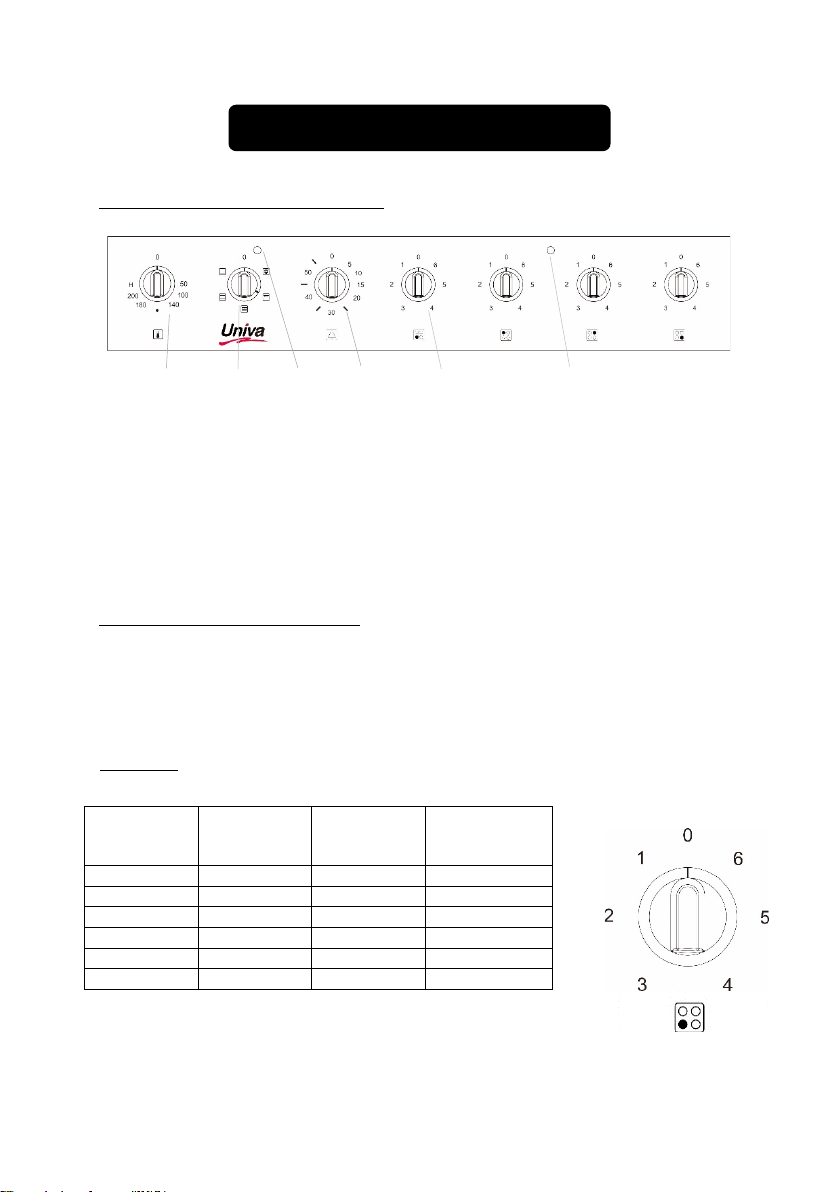

CONTROL KNOBS ON THE STOVES:
1.Temperature control knob
2.Oven function selection knob
3.Oven indicator light
4.Ringer Timer (U116) or Warmer drawer switch (U126)
5.Plate selector
6.Plate in use indicator light (600mm Range only)
USING HEATING (solid) PLATES:
Turn corresponding knob for selected plate clockwise, the plate indicator light will
show the plate is on (600mm Range only). Once cooking is finished, turn off the plate
by turning the knob to ‘’0’’ position.
Caution:The plate will remain hot for a few minutes.
Plate knob
position
Ø145
1000W
(small plate)
Ø180
1500W
(large plate)
Ø180
RAPID 2000W
(Hi-speed plate)
1
100W
145W
177W
2
170W
225W
225W
3
255W
300W
300W
4
510W
865W
865W
5
750W
1150W
1150W
6
1000W
1500W
2000W
OPERATING INSTRUCTIONS

10
NOTE THE FOLLOWING:
At first use, switch on the hot plate at position 3 for 5 minutes, to burn off the
excess protection material.
Use a flat pan with the same base diameter as the plate.
Do not put anything between hot plate and pan.
After using the plate, once it cools, clean the surface with a wet cloth Do not use
abrasive cleaning materials.
Treat the plates with a small amount of clean vegetable oil to prevent rust.
60 MINUTE RINGER TIMER (U116 ONLY):
Set the time by turning the switch clockwise. The timer is set for a
maximum of 60 minutes and will ring once the selected time has
lapsed. To cancel the timer, turn the switch to “0” position.
NOTE:
The timer must be wind-up to 60 minutes and then turned
back to the required cooking time. Failure to wind-up the
timer will result in the timer not winding down to zero and
the alarm will not sound.
The mechanical ringer timer is only used for timing and it cannot cut off the power
supply of the oven and plates.
USING WARMER DRAWER (U126 ONLY):
Warmer drawer (if fitted) has an element fitted with a symbol on the
selector switch. If no symbol is on the selector switch, then the
specific model only has a storage drawer.
For the warmer drawer to work, turn the knob to the position “1”.
Turn off by turning the knob to ‘’0’’ position.
NOTE:
Do not store combustible materials in the warmer drawer as these could ignite. The
warmer drawer can be used to heat up food or keep food warm.

11

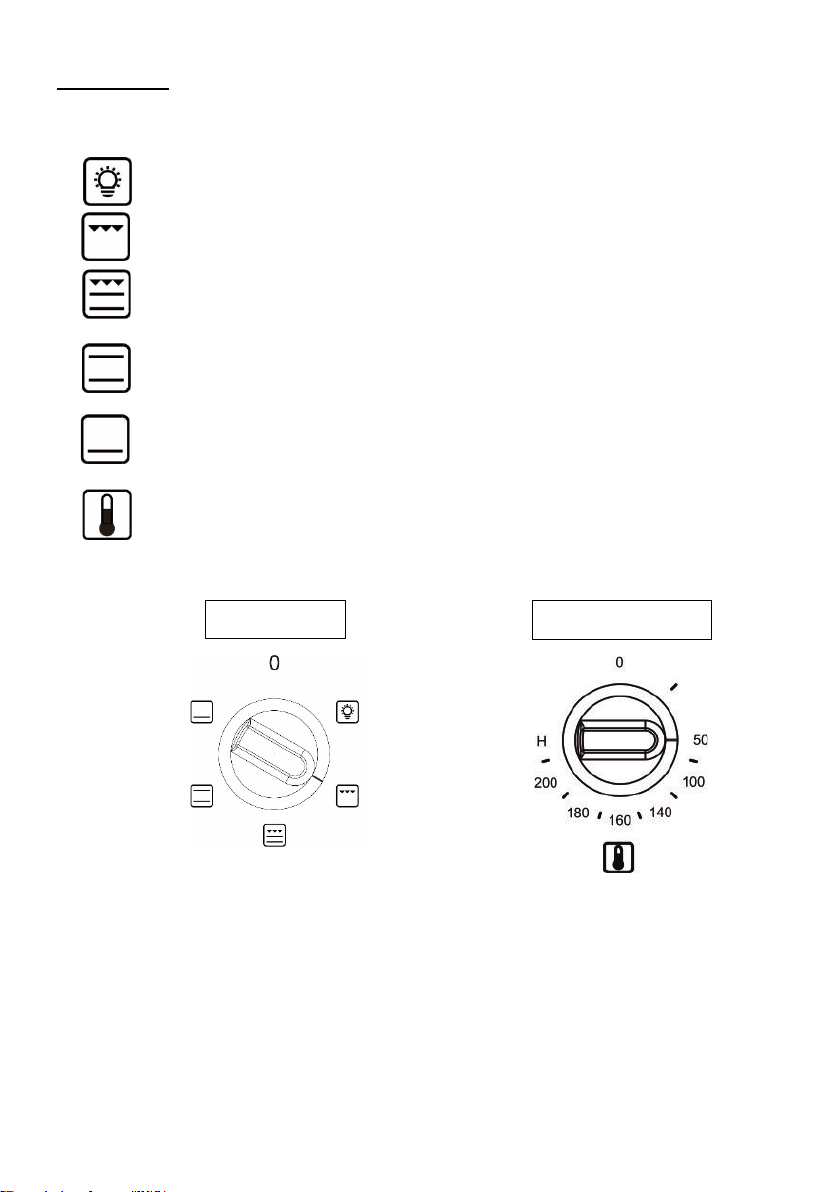

USING OVEN:
The following symbols are indicated on the oven, depending on the model.
Oven Light- stays on when oven is in use. (Optional)
Grill – Thermostatically controlled grilling.
Preheat – Reduces oven heat-up time. Remember to select “bake” when the
selected temperature has been reached.
Bake – Top & bottom bake elements for conventional baking. The top bake
element is a black-heat element and will never turn red as with the bottom bake
element.
Bottom Bake – only bottom element works for moderate baking,
Thermostat – All functions of the oven are thermostatically controlled. "H" is
the maximum temperature of 230°C
The oven is controlled by the function (A) and temperature (B) selection knobs.
NOTE:
Turn the temperature control knob to the required setting when using the oven
for baking or grilling. Remember to select which elements you want to use on the
selector switch, otherwise the oven will not work. The indicator light will go out
when the oven has reached the required temperature and will continue to go
“ON” & “OFF” as the oven is thermostatically controlled.
Set all switches to ‘0’ position when not in use.
A - Function
B - Temperature

12
WARNING!
When using the pre-heating function, it is recommended that the oven door is closed.
When the grill is in use, accessible parts can become hot - Keep children away from the
oven.
For Plug-in Model U305-1
All three plates will function provided the bake or grill function for the oven is NOT
selected. (See Page 6)
If either bake or grill is selected, the large plate is automatically switched off.
The oven will either bake or grill depending on your selection but will not bake and
grill simultaneously.
To bake, turn the thermostat to the required temperature and select bake on the
selector switch.
To grill, turn the selector switch to grill, the grill element will come on.
Plates may be wiped with a thin layer of cooking oil after use to prevent rusting.
Set all switches to ‘0’ position when not in use.
For 500mm Stove Range
Turn the control switches to ‘0’ position when plates are not in use.
To operate the oven, turn the temperature control knob to the desired setting. When
the pilot light goes out, the oven has reached the desired temperature. The pilot light
will continue to go on and off during the period of use in a set temperature range.
To grill, turn the temperature control knob until it reaches “Grill”.
For 600mm Ceramic Hob Only
RESIDUAL HEAT INDICATOR (HOT SURFACE INDICATOR)

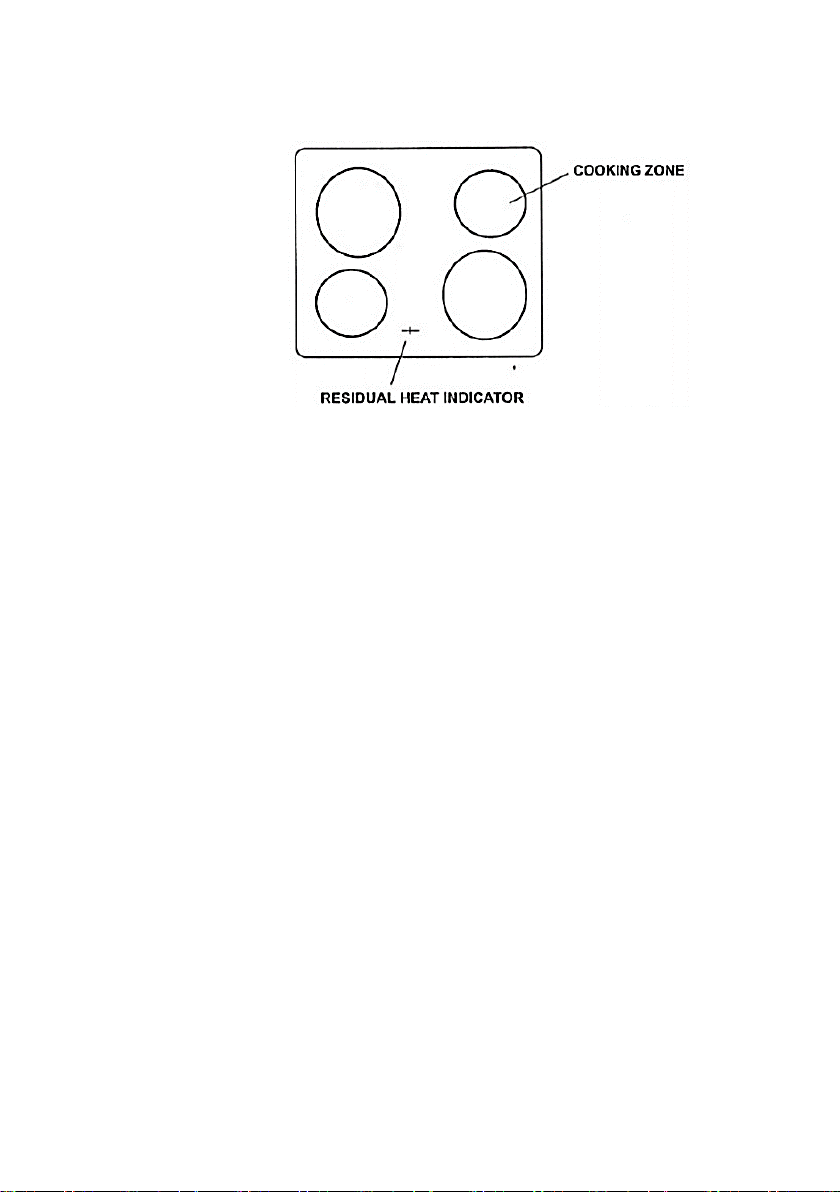

Each heating element has a corresponding residual heat indicator light. This light
switches on automatically when the temperature of the corresponding cooking zone
exceeds 60℃. Once a cooking zone has been turned off, the corresponding residual
light will stay on until the cooking zone has cooled down to 60℃.

13
During this time avoid touching the cooking zone and take precautions to ensure
children cannot touch the cooking zone.
NOTE THE FOLLOWING:
Before switching on, check which knob controls the desired cooking zone. It is
best to place the pot or pan on the cooking zone before switching on, and remove
it only after switching off.
Use only flat-bottomed pans/pots with a regular surface (caution must be taken
with cast iron pans). Irregular bottoms can scratch and damage the glass-ceramic
surface. Never use aluminum pots on the ceramic hob. Check that the bottom of
the pan / pot is clean and dry.
Recommended base thickness is 2-3mm for enameled steel and 4-6mm for
stainless steel with a sandwich bottom.
Never cook food directly on the glass-ceramic cooktop; always use suitable pots.
Be extra cautious as the cooking zones remain hot even once the plates have
been switched off.
Residual heat indicator light will remain on until cooking zones has sufficiently
cooled down to prevent burns and injuries.
It also helps save energy as it shows which cooking zones have enough residual
heat left for further cooking at a low temperature or to keep a dish warm
Do not use the cooktop if the surface is broken or damaged
If there is a crack on the cooktop, disconnect the appliance from the mains break
immediately and contact After-Sales Service.
Do not allow heavy or sharp objects to fall on the glass-ceramic cooktop.

14
Using energy in a responsible way, not only saves money but also helps the environment.
Save energy! This is how you can do it:

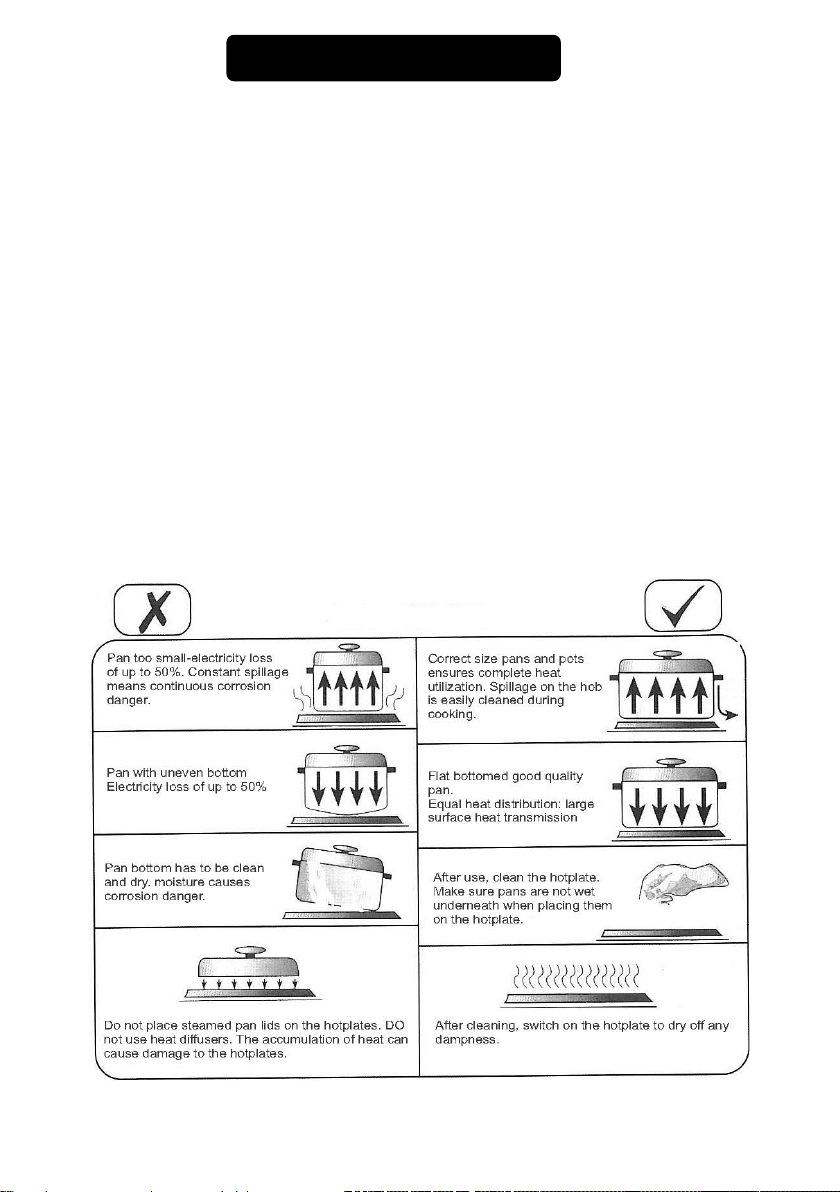

Use proper pans for cooking.
oPans with thick, flat bases can save up to 33% on electric energy. Remember
to cover pans with a lid if possible, otherwise you will use four times as much
energy!
Match the size of the saucepan to the surface of the heating plates.
oA saucepan should never be smaller than a heating plate.
Ensure heating plates and pan bases are clean.
oSoils can prevent heat transfer-and repeatedly burnt-on spillages can often
only be removed by products which cause damage to the environment.
Do not uncover the pan too often (a watched pot never boils!).
oDo not open the oven door unnecessarily.
Switch off the oven in good time and make use of residual heat.
oFor long cooking times, switch off heating zones 5 to 10 minutes before
cooking is completed. This saves up to 20% on energy.
HOW TO SAVE ENERGY

15
Adequate cleaning and regular maintenance of the stove can have a significant
influence on the continuing fault free operation of the appliance.
CAUTION!
Do not use cleaning products containing abrasive materials for the cleaning and
maintenance of the glass front panel.
Do not use any abrasives, steel wool, chloride, etc., to clean the enameled surfaces.
Simply wipe with a damp cloth while the surface is still warm or use one of the leading
brands of oven-enamel cleaners on the market.
CLEANING THE OVEN
The oven should be cleaned after every use.
Cool the oven completely before cleaning.
Never clean the appliance with a pressurized hot steam cleaner!
The oven cavity should only be washed with warm water and a small amount of
dishwashing liquid.
Steam cleaning:
-pour 250ml of water (1 cup) into a bowl placed in the oven on the first level from
the bottom.
-Close the oven door,
-Set the temperature knob to 50 ℃, and the function knob to the bottom heater
position, heat the oven chamber for approximately 30 minutes,
-Open the oven door, wipe the chamber inside with a cloth or sponge and wash using
warm water with dishwashing liquid.
After cleaning the oven cavity, wipe it dry.
CLEANING AND MAINTENANCE
WARNING!
Before cleaning, the stove must be switched off and all knobs must
be set to the “0” position.
Do not start cleaning until the oven has completely cooled.

16
CLEANING THE HOB PLATES
 For light soiling and everyday cleaning simply wipe with a moist cloth.
 For dirty hotplates use a commercial cleaner.
 Be careful to completely remove the cleaner and dry the hotplate by running the
element for a short time.
 The plates can be then oiled with a thin coating of vegetable oil or a suitable
commercial product.
 Some discoloration of the trim ring is normal during use.
 Never scrub the plates with harsh scouring powders, detergents, or agents, never
use steel wool on the plates.
 Do not let moisture lie on the cold plates, wipe it off and switch the plates on for a
few minutes so that it can dry thoroughly.
 Try to use all the plates regularly as an infrequently used plates tends to corrode. If
these precautions are taken, no undue rusting of the stove should be experienced,
even under coastal conditions.
CLEANING THE CERAMIC HOB
 Regular cleaning after use will prevent dirt build up and ensure that the hob
remains bright and attractive.
 Spillage (especially sugar solution such as jam) should be wiped off immediately
with a damp cloth while the hob is still warm.
 If necessary stubborn spills may be removed using a blade scraper and smooth
top cleaner (Scraper can be purchased from most Hardware and Retail Stores).
 Clean the hob with a damped cloth and ‘Smooth top cleaner’.
 Wipe the hob surrounds with a hot soapy cloth and dry thoroughly.

17
CLEANING THE KNOBS AND CONTROL PANELS
As these are specially designed and easy to clean, wipe with a damp cloth only.
HOW TO REMOVE THE OVEN DOOR
To obtain easier access to the oven cavity for cleaning, it is possible to remove the
door.
After the door is fitted to the oven, the safety catch should be carefully
lowered down again. If the safety catch is not set, it may cause damage to the
hinge when closing the door.
1. Open the oven door fully.
2. Lift up and turn the small hooks located on the hinges (right and left).
3. Grip the door on the two external sides, shut it slowly but not completely.
4. Pull the door up towards you, lifting it out of the oven frame.
5. To replace the door, use the reverse procedure.
1
2
3
4

18
HOW TO REPLACE THE OVEN LAMP (600mm Range only)
Changing the bulb:
Unscrew the protective cover. We recommend that you wash and dry the glass cover
at this point. Carefully remove the old bulb and insert the new bulb suitable for high
temperatures (300°C) having the following specifications: AC 220-240V/50Hz, 25W,
E14 fitting. Refit the protective cover and reconnect the oven to the mains power.
IMPORTANT
Never use screwdrivers or other utensils to remove the light cover. This could damage
the enamel of the oven or the lamp holder. Remove only by hand.
Never replace the bulb with bare hands as contamination from your fingers can cause
premature failure. Always use a clean cloth or gloves.
NOTE:
The bulb replacement is not covered by the guarantee.
WARNING!

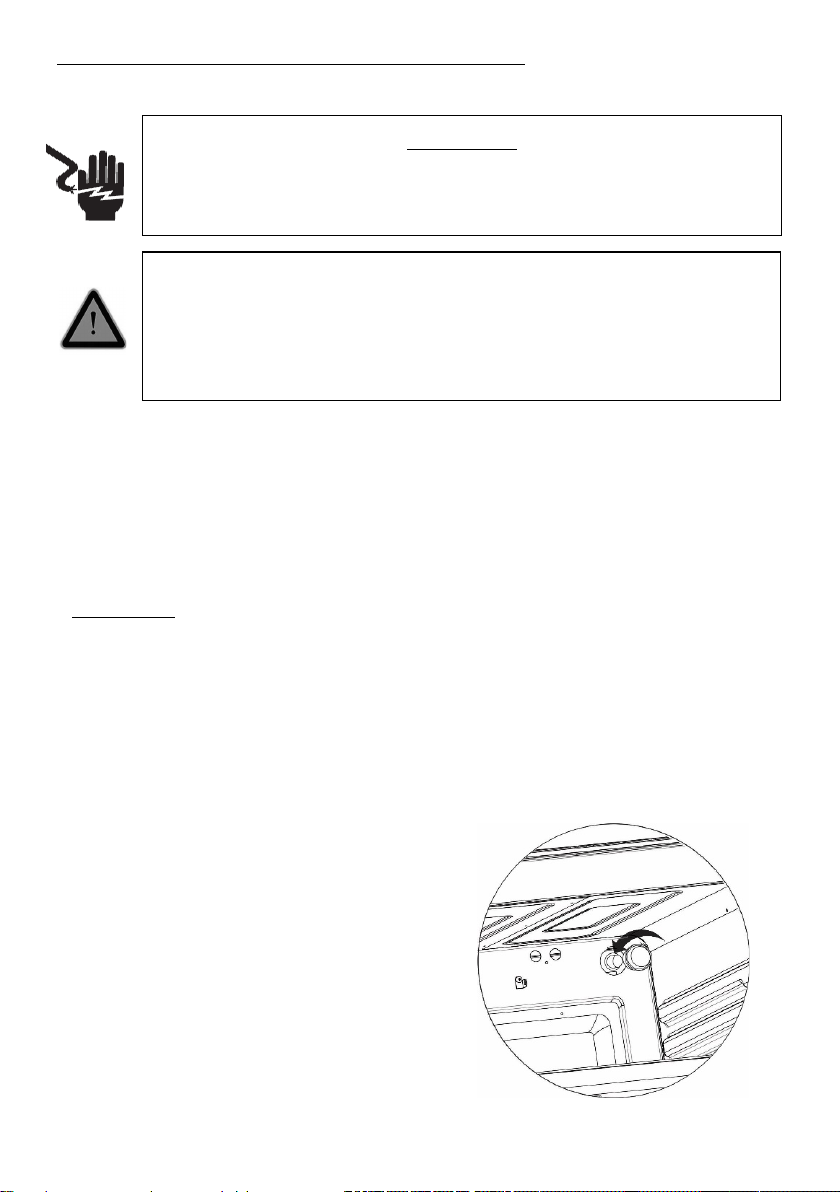

Ensure that the appliance is switched off before replacing the lamp to
avoid the possibility of electric shock.
LAMP SPECIFICATION
-Voltage: AC 220-240V/50Hz -Wattage: 25W -Type: E 14
Resistant to high temperatures (300°C)
Replacement lamps are available from service technician.

19
If you cannot find an answer to the problem in the chart below, or if the problem cannot
be fixed, technical help is needed. Contact Customer Care!
PROBLEM
POSSIBLE CAUSE
WHAT TO DO
The oven or hob is not
heating and the
indicator light is off
No power supply to the
stove
Check that the stove is
connected to the power
supply and the power is
turned on. If it is and the
oven still doesn’t work,
there may be a Power
failure in your home or area.
The oven lamp does
not come on, but the
oven is heating.
The lamp has blown
Replace the lamp. See
instructions in ‘CLEANING &
MAINTENANCE’.
Uneven baking results. Oven not properly
preheated.
Put the food in the oven
only when the temperature
indicator light has gone off.
Droplets of water in or
around oven (e.g. on
control panel, oven
door, rubber seal
framing the cavity).
Food has high moisture
content or local climate
(temperature, humidity) is
contributing to
condensation.
Some condensation is
normal. You can wipe the
droplets off with a soft
cloth.
The oven door is noisy
or has a poor seal
The oven door is not
installed properly
Replace the oven door. See
instructions in ‘CLEANING &
MAINTENANCE’.
Ensure enough ventilation is provided for oven and hob.
DO NOT USE ALUMINUM FOIL TO COVER THE BOTTOM OF THE OVEN AS THIS
WILL CAUSE DAMAGE TO THE ENAMEL
(Kindly contact your nearest dealer for further information)
TROUBLESHOOTING

20
500MM RANGE - FREESTANDING STOVES
U305-1
U405-1
DIMENSIONS
-Height (mm)
1007
1007
-Height to the Cooking Top (mm)
895
895
-Width (mm)
495
495
-Depth (mm)
618
618
-Weight (kg)
34.8
36.3
PLATE
-1000W Solid Plates
2
2
-1500W Solid Plates
1
2
-6 Position Control Switch
3
4
OVEN
- Energy Rated
A
A
-Oven Capacity Gross (L)
58
58
-Oven Capacity Nett (L)
51.3
51.3
-Oven Height (mm)
320
320
-Oven Width (mm)
400
400
-Oven Depth (mm)
450
450
-Grill Element 1250W
• •
-Bake Element 1400W
• •
-Thermostat Control
• •
-Roast Pan
• •
-Oven Rack
1 1
-Easy clean Enamel
• •
COLOR
-Black
• •
OTHERS
-Cable Stove
•
-Plug-in Stove
•
-Voltage 230Vac/50Hz
• •
-Max. Power (kW)
3.5
7.7
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE WITHOUT PRIOR NOTICE
SPECIFICATIONS
