Universal Innovations Sahara X450 User manual

X4 50 Barbecue
Photograph is not to scale. Specication
subject to change without prior notice.
• For outdoor use only.
• Read instructions before using the appliance. Failure to follow instructions could result in
death, serious bodily injury, and/or property loss.
• Warning: accessible parts may be very hot. Keep young children away.
• Do not move the appliance during use.
• Turn o the gas supply at the gas bottle after use.
• Any modication of the appliance, misuse, or failure to follow the instructions may be
dangerous and will invalidate your warranty. This does not aect your statutory rights.
• Retain these instructions for future reference.
• Leak test your barbecue annually. Check the hose connections are tight and leak test each
time you reconnect the gas bottle
WARNING
FOR YOUR SAFETY FOR YOUR SAFETY
IF YOU SMELL GAS:
1. Shut o gas to the appliance. 1. Do not store or use petrol or other ammable vapours or
2. Extinguish any open ame. liquids in the vicinity of this or any other appliance.
3. Open barbecue lid or hood. 2. A gas bottle not connected for use shall not be stored in the
4. If odour continues, discontinue use and vicinity of this or any other appliance.
contact your local dealer.
Universal Innovations
Manufactured by
www.uigroup.ie

Parts Supplied
Ref Description Illustration Qty Ref Description Illustration Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Large Wheel
Castor
Wheel
Cabinet
Base
Cabinet
Base Plate
Cylinder
Rack
Left + Right
Side Wall
Cabinet
Front Panel
Cabinet
Brace Plate
Heat Shield
Rear Cross
Bar
Front Cross
Bar
Sink + Hood
Assembly
2
2
1
1
1
1
1
1
1
1
1
1
Hose
Assembly
Left Side
Shelf
Right Side
Shelf
Vaporising
Bars
Cooking
Grill
Warming
Rack
Rotisserie
Motor
Bracket
Rotisserie
Handle
Bracket
Rotisserie
Motor
Rotisserie
Bar
Rotisserie
Skewers
Rotisserie
Handle
1
1
1
4
4
1
1
1
1
1
2
1
2

3
M6x12
Bolt
M6x16
Bolt
M6 Washer
M4x10
Bolt
35
4
4
8
Tools Required For Assembly
• Allen Key (supplied)
• Adjustable Spanner
Before You Start
• Check the contents of the box and make sure you have all the parts and ttings listed. If not,
contact our Helpline on 00 353 1 2873797 and we will be able to help you.
• When you are ready to start, make sure that you have plenty of space and a clean dry area
for assembly.
• Before cooking on this barbecue, turn the barbecue on at the medium to high temperature
and burn for 30 minutes to allow curing of vaporising bars and to burn o cleaning residue
materials.
Assembly
• Please lay out all nuts and bolts and check lengths before assembly. It is recommended that
the carton is cut open and spread out on the oor and used as a protective surface during
assembly. Refer to the assembly diagrams as necessary.
• Important - while every precaution has been made in the manufacture of this product, care
must be taken during assembly in case sharp edges are present.
• Remove all transit packaged parts from the inside of the grill body before assembling.
Important - follow gas leak test advice before use. Ensure all connections are tight and secure.
• This product is for OUTDOOR USE ONLY.
• NEVER use indoors, in an enclosed area or below ground level.
• This barbecue is intended for use with LPG bottled gas only. (A regulator of 28mbar must be
used for Butane gas or 37mbar for Propane gas).
• NEVER use an adjustable regulator with this barbecue.
Parts Supplied
Ref Description Illustration Qty Ref Description Illustration Qty
25
26
A
B
C
D
Rotisserie
Rotating
Sleeve
Grease Tray
1
1
Fixings Supplied

4
Assembly Step 1

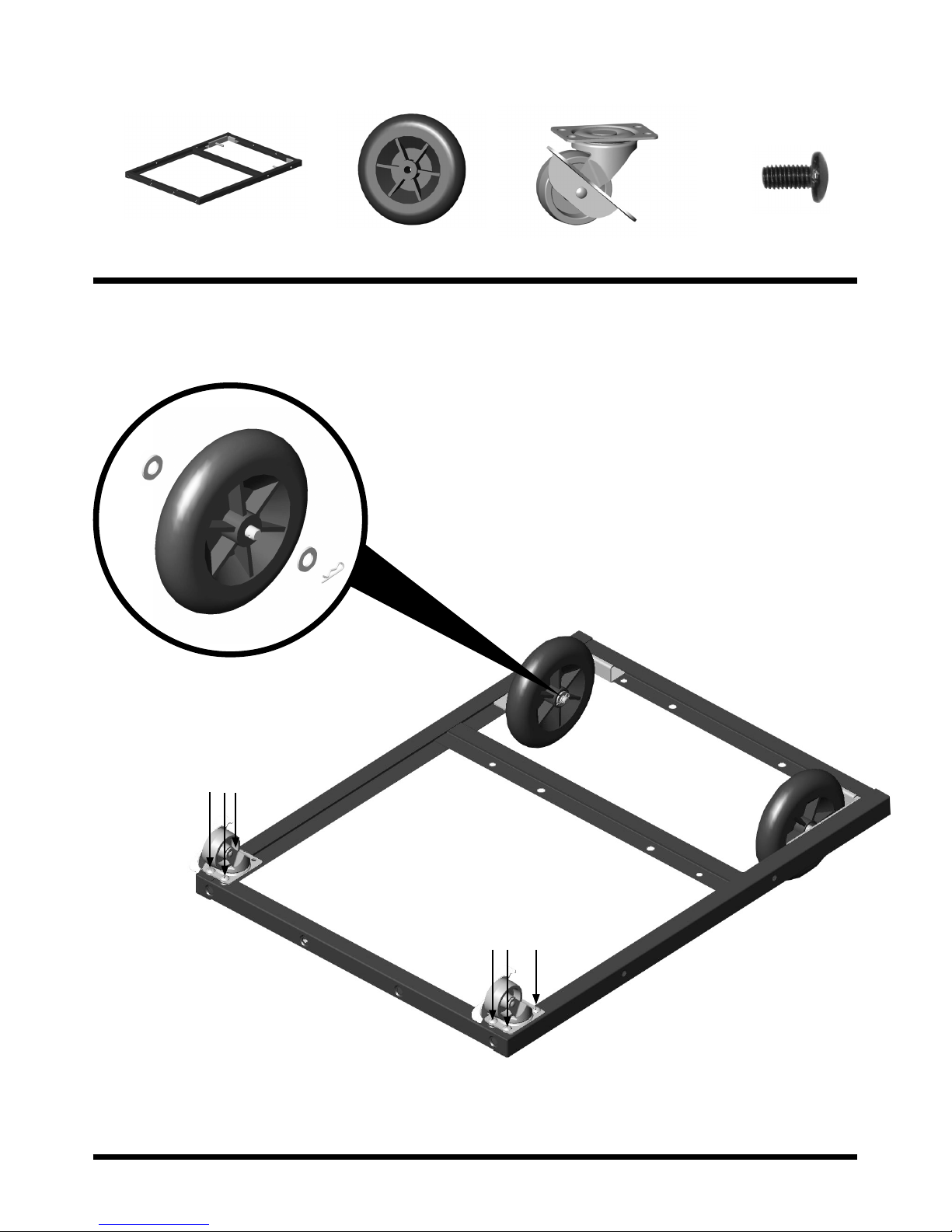

Fit large wheels to the cabinet base using the pretted washers and R-clips. Fit castor wheels to
the cabinet base using 6 M6x12 bolts (Ref A).
Large Wheel Castor Wheel
NOTE: Order of xings
on large wheels
M6x12 Bolts (Ref A)
M6x12 Bolts (Ref A)
M6x12 Bolt (Ref A)Cabinet Base

5
Assembly Step 2

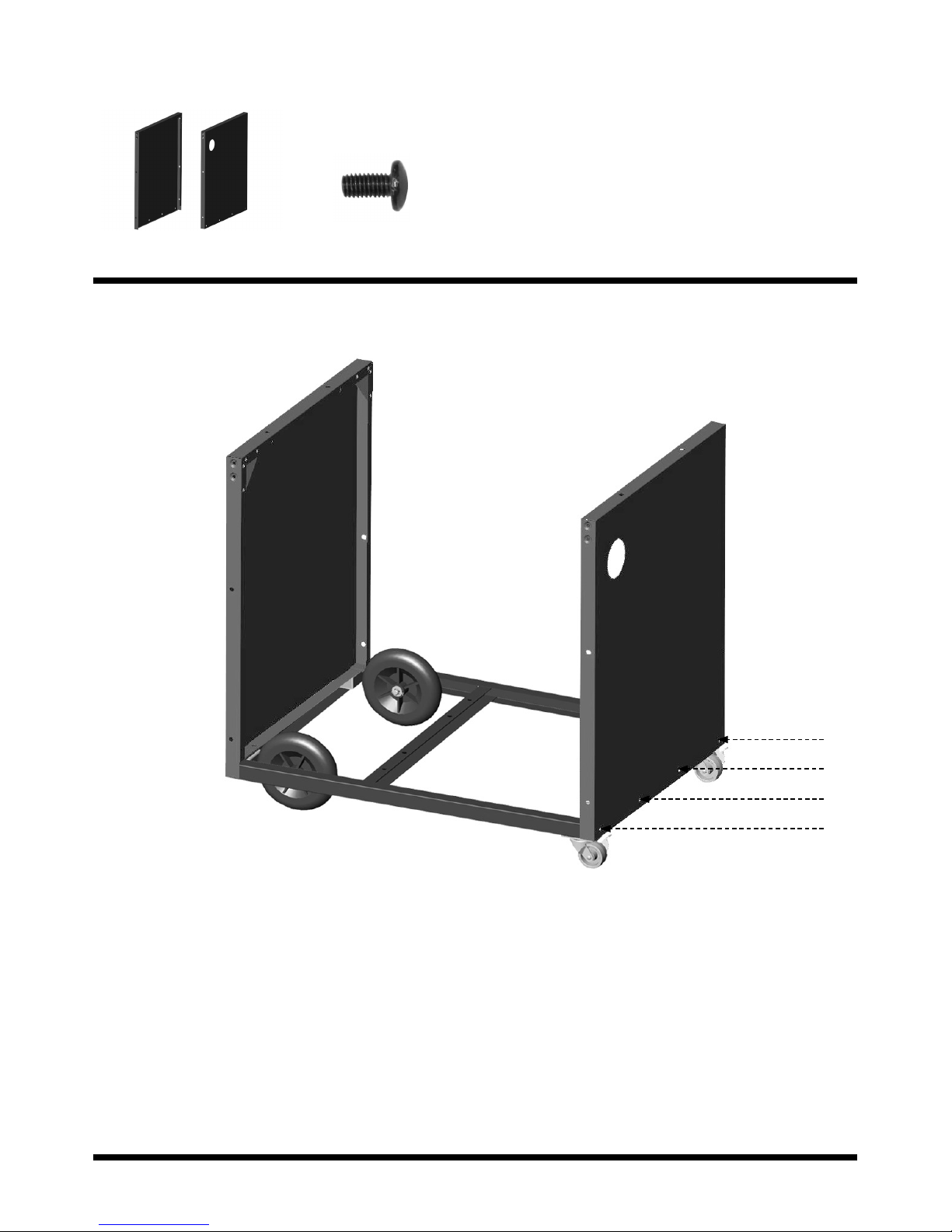

Fit left and right side walls using 4 M6x12 bolts (Ref A) along the bottom of each wall. Note: make
sure large wheels are on the left hand side.
Left + Right Side Wall M6x12 Bolt (Ref A)
M6x12 Bolts (Ref A)

1. Fix cabinet front panel at the six points as shown below using 6 M6x12 bolts (Ref A). Note: an
extra person will be needed to hold the door in position while tightening xings.
2. Fix cabinet brace plate to right side (behind big wheel) using 4 M6x12 bolts (Ref A).
Cabinet Front Panel Cabinet Brace Plate
1.
2.
M6x12 Bolt (Ref A)
6
Assembly Step 3

7
Assembly Step 4

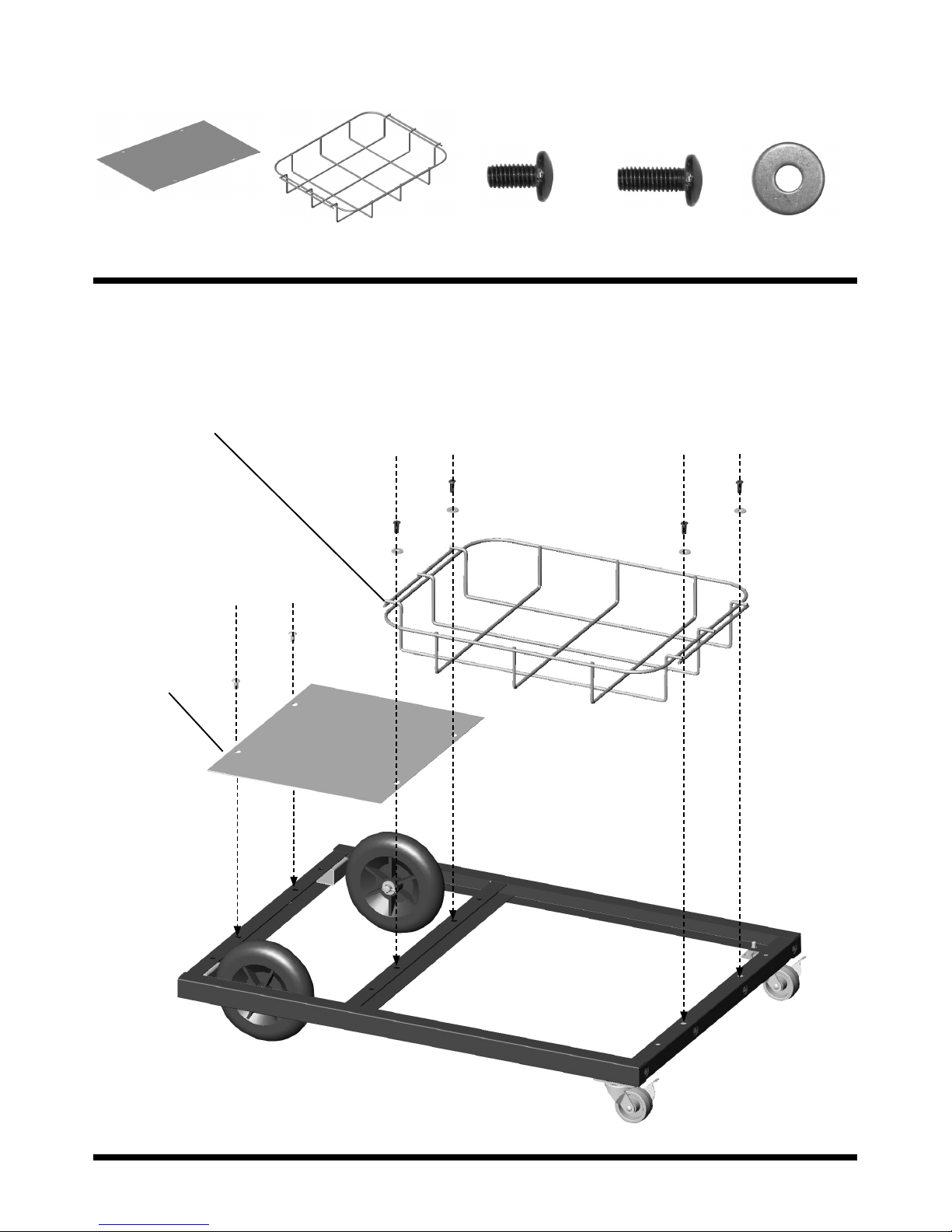

Turn barbecue cabinet base over (large wheels on left hand side). Position cabinet base plate and
cylinder rack as shown. Note: place cabinet base plate rst. Use 4 M6x16 bolts (Ref B) and 4 M6
Washers (Ref C) to secure cylinder rack and one side of cabinet base plate. Use 2 M6x12 bolts
(Ref A) to secure other side of base plate.
Cabinet Base
Plate
Cylinder Rack M6x16 Bolts (Ref B)
M6 Washers (Ref C)
M6x16 Bolts (Ref B)
M6 Washers (Ref C)
M6x12 Bolts (Ref A)
Cabinet Base Plate Cylinder Rack M6x12 Bolt (Ref A) M6x16 Bolt (Ref B) M6 Washer (Ref C)

8
Assembly Step 5
Heat Shield
Fix heat shield using 4 M6x12 bolts (Ref A).
M6x12 Bolt (Ref A)

9
Assembly Step 6
Fit front cross bar and rear cross bar using 8 M4x10 bolts (Ref D). Make sure front cross bar (with
magnet) is placed at front of barbecue.
Rear Cross Bar Front Cross Bar
Secure chain to front access
panel with 1 M6x12 bolt (Ref A).
M4x10 Bolt (Ref D) M6x12 Bolt (Ref A)

10
Assembly Step 7
Lie Sink + Hood Assembly on its back. Screw Hose Assembly onto gas pipe and pinch tight with
spanner provided.
Sink + Hood Assembly
Note: screw points
located on inside
of sink (2 on either
side).
M6x12 Bolt (Ref A)
Position sink + hood assembly onto cabinet. Open hood and use 4 M6x12 bolts (Ref A) to secure
sink + hood assembly into position.
Note: Fixing holes are located on inside of sink (2 on each side).
Note: Two people are required to lift sink + hood assembly into position.
Hose Assembly

11
Assembly Step 8
Use pre-tted R-clip and pin to secure left and right side shelves. The long bar is used to secure
the side shelf in the upright position. Note: Right side shelf includes side burner.
Left Side Shelf Right Side Shelf
R-clip and pin
Long bar

12
Assembly Step 9
1. Fit vaporising bars (x4) into position as shown.
2. Fit cooking grills (x4) into position as shown.
3. Fit warming rack into position as shown.
1.
2.
3.
Vaporising Bars (x4) Cooking Grills (x4) Warming Rack

13
Assembly Step 10

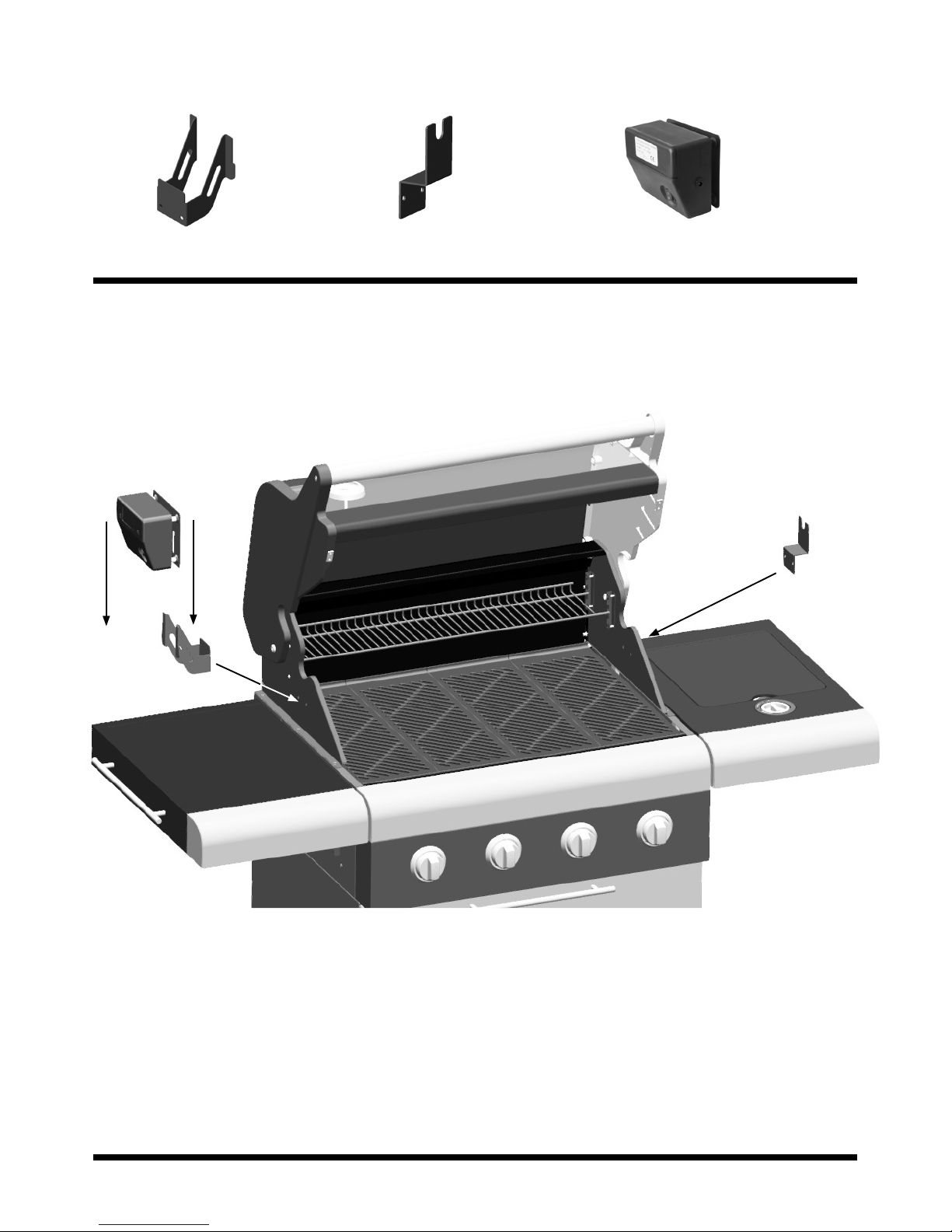

1. Fit Rotisserie Motor Bracket to sink panel as shown using the 2 pretted screws and nuts.
2. Fit Rotisserie Handle Bracket to sink panel as shown using the 2 pretted screws and nuts.
3. Slide Rotisserie Motor onto Rotisserie Motor Bracket.
1.
2.
3.
Rotisserie Motor Bracket Rotisserie Handle Bracket Rotisserie Motor

14
Assembly Step 11
Rotisserie Bar Rotisserie Skewers (x2) Rotisserie Handle Rotisserie Rotating Sleeve

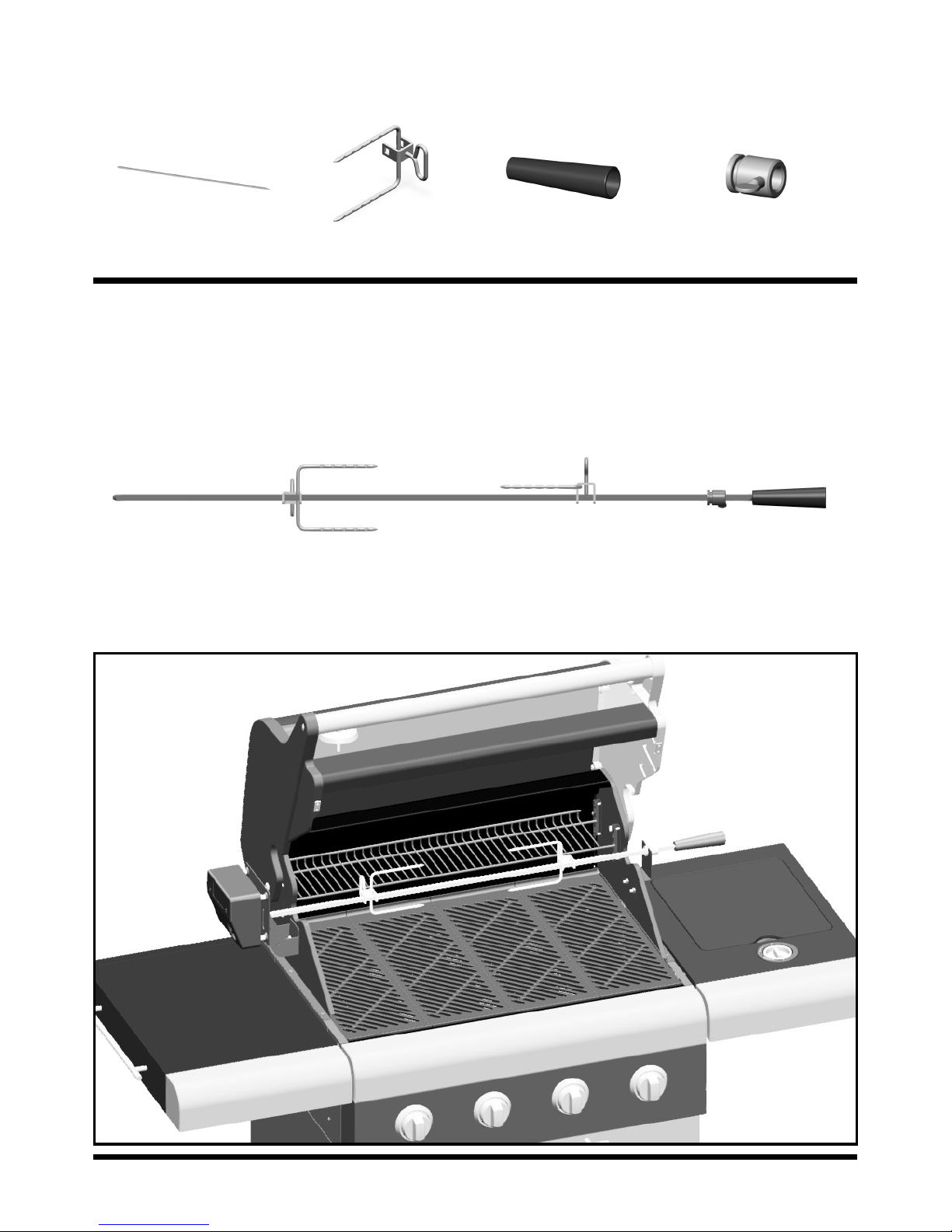

Assemble Rotisserie as shown below. Insert pointed end into Rotisserie Motor and rest Rotisserie
Rotating Sleeve on Rotisserie Handle Bracket.
Note: When using Rotisserie, remove the warming rack.

15
Assembly Step 12

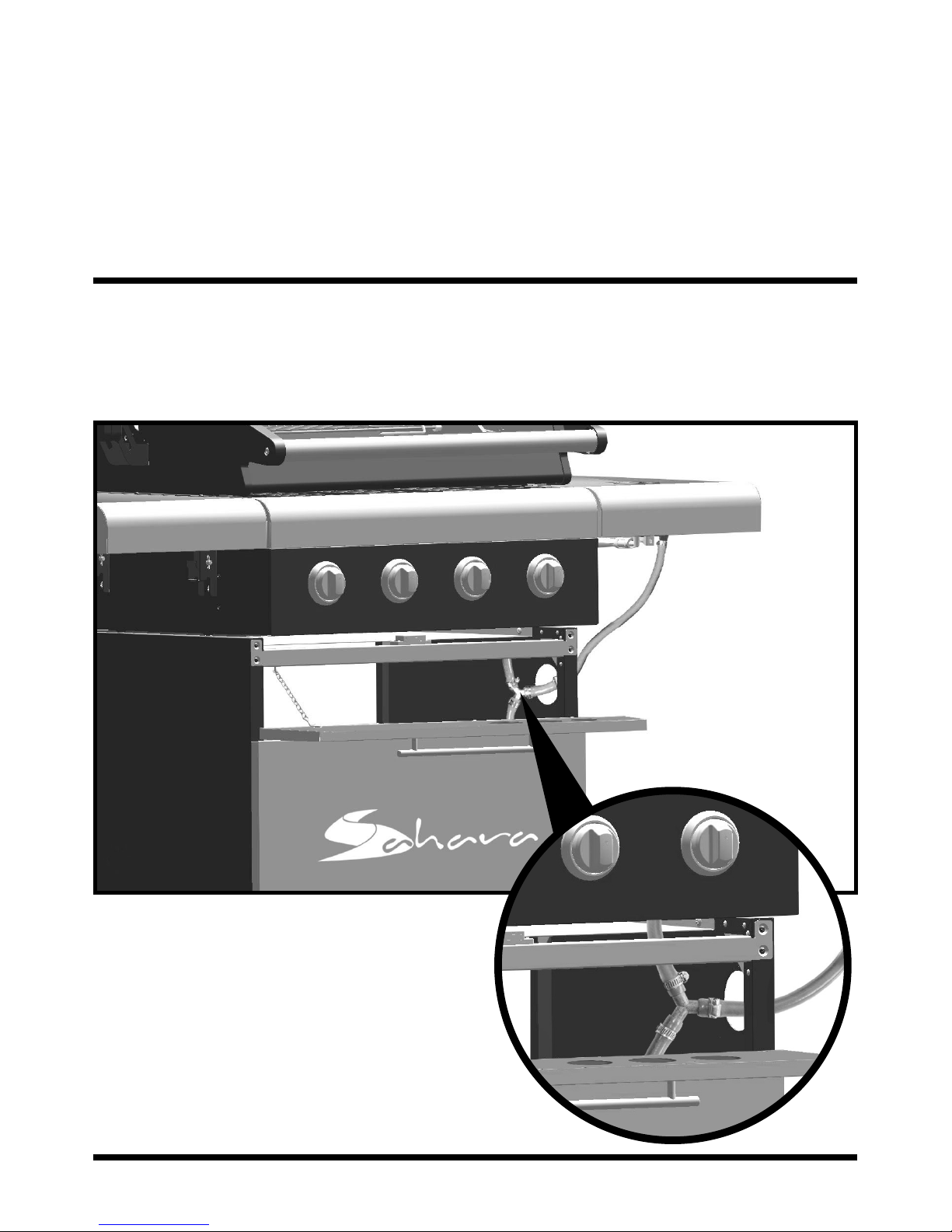

Connect side burner gas hose to t-connector as shown (through hole). Secure with jubilee clip.
Note: Heat end of hose in warm water before connecting for easy tting.

16
Assembly Step 13
Line grease tray with sand and insert as shown.
Load gas cylinder through back of the barbecue. Connect regulator to cylinder as per regulator
instructions. Perform leak test (see page 17).
Use cabinet front panel for easy access to gas hose and regulator.
Grease Tray
315mm
580mm
Maximum
bottle size

BEFORE USING YOUR BARBECUE
Leak Testing
• IMPORTANT – PERFORM LEAK TEST BEFORE USE
• NEVER use an open ame to test for leaks at anytime, DO NOT IGNITE The BARBECUE DURING THE
LEAK TESTING.
• To be performed in a well ventilated area.
• Conrm all the control knobs are in the o position.
• Check for leaks by brushing a solution of 1/2 water and 1/2 soap over all the gas system joints, including
all valve connections, hose connections and regulator connections.
• Ensure soap solution has been applied to all connections – connect the regulator to the gas cylinder,
open the gas control valve on the regulator allowing gas to ow.
• OBSERVE – if bubbles form over any part of the joints there is a leak.
• Turn o the gas and tighten all joints
• Repeat test. If bubbles form again, do not use the barbecue. Please contact your local dealer for
assistance.
• Leak test annually and whenever the gas bottle is removed or replaced.
Gas and Regulator
• This barbecue can use either propane or butane LPG bottled gas.
• Propane bottles, will supply gas all year round, even on cold winter days.
• Butane bottles, will supply sucient gas in summer. Butane gas must not be used in colder temperatures.
Contact your local gas supplier for advice.
• The bottle should be positioned underneath the main barbecue body.
• Gas bottles should never be stored or laid on their side.
• Never store gas bottles indoors.
• This barbecue is intended for use with LPG bottled gas only. (A regulator of 28mbar must be used for
Butane gas or 37mbar for Propane gas.)
• This appliance has been supplied with a PROPANE REGULATOR (only use with Propane gas.)
• NEVER use an adjustable regulator with this barbecue, not suitable for (red) commercial
propane cylinders.
• Please contact your local gas supplier for advice on suitable gas bottles and regulators.
Caution
• If you smell gas – turn o the barbecue, extinguish all ames, open the barbecue hood. If the odour continues,
immediately contact your gas supplier.
• In the event of an uncontrollable re, immediately disconnect the gas cylinder moving it away from re and
contact the re services. DO NOT PUT YOURSELF AT RISK!
• Ensure aerosols are not used near this unit when in use.
• Ensure all packaging and plastic bags are disposed of safely.
Siting Instructions
• This barbecue is for OUTDOOR USE ONLY and should be placed in a well-ventilated area.
• Take care to ensure that it is not placed UNDER any combustible surface.
• The sides of the barbecue should NEVER be closer than 1 metre from any combustible surface.
• Keep this barbecue away from any ammable materials.
• Important – Do not obstruct any ventilation openings in the barbecue body.
• Should you need to change the gas bottle, conrm that the barbecue is switched o, and that there are no
sources of ignition (cigarettes, open ame, sparks, etc.) nearby before proceeding,
• Inspect the gas hose to ensure it is free of any twisting or tension. The hose should hang freely with no
bends, folds, or kinks that could obstruct free ow of gas. Apart from the connection point, no part of the
hose should touch any hot barbecue parts.
• Ensure BBQ has cooled for 1 hour before folding down the side burner tray or removing the grease tray.
• Do not obstruct the ventilation openings of the gas cylinder compartment.
• Always inspect the hose for cuts, cracks, or excessive wear before use.
• If the hose is damaged, it must be replaced with a hose suitable for use with LPG and meet the national
standards for the country of use. The length of the hose shall not exceed 1.5m.
• N.B – The date on U.K orange hose is the date of manufacture, not the expiry date.
17

18
USING YOUR BARBECUE
Connecting to the Cylinder
• Conrm all barbecue control knobs are in the o position.
• Connect the regulator to the gas bottle according to your regulator and bottle dealer’s instructions.
Before Cooking
• Before proceeding, make certain that you understand the WARNINGS section of this manual.
• Before cooking for the rst time, wash cooking grills and operate barbecue for 30 minutes on medium setting.
• Note: When cooking for the rst time, paint colours may change slightly as a result of high temperatures.
This is normal and should be expected.
• Preparation before cooking – To prevent foods from sticking to the cooking grill, please apply a light coat of
cooking or vegetable oil to food before placing on grill.
Lighting the Barbecue
• Turn on gas supply at gas cylinder.
• Push control dial in and slowly turn to “ ” position.
• If burner does not light, return to OFF position and try again.
• Once ignition has occured, hold dial in for at least 10 seconds to ensure the burner stays lit.
• If burner does not light or stay lit after holding dial in for 10 seconds, turn the dial to OFF position and wait for
1 minute and try again. Do not continuously hold the dial in as you may cause a build up of gas.
• In windy conditions shield from wind to ensure easy lighting.
• Turn control dial to alter burner settings as required.
• After ignition, the burners should be burned at the high position for 3-5minutes in order to preheat the
barbecue. This process should be done after every cooking session. IMPORTANT - The hood should be open
during preheating.
• After completion of preheating, turn burners to low position for best cooking results.
Manual Lighting Instructions
• Remove the cooking grill and vapour bar from barbecue.
• Place a lit match beside the burner (at the same location as the sparker shield).
• Push and turn the right most control knob anti-clockwise to the high position.
• After successful lighting, light each burner from left to right as desired using built in cross lighting system.
• If burner fails to ignite after repeated attempts, contact the help line number stated in this manual.
Rotisserie Cooking
• When using Rotisserie, remove the warming rack.
• The Rotisserie Motor requires 2 x D batteries.
• To turn on, switch Rotisserie Motor to “on” position.
• When rotisserie cooking, the burners directly under the food should be OFF.
• A pan should be placed under the meat to prevent excess juice/fat collecting in the barbecue
• The hood should be closed for rotisserie cooking.
Grill Cooking
The Vapour bars evenly distribute the heat across the cooking grill area. The natural food juices produced
during cooking fall onto the hot vapour bars below and vapourise. Even cooking of food will be
achieved by using the barbecue with the hood down. This should only be done with the burners on low setting.
Side Burner Cooking
Lighting Instructions
Open side burner lid and repeat Lighting The Barbecue step above.
Flare-Up Control
IMPORTANT – FLARE UPS CAN OCCUR FROM RESIDUE FAT AND JUICES DRIPPING ONTO THE BURNERS
AND HOT VAPOUR BAR. To reduce this, regularly clean the burners and vapour bar. To control are-up, it is
advisable to trim away excess fat from meat and poultry before grilling. The burners should always be placed
on the low setting during cooking. Always protect your hands when handling anything near cooking surface of
the barbecue.

End of Cooking Session
After each cooking session, turn the barbecue burners to the ‘high’ position and burn for 5 minutes. This
procedure will burn o cooking residue, thus making cleaning easier. Do not use any abrasive materials.
Turning O Your Barbecue
When you have nished using your barbecue, turn all control valves fully clockwise to the ‘O’ position, and
then switch o the gas at the bottle. Wait until the barbecue is suciently cool before closing the hood.
AFTER COOKING
Care and Maintenance
• Regularly clean your barbecue between uses and especially after extended periods of storage. Failure to do
so will cause a build up of grease which will result in a fat re.
• Ensure the barbecue and it’s components are suciently cool before cleaning.
• Do not leave the barbecue exposed to outside weather conditions or stored in damp, moist areas.
• Never douse the barbecue with water when its surfaces are hot.
• Never handle hot parts with unprotected hands.
• In order to extend the life and maintain the condition of your barbecue, we strongly recommend that the unit
is covered when left outside for any length of time, especially during the winter months.
• IMPORTANT – We recommend that servicing of this appliance should be performed either after every 100
hours of use or annually, which ever is achieved soonest.
Cooking Grill
• Clean with hot soapy water.
• To remove any food residue, use a mild cream cleaner on a non-abrasive pad.
• Rinse well and dry thoroughly.
Burner Maintenance
• In normal usage, burning o the residue after cooking will keep the burners clean.
• The burners should be removed and cleaned annually, or whenever heavy build-up is found, to ensure that
there are no signs of blockage (debris, insects) in either the burner portholes or the venturi tubes of the
burners tted over the valve outlets.
Vaporising Bar
• Clean the vaporising bars with soap and warm water using a low abrasive cleaning cloth or sponge!
Grease Tray
• Line the grease tray with aluminium cooking foil
• Spread a layer of normal sand 10-15mm in depth evenly across the tray.
• This will help absorb fat and also reduce are –ups during cooking.
• IMPORTANT – Always check, clean and replace the sand in the tray regularly before use. Do not allow the
fat residue to build up in the tray.
• NEVER – Use without sand in the grease tray.
Barbecue Body
• Regularly remove excess grease or fat from the barbecue body with a soft plastic or wooden scraper.
• If you need to clean fully, use hot soapy water and a cloth, or nylon-bristled brush only.
• Remove cooking surfaces and burners before full cleaning.
• Do not immerse the gas controls or manifold in water.
• Check burner operation after carefully retting into body.
Fixings
• All screws and bolts, etc. should be checked and tightened on a regular basis.
Storage
• Store your barbecue in a cool dry place.
• Cover the burners with aluminium foil in order to prevent insects or other debris from collecting in burner
holes.
• If the barbecue is to be stored indoors, the gas bottle must be disconnected and left outside. The gas bottle
should always be stored outside, in a dry, well-ventilated area, away from any sources of heat or ignition.
• Do not let children tamper with the bottle.
19

20
Warnings
• This product is for OUTDOOR USE ONLY.
• Important – Ensure the barbecue is positioned on at level ground to aid with fat/grease run o.
• Important – LEAK TEST THE BARBECUE WHEN FULLY ASSEMBLED BEFORE FIRST USE. In addition,
always leak test the unit – annually, when dismantled, when parts are replaced, of if the gas cylinder is
removed or replaced. FAILURE TO DO THIS COULD CAUSE SERIOUS INJURY, OR DAMAGE TO THE
BARBECUE.
• NEVER use indoors, in an enclosed area or below ground level.
• This barbecue is intended for use with LPG bottled gas only. (A regulator of 28mbar must be used for Butane
gas or 37mbar for Propane gas.)
• NEVER use an adjustable regulator with this barbecue.
• Failure to read and follow these instructions could result in serious injury or damage to property.
• This product will become hot when in use – take care when touching.
• Keep children and pets at a safe distance from the unit when in use.
• DO NOT move this product when in use.
• Always turn o gas supply at the gas cylinder when not in use.
• Any modication of this barbecue may be dangerous.
• DO NOT leave this product unattended when in use.
• Any parts sealed by the manufacturer or his agent must not be altered by the user.
• ALWAYS position the gas cylinder underneath the main body and ensure the cylinder is vertical at all times.
• When igniting, always have the lid open.
• ONLY use barbecue on a at LEVEL non-ammable surface or ground.
• When positioning, ensure the unit is a minimum of 1 metre from ammable items or structure.
• This barbecue is not intended for use with charcoal or other similar fuel.
• DO NOT use petrol, white spirit, lighter uid, alcohol or other similar chemicals to ignite the barbecue.
• When storing the barbecue or gas cylinder, ensure they are away from ammable materials or liquids.
• The gas cylinder must not be stored next to this or any other appliance.
• Always follow care and maintenance instructions – regularly maintain your barbecue.
• DO NOT allow grease, fat or food residue to build up in or on the barbecue – RISK OF FIRE.
• Always replace worn parts – do not use barbecue if a leak, wear or damage is found.
• Never overload the grill with food – evenly space over the cooking grill surface, ensuring sucient air
circulation to the burners.
• DO NOT store or cover the barbecue until fully cooled.
1. Allow barbecue to fully cool before folding down side trays.
2. Always wear protective gloves when handling hot components or items such as pots.
3. A cooking vessel with a diameter no less than 10cm and no greater than 26cm should only be used.
DO NOT leave your BBQ uncovered when not in use. Store your appliance in a shed or garage when not in
use to protect against the eects of extreme weather conditions, particularly if you live near coastal areas.
Prolonged exposure to sunlight, standing water, sea-air/saltwater can all cause damage to your appliance. (A
cover may not be sucient to protect your appliance in some of these situations).
