Universal Tool UT460H-60-6 Datasheet

MODEL: UT460H-60-6 / UT460H-60-8
UT460H-60-6G / UT460H-60-8G
UT478H-78-6 / UT478H-78-6G
4HP Horizontal Grinders
Universal Tool
™

Model Description Motor
(HP) Motor (Kw) Speed (RPM)
Max
Wheel
Diam.
(in) Handle Weight (lbs) Length (in)
Avg
Air Cons
(cfm) Rec Hose
(I.D. in) Air Inlet
(NPT)
UT460H-60-6 Horizontal Grinder 4 2.9 6000 6 Std 13.0 22.2 13 3/4" 1/2"
UT460H-60-8 Horizontal Grinder 4 2.9 6000 8 Std 13.0 22.2 13 3/4" 1/2"
UT460H-60-6G Horizontal Grinder 4 2.9 6000 6 Grip 13.0 22.2 13 3/4" 1/2"
UT460H-60-8G Horizontal Grinder 4 2.9 6000 8 Grip 13.0 22.2 13 3/4" 1/2"
UT478H-78-6 Horizontal Grinder 4 2.9 7800 6 Std 14.0 22.2 13 3/4" 1/2"
UT478H-78-6G Horizontal Grinder 4 2.9 7800 6 Grip 14.0 22.2 13 3/4" 1/2"

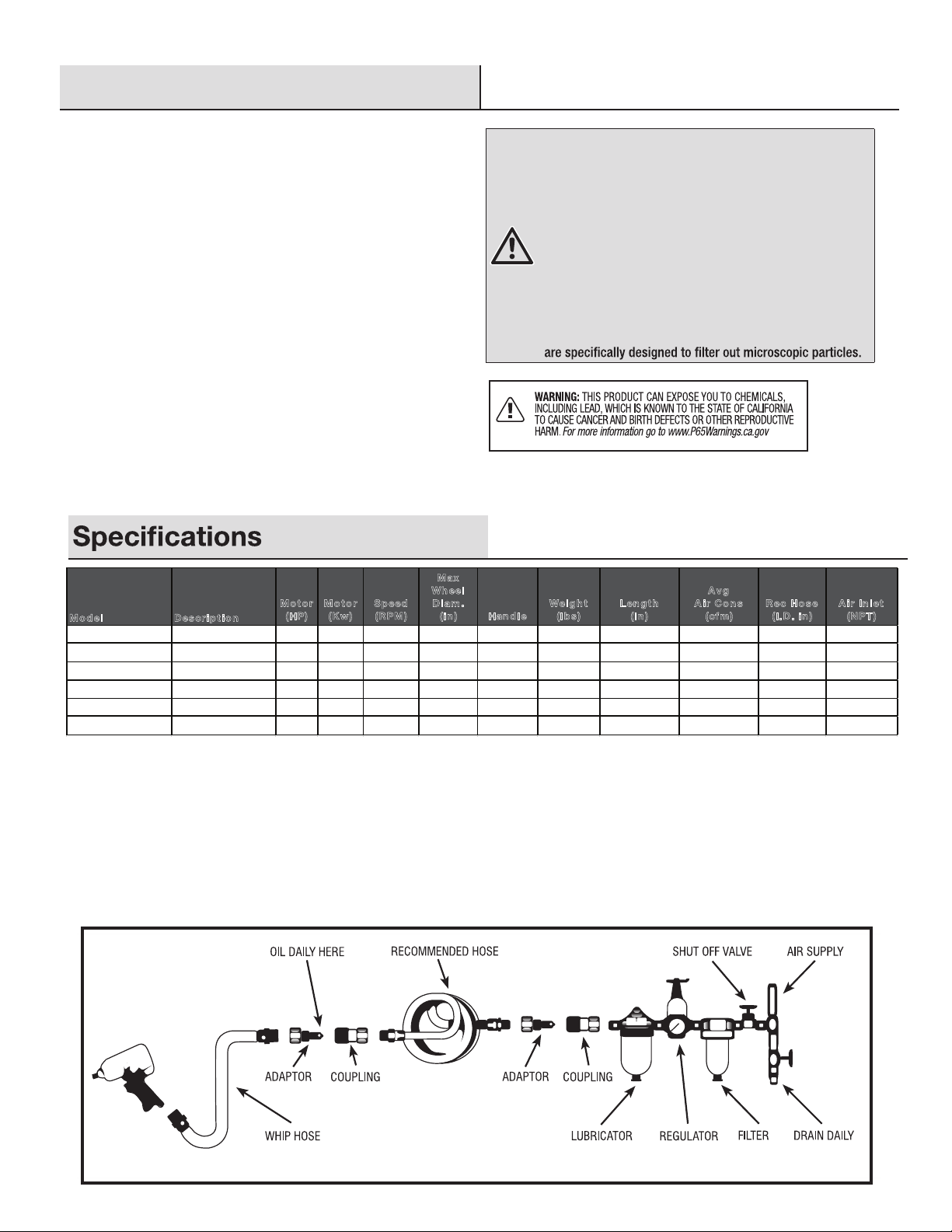

Tools of this class operate on a wide range of air pressure. It is recommended that air pressure of these tools measures 90 PSI at the tool while running free.
Higher pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition and void the warranty. Water in the air
line will cause damage to the tool. Drain the air tank daily. Clean the air inlet lter screen on at least a weekly schedule. The recommended hookup procedure can
be viewed in the illustration below. The air inlet, used for connecting air supply, has standard 1/2”NPT American Thread. Line pressure should be increased to
compensate for unusually long air hoses (over 25 feet). Minimum hose diameter should be 1/2”I.D. and ttings should have the same inside dimensions.
Safety Information (continued)
AIR COMPRESSOR AND AIR TOOL SAFETY
1. Risk of Bursting. Do not adjust the regulator to result in output
pressure greater than the marked maximum pressure of this air
tool.
2. Ensure the hose is free of obstructions or snags. Entangled or
snarled hoses can cause loss of balance or footing and may
become damaged.
3. Never leave a tool unattended with the air hose attached.
4. Do not operate this tool if it does not contain a legible warning
label.
5. Do not continue to use a tool or hose that leaks air or does not
function properly.
6. Never direct a jet of compressed air toward people or animals.
7. Protect your lungs. Wear a face or dust mask if the operation is
dusty.
WARNING: Some dust created by power sanding, sawing,
grinding, drilling and other construction activities contains
chemicals known to cause cancer, birth defects or other
reproductive harm. Some examples of these chemicals are:
Lead from lead based paint, crystalline silica from bricks
and cement and other masonry products, arsenic and
chromium from chemically-treated lumber.
Your risk from those exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well-ventilated area, and work
with approved safety equipment, such as dust masks that
Recommended Air Pressure of 90 psi - 6.2 bar
AIR TOOL SETUP

Exploded View & Parts List
Universal Tool
™
MODEL: UT460H-60-6 / UT460H-60-8
UT460H-60-6G / UT460H-60-8G
UT478H-78-6 / UT478H-78-6G
4HP Horizontal Grinders
1A
1B
2
3
4
7
5
6
10
8
9
11
12
13
14
15
17
16
12
18
12
19
20
21
22
23
24
25
# Part # Description Qty # Part # Description Qty
1A AA-550-H-3 SPADE HANDLE ASSEMBLY 1 14 360HL-8H HORIZONTAL GRINDER SPINDLE 1
1B 69A-E12 THROTTLE HANDLE ASSEMBLY 1 15 360HL-13 HORIZONTAL GRINDER GASKET 1
2 460HL-1-HC-M 4HP HORIZONTAL GRINDER MOTOR HOUSING 1 16 360HL-1H-M HORIZONTAL GRINDER SPINDLE HOUSING 1
3A AA-550-60 6000 RPM GOVERNOR ASSEMBLY 1 17 700-48 5/16-18 X 1 CAP SCREW 4
3 AA-550-78 7800 RPM GOVERNOR ASSEMBLY 1 18 7064-360HL-01 BEARING SPACER 1
4 700-9 BALL BEARING 1 19 650-H-14 SEAL 1
5 360-3 REAR END PLATE 1 20 650-H-13 BEARING CAP 1
6 460-2M CYLINDER 1 21A 700-5 6" STANDARD REAR FLANGE 1
7 2125-0750 PIN, SPRING, 1/8IN DIA X 3/4IN LG 2 21B 540620 8" STANDARD REAR FLANGE 1
8 460-5A ROTOR ASSEMBLY 1 22A 700-4 6" STANDARD FRONT FLANGE 1
9 360-4 REAR SPACER 1 22B 540619 8" STANDARD FRONT FLANGE 1
10 460-6 ROTOR BLADE 4 23 8615 5/8-11 JAM NUT 1
11 360-10 FRONT END PLATE 1 24A 650-HS-56A 6" GRINDER GUARD 1
12 5459 R12ZZ BALL BEARING 3 24B 650-HS-58A 8" GRINDER GUARD 1
13 560-20 WAVE SPRING WASHER 1 25 1100-200 2" END WRENCH 1
HANDLE GOVERNOR GUARD
UT460H-60-6 1B 3A 24A
UT460H-60-8 1B 3A 24B
UT460H-60-6G 1A 3A 24A
UT460H-60-8G 1A 3A 24B
UT478H-78-6 1B 3B 24A
UT478H-78-6G 1A 3B 24A
CONFIGURATIONS

Warranty
Limited Warranty: Universal Tool warrants its tools to be free from defects in material and workmanship for one year from the date of
Tool or its authorized service centers. If a UT tool proves defective in material or workmanship within one year after purchase, return
it to any authorized service center or Universal Tool freight prepaid. Please enclose your name, address and adequate proof of date of
purchase and a short description of the defect. Universal Tool will,at its option, repair or replace defective tools free of charge. Repairs or
replacements are warranted as described above for the remainder of the original warranty period. Universal Tool's sole liability and your
exclusive remedy under this warranty is limited to repair or replacement of the defective tool.
There are no other warranties expressed or implied and Universal Tool shall not be liable for incidental, consequential or special damages,
or any other damages,costs or expenses excepting only the cost or expense of repair or replacement as described above.
