ÜNMAK – Radiator User Manual
Panel Radiator Use and
Maintenance Manual
ÜNLÜSOY
Yapı Malzemeleri Sanayi ve Ticaret Ltd. Şti.
Pancar Organize Sanayi Bölgesi, 2. Etap No:2, Torbalı – İZMİR/TURKEY
Tel: [phone], Fax: [phone]
www.unmak.com

P a g e | 1
ÜNMAK – Radiator User Manual

P a g e | 2
ÜNMAK – Radiator User Manual
INDEX
Index
INTRODUCTION ....................................................................................................................................................3
METHOD OF TRANSPORTING and HANDLING......................................................................................................3
SELECTION OF INSTALLATION SITE.......................................................................................................................3
FEATURES OF RADIATORS ....................................................................................................................................5
INSTALLATION DIAGRAM .....................................................................................................................................7
FIRST START-UP ....................................................................................................................................................8
MAINTENANCE AND CLEANING ...........................................................................................................................8
RADIATOR BLEEDING............................................................................................................................................8
INFORMATION ON USAGE ERRORS......................................................................................................................9
TERMS of GUARANTEE .........................................................................................................................................9
ÜNMAK After Sales Service
KK21-EN 220502

P a g e | 3
ÜNMAK – Radiator User Manual
INTRODUCTION
Thank you for choosing ÜNMAK radiator group.
Please read the user manual carefully before installing and operating your product and keep the user
manual for the duration of the product's use. Do not touch or mix any part of the product other than
those permitted in the user manual. Installation, maintenance and service of radiators require expert technical team.
This user manual and regulations should be taken into account for the installation of radiators, the selection of the
appropriate place for installation and the installation of water installation.
Radiators are used only in residential heating systems. Using it for a different purpose is out of warranty.
The user manual should be read carefully and it should be kept for the life of the boiler along with the
accompanying warranty certificate.
METHOD OF TRANSPORTING and HANDLING
ÜNMAK panel radiators are shipped with nylon packaging on edge cardboard.
Radiators are heavy products, so care should be taken when transporting them to the place where they will be
installed. Equipment to be used to lift and transport the product must be of sufficient capacity.
When removing the package of the radiator, hard and sharp objects should not be used in order not to
damage the painted boiler sheets under the package.
SELECTION OF INSTALLATION SITE
In the selection of the radiator location, it is necessary to use the places where the air
circulation of the place to be installed is good. In the places to be heated, the front of the
windows are places where there is both cold and air circulation. Therefore, it is suitable
to be placed under windows.
• Radiators with high radiation (radiation) ratio should be used in high ceiling structures,
stairwells, vertical connection spaces in duplex structures. In such places, the heat
radiated by convection by the radiator is collected in the upper parts and the lower floors remain relatively cold.
However, if the rate of radiant heat dissipation in the radiators placed on the lower floors is high, this difference is
largely compensated. Radiation rate is high in flat surface and thin radiators. In this respect, panel radiators with less
depth (thin) and high height are the most advantageous types.

P a g e | 4
ÜNMAK – Radiator User Manual
• The height of the radiators to be placed in the niche should be at least 15 cm less than the
parapet height. The radiator is lifted about 7 cm from the ground. Thus, a gap of at least 8 cm
is left between the radiator top and the parapet.
The places where the most heat loss is experienced in buildings are glass and exterior walls.
Double glazing applications will not completely prevent heat loss, no matter how good the
thermal insulation applications are. Therefore, the radiators should be designed by mounting
them under the glass first.
• Radiator installations should be done by qualified installers.
• The wall of the floor where the radiator will be placed must be clean and smooth.
• Products should not be dropped during transportation. Since it is heavy goods, it should be
carried by two people.
• Covering radiators will prevent heat transfer. As the heating capacity will decrease, it will cause
more energy consumption. Efficiency loss in covered radiators will increase up to 20%
depending on time. Cabinets, armchairs, etc. positioned very close to the radiators. Such items
will also reduce heat conduction.
• The water inside the radiators should not be drained. Emptying the radiators at the end of
the season requires a new water filling while filling them with new water, which will mean an
increase in oxidation in the radiator. If there is a need to fill the radiator with water, it is not
necessary to fill the hose with water before filling the radiator and after removing the
remaining air, filling the radiator.
• Since the radiators will be hot while working, it is necessary to prevent the contact of children, pets, living things or
objects that may be affected by the temperature.
• The water in the radiators should not be drained even if the system will not be used for a long
time. When the water in the system needs to be drained, the radiator valves should be closed to
ensure that water remains in the radiator. Otherwise, the corrosive substances that will form inside
the radiator will adversely affect the radiator and may damage the installation.
• It should not be used in open areas where there is danger of freezing. Freezing of the water in the installation can
damage both the radiator and the installation. If it is necessary for the installation and the radiator to remain in an
environment below 0°C, antifreeze must be added to the installation water.
• The maximum operating temperature of the radiator is 120°C. It should not be used at temperatures higher than
this temperature value.

P a g e | 5
ÜNMAK – Radiator User Manual
FEATURES OF RADIATORS
PANEL RADIATORS
Ünmak Extra panel radiators have maximum heat efficiency with their 33.3
mm pitch water circulation channels and wide convector surface.
Superior paint technology is cleaned by applying immersion degreasing, spray
degreasing, iron phosphate coating and passivation processes in
accordance with DIN 55900 standards. The radiators, which are primed and
fired with the dip wet paint method, are painted with robot guns in RAL 9016
color and baked with the electrostatic powder-coating method. It is
packed with bubble wrap and edge cartons to be protected from
external factors during transportation and assembly. Mounting
materials (suspension apparatus, breather plug, blind plug, console holder
clips, dowels and triphone screws) are in the package. Installation of
radiators is practical, easy and can be installed in a short time.

P a g e | 6
ÜNMAK – Radiator User Manual
VERTICAL RADIATORS
It occupies little space as it can be mounted vertically to the environment it is in. As it is preferred in narrow spaces,
it also appeals to the eye as decorative.
Each radiator is subject to 13 bar pressure test and is resistant to 10 bar operating pressure. It is offered to the
consumer with a 10-year guarantee. Superior paint technology is cleaned by applying immersion degreasing, spray
degreasing, iron phosphate coating and passivation processes in accordance with DIN 55900 standards. The
radiators, which are primed and fired with the dip wet paint method, are painted with the electrostatic powder-
coating method with robot guns and then fired. Mounting materials (suspension apparatus, breather plug, blind
plug, console holder clips, dowels and triphone screws) are in the package. Installation of radiators is practical, easy
and can be installed in a short time.
TOWEL RADIATORS
Towel radiators offer ideal solutions for spaces such as bathrooms and kitchens. It both heats the place where it is
located and is used for towel drying. It is fixed to the wall from 4 points, two from the top and two from the bottom.
Flat-shaped towel radiators are available in two different coatings, either white or chrome. Oval shaped towel
radiators are also prepared in two different coatings, white painted and chrome.

P a g e | 7
ÜNMAK – Radiator User Manual
SIZE
HEATING TABLE
Widht
Height
Attachment
Distance
Number
Of Pipes
Water
Capacity
Electrostatic
Painted
Chroma Coated
(A) mm
(H) mm
(L) mm
(L) mm
Watt
kcal/h
Watt
kcal/h
400
700
356
15
2,90
277
238
183
157
400
800
356
17
3,28
314
270
207
178
400
1000
356
20
3,95
379
326
250
215
400
1100
356
23
4,43
436
375
288
247
400
1200
356
25
4,82
464
399
306
263
400
1400
356
28
5,49
529
455
349
300
400
1600
356
33
6,35
616
529
406
349
500
700
456
15
3,37
327
281
216
185
500
800
456
17
3,81
371
319
245
210
500
1000
456
20
4,58
445
383
294
253
500
1100
456
23
5,15
512
441
338
291
500
1200
456
25
5,60
546
470
360
310
500
1400
456
28
6,37
622
534
410
353
500
1600
456
33
7,39
723
622
477
410
600
700
556
15
3,84
384
330
253
218
600
800
556
17
4,35
436
375
288
248
600
1000
556
20
5,21
524
451
346
297
600
1100
556
23
5,87
594
511
392
337
600
1200
556
25
6,39
645
555
426
366
600
1400
556
28
7,25
734
631
484
417
600
1600
556
33
8,43
857
737
565
486
INSTALLATION DIAGRAM
The most preferred mounting method in radiators is the top entry and the bottom exit from
the diagonal corner. The water entering from the top right leaves the radiator from the
bottom left or vice versa, the water entering from the top left leaves the radiator from the
bottom right.
The second type of mounting is the one in which the same
direction is entered from the top and exited from the bottom. It
can be done on the right or left hand.
It is not preferred in panel radiator mounting, but in case of necessity, it can be
mounted as input from the bottom right, exit from the bottom left or vice versa,
entry from the bottom left and exit from the bottom right.

P a g e | 8
ÜNMAK – Radiator User Manual
FIRST START-UP
In order to fill the heating system with water, it must be connected with a hose from the lowest code entry of the
system. The vent must be left open for air to exit from the highest point of the system. This is not necessary in open
expansion systems. The environment should be filled with water by opening the faucet, then it should be connected
to the point where the water will be pumped. If the lowest code is in the radiator, while the system is flooding, if
there is a manometer in the heating device, it should be observed with a manometer and the system should be
brought to around 1-1.5 bar.
Care should be taken not to leave any air in the system.
MAINTENANCE AND CLEANING
Regular checks:
• It should be checked whether there is a water leak (leakage), and if there is a water leak, the installer should be
contacted.
• Radiators should only be cleaned with a lint-free cloth with warm water and no chemicals.
Periodic checks:
• By separating the sides of the panel radiators, the grids on them can be removed and the gaps between the
convectors can be cleaned, or by blowing air from above with a hair dryer without removing the grille, the dust
can be poured from below.
• While the system is running, the radiator surfaces should be checked manually from bottom to top to see if there
is a cold zone. Being a cold zone indicates that there is air remaining in the radiator.Sezonluk kontroller:
• Radiator convector cleaning can be done by professional cleaning companies.
RADIATOR BLEEDING
It is taken from the places shown in the figure, the air vents. A deep container should be found and precautions
should be taken for the dirty water to come out. The system
should be started and the pressure should be increased up
to 2 bar. With the air vent wrench or flat screwdriver, the
screw on the air vent should be turned counter clockwise
slowly. If air is trapped in the system, it will come out at this
time. When the water starts to flow properly, its air will be
taken. Then the pressure of the system should be checked
and brought to around 1-1.5 bar.

P a g e | 9
ÜNMAK – Radiator User Manual

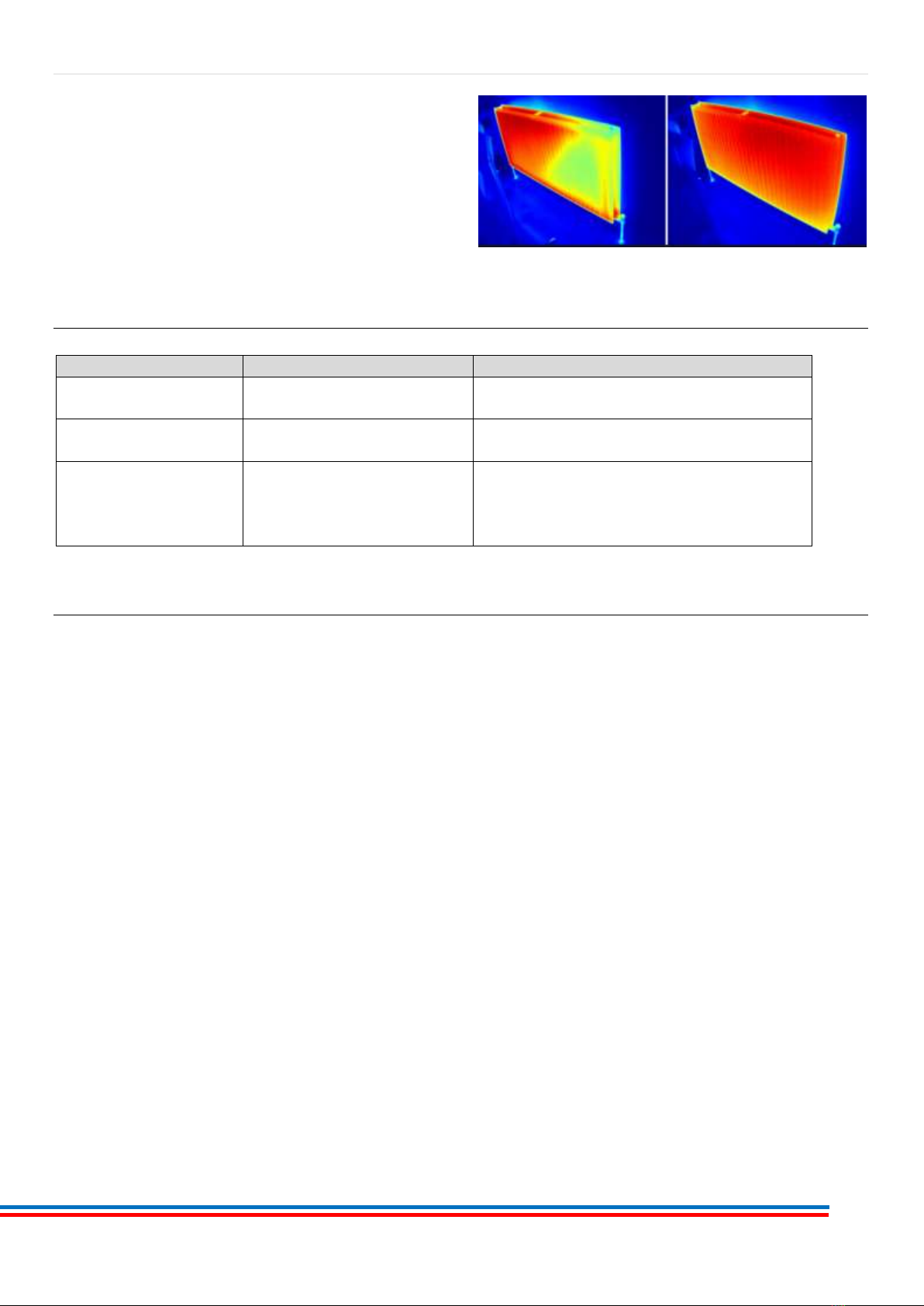

In order to understand whether there is air in the system,
it is sufficient to check the radiators by touching them
while the system is running. The lower sides of the air
radiators will be cooler than the upper ones. Below are the
thermal camera images of the air-containing radiator and
the vented radiator.
INFORMATION ON USAGE ERRORS
PROBLEM
CAUSE
SOLUTION
There are cold parts in
the radiator
• There may be air trapped
inside
• Bleeding the radiator according to the
instructions in “Bleeding the radiator”
There is a water leak
from under the radiator
• Montage error
• Contact your installer company.
The last radiator in the
installation does not
heat up
• The pump may be
insufficient.
• There may be air in the
radiator
• Increase the pump stage
• Call the installer company
• Bleed the air according to the instructions
on the “Bleeding the radiator” page.
TERMS of GUARANTEE
1. Radiators whose initial operation is not performed by Ünmak Authorized Services are not covered by the warranty.
2. The warranty period is ten (10) years. It commences from the date of delivery of the goods to the consumer when warnings
and conditions specified in the user manual are followed. The maximum repair time is 20 days.
3. Our company will not be responsible for any damages and malfunctions due to the improper usage of this product without
concerning the user manual.
4. Malfunctions caused by inadequate, incorrect cleaning and improper maintenance are not covered by the warranty.
5. The service life recommended by the Ministry for this product is fifteen (15) years.
6. Invoice issued for the purchased goods do not replace the warranty document. Nevertheless, the invoice issued as a result of
repair and replacement of the parts at the service stations replaces the warranty document.
7. In case of failure, the time spent in repair is added to the warranty period.
8. The maximum repair time is 20 days. This period starts from the date of notification to the service station of the error related
to the product; the seller, dealer, agent and representative can also acceptable when service station is not available. Consumer
failure notification is possible to make by phone, fax, e-mail, registered letter or similar method. Neverthless, in the event of
dispute, consumer responsible for obligation of the proof.
9. If the malfunction cannot be resolved within 20 working days, our company offer another goods with the same specification to
the use of the consumer until the repair of the goods is completed.
10. This warranty certificate only valid for panel radiator. It is not covers other parts such as pipeline, valves, fittings, etc.
11. The warranty is not valid when the destruction (erasure, scratch) of the seller and manufacturer part or any part on the
certificate observed.
12. The radiator is not covered by the warranty, which does not comply with the user manual of the device or any application
specified in the user manual.
13. Errors arising from user and radiator placement, errors due to natural disasters, freezing due to climatic conditions are out of
warranty.
14. Errors caused by the incorrect selected radiator capacity are not covered by the warranty.
15. Errors arising from transportation after the radiator is delivered to the customer are out of warranty.
16. Damage that may occur on painted surfaces is not covered by the warranty.
17. Cases where the warranty certificate can not be shown are considered outside the scope of the warranty.
18. If the maintenance specified in the user's manual is not done by consumer, the errors that occur are out of the scope of the
radiator warranty.
19. Radiators are out of warranty when the commissioning or initial service has not been performed by Ünmak Authorized
Services.

P a g e | 10
ÜNMAK – Radiator User Manual
Producer
Title :
Ünlüsoy Yapı Malzemeleri Sanayi ve
Ticaret Limited Şirketi
Address:
Pancar Organize Sanayi Bölgesi, 2.
Etap No:2, Torbalı – İZMİR/TURKEY
Tel –Fax:
[phone] –[phone]
Authorized person signature & stamp:
Seller
Title :
Address:
Invoice Date & Number:
Authorized person signature & stamp:
Product Details
Description:
RADIATOR
Brand/Model:
ÜNMAK

P a g e | 11
ÜNMAK – Radiator User Manual
WARRANTY
WARRANTY
10 YEARS
After Sales Services Competence Certificates
Chapter: TS 12676, Document No: 37278
This warranty document was made in accordance with the Law No. 6502 and the Regulation on
the Principles of Guarantee Certificate issued based on this Law. The use of this warranty
document is subject to the permission General Directorate of Consumer Protection and
Competition of the Ministry of Industry and Trade.
