Upland GFT-31823 User manual

DANGER ·FLAMMABLE GAS UNDER PRESSURE.
LEAKING LP-GAS MAY CAUSE A FIRE OR EXPLOSION IF IGNITED
CAUSING SERIOUS BODILY INJURY OR DEATH.
CONTACT LP GAS SUPPLIER FOR REPAIRS, OR DISPOSAL OF THIS
CYLINDER OR UNUSED LP-GAS.
WARNING ·FOR OUTDOOR USE ONLY.*
DO NOT USE OR STORE CYLINDER IN A BUILDING,
GARAGE OR ENCLOSED AREA.
WARNING:
Know the odor of LP-gas. If you hear, see or smell
leaking LP-gas, immediately get everyone away
from the cylinder and call the Fire Department.
Do not attempt repairs.
Caution your LP-gas supplier to:
Be certain cylinder is purged of trapped air prior
to first filling.
Be certain not to over fill the cylinder.
Be certain cylinder requalification date is checked.
LP-gas is heavier than air and may settle in low
places when dissipating.
Contact with the liquid contents of cylinder will
cause freeze burns to the skin.
Do not allow children to tamper or play with cylinder.
When not connected for use, keep cylinder valve
turned off. Self contained appliances shall be limited
to a cylinder of 30 lb capacity or less.
Do not use, store or transport cylinder where it would
be exposed to high temperatures. Relief valve may
open allowing a large amount of flammable gas to
escape.
When transporting, keep cylinder secured in
an upright position which cylinder valve turned off.
DO NOT REMOVE, DEFACE, OR OBLITERATE THIS LABEL
*EXCEPT AS AUTHORIZED BY ANSI/NFPA 58.
DANGER. Do not store a spare LP cylinder under or near a barbecue grill, or other
heat sources. NEVER fill an LP cylinder beyond 80% full: a fire causing death or
serious injury may occour.
WHEN CONNECTING FOR USE:
Use only in compliance with appliable codes.
Read and follow manufacturer’s instructions.
Consult manufacturer’s instructions
concerning the cylinder connection provided
with your appliance.
Be sure regulator vent is not pointing up.
Turn off all valves on the appliance.
Do not check for gas leaks with a match or
open flame. Apply soapy water at areas
marked ”X”. Open cylinder valve. If bubble
appears, close valve and have LP-gas
service person make needed repairs. Also,
check appliance valves and connections to
make sure they do not leak before lighting
appliance.
Light appliance(s) following manufacturer’s
instructions.
When appliance is not is use, keep the
cylinder valve closed.
X
X
X
X
X
Cylinder
Pressure relief valve
Cylinder valve hand wheel
Point of connection
Liquid level indicator
(optional)
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
·
Please keep this instruction manual for future reference
WARNING:
CUS
R
Assembly Instructions
28” SLAT TOP GAS FIRE PIT TABLE
Model #: GFT-31823
Item #: UI-GFT-31823-BK
READ INSTRUCTION MANUAL BEFORE ATTEMPTING ASSEMBLE OR
OPERATE THIS PRODUCT.
Keep the screws and parts out of reach of children.
(Made in China)

DANGER:
•Shut off gas to the appliance.
•Extinguish any open flame.
•If odor continues, leave the area immediately
After leaving the area, call your gas supplier
or fire department.
WARNING: For Outdoor Use Only!
WARNING:
FOR YOUR SAFETY:
If the information in this manual is not
followed
exactly, a fire or explosion may
Do not store or use gasoline, or other flammable
vapors and liquids, in the vicinity of this or any
An LP-cylinder not connected for
shall not be stored in the vicinity of this or
any other appliance.
2
FIRE OR EXPLOSION HAZARD
If you smell gas:
•
Failure to follow these instructions could result in
fire or explosion, which could cause property
damage, personal injury, or death.
Safety Information
DANGER CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has no
odor.
Using it in an enclosed space
can kill you.
Never use this appliance in an
enclosed space such as a
camper, tent, car or home.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier
INSTALLER: leave this manual with the appliance.
CONSUMER: Retain this manual for future
reference.
WARNING:
result causing property damage,
personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
Do not try lighting any appliance.
Do not touch any electrical switch; do
NOT use any phone in your building.
Immediately call your gas supplier from
a neighbor’s phone.
Fllow the gas supplier’s instructions.
If you cannot reach your gas supplier.
Call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or gas supplier. Save these
instructions for future reference. If you
are assembling this unit for someone
else, give this manual to him or her to
read and save for future reference.
other appliance.
use
Read the instruction before use. This appliance must be installed in accordance
with such regulations as are enforced.
Safety Information..
.........................................................2-4
Warranty.........................................................................5
Pre-Assembly...……………………...……………………. 5
Operating Instructions .........................................11-13
Maintenance...........................................................14
Care and Cleaning ................................................14
Troubleshooting
....................................................15
Table of Contents
..………………...……………………. 6
Package Contents

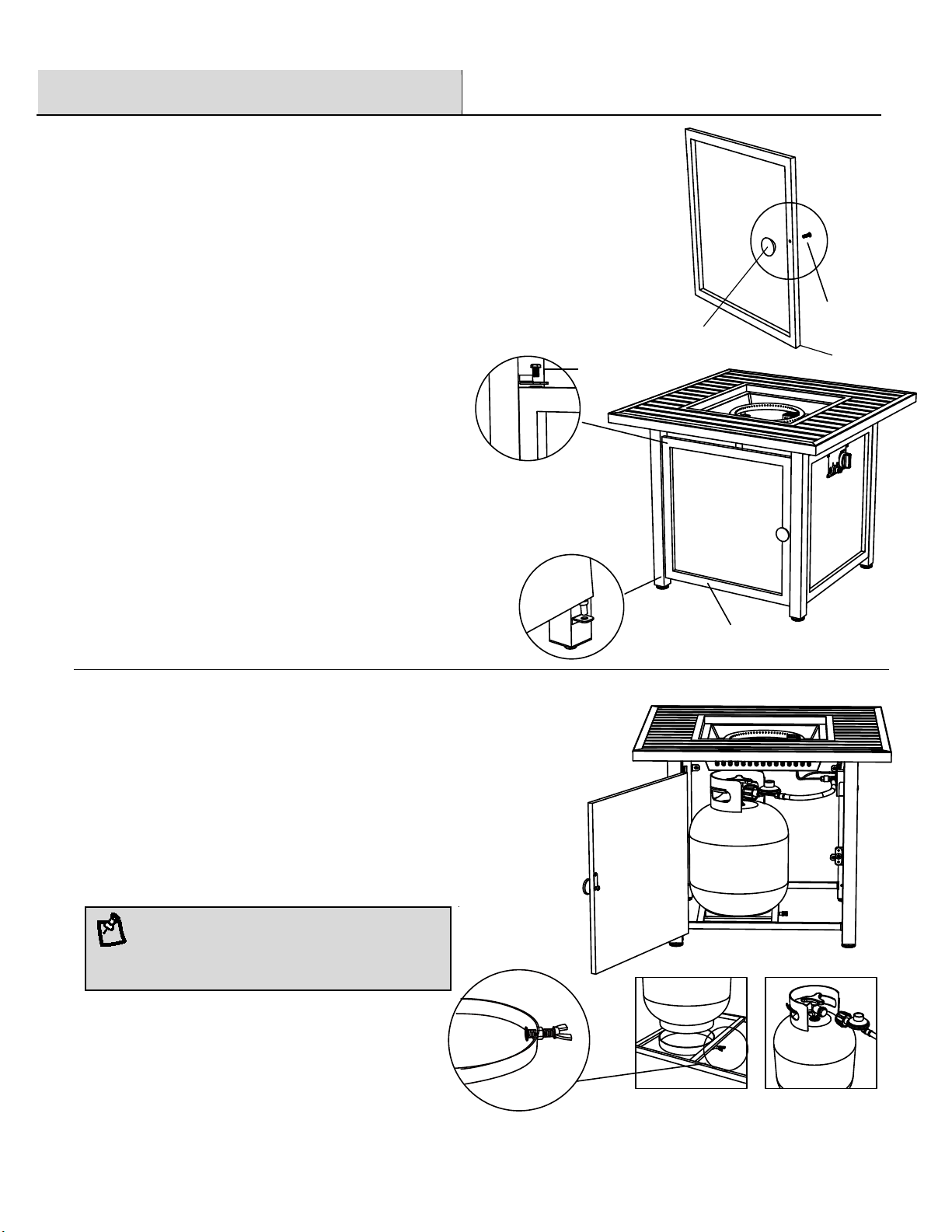

Assembly..………………………………………....…7-10
Table of Contents ................................
..........................2
WARNING:
Improper installation, adjustment,
alteration, service or maintenance can
cause property damage, personal injury
Read this installation, operating, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
or loss of life.

3
Safety Information (continued)
.
WARNING:
You must provide propane gas and propane cylinder. Use a standard 20 lb. propane cylinder only.
Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and
Handling of Liquefied Petroleum Gas, ANS/NFPA 58. Your local library or fire department should have this book.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in absence of local codes, with National Fuel Gas Code, ANSI Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier.
Never
use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S. Department of Transportation
(D.O.T) Specifications for LP-Gas Cylinders, or the standard for Cylinders, Spheres and Tubes for Transportation of
Dangerous Good and Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device compatible with the connection for the
appliance.
The cylinder used must include a collar to protect the cylinder valve.
The LP-gas supply cylinder must be provided with a listed overfill protection device (OPD).
Do not store a spare LP gas cylinder under or near this appliance.
Never fill the cylinder beyond 80 percent full.
For appliances designed to use a CGA No. 791IQCC connection.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Note: Gas supply pressure: 25 PSI to 250 PSI.
Standard 20 lbs. tank
WARNING: FUELS USED IN LIQUIFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OF
COMBUSTION OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH IS
KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM. For more information go to: www.P65Warnings.ca.gov.

4
Safety Information (continued)
WARNING:
Solid fuels shall not be burned in this appliance.
The installation must conform with local codes or, in the absence of local codes, ANSIZ223. 1/NFPA54, NFPA58 Natural
Gas and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
Prior to use, check for damaged parts such as hoses, regulators, pilots, or burners.
Inspect the fuel supply connection for signs of leakage (including the hose for the LP models) before each use of the
appliance.
All leak tests should be done with a soapy solution. NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the
appliance to avoid burns or clothing ignition. This appliance comes with a heat shield which is an important safety
component preventing contact with the fire bowl when adjusting the propane valve.
Young children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should be not be hung from the heater, or placed on or near the heater.
Any guard or other protective device removed for servicing the heater, must be replaced prior to operating the heater.
Installation and repair should be done by a qualified service person. The heater should be inspected before use and at
least annually by a qualified service person.
More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners, and
circulating air passageways of the heater be kept clean.
Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
DO NOT OBSTRUCT the combustion process or air ventilation flow.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
The appliance should be used in a well-ventilated space and not in a building, garage or any other enclosed area.
An appliance may be installed within a shelter if the shelter meets one of the following conditions:
The shelter has walls on all sides, but with no overhead cover.
The shelter is within a partial enclosure which includes side walls. These side walls may be parallel, as in a breezeway,
or at right angles to each other.
This appliace must be isolated from the gas supply piping system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
Max. gas supply 6791.3 in wc (1725 kPa). Manifold pressure 11 in wc (2.74 kPa).

5
Pre-Assembly

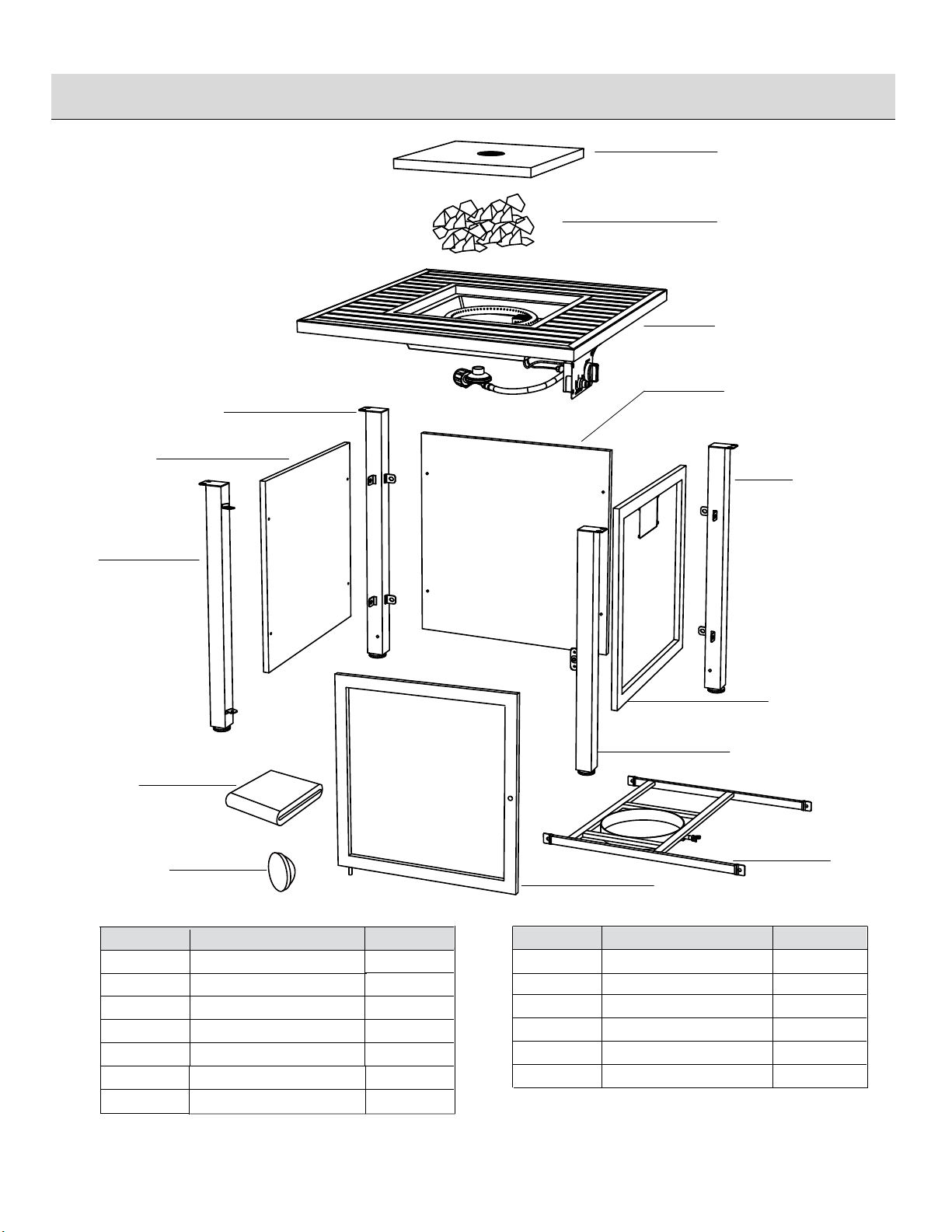

PLANNING ASSEMBLY
Carefully remove all pieces from the carton and make sure that you have all parts (refer to the hardware and package contents list).
If you are missing parts, please contact after-services for further assistance.
NOTE: Please read and understand the entire
manual before you assemble, operate, or install
the fire pit.
YOUR OWNER’S MANUAL
Keep and store this Owner’s Manual for future reference. It contains important instructions and procedures for safety and
maintenance.
TOOLS REQUIRED
Phillips
screwdriver
(NOT INCLUDED)
Part Description Quantity
AA M6 x 10 mm Bolt 24
BB
HARDWARE INCLUDED
M5 x 10 mm Bolt 4AA BB
CC DD
EE
CC M5 Nut 4
DD AAA Battery 1
EE M6 x 25 mm Bolt 1
FF
GG
FF
GG
M6 x 20 mm Bolt
Wrench
1
1
