Installation and configuration
What is inside your U@home package?
IU@home module
II Power supply
III Standard Ethernet cable (RJ45 connector)
IV Micro SD card
UK
E
UROPE
&
RUSSI
A
I
II
III
IV

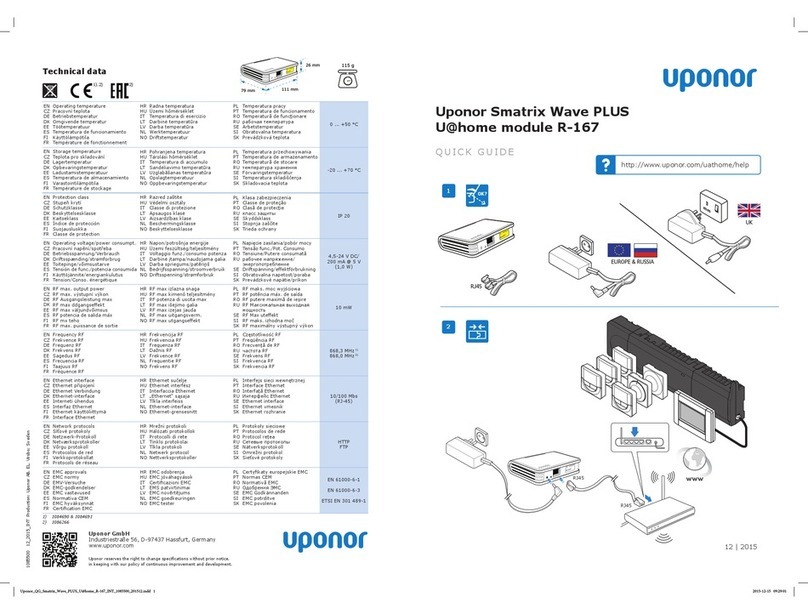

U@home module installation
The new Smatrix Wave PLUS U@home module R-167
(U@home module) has been designed to be placed on a table
or wall-mounted close to your home router.
1Connect the Ethernet cable [III] to the back of the U@home module and
to one of the free ports on your router.
2Connect the round power supply connector to the back of the U@home
module. Plug in the power supply. Now you should see the U@home
module LEDs indicating that it is powered.
1
2
Check the software version of Uponor Smatrix Wave
PLUS Interface I-167 (interface I-167). It should be
version 1.01 or later. If not, you need to update the
software by using the provided SD card [IV]. Use the
touch screen (interface I-167), go to the “Main menu” >
“Settings” > “SD card” > “Update with SD card”.
Please see further instructions in the Uponor Smatrix
Wave PLUS manual.

4 l Uponor Smatrix Wave PLUS U@home R-167 – Installation and configuration
Initialise the U@home module linking mode by pressing the
link button for approx. 3 seconds until the yellow LED starts
blinking. For this you will need to insert a pointed instrument
(pin or similar) in the hole on the back of the U@home module.
Go to the main menu in the interface I-167 and then to
“Preferences”, “RF Link” and “Link U@home module”.
You will receive a visual confirmation when the linking
procedure is complete.

Uponor Smatrix Wave PLUS U@home R-167 – Installation and configuration l 5
Create a user account
Before using U@home, you need to register as a U@home
user. If you wish to take advantage of the remote access
service, it will be activated once you have created your user
account. The steps to create a user account are as follows:
• Go to www.uponor.com/uathome/login and click on
“Create new account”.
• Fill in the form with the requested information.
• Tick the alarm notification option if you wish to receive
an email if the “connection to server lost” or “average low
temperature” alarms occur.
• We recommend that you subscribe to the mailing list if you
wish to be informed about updates, the service status or
any scheduled maintenance tasks. You will not receive any
commercial or non-U@home related emails.

6 l Uponor Smatrix Wave PLUS U@home R-167 – Installation and configuration
• At the end of the registration form, you will be asked to
enter the installation credentials (U@home module ID and
password). You can find these in the Quick Guide or on the
yellow sticker on the U@home module. The installation/
building description is optional and is used to easily identify
a particular installation. Several installations can be
controlled from one user account.
• You need to accept terms and conditions to continue.
Please tick the checkbox if you agree to those terms.
• Click “Register”.
• In a few minutes you will receive an email with a
confirmation link. Once you click on this link, your
U@home user account will be activated.
• Now you can login by using your email and the chosen
password.

Uponor Smatrix Wave PLUS U@home R-167 – User interfaces of U@home l 7
User interfaces of U@home;
local and remote
To use U@home, simply download the U@home iOS or
Android app for your smartphone or tablet. Further details
are available in the section “Smartphone/tablet apps”. If you
wish to use your PC or smart TV, or if your phone/tablet does
not support the iOS or Android operating systems, U@home
can be accessed by using web access via your web browser.
There are two service levels in U@home:
Local Access
Access to your UFH/C system at home. You have access to
U@home when you are connected to your home LAN. It is
not necessary to register in the U@home website. The only
requirement is to have the U@home module installed in your
home.
Remote Access
Access to U@home wherever there is internet connectivity.
The requirements for U@home remote access are as follows:
• The U@home module must be correctly installed in your
home.
• An internet connection is needed in the U@home module
as well as in the device from which you would like to
access this service. Please check the connection require-
ments in the FAQ section.
• To activate remote access, you need to create your
U@home user account first, see section “Create a user
account”. Once your user account has been activated, the
remote access service can be used.
If, after logging in to your account, your installation appears
as “Remote control disabled”, just click on “Enable
communication” to start the remote access service.

8 l Uponor Smatrix Wave PLUS U@home R-167 – U@home web access
U@home web access (remote)
Uponor has developed U@home to manage indoor climate in
a building, regardless of where you are: at home, at work,
away on business, on the go or on holiday.
U@home extends the flexibility and comfort of an Uponor
heating/cooling (UFH/C) system by adding remote access to
its range of possibilities.
When away, the system can be accessed via the U@home
app or website on a smartphone, tablet or PC.
First create your user account. The section “Create a user
account” shows you how to do this.
Log in to your user account by entering your email and
password on the login page
www.uponor.com/uathome/login
Select the installation you would like to control (if you have
more than one) and click “Go”.
Login and start using the U@home web interface
A new window will open showing the U@home web access
home page.

Uponor Smatrix Wave PLUS U@home R-167 – U@home web access l 9
U@home home page
If you plan to go on holiday or spend some days away from
home, click on “Away”. Your house temperatures will then be
set to save energy. Please check with your supplier how best
to save energy in “Away” mode.
More information about “Home” and “Away” modes can be
viewed in the section “Home/Away”.
Basic use of the web access function
1Link to “help” pages. Click here if you need help.
2System settings. Click here to set general configuration.
3Alarm indication. This icon is only shown when there are alarms active
in the system. Click here to see the list of system alarms.
4Outdoor temperature. Only shown if an outdoor sensor is installed.
5Go to last room page.
6Go to first room page.
7Indoor temperature. Shows average temperature of all rooms in the
house.
8Heating/cooling mode indication:
Heating mode Cooling mode
9“Home/away” mode: click on “Home” while you are at home to ensure
comfortable temperatures (warmer in winter and cooler in summer).
10 Shortcut to room list
1
10
3
7
9
8
5 6
4
2

10 l Uponor Smatrix Wave PLUS U@home R-167 – U@home web access
1Link to “help” pages. Click here if you need help.
2Favourite room. If the star is highlighted in yellow, it means that this is
the favourite room. Favourite rooms appear in first position. Click on
the star to make any room the favourite. If you click on the star of the
current favourite room, it moves back to its original position and the
star becomes blue.
3Room name. This is the same room name as shown in the user
interface I-76. If you click here, you can select a new room name from
a drop list.
4Link to the home page. Click here to go back to the home page.
5“ECO” mode indication. This means that either the “Away” mode has
been selected or an “ECO” profile has been activated for this room
from the user interface I-76.
6Humidity indication (only in cooling mode). Only shown if condensation
protection is active, i.e. cooling has stopped due to a RH value above
the setpoint.
7Alarm indication. Only shown when there are alarms active in this
room.
8Room temperature. Current measured value.
9Go to the previous room (home page if this is the first room or favourite)
10 Go to the next room (home page if this is the last room)
11 Setpoint. Desired temperature in this room. See more details in the
section “Use of the setpoint”.
12 Thermostat icon. It indicates whether the existing thermostat in the
room is being used or whether setpoint is being enforced externally.
See more details in the section “Use of the setpoint”.
13 Actuator status indicator. Shown if the actuator is open. The indicator is
a flame in heating mode and a snowflake in cooling mode.
14 “ECO” profiles active. Not shown if no “ECO” profiles are selected for
this room.
15 Room settings. Click here to set a more advanced configuration for this
room.
16 Statistics. Click here to see system trends during the last 24 hours and
the utilization factor. For more information, please see the section
“Trends and Utilization factor”.
17 Alarm list. Click here to see a list of active alarms in this room.
By scrolling down the room pages in your browser, the
advanced options for this room are shown:
15 16 17
1
2 3
514 6
8
91011
12 13
7
4
Room pages
