URUAV Flipo F95 User manual

1
Flipo F95
PNP QUICK START GUIDE

Flipo F95
1
Catalog
PackageInclude.........................................................................................- 1 -
1.1 Framekit............................................................................................. .- 2 -
2.1 1106-4500kvmotor(black)...................................................................- 3 -
3.1 F405 15A AIO FC ..........................................................................- 4 -
4.1RunCam Nano 2 FPV Camera .............................................................- 5 -
5.1 XF5805/5.8G 40CH VTX........................................................................- 5-
5.1 5.8G Rush IPEX Left-handed antenna................................................-6 -
6.1 GEMFAN D63 3-blade Propeller ....................................................... - 6-
7.1 Recommended owersupply.................................................................- 6 -
10.1Adjusting parameter......................................................................- 7 -
(1)Configuration of UART port parameters............................................-7 -
(2)Frequency grouping and channel number configuration...................- 7 -
①Enter OSD parameter menu.............................................................- 8-
②Start grouping and channel configuration.......................................- 9 -
③ Output power configuration........................................................- 10 -
④Channel number indication...........................................................- 11 -

Flipo F95
2
Package Include
1*Flipo F95 PNP
1*GEMFAN D63 gray 3-blade Propeller（4 positive 4 negative）
2*battery strap
2*Black battery non-slip mat
1* M2*7 Countersunk Screws(6pcs)
1* M2*7 Cup head screw(8pcs)
1.1 Frame kit
Wheelbase：100mm
Blade size:2.5inches
Image transmission hole distance：M2x20x20mm
Motor pitch：M2x9x9mm

Flipo F95
3

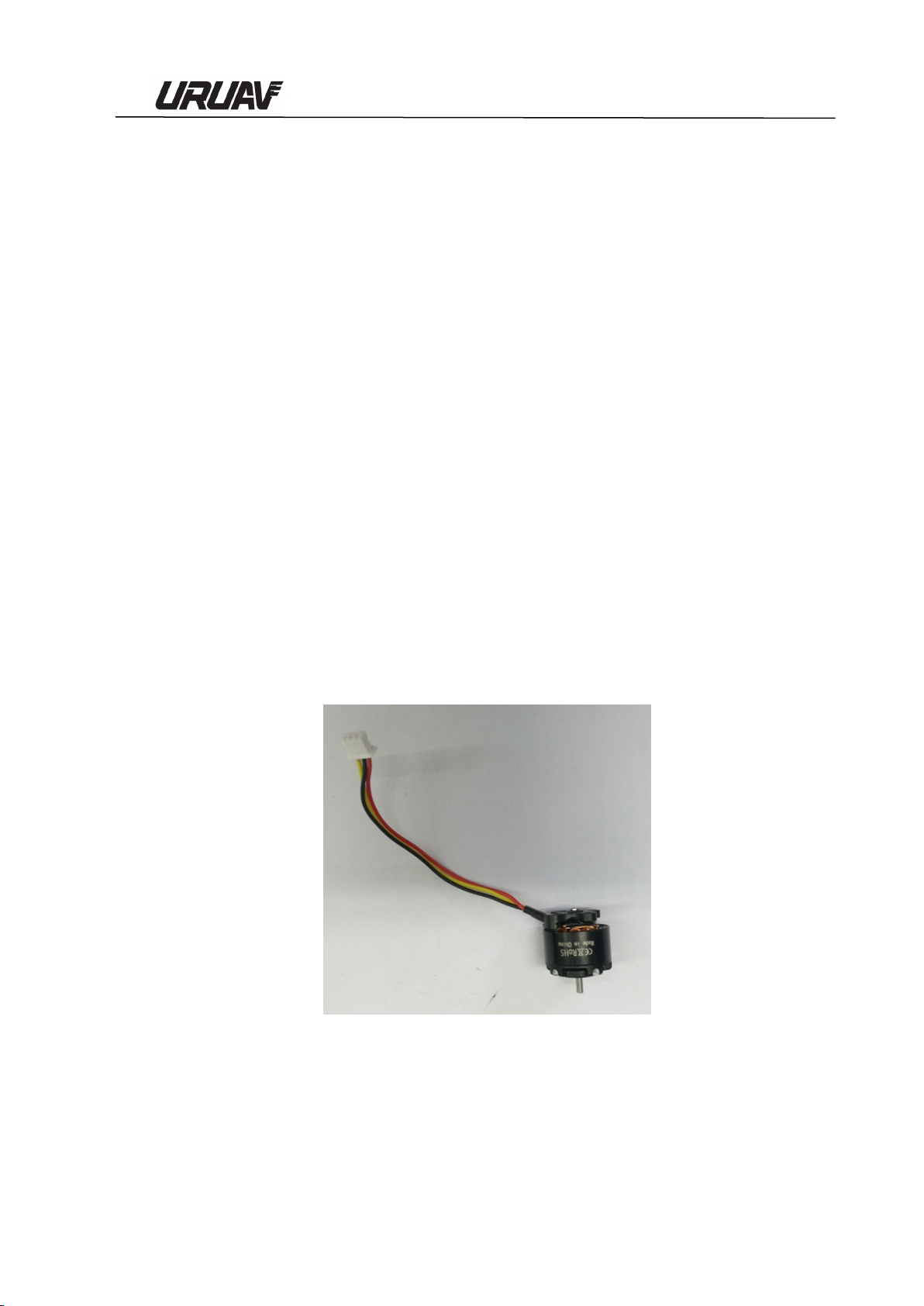

2.1 1106-4500KV motor (black)
Motor KV:4500rpm/v
Lipo Cell：2-4S
Weight：10.8g
Idle Current（IO/10V）：0.185
Max Continuous Current：7.0A
Max Continuous Power ：110W
Max thrus：269G（16.8V/4024R）
Configu - ration：12N/14P
Motor Resistance（Rm）：0.481Ω
Stator Diameter：13mm
Stator Length：6mm
Motor Dimensions：Φ14.2mm*14.5mm
Overall Shaft Length：4mm
Shaft Diameter：1.5mm
Bolt holes spacing:9*9mm
Bolt thread：M2
Propeller ：2.5”

Flipo F95
4

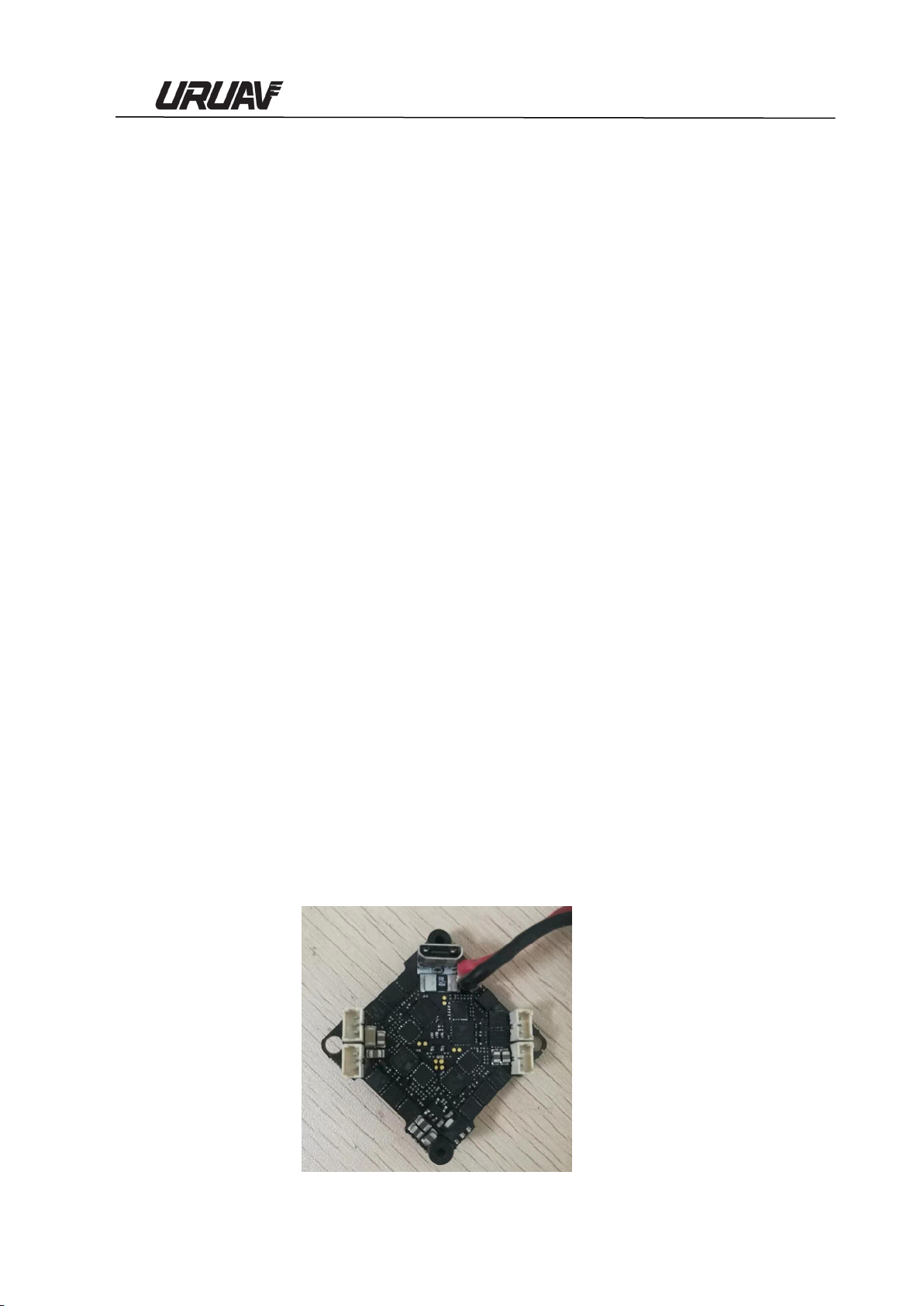

3.1 F405 15A AIO FC
FC parameters：
CPU：STM32F405（168MHz）
IMU：MPU6000（SPI connection）
size：30mm*30mm
Mounting Hole:26x26mm
Firmware：GEPR/GEPRCF405
OSD：Built-in OSD（STM32 controls the OSD chip via SPI）
Receiver：Stand by FrskyXM/XM+Receiver/Futaba Receiver/Flysky
Receiver/TBSCrossfire Receiver
programmable LED such as WS2812 :Support
Built-in current sensor
Reserved buzzer interface
Reserved DJI port
Weight：6.4g
ESC parameters：
BLHELI_S all functions:Support
PWM，Oneshot125，Oneshot42，Multishot，Dshot150，Dshot300，
Dshot600: Support
Input voltage：2S-4SLipo
Constant current：12A
Peak current：18A
CPU：EFM8BB21F16G
Motor connector：1.25mm pin header connector
Firmware：G-H-30-16.7

Flipo F95

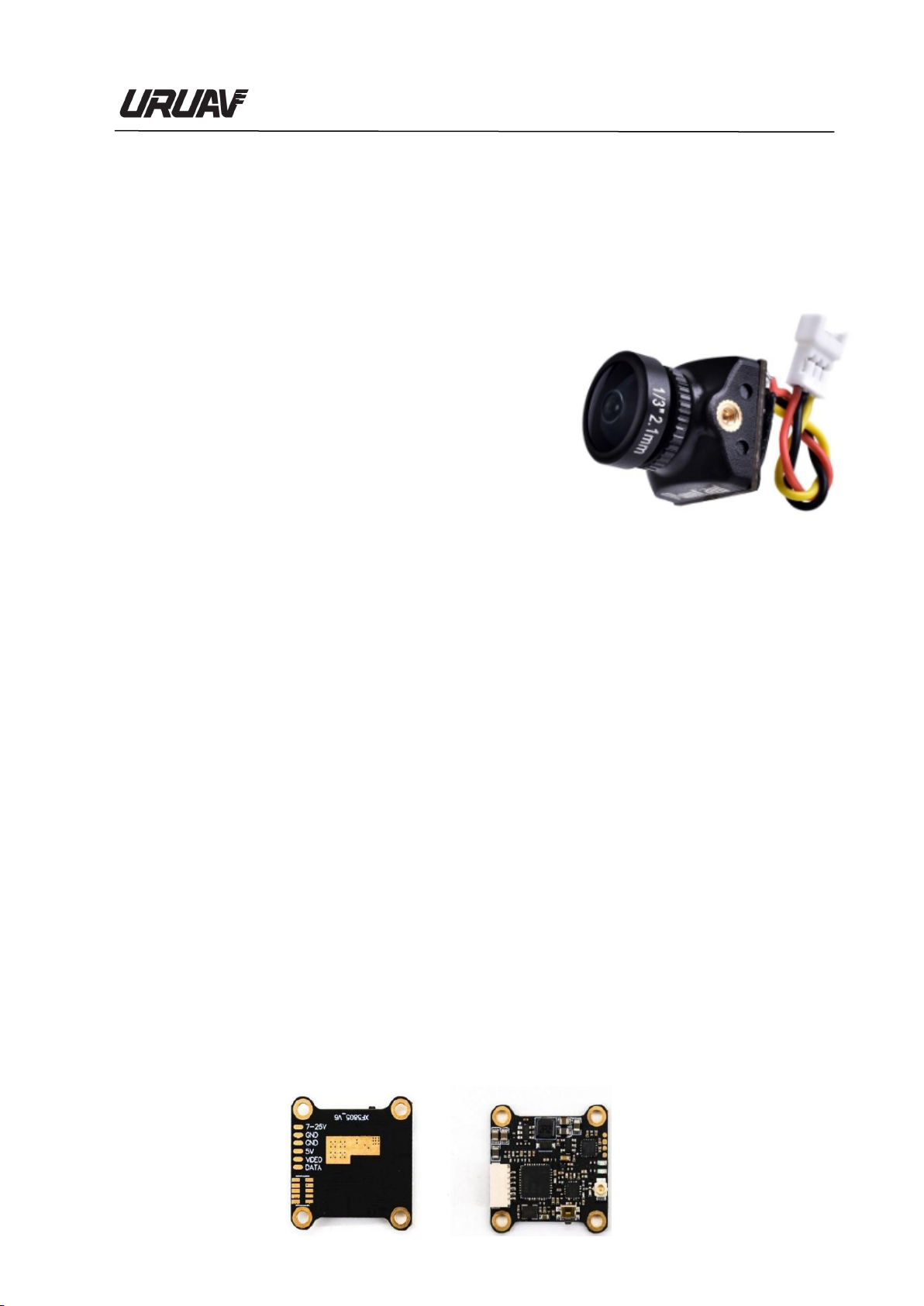

4.1 RunCam Nano 2 FPV Camera
Item: RunCam Nano 2FPV Camera
Beeldsensor: 1/3 "CMOS
Horizontale Resolutie: 1200TVL
Lens: 2.1mm(M8) FOV 155 °
Signaal Systeem: NTSC / PAL
S/N Ratio: >50dB
Elektronische Sluitertijd: Auto
Auto Gain Control (AGC): Auto
Min. Verlichting: 0.01Lux1.2F
D-WDR: Auto
Dag/Nacht: Kleur
Power: DC 3-5.5V
Stroom: 110mA @ 5V 120mA3.3V
Behuizing Materiaal: ABS
Netto Gewicht: 3.4g
Afmetingen: L14mm * W14mm * H16mm
6.2 XF5805/5.8G 40CH VTX
Support TBS Smart Audio
Transmitting power:
0/25/100/300/400mw Frequency
points: 40ch
Video format: complete NTSC / PAL
format Input voltage: 7V～26V
Power consumption: +12V／600MW, 260ma @
Size: 25×20×4mm
Weight: ≤3.2g (except for antenna)
Equipped with copper tube mini antenna (ipex interface)
Ps: The antenna must be installed before power on to avoid the
possibility of burning the tuner.

Flipo F95
5.1 5.8G IPEX left-handed antenna
Frequency range（MHz）：5600～5950MHz
Polarization：Right-handed RHCP
Input Impedance：50Ω
VSWR（5800MHZ）≤1.5
Maximum input power：50W
Input connector type:UFL
Size：15*78MM±2
Antenna weight：2.5g
Radome material：ABS
Radome color：black
Operating temperature：-40～60°c
Rated Wind Velocity：60m/s
6.1 GEMFAN 63mm 2.5 inch propeller
Specification:D63
Diameter：2.5inch
Paddle diameter：63.5MM
Material：imported Bayer PC
Mounting holes：1.5MM/4 holes
Center thickness:4.9MM
Quantity:2pairs
Color：black
Weight：1.4g/PCS
7.1 Recommended power supply
Recommended voltage:：2S-4S
Recommended capacity:：350-900 Mah

Flipo F95
8.1 Adjusting parameter
(1) Configuration of UART port parameters
Enter the Ports item, select the UART port (UART3 in this case), and then
select the TBS Smart Audio item (Figure 1) in the Peripheral column to
complete the configuration of the flight control image serial port.
If the connection between the image transmission and the selected
flight control UART port remains unchanged, this step only needs to be
operated once.
(2) Frequency grouping and channel number configuration
①Enter OSD parameter menu
When VTX1 image transmission, corresponding image transmission
receiver display screen and flight control are powered on, the
information shown in Figure 2 will appear on the receiving screen.
Figure 2 Electrical display information
At this time, according to the screen prompt operation THR MID

Flipo F95
(throttle center), YAW LEFT (YAW rocker to the left), PITCH UP (PITCH
rocker to the top) into the OSD parameter adjustment menu (Figure 3).
Figure 3 OSD parameter menu
②Start grouping and channel configuration
Under the OSD MAIN menu, the PITCH rocker can move the cursor
arrow up and down to select the menu item, select the FEATURES item,
then select the ROLL rocker to the right, and enter the lower
configuration menu (Fig. 4).
Figure 5 FEATURES Menu
In the menu of Figure 4, select the desired frequency grouping
BAND and channel CHAN by swinging the ROLL rocker left and right.

Flipo F95
Note: Because VTX1 supports 48 channels, users can select any of
the 48 channels by pressing keys. But at present, Betaflight's OSD
parametric function only supports 40 channels, so users can only
configure 40 channels on the OSD screen.
If the user chooses one of the eight channels that OSD parameters
do not support and enters OSD parameters, the system will
automatically change the user's original channel to A1 channel on our
frequency table (5865 MHz), that is, the user can configure only 40
channels with OSD parameters.

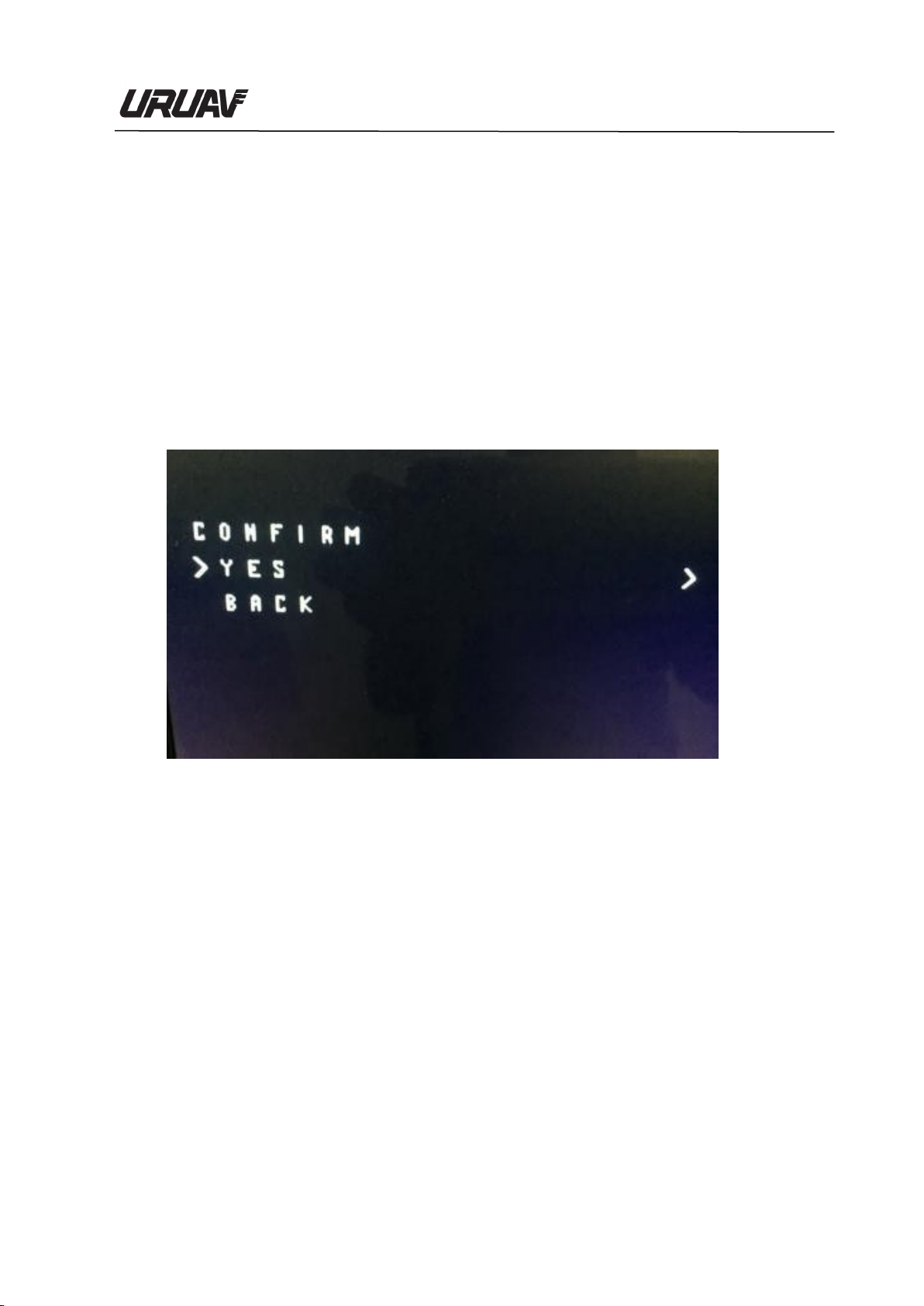

After configuring the grouping and channel, you need to enter the
SET item and select YSE to take effect (Figure 6).
Figure 6 Grouping and channel configuration validation

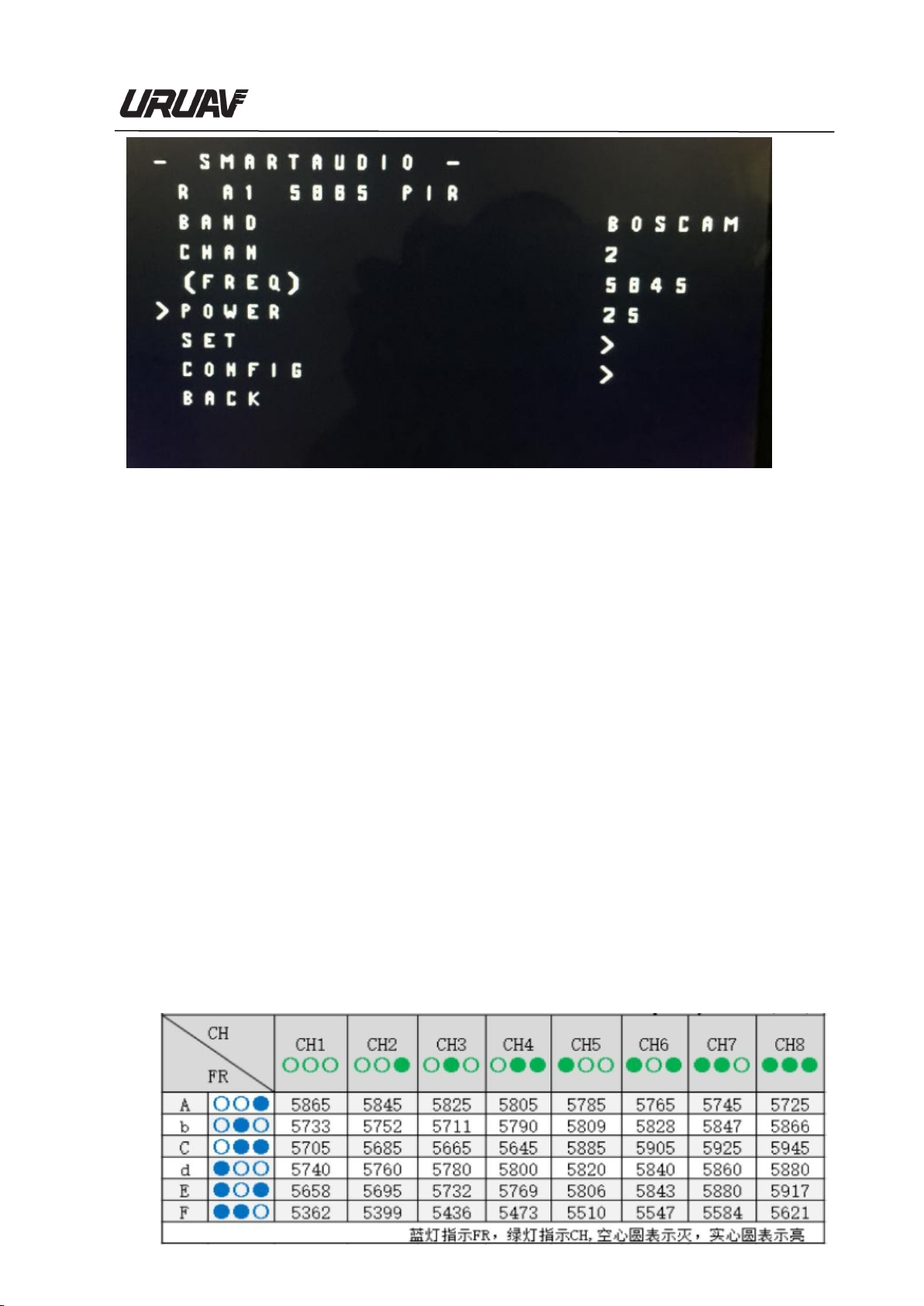

③Output power configuration
As in the previous section, the POWER item can be entered by
remote control selection, and the required transmission power can be
selected (Fig. 7). VTX1 currently supports only 25 mW power options,
while the POWER menu with OSD parameters has four options: 25 mW,
200 mW, 500 mW and 800 mW. Therefore, users need to pay attention
to the choice of 200 mW, 500 mW, 800 mW options will be VTX1 set to
25 mW transmission power.
Note: Unlike configuring BAND and CHAN, POWER settings do not
need to enter the SET entry confirmation, and take effect immediately.

Flipo F95
Figure 7 Transmission Power Selection
④Channel number indication
The LED lamp displays the set grouping and channel, and the
corresponding working frequency is shown in the table below.
Channel select :
Select channels by simple short presses.
Blue LED light on stands for CH1,short presses to change 8 channels
sequentially.
Band select:
Press button for 2S,Green LED will flash,then short presses to select 5
bands.
Power select:
Press button for 4S,Red LED will flash,then select power by simple short
presses to select 25mW/200mW/600mW/800mW.
Blue light indicates FR, green light indicates CH, hollow circle indicates off, solid
circle indicates ON

Flipo F95
Precautions for use:
Before power on, make sure that the output terminal has an antenna
installed to avoid damaging the internal components;
Note that the input voltage is within the specified range and positive and
negative, so as to avoid damaging the internal components;
If you want to change the antenna, please choose the antenna with good
standing wave and gain to get a long transmission distance;
Pay attention to electrostatic protection during transportation,
installation and use;
