UTAH SCIENTIFIC 100-3 Setup guide

UTAH 100 -3
System Setup and Operation

ii UTAH-100/3
UTAH 100-3 Operations Guide
•Document Number: 82101-0086
•Document Version: 2.0
•Date: July 2, 2014
•Printed in U.S.A.
Copyrights and Trademarks
© 2014 Utah Scientific, Inc., All rights reserved. Any use or reproduction of this guide’s contents with-
out the prior written consent of Utah Scientific, Inc. is strictly prohibited.
•UTAH 100 is a trademarks of Utah Scientific, Inc.
•Windows, Windows 2000 and Windows NT and XP are registered trademarks of Microsoft Corpo-
ration.
•All other product names and any registered or unregistered trademarks mentioned in this guide are
used for identification purposes only and remain the exclusive property of their respective owners.
Notice
Information contained in this guide is subject to change without notice or obligation. While every effort
has been made to ensure that the information is accurate as of the publication date, Utah Scientific, Inc.
assumes no liability for errors or omissions. In addition, Utah Scientific, Inc. assumes no responsibility
for damages resulting from the use of this guide.
FCC Compliance (USA) and Digital Equipment Compliance (Canada)
This equipment has been tested and found to comply with the limits for a Class A, digital device,
pursuant to Part 15, Subpart B of the FCC Rules and the Canadian EMC Requirement (ICES-003).
These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case, the user will be required to correct the interference at
their own expense. Shielded cables must be used to ensure compliance with the FCC Class A limits.

Setup and Operations Guide
Declaration of Conformity
Utah Scientific, Inc.
4750 Wiley Post Way, Suite 150
Salt Lake City, Utah 84116-2878 U.S.A.
We declare our sole responsibility that the Utah-100 Digital Routing Switcher is in conformance with
the following standards:
Emission
•EN55022:1994+A1&A2
Immunity
•EN55024:1998
•EN61000-3-2
•EN61000-3-3
Safety
•IEC 60950-1:2001 /EN 60950-1:2001
Following the provisions of the Directive(s) of the Council of the European Union:
•EMC Directive 89/336/EED
•Low Voltage Electrical Directive 72/23/EEC
Utah Scientific, Inc. hereby declares that the product specified above conforms to the above Directive(s)
and Standard(s).

iv UTAH-100/3
Important Safeguards and Notices
This section provides important safety guidelines for the Operator and Service Personnel. Specific
warnings and cautions are found throughout the guide where they apply, but may not appear here. Please
read and follow the important safety information, specifically those instructions related to risk of fire,
electric shock, or injury to persons.
Safety Symbols
•Hazardous Voltage symbol
•Caution symbol. The product is marked with this symbol when it is necessary to
refer to the manual to prevent damage to the product.
Warnings
Please observe the following important warnings:
•Any instructions in this guide that require opening the chassis, changing a
power supply, or removing a board, should be performed by qualified personnel
only. To reduce the risk of electric shock, do not perform any service unless you
are qualified to do so.
•Heed all warnings on the unit and in the operating instructions.
•Do not use this product in or near water. Disconnect AC power before installing
any options or servicing the unit unless instructed to do so by this manual.
•This product is grounded through the power cord ground conductor. To avoid
electric shock, plug the power cord into a properly wired receptacle before con-
necting the product inputs or outputs.
•Route power cords and other cables so they won’t be damaged.
•The AC receptacle (socket) should be located near the equipment and be easily
accessible.
•Disconnect power before cleaning. Do not use any liquid or aerosol cleaner -
use only a damp cloth.

Setup and Operations Guide v
•Dangerous voltages exist at several points in this product. To avoid personal
injury, do not touch exposed conductors and components while power is on. Do
not insert anything into either of the systems two-power supply cavities with
power connected.
•Do not wear hand jewelry or watches when troubleshooting high current cir-
cuits, such as power supplies. During installation, do not use the door handles
or front panels to lift the equipment as they may open abruptly and injure you.
•To avoid fire hazard when replacing fuses, use only the specified correct type,
voltage and current rating as referenced in the appropriate parts list for this
product. Always refer fuse replacement to qualified service personnel.
•Have qualified personnel perform safety checks after any service.
Cautions
Please observe the following important cautions:
•When installing this equipment do not install power cords to building surfaces.
To prevent damage when replacing fuses, locate and correct the problem that
caused the fuse to blow, before reconnecting power.
•Use only specified replacement parts
Notices
Please observe the following important notes:
•When the adjacent symbol is indicated on the chassis, please refer to the man-
ual for additional information.
•For the HD-2020 Chassis and Master Control Panel, refer to “Connecting and
Disconnecting Power” - Chapter 2 (Hardware Installation).

vi UTAH-100/3
Company Information
Utah Scientific, Incorporated
4750 Wiley Post Way, Suite 150
Salt Lake City, Utah 84116-2878 U.S.A.
•Telephone: [phone]
•FAX: [phone]
•Technical Services (voice): [phone]
•Technical Services (FAX): [phone]
•E-Mail -General Information: [e-mail]
•E-Mail -Technical Services: [e-mail]
•World Wide Web: http://www.utahscientific.com
•After Hours Emergency: [phone]. Follow the menu instructions for Emergency Service.

Setup and Operations Guide
Warranty Policies
Hardware Warranty
Utah Scientific, Inc. warrants to the original purchaser that the Utah Scientific hardware is free
from defects in materials and workmanship and will perform substantially in accordance with
the accompanying written materials under normal use and service for a period of ten (10) years
from the date of shipment. Any implied warranties on hardware are limited to ten (10) years.
Some states/jurisdictions do not allow limitations on duration of an implied warranty, so the
above limitation may not apply to certain specific purchasers.
Software Warranty
Utah Scientific warrants that the software will perform substantially in accordance with the
accompanying written materials for a period of one (1) year from the date of shipment.
Customer Remedies
For the first one (1) year after purchase of the software and the first ten (10) years after the date
of purchase of the hardware, Utah Scientific’s and its suppliers’ entire liability and purchaser’s
exclusive remedy shall be, at Utah Scientific’s option, either:
• Return of the price paid, or
• Repair or replacement of the software or hardware that does not meet the above warranties
and is returned to Utah Scientific under the returned materials authorization (RMA)
process with freight and forwarding charges paid.
After the initial warranty periods, purchaser’s exclusive remedy is the repair or replacement of
the hardware upon payment of a fixed fee to cover handling and service costs based on Utah
Scientific’s then-current price schedule. The above warranties are void if failure of the
software or hardware has resulted from an accident, abuse, or misapplication. Any replacement
software or hardware will be warranted for the remainder of the original warranty period or
thirty (30) days, whichever is longer.

viii UTAH-100/3
No other warranties. To the maximum extent permitted by applicable law, Utah Scientific and
its suppliers disclaim all other warranties, either express or implied, including, but not limited
to implied warranties of merchantability and fitness for a particular purpose, with regard to the
software, the accompanying written materials, and any accompanying hardware. This limited
warranty gives the purchaser specific legal rights. These rights may vary in certain states/
jurisdictions.
No liability for consequential damages. To the maximum extent permitted by applicable law,
in no event shall Utah Scientific or its suppliers be liable for any damages whatsoever
(including without limitation, damages for loss of business profits, business interruption, loss
of business information, or any other pecuniary loss) arising out of the use of or inability to use
Utah Scientific products, even if Utah Scientific has been advised of the possibility of such
damages. Because some states/jurisdictions do not allow the exclusion or limitation of liability
for consequential or incidental damages, the above limitation may not apply in those
circumstances.

UTAH 100/3 Operations Guide i
Table of Contents
Table of Contents
Section 1
Section 1 1-1
Introduction 1-1
Installation 1-2
Initial Inspections 1-2
Before Applying Power 1-2
Service 1-2
Product Overview 1-3
Installation 1-3
Power 1-5
Power Supplies 1-5
AC Power Connections 1-6
Chassis Layout with Dimensions 1-7
Section 2
Individual Board (DAs) - Distribution Amplifiers 2-1
Analog Audio 1x8 / Dual 1x4 (121271-1) 2-1
171021-11 2-2
171021-12 2-3
3G-HD-SD DA - 1x8 / Dual 1x4 (121276-1) 2-5
171021-08 2-6
171021-09 2-7
3G DA Triple Fan Out - Triple 1x2 (121277-1) 2-8
171021-10 2-9
Digital Video DA SD Only - Dual 1x4 (121267-4 2-10
171021-08 2-11
171021-09 2-12
Analog Video Clamp / Equalizer DA - 1x8 (121265-1), Dual 1x4
(121265-2) 2-13
171021-08 2-15
171021-09 2-16
Analog Video Utility DA - 1x8 (121266-1), Dual 1x4 (121266-2) 2-17
171021-14 2-19

ii UTAH 100 Series
171021-15 2-20
DA Power Supply (121260-1) 2-21
Rear Panel Operation 2-22

Section 1 1-1
Introduction
Section 1
Section 1
Introduction
Thank you for choosing a Utah Scientific Inc. product. We are convinced that
your choice will prove to be a wise and worthy decision for many years to
come.
Your product has been tested for performance at the factory according to the
specifications given for the system in this manual. However, before putting the
device into operation we kindly ask you to read this manual, and act according
to the information given. All information given in this document is property of
Utah Scientific Inc. To the knowledge of Utah Scientific Inc there are no errors
in the manual. Should any errors be discovered, please notify Utah Scientific
Inc. We will under no circumstances accept responsibility neither for errors in
this manual, nor consequences of such errors.

1-2 Product Overview
Section 1
Installation
Initial Inspections
Check the contents of the shipment for completeness and possible transport damage.
If the contents are incomplete or damaged, contact Utah Scientific Inc immediately for
repairing or replacement parts of the equipment.
Before Applying Power
Verify that the product is configured to match the available main power source per
the input power configuration instructions provided in this manual.
The modules of the UTAH 100-3 frame may only be installed in specific positions.
Interchanging power and function modules may harm the UTAH 100-3-frame
permanently.
The modules of the UTAH 100-3 frame shall always have the components facing
to the right. Failure may occur if modules are installed incorrectly.
Service
Servicing, adjustments, maintenance or repair of this product may be performed
by qualified personnel only. Adjustments described in this manual may be
performed with power supplied to the product while protective covers are
removed. Energy available at many points may, if contacted, result in personal
injury. Capacitors inside this product may still be charged even when
disconnected from their power source.

Section 1 1-3
Product Overview
Section 1
Product Overview

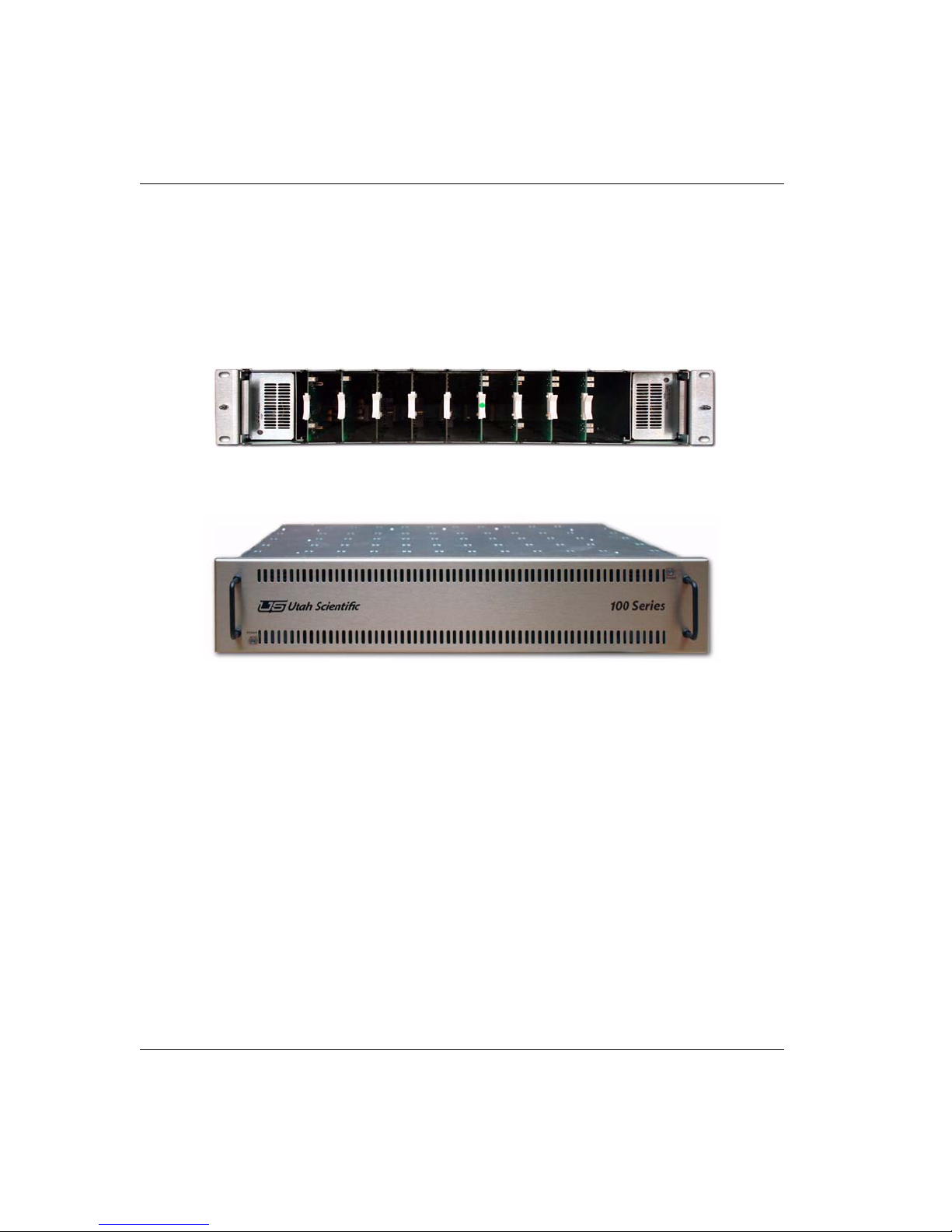

The UTAH 100-3 family of Distribution Amplifiers provide an economical but highly
reliable means of creating multiple copies of both analog and digital video signals.
The 2 RU frame holds dual power supplies for maximum reliability and up to ten DA
modules. Each module is supplied with a rear panel assembly to match the module’s
configuration.
Installation
1. Remove the front cover and inspect the frame and the cards carefully for
damages that may have occurred during transport.
2. Check that the frame is installed so the airflow though the unit is
unrestricted. No forced ventilation is required under normal operating
conditions.
3. Connect the external power cords to the corresponding power connectors
on the rear side of the UTAH 100-3 frame. Check that the Power LED on
the primary supply is lit, while the Fan and Temp LEDs remain unlit. If a
failure occurs related to no power, inoperative fan, or temperature range,
please disconnect power and contact UTSCI support for assistance.

1-4 Product Overview
Section 1
4. Check the power LEDs on the individual DAs. The blinking green "Activity"-LED
along the front of the card indicate good power to the board and that the correct
jumper setting is present. Normally no changes are necessary if used with Utah
Scientific Inc. control software/systems.
5. Install any additional (needed) cards in the frame - while observing the LED status
at all times.
6. Reinstall the front cover to ensure that air travels properly trough the unit.

Section 1 1-5
Power
Section 1
Power
Power Supplies
Part # 121260-1, the dual redundant power supplies are fixed within the chassis and
contain alarm indications for fan failure and non-optimal operating temperature.
Figure 1-1.

1-6 Product Overview
Section 1
AC Power Connections
The UTAH 100-3 rear panel has fully redundant AC power supply connections to each
chassis section.
Figure 1-2. Rear Panel power connections
The recommended AC power cord is USI Part Number 42490-0003; Belden 17500,
10A/125VAC, 1250 Watts, max voltage rating 300 VAC.
Caution: The socket outlets should be installed near the equipment and be easily
accessible to the operator.

Section 1 1-7
Power
Section 1
Chassis Layout with Dimensions
Figure 1-3.

1-8 Product Overview
Section 1

Section 2 2-1
Individual Board (DAs) - Distribution Amplifiers
Section 2
Section 2
Individual Board (DAs) - Distribution Amplifiers
Analog Audio 1x8 / Dual 1x4 (121271-1)
Figure 2-1.
The Analog Audio Distribution Amplifier can be configured within a one input
with eight outputs, or a dual, one input by four outputs.
• RV1 is the Gain adjustment for the Left/Mono channel.
• RV2 is the Gain adjustment for the Right channel.
The DA outputs can be increased +6dB, +12dB or +18dB by moving the
shunts on J1 for Left/Mono channel, and J2 for Right channel.
Figure 2-2.

2-2 Boards and Rear Panel
Section 2
171021-11
Figure 2-3.
