UTICA BOILERS SFM CONSTELLATION Series Instruction manual

P/N 27513401, Rev. B [03/2011]
SFM CONSTELLATION SERIES
MODULAR OIL FIRED CAST IRON BOILERS
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
An ISO 9001-2008 Certified Company
Utica Boilers
2210 Dwyer Avenue, Utica NY 13504-4729
Phone: [phone] • Fax: [phone]
e-mail: [e-mail]
web site: www.ecrinternational.com

2
TABLE OF CONTENTS
Safety Symbols ....................................... 2
Dimensions ............................................ 3
Boiler Ratings & Capacities ....................... 4
Introduction............................................ 5
Connecting Supply & Return Piping ............ 6
Primary Secondary Piping ......................... 7
Ventilation & Combustion Air ..................... 8
Venting System Inspection & Installation ..11

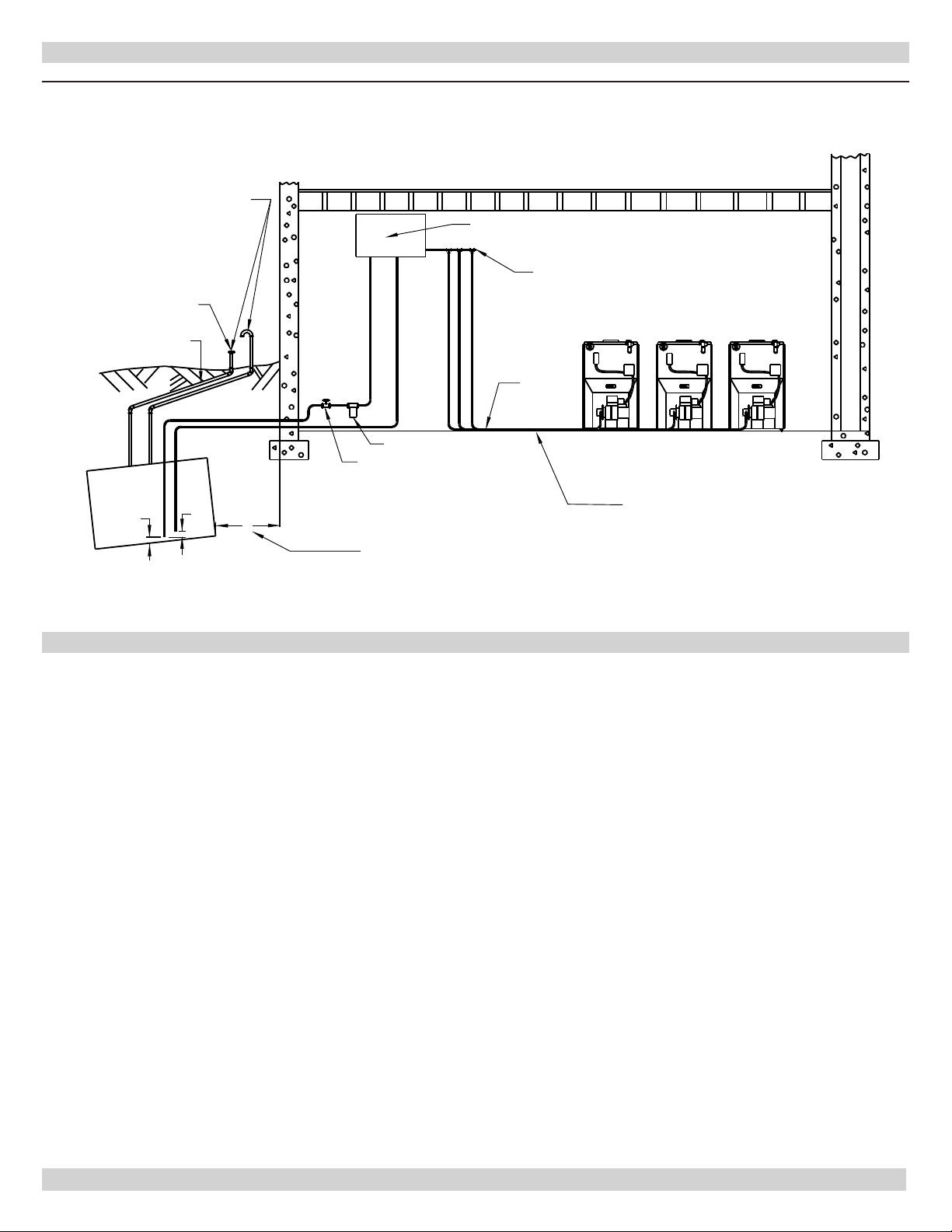

Oil Tank Installation & Piping ............... 12-13
Thermostat Installation ...........................13
Operating Instructions.............................14
Control System ......................................17
Service Check List ..................................19
REPLACEMENT PARTS LISTS
Heat Exchanger.......................................20
Swing Door & Mounting Door Components . 21
Jacket ...................................................22
Hardware ..............................................23
Controls & Hardware ...............................24
SAFETY SYMBOLS
The following dened symbols are used throughout
this manual to notify the reader of potential hazards
of varying risk levels.
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS
Tested for 75 PSI ASME
Working Pressure
H
KEEP THIS MANUAL NEAR BOILER AND
RETAIN FOR FUTURE REFERENCE.
SFM SERIES MODULAR OIL FIRED CAST IRON BOILERS
!
DANGER
Indicates a hazardous situation which, if
not avoided, WILL result in death or serious
injury.
!
WARNING
Keep boiler area clear and free from•
combustible materials, gasoline and other
ammable vapors and liquids.
DO NOT obstruct air openings to the boiler•
room.
Modication, substitution or elimination •
of factory equipped, supplied or specied
components may result in property damage,
personal injury or the loss of life.
To the owner: Installation and service of•
this boiler must be performed by a qualied
installer.
To the installer: Leave all instructions with•
the boiler for future reference.
When this product is installed in the•
Commonwealth of Massachusetts the
installation must be performed by a
Licensed Plumber or Licensed Gas Fitter.
!
CAUTION
Indicates a hazardous situation which, if not
avoided, may result in minor or moderate
injury.
NOTICE
Indicates information which should be
followed to ensure proper installation and
operation.
!
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or serious
injury.

3
MODEL NO. A B C D
SFM6225W * 29 ¼” 13 ⅝” 8” ———
SFM7275W * 32 ⅞” 13 ⅝” 8” ———
SFM24150W 21 ½” 12 ⅝” 6” 53 13⁄16”
SFM25175W 25 ⅛” 14 ¼” 7” 53 13⁄16”
SFM25200W 25 ¼” 14 ¼” 7” 53 13⁄16”
SFM26225W 29 ¼” 13 ⅝” 8” 53 13⁄16”
SFM27275W 32 ⅞” 13 ⅝” 8” 53 13⁄16”
SFM36225W 29 ¼” 13 ⅝” 8” 85 7⁄16”
SFM37275W 32 ⅞” 13 ⅝” 8” 85 7⁄16”
SFM47275W 32 ⅞” 13 ⅝” 8” 87 13⁄16”
SFM57275W 32 ⅞” 13 ⅝” 8” 149 1⁄16”
SFM67275W 32 ⅞” 13 ⅝” 8” 181 13⁄16”
SFM77275W 32 ⅞” 13 ⅝” 8” 212 11⁄16”
SFM87275W 32 ⅞” 13 ⅝” 8” 245 ⅝”
* SFM6225W & SFM7275W are Single Module Units
MODEL # CODE
SF M 2 6 225 W
SERIES
MODULAR DESIGN
NO. OF PACKED BOILERS
SECTIONS PER BOILER
G.P.H. INPUT EACH FOR BOILER
TYPE OF UNIT
MULTIPLE BOILER DIMENSIONAL DATA
DIMENSIONS

4
NOTES:
1. Add sufx “T” to denote boiler with tankless heater.
2. I=B=R burner capacity is based on an oil heating value of 140,000 Btu/gal. and with 13% CO2.
3. For equivalent square feet of radiation, divide I=B=R output by 150.
4. Net ratings based on 170 0 F temperature in radiators and include 15% allowance for normal piping
and pick-up load. Consult manufacturers for unusual piping and pick-up requirements.
5. Nozzle listed is for use with Beckett burner. When alternate burner is used, consult burner manufac-
turer’s recommendations.
6. Electrical service to be 120 Volts, 15 Amps, 60 Hz. (Each Boiler).
7. The MEA number for the SFM series is 182-86E.
8. The MEA number for the AFG burner is 213-83-E.
STANDARD EQUIPMENT: Crated Boiler, Flush Jacket, Oil Burner, Target Wall/Liner, ASME Relief
Valve, Theralitimeter Gauge, Drain Cock, Wiring Harness, Burner Electrical Disconnect, Plastic Cover,
Supply Tapping - 2”, Return Tapping - 1 ¼”, High Limit and Circulator Control, Primary Control. For
Tankless Heater Units-add Tankless Hot Water Coil.
MODEL NO.
FIRING
RATE
G.P.H.
INPUT
M.B.H.
DOE
OUTPUT
M.B.H.
IBR
OUTPUT
M.B.H.
MODEL NO.
OF MODULES
NO. OF
MODULES
TOTAL
BOILER
WATER
VOLUME
GAL
BOILER
WEIGHT
LBS.
PUMP
PRESSURE
P.S.I
NOZZLE
FURNISHED
SFH6225W 2.25 315 254 221 SFM6225W 1 19.5 915 140 2.00 45B
SFH7275W 2.75 385 307 267.1 SFM7275W 1 22.5 1058 140 2.25 45B
SFM24150W 3.00 420 350 304 SFM4150W 2 27.0 1251 140 1.25 80B
SFM25175W 3.50 490 412 358 SFM5175W 2 33.0 1546 140 1.50 80B
SFM25200W 4.00 560 462 402 SFM5200W 2 33.0 1546 140 1.75 80B
SFM26225W 4.50 630 508 442 SFM6225W 2 39.0 1831 140 2.00 45B
SFM27275W 5.50 770 614 534.2 SFM7275W 2 45.0 2116 140 2.25 45B
SFM36225W 6.75 945 762 663 SFM6225W 358.5 2745 140 2.25 45B
SFM37275W 8.25 1155 921 801.3 SFM7275W 367.5 3174 140 2.25 45B
SFM47275W 11.00 1540 1228 1068.4 SFM7275W 4 90.0 4232 140 2.25 45B
SFM57275W 13.75 1925 1535 1335.5 SFM7275W 5 112.5 5290 140 2.25 45B
SFM67275W 16.50 2310 1842 1602.6 SFM7275W 6 135.0 6347 140 2.25 45B
SFM77275W 19.25 2695 2149 1869.7 SFM7275W 7 157.5 7905 140 2.25 45B
SFM87275W 22.00 3080 2456 2136.8 SFM7275W 8 180.0 8464 140 2.25 45B
BOILER RATINGS, CAPACITIES & DIMENSIONS

5
All installations must conform to the requirements
of the authority having jurisdiction. Such applicable
requirements take precedence over the general
instructions of this manual.
Where required by the authority having jurisdiction,
the installation must conform to the American Society
of Mechanical Engineers Safety Code for Controls and
Safety Devices for Automatically Fired Boilers, ANSI/
ASME No. CSD-1.
LOCATE BOILERS in front of nal position before remov-
ing crate. Provide a level solid base as near the chimney
as possible, and centrally located with respect to the heat
distribution system as practical.
!
WARNING
Boiler may not be installed on combustible
ooring.
Allow 24 inches in the front and top for servicing and
cleaning, or removing tankless water heating coil.
When installed in a utility room, door should be wide
enough to allow largest boiler part to enter, or to permit
replacement of another appliance such as a water heater.
FOR INSTALLATION ON NON-COMBUSTIBLE
FLOORS ONLY. The boiler must not be installed on
carpeting or vinyl ooring. Minimum clearances to
combustible construction are:
TOP .......................................... 24 IN.
FRONT ...................................... 24 IN.
FLUE CONNECTOR ........................ 9 IN.
REAR .......................................... 6 IN.
SIDES....................................... 12 IN.
NOTICE
Clearance for access should exceed fore
protection clearance.
REMOVE CRATE and plastic protective wrapper
and inspect for damage. All equipment is carefully
manufactured, inspected and packaged by
experienced workers. Our responsibility ceases
upon delivery of the crated boiler to the carrier in
good condition. Any claims for damage or shortage
in shipment must be led immediately against the
carrier by the cosigner. Move boiler to permanent
position by sliding or walking.
INTRODUCTION

6
The recommended method of connecting the supply and return piping can be seen in Figure #1 below.
(For detailed piping recommendations refer to the engineering manual)
RETURN
SUPPLY
CIRCULATOR
REAR OF BOILER
FRONT OF BOILER BRANCH
BRANCH
MAIN
CONNECTING SUPPLY AND RETURN PIPING
Figure 1 - MODULAR BOILER HOOK-UP RECOMMENDED PARALLEL PIPING

7
ZONE 1 ZONE2
ZONE 3
REAR OF
BOILER
BRANCH
BRANCH
12"
MAX
FRONT OF
BOILER
AIR ELIMINATOR &
EXPANSION
TANK
PRIMARY
PUMP
PRIMARY
LOOP
SECONDARY
PUMP
LOAD
PUMPS
TO
EXPANSION
TANK & SYSTEM
FILL
An alternate method of connecting the supply and return piping can be seen in Figure #2 below.
(Refer to the engineering manual for detailed piping recommendations.)
Note: The tapping sizes for the supply and return piping are 2” and 1 ½” respectively.
It is recommended that the main piping be 3” and the branches 1 ½”.
PRIMARY SECONDARY PIPING
Figure 2 - PRIMARY SECONDARY PIPING

8
1. When a boiler is located in an unconned
space in a building of conventional
construction frame, masonry or metal,
inltration normally is adequate to
provide air for combustion and ventilation.
However, in any building which has
been altered to conserve energy or to
minimize inltration, the boiler area
should be considered as a CONFINED
SPACE. If there is any doubt, install air
supply provisions for combustion and
ventilation in accordance with section 5.3,
Air for Combustion and Ventilation, of the
latest revision of the NFPA 54 code, the
recommendations that follow, or applicable
provisions of the local building codes.
COMBUSTION AIR REQUIREMENTS
(MINIMUM OPENING IN SQUARE INCHES)
*UNCONFINED AREA **CONFINED AREA
OUTSIDE
COMBUSTION AIR
INSIDE
COMBUSTION AIR
OUTSIDE
COMBUSTION AIR
1 IN2/5000BTU
(PARAGRAPH 2)(SQ IN)
1 IN2/1000 BTU
(MIN 100IN2) (FIG 4)
(SQ IN)
1 IN2/4000
BTU
(FIG 3)(SQ IN)
1 IN2/2000
BTU
(FIG 3)(SQ IN)
BTU/HR INPUT
315,000 63 315 78.75 158
385,000 77 385 96.25 193
420,000 84 420 105 210
490,000 98 490 123 245
560,000 112 560 140 280
630,000 126 630 158 315
770,000 154 770 193 385
945,000 189 945 237 473
1,155,000 231 1155 289 578
1,540,000 308 1540 385 770
1,925,000 385 1925 482 963
2,310,000 462 2310 578 1155
2,695,000 539 2695 675 1348
3,080,000 616 3080 770 1540
* Unconned area: A space whose volume is not less than 50 cubic feet per 1000 BTU per hour of all appli-
ances installed in that space (cubic feet of space = height x width x length).
** Conned area: A space whose volume is less than 50 cubic feet per 1000 BTU per hour of all appliances in-
stalled in that space (cubic feet of space = height x width x length).
2. When a boiler is installed in an unconned
space, in a building of unusually tight
construction, air for combustion and room
ventilation must be obtained from outdoors
or from spaces freely communicating with
the outdoors. A permanent opening or
openings having a total free area of not less
than 1 square inch per 5,000 BTU per hour
of total input rating of all appliances shall
be provided. Ducts may be used to convey
make-up air from the outdoors and shall have
the same cross-sectional area of the openings
to which they are connected.
VENTILATION & COMBUSTION AIR
!
WARNING
Air openings to combustion area must not be
obstructed. Follow the chart below to obtain
and maintain adequate combustion air.

9

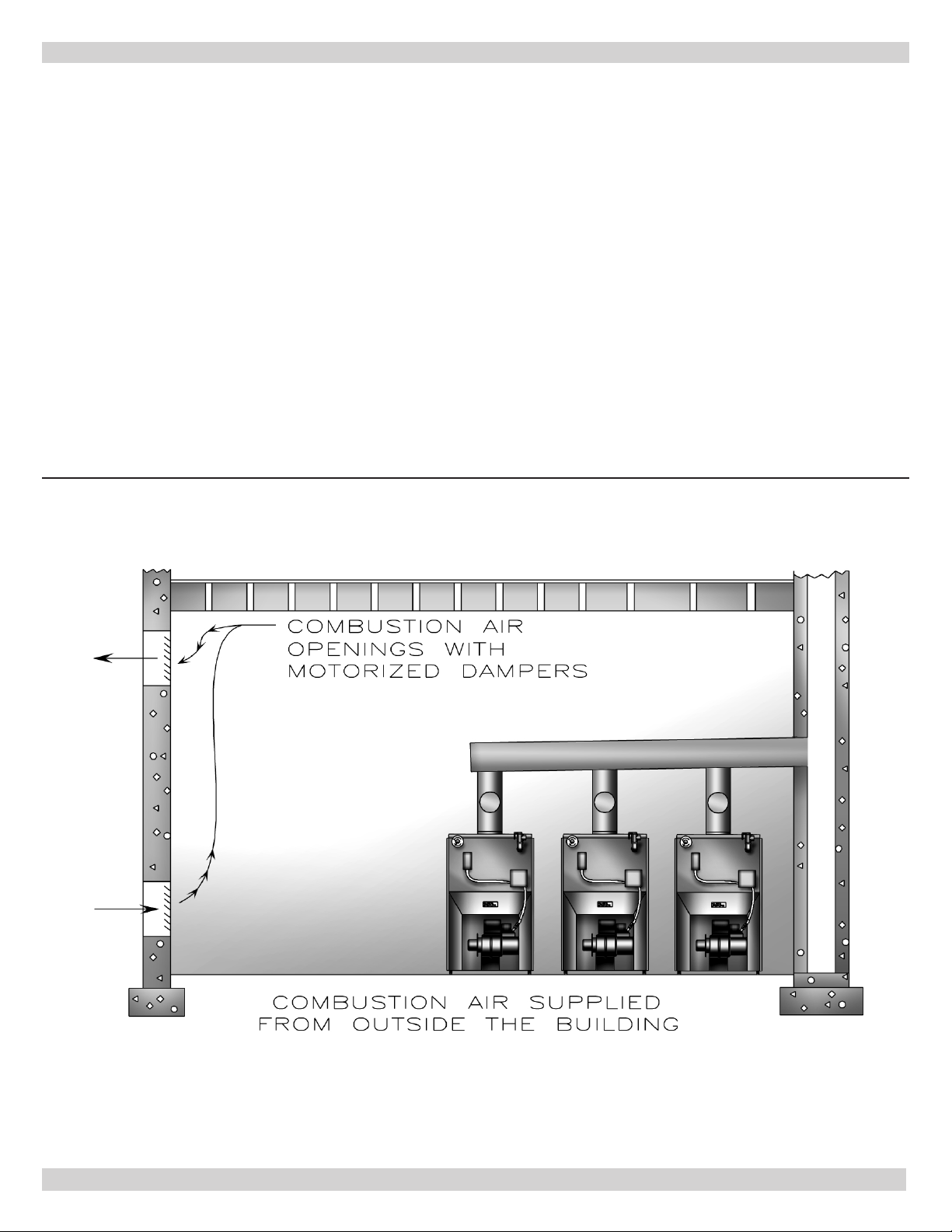

3. When air for combustion and room ventilation is
from inside buildings, the conned space shall
be provided with two permanent openings, one
starting 12 inches from the top and one 12 inches
from the bottom of the enclosed space. Each
opening shall have a minimum free area of 1
square inch per one thousand (1,000) BTU per
hour of the total input rating of all appliances in
the enclosed space, but must not be less than
one hundred (100) square inches. These openings
must freely communicate with the interior areas
having adequate inltration from the outside. See
Figure #4.
4. When the boiler is installed in a conned space
and all air is provided from the outdoors, the
conned space shall be provided with two
permanent openings, one commencing within
12 inches from the top and one commencing 12
inches from the bottom of the enclosure. The
openings shall communicate directly, or by ducts,
with the outdoors or spaces (crawl or attic) that
freely communicate with the outdoors. One of
the following methods must be used to provide
adequate air for ventilation and combustion.
A. When directly communicating with the
outdoors, each opening shall have a minimum
free area of 1 square inch per 4,000 BTU per
hour of total input rating of all equipment in
the enclosure. See Figure #3.
VENTILATION & COMBUSTION AIR
Figure 3 - COMBUSTION AIR SUPPLIED FROM OUTSIDE THE BUILDING

10
OIL LINE MUST BE BURIED OR OTHERWISE
PROTECTED FROM DAMAGE. MINIMUM
OIL FILTER
SHUT OFF VALVE
SWING JOINTS
APPROVED FITTINGS
OIL GAUGE
FILLER PIPE
VENT PIPE
.5" IPS OR 1/2" O.D. COPPER TUBING
REFER TO NATIONAL BOARD OF
FIRE UNDERWRITERS
MINIMUM
OIL TANK

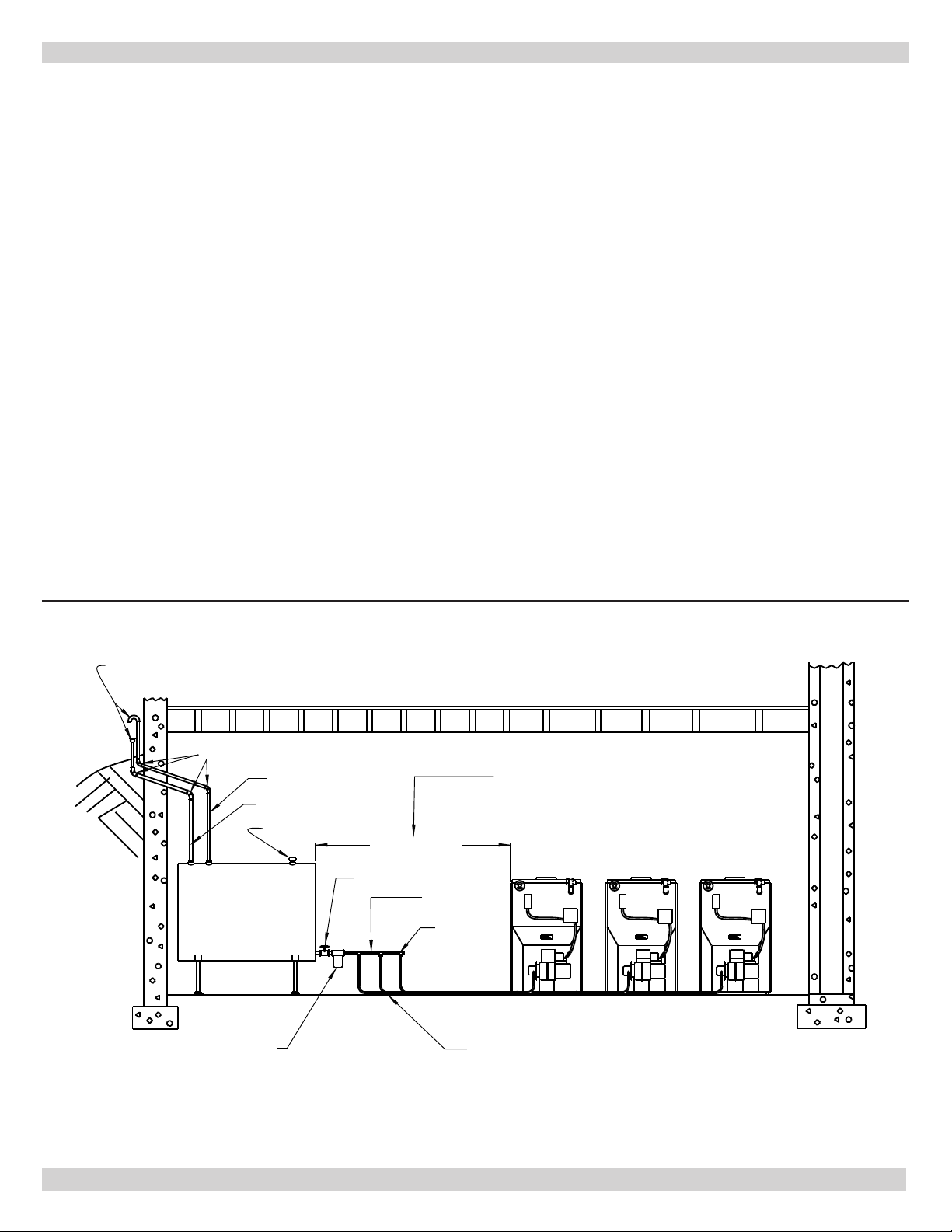

TYPICAL INSTALLATION SINGLE PIPE OIL SYSTEM WITH 2 OR MORE UNITS
TEES
CLOSE
NIPPLES
INSPECT CHIMNEY to make certain it is constructed
according to the latest revision of NFPA211. Local codes
may differ from this code and should be checked. Where
there is a conict, the local code will prevail.
This boiler must be installed into a chimney which has
a masonry or metallic chimney liner.
VENTILATION & COMBUSTION AIR
VENTING SYSTEM INSPECTION & INSTALLATION
Figure 4 - COMBUSTION AIR SUPPLIEDFROM INSIDE THE BUILDING
!
WARNING
Boiler is to be vented by natural draft and
shall not be connected into any portion of a
mechanical draft system operating under a
positive pressure.
Figure 5

11
An unlined chimney will have leaks that will cause
poor chimney performance (NO DRAFT), and could
result in poor positive pressure in the combustion
chamber.
Horizontal portions of the venting system should not
exceed 10 feet in length. Horizontal lengths over
10 feet will have a negative effect on the chimney
performance.
The chimney should extend at least 2 feet above any
portion of the building within 10 feet. See gure 5 at
right. It should produce a negative draft of .06 to .08
inches of water column, (W.C.), as measured with a
draft gauge between the boiler and barometric draft
control while maintaining an .02 inch W.C. negative
draft in the combustion chamber. See chart below for
recommended chimney or vent sizes.
Inadequate draft will cause improper combustion,
resulting in dirty ue ways and high fuel bills.
When installing a single boiler, connect the ue
pipe with the same size as the boiler outlet to the
chimney, sloping upward continuously toward the
chimney approximately ¼” per foot. Bolt or screw
joints together to avoid sag.
If an oil red water heater is vented into the same
ue as the boiler, provide a separate hole into
the chimney whenever possible. When this isn’t
possible, use a “Y” connection in the ue pipe,
using a separate draft regulator for each unit.
When a chimney will not provide adequate draft to
handle the input from the water heater and boiler
simultaneously, wire the units so that only one will
operate at a time, favoring the water heater.
CHIMNEY OR VENT SIZES
MODEL NO.
DIA. OF
CHIMNEY
OPENING
(BREECHING)
CHIMNEY
SIZE
(IN. X IN. X
FT.)
FLUE
OUTLET
SIZE
SFM6225W 8 8X8X15 8”
SFM7275W 98X12X15 8”
SFM24150W 98X12X15 6”
SFM25175W 98X12X20 7”
SFM25200W 98X12X20 7”
SFM26225W 98X12X20 8”
SFM27275W 10 12X16X15 8”
SFM36225W 12 12X16X15 8”
SFM37275W 14 12X16X20 8”
SFM47275W 14 12X16X15 8”
SFM57275W 18 16X20X20 8”
SFM67275W 18 20X20X15 8”
SFM77275W 22 20X24X15 8”
SFM87275W 22 20X24X20 8”
VENTING SYSTEM INSPECTION & INSTALLATION
Figure 6 - TYPICAL VENTING OF 2 OR MORE UNITS

12
Oil tank and piping should be installed in accordance
with the National Board of Fire Underwriters and local
regulations. Oil storage tank, vent, ll pipe and caps
should be as prescribed by local codes. In no case
should the vent pipe be smaller than 1 ¼” I.P.S. The
ll pipe should not be less than 2” I.P.S.
The suction line from the tank to the burner should
be one continuous piece of tubing to prevent air
entering the line. The suction line, must be ⅜” O.D.
copper tubing for runs of 50 feet or less, and ½”
O.D. for longer runs. An oil return line, same size
as the suction line, must be used on any installation
where the bottom of the tank is below the fuel unit
of the burner. Oil lines should be buried or otherwise
protected from mechanical injury. Flare ttings on all
oil lines are recommended. Compression ttings on
the suction line often allow air to be drawn into the
fuel pump, making it difcult to maintain oil pressure
at the nozzle. Do not run overhead fuel lines from
tank to oil burner.
Fuel pump connections and by-pass should be
made according to instructions attached to the
fuel pump. If tank is more than 20’ from the
boiler, a two stage fuel unit should be installed
in place of the single stage pump supplied as
standard equipment with the burner. Make certain
the rotation and speed are the same and the
pump is suitable for the burner horsepower rating.
An oil line lter and shut-off valve should be
installed in the suction line. Shut-off valves
should be installed in both the suction and return
lines at the burner for convenience in servicing
burner. Allow extra tubing at burner so burner
may be removed from boiler for cleaning without
disconnecting tubing. (See Figures #7 & #8). An
optional exible oil line is available.
OIL LINE MUST BE BURIED OR OTHERWISE
PROTECTED FROM DAMAGE. MINIMUM
OIL FILTER
SHUT OFF VALVE
SWING JOINTS
APPROVED FITTINGS
OIL GAUGE
FILLER PIPE
VENT PIPE
.5" IPS OR 1/2" O.D. COPPER TUBING
REFER TO NATIONAL BOARD OF
FIRE UNDERWRITERS
MINIMUM
OIL TANK
TYPICAL INSTALLATION SINGLE PIPE OIL SYSTEM WITH 2 OR MORE UNITS
TEES
CLOSE
NIPPLES
OIL TANK AND PIPING
Figure 7 - COMBUSTION AIR SUPPLIED FROM INSIDE THE BUILDING

13
1. Thermostat should be installed on an inside wall
about four feet above the oor.
2. NEVER install a thermostat on an outside wall.
3. Do not install a thermostat where it will be affected
by:
A. Drafts
B. Hot or cold pipes
C. Sun light
D. Lighting xtures
E. Television sets
F. A replace or chimney
4. Check thermostat operation by raising and lower-
ing thermostat as required to start and stop the
burner.
TYPICAL INSTALLATION BURRIED TANK OIL SYSTEM WITH 2 OR MORE UNITS
OIL LINE MUST BE BURIED OR OTHERWISE
PROTECTED FROM DAMAGE. MINIMUM
OIL FILTER
SHUT OFF VALVE
APPROVED
FITTINGS
SUCTION
FILL
PIPE
.5" IPS OR 1/2" O.D. COPPER TUBING
OIL
JOINTS
SWING
RETURN LINE
REFER TO LOCAL
CODE
LINE
TANK
SUPPLY LINE
*
APPROVED DAY TANK OR
AUX. TANK WITH BOOST PUMP
4"
3"
MANIFOLD .5"
5. Instructions for the nal adjustment of the thermo-
stat are packaged with the thermostat ( adjusting
heating anticipator, calibration, ect.).
OIL TANK AND PIPING
THERMOSTAT INSTALLATION
Figure 8 - COMBUSTION AIR SUPPLIED FROM INSIDE THE BUILDING

14
The venting system should be inspected at the start
of each heating season. Check the vent pipe from
the boiler to the chimney for signs of deterioration by
rust or sagging joints. Repair if necessary.
Remove the vent pipe at the base of the chimney or
ue and, using a mirror, check for obstruction.
The lever of the pressure relief valve, shown in
Figure #9, on the boiler should be operated
periodically to make sure that it is functioning
properly. The pressure relief valve should open before
the water pressure exceeds the 30 lb. reading on the
gauge. If this pressure is exceeded and the pressure
relief valve leaks water when the boiler is operating
at normal pressures, it should be immediately
replaced. Corrosion can build up rapidly at the valve
seat and prevent its functioning as a safety device.
START-UP AND ADJUSTMENT OF OIL BURNER
(See oil burner instructions for nozzle and electrode
setting)
A. Check oil burner nozzle to make certain it is tight in
adapter. Burner mounting bolts should be tight.
B. Check electrode setting, as they may have been
jarred out of position during transportation.
C. Lubricate burner motor and circulator motor if
required. Some circulators are water lubricated and
do not require oiling.
D. Set room thermostat to call for heat, or jump
thermostat contacts on the boiler control.
E. Open all oil line valves.
F. Turn service switch on. Burner should start.
G. On one pipe fuel systems only, vent pump as soon
as burner starts. Allow oil to run until all traces of
air in the suction line disappear.
H. Turn “OFF” burner and install pressure gauge port
on pump.
I. Start burner again and check oil pressure for 140
lbs. Adjust if necessary.
Instruments are the only reliable method to
determine proper air adjustments. An improperly
adjusted burner causes soot and high fuel bills
because of incomplete combustion of the fuel oil. This
in turn may require excessive boiler maintenance,
service costs, and in some instances, house cleaning
or redecorating. A competent service mechanic
should be consulted to make the proper adjustments
with a smoke tester, CO2indicator and draft
gauge. Bacharach or Dwyer test kits include these
instruments.
INSTRUCTIONS FOR PROPER OPERATION
OF THE BOILER-BURNER UNIT
A ¼” diameter slot is provided in the inspection
cover plate to take draft readings in the combustion
chamber. See Figure #9. A ¼” diameter hole will
be required in the ue pipe between the boiler
and barometric damper (if used) to take draft,
CO2, smoke and temperature readings. Adjust air
shutter on oil burner to obtain a “trace” of smoke.
Measure CO2at this point. Increase air adjustment to
lower CO2 approximately one (1) percent. Check to
insure minimum negative .02 w.c., (water column),
“overre” draft and zero (0) smoke. If - .02 w.c.
“overre” draft can not be maintained, changes and/
or modications may be required in the venting or
the chimney.
The following table (on next page) is provided as a
guideline for initial start-up. Final adjustments MUST
be made using combustion instruments as previously
mentioned.
OPERATING INSTRUCTIONS
!
CAUTION
Do not set re visually.
!
CAUTION
Water will be boiling hot.

15
CHECK SAFETY CONTROL CIRCUIT after
burner adjustments have been made for satisfactory
performance.
A. High limit control: remove cover and note
temperature setting. See Figure #13. With
the burner operating, decrease this setting
to the minimum point. When boiler water
temperature exceeds this set point, the high
limit switch will open, shutting off the power to
the oil burner. Return setting to desired high
limit point. Burner should restart.
B. Primary control and ame sensor:
Check:
1. Flame failure - simulate by shutting off oil supply
with hand valve while burner is on. Sixty seconds
after ameout, the safety switch locks out, ignition
stops, motor stops and oil valve - when used -
closes. To restart, open oil supply valve and reset
safety switch.
2. Ignition failure - with burner off, close oil supply
valve and run through start-up procedure, The
safety switch should lock out as in ame failure.
3. Power failure - Turn off main power supply switch
while burner is operating. When burner stops,
restore power and burner should start.
If operation is not as described as above, check
wiring and controls.
Model
No.
End
Cone
Static
Disc
Air Band
Setting
Air Shutter
Setting
Head
Setting
Low Firing
Rate Bafe
SFM4150 F-6 2¾ 2 6––––– 0
SFM5175 F-12 3U 3 5 ––––– 0
SFM5200 F-12 3U 5 5 ––––– 0
SFM6225 ––––– L1 4 61 –––––
SFM7275 ––––– L1 4 62 –––––
Information in above table uses Beckett model AFG burner for model numbers SFM4150-5200 and Beckett model
SMG for models 6225 and 7275.
PREVENTIVE MAINTENANCE of an oil red
boiler reduces operating costs. The boiler and vent
pipe should be inspected for accumulation of soot
or scale deposits periodically but at least once every
year before the start of each heating season. When
soot is present on the section walls and ueways,
improper combustion will result, causing additional
sooting and scaling until ueways are completely
closed. To remove soot and scale from the ueways,
remove top jacket panel, top clean-out plate, open
burner swing door. (See Figure #9 next page)
PERIODIC INSPECTION and tightening of the
tankless heater/cover plate bolts will reduce the risk
of leaks. See part number 6, in Figure #14, Replace-
ment Parts “Heat Exchanger” section in the back of
this manual.
INSTRUCTIONS FOR OPENING BURNER
SWING DOOR
Turn off power to boiler. 1.
Allow boiler to cool down. 2.
Disconnect power cable at factory supplied burner 3.
electrical disconnect. See Figure #9
Loosen screws on the sides of the lower front jacket 4.
panel. See Figure #9.
Pull the bottom part of the lower front panel forward. 5.
Lift the lower front panel up and off the boiler. See 6.
Figure #9.
Close oil valve. See 7. Figures #3 & #4 .
Disconnect oil line from burner. 8.
Do not try to swing door with oil line attached. 9.
Remove nut from swing door stud on right hand side of 10.
door.
Swing open burner and door to the left. 11.
OPERATING INSTRUCTIONS

16
Using a ue brush, brush the soot and scale into the
combustion space where it can be removed through
the swing door opening.
It is recommended to replace the nozzle at the start
of each heating season. Lubricate the burner motor
and circulator motor - if required - with a few drops
of a good grade of light motor oil. Do not over oil.
Have a competent service person service the burner
and check the controls and check the electrodes for
carbon or cracks in the insulators. Burners should be
adjusted to produce the conditions shown in Start-
up and Adjustment of Oil Burner procedure covered
earlier in this section.
UTICA
BOILERS
LOWER FRONT
JACKET
PANEL
BURNER
ELECTRICAL
DISCONNECT
MOUNTING
SCREWS
(BOTH SIDES)
1/4" SLOT
HIGH LIMIT
CONTROL
TOP JACKET
PANEL
PRESSURE
RELIEF VALVE
HOT
INSTRUCTIONS FOR CLOSING BURNER
SWING DOOR
Swing burner and door to the right until insulation is 1.
slightly compressed and the stud is exposed.
Attach nut to the stud and tighten it until the built in 2.
stop contacts the mounting door.
Replace oil line to burner. 3.
Replace lower jacket panel, and tighten the screws. 4.
Connect the power cable at the factory supplied burner 5.
electrical disconnect.
Turn on power to boiler. 6.
Bleed oil line. 7.
OPERATING INSTRUCTIONS
!
CAUTION
Use caution when vacuuming in the chamber
area. Damage to chamber could result.
Figure 9

17
ELECTRICAL WIRING should conform with
the latest edition of National Electrical Code
ANSI/NFPA No. 70 and/or local authority having
jurisdiction. A separate electrical circuit should be
run from the entry box with a fused disconnect
switch in this circuit. Refer to component coding
and wiring code for the following control systems
and wiring diagrams.
SFM INDIVIDUAL MODULE WIRING:
Refer to Figure #10 below for factory module wiring.
MODULE SYSTEM WIRING:
See• Figure #11 for Argo AMB4.
Consult modular boiler control manual for specic •
system control wiring instructions for other brands.
WIRING CODE
Line Voltage by Factory
Low Voltage by Factory
Line Voltage by Installer
Low Voltage by Installer
* Not all components listed are used in all control systems.
CONTROL SYSTEMS

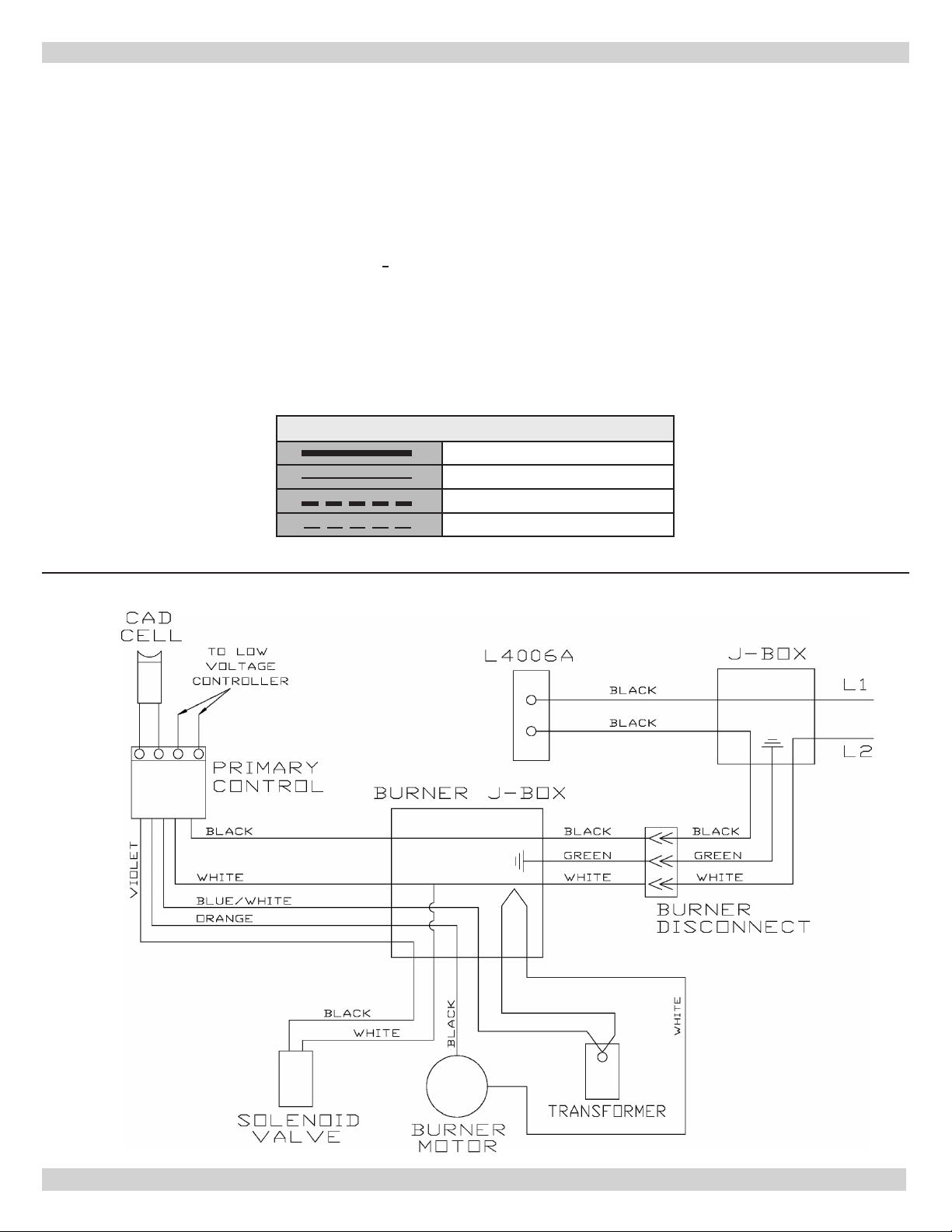

Figure 10 - SFM INDIVIDUAL MODULE WIRING

18
CONTROL SYSTEMS

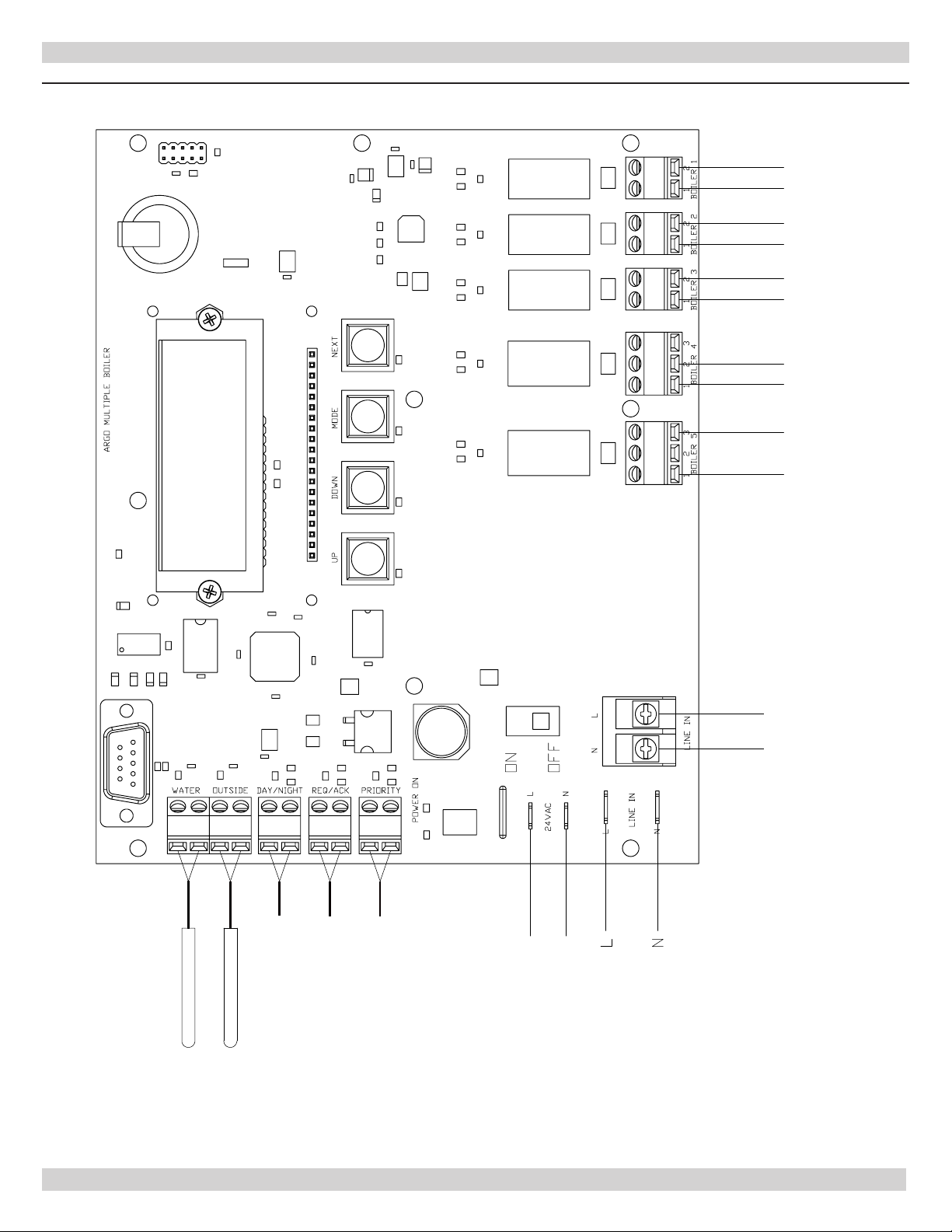

Figure 11 - ARGO AMB4 MODULE WIRING
IF USING REQ/ACK CONNECT HERE
(TT/THERMOSTAT DRY CONTACT)
IF USING EXTERNAL DAY/NIGHT FEATURE
CONNECT HERE (DRY CONTACT)
TO PRIORITY IF USING
(DRY CONTACT)
WATER SENSOR
OUTSIDE SENSOR
24 VAC FROM TRANSFORMER
NL
120 VAC TO TRANSFORMER
120 VAC
LINE IN
USE TERMINALS 1&3
FOR NORMALLY OPEN
CONNECTION.
TO
AUXILIARY
DEVICE
TO
BOILER
T-T
(TERMINALS
1&2)
TO
BOILER
T-T
TO
BOILER
T-T
TO
BOILER
T-T

19
xInspect Chimney and Flue pipe
xInspect and Clean Appliance
xInspect Oil Line - Size/Leaks
xInspect Electrical Connections
xInstall New Fliter
xRoom Make-up Air
xElectrode setting
*Nozzle-Size, Angle, Type
*Pump Pressure/Vacuum
*Line Voltage/Motor Amps
*Smoke Test
*Draft-Overre/In Flue
*CO2 or O2
*Flue Gas Temperature
xProper Light-Off (Hot & Cold)
xControls and Safety Devices
SERVICE RECORD CHART
Date
Nozzle Pump
Pressure
PSI
Smoke
#
Draft
CO2or O2
Flue
Temperature
°F
Size Angle Type O.F. NF
*Measure with Instruments and Record results on chart provided below
SERVICE CHECK LIST AND RECORD CHART

20
5
4
3
2
1
6
7
8
9
10
11 12
ITEM
#PART # DESCRIPTION QTY
1 10051702 REAR SECTION 1
2100-1-
8.01
#60 PUSH NIPPLE
4 SECTION 3
5 SECTION 4
6 SECTION 5
7 SECTION 6
3 10051101
CENTER SECTION
4 SECTION 2
5 SECTION 3
6 SECTION 4
7 SECTION 5
4 10051201 FRONT SECT. CASTOVER 1
5 HW02511 TIE ROD ½ X 14¼ (4 SEC)
2
HW02512 TIE ROD ½ X 17⅞ (5 SEC)
HW02514 TIE ROD ½ X 21¾ (6 SEC)
HW02515 TIE ROD ½ X 25¼ (7 SEC)
6 5611508 KIT - TARGET WALL &
INSULATION BLANKET 1
7 25511005 INSUL BLANKET 16X24
(6 & 7 SECTION) 1
ITEM
#PART # DESCRIPTION QTY
8
HW-025.01 TIE ROD ½ X 12½ (4 SEC)
1
HW-025.02 TIE ROD ½ X 16½ (5 SEC)
HW-025.03 TIE ROD ½ X 20½ (6 SEC)
HW-025.05 TIE ROD ½ X 9 (3 SEC)
HW-025.09 TIE ROD ½ X 23½ (7 SEC)
9 100-1-5.01
#22 PUSH NIPPLE
4 SECTION 3
5 SECTION 4
6 SECTION 5
7 SECTION 6
10 MS-006.00
ROPE MED DENSITY
4 SECTION (19.5’)
1
5 SECTION (26’)
6 SECTION (32.5’)
7 SECTION (39’)
11 HW-008.03 WASHER 1/2 ID FLAT 3
12 HW-003.05 NUT 1/2-13 HEX HEAD 3
FULLY ASSEMBLED
HEAT EXCHANGERS
10023402 4 SECTION
10023403 5 SECTION
10023404 6 SECTION
10023405 7 SECTION
SFM SERIES REPLACEMENT PARTS
Figure 12 - HEAT EXCHANGER
