UTICA BOILERS PEG075EID Instruction manual

PEG-E
GAS-FIRED
STEAM BOILERS
INSTALLATION, OPERATION &
MAINTENANCE MANUAL
P/N# 240009937, Rev. A [12/2012]
MODEL
PEGEID
Electronic
Intermittent
Ignition
An ISO 9001-2008 Certified Company
Manufacturedby:
ECRInternational,Inc.
2201 Dwyer Avenue, Utica NY 13501
web site: www.ecrinternational.com
Models
PEG075EID
PEG112EID
PEG150EID
PEG187EID
PEG225EID
PEG262EID
PEG299EID

2
Figure 1 - Dimensions
Table 1 - Physical Data
Models 075 112 150 187 225 262 299
Width (A) 10 7/8" 14 1/8"17 3/8" 20 5/8" 23 7/8" 27 1/8" 30 3/8"
Height (B) 35 7/8"
Depth (C) 28 3/8" 28 3/8" 29 3/8" 30 3/8" 30 3/8" 30 3/8" 30 3/8"
Gas
Connection Size (G) ½ NPT ½ NPT ½ NPT ¾NPT ¾NPT ¾NPT ¾NPT
Flue Diameter
5" 5" 6" 7" 7" 7" 7"
DIMENSIONS
A
2" NPT
½"
NPT
Plug
2" NPT
Safety
Relief
Valve
Floor
B
5½"
Depth C
29"
25"
12⅜"
16⅝"
13½"
2" NPT
2" NPT

3
BOILER RATINGS AND CAPACITIES
Table 2 Ratings and Capacities
Natural Gas & Propane (LP)
Boiler Model
Number Input MBH (1)
Heating
Capacity
MBH (1)
Net AHRI Rating (2)
AFUE, % No. of
Sections Vent Pipe Size
Steam,
MBH Steam, Sq. Ft.
PEG075EID 75 62 47 195 82.2 3 5"
PEG112EID 112 93 70 292 82.4 4 5"
PEG150EID 150 125 94 391 82.6 5 6"
PEG187EID 187 156 117 488 82.8 6 7"
PEG225EID 225 188 141 587 83.0 7 7"
PEG262EID 262 219 164 685 83.2 8 7"
PEG299EID 299 250 188 782 83.4 9 7"
Heating Capacity and AFUE are based on DOE (Department of Energy) test procedures.
1. Input rating for sea level to 2,000 ft. above sea level. Altitudes over 2000 ft. above
sea level, reduce input rate 4% for every 1000 ft.
2. Net AHRI steam ratings shown are based on a piping and pickup allowance of 1.333.
Consult manufacturer before selecting a boiler for installations having unusual piping
and pickup requirements, such as intermittent system operation, extensive piping
systems, etc.

4
Important Safety Information....................... 5
Locating the Boiler...................................... 6
Hydronic Piping .......................................... 8
Fresh Air for Combustion ............................12
Chimney and Vent Pipe Connection ..............13
Vent Damper Operation ..............................15
Gas Supply Piping......................................16
Electrical Wiring ........................................17
Operating Instructions................................18
Operating Your Boiler .................................19
Checking and Adjusting ..............................20
Start-up Cleaning ......................................22
General Maintenance .................................23
Troubleshooting.........................................24
Wire Diagrams ..........................................25
Optional Hydronic Piping.............................28
TABLE OF CONTENTS
KEEP THIS MANUAL NEAR BOILER
RETAIN FOR FUTURE REFERENCE
GAS FIRED STEAM BOILERS
Check our website frequently for updates: www.ecrinternational.com
Information and specifications outlined in this manual in effect at the
time of printing of this manual. ECR International reserves the right to
discontinue, change specifications or system design at any time without
notice and without incurring any obligation, whatsoever.
Introduction
Boiler is designed for use in closed heating systems where
all steam is returned as condensate and make-up water is
minimal. Boiler is not designed for or intended for use in
open systems using 100% make-up water.
Prior to Installation
• Verify correct boiler for type of gas being used
natural or propane. See Rating Plate.
• Verify boiler size and dimensions. See Figure 1 and
Table 1, page 2.
• Verify ratings and capacity data for natural gas. See
Table 2.
Installation Requirements
• Supply boiler with correct gas (natural or propane),
fresh air for combustion, and suitable electrical supply.
• Connect boiler to adequate venting and piping
systems.
• Provide boiler with properly located and adjusted
thermostat.
Installation of boiler in building under construction, use
precaution to insure clean combustion air supply during
construction process. Airborne particulate from construction
materials can clog burner ports and cause incomplete
combustion and sooting.
Complete all steps for safe and proper heating system
operation.

5
IMPORTANT SAFETY INFORMATION
DANGER
Indicates a hazardous situation which, if not avoided,
WILL result in death or serious injury.
!
WARNING
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
!
CAUTION
Indicates a hazardous situation which, if not avoided,
may result in minor or moderate injury.
!
!
NOTICE
Used to address practices not related to personal
injury.
WARNING
Installing or venting a boiler or any other gas
appliance with improper methods or materials could
result in death or serious injury due to fire or to
asphyxiation from poisonous gases such as carbon
monoxide which is odorless and invisible.
!
WARNING
Fire, explosion, asphyxiation hazard. Keep boiler area
clear and free from combustible materials, gasoline
and other flammable vapors and liquids.
Modification, substitution or elimination of factory
equipped, supplied or specified components could
result in death or serious injury.
!
General
Boiler and venting installation shall be completed by
qualified agency.
WARNING
Fire, explosion, asphyxiation and electrical shock
hazard. Improper installation could result in death
or serious injury. Read this manual and understand
all requirements before beginning installation.
!
Become familiar with symbols identifying potential
Become familiar with symbols identifying potential
hazards.
hazards.
This is the safety alert symbol. Symbol alerts you to
This is the safety alert symbol. Symbol alerts you to
potential personal injury hazards. Obey all safety messages
potential personal injury hazards. Obey all safety messages
following this symbol to avoid possible injury or death.
following this symbol to avoid possible injury or death.
Installation shall conform to requirements of
authority having jurisdiction or in absence of such
requirements to the National Fuel Gas Code,
ANSI Z223.1/NFPA 54.
Where required by authority having jurisdiction,
installation shall conform to Standard for Controls
and Safety Devices for Automatically Fired Boilers,
ANSI/ASME CSD-1. Controls can be added to make
this boiler CSD-1 compliant. Check with your local
codes for requirements.
Requirements for Commonwealth of Massachusetts:
Boiler installation must conform to Commonwealth of
Massachusetts code 248 CMR which includes but is
not limited to installation by licensed plumber or gas
fitter.

6
LOCATING THE BOILER
Locating the Boiler
1. Select level location as centralized with piping system,
and as near chimney as possible.
2. Place crated boiler at selected location. Remove all
crate material. Please recycle responsibly.
WARNING
Fire hazard. Do not install boiler on combustible
flooring or carpeting. Failure to follow these
instructions could result in death or serious injury.
!
3. Do not install boiler on carpeting. For installation
on non-combustible floors only. For installation on
combustible flooring, special base must be used. (See
Replacement Parts Manual.)
4. Use metal shims under boiler base legs for final leveling
if needed.
5. Install boiler in location that permits satisfactory
combustion of gas, proper venting, and maintenance
of ambient temperature at safe limits under normal
conditions of use. Boiler location should not interfere
with proper circulation of air. Introduce outside air
if normal infiltration does not provide necessary
air.“Fresh Air for Combustion” on page 12.
6. Notify owner to keep air passages free of obstruction.
Ventilating and combustion air must enter boiler room
without restrictions.
Table 3 -
Minimum Clearance Dimensions
Top 6"
Rear 6"
Control Side 7"
Opposite Side 6"
Front Alcove
Flue/Vent
Connector 6"
Near Boiler Piping 1/2"
7. Install boiler so automatic gas ignition system
components are protected from water (dripping,
spraying, rain, etc.) during appliance operation and
service.
Draft Hood Installation
WARNING
Asphyxiation, carbon monoxide hazard. Failure to
follow these instructions could result in improper
combustion and possible leakage of combustion
products into the living space.
!
Follow directions given in Figure 3. Attach draft diverter,
and blocked vent switch. Mount vent damper. See
"Connecting Vent Damper and Vent Connector" page 13.
See Wiring Diagrams pages 26 and 27.
7”
(178mm)
6” (152mm)
Boiler
Rear
Front
Control Side Opposite Side
ALCOVE
6”
(152mm)
Figure 2 - Minimum Clearances To Combustible
Construction
Figure 3 - Draft Hood Installation
1. Slide draft hood over flue collector.
2. Through holes in jacket top, secure with 1 or 2 screws,
based on boiler size.
Draft Hood
Screw
View from top
of boiler
Top and side panels not shown for clarity.

7
DANGER
Burn, scald hazard. Pressuretrol must be installed
by a qualified service agency in accordance with
manufacturer’s instructions, all applicable codes and
requirements of authority having jurisdiction. Failure to
follow the information in these instructions exactly will
result in death or serious injury. Qualified service agency
is responsible for proper installation.
!
LOCATING THE BOILER
Pressuretrol Assembly
Installation Instructions: See Figure 4.
1. Attach pressuretrol assembly (A) to site glass
assembly, using proper pipe sealant.
2. Remove pressuretrol cover.
3. Route wire harness through black plastic bushing (B).
4. Attach two wires. Wires are not polarity sensitive, can
place on either terminal.
5. Replace pressuretrol cover.
Figure 4 - Pressuretrol Assemly
A
B

8
HYDRONIC PIPING
WARNING
Burn or Scald Hazard. Discharge line shall be installed to relief valve outlet connection to avoid burns,
scalding, or water damage due to discharge of steam and/or hot water during operation.
Discharge line shall:
• Connect to safety valve outlet. Piped down to safe point of disposal. Check local codes for maximum
distance from floor or allowable safe point of discharge.
• Pipe size be of equal to or greater than of safety valve outlet over entire length of discharge line.
• Have no intervening shutoff valve between safety valve and discharge to atmosphere. Do not plug or
place any obstruction in discharge line.
• Terminate freely to atmosphere where any discharge will be clearly visible and at no risk of freezing.
• Allow complete drainage of valve and discharge line.
• Install safety valve with spindle in vertical position.
• Do not install shutoff valve between boiler and safety valve.
• Support safety valve discharge piping.
• Be short and straight as possible.
• Terminate with plain end, not threaded.
• Constructed of material suitable for exposure to temperatures of 375° F (191°C); or greater.
Refer to local codes and appropriate ASME Boiler and Pressure Vessel Code for additional installation
requirements.
!
Check local codes
for maximum
distance from
floor or other
allowable safe
point of discharge
Safety Valve
Discharge
Piping
6" Above Floor

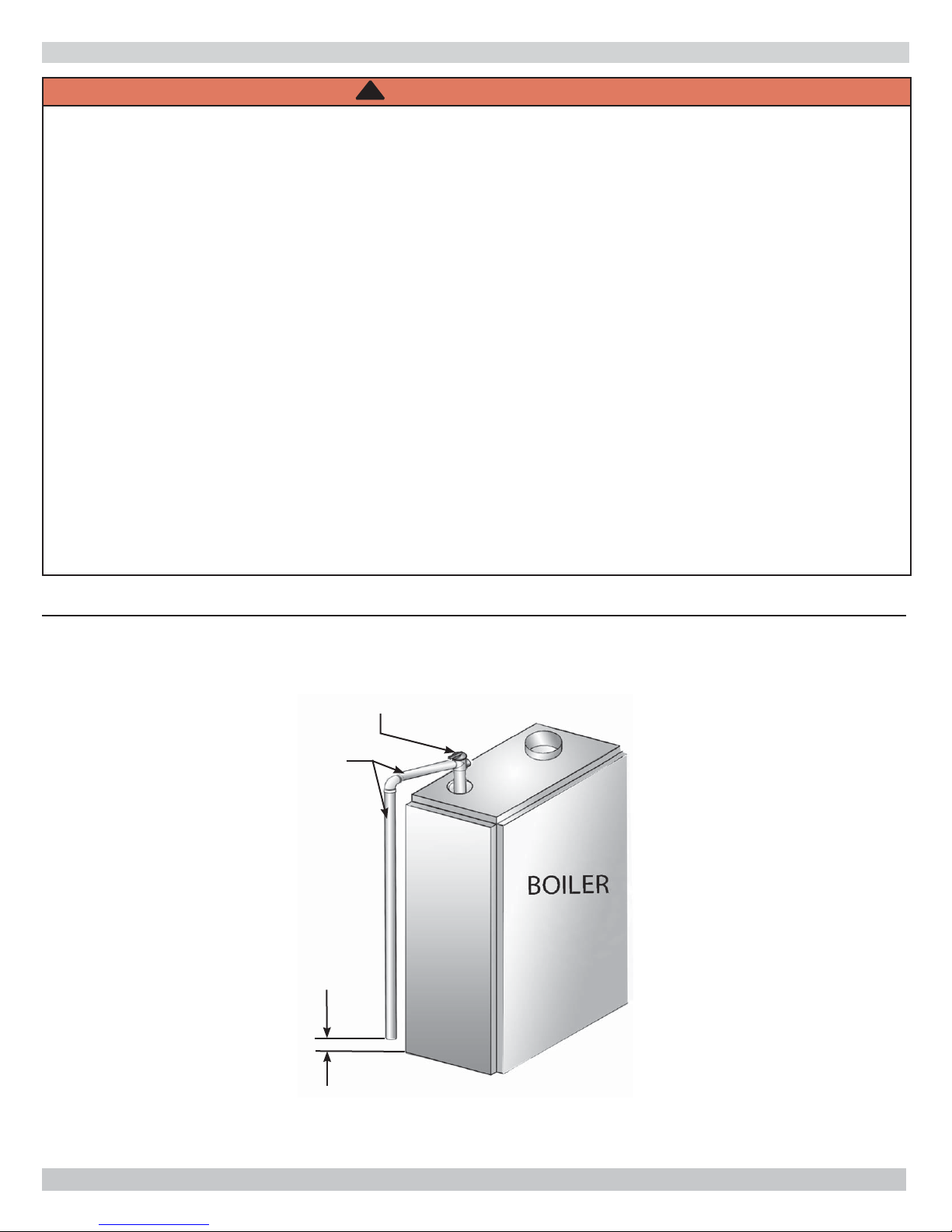

Figure 5 - Safety Valve

9
HYDRONIC PIPING
Consider near boiler piping as part of the boiler for proper
water level control and to produce dry steam.
Correct near boiler piping is crucial to proper operation of
boiler and heating system.
Follow these recommendations carefully.
1. Place boiler in selected location as near chimney as
possible.
2. Install safety valve. Figure 5 and Warning on Page 8.
• Install union, if used, close to safety valve outlet.
• Install elbows close to safety valve outlet and
downstream of union (if used).
3. Boiler is equipped with two 2" supply connections and
two 2" return connections, one each on both left and
right sides of boiler. Plug unused connections with
furnished 2" plug and 2 x ¾" bushing for drain valve.
4. When using both supply tappings to pipe system as
shown in Figure 6b , Page 10.
• Fit headers with header offsets, swing joints, or equip
with expansion joints, so thermal expansion and
contraction of header does not damage boiler. Do not
weld headers.
• Place system takeoffs from header between equalizer
and riser to header nearest equalizer. System takeoffs
must never be between two risers. If steam main goes
in two directions, place two takeoffs from header, one
for each main.
5. Recommended near boiler piping for gravity return
systems is shown in Figure 8 page 11. For gravity return
systems, bottom of lowest steam carrying pipe, dry
return or end of steam main, must be at least 28” above
normal water level line on left side of boiler.
6. Equip all boilers in gravity return systems with Hartford
Loop as shown in Figure 6a and 6b page 10.
7. Piping vertical risers from boiler to header, risers must
be minimum of 24" high above water line.
8. Steam riser(s) and header shall be 2" pipe.
9. Equalizer line shall be minimum 1-1/2" pipe size.
10. Near boiler piping shall include 2" tee with female
adapter and cap located on supply line as shown for
skimming (i.e. surface blow-down).
11. For pumped return systems, follow condensate pump
or boiler feed pump manufacturer’s instructions for
proper installation and hookup. See Table 4 and Figure
7 page 11.
12. Connecting cold water supply to water inlet valve,
verify clean water supply is available. When water
supply is from well or pump, install sand strainer at
pump.
Table 4 - Steam Flow Rates (Gross)
Sections Flow Rates LBS/HR
363.4 LBS/HR
4 94.7 LBS/HR
5 126.8 LBS/HR
6 158.1 LBS/HR
7 190.2 LBS/HR
8 221.5 LBS/HR
9 252.8 LBS/HR

10
Figure 6b - Recommended Near Boiler Piping Using Two Supply Tappings
HYDRONIC PIPING
Figure 6a - Recommended Near Boiler Piping Using One Supply Tapping
Sections Risers Headers Equalizers
5 (2) 2" 2" 1½
6 (2) 2" 2" 1½
7 (2) 2" 2½" 1½
8 (2) 2" 3 1½
9 (2) 2" 3 1½
Water Line
28"
Main Vent
2"
24"
Equalizer 1½"
Close Nipple
Header
Floor
24"
Cap To
Skimmer Tee
Floor
Sections Risers Headers Equalizers
32"2" 1½
42"2" 1½
Water Line
28"
Main Vent
2"
Equalizer 1½"
Close Nipple
Header
24"
24"
For Alternate Piping Configurations
See Page 28 and 29
Cap To
Skimmer Tee
For Alternate Piping Configurations
See Pages 28 and 29
Hartford Loop
Hartford Loop

11
HYDRONIC PIPING

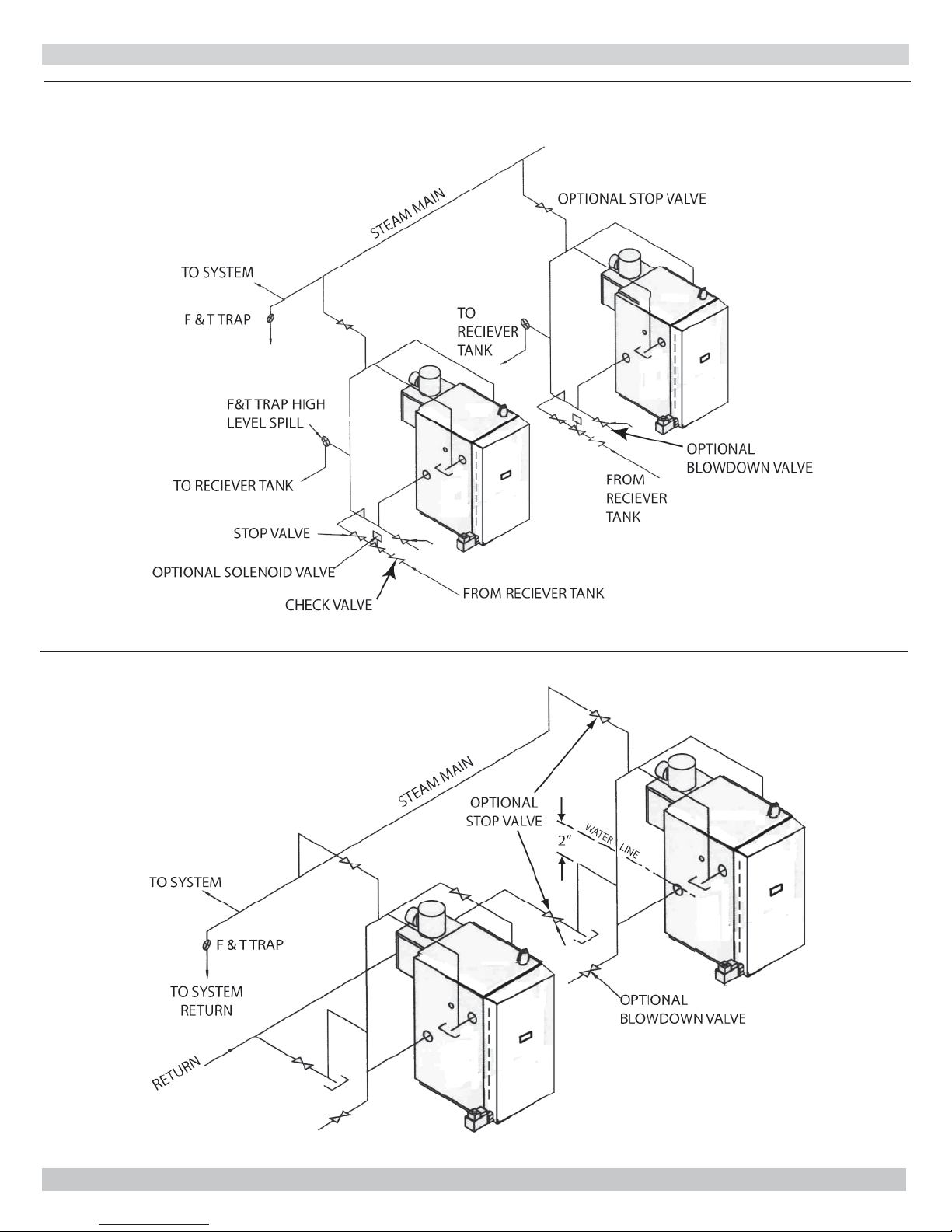

Figure 7 - Recommended Near Boiler Piping For Pumped Return Systems
Figure 8 - Recommended Near Boiler Piping For Gravity Return Systems

12
FRESH AIR FOR COMBUSTION
WARNING
Air openings to combustion area must not be
obstructed. Follow instructions below, to maintain
adequate combustion air
!
Provide combustion air and ventilation air in accordance
with the section “Air for Combustion and Ventilation,” of the
National Fuel Gas Code, ANSI Z223.1 / NFPA 54, or
applicable provisions of local building codes.
Provide make-up air where exhaust fans, clothes dryers,
and kitchen ventilation equipment interfere with proper
operation.
National Fuel Gas Code recognizes several methods
of obtaining adequate ventilation and combustion air.
Requirements of the authority having jurisdiction may
override these methods.
• Engineered Installations. Must be approved by authority
having jurisdiction.
• Mechanical Air Supply. Provide minimum of 0.35
cfm per Mbh for all appliances located within space.
Additional requirements where exhaust fans installed.
Interlock each appliance to mechanical air supply
system to prevent main burner operation when
mechanical air supply system not operating.
• All Indoor Air. Calculate minimum volume for all
appliances in space. Use a different method if minimum
volume not available.
A. Standard Method. See Table 5 for space with natural
gas boiler only. Use equation for multiple appliances
and/or propane.
Room Volume is greater than 50 cubic feet multiplied
by Total Input [Mbh]
B. Known Air Infiltration Rate. See Table 5 for
space with boiler only. Use equation for multiple
appliances. Do not use an air infiltration rate air
changes per hour (ACH) greater than 0.60.
Room volume is greater than 21 cubic feet divided by
ACH (air changes per hour) x Total Input [Mbh]
C. Refer to National Fuel Gas Code for opening
requirements between connected indoor spaces.
• All Outdoor Air. Provide permanent opening(s)
communicating directly or by ducts with outdoors.
A. Two Permanent Opening Method. Provide opening
commencing within 12 inches of top and second
opening commencing within 12 inches of bottom of
enclosure.
Direct communication with outdoors or
communicating through vertical ducts. Provide
minimum free area of 1 in² per 4 Mbh of total
input rating of all appliances in enclosure.
Communicating through horizontal ducts.
Provide minimum free area of 1 in² per 2
Mbh of total input rating of all appliances in
enclosure.
B. One Permanent Opening Method. Provide opening
commencing within 12 inches of top of enclosure.
Provide minimum clearance of 1 inch on sides/back
and 6 inches on front of boiler (does not supersede
clearance to combustible materials).
C. Refer to National Fuel Gas Code for additional
requirements for louvers, grilles, screens and air
ducts.
• Combination Indoor and Outdoor Air. Refer to National
Fuel Gas Code for application information.
Table 5 - Minimum Room Volume, Indoor Air Only*
Input Mbh Standard
Method
Known Air Infiltration Rate Method (Air Changes Per Hour)
0.1 0.2 0.3 0.4 0.5 0.6
75 3750 15750 7875 5250 3938 3150 2625
112.5 5625 23625 11813 7875 5906 4725 3938
150 7500 31500 15750 10500 7875 6300 5250
187 9350 39270 19635 13090 9818 7854 6545
225 11250 47250 23625 15750 11813 9450 7875
262.5 13125 55125 27563 18375 13781 11025 9188
299 14950 62790 31395 20930 15698 12558 10465
* Table values based on boiler only. Add volume for any additional appliances.

13
CHIMNEY AND VENT PIPE CONNECTION
WARNING
Installing or venting a boiler or any other gas
appliance with improper methods or materials could
result in death or serious injury due to fire or to
asphyxiation from poisonous gases such as carbon
monoxide which is odorless and invisible.
!
Boiler and venting installations shall be performed
in accordance with "Venting of Equipment", of the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, or
applicable provisions of the local building codes.
Chimney Inspection
Chimney must be clean, right size, properly constructed
and in good condition.
Installation must conform to requirements of the authority
having jurisdiction or, in absence of such requirements, to
the National Fuel Gas Code, ANSI Z223.1/NFPA 54. See
Figure 9, page 14.
Connecting Vent Damper and Vent Connector
Vent or vent connector shall be Type B or metal pipe
having resistance to heat and corrosion not less than that
of galvanized sheet steel not less than No. 26 gauge. See
Table 1 for size of vent (flue opening).
1. Position furnished vent damper on top of flue outlet
collar. Fasten damper securely to flue outlet collar with
sheet metal screws.
• Verify 1/2 square inch (approximately 3/4" diameter)
hole in damper blade is plugged using plug supplied
with vent damper.
• Verify damper blade has clearance to operate inside
of diverter.
• Do not modify draft diverter or vent damper.
2. Install vent damper to service only single boiler for
which it is intended.
• Damper position indicator shall be in visible location
following installation.
• Locate damper so it is accessible for servicing.
Optional - damper may be installed in horizontal or
vertical position as close to flue outlet as possible.
• Horizontal installations. See Figure 10, page 15.
• Alternate installations see steps below. See Figure 11
page 15.
A. Do not install vent damper on vent pipe curve.
B. Do not run wires near high temperature surfaces.
Use stand-off brackets if necessary.
3. Damper must be in open position when appliance main
burners are operating.
4. Boiler is equipped with factory wired harness that plugs
into vent damper. Connect thermostat to orange and
white wires marked 24 volt thermostat on boiler.
5. Vent pipe must be same size as flue outlet collar.
6. Slope pipe up from boiler to chimney not less than 1/4”
per foot.
7. Run pipe as directly as possible with as few elbows as
possible.
8. Do not connect to fireplace flue.
9. End of vent pipe must be flush with inside face of
chimney flue.
10. Horizontal run should not be longer than 3/4 the
chimney height (HT). See Figure 9 page 14.
Vent Pipe
• Fasten sections of vent pipe with 3 sheet metal screws
at each joint to make piping rigid.
• Support horizontal portions of vent system to prevent
sagging.
• Use stovepipe wires or metal strapping every 5’ to
support pipe from above.
• Vent pipe through crawl space, use double wall vent
pipe.
• Vent pipe passing through combustible wall or partition,
use ventilated metal thimble. Thimble should be 4"
larger in diameter than vent pipe.
NOTICE
Minimum Vent Pipe Clearance - Wood and other
combustible materials must not be closer than 6”
from any surface of single wall metal vent pipe.
Listed Type B vent pipe or other listed venting
systems shall be installed in accordance with their
listing.
Removing Existing Boiler from Common Venting
System
When an existing boiler is removed from a common
venting system, the common venting system is likely to be
too large for proper venting of the appliances remaining
connected to it.
At the time of removal of an existing boiler, the following
steps shall be followed with each appliance remaining
connected to the common venting system placed in
operation, while the other appliances remaining connected
to the common venting system are not in operation.
1. Seal any unused openings in the common venting
system.
2. Visually inspect the venting system for proper size and
horizontal pitch and determine there is no blockage or
restriction, leakage, corrosion and other deficiencies
which could cause an unsafe condition.

14
3. Insofar as is practical, close all building doors and
windows and all doors between the space in which the
appliances remaining connected to the common venting
system are located and other spaces of the building.
Turn on clothes dryers and any appliance not connected
to the common venting system. Turn on any exhaust
fans, such as range hoods and bathroom exhausts, so
they will operate at maximum speed. Do not operate a
summer exhaust fan. Close fireplace dampers.
4. Place in operation the appliance being inspected. Follow
the lighting instructions. Adjust thermostat so appliance
will operate continuously.
5. Test for spillage at the draft hood relief opening after
5 minutes of main burner operation. Use the flame of
a match or candle, or smoke from a cigarette, cigar or
pipe.
6. After it has been determined that each appliance
remaining connected to the common venting system
properly vents when tested as outlined above, return
doors, windows, exhaust fans, fireplace dampers and
any other gas-burning appliance to their previous
conditions of use.
7. Any improper operation of the common venting system
should be corrected so the installation conforms with
the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
When resizing any portion of the common venting
system, the common venting system should be resized
to approach the minimum size as determined using the
appropriate tables in Chapter 13 of the National Fuel
Gas Code, ANSI Z223.1/NFPA 54.
Vent connectors serving appliances vented by natural
draft shall not be connected into any portion of
mechanical draft systems operating under positive
pressure.
CHIMNEY AND VENT PIPE CONNECTION
Figure 9 - Typical Masonry Chimney Requirements

15
Figure 10 - Horizontal Installation
Figure 11 - Alternate Vent Damper Installation
Check vent damper and all flue product carrying
areas of boiler annually for deterioration from
corrosion or other sources. If you see corrosion or
other deterioration, contact your service agent for
repairs.
Check vent damper operation as follows:
1. When boiler is off, check vent damper positions
indicator points to closed position. See Figure 12.
2. Turn thermostat or controller up to call for heat and
check vent damper indicator points to open position
See Figure 12.
3. Turn thermostat or controller down again and check
damper position indicator returns to closed position.
4. Return thermostat to desired position.
Inspect vent damper at least once a year by
trained service technician.
WARNING
Asphyxiation or burn hazard. Improper operation of
vent damper may result in serious injury or death
due to fire or to asphyxiation from poisonous gases
such as carbon monoxide which is odorless and
invisible.
!
Manual Operation of Vent Damper
• Place vent damper in open position to permit burner
operation by using “HOLD DAMPER OPEN” switch,
located on damper controller.
• Thermostat controls burner firing as before, while
damper remains open.
• DO NOT turn damper open manually, motor damage
will result.
• Set switch to “AUTOMATIC OPERATION” to close vent
damper during burner off cycle.
• For further information, and for vent damper
troubleshooting guide, refer to manual packaged with
vent damper.
VENT DAMPER OPERATION

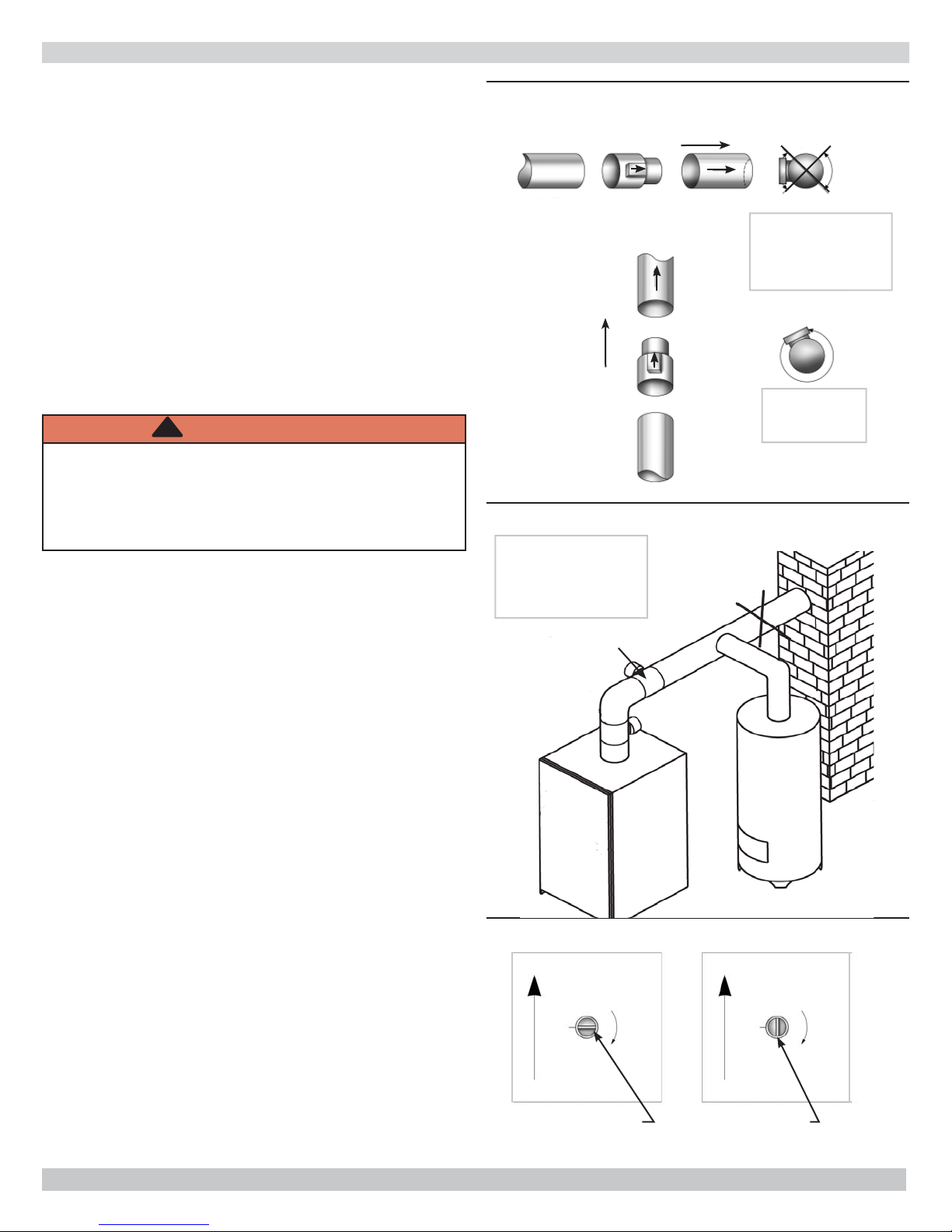

Figure 12 - Vent Damper Position Indicator
Horizontal Installation
To BoilerVent Damper To
Chimney
NO
NO
YES YES
Flow
Install vent damper
with actuator to sides
of vent only. Do not
mount above or below
vent.
To
Chimney
Flow Vent Damper
To Boiler
Actuator may
be installer in
any position.
Do Not
Install
Here
Caution: Do not
install Vent Damper
within 6" (152mm)
of combustible
material
Install Damper Here
Water Heater
Chimney
Boiler
Flue Gas
Flow
Flue Gas Flow
OPEN
CLOSED
ROTATION
CLOSED
OPEN
ROTATION
Damper Closed Damper Open
Showing Open and Closed Positions

16
GAS SUPPLY PIPING

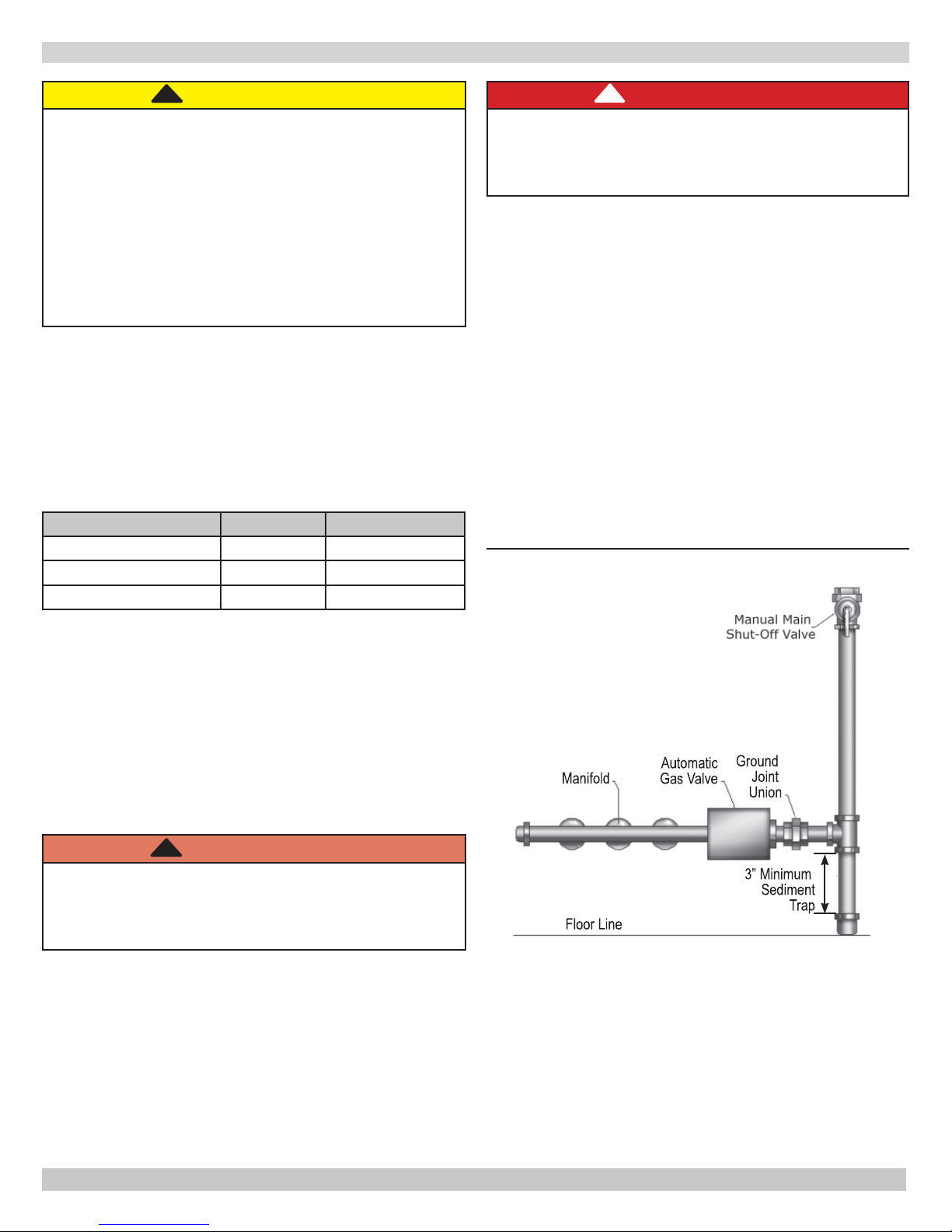

Figure 13 - Gas Piping At Boiler
CAUTION
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire
department.
!
!
General
• Use piping materials and joining methods acceptable
to authority having jurisdiction. In absence of such
requirements National Fuel gas Code, ANSI Z223.1/
NFPA 54.
• Size and install gas piping system to provide sufficient
gas supply to meet maximum input at not less than
minimum supply pressure. See Table 6.
Table 6 Natural Gas Propane
Min. Supply Pressure 5" w/c 11" w/c
Max. Supply Pressure 13.5" w/c 13.5" w/c
Manifold Pressure 3.5" w/c 10.5" w/c
• Support piping with hooks straps, bands, brackets,
hangers, or building structure components to prevent or
dampen excessive vibrations and prevent strain on gas
connection. Gas valve will not support piping weight.
• Use thread (joint) compound (pipe dope) suitable for
natural and liquefied petroleum gas.
• Install field sourced manual main shutoff valve, ground
joint union, and sediment trap upstream of gas valve.
See Figure 13.
Propane Installation
WARNING
Fire, explosion, asphyxiation hazard. Verify boiler
is equipped with propane gas orifices and gas valve
is configured for propane. Failure to follow these
instructions may result in serious injury or death.
• Connections by licensed propane dealer only.
• Use two stage regulator provided by propane
supplier.
• Have propane supplier check piping.
DANGER
Fire Hazard. Do not use matches, candles, open
flames, or other methods providing ignition source.
Failure to comply will result in death or serious
injury.
!
Leak Check Gas Piping
Pressure test boiler and gas connection before placing
boiler in operation. Avoid excessive pressure that could
damage pressure regulators, valves, or meters.
• Pressure test at 1/2 psig (3.5 kPa) or less. Isolate
boiler from gas supply system by closing manual gas
shutoff valve.
• Locate leakage using gas detector, noncorrosive
detection fluid, or other leak detection method
acceptable to authority having jurisdiction. Do not
use matches, candles, open flames, or other methods
providing ignition source.
• Correct leaks immediately and retest.
!

17
ELECTRICAL WIRING
WARNING
Electrical shock hazard. Turn OFF electrical power
supply at service panel before making electrical
connections. Failure to do so could result in death
or serious injury.
!
NOTICE
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and
dangerous operation. Verify proper operation after
servicing.
Electric Power Supply
Electrically bond boiler to ground in accordance with
requirements of authority having jurisdiction. Refer to
National Electrical Code, ANSI/NFPA 70.
Line Voltage Connections
A. Provide individual 120V, 15 amp circuit
(recommended) with fused disconnect or service
switch as required by authority having jurisdiction.
B. Locate a shut-off switch at the boiler.
C. Connect 120V electrical supply to primary leads on
24 volt transformer. Securely fasten with wire nuts.
Thermostat Installation
1. Install thermostat on inside wall per manufacturer's
instructions.
2. NEVER install thermostat on outside wall.
3. Do not install thermostat where it will be affected by
drafts, hot or cold pipes, sunlight, lighting fixtures,
televisions, fireplace, or chimney.
4. Check thermostat operation by raising and lowering
thermostat setting as required to start and stop
burners.
5. Instructions for final adjustment of thermostat see
manufacturer's instructions.
Electronic Thermostats
A. Some electronic thermostats may lose their
memory or shut down. With probe type low water
cutoff, this may occur each time low water cutoff
detects low water condition. If this is the case, an
isolation relay is required for thermostat circuit.
See Figure 17 page 25.
B. Some electronic thermostats are not acceptable
for use with steam systems, check manufacturer
suggested use.

18
OPERATING INSTRUCTIONS
For Your Safety Read Before Operating
WARNING
If you do not follow these instructions
exactly, a fire or explosion may result
causing property damage, personal injury
or loss of life.
• This appliance is equipped with an ignition device
which automatically lights burner. Do NOT try to
light this burner by hand.
• Before operating smell all around appliance area
for gas. Be sure to smell next to floor because
some gas is heavier than air and will settle to the
floor.
•Use only your hand to turn the gas shutoff
valve. Never use tools. If valve will not turn
by hand, do not try to repair it, call a qualified
service technician. Force or attempted repair may
result in fire or explosion.
•Do not use this appliance if any part has
been under water. Immediately call a qualified
service technician to inspect appliance and to
replace any part of control system and any gas
control which has been under water.
!
CAUTION
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone. Follow gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire
department.
!
!
1. STOP! Read the safety information on this page.
2. Set the thermostat to lowest setting.
3. Turn off all electric power to the appliance.
4. This appliance is equipped with an ignition device which
automatically lights the pilot. Do not try to light the
pilot by hand.

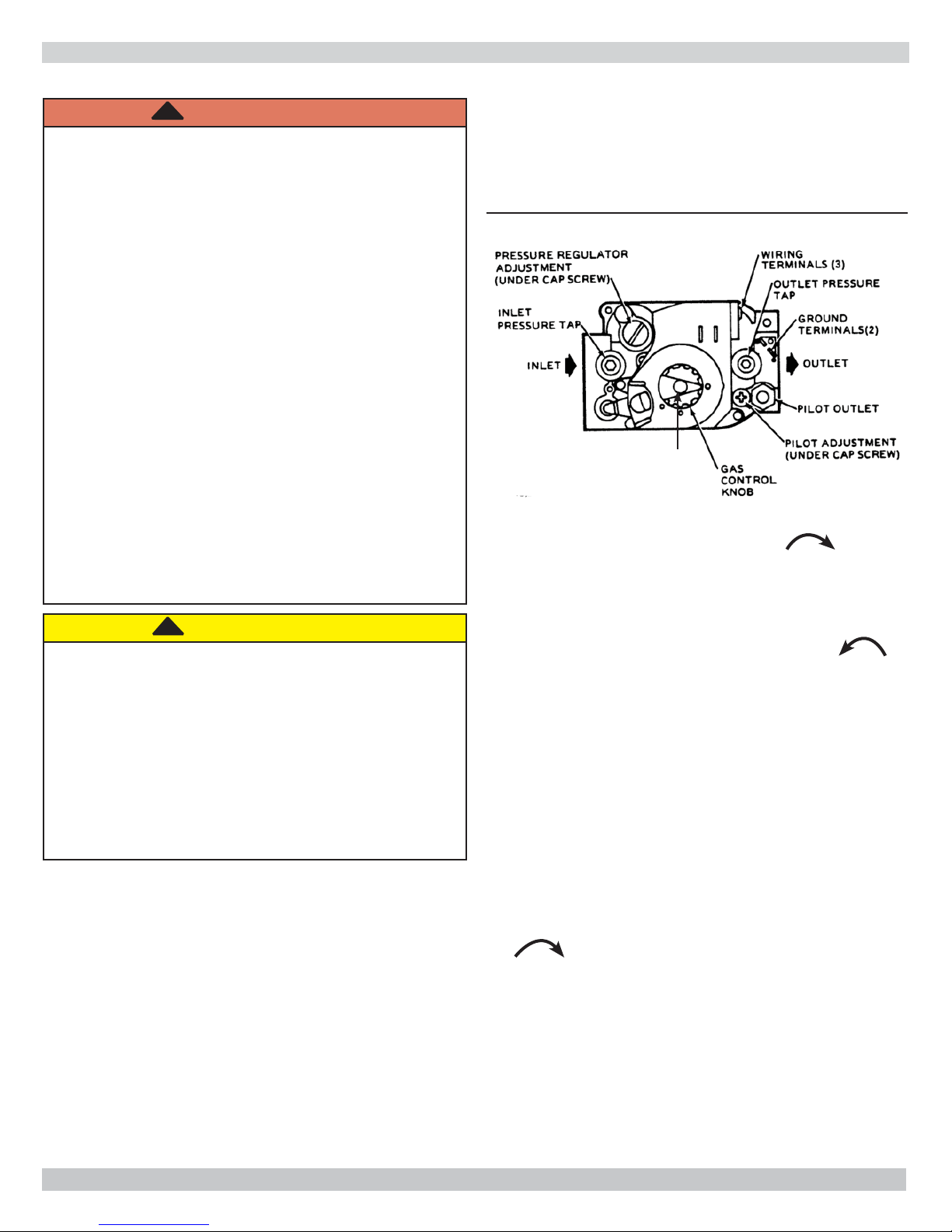

Figure 14 - Gas Valve
GAS CONTROL KNOB SHOWN
IN "ON" POSITION
5. Remove front panel.
6. Rotate the gas control knob clockwise to“OFF”.
7. Wait five (5) minutes to clear out any gas. Then smell
for gas, including near the floor. If you smell gas,
STOP! Follow “B” in the safety information on this page
If you don’t smell gas, go to next step.
8. Rotate the gas control knob counterclockwise
to “ON.”
9. Replace front panel.
10. Turn on all electric power to the appliance.
11. Set thermostat to desired setting.
12. If the appliance will not operate, follow the instructions
“To Turn Off Gas To Appliance” and call your service
technician or gas supplier.
To Turn Off Gas To Appliance
1. Set the thermostat to lowest setting.
2. Turn off all electric power to the appliance if service is
to be performed.
3. Push in gas control knob slightly and turn clockwise to
“OFF” Do not force.

19
OPERATING YOUR BOILER
Filling System With Water
Steam heating systems boiler is partially filled with water.
Fill boiler to correct level for proper system operation.
Correct water level is about halfway up glass water level
gauge as marked on boiler jacket.
1. Close boiler drain valve.
2. Open valves at top and bottom of glass water level
gauge.
3. Open fill valve. Allow water to run into boiler.
4. Continue to fill boiler until water reaches indicated
water line about halfway up glass gauge.
Water Level
• Normal water level is 24" above the floor as shown on
left side of boiler.
• Determine water level when boiler is off and cold, when
all water in the system is inside the boiler and return
piping below water line, and everything above water
line is air, no steam.
• When boiler is making steam, water level drops two to
three inches below normal water line.
Thermostat
A. Set thermostat to desired room temperature.
B. Set thermostat to lower setting if heat is not
required
C. System is self-checking. If failure of any component
system will not operate or will go into safety
lockout.
D. On call for heat, each component must function
properly to permit operation.
E. Turn thermostat to lowest setting for one minute
and back to normal setting to reset on safety
lockout.
WARNING
Burn Hazard. Never run water into a hot empty
boiler. Failure to follow these instructions could
result in death or serious injury.
!

20
CHECKING AND ADJUSTING
Adjust Pilot Burner
Pilot flame should surround 3/8” to 1/2” of pilot sensor. See
Figure 15.
To adjust Flame.
1. Remove screw cover over pilot adjusting screw. See
Figure 14.
2. Insert small screwdriver and adjust flame as needed.
Turn screw counterclockwise to increase flame, clock-
wise to decrease.
3. Replace screw cover over pilot adjusting screw.
Main Burners
• Main burners do not require primary air adjustment and
are not equipped with primary air shutters.
• Main burner flames form sharp blue inner cones in
softer blue outer mantel, with no yellow. Remain still
when observing main burner flames.
• Check main burner orifices, burner throat and flame
ports for dust and lint obstruction if flame appearance
is not correct.
• Remove rollout shield if necessary to observe main
burner flames. See Figure 16.
• Replace rollout shield after observation.
Gas Valve Safety Shutdown Test
1. Test ignition system safety shutoff device after placing
boiler in operation.
2. Boilers equipped with intermittent ignition, with
main burners firing, disconnect ignition cable from
intermittent pilot control box. Gas valve will shut off
main burners.
3. TURN OFF ELECTRIC POWER to boiler before
reconnecting ignition cable, to prevent electric shock.
Figure 15 - Pilot Burner
Figure 16 - Main Burner
