UTV Stereo UTVS-DMR0 User manual

1. /SRC Button:
3. SUB- / SUB+ Button:
- Source Select / Power ON (Short Press)
- Power OFF (Long Press)
- USB / BT MODE: Previous / Next Track
- USB / BT MODE: Fast Forward / Rewind (Press and Hold)
- USB/BT MODE: Play or Pause
- AUX MODE: Mute ON/OFF
- RESET (Long Press)
- To Adjust Subwoofer Volume Level
4. Highly Responsive Rotary Style Volume Knob
- To Adjust Volume Level (Rotate)
- Mute ON/OFF (Short Press)
2.
5.
1
2
33
2
5
4
Digital Media Receiver
Owner’s Manual
UTVS-DMR0
For Model:
Bluetooth - AUX - USB Inputs
Illuminated Button Array
Sized to fit a Dual Rocker Switch
Designed Specifically for UTV and Powersport Applications
Conformal Coated PCB and IP66 Dust/Splash Proof to Withstand Outdoor Elements
Ultra Compact Size For Easy Installations
Centralized -Highly Responsive- Rotary Volume Knob
Independent Subwoofer Control
3-Pin Harness with Waterproof Connection
Full Range & Subwoofer Preamp Output
Non-Volitile Memory with Power Loss Protection
General Features:
Designed in USA utvstereo.com
DO NOT SUBMERGE YOUR DMRO MEDIA RECIEVER.
THIS WILL VOID YOUR WARRANTY.
UTVS-DMR0 KEY FUNCTIONS
Button:
Button:
Designed in USA utvstereo.com
2

1.43”/ 2”
2.36”
2.37”/ 1.93”/ 3.47”
3.47”
DMR0
UTVS-DMR0 SPECIFICATIONS
3.47"
1.93"
1.42"
2.31"
1.93"
2.37"
AUX
LINE OUT
SUB
POWER HARNESS
USB
UTVS-DMR0
WIRE DIAGRAM:
UTVS-DMR0 WIRING AND CONNECTION DIAGRAM





  


Overall Dimensions:
Mounting Hole Diameter:
Mounting Depth:
Overall Depth:
Designed in USA utvstereo.com Designed in USA
utvstereo.com
34

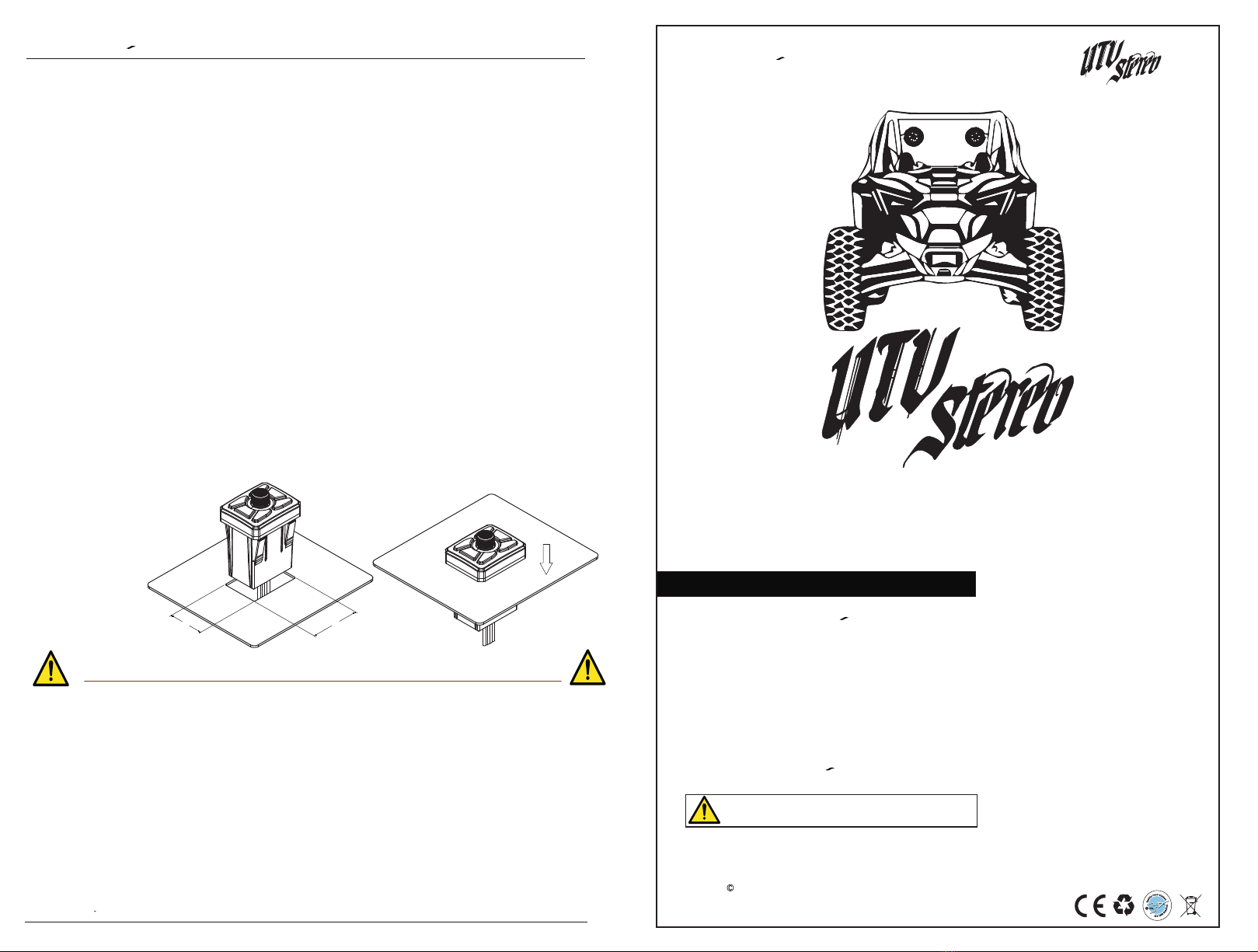

1. Find a desired mounting location. Many UTV’s will have OEM Rocker Switch
locations that can be used. Reference the mounting hole dimensions in the picture
below to determine if there are two Rocker Switch holes that can be trimmed out
as one.
2. Another mounting option is to find your own mounting location and cut a hole
according to the mounting hole dimensions in the picture below. Before cutting make
sure to check for mounting clearance behind panel.
3. If after you mount the DMR0, you find the unit to be loose, apply 100% silicone to the
back side to help keep secure.
4. Wiring: (Refer to UTVS-DMR0 wire diagram on previous page)
- Black Wire = Wire to (-)Ground
- Red Wire = Wire to accessory 12V power source or through a switch to 12V constant
power. DO NOT connect directly to a 12V constant power or you may experience battery
drain issues*.
[*IT IS HIGHLY RECOMMENDED TO USE UTV STEREO ACCESSORY PART #:
(PN#UTVS-WKITSRC-UNIT)- NOT included.]
- Line Out = Full Range (L+R) - WIRE TO RCA-IN ON AMPLIFIER
- Sub Line Out - WIRE TO SUBWOOFER AMPLIFIER RCA-IN ON AMPLIFIER
- USB IN and AUX IN = For playing music through USB, use flash drive with compatible
audio files. For playing music through AUX, use 3.5mm audio adapter. It is recommended
to use USB/AUX Flush Mount Adapter**
[**IT IS HIGHLY RECOMMENDED TO USE UTV STEREO ACCESSORY PART#:
(PN# UTVS-USB/AUX-FLMT) - NOT Included.]
5. After all audio connections have been made, and the 3-pin harness has been wired
to car side, plug 3-pin harness into DMR0 and turn unit on.
6. Test and confirm all functions are working properly.
Clamp down
Should your UTVS-DMRO require service, please consult with the dealer from
which it was purchased or contact a local UTV STEREO dealer directly.
Units received without an accompanying return authorization number will not
be processed. Please contact your UTV Stereo dealer or contact UTV Stereo
directly to obtain a return authorization number. Additionally, you must
include a copy of your purchase receipt from an authorized UTV Stereo dealer
for consideration of an in-warranty service. Units received without a receipt
will be held for 30 days. Allowing us time to contact you and obtain a copy of
the receipt. After 30 days, all units will be returned.
Warranty void if DMRO has been submerged, if unit is open or has been
tampered with!
WARRANTY
Copyright 2022UTV STEREO
Tel. [phone]
Address: 7561 East Baseline Road Mesa, AZ 85209
UTV STEREO and the UTV STEREO logo are registered trademarks.
All other brand names are trademarks or registered trademarks of their respective owners.
All rights reserved. Designed in USA.
UTVS-DMR0 Owner’s Manual
