UTVs Factory UTV500CC User manual

UTV500CCUser’sManual www.UTVsFactory.com

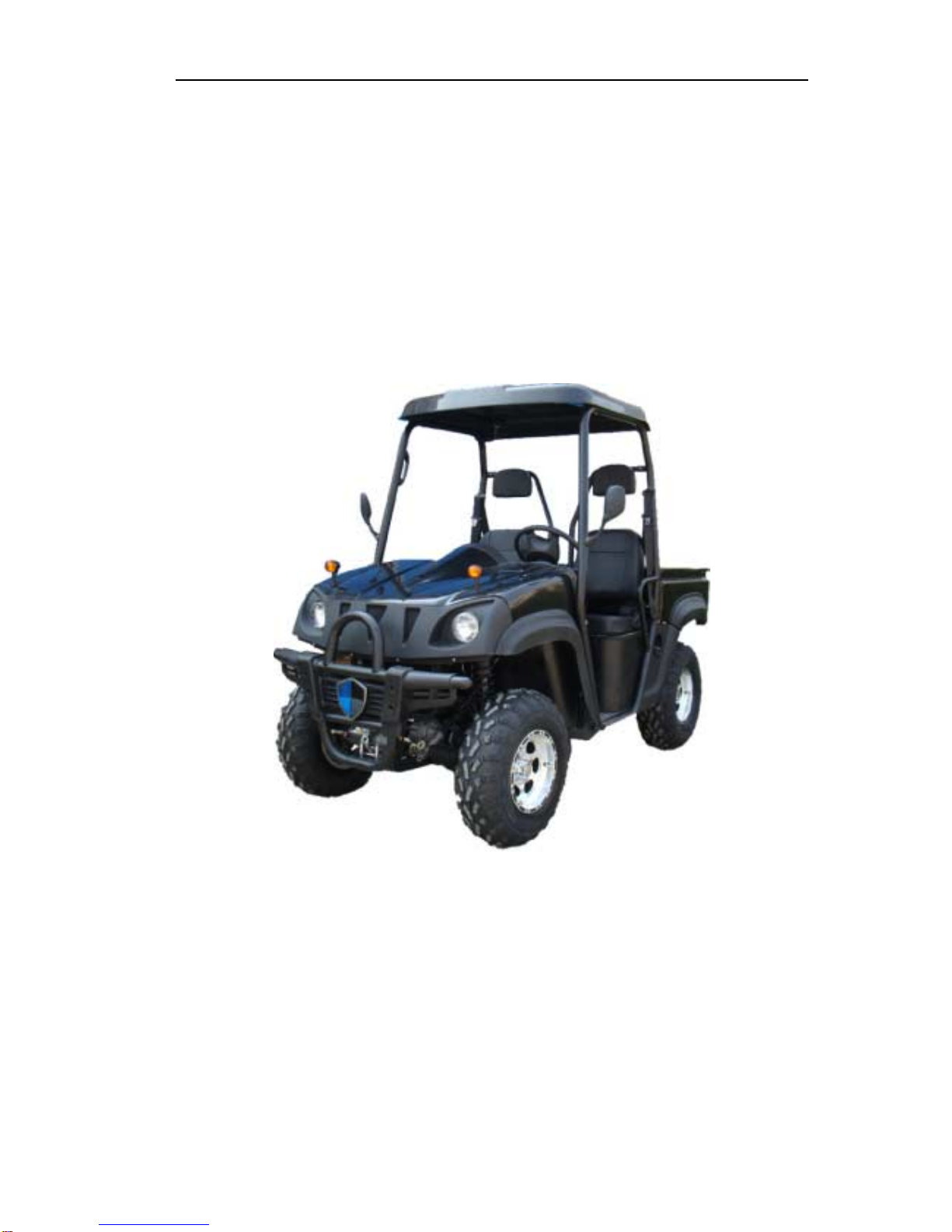

500CC Utility Vehicle
User Manual
Vision 2007-1.0
UTVs Factory

UTV500CC User’sManual www.UTVsFactory.com
2
Table of contents
I、Notices
II、Technical parameters
III、Placement drawing for whole vehicle
IV、Inspection before driving
V、Driving operation
VI、Running-in of new vehicle
VII、Maintenance and repair
VIII、Trouble diagnosis and elimination
IX、Screwing moment of important bolts
X、Specification and dosage table for fuel, Lubricating oil and brake liquid
XI、Circuit diagram

UTV500CC User’sManual www.UTVsFactory.com
3
I、
、、
、Notes
1. Please read this operating instruction carefully before using this vehicle, and
drive, check and repair it by the requirement in this manual to keep vehicle at good
technical status and prolong its using lifetime.
2. Initial running for 1000km of vehicle is period. In this period, it is necessary to
accord with the regulation of period(see the chapter—for new vehicle). After period
expires, it is necessary to make vehicle maintenance by regulation.
3. Quality warrant term of vehicle: in normal using situation, it is three months or
3000km mileage after buying this vehicle, if one of these two exceeds regulated value,
quality warrant term expires. In quality warrant term, for those malfunctions caused by
design, manufacture, assembly quality which influence your usage, our company will
repair them freely.
4. Damaged parts in following items could not be repaired freely, they should be
paid, please forgive:
(1) Damages caused by wrong usage, maintenance and storage which do not accord
with this operating instruction.
(2) Damages caused by force majeure, chemical substance, bad substance or other
natural disasters.
(3) Consumed parts in normal usage, such as: bulbs, fuse(pipe), air filter core,
engine oil filter core, gasoline filter core, brake friction sheet(drum), spark plug, tyre,
transmission belt, appliqué, rubber parts, standard fastening parts, lubricating oil(grease),
brake liquid and so on.
(4) Damages caused by improper assembly or repair, such as self-dismantling or
changing this vehicle without approval of our company and chartered sale(repair) store,
or sending chartered sale(repair) store for repair which is not appointed by our company.
(5) Vehicles which could not provide warrant card or vehicle purchase credential.
(6) Malfunctions caused by using other parts or accessories which are not provided
by our company.
(7) Various overhead expenses caused by repairing vehicle(such as telephone fee,
vehicle fare, freightage, work missing fee, repair fee out of repair store appointed by our
company).
(8) Abnormal abrasions and damages caused by wrong using gasoline, lubricating
oil and brake liquid.
(9) Feeling phenomenon which could not influence mechanical performance, such

UTV500CC User’sManual www.UTVsFactory.com
4
as: noise, vibration, heat and so on.
(10) Damages caused by that you do not check and maintain vehicle periodically by
our requirements.
II、
、、
、Technical parameters
(I)、Common technical data
1、Mass parameters(kg)
Mass of whole equipments(not including driver):590Kg
Front shaft:260Kg
Rear shaft :330Kg
2、Dimension parameter(mm)
Total length×total width×total height:2600×1280×1960
Minimal clearance apart from ground:210
Wheelbase:1730
Tread:front wheel:1036 rear wheel:1040
Approach angle(°):47
Removed angle(°):82
(II)、Using data
1、High running speed(km/h):H gear : 70
2、Small steering semi-diameter(m):4.65
3、Brake performance (No-load brake distance m).
When V0=30km/h:4.
When V0=40km/h:5.5
When V0=50km/h:9
4、0—50Km/h accelerating time(H):7.9”
0—50Km/h accelerating time(L):8.4”
5、Oil consumption for 100 kilometers (L):10
6、Exhaust:Reach Euro II exhaust standard.
7、Loading capacity::300Kg
(III)、Engine
Type:CF188
Form:single cylinder, four-stroke, water cooling, 4 valves, top camshaft, single equal
shaft, Carburetor type.
Cylinder diameter(mm):87.5
Travel(mm):82

UTV500CC User’sManual www.UTVsFactory.com
5
Engine displacement: 493
Compressed ratio:10.2:1
Maximal power (kw/r/min):24/6500 (EEC model less than 15kw)
Maximal torque(N·m/r/min):38.8/5500 (EEC model: 30N.M/4500r/min)
Lowest fuel consuming rate (g/Kw·h):340
Idling speed (r/min):1300±100%
Start type:electronic start
Ignition type:non-touch CDI DC start
Plug type: DPR7EA-9(NGK)
Magneto type: ever-mag DC motor, ex-rotor flywheel type.
Lubricating oil category:SAE 15W—40/SF
Engraved position of factory number:Upper surface on rear part of left crankcase
Ignition ahead angle(°/r/min):10/1500
32/1500
Lubricating type:Pressure and splash lubricating type
Engine oil pump type:TOTOR type
Engine oil filter type: whole filtering with paper element
Carburetor style: vacuum film
Air filter: Sponge element filtering
Fuel type: higher class than RQ-93
Transmission: V-belt with teeth on, auto stepless gear change, plus gear change cam
with change gear transmission.
Gear change type: gear lever with hand
Clutch type:wet, hoof centrifugal type
Primary speed change ratio (stepless speed change): 0.703—2.88
Speed change ratio:Totalspeedreduceratio:
H Gear:3.514 2.47—10.12
LGear:5.857 4.12—16.87
RGear:3.828 2.69—11.02
Cooling style: Closed cooling fluid circulating.
Cooling fluid type: antifreeze with prevent rust
Out dimension: 610 x 568 x 519
Net weight: 70kg
Output type: front and rear shaft output
Shaft running direction: clockwise (from back of engine).
(IV)、Chassis
1. Clutch and transmission:wet hoof auto-centrifugal clutch. V belt, auto-stepless
transmission plus gear change cam transmission.

UTV500CC User’sManual www.UTVsFactory.com
6
2. Main Driver:
Main driver:Tapered arc gear transmission,transmission rate:33/9
3. Driving type:4×4 front and rear wheels drive; Rear wheel is the normal
drive. Front wheel can be took off the driving. They are all the shaft
transmission。
4. Suspension:
Front suspension:swing arm type independent suspension.
Rear suspension:co-length double swing arm independent suspension, two
shock absorbers on each side of rear wheel.
5. Front Wheel alignment parameter:
Front wheel extroversion angle:0° ±1°
Main pin inner obliquity:11°50’±3°
Main pin back obliquity:4°±1°
Front toe-in:-3—3mm
6. Tyre:
Front wheel:Front wheel type 25×8.00—12 Air inflating pressure:
250Kpa
Rear wheel:Tyre type 25×10.00—12 Air inflating pressure:
300Kpa
7. Steering system:
Adopt gear rack type redirector, total circle number of steering plate:3.75;
total swing angle of steering wheel:75°.
Maximum turning left: 37.5°.
Maximum turning right: 37.5°.
8. Brake:
Brakes adopt front and rear placement dual-pipeline hydraulic pressure brake
system, front and rear wheels adopt disk type brake. And parking brake adopts
mechanical transmission disk to work on the flange of the main axle of rear wheels.
9. Loading Dump Bed:
Dump Bed adopts slope backward by electric powered pump. Dumping angle
is 49°.
10. Winch:
Electric powered winch. Traction is 2000 pounds.
(V)、Electric apparatuses
1. Pipeline system:pipeline system adopts single-line system,Minus ground
strap,pipeline voltage is 12V。
2. Generator:out-rotor flywheel AC magneto,rated power is 325W。
3. Battery:voltage is 12V,capacity is 36A·h。

UTV500CC User’sManual www.UTVsFactory.com
7
4. Starting engine type:12V forever magnetic DC electric engine。
III、
、、
、Placement drawing for whole vehicle

UTV500CC User’sManual www.UTVsFactory.com
8

UTV500CC User’sManual www.UTVsFactory.com
9

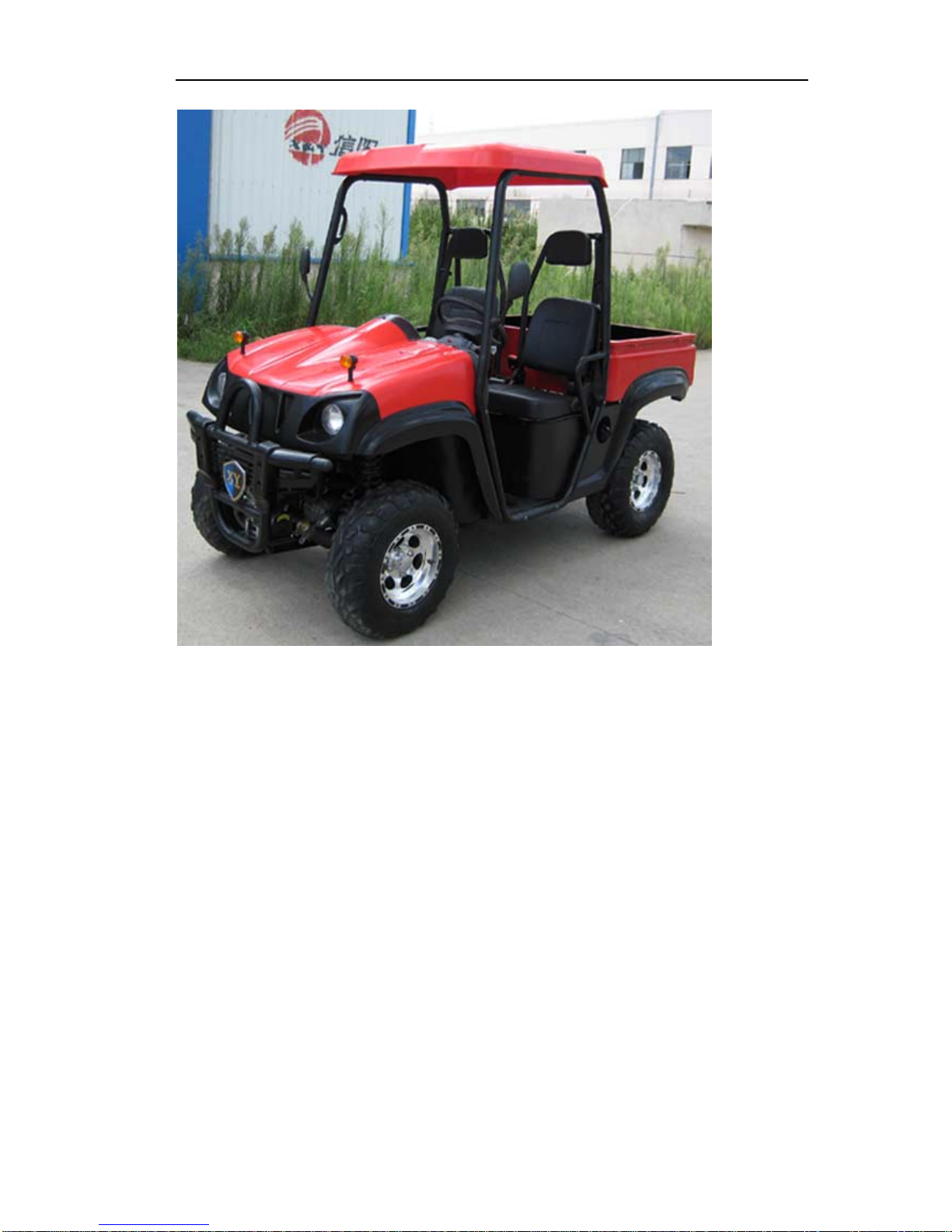

1. Top roof. 2. Safe belt. 3. Frame. 4. Steering wheel. 5. Rear mirror.
6. Engine hood. 7. Indicator. 8. Bumper. 9. Headlight. 10. Winch
11. Wheel. 12. Seat. 13. Side cover. 14. Rear mudguard. 15. Dump bed
16、Reinforce pole. 17、Head rest

UTV500CC User’sManual www.UTVsFactory.com
10
Engine
1、Carburetor 2、Start 3、Water temperature sensor 4Hand-pill staring handle 5、Left
cover
6、Rear shaft flange 7、Front shaft flange 8、Oil filter 9、water outlet(temperature
adjuster)
10、CVT case 11、CVT inlet 12 、CVT inlet 13、Plug
VIN number location(on frame of right rear wheel)Rear suspension
Oil Intake Dipstick

UTV500CC User’sManual www.UTVsFactory.com
11
Oil drain plug(bottom of engine)
Fuel tank intake(in left side)Coolant,Brakeliquidsintakes
Warning:Engine oil quantity should be between upper and lower position, over more or less oil
would burn out or damage engine..
Warning:Oil drain plugs of engine and gear box should be tightened,
,,
,otherwise engine would
burned for oil leakage. Should use the correct gear box oil and quantity. More or less oil can
cause the gear box burned out..
Warning:Brake liquid should be filled by regulated trademark, it could not mix
different brake liquids from different factories and trademarks, and it is necessar
y
to keep enough brake liquid height; otherwise it will incur brake disables, even
heavy result.
Warning:it is very dangerous to unscrew radiator or coolant cap when engine is
hot,for steam and water will spurt by the pressure to hurt people at this time. It is
necessary to unscrew radiator or coolant cap after engine becomes cool.

UTV500CC User’sManual www.UTVsFactory.com
12
Rear main speed reducer lube-check Front main speed reducer
lube-check
IV、
、、
、Check before drive
1. Check the leakages on engine, such as oil, cooling fluid, fuel, lube and so on should
have no leakage.
2. Check the levels of engine oil, brake liquid and cooling liquid, if necessary, add
more.
3. Check the air pressure in tyre.
4. Check the function of safety belt.
5. Check whether steering transmission organization has been loosened.
Warning:Fill up the stipulated lube in main reducer.
The lube level should be a little bit lower than intake , more will cause leakage and less wil
l
cause the main reducer burnt.

UTV500CC User’sManual www.UTVsFactory.com
13
6. Check engine supporting frame, bolts, transmission system and running system.
7. When starting engine, listen and check whether there is any abnormal noise, and

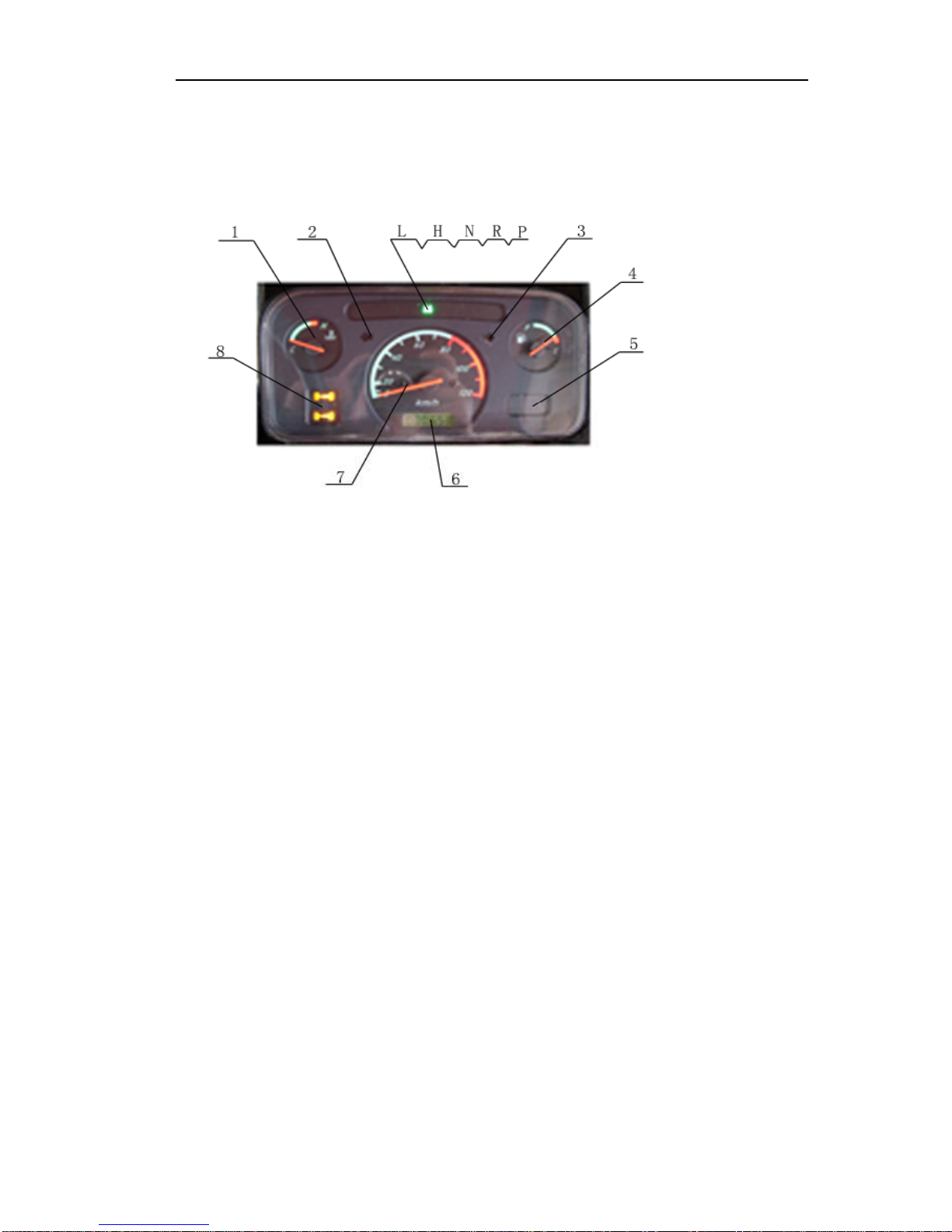

observe whether each meter is normal.
8. Check whether steering is flexible and reliable; check brake free travel length and its
reliability (including parking brake).
9. Check whether lighting system (steering light, brake light, warning light, small light,
dipped headlight, high beam and so on) is complete and workable.
10. Check whether vehicle dump box works well. And winch works normally.
11. Check fuel quantity.
V、
、、
、Driving operation
Warning:
(1) Driver must accord with the legal driving age and requirement.
(2) Fasten the safety belt before driving.
(3) Driver should buy person safety insurance。
(4) Driver should limit the speed and try his best to keep vehicle run at economical
speed (35—45km/h). Overspeed driving will cause accident.
(5) Driver should control speed strictly by the size of swerve when turn around
(the highest speed could not exceed 20Km/h).
(6) Do not load the goods over the height of the box. The loadings must be
fastened if it is higher than box, in order to avoid being hurt some one by the
goods rushing forward when driving or stopping.
(7) The antifreeze in radiator is only suitable in using in temperature bellow -15
degree centigrade. Please change the correct antifreeze when below -15℃.
(8) The sudden brake is not allowed when the speed is over 50km/h (except the
emergency situation). Otherwise it might cause the vehicle damaged, or sideslip o
r
turn over.
(9) The two wheel drive is suggested to be used on normal road. The four wheel
drive can cause the over wearing on tyre and parts.
(10) The stepless automatic clutch used on engine. Gear change is not necessary in
the most time. Make sure the vehicle must be stopped when change reverse gear.

UTV500CC User’sManual www.UTVsFactory.com
14
1. Safety driving notes for farmer vehicle
To guarantee your driving safe, please accord with following items:
—Tie safety belt—
Safety belt could avoid you are thrown out of vehicle when happening sudden
swerve and accidents, and guarantee running safe effectively.
—Inspection before driving —
Careful inspection before driving is necessary to guarantee running safe and enjoy
driving pleasure.
—Be familiar with your farmer vehicle—
Your driving technique and mechanical common sense are base of safety driving. We
advise you practice driving on open location before driving on road.
—Accord with highway code —
According with highway code will guarantee your running safe furthest.
—It is necessary to keep aware when driving in rain—
Rain weather will drop the brake performance and operation performance of your
farmer vehicle, and bring bad influence for your running safe, so it is necessary to note.
2. Operation
①Key
Keys can be used on ignition and fuel box. There are two keys, one of them
should be preserved carefully for spare.
②Ignition switch
Ignition switch has four positions:
“OFF”(close)position:All circuits are turnoff except emergency light,
electric fan and cigarette lighter.
“ON”(open)position:All circuits except engine are connected, and they
could start at any moment or make engine keep running status 。
“START”(start)position:Connect engine and ignition circuit, and start
engine. Handle returns to “ON” position automatically after engine starts。
“LOCK”(lock)position:The steering wheel is locked after pulling out the
key (key could be pulled out only at this position).
Warning: Ignition key can not be turned to “LOCK” position and pull out before vehicle
is stopped stably. This could causes the vehicle lost control when the steering wheel is
locked.
N
ote: You only can start the engine when gear is in “N” position. The engine can not be starte
d
up when gear is in “H”, “L” and “R” positions.

UTV500CC User’sManual www.UTVsFactory.com
15
③Meter
1、Thermometer 2.3.、Indicators 4、Fuel 5、High beam 6、kilometer mark
7、Speed indicator 8、2 and 4 wheel drive
(a)、Speedometer 7:Display the speed of vehicle.
(b)、Kilometer mark 6 :Display the accumulated driving distance.
(c)、High-beam 5:Light when high-beam is on.
(d)、Indicators 2, 3 :Blink when the relative direction indicators light. Blink
in same times when warning light is on.
(e)、Fuel meter 4 :Display the quantity of fuel.
(f)、Gear display:The corresponding indicating (L, H, N, R, P) will be
displayed when the gear changed.
(g )、Thermometer 1:Display the temperature of engine coolant..
(h ). 2WD/4WD transfer and differential lock display 8: When single axle
indicator lights, it is only the rear axle is in driving. When two axles
indicator lights, the both front and rear axles are in driving. When display
“X” in the middle, it means the both front and rear axles are in driving.
Meanwhile the front differential will be locked up.
④Main switch of lights

UTV500CC User’sManual www.UTVsFactory.com
16
(a)、When ignition switch is at “ON” position and lamplight main switch is
turned to “ ”position, front and rear small light are lightened.
(b)、When ignition switch is at “ON” position and lamplight main switch is
turned to “ ”position, front headlight and rear small light are
lightened.
(c)、When ignition switch is at “ON” position and lamplight main switch is
turned to “ ”position, press down lamplight main switch handle,
headlight changes to far light from close light; raise lamplight main
switch handle, headlight changes to close light from far light;
(d)、When ignition switch is at “ON” position and lamplight main switch is at
“OFF” position, raise lamplight main switch handle(feeling elastic), high
beam illumines, and high beam extinguishes after releasing the handle.
(e)、When ignition switch is at “ON” position, press the red button switch at
the front of combination switch cover, warning light will flash; and pull
out button switch, warning light will extinguish.

UTV500CC User’sManual www.UTVsFactory.com
17
(f)、When ignition switch is at “ON” position, turn lamplight main switch
handle anticlockwise, left steering light will flash; and turn lamplight
main switch handle clockwise, right steering light will flash.
(g)、When ignition switch is at “ON” position, step down brake pedal, brake
light will illumine.
⑤Horn button
Press down horn button on steering wheel (anyone of these two), loudspeaker will
hoot.
⑥Accelerator pedal and brake pedal
At the front of driver’s right foot, the left one is brake pedal, right one is
accelerator. farmer vehicle will start going or accelerating by stepping down the
accelerating pedal when gear pole is in “L”,“H”or“R”position.

UTV500CC User’sManual www.UTVsFactory.com
18
⑦Parking brake handle
When pulling up parking brake handle, rear wheels will produce brake force to
prevent vehicle from sliding when vehicle is parked.
⑧Dump Bed
When need to dump, firstly, open the rear door of cargo box, then press main switch
to“O”position, and press down“UP”of “TRAILER”switch, at this time, cargo
box will be up backwards; And stop after releasing the press; while press down
“
““
“DOWN”
””
”on “TRAILER”switch, the cargo box will be back. And stop after
when release the press.
Warning:After parking the vehicle, pull up the hand brake bar. Push down the
handle before start moving. The hand brake can not be used to stop vehicle when
moving(except emergency).
Warning: Set the main switch back to “OFF” when finish dumping and winching in voi
d
being power wasting.
When cargo box reaches the top or bottom, please stop pushing the button at once in case to
dama
g
e the motor and switch.

UTV500CC User’sManual www.UTVsFactory.com
19
⑨4×2、4×4WD and differential locking exchangeable
When select “4X2”, it is rear wheel drive mode (this is the normal driving
mode). When select “4X4”, the front and rear wheels will be drove at same
times( normally, this drive mode will be used on muddy and rugged road. When select
“4X4 lock” mode, it is 4 wheel drive mode and also the front differential locked (this
drive mode only used on very rough road or when the car got stuck).
⑩Windshield and wiper(optional)
Clockwise turning the switch is the “Low” and “High” wiping speed. Anti-clockwise
turning to the bottom is “Off”.
N
ote:It will increase the wear and tear when use four wheel drive. Please use
two wheel drive on the normal road. In case to prolong the usage of the vehicle,
four wheel drive could only be used on muddy, slippery, snow or up-slope road.
Warning: 1. Engine is matched with stepless automatic clutch. There is no an
y
assistant unit in gear changing. So the vehicle must be stopped when change 2WD
from 4WD.
2. The corresponding gear position will be displayed on meter when
change gears. But sometimes this is not the meaning that the gear is in its position.
You just need step on the accelerator pedal lightly, and then the gear will be in its
position. (Please note that better do not step on pedal hard before the gear is in its
position in case to damage the transmission gear).

UTV500CC User’sManual www.UTVsFactory.com
20
VI、
、、
、Running-in of new vehicle
Cooperation between the surfaces of each part of new vehicle is locating adjusting
and running-in phase, for surface friction of each part is big, the result of running-in
quality influences greatly using lifetime of farmer vehicle. In running-in period, please
implement strictly the regulation about speed limit, load limit and periodic maintenance
to reduce
1. Highest speed:
Running mileage Highest limit speed
Initial 800Km 40Km/h
800~1600Km 50Km/h
Exceed 1600Km 60Km/h
2. Accelerate and decelerate
It is necessary to avoid sudden and frequent acceleration and deceleration and
keep running in even speed in running-in period.
3. Heating engine before running
In running-in period, it is necessary to run at idling speed for 3-5 minutes after
starting engine to pre-heat engine, then start running after lubricating oil flows
on each friction surface.
4. Note engine cooling
In running-in period, it is necessary to note water temperature in engine to avoid
running in low temperature for long time and in high temperature without water,
this will strengthen abrasion and drag cylinder.
5. Check the loosing situation on each linking part of all bolts usually
Table of contents
